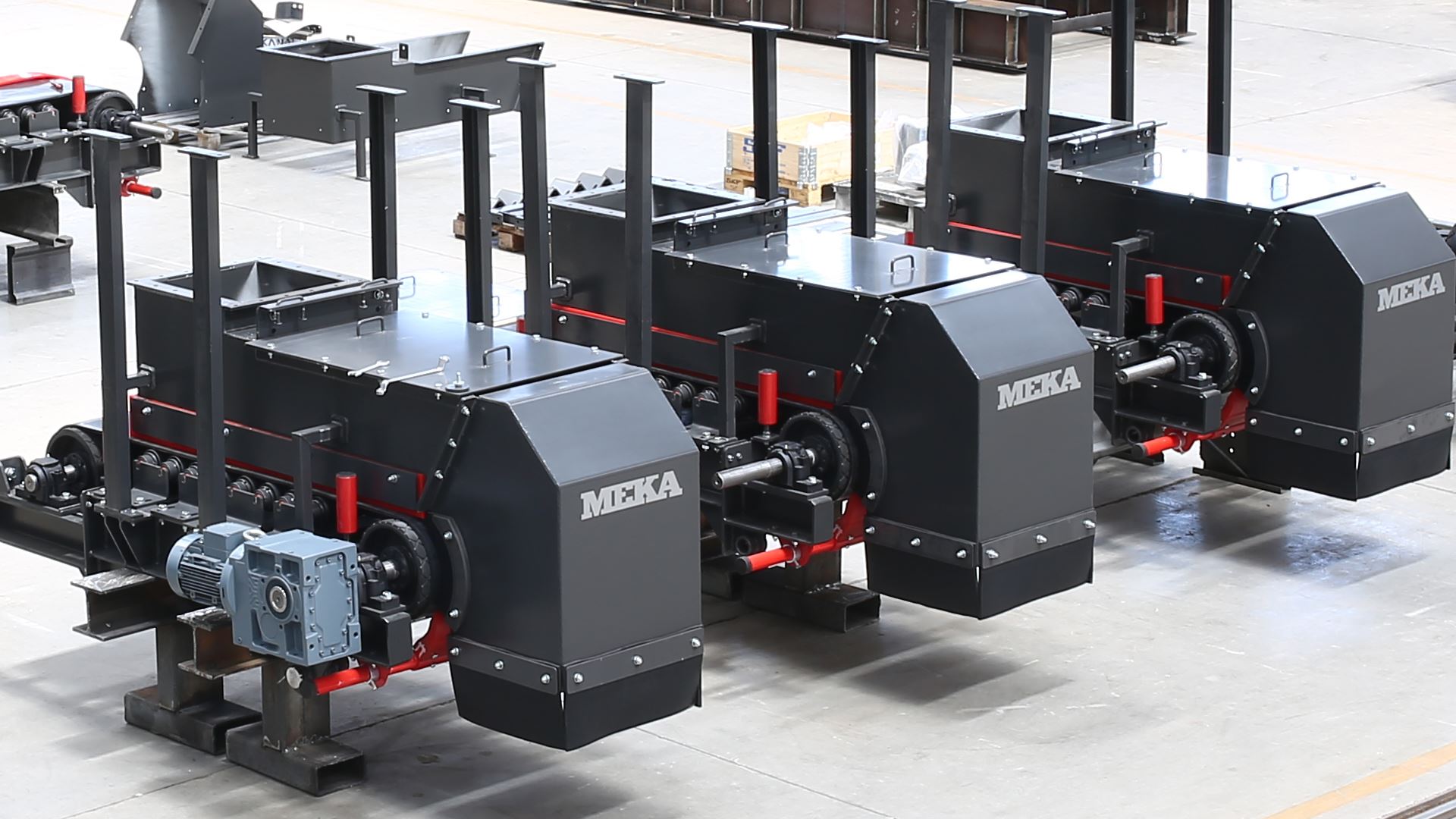

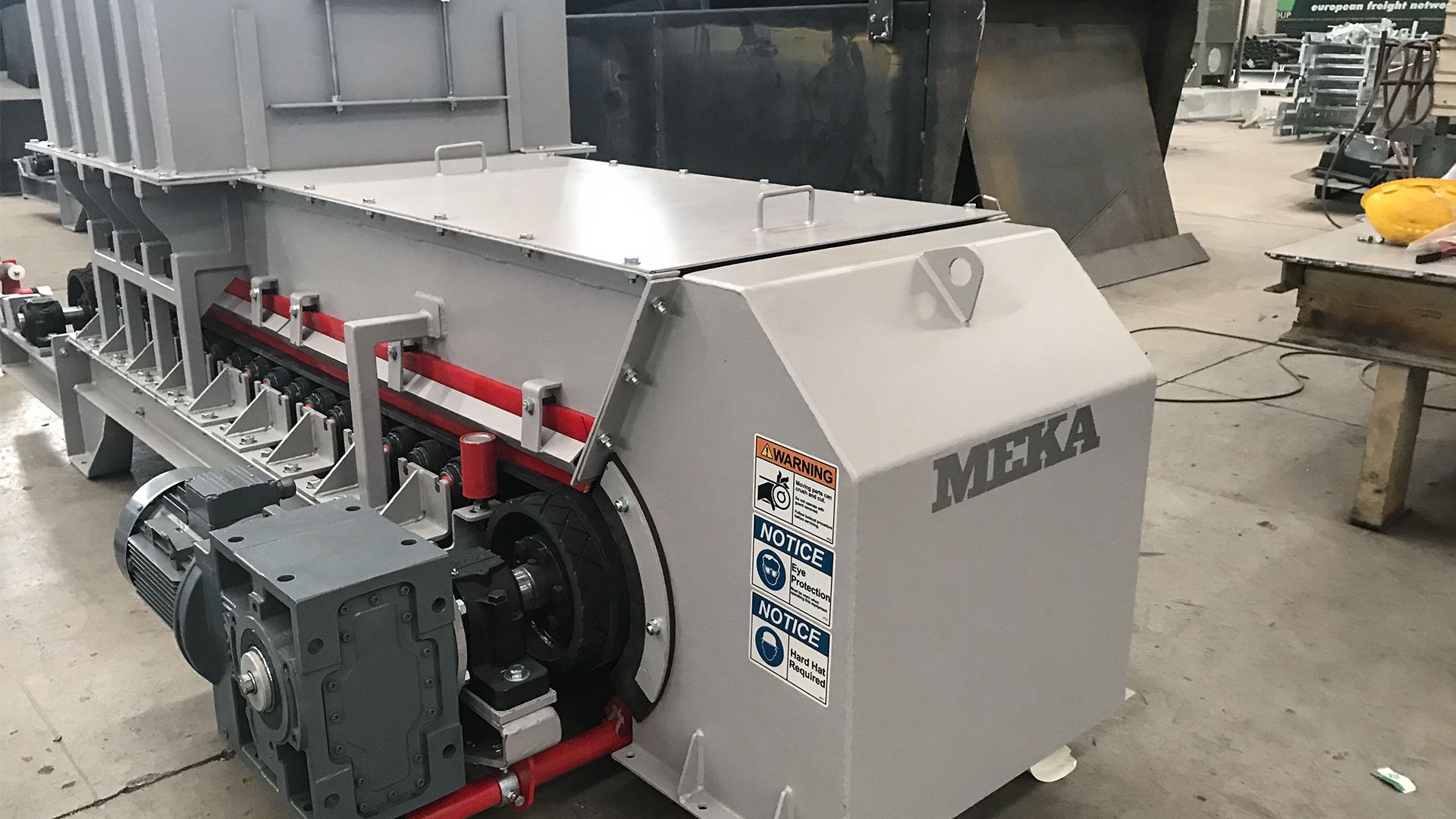

BELT FEEDERS

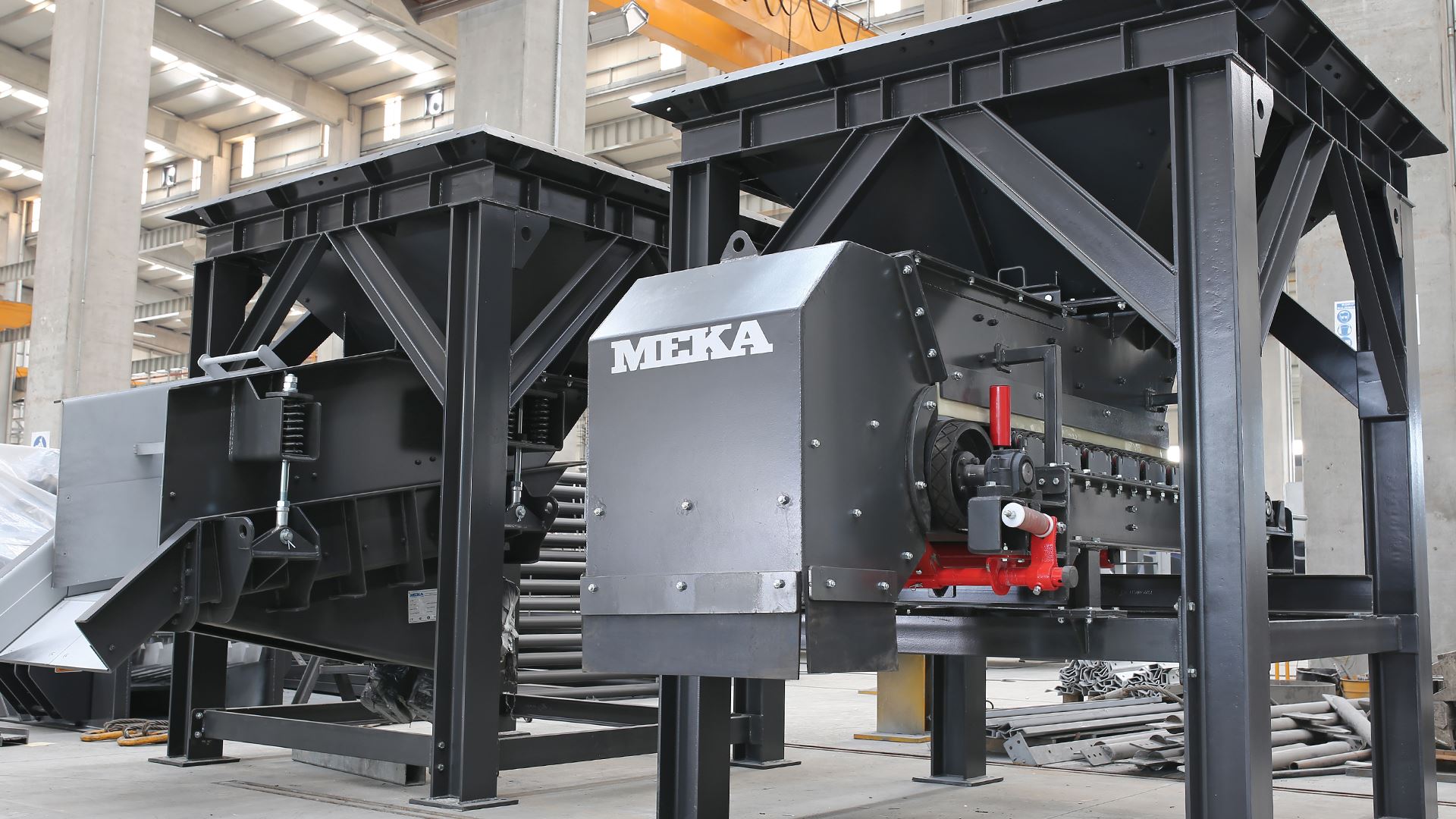

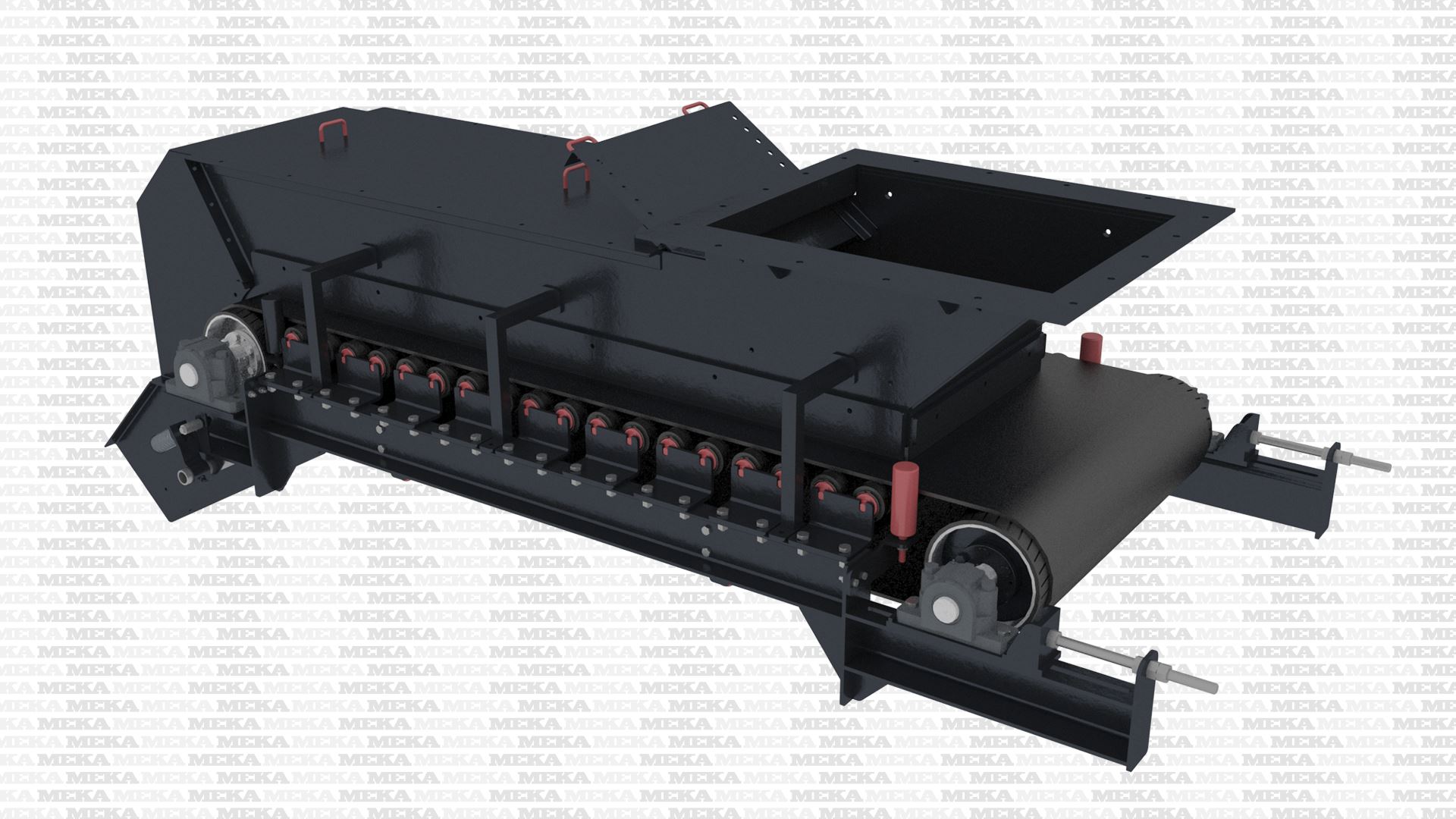

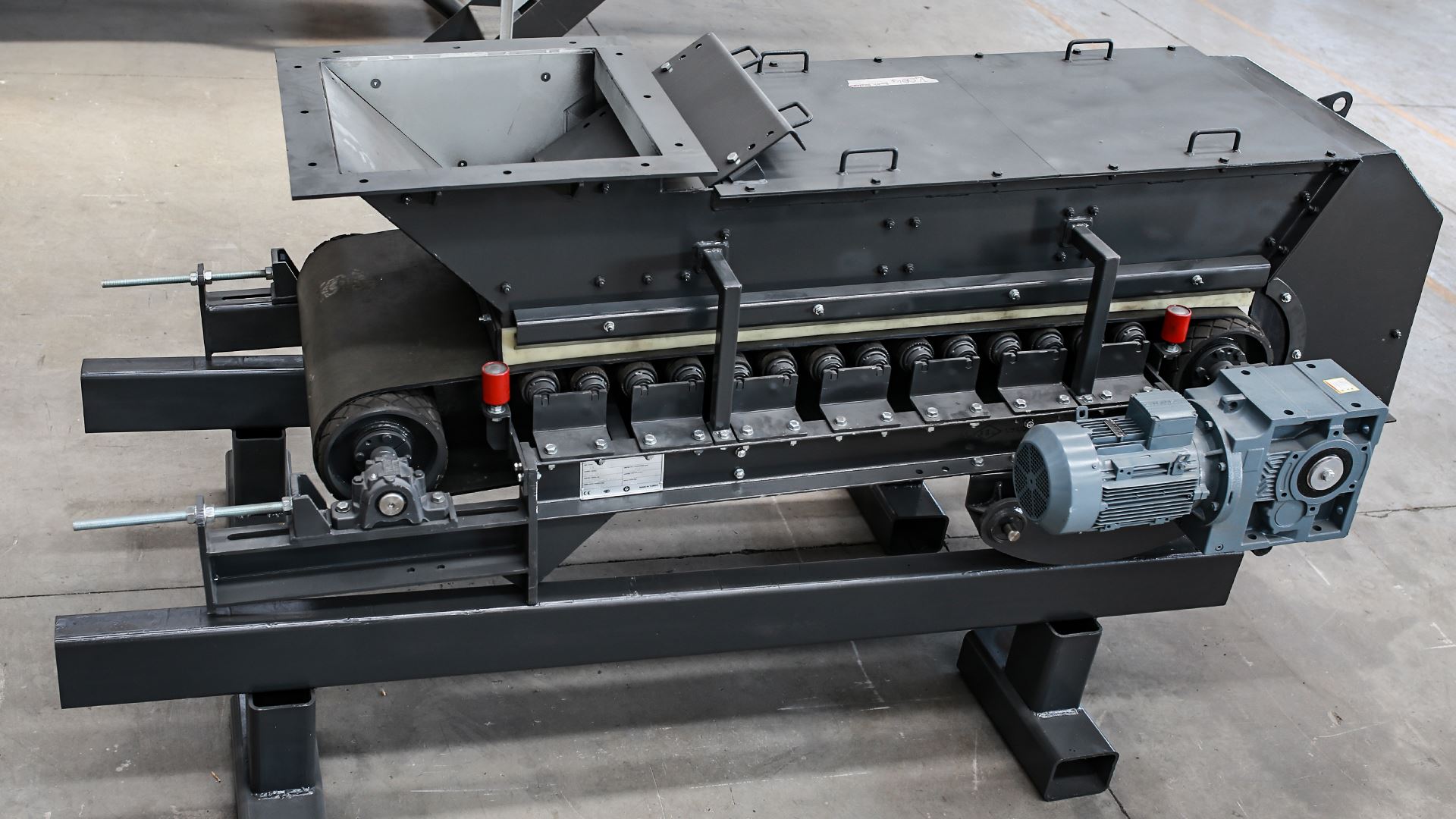

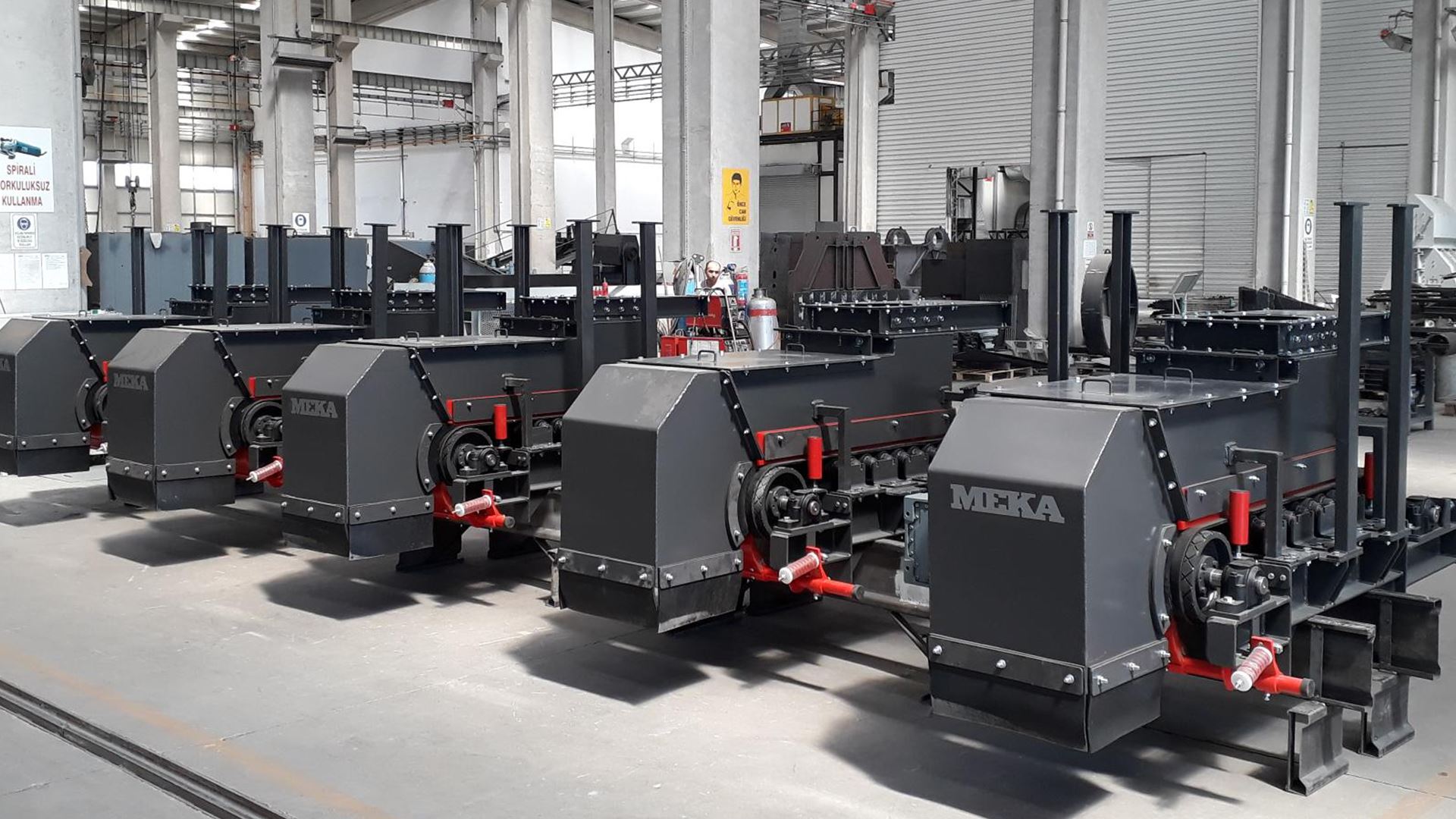

MEKA Belt Feeders are chosen for their outstanding life characteristics and durability in the harshest conditions. MEKA has developed belt feeders to suit the most demanding applications in the mining industry. Belt feeders are short belt conveyors that are specifically designed for material flow regulation, extracting material from one area and ensuring that downstream equipment receives the appropriate volume.

These short conveyors are employed to extract material under dump hoppers or surge bins and to provide the desired, continuous feed rate for screens,crushers, and conveyors.

Belt feeder design thus needs to consider all specific requirements determined by the material being moved, as well as capacity and geometry.

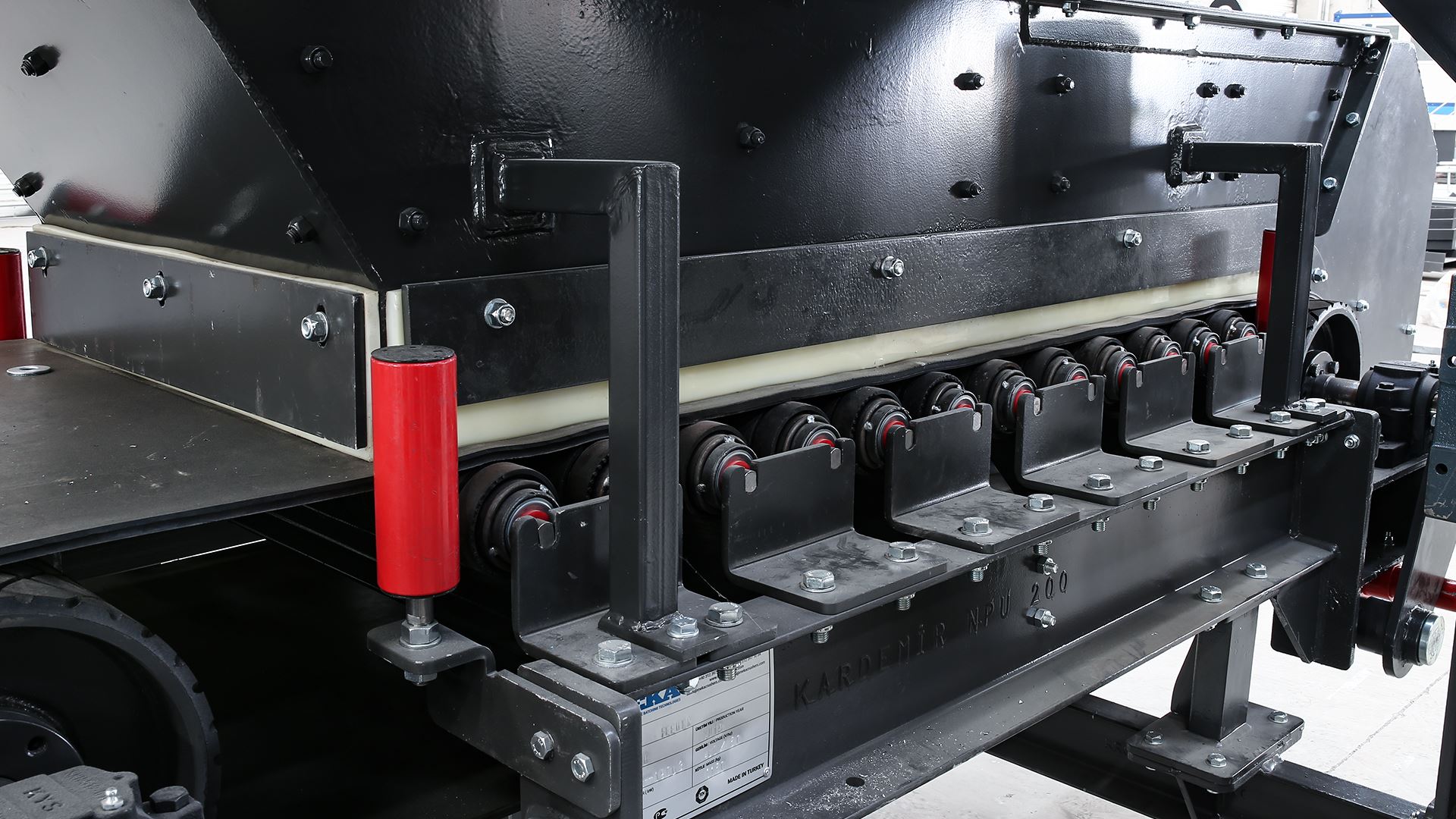

The rugged design and features such as robust heavy-duty idlers, frames, abrasion resistant liners and chute work help significantly increase service life.

Additionally, components are easy to access, which simplifies the maintenance process, so spare and wear parts can be quickly and easily replaced with minimal downtime.

We also offer a wide range of additional features and services for these feeders to enable maximum efficiency of your operations.

• Belt speed range: 0.01 - 0.6 m/s (i.e. adjusted when drive components selected, or with optional frequency converter)

• Material height adjusting gate range: selected based on the biggest lump size of the handled material and can be adjusted typically 75 - 120 mm from factory preset value

• Installation inclination: standard horizontal,

• Mounted from structures above

• Oil bath lubrication in gearbox, idlers prelubricated for lifetime, housings grease lubrication

• Feeder components are of heavy duty type

• Welded frame including heavy steel profiles Belt tightening is maintained by screw take-up device,

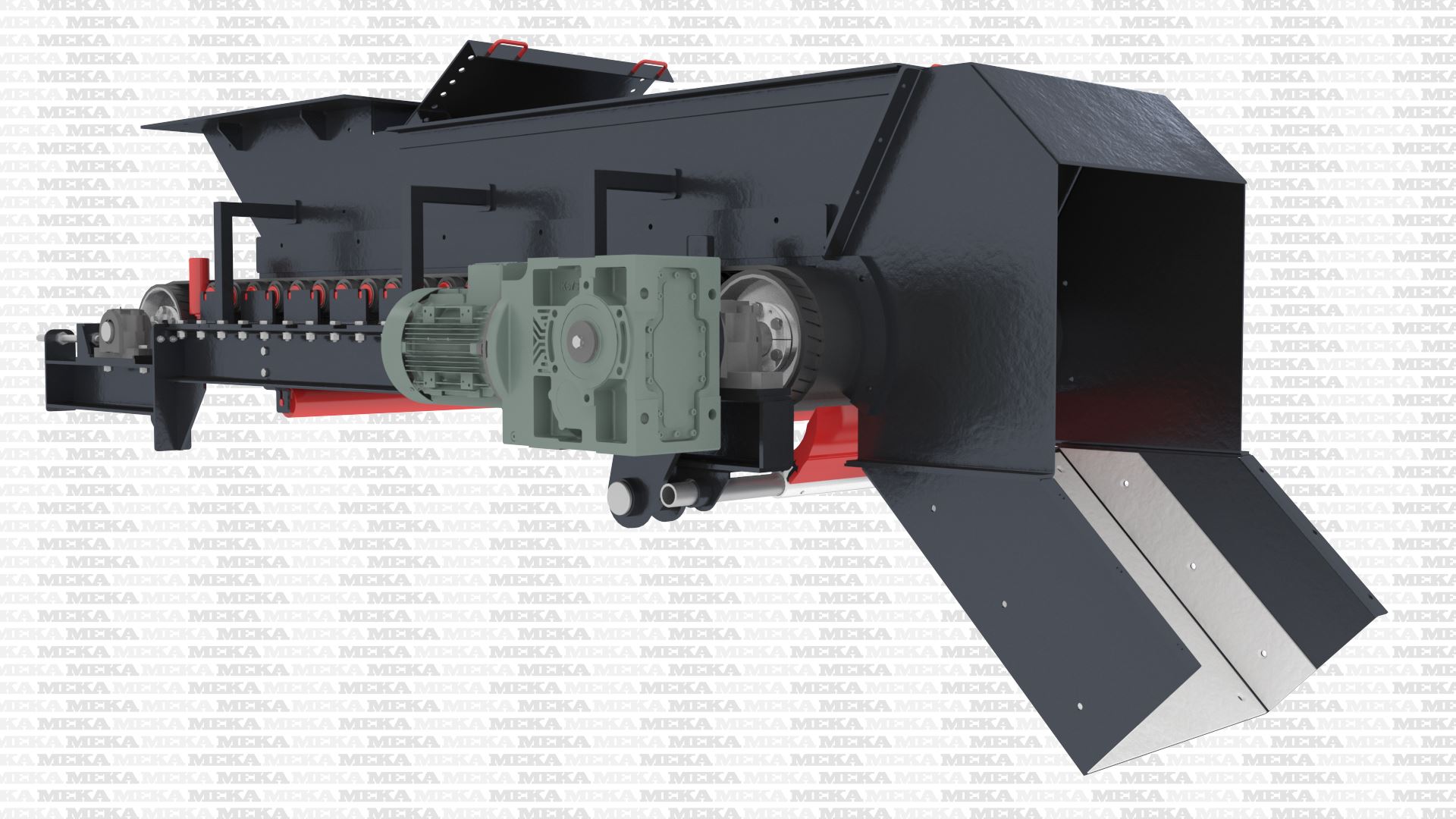

• Power transmission through bevel hollow shaft gear, or planetary gear directly from motor

TECHNICAL SPECIFICATIONS

BELT FEEDERS TECHNICAL SPECIFICATIONS

metric imperial	MBF 6515	MBF 8020	MBF 8025	MBF 1020	MBF 1025
W x L (mm) W x L (inch x feet)	650x1545 26x5	800x2100 31x7	800x2540 31x8	1000x2100 40x7	1000x2540 40x8
Drive (kW) Drive (HP)	2.2 3	4 5.5	4 5.5	5.5 7.5	5.5 7.5
Capacity (mtph) Capacity (stph)	250 275	350 385	350 385	450 495	450 495
Belt Speed (m/sec) Belt Speed (ft/min)	0.35 69	0.35 69	0.35 69	0.35 69	0.35 69

"At specified inclination and 1.6 t/m3. Capacities depend not only on feeder size but also on feeder inclination, feed gradation, etc. Feeders can be supplied in lengths to suit customers’ requirements.“
