The portable primary impact crusher and screen plant is a single portable unit capable of producing 2 -3 products where the crusher works in closed circuit with the screen.
-
PRODUCTS
-
Ready Mix Concrete Plants
- READY MIX CONCRETE PLANTS HOME
- MOBILE CONCRETE BATCHING PLANTS
- COMPACT CONCRETE BATCHING PLANTS
-
STATIONARY CONCRETE BATCHING PLANTS
- STATIONARY CONCRETE BATCHING PLANTS HOME
- K60 STATIONARY CONCRETE BATCHING PLANT
- K90 STATIONARY CONCRETE BATCHING PLANT
- K120 STATIONARY CONCRETE BATCHING PLANT
- K135 STATIONARY CONCRETE BATCHING PLANT
- K145 STATIONARY CONCRETE BATCHING PLANT
- K160 STATIONARY CONCRETE BATCHING PLANT
- K200 STATIONARY CONCRETE BATCHING PLANT
- DRY BATCH CONCRETE BATCHING PLANTS
- PRECAST CONCRETE BATCHING PLANT
- RCC CONCRETE BATCHING PLANTS
- Concrete Mixers
- Concrete Plants Components
-
After Sales Services and Spare Part
-
Concrete Batching Plant Automation System
MEKA Global has been a leading manufacturer of concrete batching plants, equipment, and crushing and screening solutions -
Ready Mix Concrete Plants
Portable Impact Crushing Plants

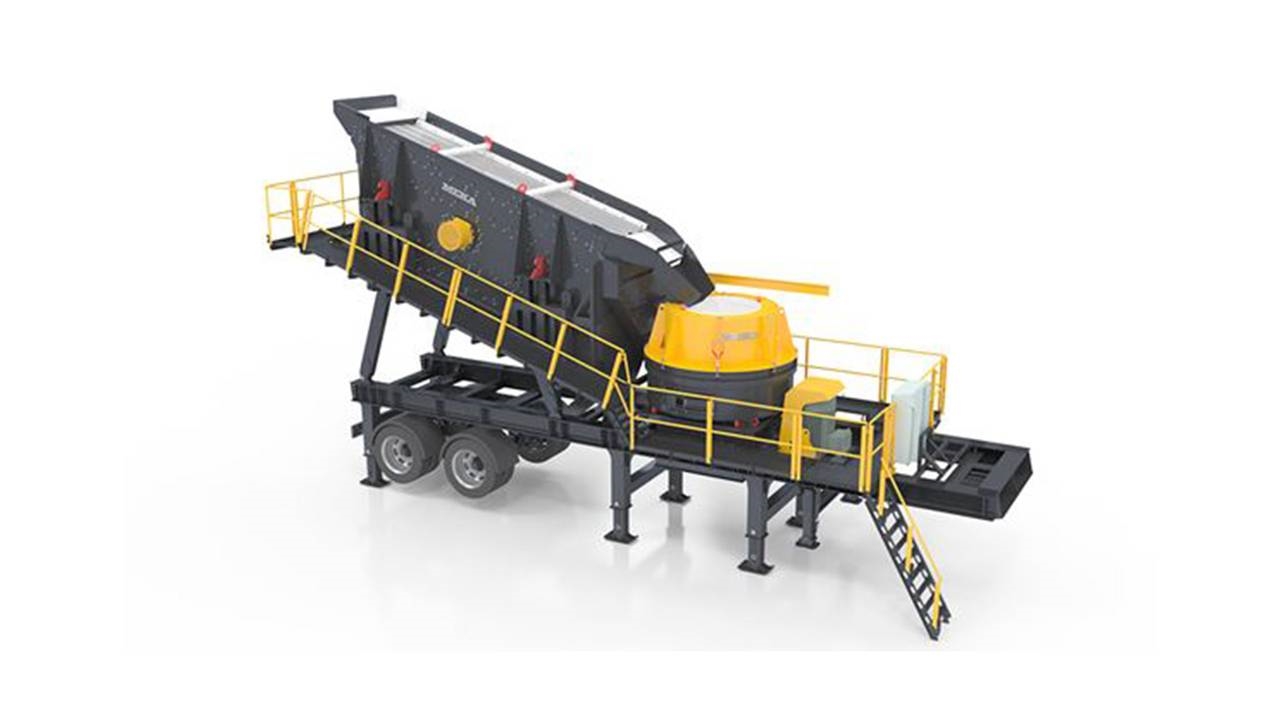

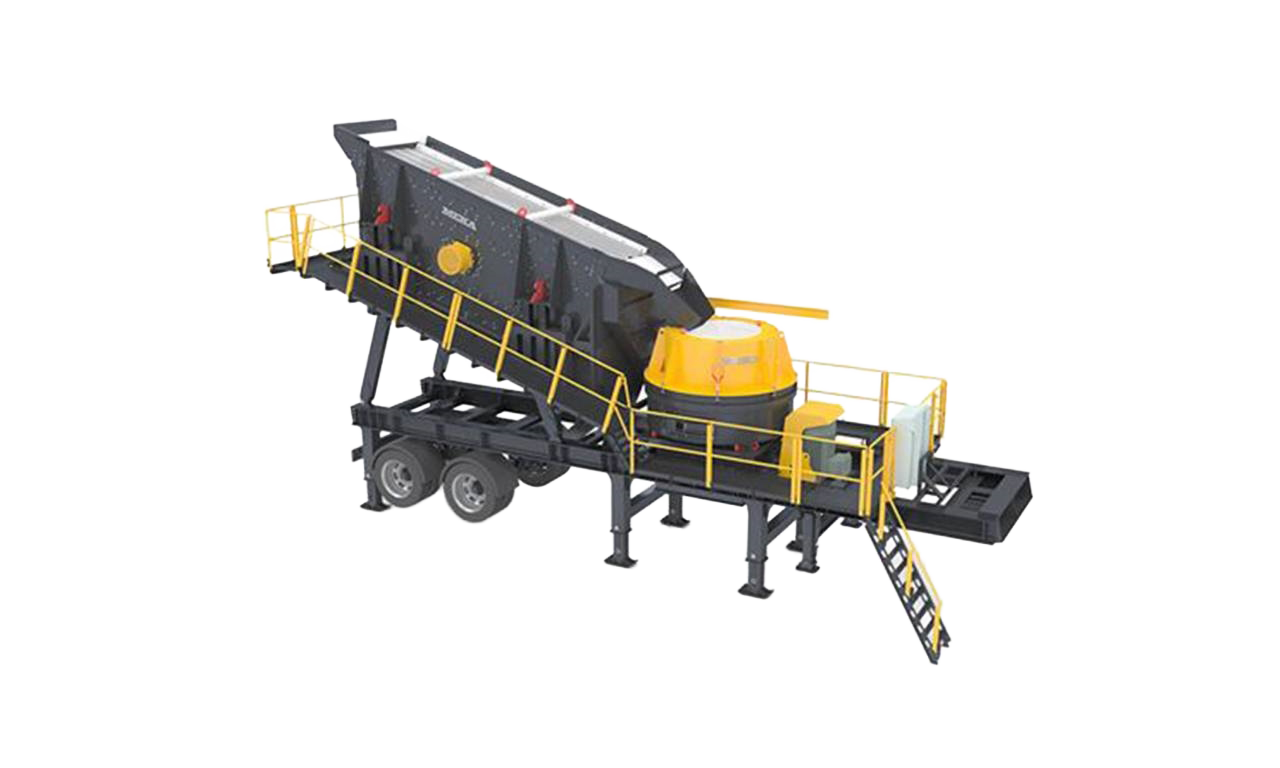

MEKA Portable Impact Crushing plants are wheel-mounted rock crushing machines, engineered to operate as a complete stand-alone closed-circuit unit with two or three products capability. Featuring the MGF type grizzly feeder, highly reliable and productive MPI Impactor for primary crushing, closed circuit belt conveyors for excellent feed to the MS type screen, it offers a highly versatile, highend capacity plant capable of processing cubical products at a low cost-per-tonne operation.
Applications
Portable Impact Crushing plants are an extremely versatile and economical unit and has proven it’s effectiveness in a host of missions like crushing soft and medium-hard materials such as limestone, low abrasive rocks, for quarrying, concrete and asphalt recycling and are the optimal choice if you want to move the crushing plant from one site to another periodically. They are easily transportable between production sites and often utilized in aggregates production and recycling applications.
Why MEKA Portable Impact Crushing Plants?
Efficient fines removal : By-pass chute to divert grizzly fines to discharge or optional reject cross conveyor for removing of fines, thereby maximizing throughput and reducing wear,
Maximized loading : With large unobstructed feed opening, crusher can be fed with material blocks the size of their feed opening,
Versatality : Highly efficient and accurate on board 2 or 3 deck screen for product classification, fitted with flap gates to optimize the quality and capacity in different applications,
Ease of operation and maintenance : Quick and easy replacement of wear parts, which keeps your equipment productive with minimal downtime,
Self contained electrical switchgear cabinet mounted on the semi-trailer, with controls for feeder, crusher, screen and belt conveyors.
Electrical switchgear cabinet can be located on the ground during operation,
2” / 3 ½” King-pin, triple-axle bogie with air-brakes, ABS and travel lights, mudflaps.
Portable Impact Crushing Plants Technical Specifications
MP 1111-S |
MP 1114-S |
||
| FEEDER | |||
| Model | MGF 1152 | MGF 1460 | |
| Width | 1 100 mm | 1 400 mm | |
| Length | 5 200 mm | 6 000 mm | |
| Grizzly Length | 2 x 1000 mm | 2 x 1400 mm | |
| Grizzly Gap Adjustment | 40 - 50 - 65 mm | 55 - 65 - 95 mm | |
| Motor Power | 2 x 10 kW | 2 x 14 kW | |
| Hopper Volume | 10 m³ | 12 m³ | |
| PRIMARY IMPACT CRUSHER | |||
| Model | MPI 1111 | MPI 1114 | |
| Rotor Dimensions | Ø 1 100 x 1 070 mm | Ø 1 100 x 1 400 mm | |
| Maximum Feed Size | 600 mm | 600 mm | |
| Capacity* | up to 200 mtph | up to 350 mtph | |
| Motor Power | 160 kW (50 Hz) | 200 kW (50 Hz) | |
| SCREEN | |||
| Model | MS 1650/2 | MS 2050/2 | |
| Width | 1 600 mm | 2 000 mm | |
| Length | 5 000 mm | 5 000 mm | |
| Decks | 2 | 2 | |
| Motor Power | 15 kW | 15 kW | |
| UNDER CRUSHER CONVEYOR | |||
| Belt Width | 800 mm | 1200 mm | |
| Length | 14 000 mm | 14 000 mm | |
| Motor Power | 15 kW | 18,5 kW | |
| SCREEN BOTTOM CHUTE CONVEYOR | |||
| Belt Width | 1 400 mm | 1 600 mm | |
| Length | 5 000 mm | 5 000 mm | |
| Motor Power | 2 x 4 kW | 2 x 5.5 kW | |
| CROSS CONVEYORS | |||
| Belt Width | 650 mm | 800 mm | |
| Length | 2 500 mm | 3 000 mm | |
| Motor Power | 4 kW | 5.5 kW | |
| RETURN CONVEYOR | |||
| Belt Width | 650 mm | 650 mm | |
| Length | 13 000 mm | 13 000 mm | |
| Motor Power | 11 kW | 11 kW | |
| TRANSPORT DIMENSIONS | |||
| Length | 20 200 mm | 20 200 mm | |
| Width | 3 400 mm | 3 600 mm | |
| Height | 4 300 mm | 4 300 mm | |
| Weight | 56 000 kg | 65 000 kg | |
| OPERATING DIMENSIONS | |||
| Length | 20 000 mm | 20 000 mm | |
| Width | 5 200 mm | 5 600 mm | |
| Height | 5 800 mm | 5 800 mm | |
*For material weighing 1.6 t/m³ or 100 lbs/ft³.
Capacity values are indicative only, crusher performance may vary depending on the feed gradation, feed moisture content,crushability of the material, crusher rpm, installed power and the crushing circuit design.
Portable Impact Crushing Plants Gallery
What is Portable Impact Crushing Plant?
The mobile primary impact crusher and inclined screen plant is a portable unit which consists of feed hopper, grizzly feeder and primary impact crusher and screen on the same trailer chassis. One deck screen can be added to grizzly feeder as an option to remove the fine material. They are complete processing plants with high reduction ratios used for the production of 2-3 sizes of aggregate or sub-base.
Types of Portable Impact Crushing Plants
How Does Portable Impact Crushing Plants Work?
Advantages of Using Portable Impact Crushing Plants
Portable Impact Crushing Plants Processes Applications
Sizes bigger than the grizzly opening of the feeder in the feed materail enters the crushing chamber of the crusher and is crushed by the impact of the blowbars on the rotor of the crusher and by hitting the breaker plates opposite of rotor. The crushed material is sent to the screen to classify the product and the oversize is returned to the crusher for further size reduction.
In addition to the general advantages of the impact crusher like high capacity, cubical end products in the primary stage, the advantages of being portable are as follows;
Compact design: Possibility to produce 2-3 finished products with a single unit.
Ready for operation: Can be commissioned and started up quickly.
No concrete works: No need for much concrete and site preparation.
Quick and easy site change for another project
Portable impact crusher and inclined screen combined plants are suitable for crushing soft to medium hards, low abrasive rocks to produce 2-3 end products.
