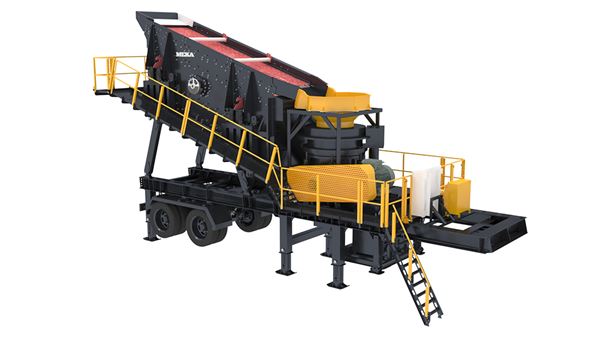

Portable Cone Crushers
Portable Cone Crushers are complete integrated wheeled processing units, featuring high production MCH Cone Crushers and high capacity 2,3 or 4 deck MEKA MS screens. The material can be fed by separate conveyor belt from the primary crusher or through a separate feed hopper either to the crusher or screen. Combined with the large vibrating screen for efficient and accurate screening, these units have proven to be the ideal solution for aggregates production and recycling at a low cost per tonne.
Applications
Ideal for applications involving hard, abrasive materials such as gravel, granite, quartzite etc, for the production of high quality aggregates, sand, heap leaching, industrial minerals and recycling applications and are the optimal choice if you want to move the crushing plant from one site to another periodically.
Why MEKA Portable Cone Crushers?
High capacity and excellent end product cubicity
Hydraulic Closed Side Setting System and overload protection for maximum uptime
Choice of several chambers, throws and settings for a wide range of applications
Highly efficient and accurate on board screen for product classification
Self contained electrical switchgear cabinet mounted on the semi-trailer, with controls for screen and crusher,
Electrical switchgear cabinet can be located on the ground during operation,
2” / 3 ½” King-pin, double or triple-axle bogie with air-brakes, ABS and travel lights, mudflaps.
Portable Cone Crushers Technical Specifications
MP 1150C-S |
MP 400CH-S |
||
| SCREEN | |||
| Model | MS 2050X3 | MS 1850X4 | |
| Width | 2 m | 1,8 m | |
| Length | 5 m | 5 m | |
| Decks | 3 | 4 | |
| Motor Power | 22 kW | 22 kW | |
| CONE CRUSHER | |||
| Model | MCH 1150 | MCH 400 | |
| Maximum Feed Size | 210 mm | 210 mm | |
| *Capacity | up to 340 mtph | up to 340 mtph | |
| Motor Power | 200kW (50 Hz) | 250kW (50 Hz) | |
| TRANSPORT DIMENSIONS | |||
| Length | 12.9 m | 12.7 m | |
| Width | 3.5 m | 3.2 m | |
| Height | 4.3 m | 4.3 m | |
| **Weight | 39 800 kg | 43 000 kg | |
| OPERATING DIMENSIONS | |||
| Length | 12.3 m | 12.3 m | |
| Width | 5.4 m | 5.4 m | |
| Height | 7.2 m | 7.2 m | |
*For material weighing 1.6 t/m³ or 100 lbs/ft³. Capacity values are indicative only, crusher performance may vary depending on the feed gradation, feed moisture content,crushability of the material, crusher rpm, installed power and the crushing circuit design.
**Weights shown do not include drive motor package, support legs, maintenance platform, inlet and outlet chutes

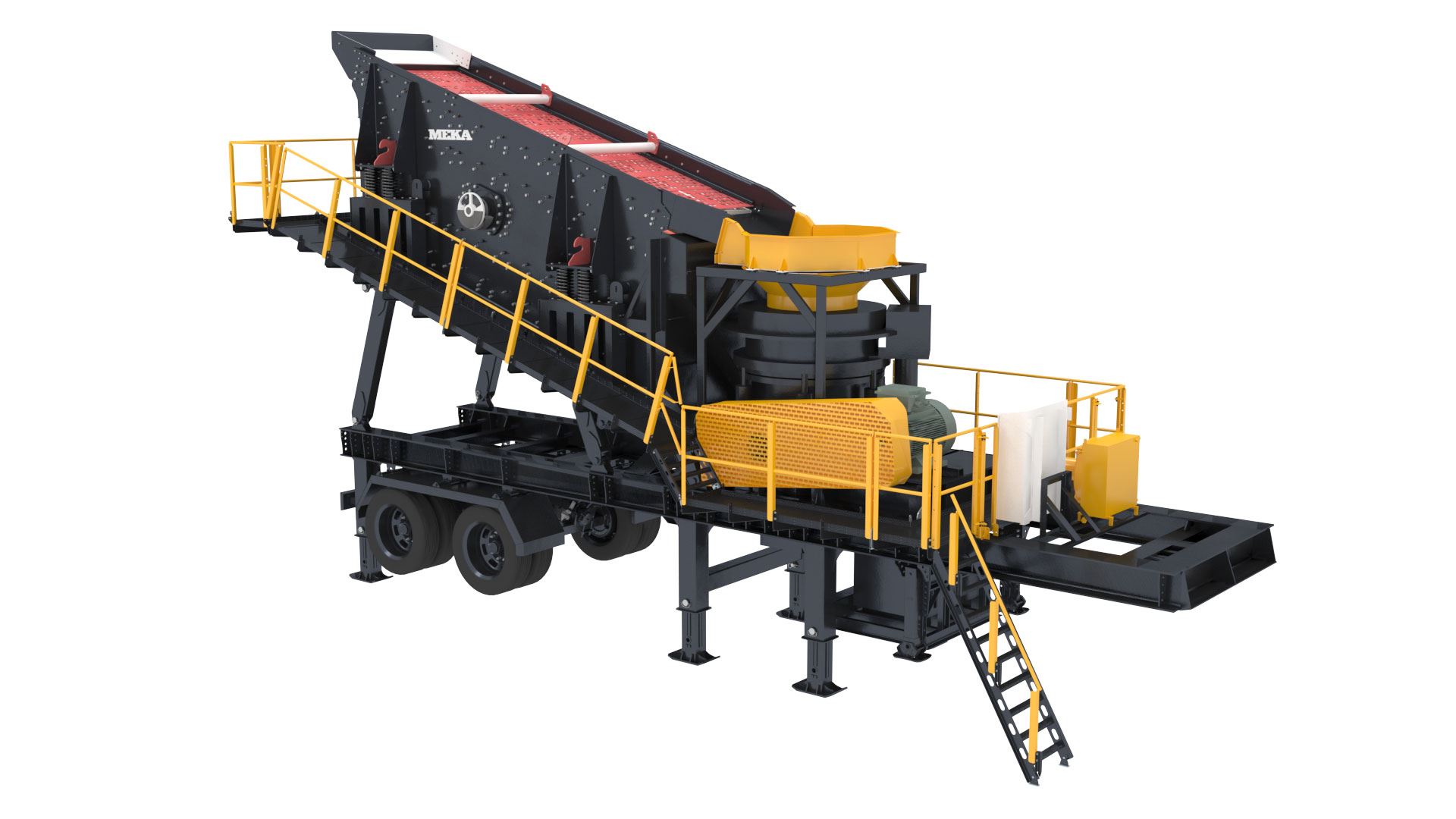

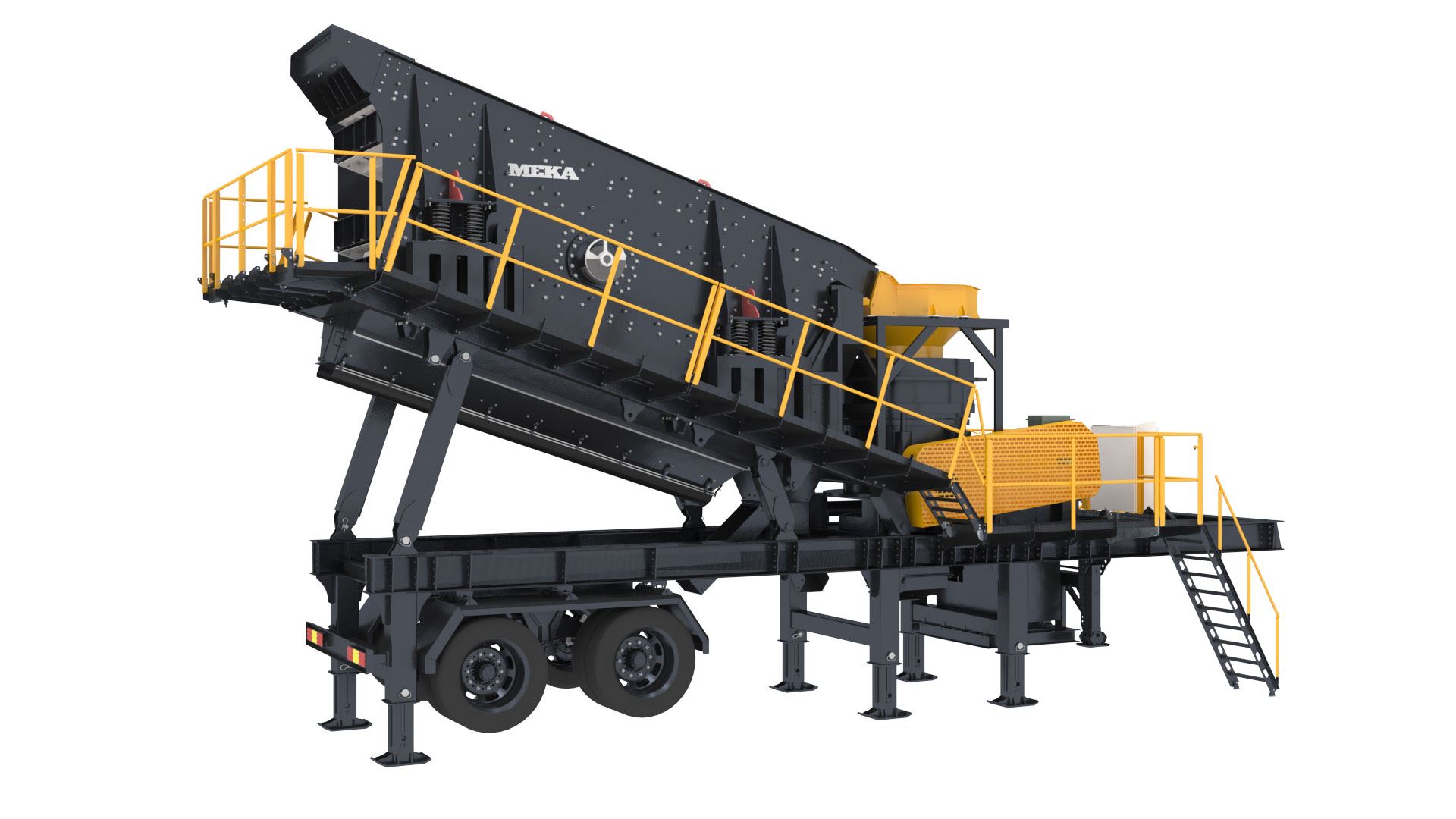

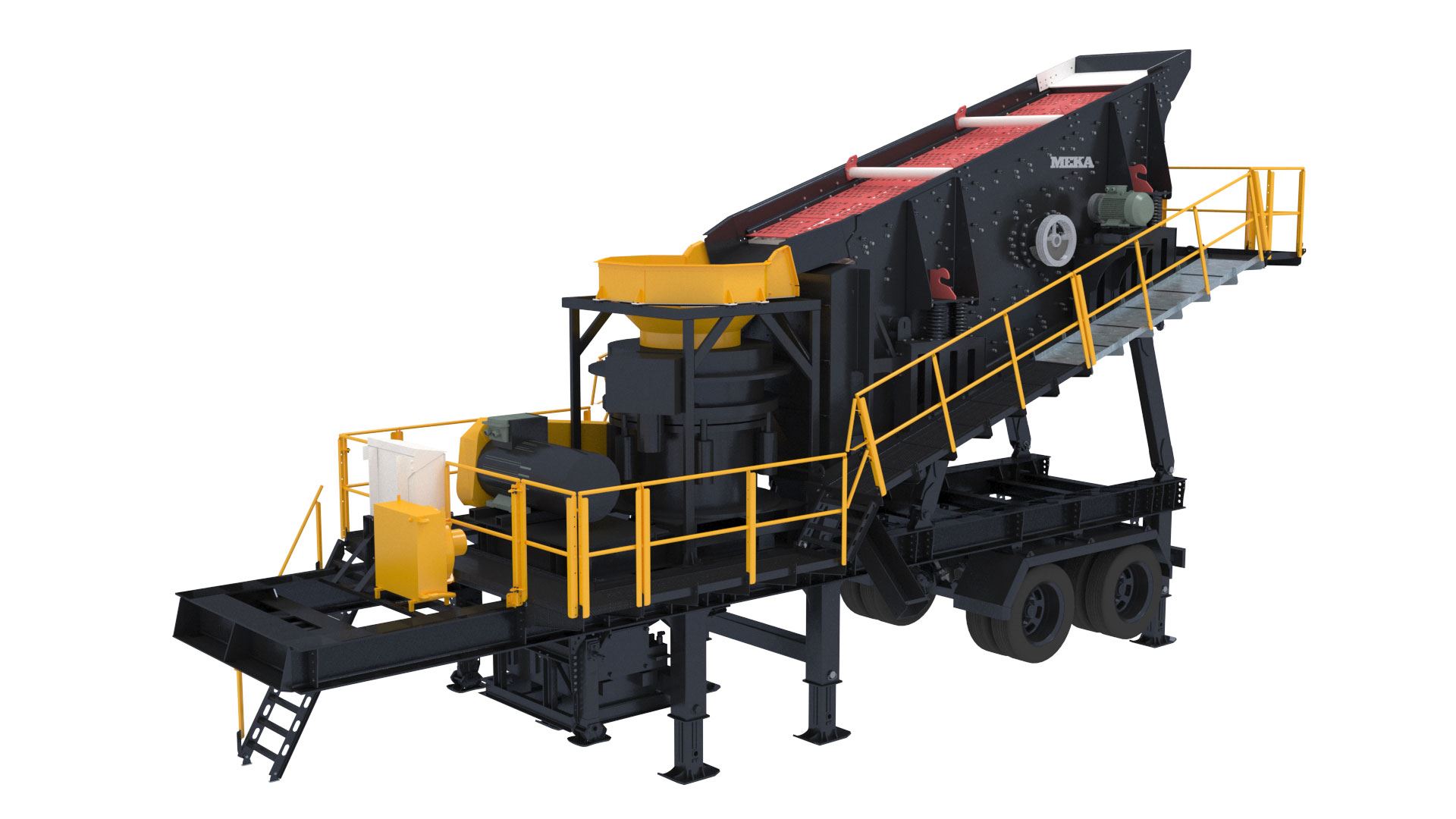

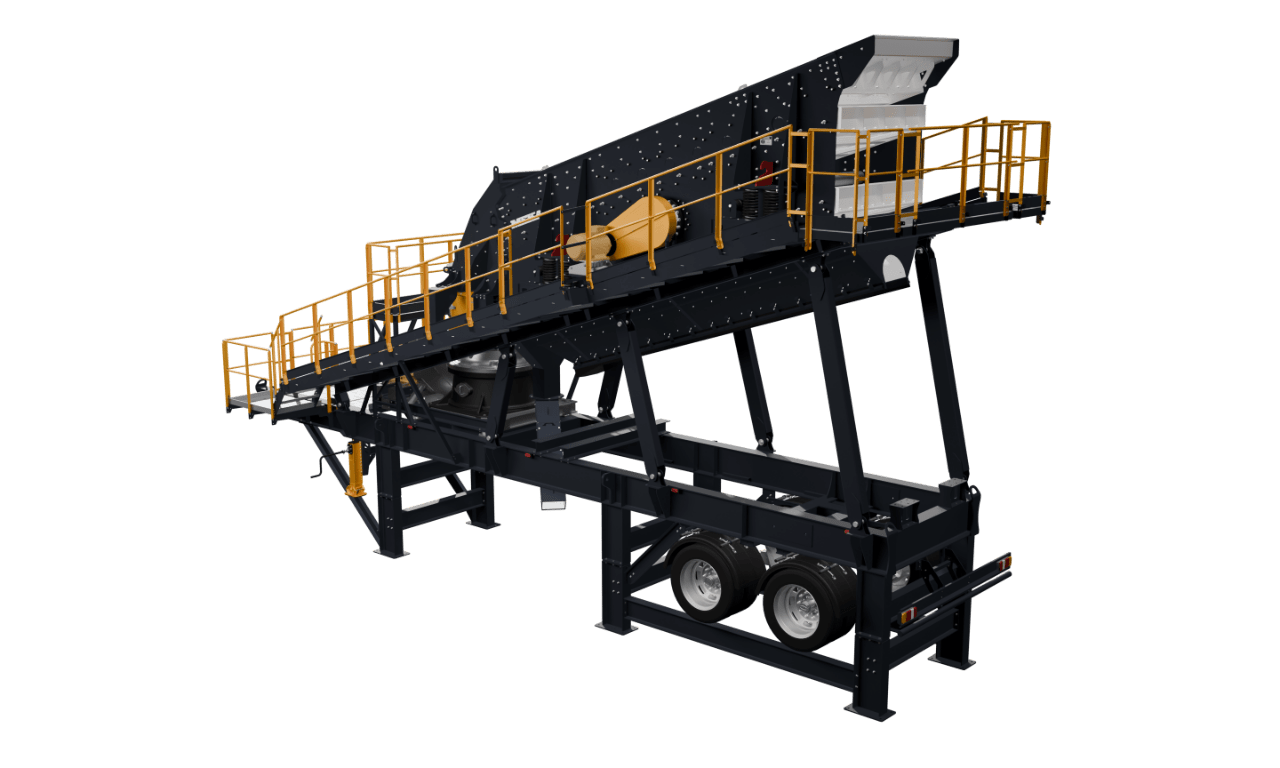

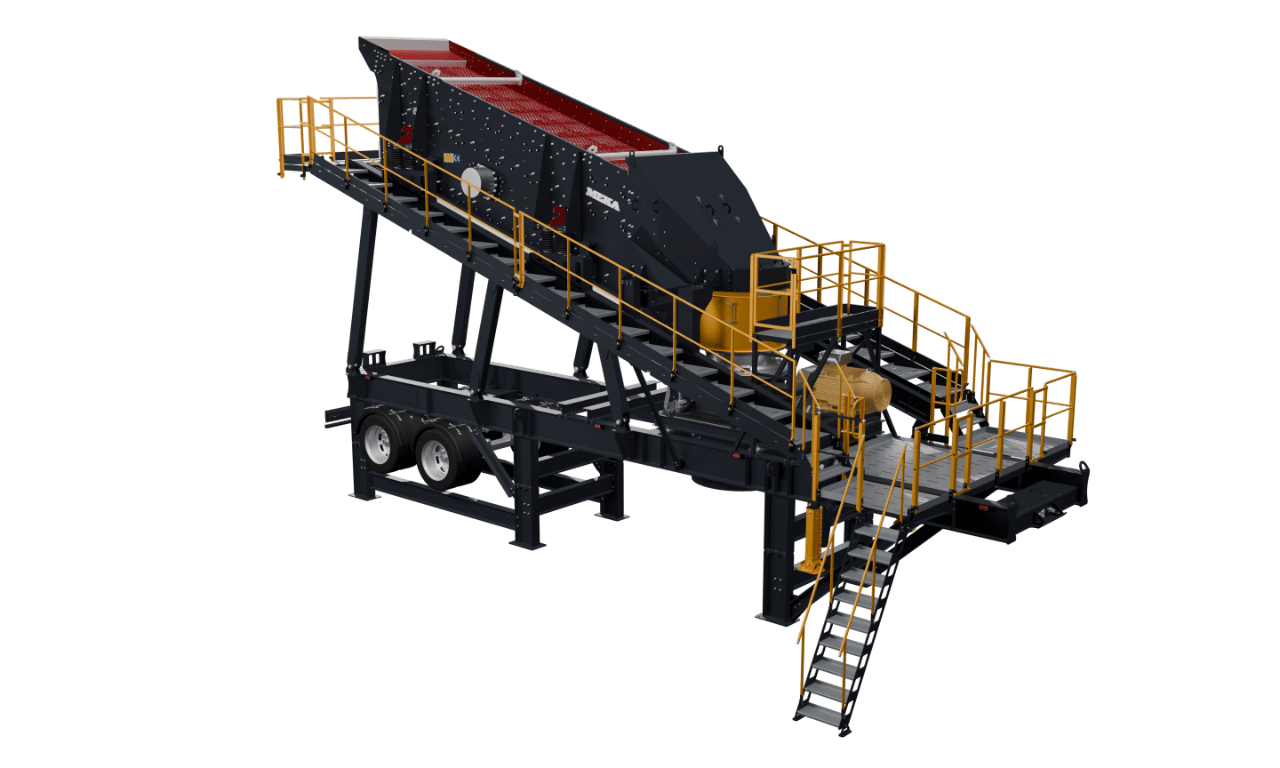

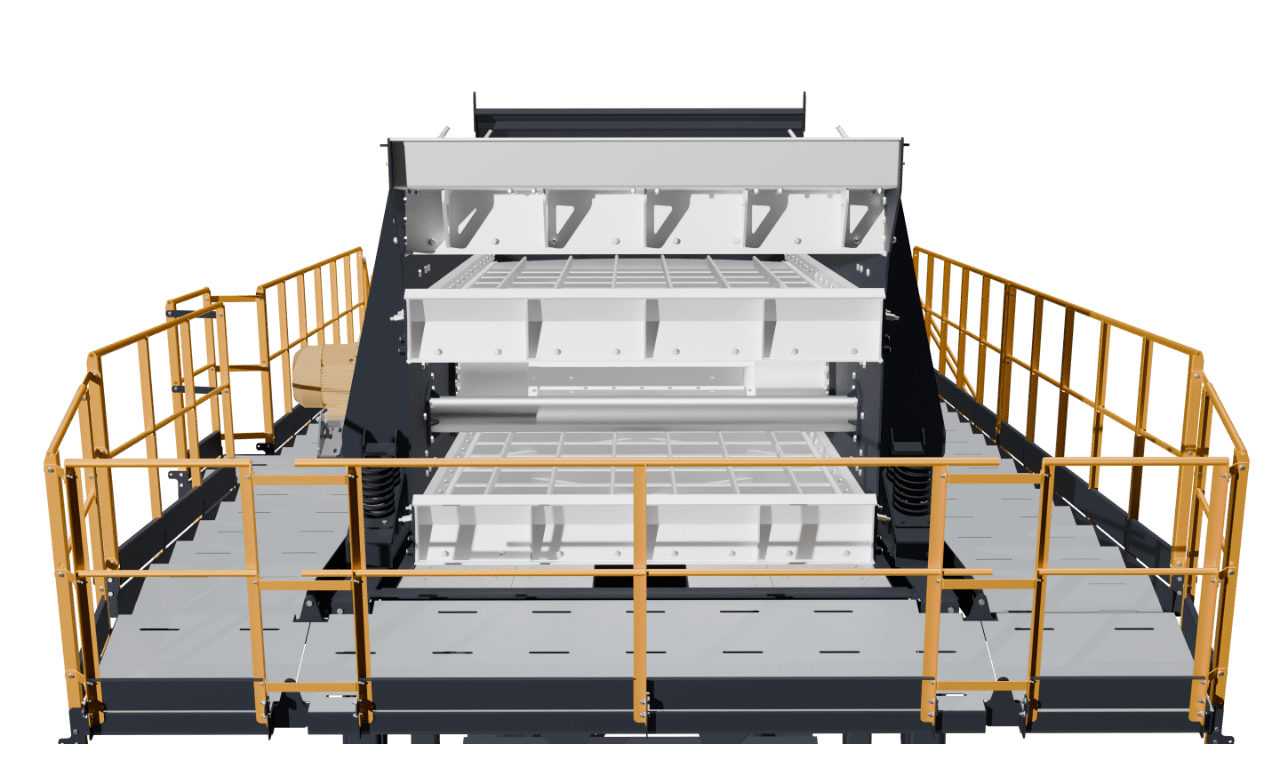

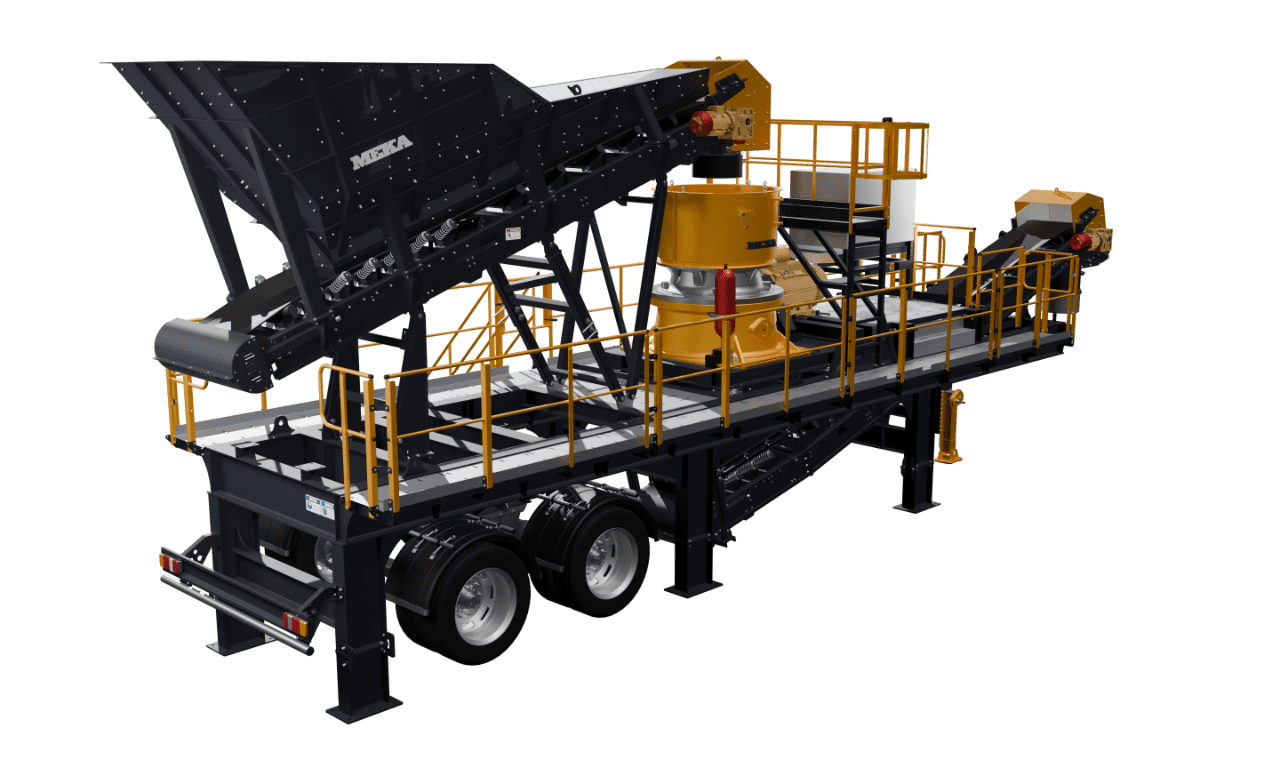

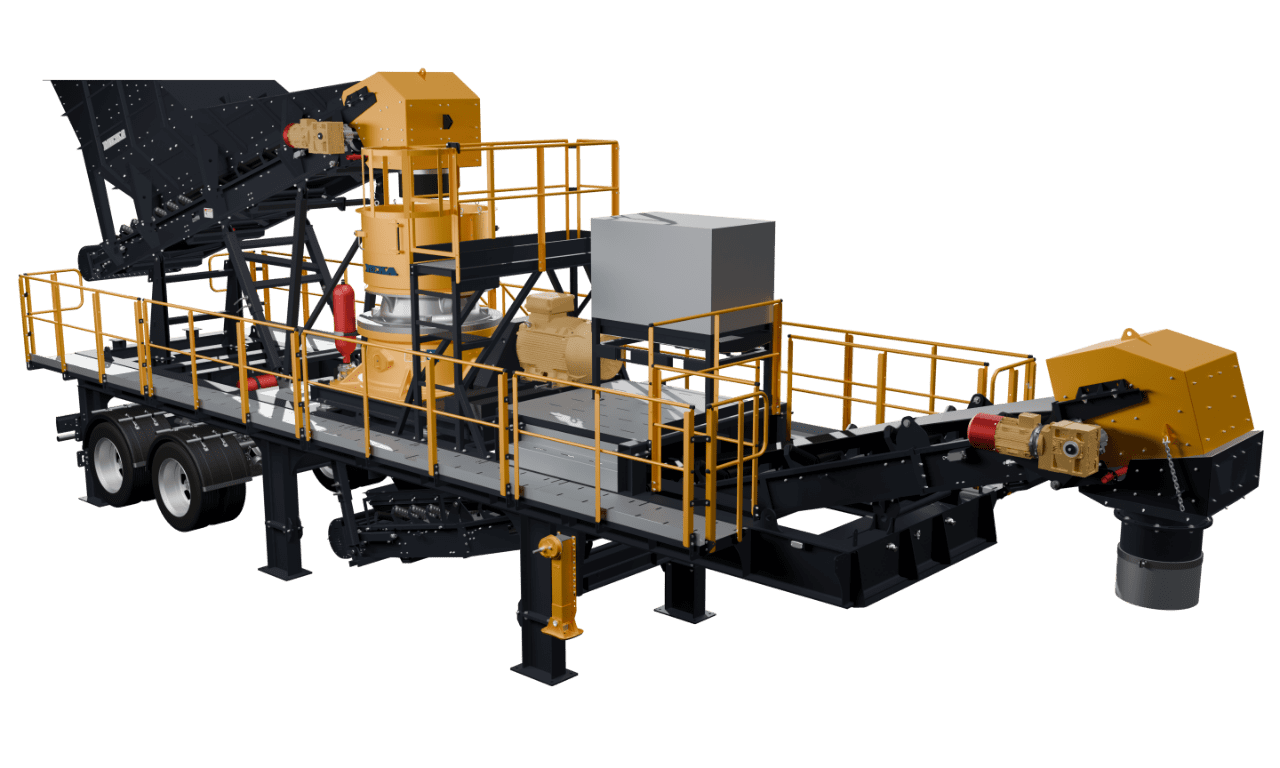

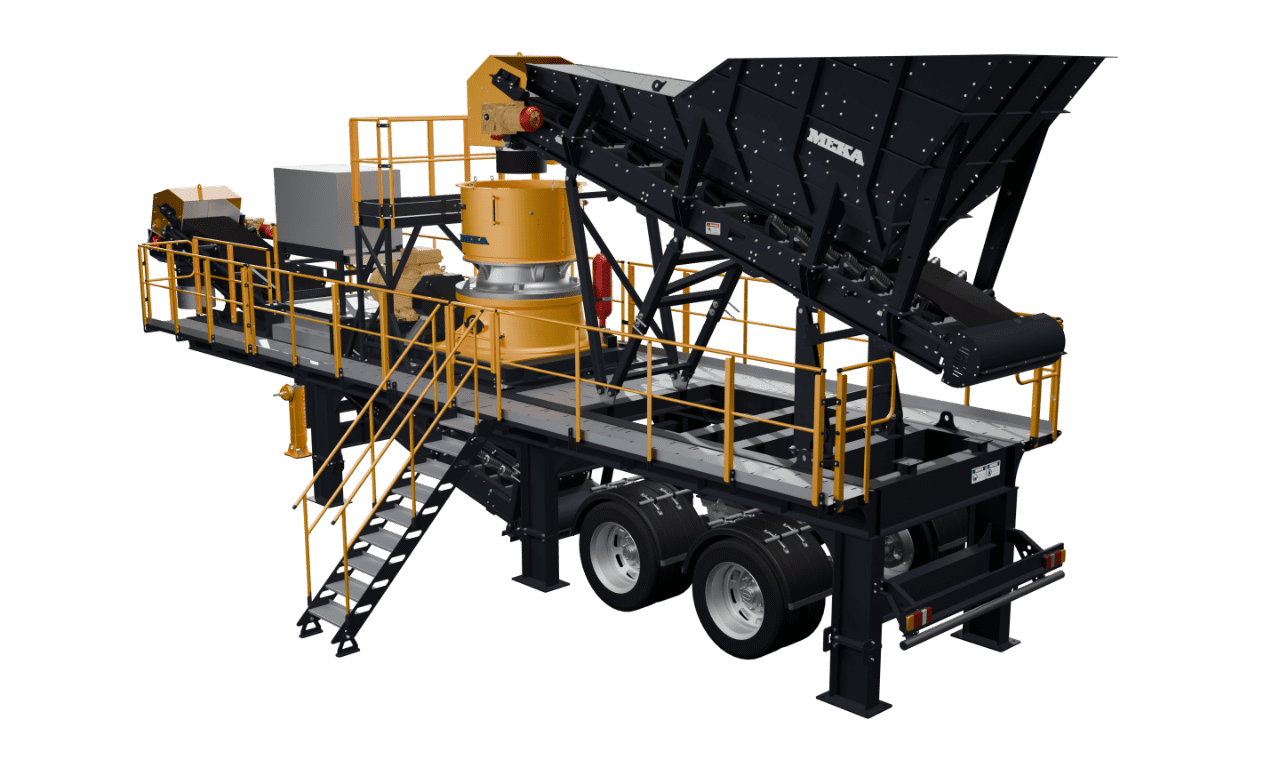

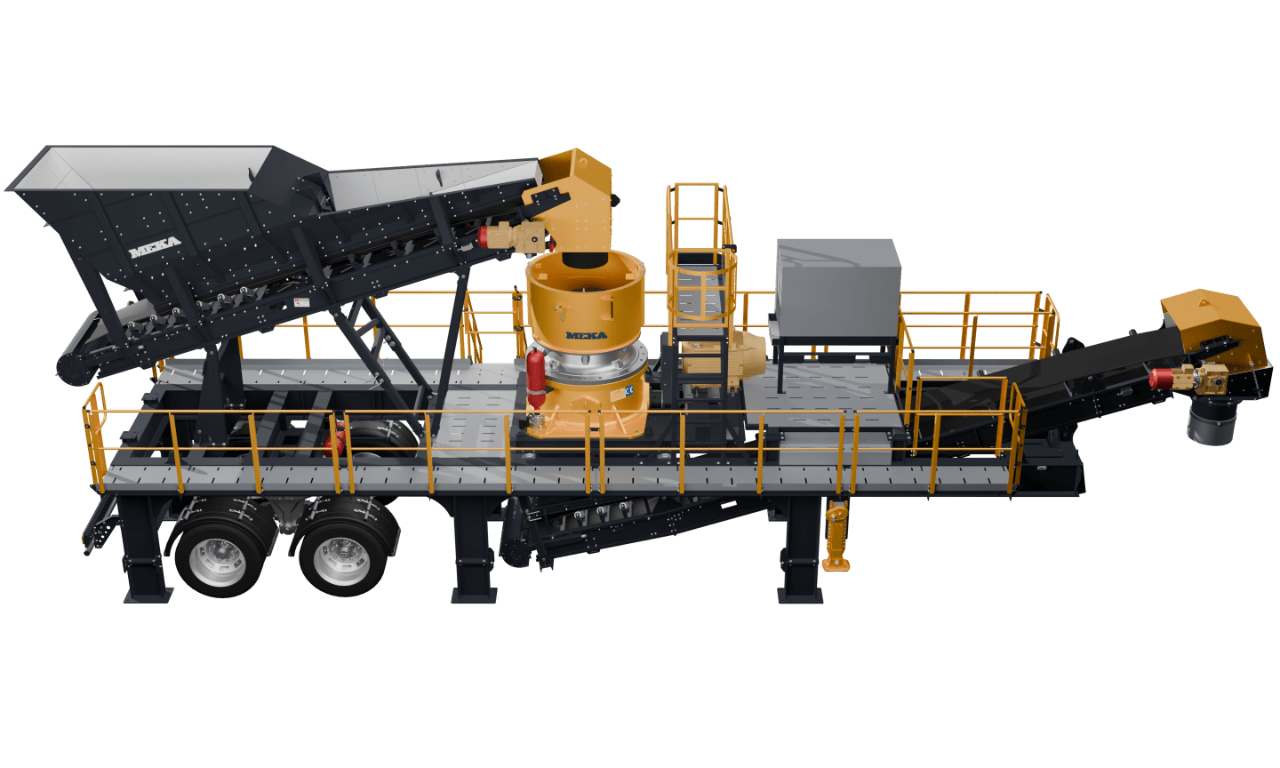

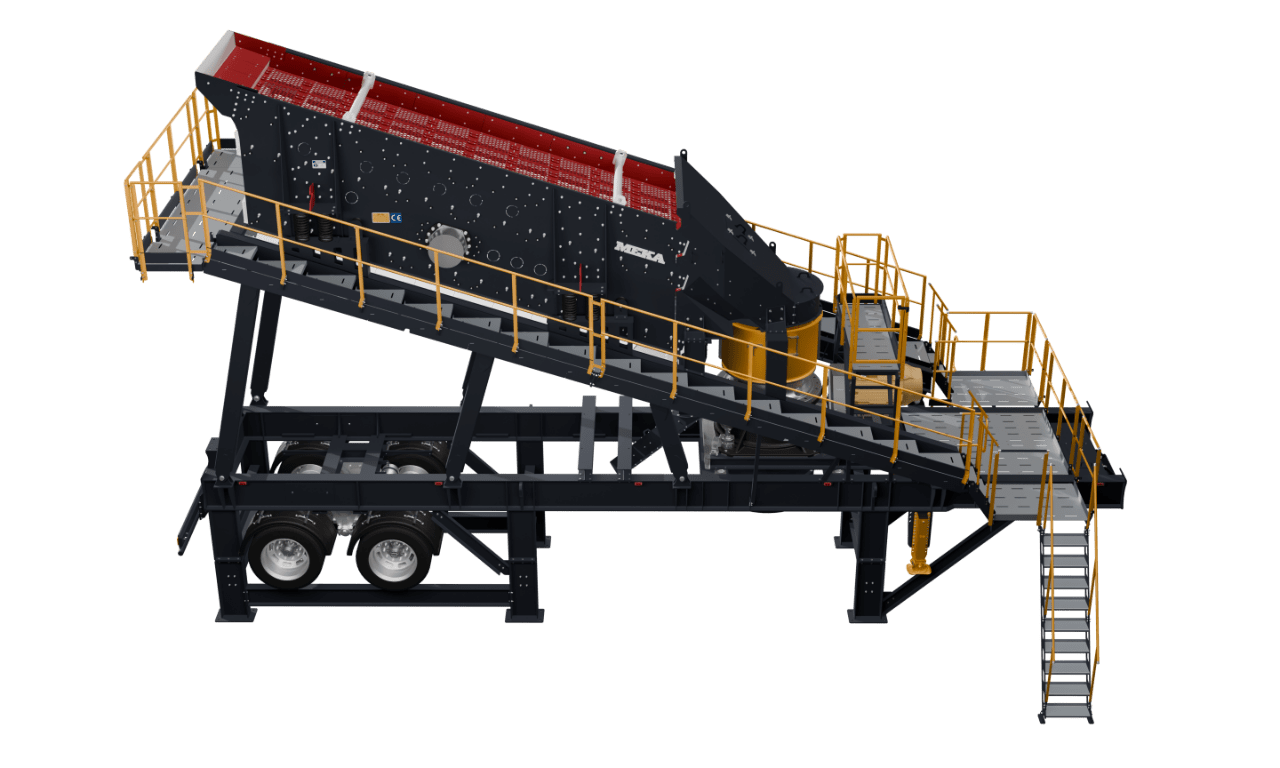

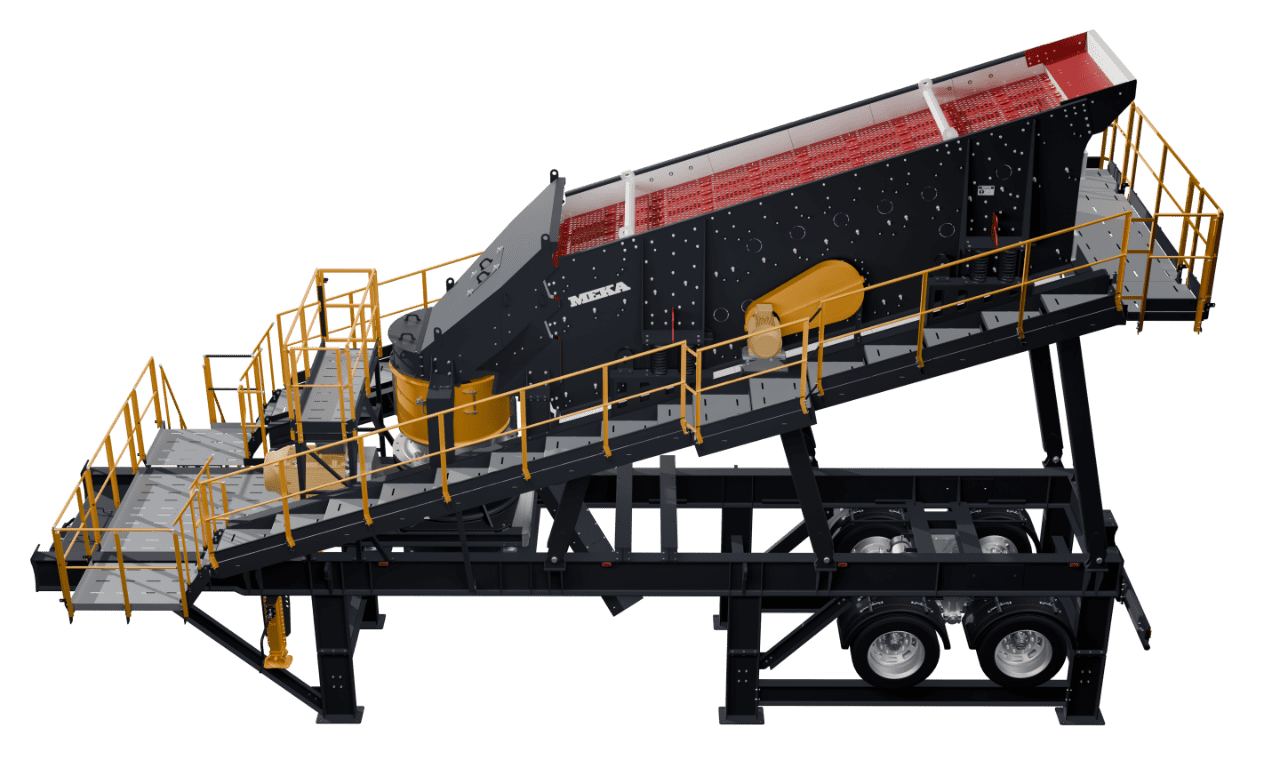

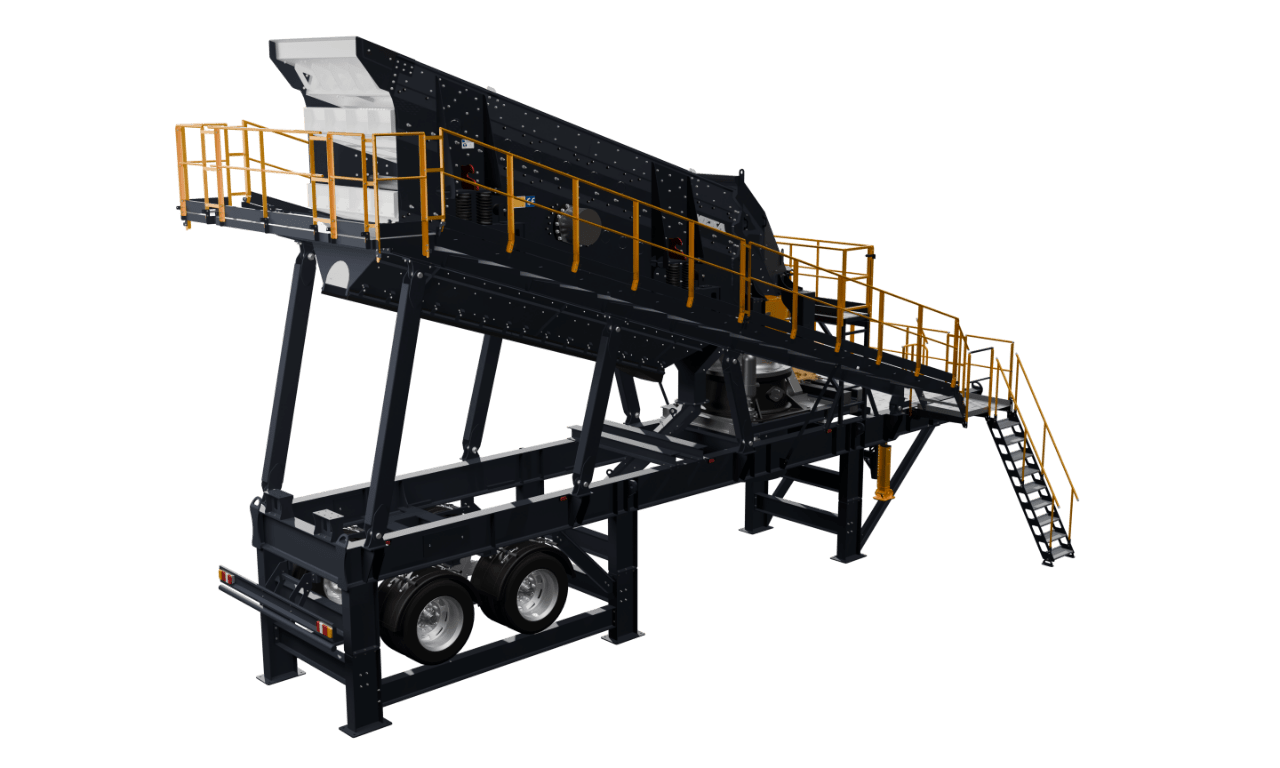

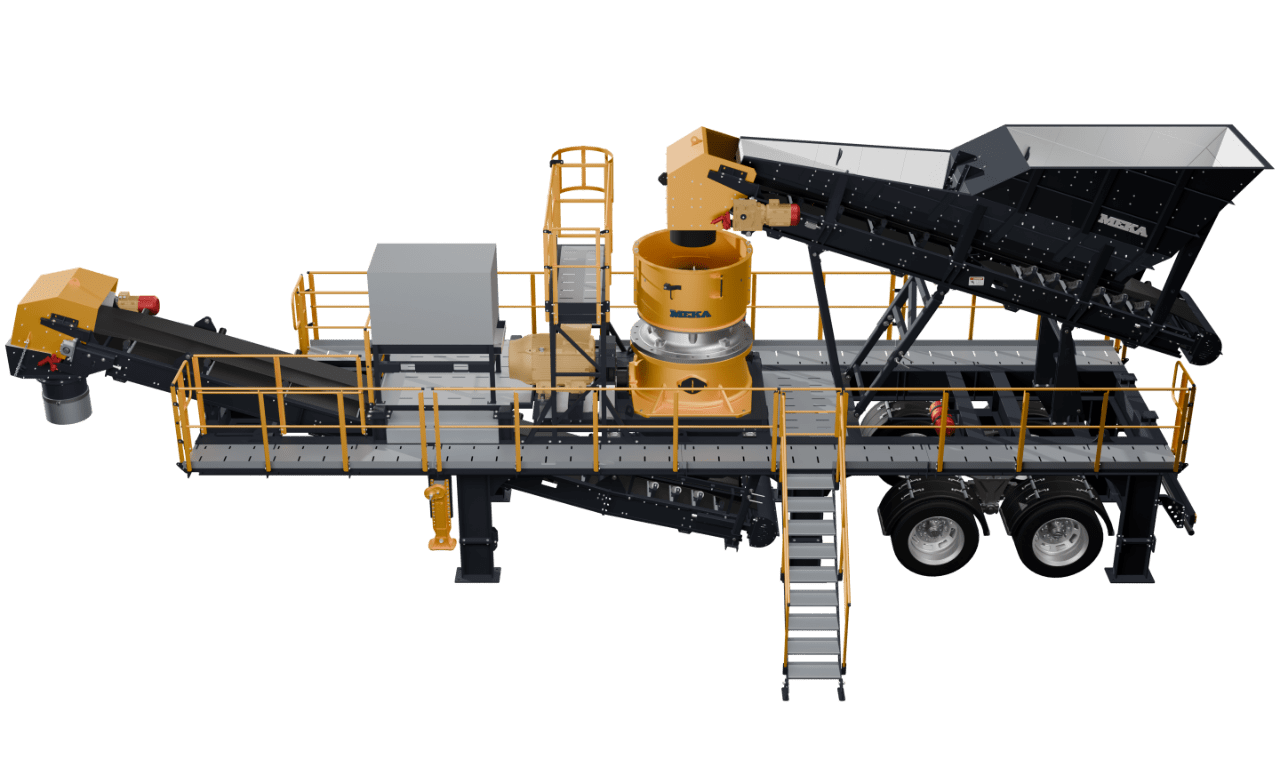

Portable Cone Crushers Gallery
What is Portable Cone Crusher?

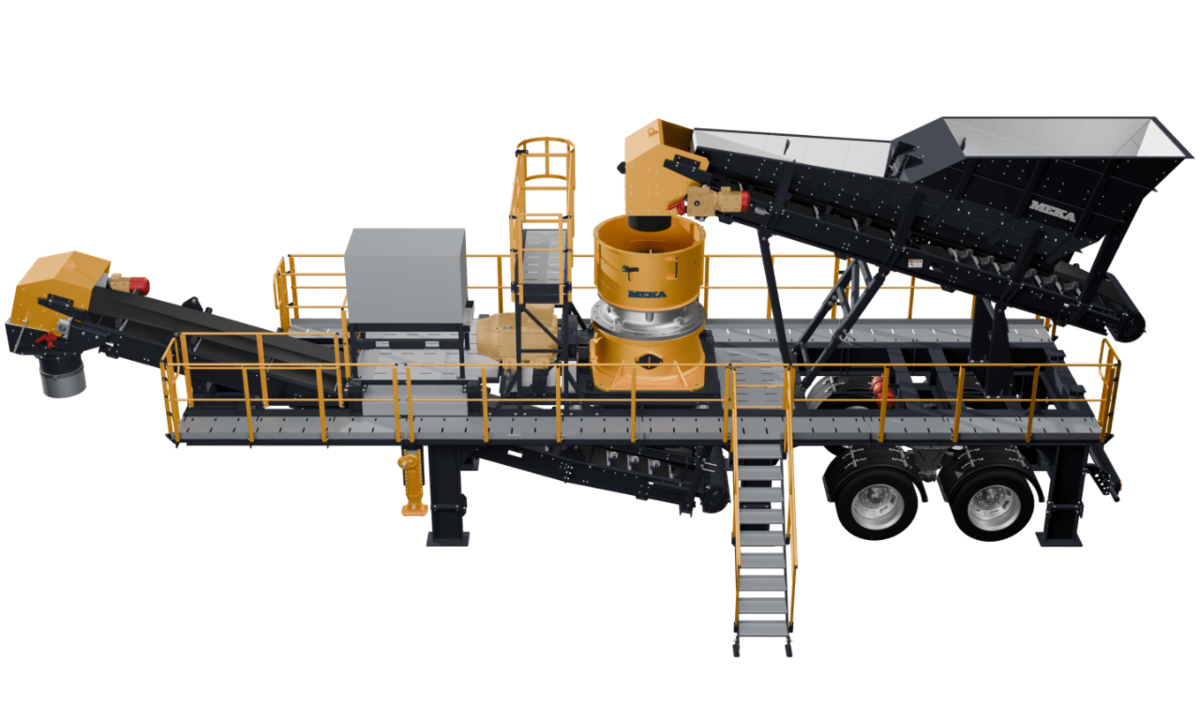

The Portable Cone Crusher with inclined screen plant is a wheel mounted unit which consist of cone crusher and 2-3-4 decks inclined screen on the same trailer chassis.
Types of Portable Cone Crushers
How Does Portable Cone Crushers Work?
Advantages of Using Portable Cone Crushers
Portable Cone Crushers Processes Applications
The material on the top deck of the screen is fed to the cone crusher.In some applications, the material can be fed directly to the cone crusher with a belt conveyor.The material entering the crushing chamber is crushed by compressing it between the liner called mantle on the moving head and the concave on the upper body.Eccentric shaft movement to the head ensures that the material is crushed between the two liners in the crushing chamber by eccentric gyrating movement of the head.
In addition to the general advantages of the cone crusher , such as less operating cost in hard and abrasive material crushing in a wide range of applications , the advantages of being portable are as follows:
Compact design : On the same chassis with the screen, is ready to produce the products on its own or can be easily adapted to a plant. Ready for operation: Can be commissioned and started up quickly
No concrete work: No need for excess concrete and site preparation Quick and easy site change for another project .
Compact design : On the same chassis with the screen, is ready to produce the products on its own or can be easily adapted to a plant. Ready for operation: Can be commissioned and started up quickly
No concrete work: No need for excess concrete and site preparation Quick and easy site change for another project .
Portable cone crusher with screen plants are suitable to produce products to be used in a variety of diverse industries such as recycling, in metallic mining, industrial mining, recycling and construction, etc.
