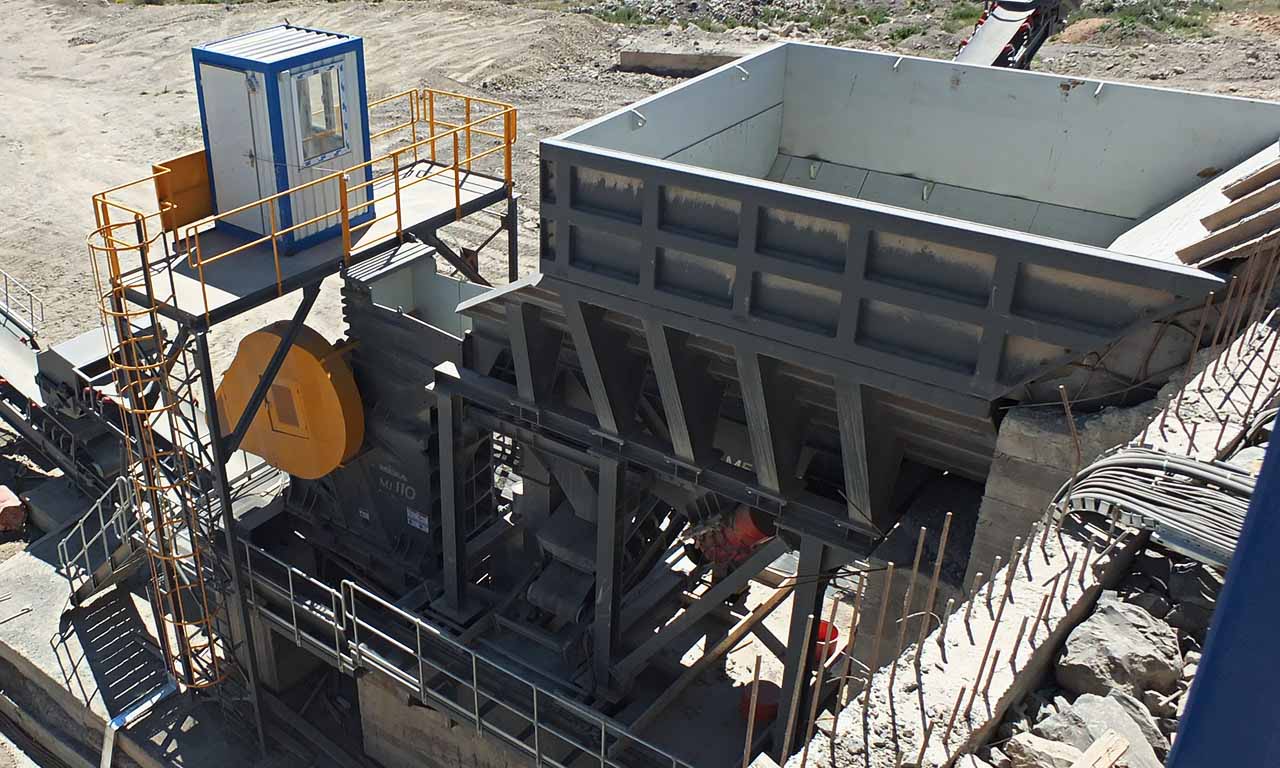

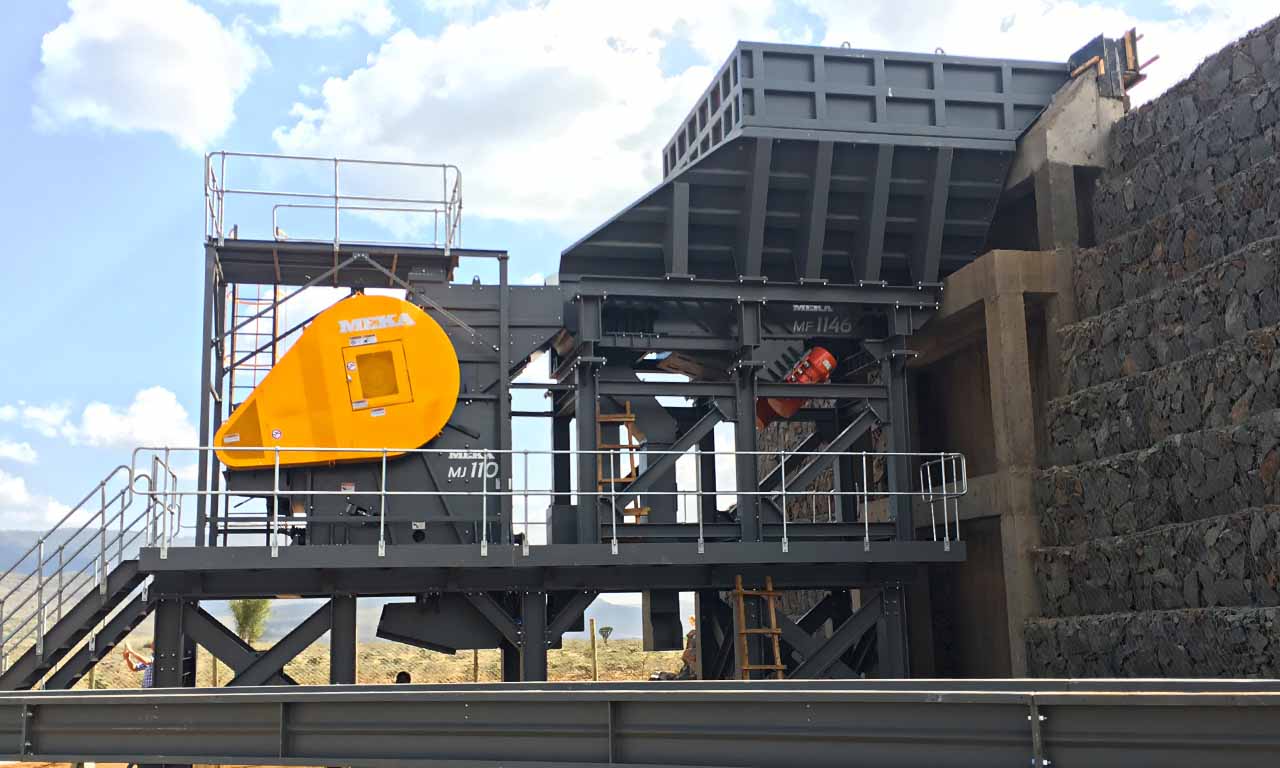

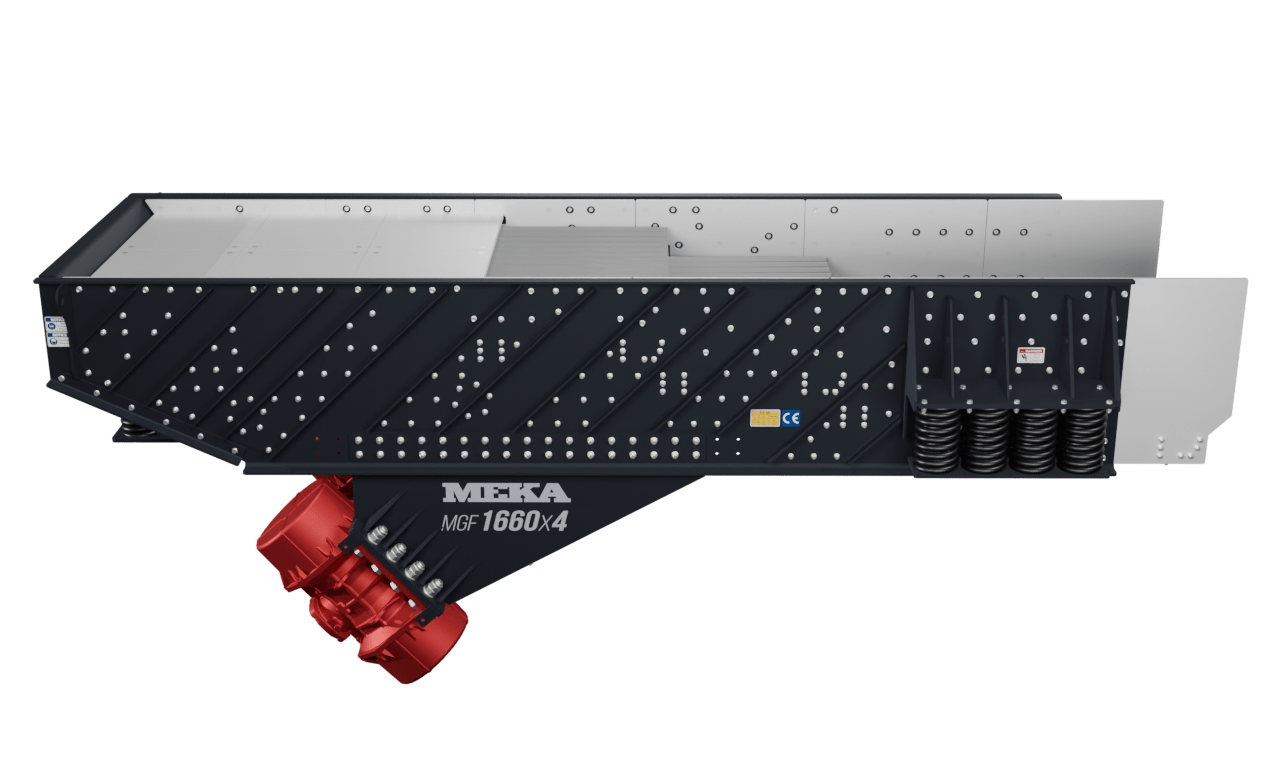

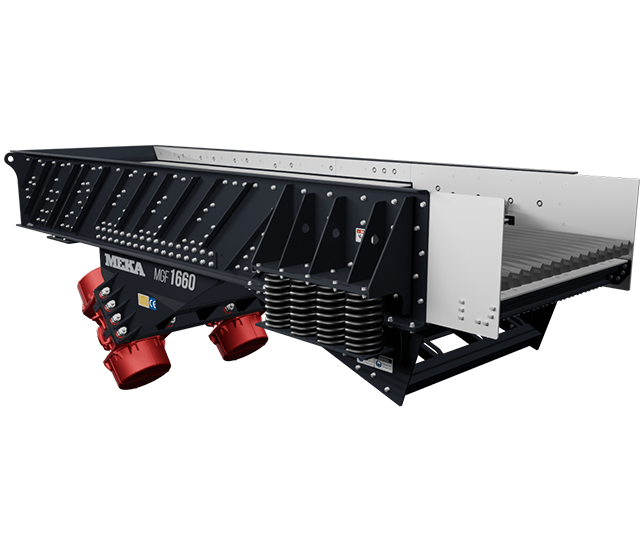

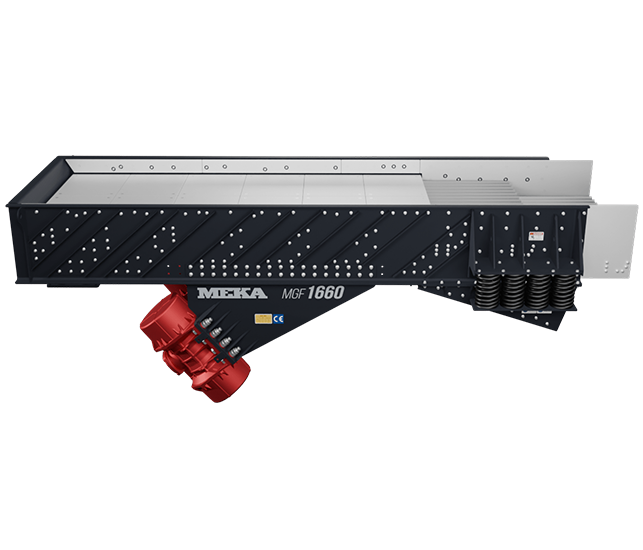

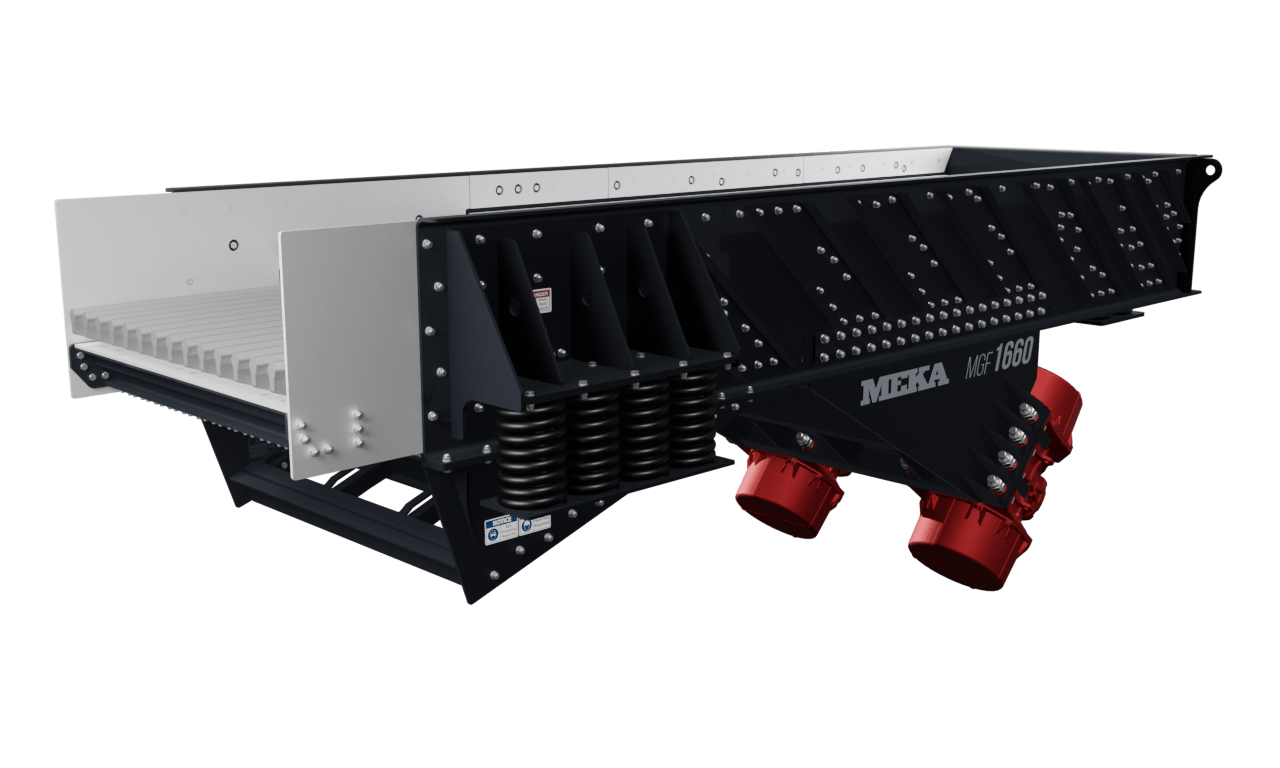

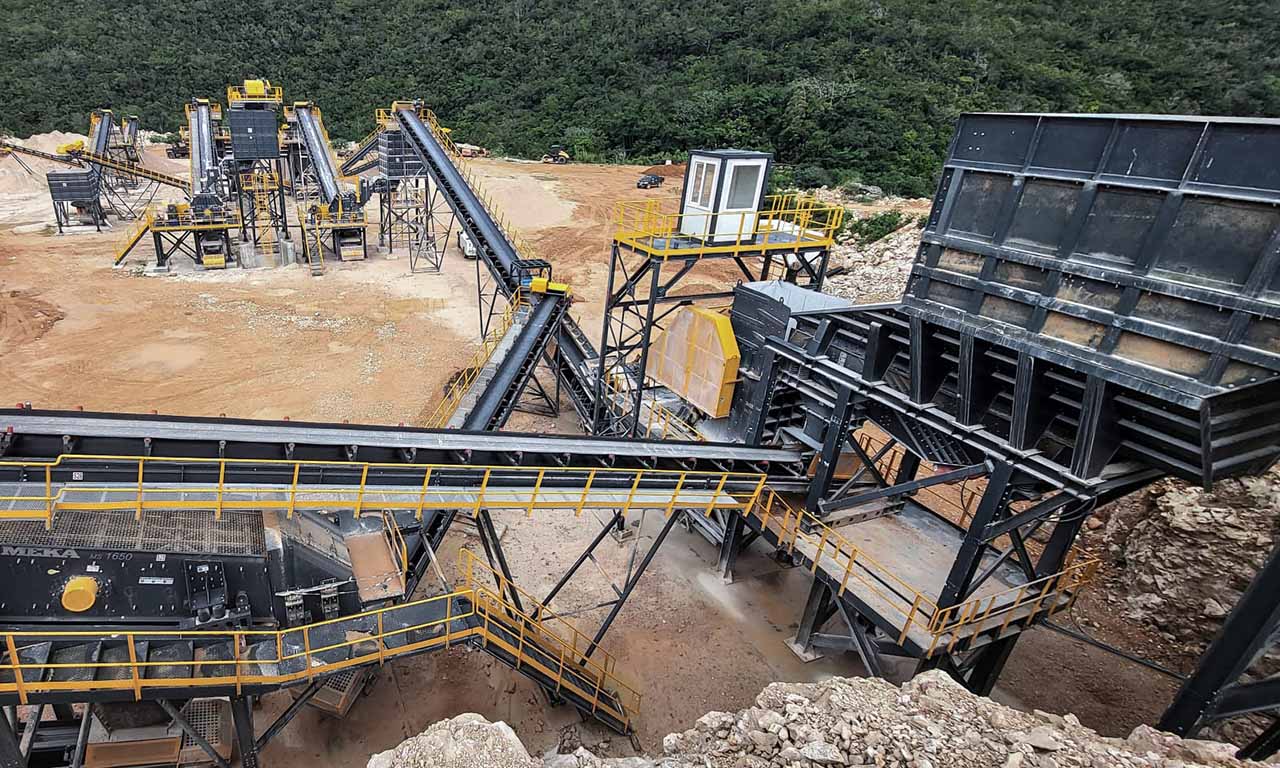

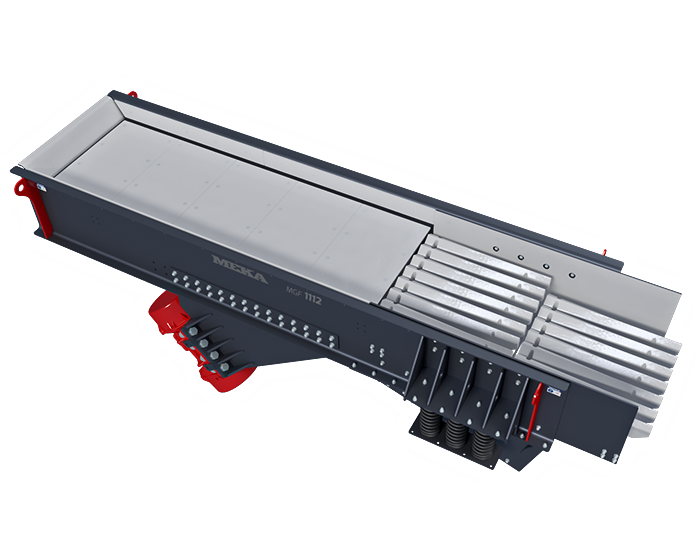

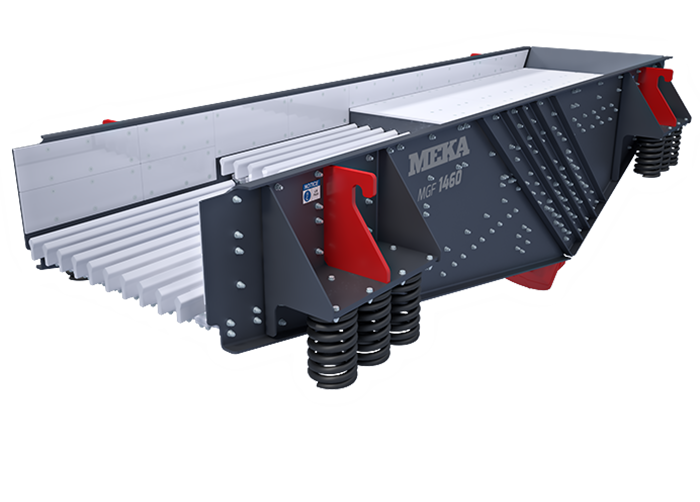

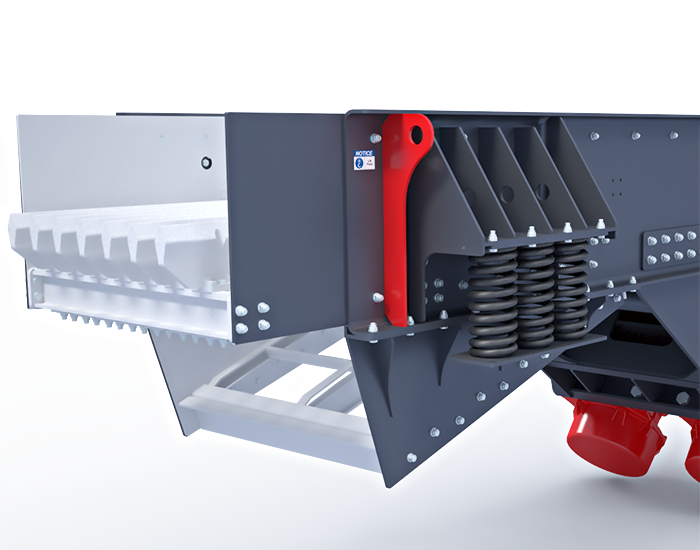

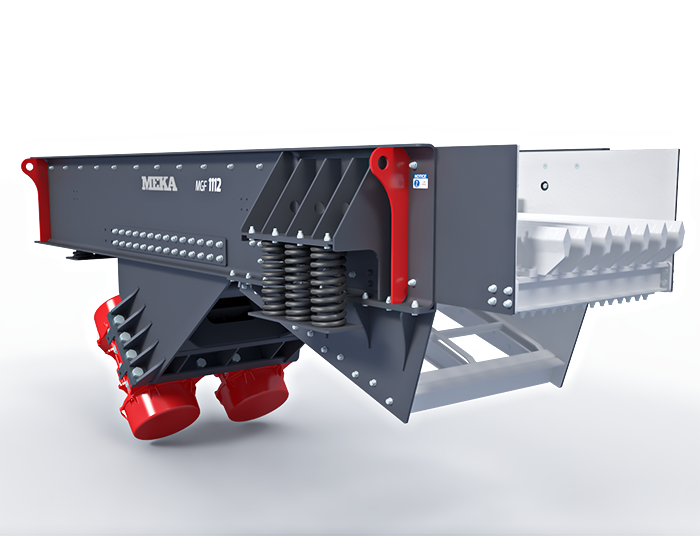

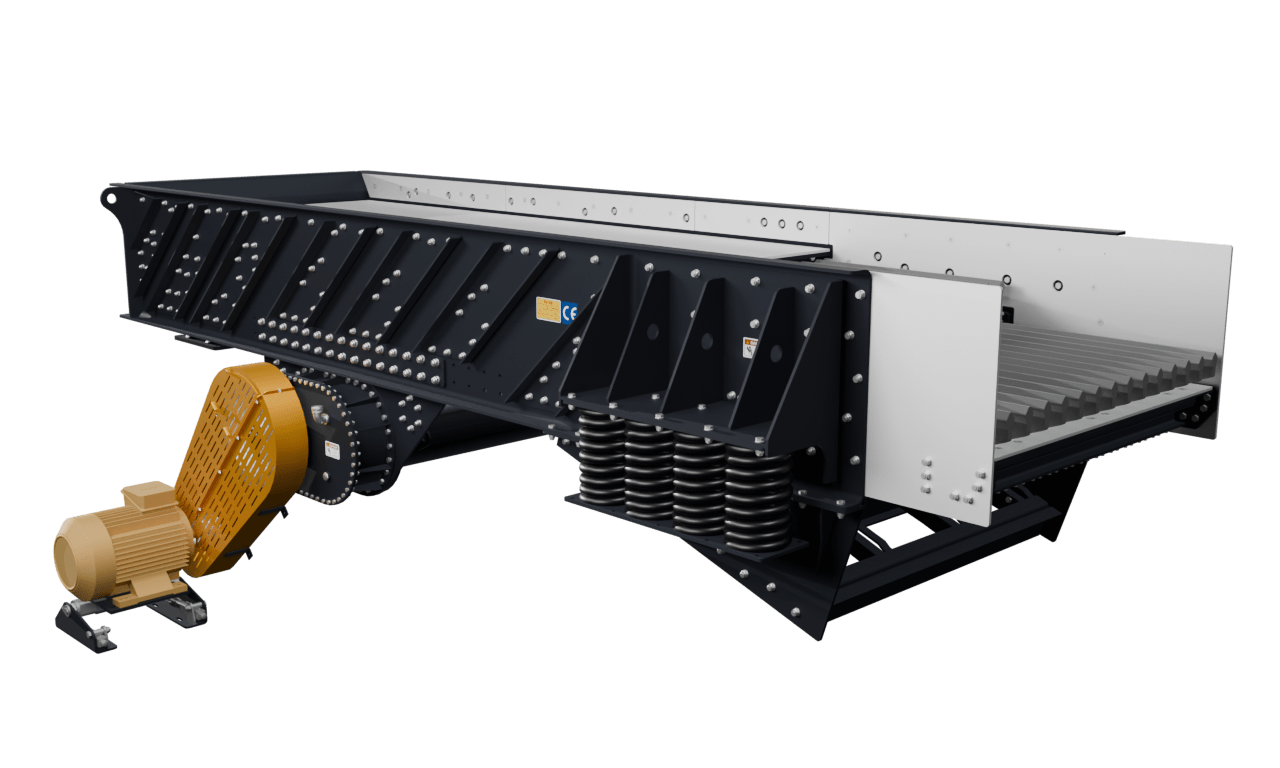

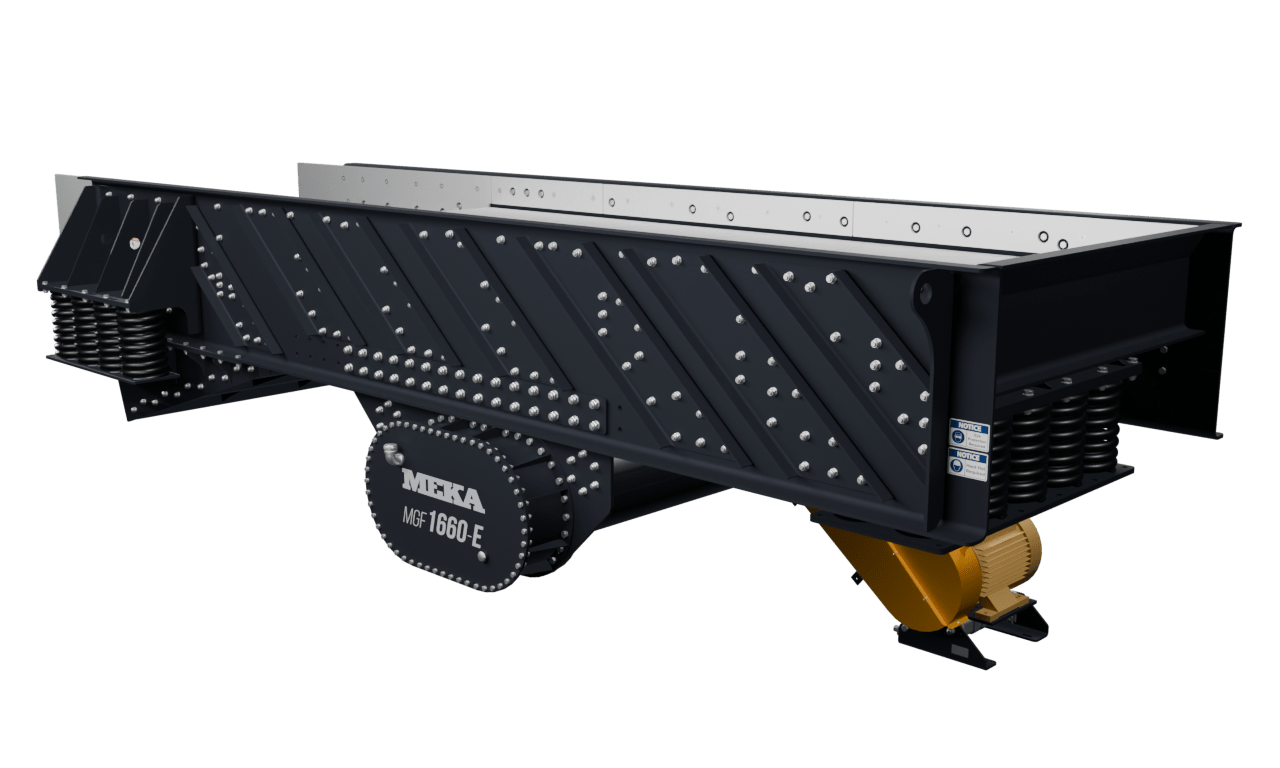

MEKA grizzly feeders come in many sizes to balance demands for capacity, impact resistance, weight and installation dimensions.
They provide high production and long service life in a wide range of rigorous applications.

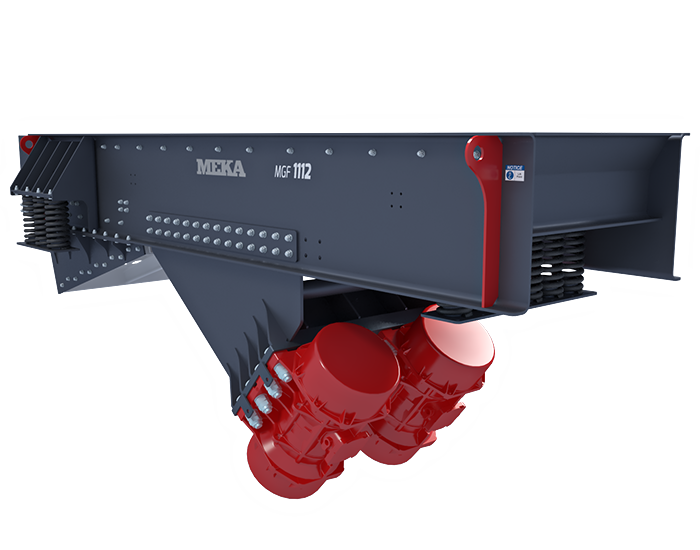

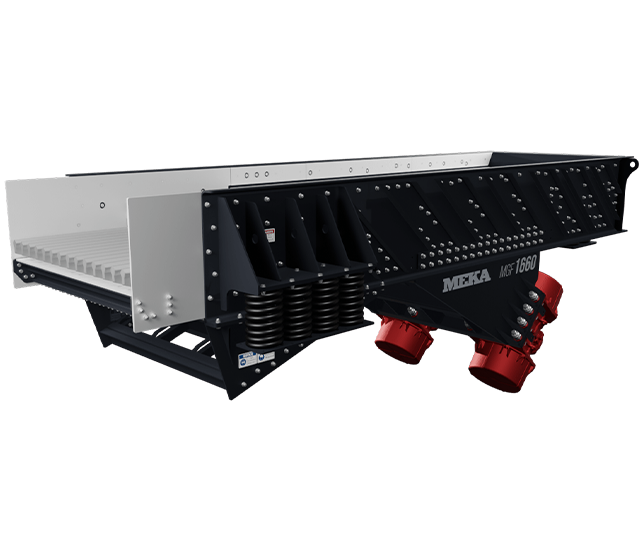

The dual unbalanced electric motor drive makes a simple stepless feed rate adjustment possible using a frequency converter
MGF 0625 |
MGF 0942 |
MGF 1152 |
MGF 1260 |
MGF 1360 |
MGF 1460 |
MGF 1660 |
MGF 6530 |
MGF 1160 |
|
Width x Length (mmxmm) Width x Length (inchxfeet) | 620x2500 24,8''x8⅟4' | 900x4200 35''x14' | 1100x5200 43''x17' | 1200x6000 47''x20' | 1300x6000 51''x20' | 1400x6000 55''x20' | 1600x6000 63''x20' | 650x3000 25,6''x10' | 1066x6000 43"x20' |
*Capacity (mtph) *Capacity (stph) | 100-200 110-220 | 250-400 275-440 | 400-640 440-706 | 450-750 495-825 | 500-825 550-907 | 550-875 605-960 | 650-1000 715-1100 | 100-200 110-220 | 400-640 440-706 |
Single Section Single Section | Single Section Single Section | Double Section Double Section | Double Section Double Section | Double Section Double Section | Double Section Double Section | Double Section Double Section | Single Section Single Section | Double Section Double Section | |
Length of Grizzly (mm) Length of Grizzly (inch) | 1000 40 | 1500 61 | 2000 79 | 2800 110 | 2000 79 | 2800 110 | 2000 79 | 1000 40 | 1400 55 |
Maximum Feed Size (mm) Maximum Feed Size (inch) | 350 14 | 600 24 | 800 32 | 900 36 | 975 38 | 1050 41 | 1200 47 | 350 14 | 800 32 |
Vibromotor Vibromotor | |||||||||
Power @50hz (kW) Power @50hz (HP) | 2x3.8 2x5.1 | 2x6.1 2x8 | 2x10.1 2x13.6 | 2x11.9 2x16 | 2x13.9 2x18.9 | 2x13.9 2x18.9 | 2x13.9 2x18.9 | 2x3.2 2x4.3 | 2x10.1 2x13.5 |
Speed (rpm) Speed (rpm) | 1000 1000 | 1000 1000 | 1000 1000 | 1000 1000 | 1000 1000 | 1000 1000 | 1000 1000 | 1000 1000 | 1000 1000 |
Power @60hz (kW) Power @60hz (HP) | 2x4.3 2x5.7 | 2x7.5 2x10 | 2x10.6 2x14.2 | 2x11 2x14.7 | 2x16.5 2x22.1 | 2x16.5 2x22.1 | 2x16.5 2x22.1 | 2x3.4 2x4.5 | 2x10.6 2x14.2 |
Speed (rpm) Speed (rpm) | 900 900 | 900 900 | 900 900 | 900 900 | 900 900 | 900 900 | 900 900 | 900 900 | 900 900 |
Exciter Drive Exciter Drive | |||||||||
Power (kW) Power (HP) | - - | - - | 22 30 | 22 30 | 30 40 | 30 40 | 37 50 | - - | 22 30 |
Speed (rpm) Speed (rpm) | - - | - - | 500-800 500-800 | 500-800 500-800 | 500-800 500-800 | 500-800 500-800 | 500-800 500-800 | - - | 500-800 500-800 |
*At specified inclination and for material weighing 1.6 t/m³ or 100 lbs/ft³. Capacity values are indicative only and depend not only on feeder size but also on feeder inclination, feed gradation, etc.

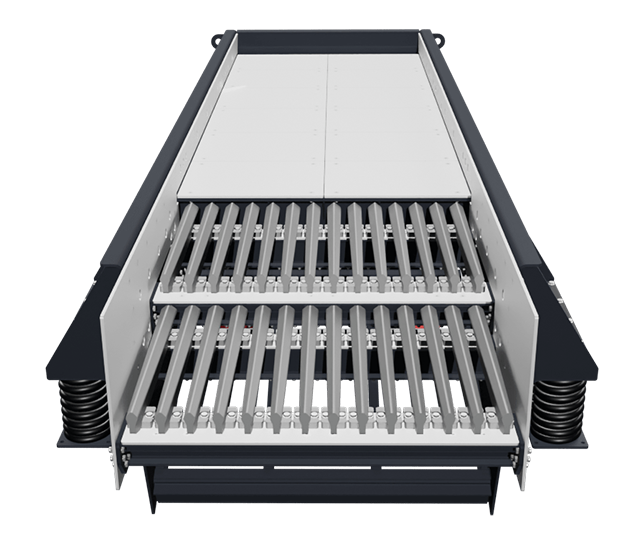

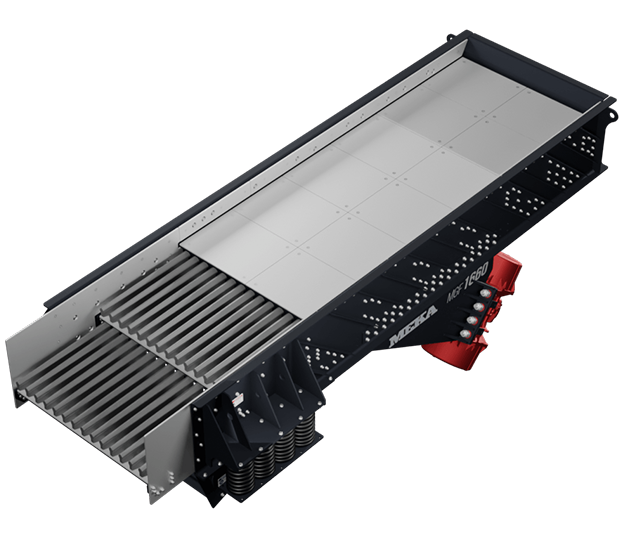

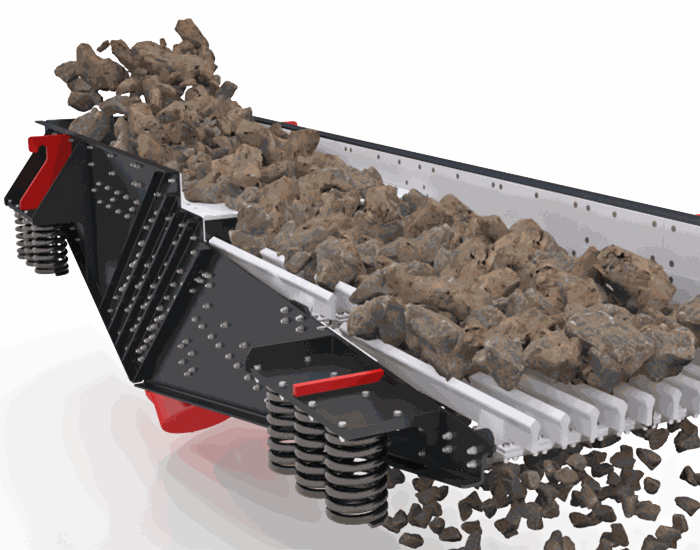

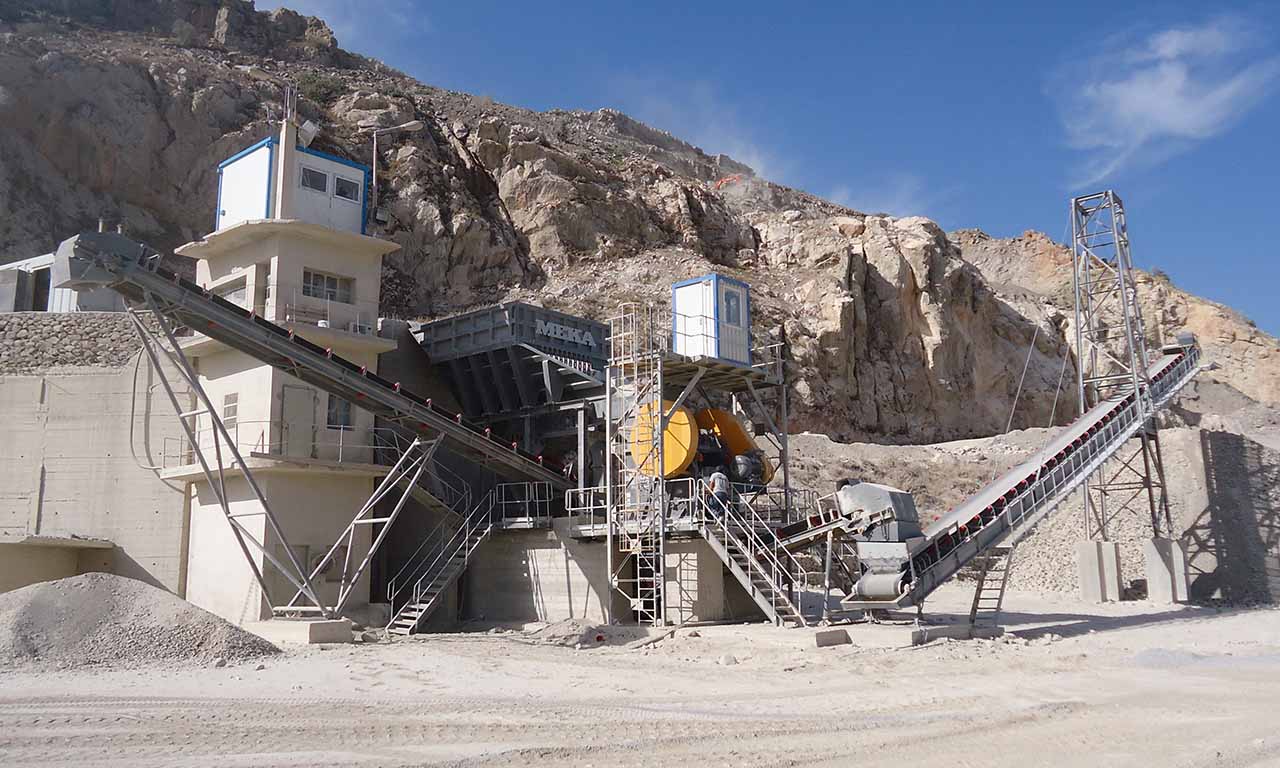

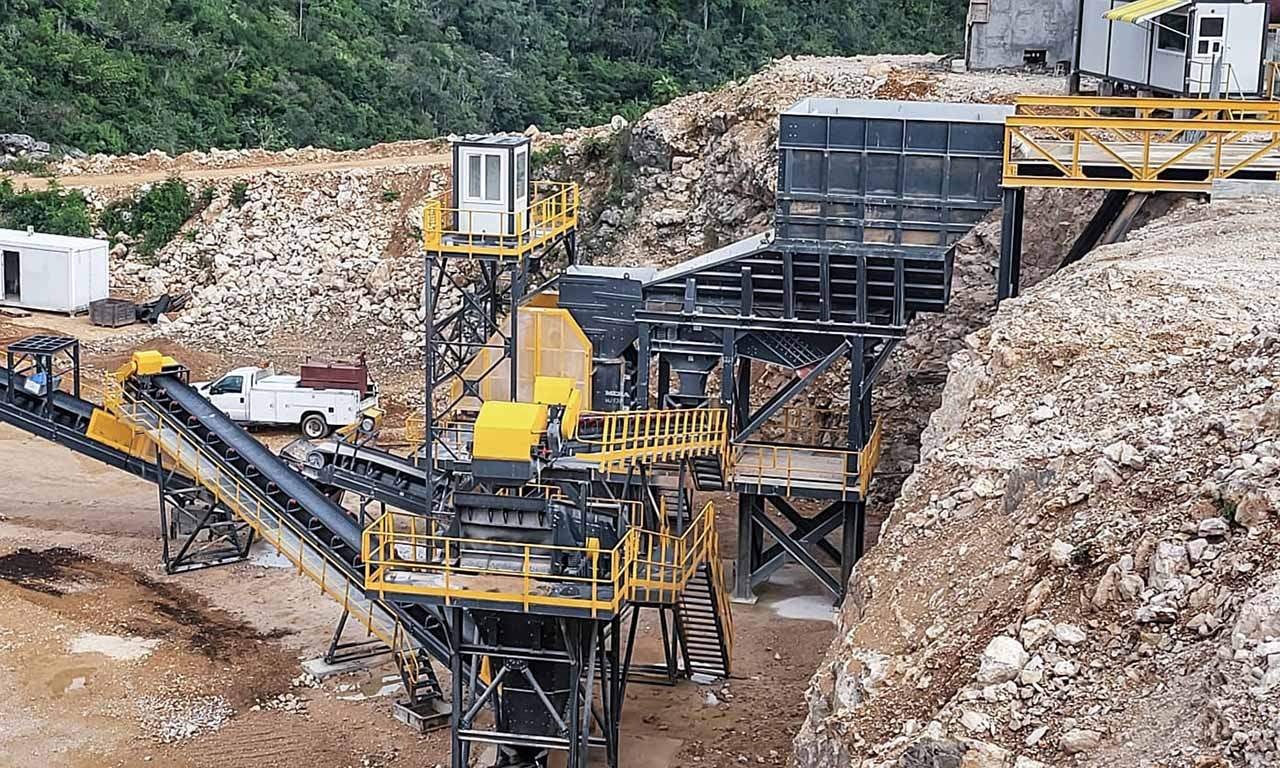

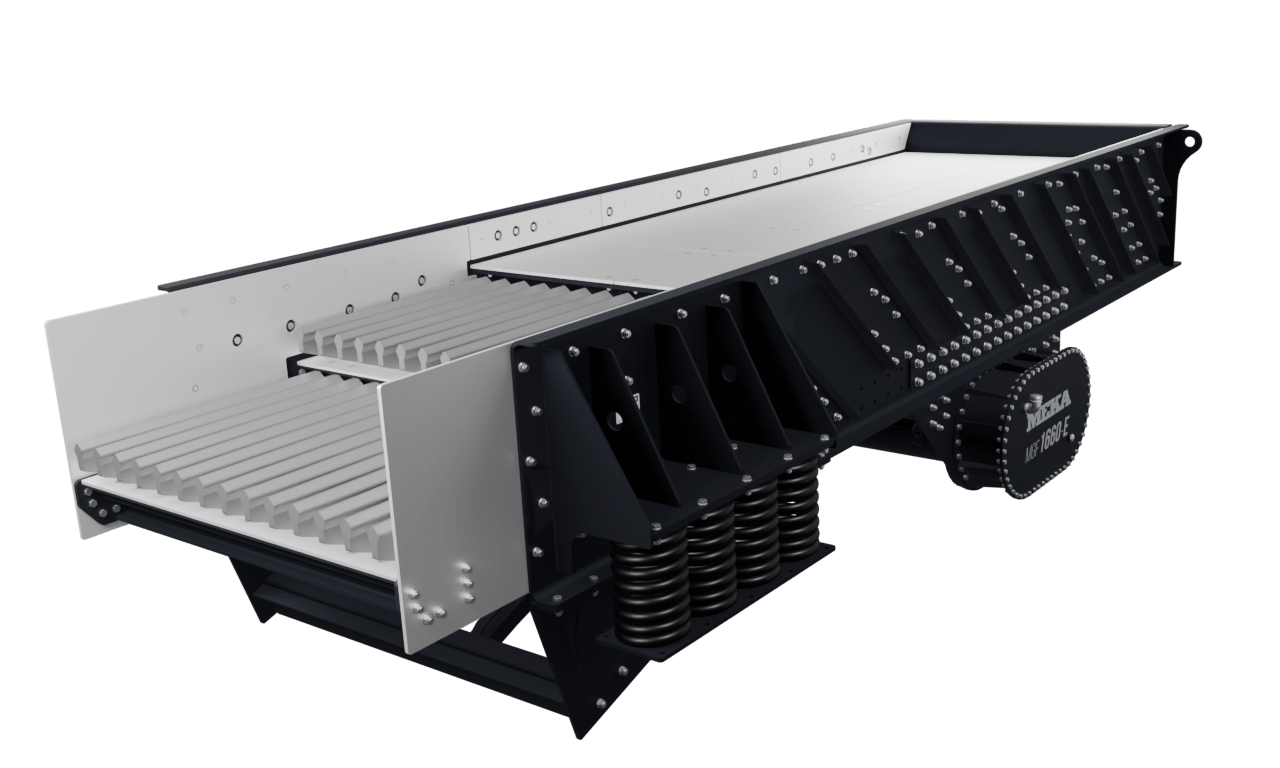

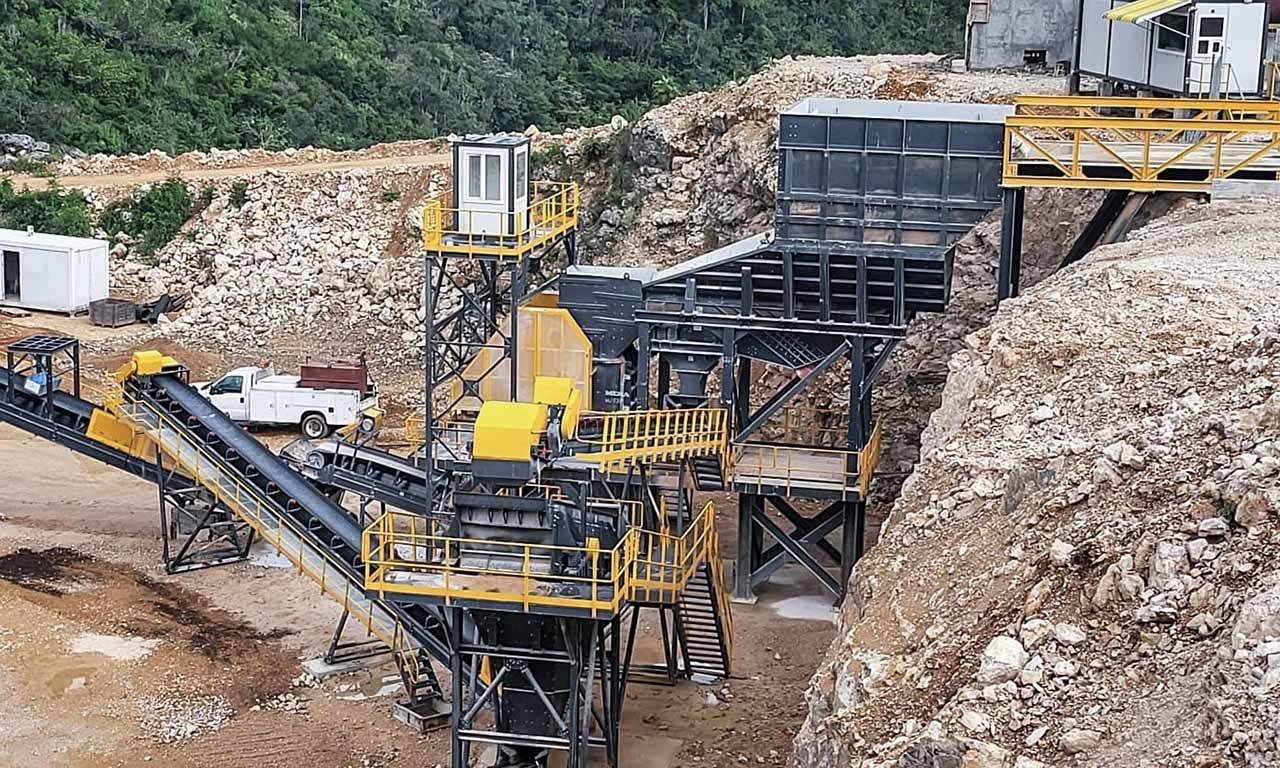

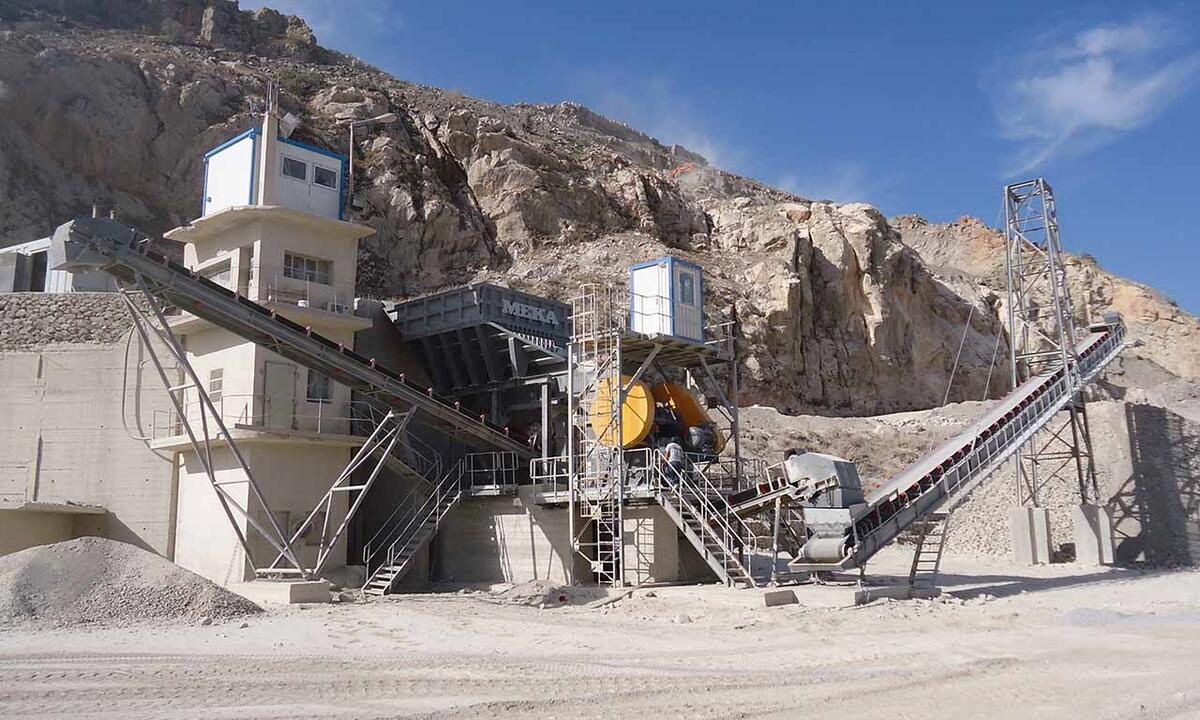

Grizzly feeders produce a linear motion in their pan and grizzly sections and are used in the primary feeding stage for the simultaneous performance of feeding and separation processes.

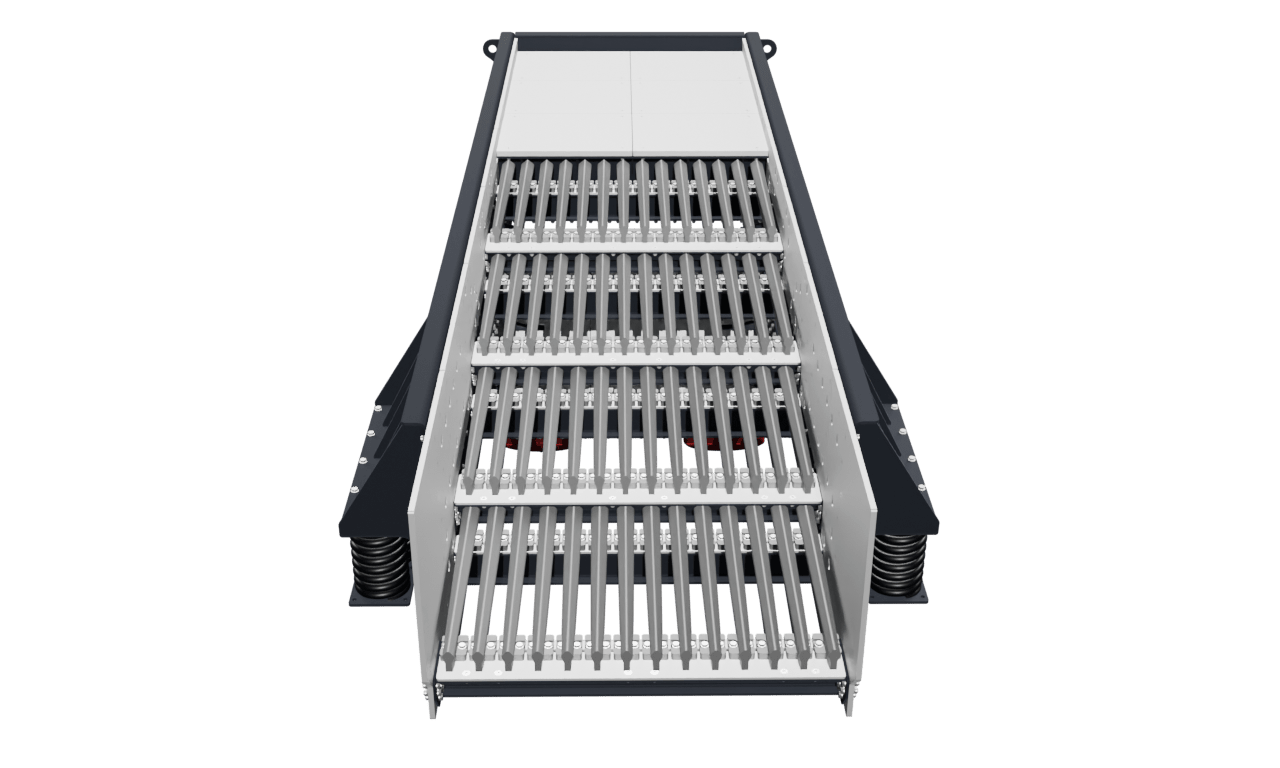

The grizzly opening of the feeder is selected according to the feed curve and closed side setting of the crusher to be fed . As a result, material smaller than the crusher setting is prevented from entering the crusher. The dirty material in the feed bypasses the crusher and is fed to a screen to be discarded as waste and the remaining clean material is fed to the post-crusher process.
Although it is possible to install grizzly feeders inclined, horizontal installation is widely preferred for separation efficiency. If an increase in capacity is needed, the installation angle can be increased by several degrees without loss of separation efficiency.
