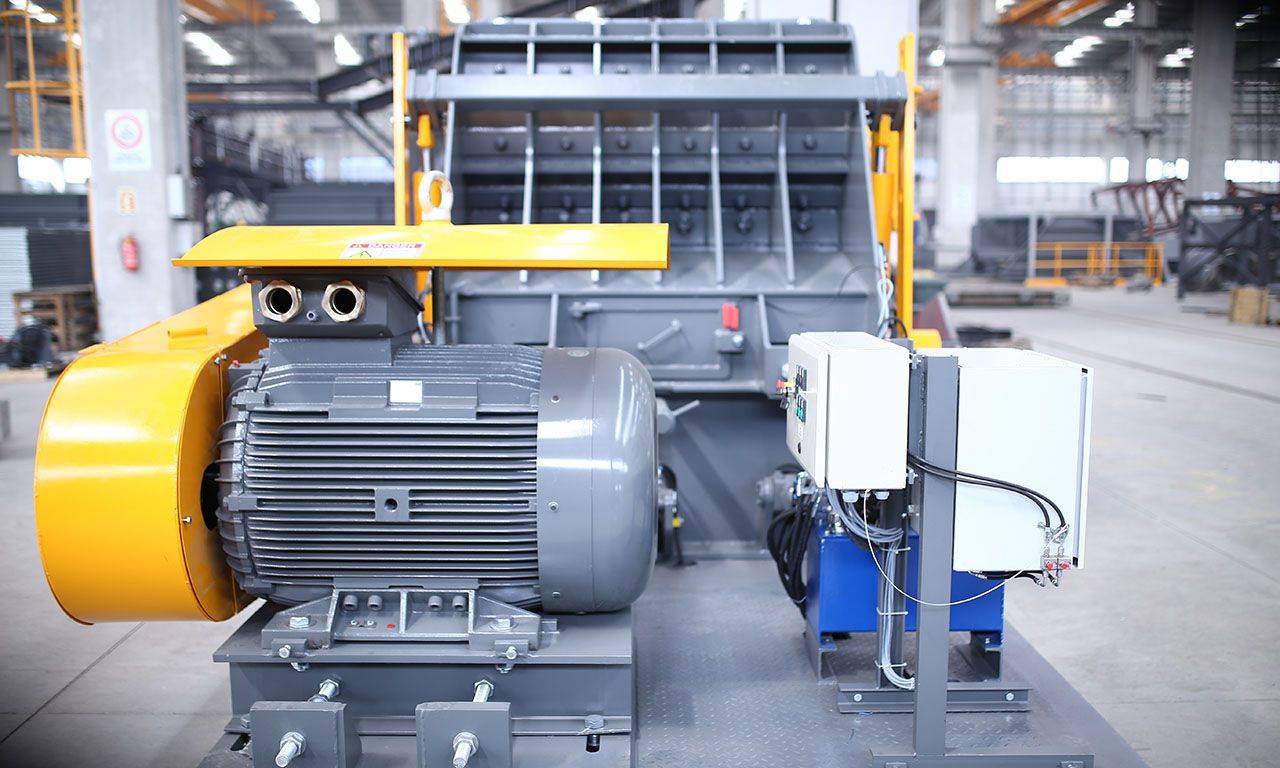

Secondary Impact Crusher

With a comprehensive range of types, MEKA offers the right machine for every performance requirement. MEKA MSI and MSIH Series impactors are widely accepted as the crusher of choice as secondary reduction units. Although these crushers are normally offered within a plant where tertiary crushing is also present, due to their ability to produce highly cubical, well graded product size of 0-80mm in a single pass, the need for tertiary crushing can be eliminated.

MEKA MSI Series Secondary Impact Crusher is ideally suited to crush soft to medium hard materials of medium to low silica content such as limestone, gypsum.  MEKA MSIH Series Secondary Impact Crusher is the economical alternative to cone crushers for hard stone. They are suitable for several raw mineral materials with varying degrees of hardness, from soft to brittle materials to hard rocks and iron free recycling material.

Applications

The strength of Secondary Impact Crusher makes them ideal for diverse applications and configurations.

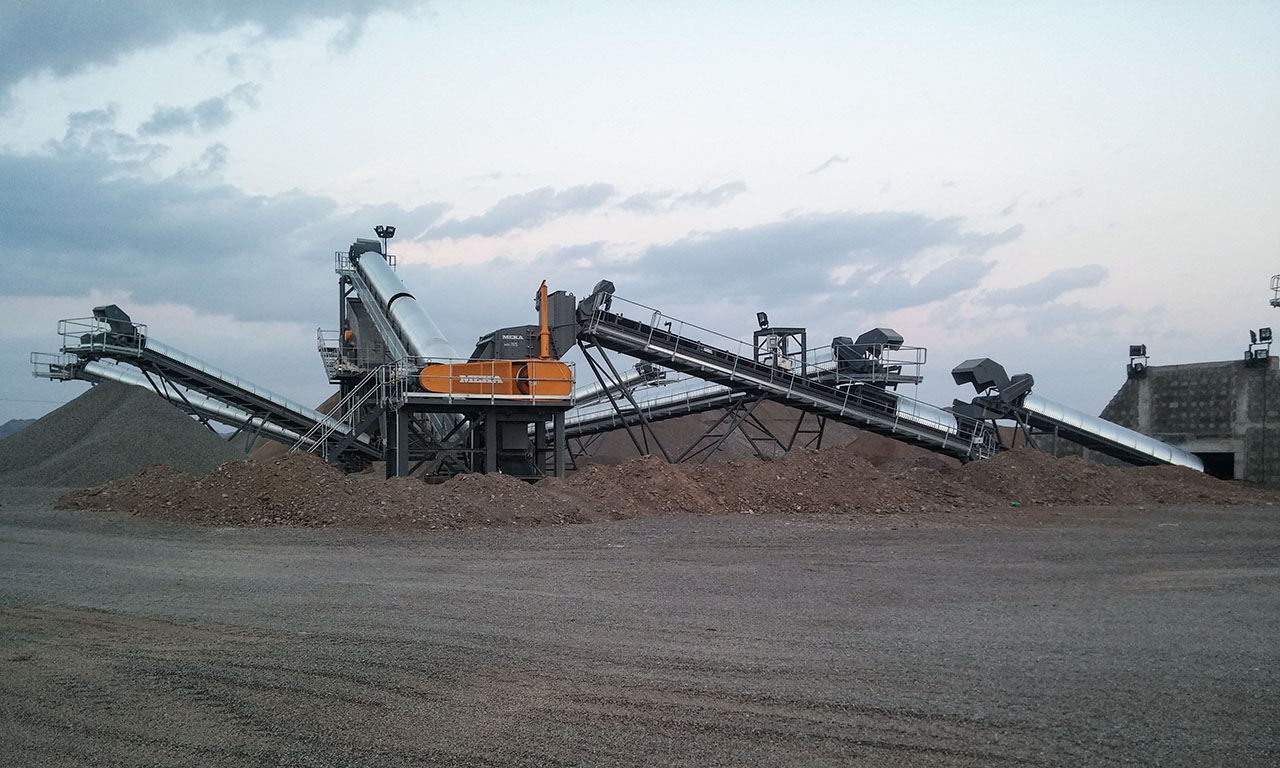

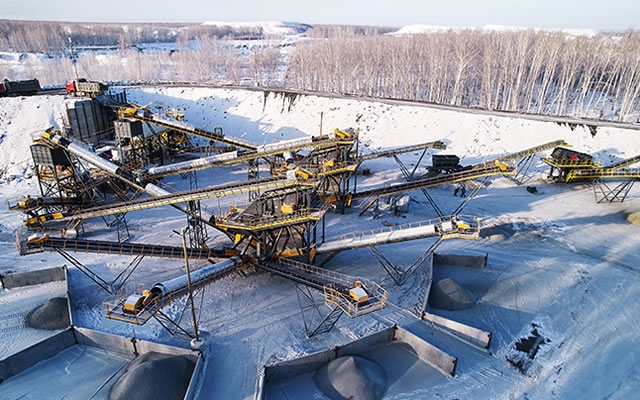

They have proven their effectiveness in a host of missions from crushing low abrasive materials to industrial applications and are suitable for quarrying and gravel pit industries, cement industry, concrete and asphalt recycling, and slag recycling.

Why MEKA Secondary Impact Crusher?

High Reduction Ratio

MSI-MSIH series impact crushers achieve a higher reduction with fewer crushing stages,lowering your capital costs and saving energy.

Highly Cubical Production

Good cubical shape to meet asphalt and concrete product specifications for flakiness and elongation.

High Throughput

We have optimised crusher layout to maximise loading, with a bigger crushing chamber, optimised liners and specific rotors to boost productivity in every type of application.

Maintenance Benefits

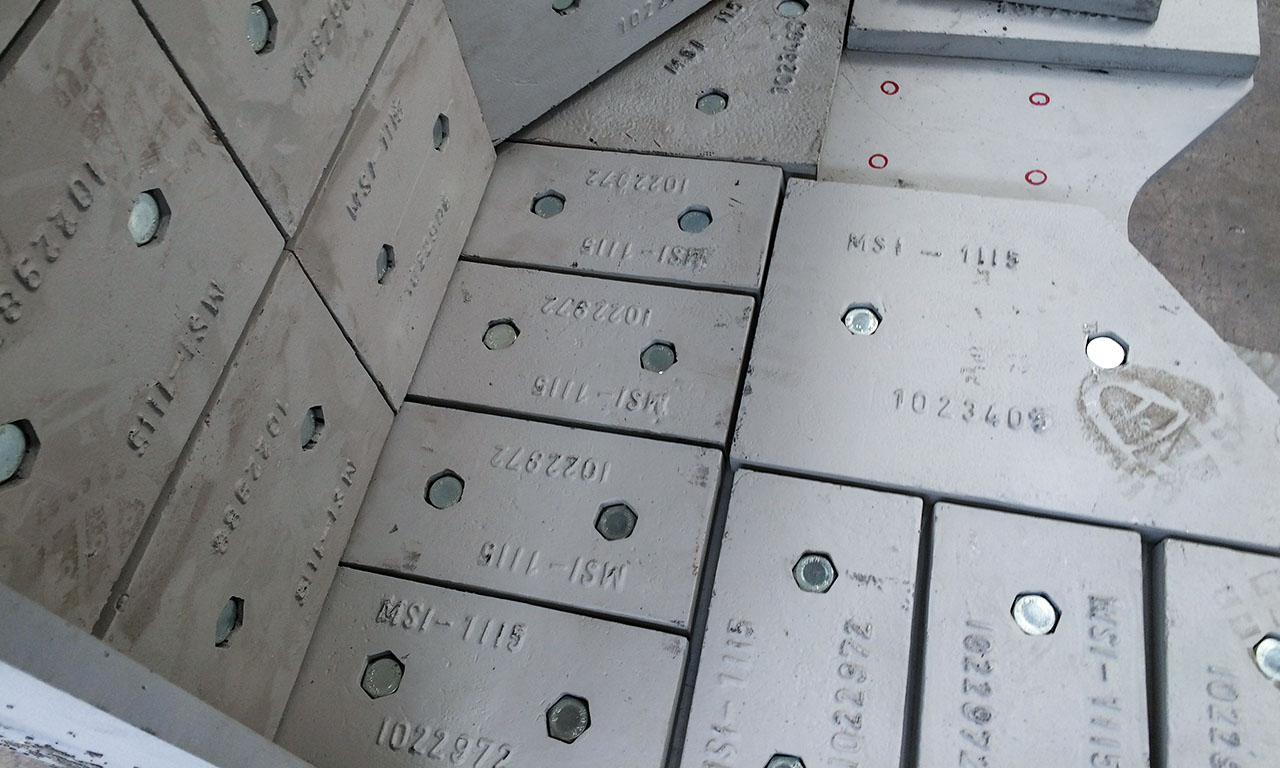

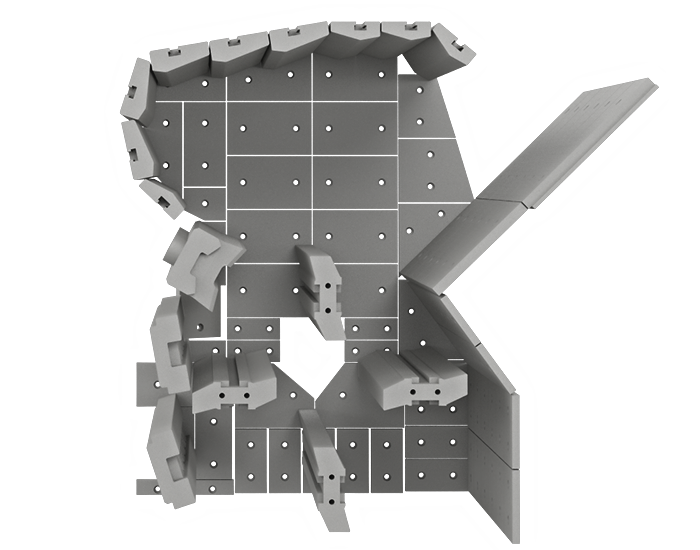

The modularised construction method of the crusher, ensures that all of the hardened cast liners within the crusher are of a single uniform size.

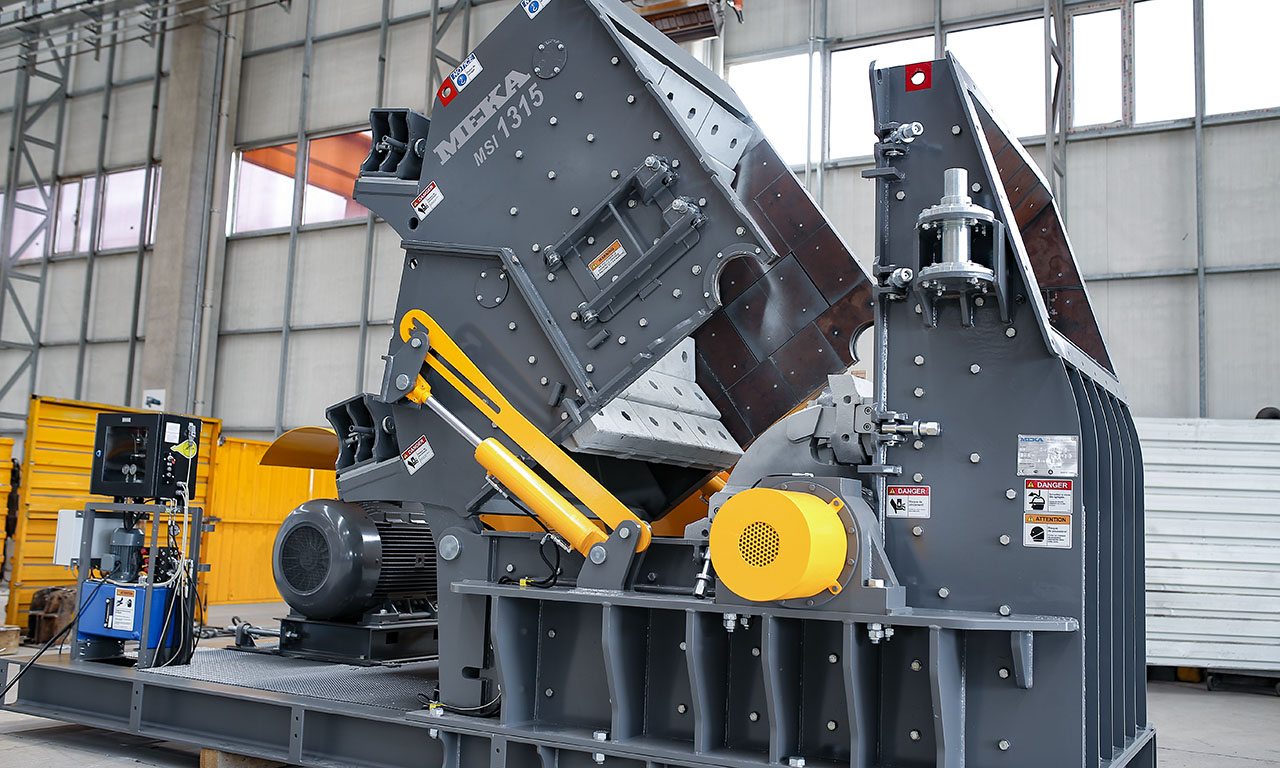

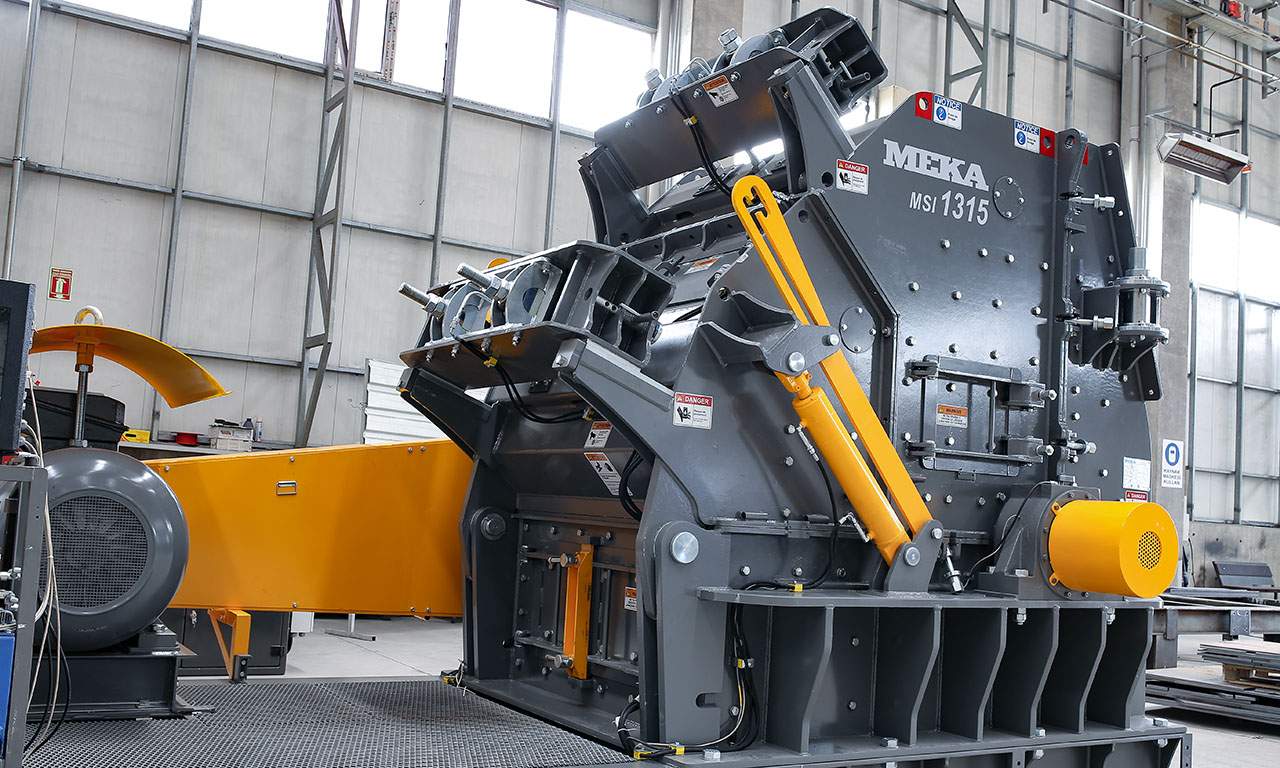

Secondary Impact Crusher Technical Specifications

MSI 1210

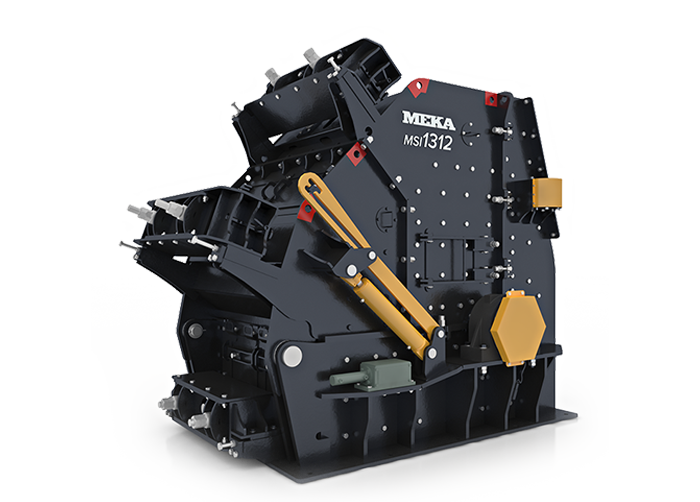

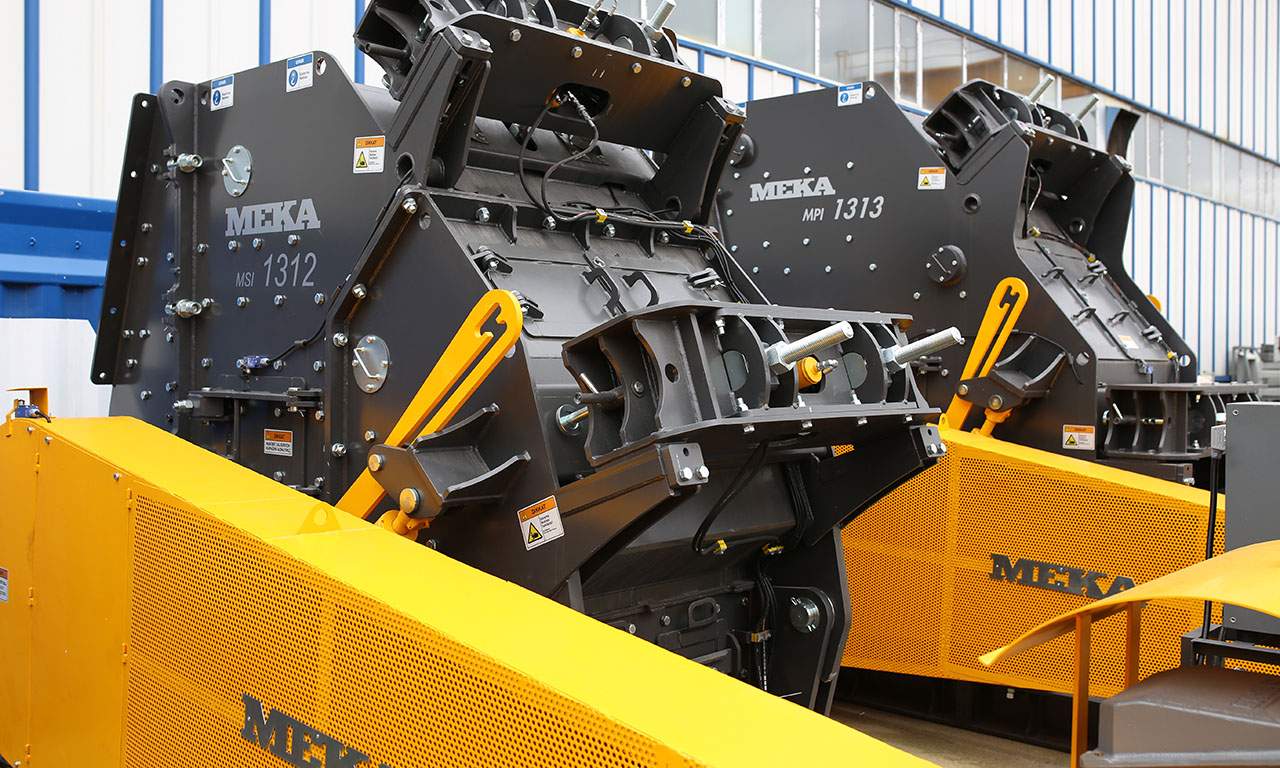

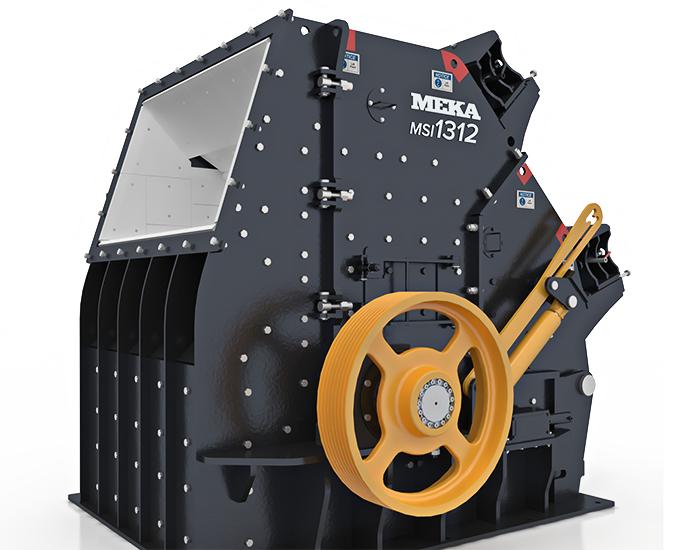

MSI 1312

MSI 1315

MSI 1110H

MSI 1112H

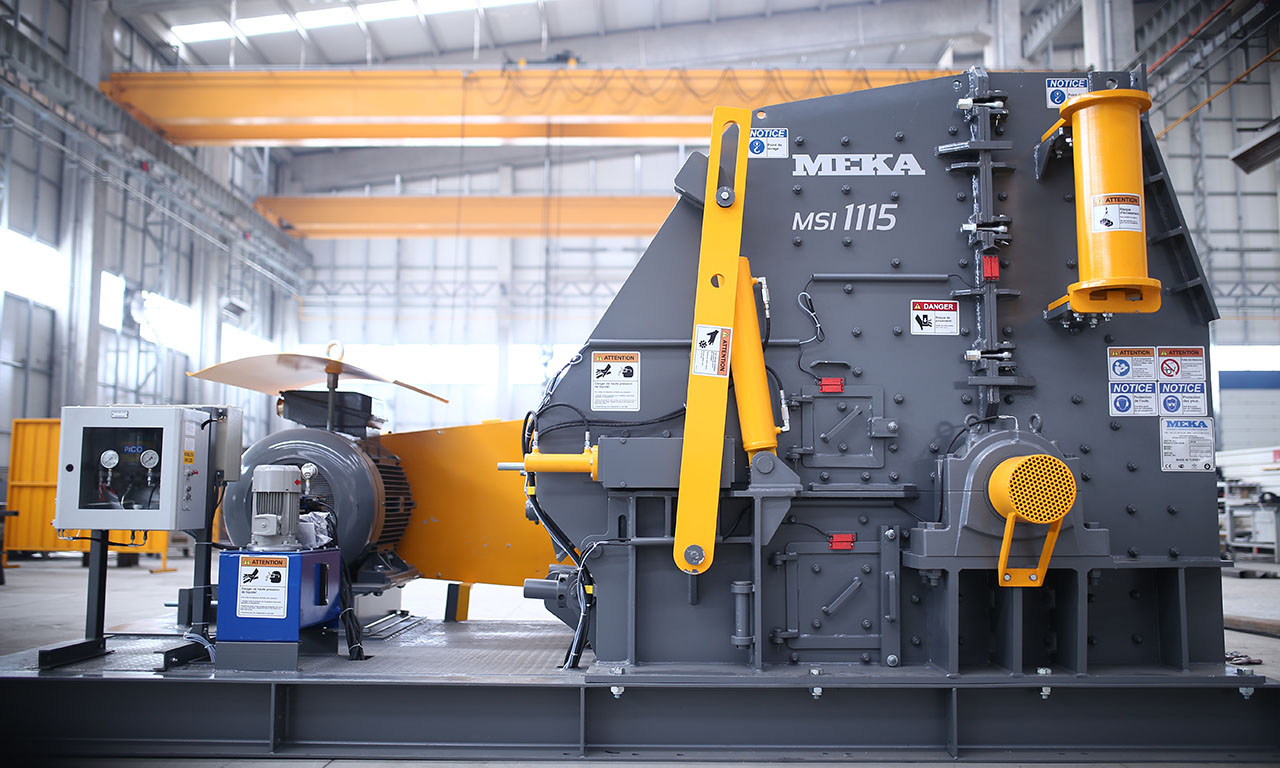

MSI 1115H

MSI 1415H

MSI 1420H

Rotor Diameter (mm) Rotor Diameter (inch) 1150 45 1300 51 1300 51 1120 44 1120 44 1120 44 1400 55 1400 55
Rotor Width (mm) Rotor Width (inch) 1000 39 1250 49 1500 59 1000 39 1200 47 1500 59 1500 59 2000 79
Feed Opening (mm) Feed Opening (inch) 1020x815 40x32 1290x800 51x31 1540x800 61x31 1030x540 41x21 1280x540 50x21 1530x540 60x21 1530x1000 60x39 2030x1000 80x39
Maximum Feed Size (mm) Maximum Feed Size (inch) 250 10 350 14 350 14 300 12 300 12 300 12 350 14 350 14
*Capacity (mtph) *Capacity (stph) 100-150 110-165 150-250 165-275 250-350 275-385 130-200 145-220 170-250 187-275 250-350 275-385 350-450 385-495 380-600 418-661
Power (kW) Power (HP) 132-160 180-220 200 275 250-315 340-430 160 220 200 275 250-315 340-430 400 550 500 680
**Weight (kg) **Weight (lbs) 12400 27340 18000 39680 22600 49820 12280 27070 14320 31570 18800 41450 28760 63400 35000 77160

*For material weighing 1.6 t/m³ or 100 lbs/ft³. Capacity values are indicative only, crusher performance may vary depending on the feed gradation, feed moisture content, crushability of the material, crusher rpm, installed power and the crushing circuit design.


** Weights shown do not include drive motor package, support legs, maintenance platform, inlet and outlet chutes.

What is Secondary Impact Crusher?

A secondary impact crusher is used in the secondary crushing stage of various materials and is a horizontal shaft impact crusher utilizing impact force to crush the material.

Types of Secondary Impact Crusher

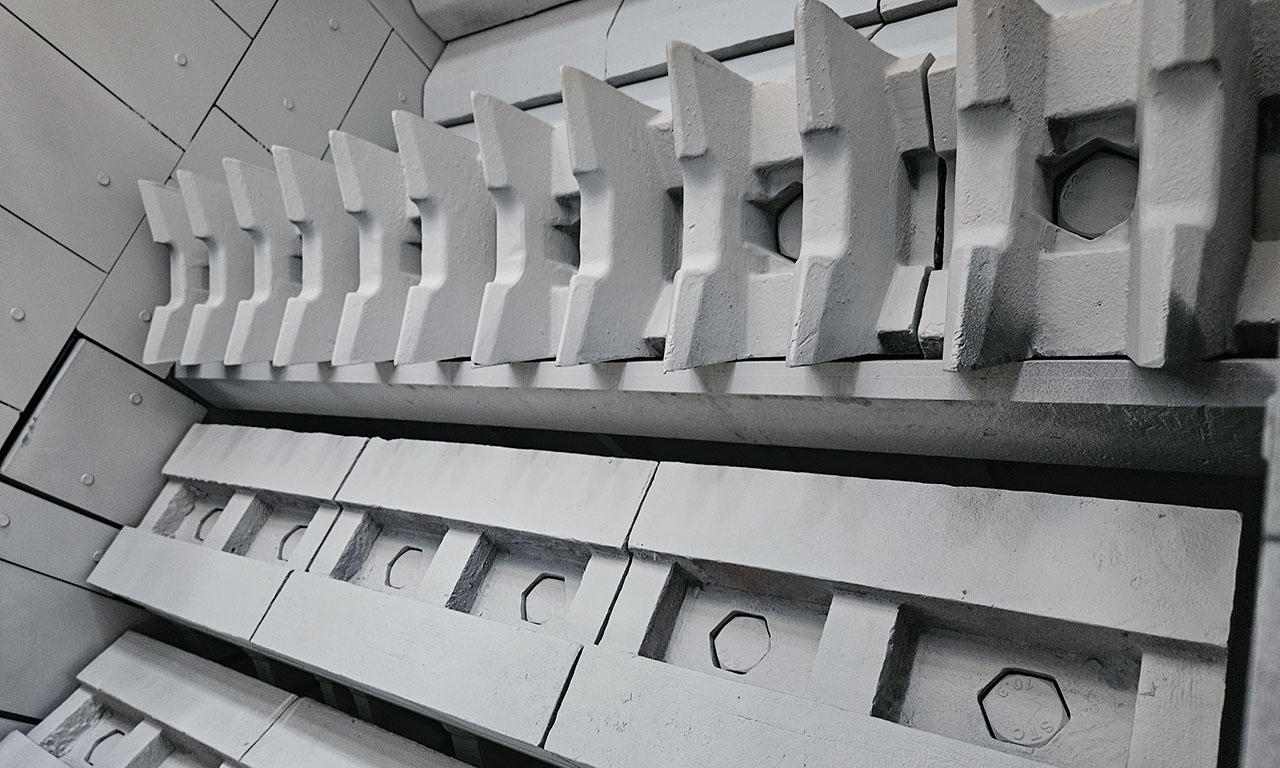

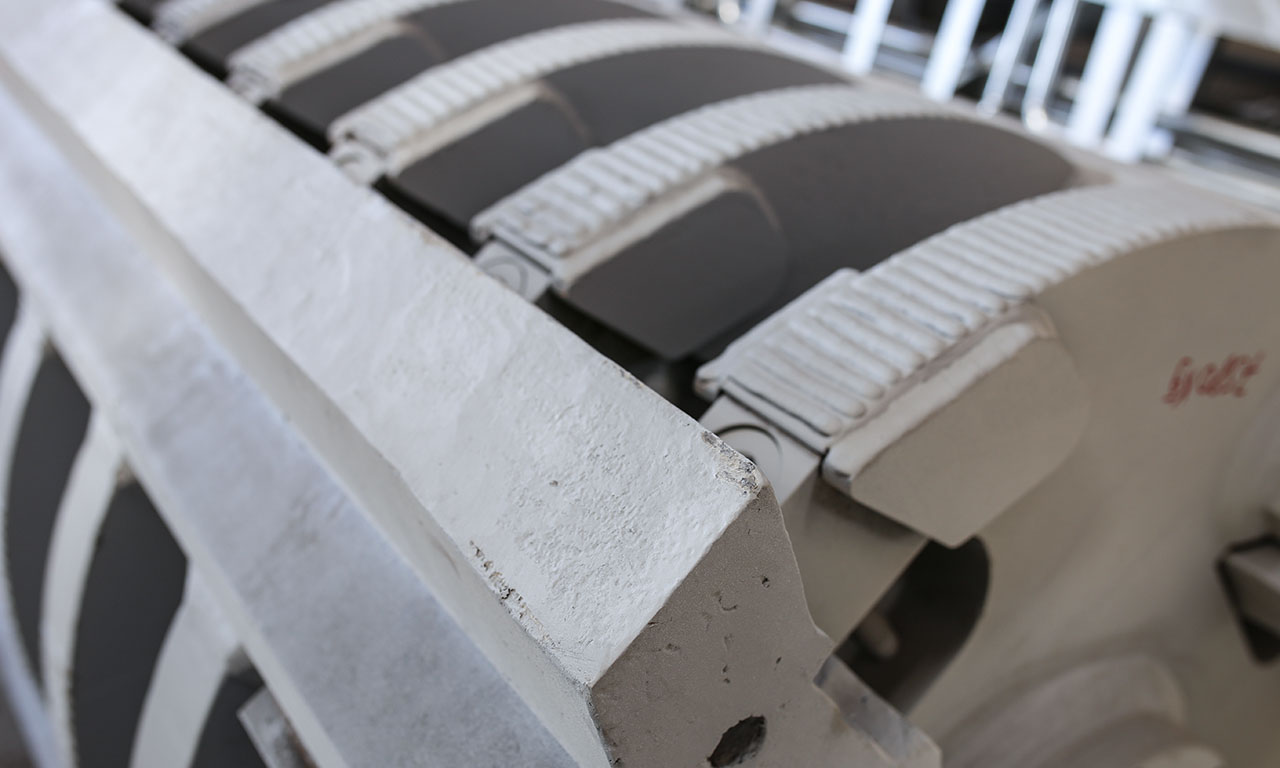

Different designs for soft and non abrasive feed material or for medium hard and slightly abrasive material are available. For hard and abrasive material, crushers have special heavy-duty design of the body, rotor and the breaker bars and blowbars are with higher chromium content castings. These crushers are also equipped with a third breaker plate producing higher amount of fines.

MEKA MSI Series Secondary Impact Crusher is ideally suited to crush soft to medium hard materials of medium to low silica content such as limestone, gypsum.  MEKA MSIH Series Secondary Impact Crusher is the economical alternative to cone crushers for hard stone. They are suitable for several raw mineral materials with varying degrees of hardness, from soft to brittle materials to hard rocks and iron free recycling material.

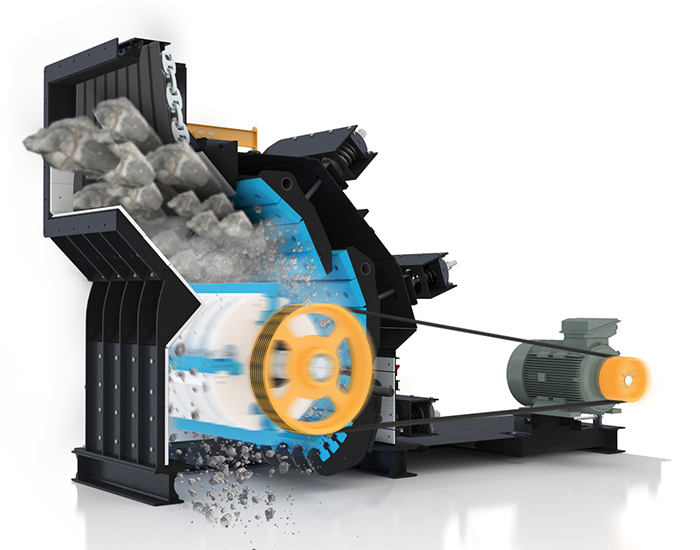

How Does Secondary Impact Crusher Work?

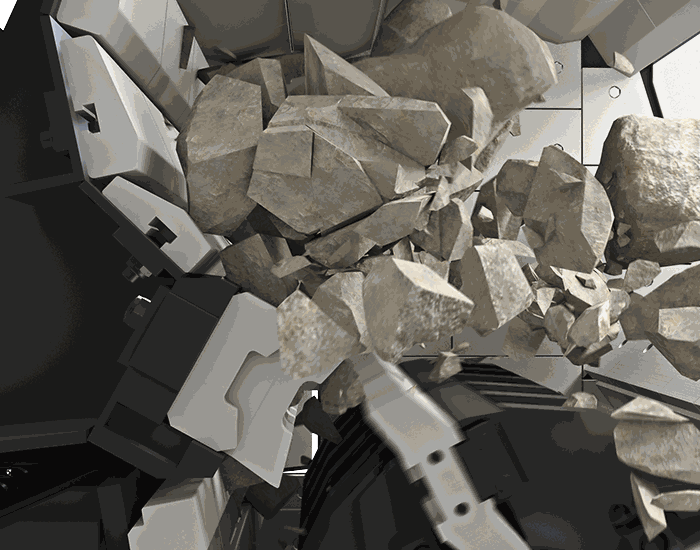

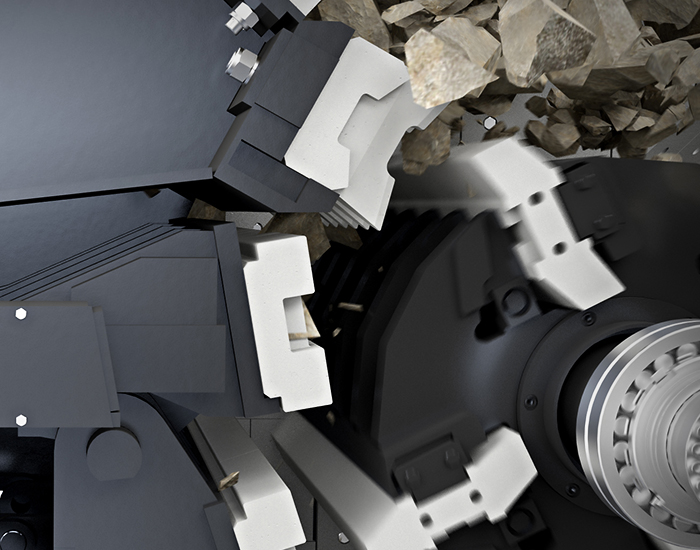

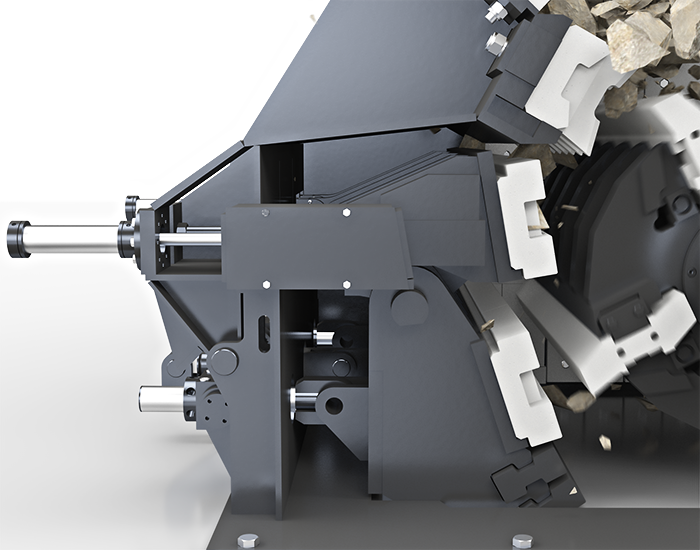

The materials are crushed by the impact force generated by the blowbars fixed on the rotating rotor.With the impact of the material on the blowbars on the rotor, the material hits the opposite breaker plates and a secondary crushing takes place.

Advantages of Using Secondary Impact Crusher

Secondary impact crushers are designed for the secondary stage for high throughput and cubical end products. High reduction ratio and high production make impact crushers ideal crusher for large capacity projects .Energy cost per ton of product produced is low.

Secondary Impact Crusher Processes Applications

Secondary Impact crusher is used in the secondary stages of the crushing process for different kinds of materials. They produce cubical and high percentage of end products, and the fines production rates in the end product are also very high.
