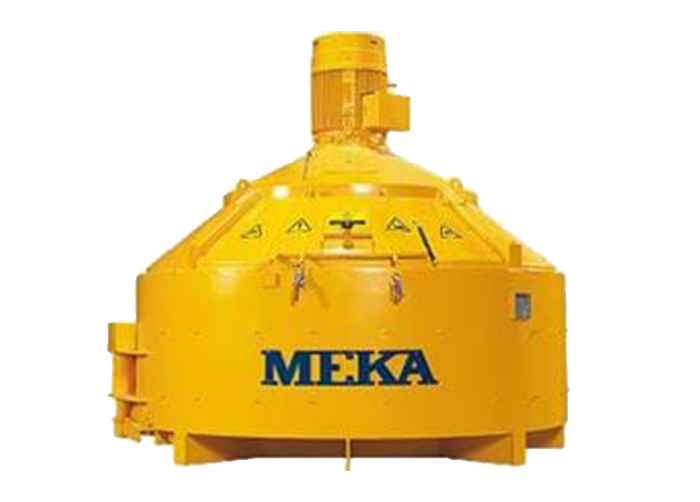

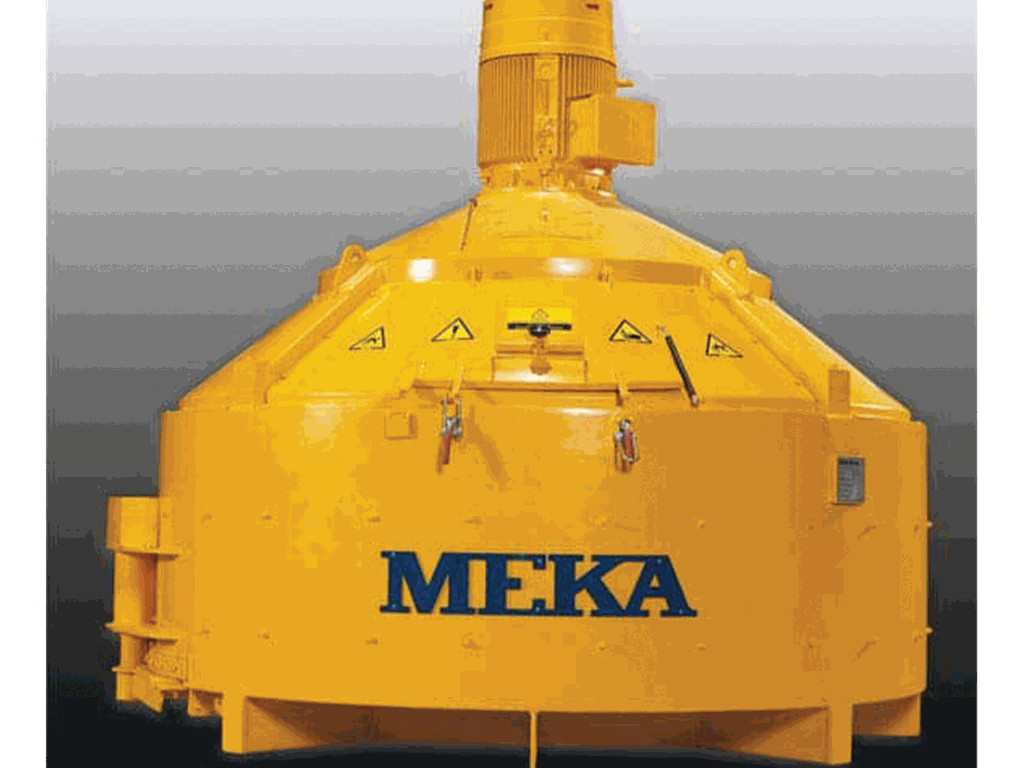

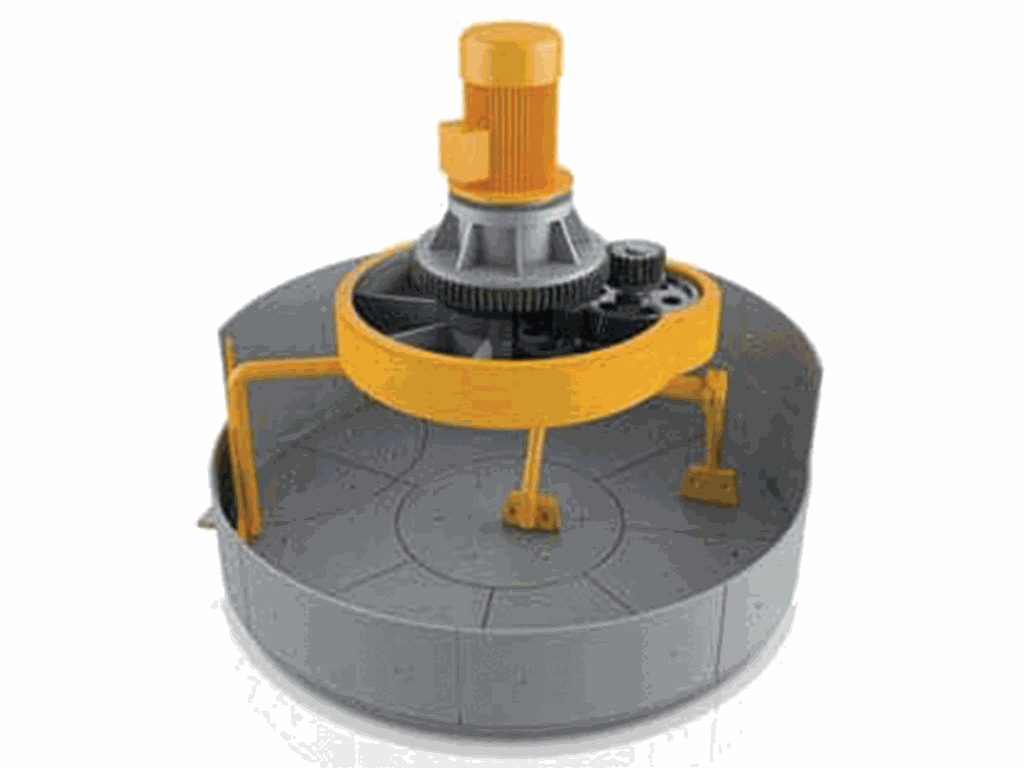

Planetary Concrete Mixers

Achieving the desired homogeneity and workability of modern within the shortest period possible, is often the most critical phase of production, therefore, the need for reliable, high quality mixing equipment is essential. A MEKA with a MEKA Planetary at its heart is a combination you can always rely on. MEKA offers an extensive range of high performance – Single Shaft, Twin Shaft, and Planetary with variety of different capacities, ensuring we comply with every requirement. MEKA Planetary have proven to be reliable and built to the highest quality, resulting in MEKA equipment being the choice of many professionals, in over 70 countries around the world.

Quick Quote

Planetary Concrete Mixers Advantages

HEAVY AND ROBUST

MEKA Planetary offer long life, as they are 5-10% heavier than most of their equivalents on the market today, due to their robust steel structure and thick interior abrasion proof linings.

NI-HARD IS THE KEY

We offer NI-HARD alloy cast wearing linings in our Single Shaft as standard. This particular alloy is well known for its abrasion resistance and is used in a variety of different applications, such as , coal and other mineral grinding, slurry pump manufacturing, pumping, piston manufacturing, gears manufacturing and many others. Despite being more expensive at the outset, Ni-hard outperforms other alloys in terms of abrasion resistance and overall operating costs, as NI-HARD is proven to have up to 3 times the wear life of standard alloy materials.

USING NI-HARD

The rigidity of NI-HARD material is identical through every section and layer, therefore, abrasion rates do not vary, as the plates begin to wear and subject to the rigidity of the aggregates used, the life expectancy of the Ni-Hard wear parts, can reach a production capacity of up to 1,000,000 m³, depending on the type and its volume.

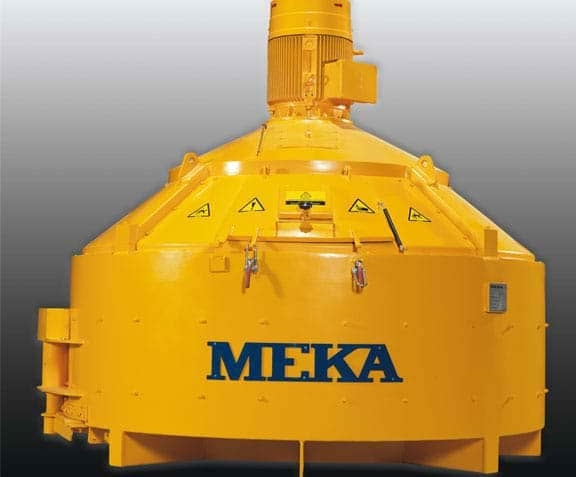

WATER DISTRIBUTION SYSTEM

We offer water distribution pipe with distribution nozzles working by gravity by default. Several discharge types and sprayers, gravity or pressurized are available upon request according to the application.

MIXER DISCHARGE GATE

Discharge gate is operated hydraulically. Position switches enable individual adjustments for controlling the flow of through the discharge gate.

HYDRAULIC DRIVE FOR DISCHARGE GATE

Discharge gate is driven by a hydraulic power pack, which ensures the full open and close. Manual operation with the help of a manual pump in case of an emergency is possible.

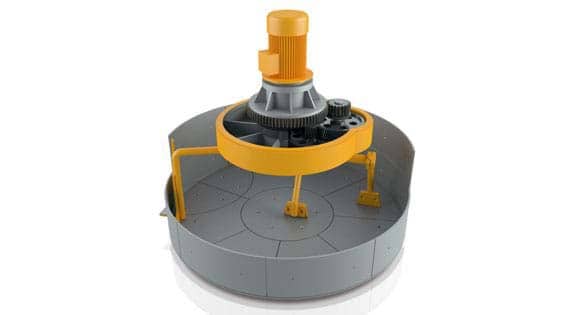

POWER PANEL

All MEKA come pre-wired and connected to the junction power box.

HYDRAULIC COUPLING

Our planetary are supplied with hydraulic couplings as a standard to ensure the soft starting of the mechanisms to lower the stress on mixing arms.

Optional Items

MAINTENANCE COVER

Wide maintenance hatch with safety switches for secure and easy access for maintenance are supplied as a standard.

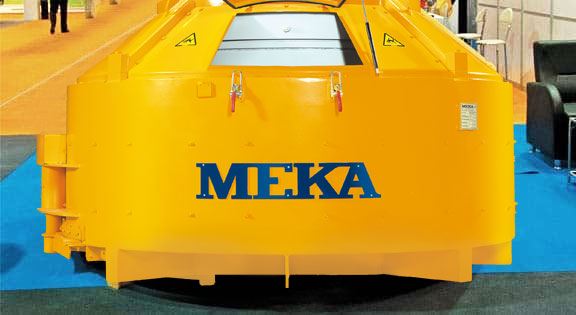

DRIVETRAIN TO LAST

High quality motors and gear-boxes from the best manufacturers with perfectly chosen RPM’s lower energy consumption and provide a long lasting service life of the

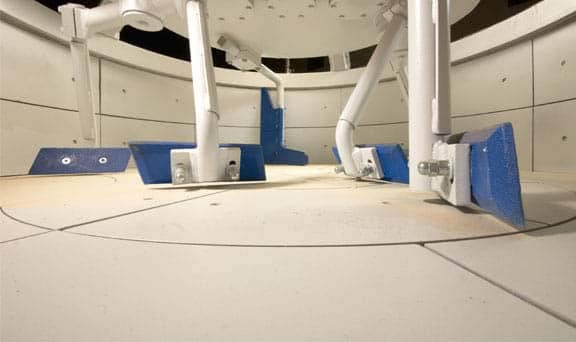

DISCHARGE CHUTE

A discharge chute can be supplied upon request with or without rubber chute.

MIXER MOISTURE PROBE

A microwave moisture sensor reading at 25 times per second and combined with on-board functionality such as signal processing, smoothing and averaging accurately measures the moisture content of material as it passes over the ceramic faceplate

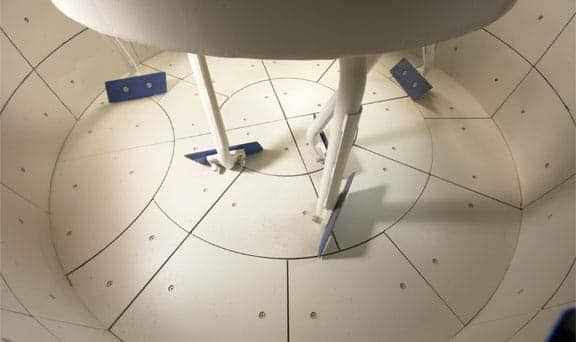

MIXER TEMPERATURE SENSOR

No matter what is the season, cold or hot, the purpose of this sensor is to ensure that the temperature of the mix is within acceptable levels.

SAFETY POWER TAKE-OFF KIT

For the safety of working environment we offer a wide range of safety power take-off kits for and other parts of.

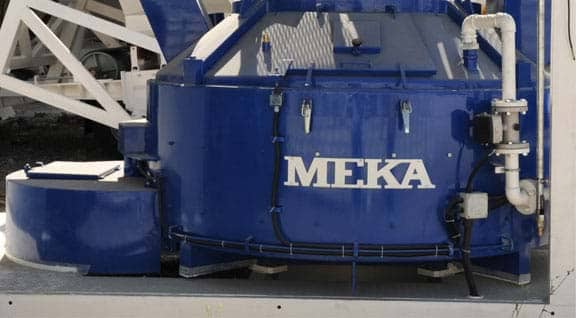

AUTOMATIC HIGH-PRESSURE WASHOUT SYSTEM

An optional washout system with a 100-bar water pump and two rotating heads (10 nozzles) can be supplied upon request.

PRESSURIZED WATER DISTRIBUTION

According to the application we can offer a low pressure water spray system for water discharge and special distribution nozzles.

Why MEKA Mixers?

MIXER TOP FILTER

A separate filter or dust bag for can be supplied upon request.

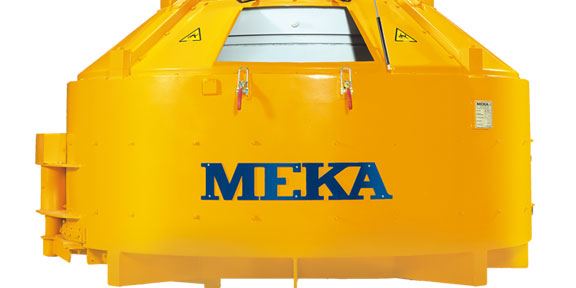

TWIN-DISCHARGE

Two-way discharge with second discharge gate can be supplied as an option to maximize the capacity of the plant and to ease the operation.

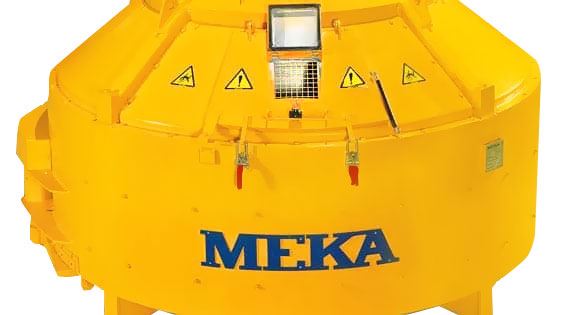

SPECIAL APPLICATIONS

The design of the can be changed or improved according to special applications like precast , low slump and others.

SWIVEL DISCHARGE CHUTE

We can offer a swivel discharge chute to protect the trucks from leak on drive through layouts.

WIDE AFTER-SALES NETWORK

We are always around to support our equipment with our regional offices, dealers and spare part warehouses worldwide.

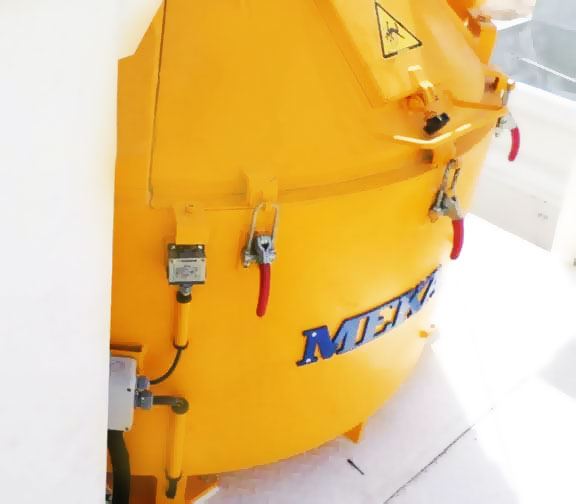

A RELIABLE PARTNER

Many of the World’s leading professional contractors, construction companies and cement manufacturers, prefer MEKA. MEKA has become a leading supplier for a number of major projects around the world and has proven to be an industry leader in the Turnkey supply and manufacture of high quality and reliable production equipment.

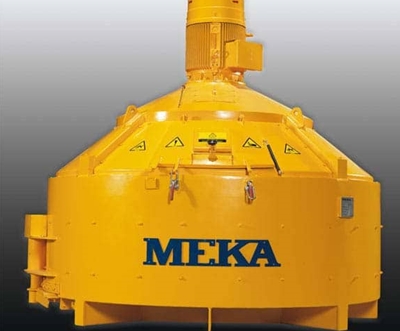

APPROVED QUALITY

All MEKA products and manufacturing processes are compliant with the quality requirements of ISO 9001, CE norms, EAC standards and other specific quality and safety based directives.

HIGH PRECISION MACHINERY

The use of technologically advanced CNC boring equipment ensures all MEKA structures are perfectly aligned to ensure the parallelism of the mixing shafts.

3D SOLID MODELLING AND TESTING

All MEKA products are designed and tested in parametric 3-dimensional space prior to manufacture, to eliminate any potential faults.

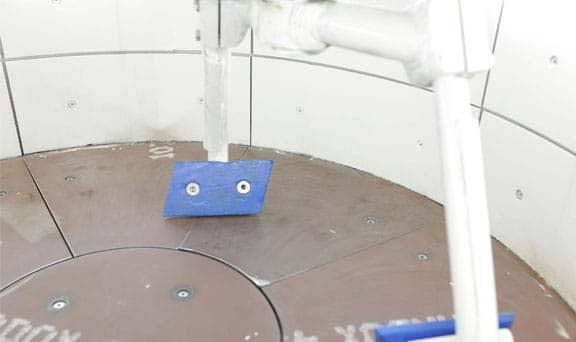

PERFECT WATER DISTRIBUTION

Water distribution pipes allow perfect water distribution within the to ensure fast and homogeneous mixing in less than 30 seconds.

PROJECT SUPPORT

Not sure, if our equipment fits? Let us offer you a complete solution. Our project team will be happy to create unique solutions for different applications.

DRIVETRAIN TO LAST

High quality motors and gear-boxes from the best manufacturers with perfectly chosen RPM’s, to lower energy consumption and provide a long lasting service life of our

WIDE RANGE

With a wide range of different types of and capacities, we have a solution for every application.

Planetary Concrete Mixers Technical Specifications

metric imperial	MB-P 0,33	MB-P 0,5	MB-P 1,0	MB-P 2,0
Types	MB-P 0,33 m³ MB-P 0.43 yd³	MB-P 0,5 m³ MB-P 0.65 yd³	MB-P 1,0 m³ MB-P 1.3 yd³	MB-P 2,0 m³ MB-P 2.6 yd³
Loading Dry Capacity	0,5 m³ 0.65 yd³	0,75 m³ 1.0 yd³	1,5 m³ 1.95 yd³	3,0 m³ 3.9 yd³
Fresh Capacity	0,41 m³ 0.53 yd³	0,625 m³ 0.8 yd³	1,25 m³ 1.62 yd³	2,5 m³ 3.25 yd³
Compacted Output	0,33 m³ 0.43 yd³	0,5 m³ 0.65 yd³	1,0 m³ 1.3 yd³	2,0 m³ 2.6 yd³
Motor Power	15 kW 20 Hp	18,5 kW 25 Hp	45 kW 60 Hp	90 kW 120 Hp
Weight	1.900 kg 4,190 lbs	2.620 kg 5,775 lbs	5.380 kg 11,860 lbs	8.900 kg 19,620 lbs
Side Scraper	1 1	1 1	5.380 kg 1	8.900 kg 1
Bottom Scraper	- -	- -	1 1	2 2
Nr. of Stars x Nr. of Blade on Each Star	1x2 1x2	1x2 1x2	2x2 2x2	3x3 3x3
Star RPM / RPM	46/min - 17/min 46/min - 17/min	46/min - 16/min 46/min - 16/min	42/min - 12/min 42/min - 12/min	33/min - 9/min 33/min - 9/min
Body	Welded, SAND BLASTED and Layer Painted (Prime+Color)
Paint	JOTUN (Norway) / KANSAI (Japan), Thickness 120-200 micron
Gearbox	MEKA Hydrocoupling with the "Soft Start" function
Motor Safety	Adjustable Thermic Overload Protection Relay SIEMENS (Germany)
Mixing Shaft/Arms/Scrap	Robust shaft made from forged steel / Arms from cast steel, replaceable
Shaft /Arms Alignment	Ultra precision CNC robot machine with strict quality control
Side Body Wearing Plates	ST52 - 10 mm thickness, replaceable
Main Body Wearing Plates	HARDOX 500 (Hardness 500 BH) - 12 mm thickness, replaceable
Mixing Arm/Scraper Wearing Plates	Ni Hard 4 (Hardness 600 Brinell) - 20 mm thickness, replaceable
Automatic Lubrication	Self lubrication by distribution of oil from crankcase via gears
Discharge Gate	Hydraulic, rotary with manual pump for emergency discharge
Nr. of Discharge Gates	1, optional installation of 2nd gate
Discharge Control	2 switches with wide range control in automation (time for opening, time for waiting)
Water Distribution	From nozzles over arms, discharge by gravity
Emergency Stop Button	Lockable, according to CE regulations
Dust Suppression	By-Pass system connecting the Cement Scales and Agg. Holding Hopper
Maintenance Cover	With safety switch, wide, dustproof, including inspection hatch with safety grid
Wiring	Completely pre-wired to the IP55 Junction Box on main chassis
Discharge Chute	With replaceable wearing liners

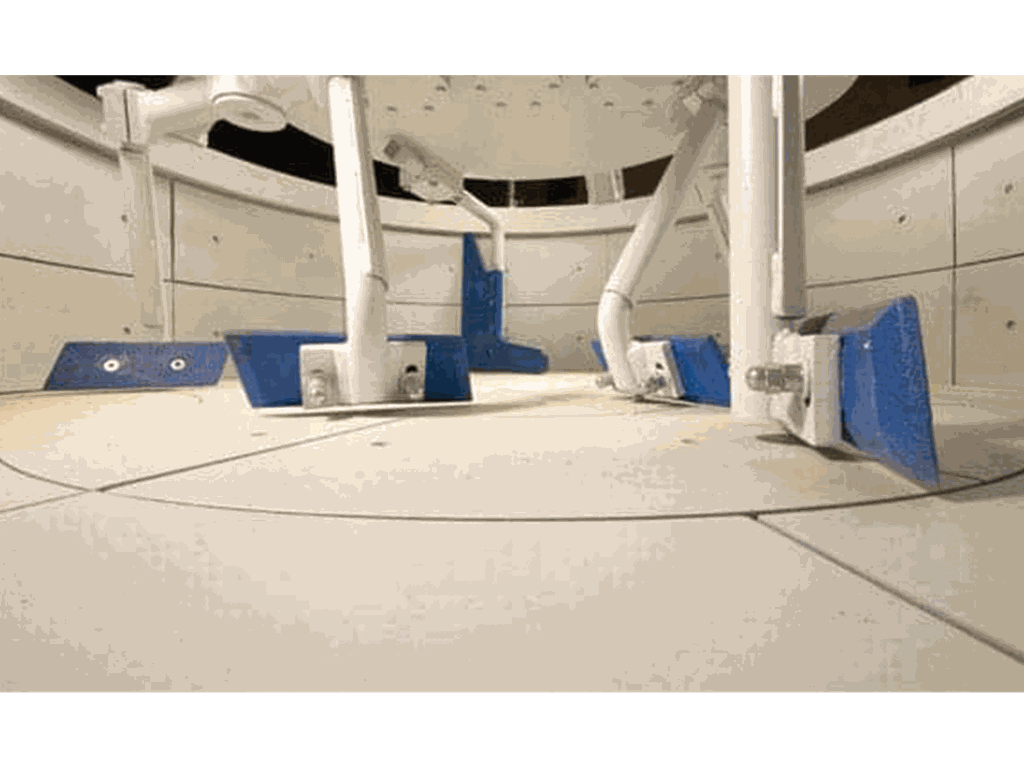

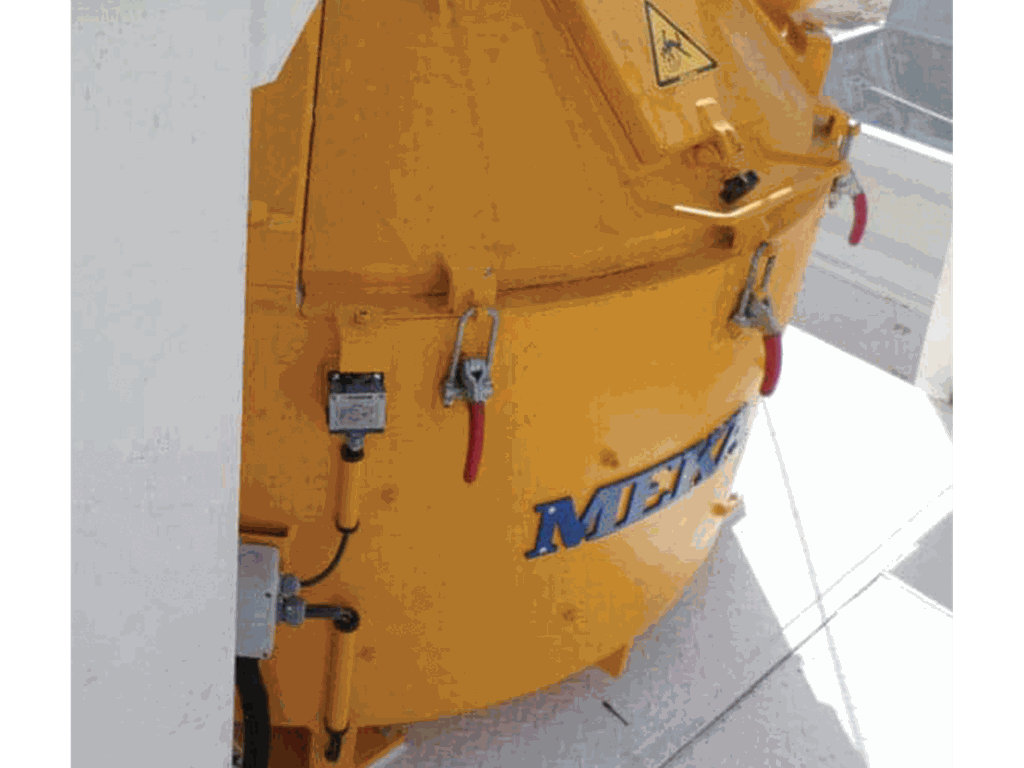

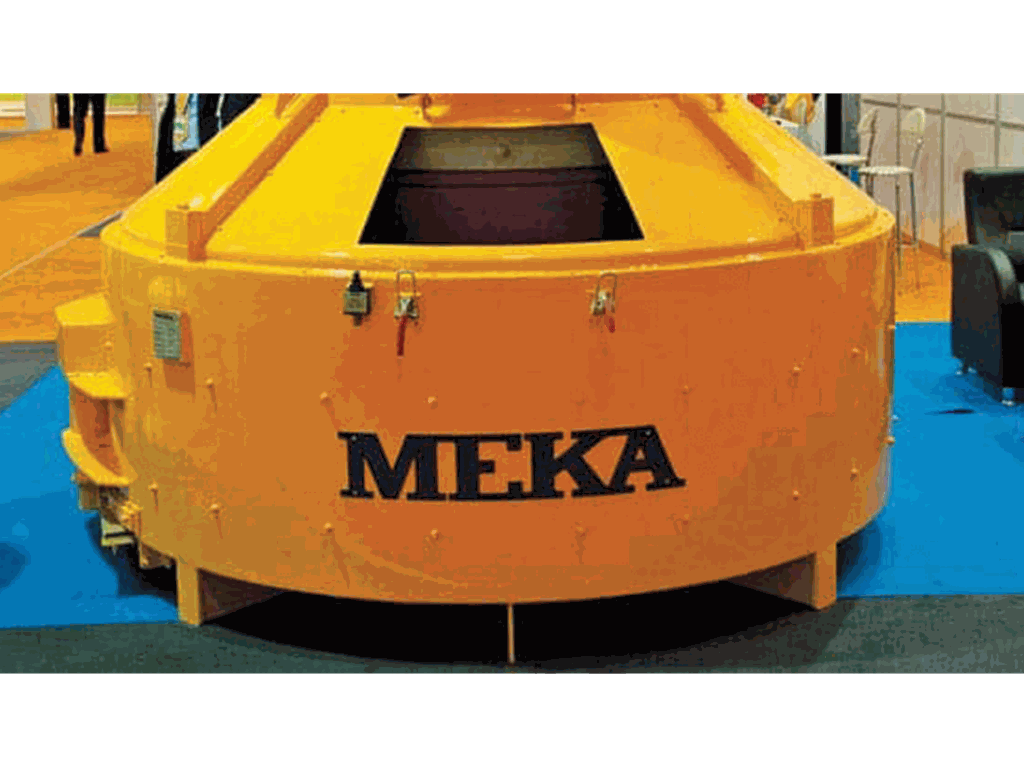

Planetary Concrete Mixers Gallery

Concrete Mixers Optional Features

Concrete mixers are essential equipment in the construction industry, enabling the rapid and efficient mixing of concrete. These mixers ensure a homogeneous blend of concrete, contributing to the production of high-quality and durable concrete on construction sites. They are commonly used in concrete production plants and construction sites for transporting and pouring concrete.

Concrete mixers are available in various capacities and can be adapted to meet different project needs, from large-scale construction projects to smaller applications. Typically, mixers have capacities ranging from 4 m³ to 10 m³, but some models may have smaller or larger capacities depending on specific requirements.

What is a Concrete Mixer and How Does It Work?

A concrete mixer is a piece of equipment used to create a homogeneous concrete mixture. Concrete mixers typically use a rotating drum or a mixing cylinder. This rotating system allows materials such as cement, sand, water, and aggregate to mix together and form concrete. The mixer’s rotational movement ensures a uniform mix and helps produce high-quality concrete.

What Are the Applications of Concrete Mixers?

Concrete mixers are widely used in the construction industry. They are essential in various projects, from residential buildings to infrastructure works, road construction projects, and commercial buildings. Concrete mixers are indispensable on construction sites, especially for concrete pouring processes. They are also frequently used in concrete production plants.

How Much Concrete Can Concrete Mixers Mix?

The capacity of concrete mixers typically ranges from 4 m³ to 10 m³. However, with custom designs, smaller or larger capacity mixers can also be produced. The mixer capacity is determined based on the scale of the construction project and the daily concrete requirement. Smaller capacity mixers are sufficient for small projects, while higher-capacity mixers are preferred for larger projects.

How to Maintain a Concrete Mixer?

Regular maintenance of concrete mixers is essential for ensuring their long lifespan and efficient operation. The drum and motor should be inspected and cleaned regularly. After each mixing process, any remaining concrete should be removed, and surfaces should be lubricated. Additionally, gears, tires, and other moving parts should be periodically checked and replaced or lubricated if necessary. Following the manufacturer’s maintenance guidelines helps keep the mixer operating efficiently.

Is It More Advantageous to Rent or Buy a Concrete Mixer?

The decision to rent or buy a concrete mixer depends on the size and duration of the project. For short-term projects, renting a concrete mixer may be more cost-effective. However, for long-term or large-scale projects, purchasing a mixer can be more economical. Buying ensures continuous availability and maintenance control, whereas renting is a better option if you need the mixer for a limited period and want to avoid maintenance responsibilities.

Explore Our Projects Worldwide

Discover More

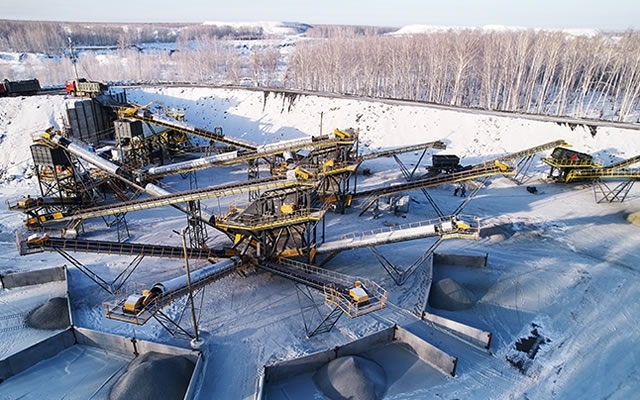

MEKA Aggregate Production Plant / RUSSIA

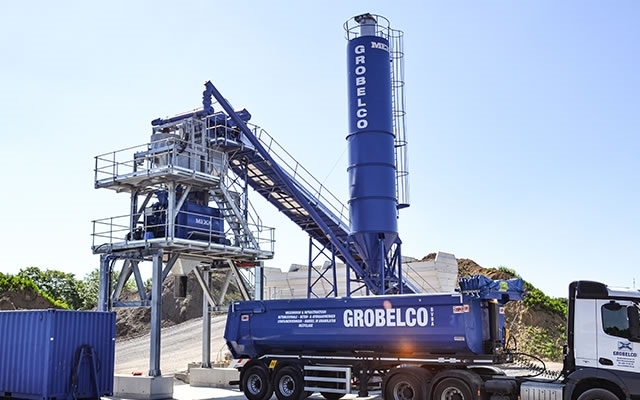

MEKA Stationary Concrete Batching Plant / BELGIUM
