From mixer to conveyor, silo to load cell — every spare part your concrete batching plant needs, under one roof. Genuine MEKA-manufactured parts and selected supplier products, with wide stock, fast delivery and technical support.
At a concrete batching plant, the most expensive aspect of unplanned downtime is not the stopped machine; it is the truck waiting on site, the pouring schedule slipping and customer confidence being shaken for a day. The start of this chain is almost always the late-noticed wear of a small part: an unreplaced mixer paddle, a hardened seal, a load cell that has lost its calibration. Concrete batching plant spare parts management therefore stops being a procurement matter and becomes directly a question of production efficiency and total cost of ownership (TCO).
Genuine spare parts and selected supplier products for concrete batching plants and concrete mixers manufactured since 1987 are offered under one roof. This guide is an operational reference covering the ten main spare-parts categories, the spare parts of auxiliary systems, critical wear zones, maintenance intervals, the impact of climate conditions on spare-parts strategy, and the ordering errors most frequently encountered in the field. It is designed as a daily decision-support tool for both plant managers planning maintenance and site supervisors.
The spare-part decision is often made on a single comparison: aftermarket or genuine? The short-term unit-price difference is misleading, because a concrete batching plant is a complete system and a part running out of specification turns into cascading damage.
Exact match to design tolerances
Parts such as the mixer paddle arm, discharge chute rubber or screw flight are manufactured with the plant's frame dimensions and motion geometry in mind. A deviation of a few millimetres on an aftermarket paddle leads to unbalanced load on the shaft bearings and premature bearing damage.
Correct material selection
At high-impact wear points such as the mixer paddle and arm, Hadfield (high-manganese) steel or Ni-Hard cast iron is generally preferred; for the mixer base plate and the armour beneath the chute rubber, HARDOX grade is common. Manufacturing an identical-looking part from an unsuitable steel grade halves its service life and raises the cost per cubic metre.
Minimising the risk of secondary damage
The real cost is not in the worn part but in the destruction it causes. A bearing exposed to water because of a low-quality seal then stresses the bearing housing, the shaft and finally the mixer body. A saving on a single seal turns into a loss dozens of times greater through a mixer overhaul.
Warranty and technical support coverage
The use of genuine parts preserves the validity of your plant's warranty framework. Dispatching the after-sales services team to site, along with installation and commissioning support, can be requested together with a genuine-parts order.
The following ten categories cover all consumable and mechanical parts across the MEKA concrete batching plant product family. For each category, the most critical items in the field, typical wear signals and selection criteria are summarised.

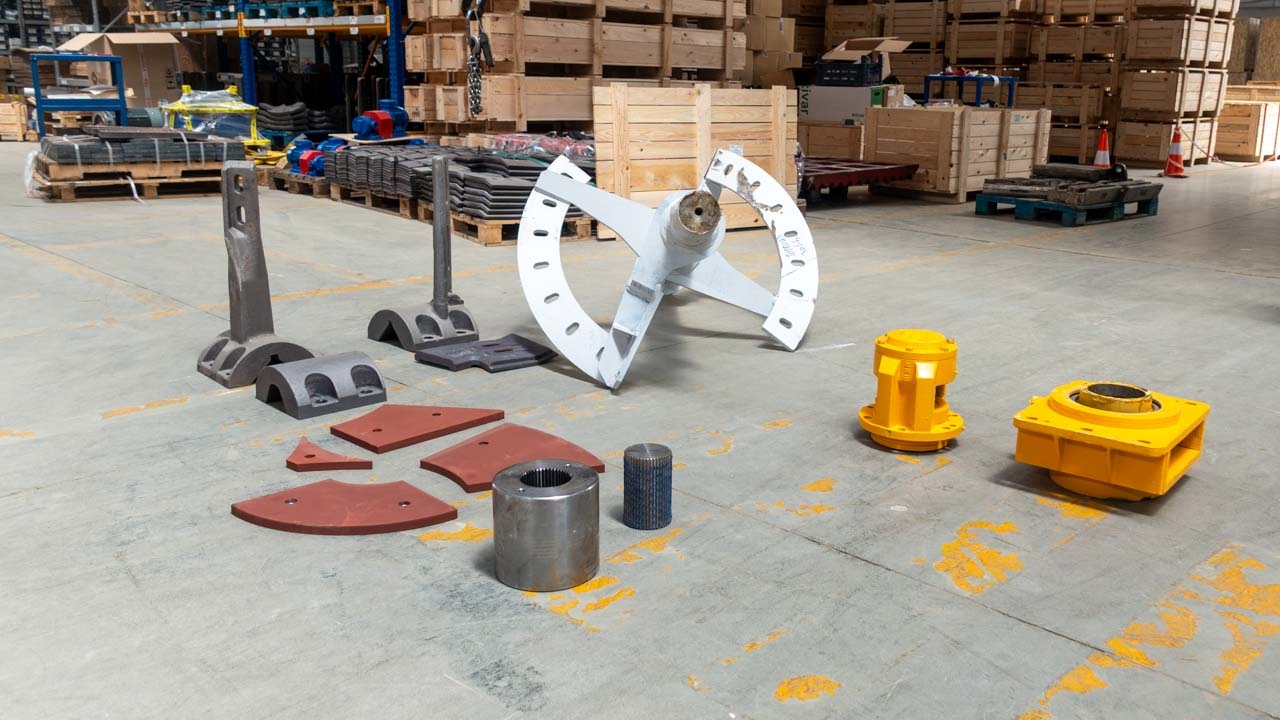

1. Mixer parts
The mixer is the heart of the plant; mixing quality, discharge capacity per minute and energy efficiency depend directly on its internal components. Wear and mechanical parts are supplied for all twin-shaft, single-shaft, planetary and pan mixers.
This category covers paddles and paddle arms, body and side-wall wear liners, shaft seal-bearing assemblies, the gearbox (usually of coaxial or parallel-shaft design), the mixer discharge chute and the chute rubber. Typical replacement signals include longer mixing times, deteriorating homogenisation, uneven build-up on the mixer floor and loss of sealing at the shaft ends.
When selecting mixer parts, the mixer type, mixing volume and the abrasiveness class of the aggregate must be stated clearly. Two mixers of the same model may require wear liners of different hardness depending on the aggregate type.
2. Bucket systems and aggregate feeding
The aggregate weighing and feeding line is the stage that sets the pouring rhythm. This category includes all structural and wear components for the 30, 60 and 100 litre weigh buckets, holding hoppers and anchor plates.
The internal wear liners of the buckets, the gate cylinders and the sealing gaskets are planned-replacement parts due to constant contact with the aggregate-water mixture. In holding hoppers, the internal surface lining, hopper tarpaulin, vibrator mounting plates and the mounting elements of level sensors are among the critical items. Anchor elements showing signs of corrosion or deformation must be replaced with their genuine equivalents.

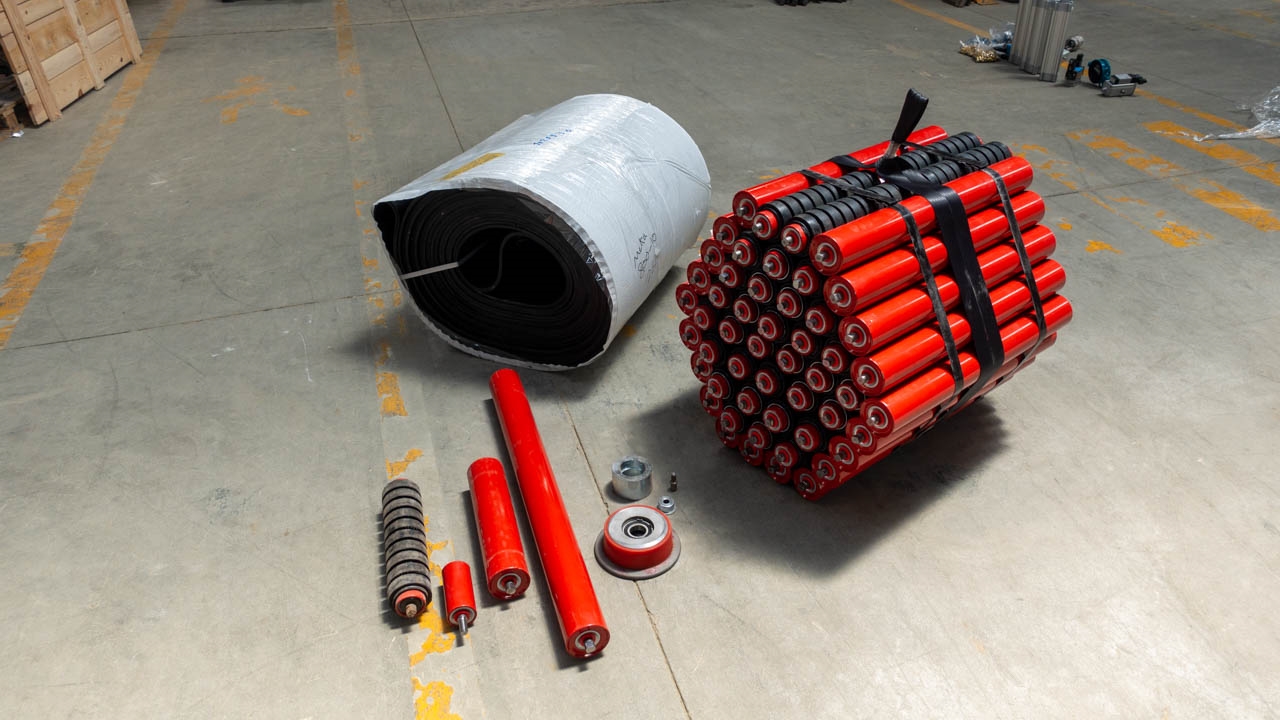

3. Conveyor equipment
The aggregate conveying line is the longest section and the one with the highest wear rate. Six different idler types are supplied for the conveyor line (carrying, return, impact, self-aligning, troughing and special rough-top idlers). Conveyor belts are offered as flat, chevron and wiper models; scrapers are provided in two stages, as primary and secondary.
Pull-cord accessories, mechanical tensioning systems, pulleys and safety switches also fall within this category. Longitudinal splitting, edge fraying or build-up under the scraper on the belt is a sign that both the idler and the drive pulley have been damaged. In this case not only the belt but also the idler and scraper set in contact with the belt must be assessed together.

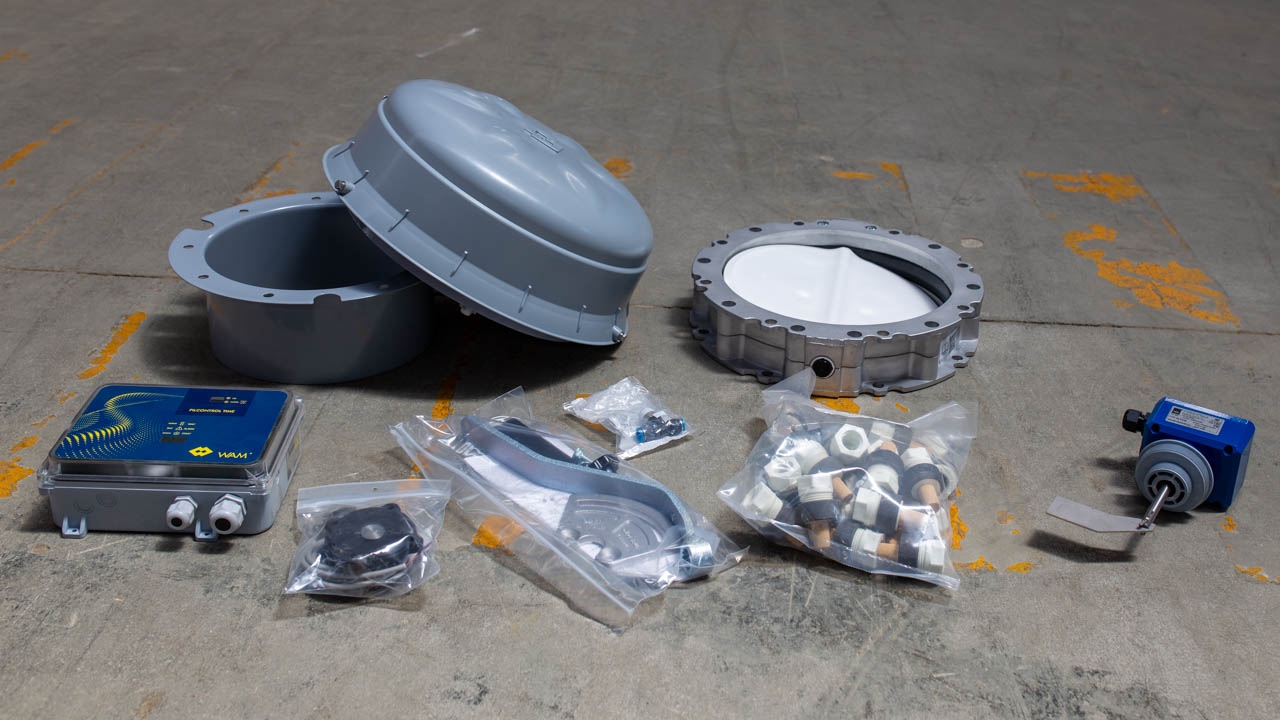

4. Silo and WAM equipment
Cement silos and admixture dosing systems require critical maintenance both structurally and in terms of dust/fluid contact. Full spare-part coverage is provided across the 11 sub-types of the WAM series equipment; butterfly valves, filter cartridges, level sensors, vibrators and safety valve groups are components of this family.
ES and TU screw conveyors are used for the horizontal and inclined conveying of materials such as cement, fly ash and limestone powder. The internal flight thickness is one of the parameters most often forgotten to be measured in the field; even a 1-2 mm loss of thickness reduces conveying efficiency and drives up the motor amperage. A genuine spare-parts line is also available for the single- and twin-hopper admixture systems that operate integrated with the fibre dosing systems.

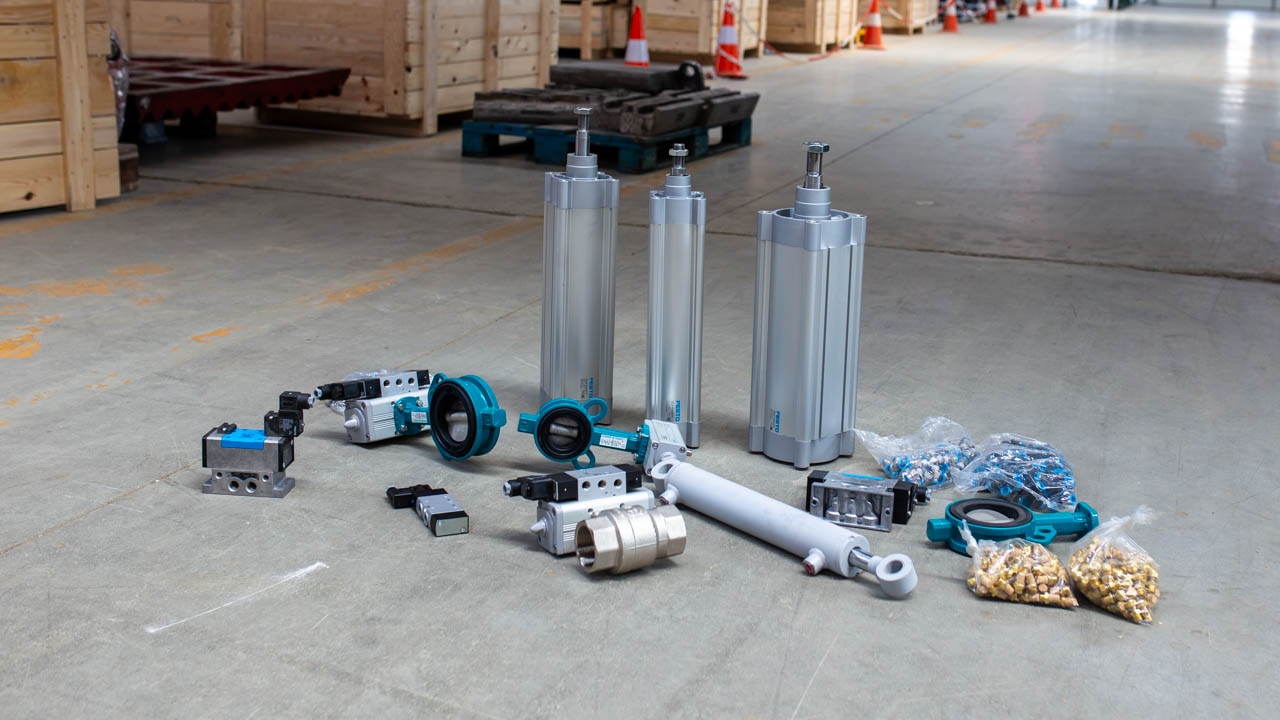

5. Pneumatic, hydraulic and booster systems
Opening and closing the mixer gate and the movements of the bucket, butterfly valve and cylindrical transfer are all managed by pneumatic and hydraulic power. This category includes Festo- and Pemaks-brand pneumatic cylinders, hydraulic cylinder-valve-pump groups and booster (hydrophore) systems.
Cylinder precision on the pneumatic line directly affects dosing repeatability. A delay of a few seconds in gate closing time causes cumulative loss in the number of cycles. In hydraulic systems, fluctuation in pump outlet pressure, heating of the valve coils and signs of leakage are the first signals requiring planned intervention. Booster systems are important for the water weighing and mixer washing lines; a pressure drop affects the rheology of the mix and the quality of cleaning.

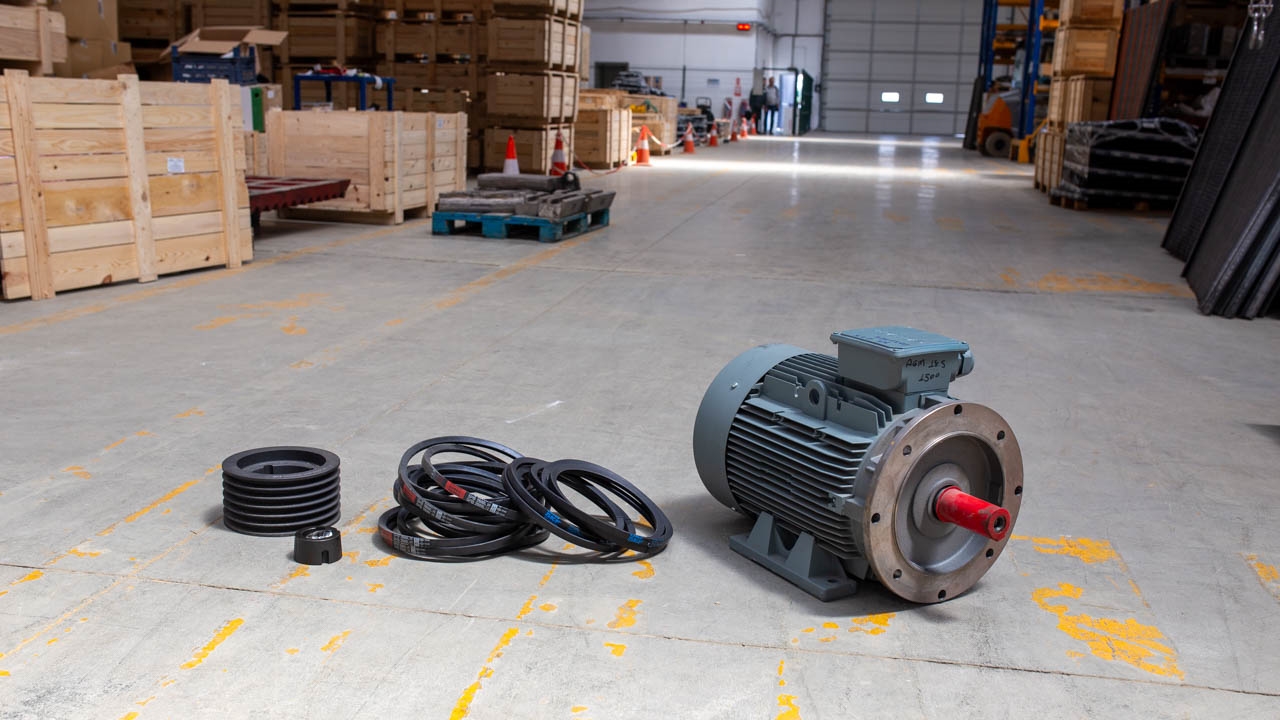

6. Electric motor, pulley and belt
Electric motors in B3 foot-mounted, B5 flange-mounted and close-coupled connection types are supplied for mixer drives, conveyor motors, compressors and screw-conveyor and vibrator motors. SPB, SPC and V-profile pulley-belt groups are kept in stock for power transmission.
The most critical point in motor selection is not only the power (kW) but also the connection type, number of poles, IP protection class and mounting size. When any one of these five parameters is stated incompletely, the motor that arrives on site cannot be fitted; unnecessary shipping and downtime costs arise. Micro-cracks, glazing of the profile or uneven tension in a belt group are a sign that a set replacement is needed.

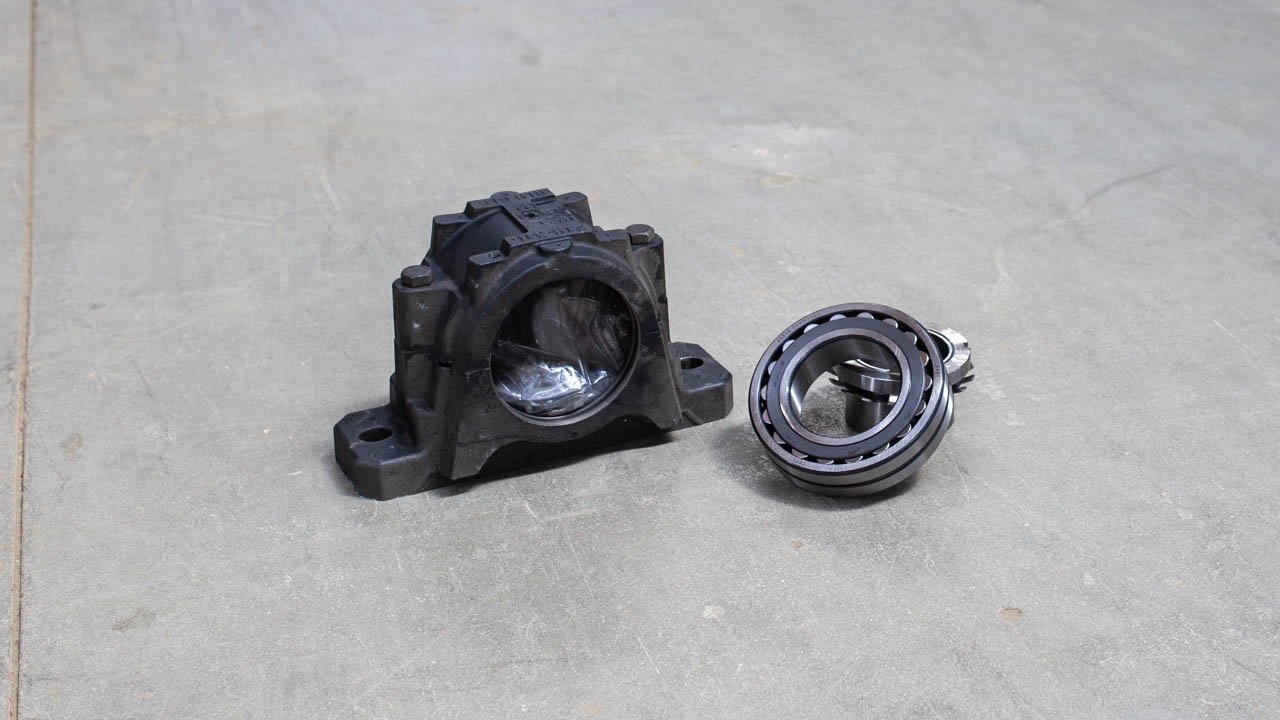

7. Bearing housings, bearings and fasteners
SNH bearing units, housed and muff bearings are used throughout the shaft and pulley systems. This category also covers bearing families, seal sets, adjusting rings, grease channels and bolt-nut-washer standards.
The most frequent mistake in bearing replacement is failing to renew the seal. A new bearing fitted with a worn seal soon loses its grease or is affected by wash water; the same failure recurs within a short period. Stating the grade (8.8, 10.9, etc.) in the bolt-nut group is essential; anchoring the mixer gate with a low-grade bolt is a serious safety risk.

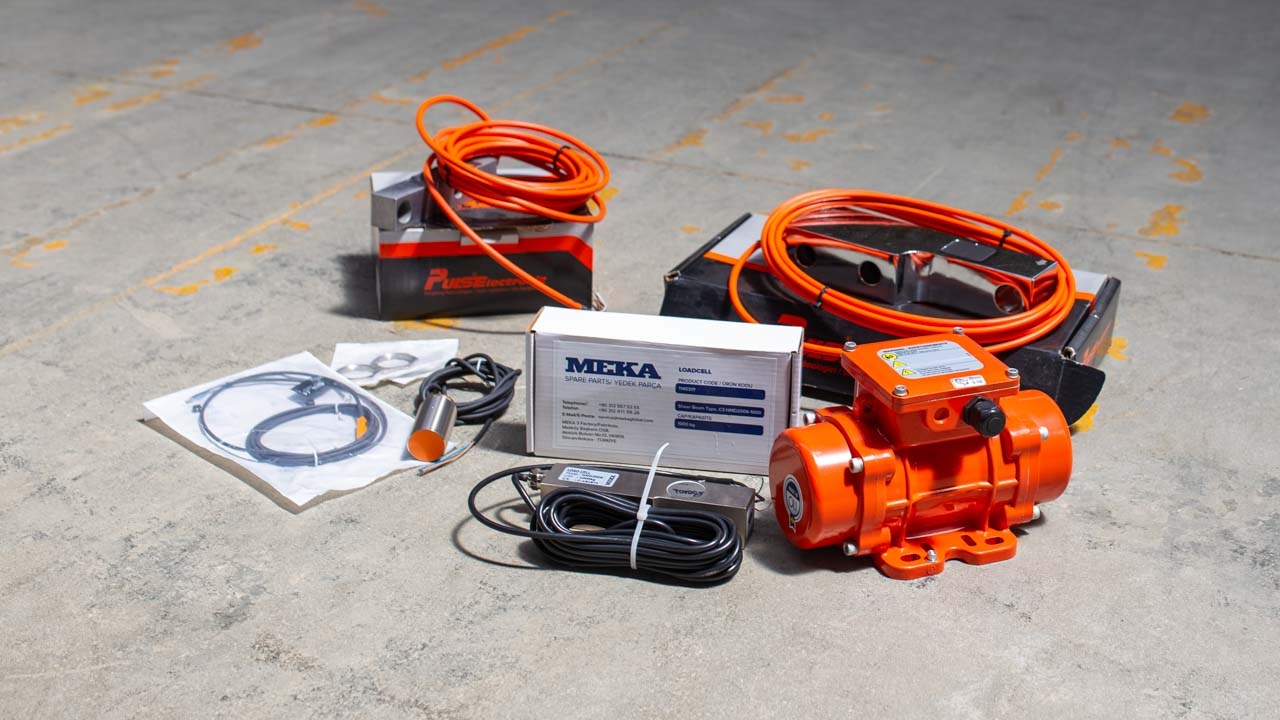

8. Load cell, sensor and vibrator
Weighing accuracy is the mathematical foundation of concrete quality. In addition to MEKA-manufactured load cells, Puls- and Esit-brand load cells are offered in selected capacities. The OLİ brand is preferred in the vibrator group; in the sensor family, seven types are held in standard stock: magnetic, inductive, capacitive, photoelectric, ultrasonic, pressure and level. Calibration weights are also part of this category.
The load cell is the item within concrete batching plant spare parts that is most inadvisable to replace with an aftermarket equivalent. A different linearity curve, different temperature compensation and different signal gain disrupt the calibration of the concrete batching plant automation software; a dosing deviation is directly reflected in the quality of the concrete delivered to the customer.

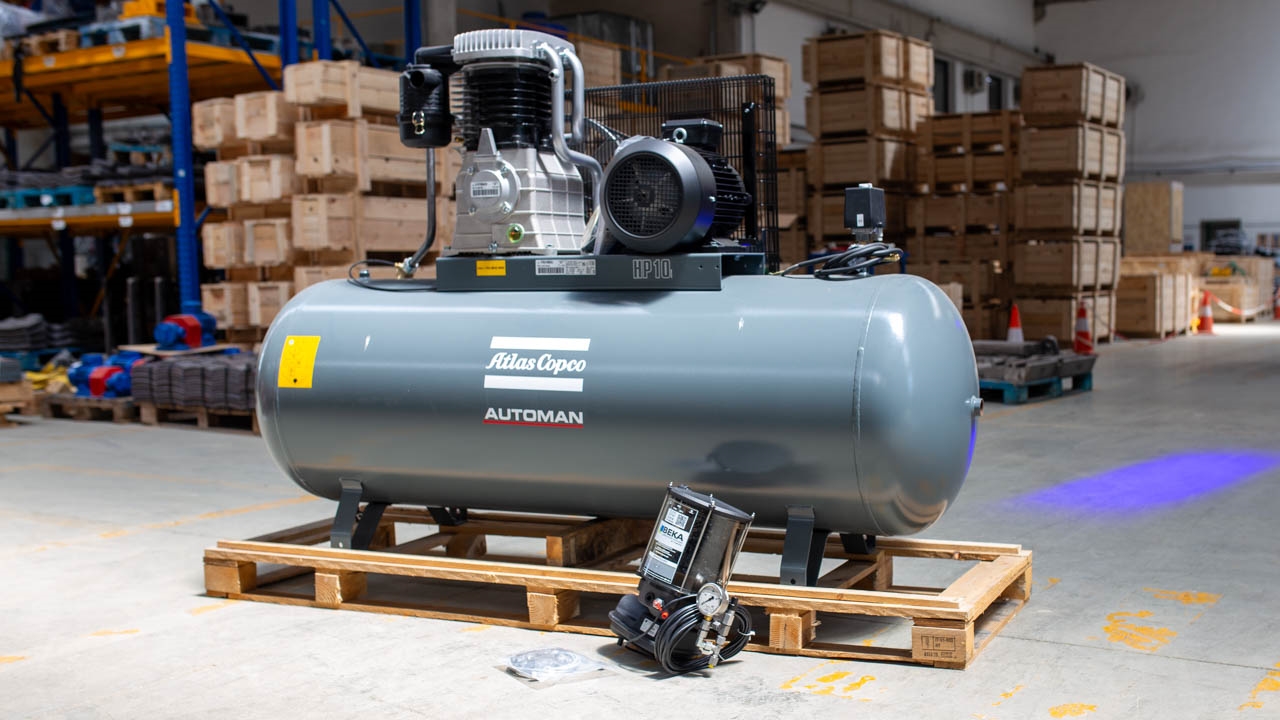

9. Automatic lubrication and compressor
Automatic lubrication systems are used to grease the mixer shaft bearings and moving points without manual intervention. The pump, distributor, line and nozzle of Bekamaks- and Lincoln-brand automatic lubrication systems are supplied together.
On the compressor line, the spare-part and consumable groups (oil, filter, belt, valve set) of the Dalgakıran, Atlas Copco and Tamsan brands are in stock. Compressor air efficiency is a prerequisite for cylinder precision on the pneumatic line; if the air pressure from the compressor drops, the mixer gates do not close fully and the dosing cycle is disrupted.

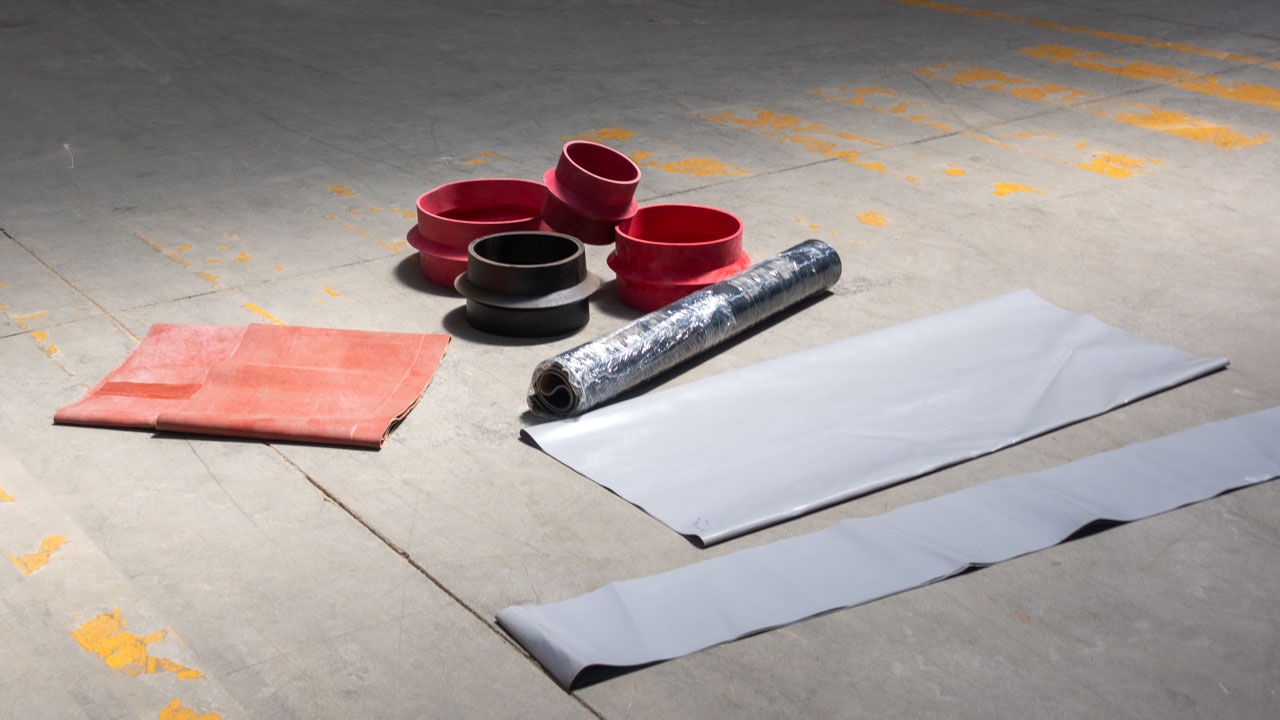

10. Chute rubbers and accessories
This category consists of cement chute rubbers, water-hopper chute rubbers, mixer discharge chute rubbers, screw-conveyor and hopper tarpaulins, clamp parts and hose connection elements. At first glance they look like consumables; yet a one-millimetre leak in the chute rubber turns into dust emission and unwanted product loss.
Tarpaulins are used not only to contain dust but also to isolate the internal line of the screw conveyor from the external environment. A damaged tarpaulin leads to caking in humid conditions, jamming of the butterfly valves and overloading of the screw-conveyor motor.
The ten main categories cover the parts that form the plant's skeleton. However, a modern concrete batching plant cannot produce at full efficiency without the auxiliary systems operating around it. The following three systems demand at least as much maintenance in the field as the main parts.
Dust collectors and filter units
Jet-pulse type dust filters used at the top of the mixer, the top of the silo and transfer points are critical both for operator health and for compliance with environmental regulations. The spare-part group of this system consists of filter cartridges (polyester, anti-static or PTFE-membrane), pulse-jet solenoid valves, sealing gaskets of the compressed-air tank and differential-pressure sensors.
Filter cartridges are replaced on average every 12-18 months depending on the density of the aggregate dust; however, replacement can be brought forward when the differential-pressure value exceeds the threshold. Solenoid valve failure shows itself through cartridges that cannot be cleaned and clog quickly.
Water heating and cooling systems
To maintain production continuity according to the season, the plant has water-preparation systems (steam injection or an electric heater for winter, a chiller or ice system for summer). The spare-part group of these systems includes heating elements, steam valves, the chiller compressor and evaporators, ice-machine blades and thermostat-PT100 sensors.
In hot-climate markets (the Middle East, Africa, South Asia), ice-unit parts must be kept in planned stock; a failure of the ice machine means pouring stops during the summer months.
Concrete recycling system parts
Concrete recycling systems separate the wash water of truck mixers and discarded fresh concrete into aggregate and slurry. The spare-part families of this system consist of the spiral classifier flight, the internal wear panels of the washing drum, the slurry pump rotor-stator group, the slurry-tank agitator blades and the overflow weir rubbers.
Wear of the spiral flight directly affects classifier efficiency; when the escape of fine aggregate increases, recycling becomes inefficient and the slurry tank on site fills up in a short time.
All maintenance planning starts with recognising the zones where wear is most intense. There are four primary wear zones in concrete batching plants; the maintenance schedule is built around the measurement intervals of these zones.
Mixer interior
The paddle, paddle arm, body wear liner and side-wall plates are in mechanical contact with the aggregate on every fill-discharge cycle. Wear must be recorded point by point every 2-3 months with a thickness gauge. If wavy, uneven wear is seen on the surface, one of the paddles may be missing or incorrectly positioned.
Conveyor line
The conveyor belt, carrying and impact idlers, and primary-secondary scrapers are exposed to wear at every metre the aggregate is conveyed. Belt-scraper life shortens quickly, particularly with oily aggregate; the scraper contact surface must be checked weekly. When a longitudinal crack appears on the belt, replacing the belt without finding the source of the crack (usually a foreign object or faulty loading) is only a temporary fix.
WAM butterfly valves and internal screw flights
On the cement and admixture conveying line, the valve seals and the screw flights wear continuously. Leakage of the valve leads to cement loss, dust emission and inaccurate weighing. The flight thickness of the screw conveyor must be measured every 6 months; replacement should be planned at a 20 percent loss of thickness.
Loss of load cell accuracy
There is no visible wear, but a load cell may over time show loss of calibration, mechanical impact or weakening of cable insulation. Verification with a reference weight should be done once a month; when the deviation limit is exceeded, the calibration must be renewed or the load cell replaced with a new one.
The cost of planned maintenance is roughly one fifth of the cost of unplanned downtime. The periodic maintenance schedule below is a widely accepted reference; it can be tightened according to aggregate abrasiveness, work shifts and climate conditions.
Daily (start of shift)
Grease check of lubrication points, reading of pressure values on the hydraulic and pneumatic lines, listening for air leaks, visual inspection of the mixer interior, cleaning under the conveyor, testing of the emergency-stop buttons.
Weekly
Measurement of belt tension, adjustment check of the primary and secondary scrapers, leak test of the WAM butterfly valves, draining of the compressor condensate, manual check of motor casing temperatures, recording of the dust-filter differential-pressure value.
Monthly
Verification of load cell calibration with a reference weight, belt-pulley alignment check, motor amperage measurements, fill-level check of the automatic lubrication line, thermal-camera scan of the electrical panel.
3-6 months
Thickness measurement of the mixer paddle and paddle arm, bearing noise and vibration analysis, hydraulic-oil particle analysis, screw-flight thickness check, compressor oil change, dust-filter cartridge check.
Annual
Gearbox oil change, overhaul of the main electrical panel, compressor overhaul, torque check of the anchor bolts, comprehensive recertification of safety equipment, check of the recycling-system drum and screw-conveyor internal lining.
When this schedule is transferred to a maintenance card on site and run with a sign-off tracking system, the rate of unplanned downtime drops markedly on an annual basis.
Keeping all spare parts in stock is neither possible nor financially sensible. The three-group stock approach we recommend applying in the field keeps critical items always on hand and does not tie up capital in unnecessary items.
Group A — permanent stock (must be in the on-site store)
Mixer paddle and paddle arm, body wear liner, one complete conveyor belt, carrying bearing, main contactor and fuse set, grease and hydraulic oil, chute rubbers, the most frequently used seal sets, dust-filter cartridge. This group brings intervention time during a planned stoppage down to under 24 hours.
Group B — weekly supply
Mixer gearbox, main drive motor, load cell, WAM butterfly valves, screw flight, hydraulic valve groups, sensor variants, compressor main parts. This group arrives on site from stock on average within 3-7 working days.
Group C — project-based (supply on demand)
Mixer frame parts, silo anchor profiles, main electrical panel, complete booster (hydrophore) group, water-cooling unit. For these items, a production lead time that can extend up to 7-15 working days must be planned.
Reviewing the stock decision annually clarifies which Group A item is in fact left unnecessarily in stock and which Group B item requires fast access on site.
The same plant model does not have the same maintenance schedule in Ankara and in Jeddah. The wear rate of spare parts can vary by up to 2-3 times depending on climate, number of shifts and aggregate type. The A/B/C stock groups must therefore be fine-tuned to the conditions of the site.
Hot and dry climate (above 40°C, low humidity)
Pneumatic cylinder seals harden faster, viscosity loss occurs in the hydraulic oil, and compressor oil life shortens. Water-cooling and ice-unit parts must be placed in critical stock. Because dust emission intensifies, filter-cartridge consumption is around twice the standard.
Coastal and humid climate
Corrosion is the main threat. The IP protection class of electric motors and the panel sealing gaskets must be checked frequently; when rust appears on the surface of bare-steel wear parts, the thickness measured beneath the rust can drop faster than under continuous wear.
Winter operation (below zero)
To prevent the water lines from freezing, the heating elements, insulation and drain valves must be operational. Because the fluidity of the hydraulic oil drops, starting movement before warming up is the most frequent mistake made by inexperienced operators and leads to pump damage.
Two- or three-shift operation
All maintenance intervals are wrong if they are built on the calendar day rather than the operating hours. A calibration that is monthly in a single 8-hour shift must be brought down to once every 10 days in three-shift operation.
Highly abrasive aggregate (basalt, granite, slag)
Mixer paddle life drops to half the standard; in this case the use of Ni-Hard cast iron or a double-coated paddle instead of Hadfield steel should be considered. Conveyor-belt life and scraper consumption also increase at the same rate.
Field experience shows that the majority of unplanned downtime stems not from mechanical failure but from a wrong order or a wrong intervention decision.
The key to fast and accurate shipping lies in an order opened with the correct information.
Basic information needed for an order:
-Plant serial number and year of manufacture
-Mixer type (twin-shaft / single-shaft / planetary / pan)
-Part group and, if possible, a photo of the part
-Shipping address and contact person details
-Level of urgency (planned maintenance or unplanned stoppage)
Lead times
The great majority of MEKA-manufactured parts are held in ready stock. For custom-made or overseas-supplied products, the lead time varies between 3-15 working days depending on the part group; once the request is received, the exact time is communicated to you.
On-site installation and assembly support
On request, the technical service team is dispatched to site together with the spare-parts delivery; installation, adjustment and commissioning support is provided. This is a service recommended in particular for gearbox, mixer, load cell and automation parts.
Supply for non-MEKA plants
For commonly used standard components (bearing, belt, sensor, load cell, motor, etc.), supply can also be provided for non-MEKA plants. When the request is submitted, suitability is assessed and a response is given.
Field experience shows that the majority of unplanned downtime stems not from mechanical failure but from a wrong order or a wrong intervention decision.
Concrete batching plant spare parts management is a far broader discipline than a single part shipment: the right part must be on site at the right time and to the right specification. Plants that have established this discipline do not miss their monthly production target, do not face the risk of returns due to concrete quality deviation, and fit their total maintenance cost within a predictable budget.
With over thirty-five years of field experience and a worldwide project portfolio, MEKA offers genuine spare parts, wide stock and technical support across a broad range of categories, from mixer parts to conveyor equipment and from the load cell to the automatic lubrication system. Contact our team to submit your spare-parts request, call technical service to site, or draw up a Group A stock list specific to your plant.
