Portable Vertical Impact (VSI) Crushers With Feeder

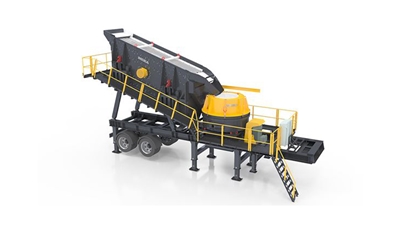

Portable Vertical Shaft Impact Crushers are wheel-mounted rock crushing machines, engineered for tertiary or quarternary crushing applications. Equipped with a vertical shaft impact crusher and a feed hopper with belt feeder, it is used in the last stage of a multistage crushing process or as a stand-alone unit processing pre-crushed material.

Applications

MEKA Portable Vertical Shaft Impact Crushers are usually applied in the last phase of the crushing circuit.

The quarrying and construction industry has always been main application area with many units operating around the world, followed by many demanding manufactured sand, heap leaching, pre-grinding, industrial minerals and recycling applications.

Why MEKA Portable Vertical Impact (VSI) Crushers With Feeder?

Proven producer of premium quality VSI crushers,

Highest quality end products, the more cubical your product, the better its performance in concrete, asphalt and base mixtures,

Feed hopper and belt feeder with frequency inverter providing the desired, continous feed rate to crusher,

Fast and convenient way to move from site to site on wheels,

Self contained electrical switchgear cabinet mounted on the semi-trailer, with controls for feeder, crusher and discharge conveyor,

Electrical switchgear cabinet can be located on the ground during operation.

2” / 3 ½” King-pin, double-axle bogie with air-brakes, ABS and travel lights, mudflaps

Portable Vertical Impact (VSI) Crushers With Feeder

MP 90L-F

FEED CONVEYOR
Width Width 1000 mm 3’ 3"
Length Length 6000 mm 19’ 8"
Motor Power Motor Power 5,5 kW 7 HP
Hopper Volume Hopper Volume 1 m³ 1 m³
CRUSHER
Model MVI 90L - ROR MVI 90L - ROR
Rotor Diameter Rotor Diameter 900 mm 2’ 11""
*Capacity *Capacity up to 200 mtph up to 220 stph
Max Feed Size Max Feed Size 50 mm 2"
Motor Power Motor Power 200 kW (50 Hz) 272 HP (50Hz)
DISCHARGE CONVEYOR
Belt Width Belt Width 1000 mm 3’ 3"
Length Length 7000 mm 22’ 12"
Motor Power Motor Power 5,5 kW 7 HP
TRANSPORT DIMENSIONS
Length Length 12 981 m 42’ 7"
Width Width 3.12 m 10’ 3"
Height Height 4.245 m 13’ 11"
**Weight **Weight 26.480 kg 58.378 lbs
OPERATING DIMENSIONS
Length Length 12.981 m 42’ 7""
Width Width 5.725 m 18’ 9"
Height Height 5.020 m 16’ 6"

*For material weighing 1.6 t/m³ or 100 lbs/ft³. Capacity values are indicative only, crusher performance may vary depending on the feed gradation, feed moisture content,crushability of the material, crusher rpm, installed power and the crushing circuit design.


**Weights shown do not include drive motor package, support legs, maintenance platform, inlet and outlet chutes

What is Portable Vertical Impact (VSI) Crusher With Feeder?

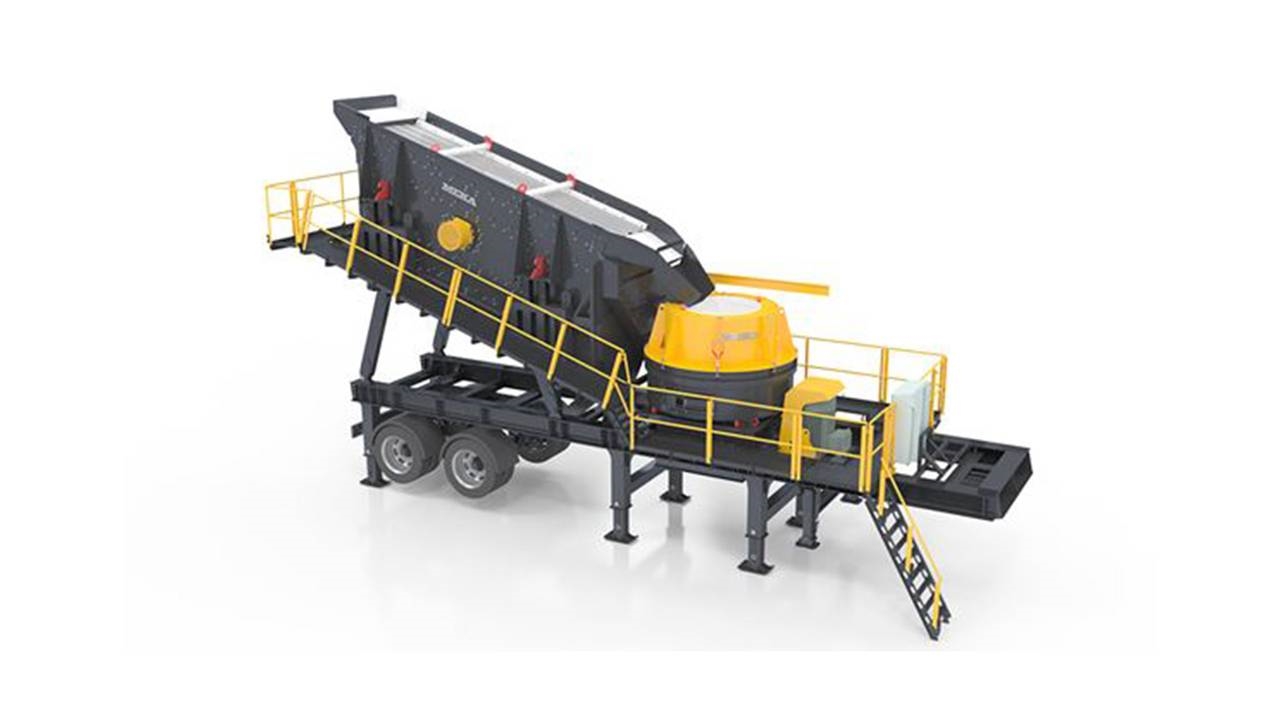

The portable vertical shaft impact crusher with belt feeder plant is a wheel mounted unit which consist of tertiary vertical shaft impact crusher, belt feeder and feed hopper on the same trailer chassis.
Types of Portable Vertical Impact (VSI) Crushers With Feeder
Vertical shaft impact crusher portable unit with belt feeder is a tertiary plant consisting of a tertiary vertical shaft type impact crusher and belt feeder on the same trailer chassis.
How Does Portable Vertical Impact (VSI) Crushers With Feeder Work?
The material to be processed is fed into the vertical shaft impact crusher via a belt feeder. In addition to the crushing of the material by impacting the crushing chamber at very high speed, the impact and friction of the material against each other causes additional crushing and fragmentation.
Advantages of Using Portable Vertical Impact (VSI) Crushers With Feeder
In addition to the general advantages of the vertical shaft impact crusher (VSI), such as increasing the amount of sand and the cubicity of the end product, the advantages of being portable are as follows;

Compact design: On the same chassis wşth the feeder, is ready to produce end products on its own or can be easily adapted to a plant.
Ready for operation: Can be commissioned and started up quickly.
No concrete work: No need for excess concrete and site preparation.

Quick and easy site change for another project.

Portable Vertical Impact (VSI) Crushers With Feeder Processes Applications
Portable vertical shaft impact crusher (VSI) with feeder plants are suitable for crushing soft to hard, low abrasive to high abrasive rocks, depends on VSI configuration like ROR or ROS to produce products to be used in a variety of industries such asphalt,cement,concrete etc.

VSI crushers provide unmatched performance in a variety of applications such as recycling, liberation, separation, pre-grinding, heap leaching in metallic mining, industrial mining, aggregates, recycling and construction, etc.
