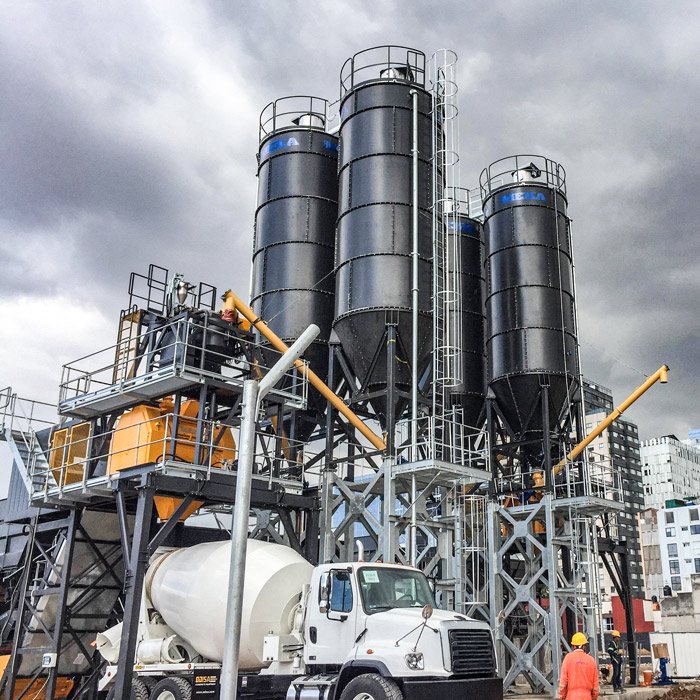

C60 B
Compact Concrete Batching Plant

The C60 B Belt Type Compact Concrete Batching Plant, featuring a production capacity of 60 m³/h, is equipped with a sergeant-type conveyor belt system that minimizes space requirements and allows for installation directly at ground level. Its compact design also makes it ideal for containerized transportation.

Briefly C60 B

The C60 B Compact Concrete Batching Plant, with its sergeant-type transfer belt structure, requires a relatively small installation area and can be transported using 40' open-top containers.

Equipped with a 1.0 m³ capacity MEKA twin-shaft mixer, the C60 B ensures uninterrupted production while offering low operating and maintenance costs. It provides versatility with two aggregate bunker options: 4x10 square type or 4x20 in-line type.

Designed for maximum efficiency and constructed with top-quality components, the C60 B can be installed directly on ground level without the need for additional concrete foundation piers. Pre-wired electricity, water, and pneumatic lines prepared at MEKA’s factories enable rapid installation, allowing the plant to begin concrete production quickly upon arrival at the site.

C60 B Compact Batching Plants Technical Specifications

Plant Capacity

Compacted Concrete Output

60 m³/h
Concrete Mixer

Mixer Type
Mixer Motor Power
Mixer Capacity

Twin Shaft
2 x 18,5 kW
1,0 m³ / Cycle
Feeding System

Aggregate Bins

Aggregate Feeding

4x 20 m³ / Inline Type
4x 10 m³ / Cross Type
Ramp or Pre-Feeding System
Weighing Hopper

Cement Weighing Hopper
Water Weighing Hopper
Additive Weighing Hopper

700 kg
250 kg
25 kg

C60 B Compact Concrete Batching Plant Components

Aggregate Bunker Transfer Station Main Chassis Concrete Mixer Control Cabin Silo

C60 B Compact Concrete Batching Plant Highlights

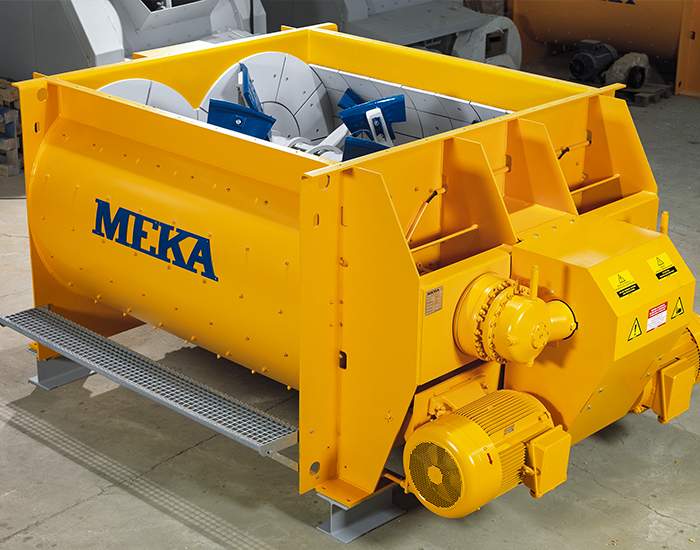

C60B : UNMATCHED POWER AND EFFICIENCY

Producing concrete with maximum homogeneity and workability in the shortest time is crucial for maximizing your profits. The 1.0 m³ MEKA Twin Shaft Concrete Mixer at the core of the C60B provides exceptional power and reliability, ensuring consistent, high-quality concrete production every time.

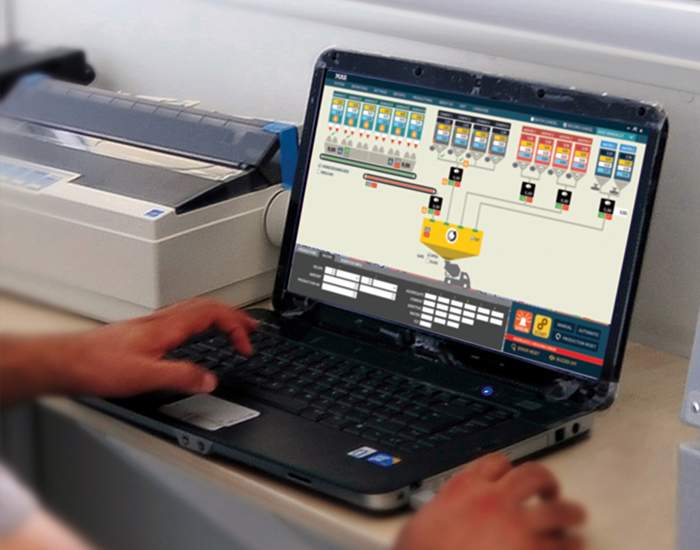

SEAMLESS OPERATION WITH MEKASOFT AUTOMATION

MEKASOFT's updated automation software, developed by the MEKA software team, provides your plant operator with an intuitive interface, enhancing ease of use. It also boosts operational efficiency with advanced documentation and archive control features, ensuring smooth and reliable plant management.

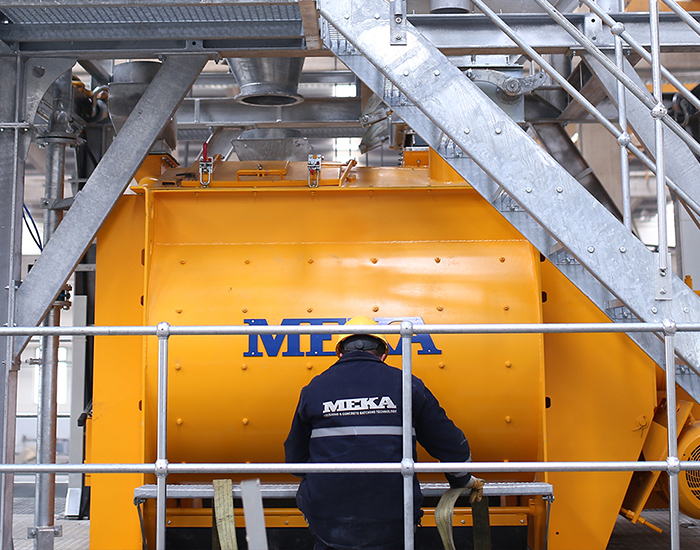

READY TO WORK IMMEDIATELY WITH MINIMUM INSTALLATION TIME

The C60 S is delivered to the installation site in a single 40' OT container and is ready to start production in the shortest time possible. With all cabling, pre-testing, and equipment assembly completed at the factory, setup is quick and hassle-free.

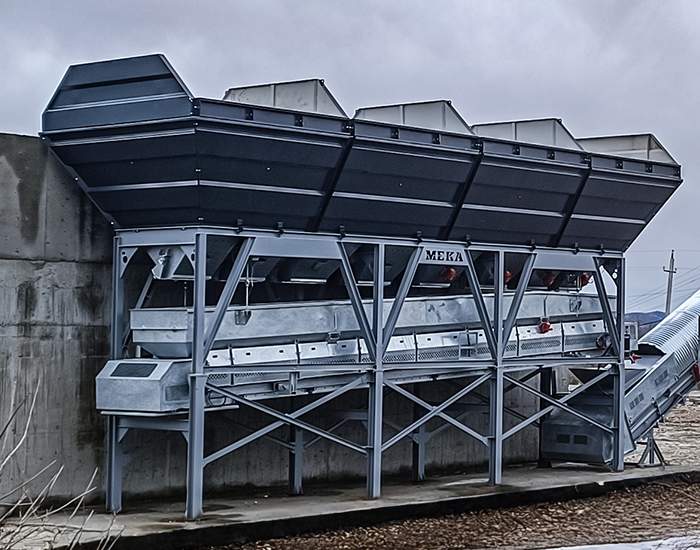

AGGREGATE BUNKER OPTIONS CUSTOMIZED FOR YOUR SITE AND PRODUCTION CAPACITY

The aggregate bunker, the starting point of production in the C60B Concrete Batching Plant, is available in two configurations to suit your needs: a space-efficient 40 m³ cross-type bunker (4x10 m³) or an 80 m³ in-line type bunker (4x20 m³), designed to support your mass concrete production.

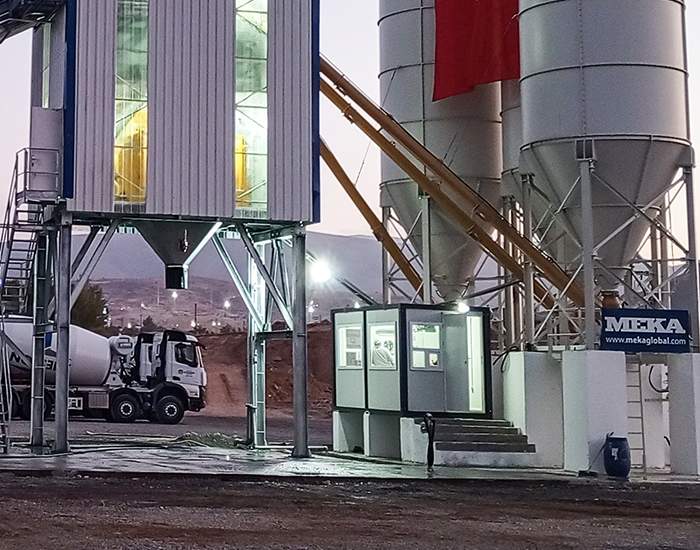

COMFORTABLE CONTROL CABINET FOR EFFICIENT WORK

We know that the comfortable workspace you provide for your personnel will return to you as a profit. For this purpose, larger and more comfortable control cabinets than its competitors are offered as standard on the C60B

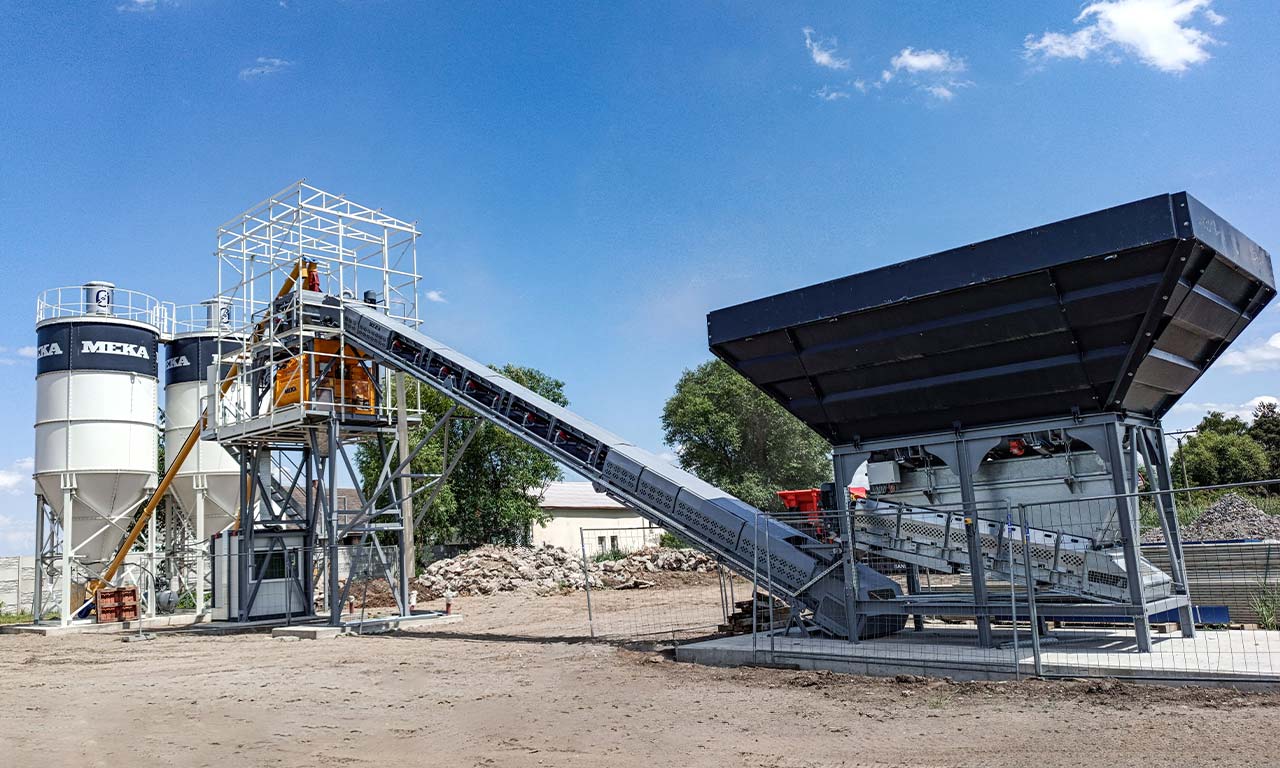

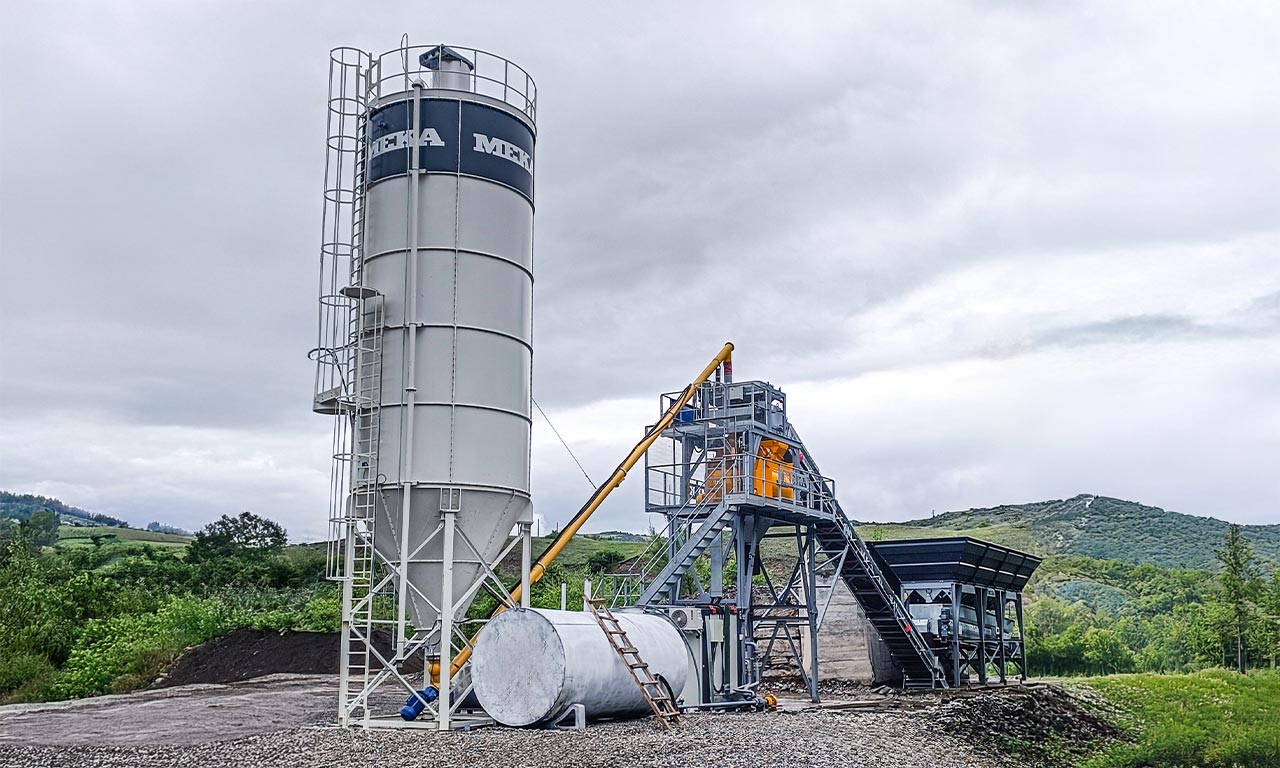

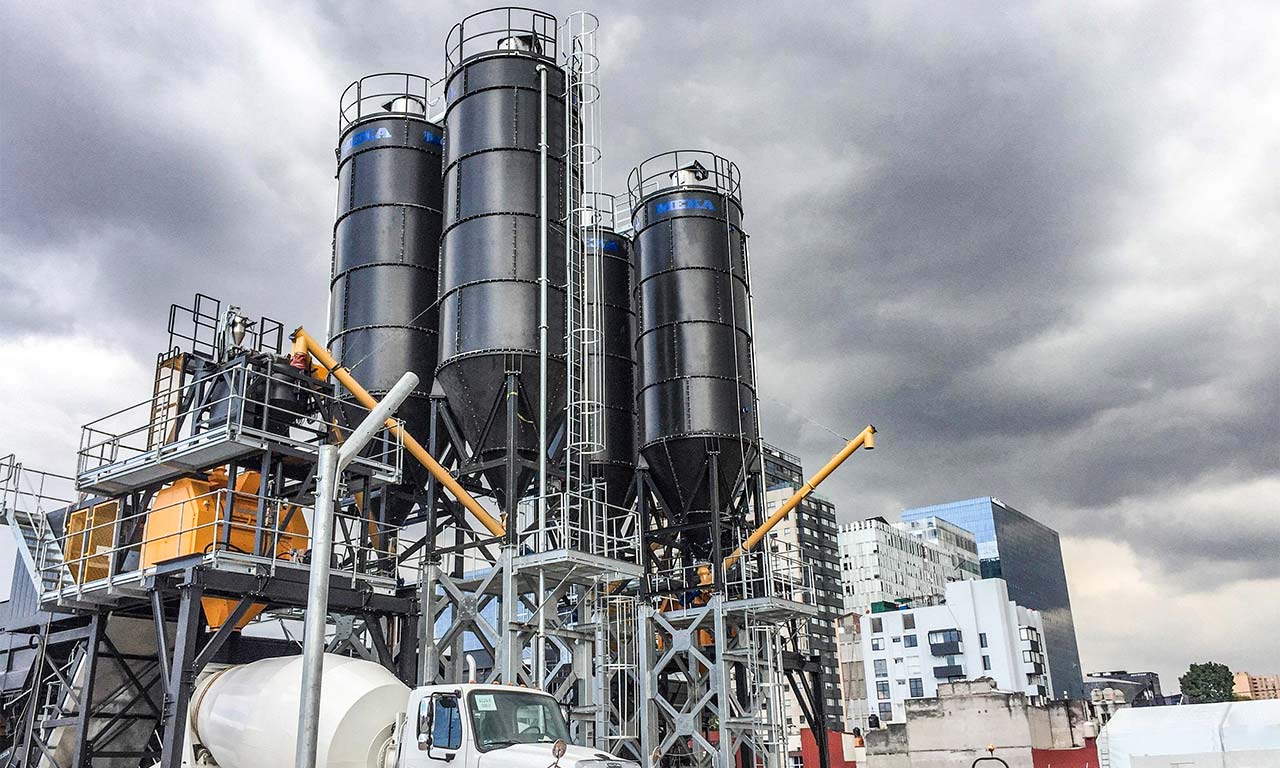

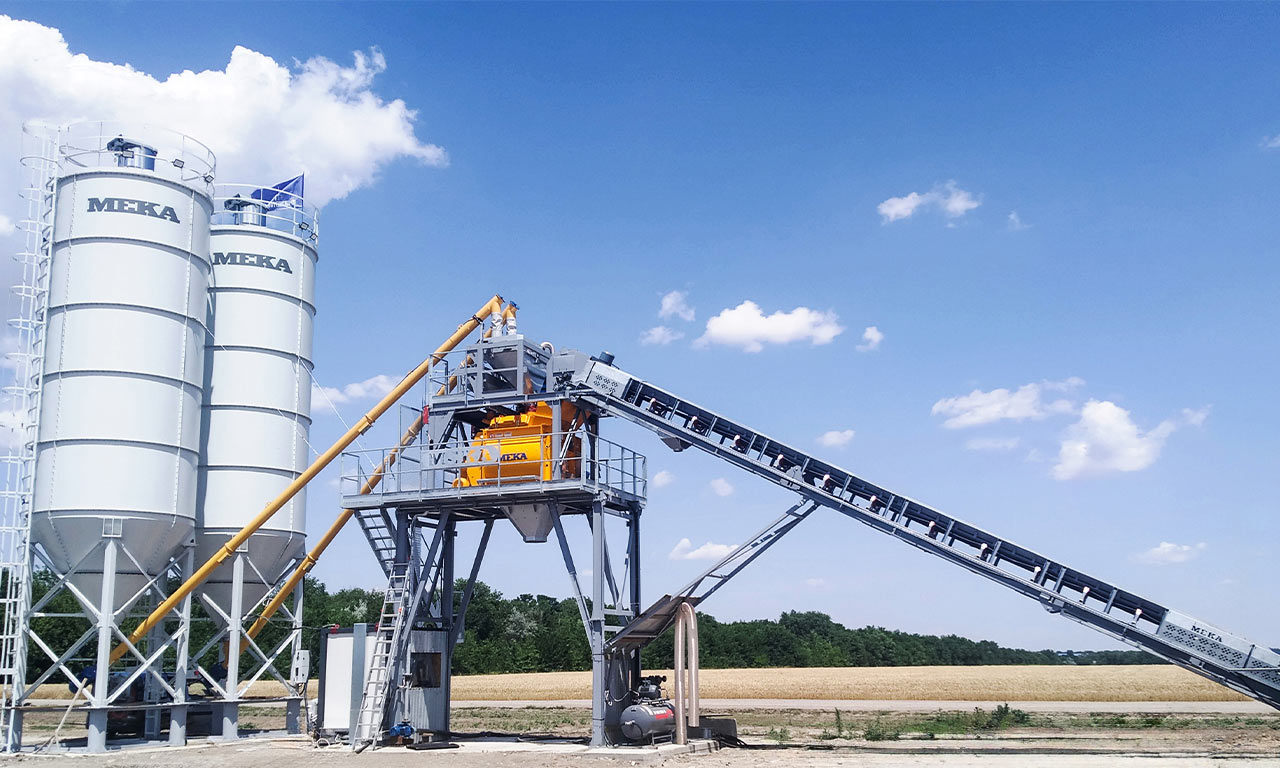

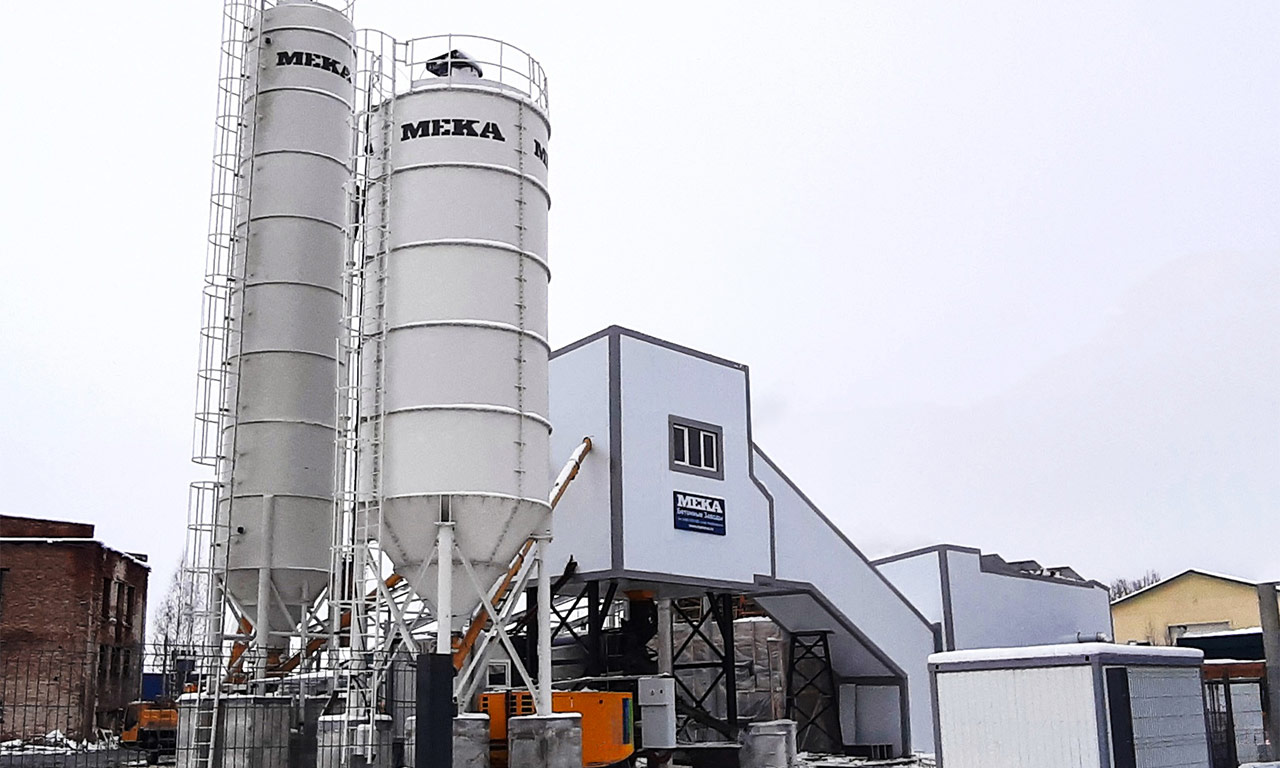

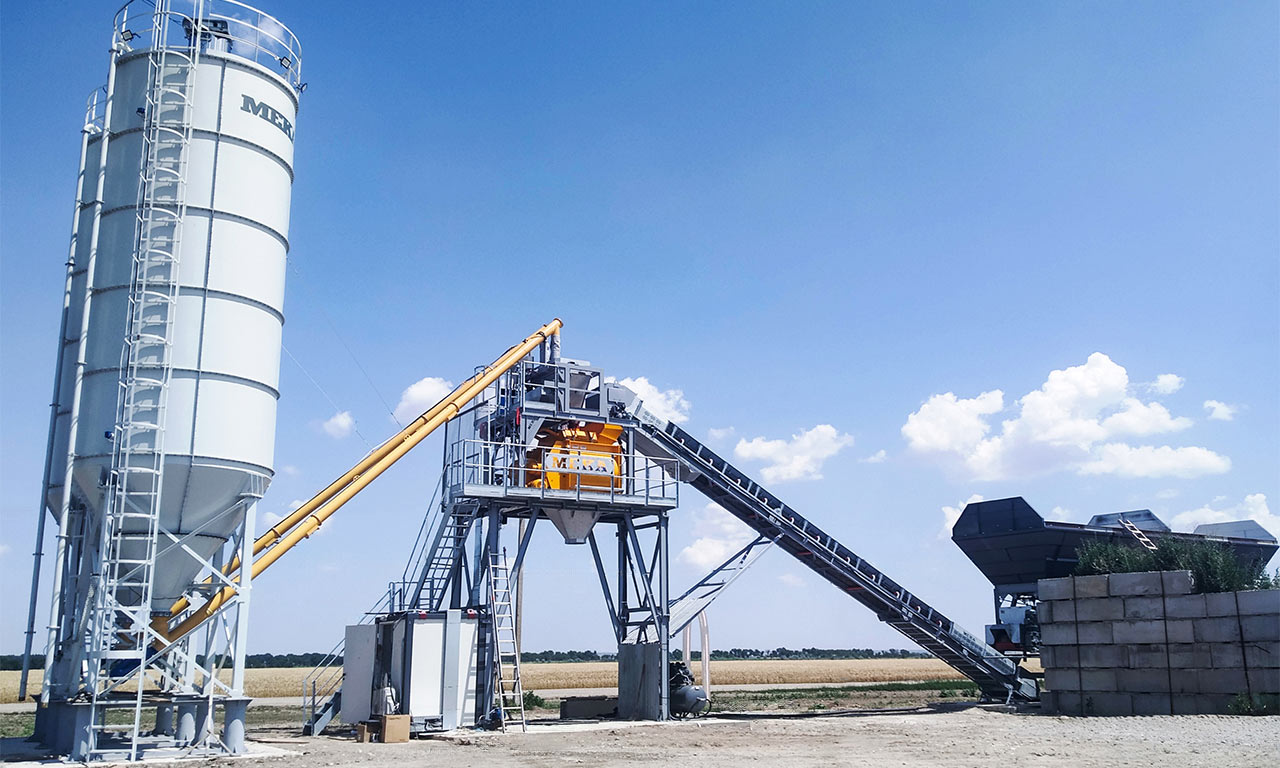

C60 B Compact Batching Plants Gallery

Optional Features For All MEKA Concrete Batching Plants

Your concrete batching plant investment purpose and your expectations from the plant may vary different.

Whether you are a ready-mixed concrete producer, a contractor or a manufacturer of precast building elements, we have a very strong R&D team and international experience since 1987 to design and manufacture the most suitable batching plant for your needs.

Here are some of our customization options. Our technical sales team can support you in assiting the appropriate layout and equipment to optimize your productivity and business.

Concrete recycling system integration

Are you still throwing away your concrete waste or faulty production? As the importance of environmental responsibility of businesses increases, certain standards are being introduced in production in order to leave a cleaner world to future generations. In addition, in today's world where production costs are gradually increasing, operational efficiency has become the most important heading of sustainable activities. With the MEKA recycling unit, components such as aggregate, sand and water in concrete can be separated and reused in production.

DISCOVER MORE

Equipment and applications that ensure the most efficient operation in different climatic conditions

Special reinforcement and applications for quality and uninterrupted concrete production in harsh winter conditions: Steam pipes placed inside the aggregate bunker Complete enclosure of the main unit with 40 mm thick insulated panels Complete covering of the bottom of the aggregate bunker with 40 mm thick insulated panels Retractable electric gates on the aggregate bunker Steam generator (high performance steam generators that can run on diesel, natural gas or both, selected according to the plant capacity)

Concrete batching plant coating applications

The top and sides of the aggregate bunker can be covered with trapezoidal sheets to both protect from environmental influences (rain, snow, wind, etc.) and to minimize the impact of dusting on the environment. The four sides and top of the main unit, which contains the mixer, cement-water-additive scales and aggregate waiting bunker, can be covered with trapezoidal sheets. In this way, the main unit can be protected from environmental influences (rain, snow, wind, etc.).

Fiber feed system integration

You can improve the versatile production capacity of your batching plant thanks to the fiber feeding system that automatically feeds and doses steel or polyester concrete fibers used in the production of special quality concrete and is integrated with the plant automation.

DISCOVER MORE

The plant you want with dozens of additional options

- HYDRONIX brand Microwave moisture meter for aggregate bunker sand compartment. It precisely measures the moisture in the sand and ensures that less water and complementary sand is added by the amount of moisture measured by the automatic system.

- Aggregate Bunker bunker grates to be placed on top of the bunker with 100x 100 mm mesh width to prevent large stones from entering and damaging the system

- Water booster with STANDART brand pump that sends water to the water scale at the required flow rate and pressure (with double pump and single pump options)

- Mixer safety interlock can be added for more safety during maintenance. With this system consisting of two switches, the plant cannot be started unless the maintenance person stops the system completely and takes one switch on himself, preventing possible accidents.

Explore Our Projects Worldwide

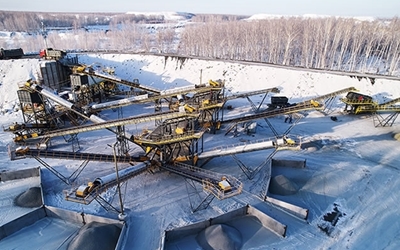

MEKA Aggregate Production Plant / RUSSIA

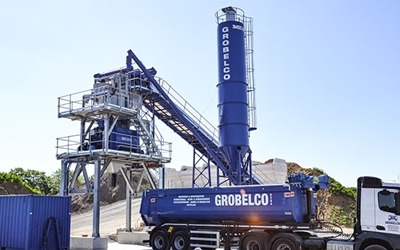

MEKA Stationary Concrete Batching Plant / BELGIUM
