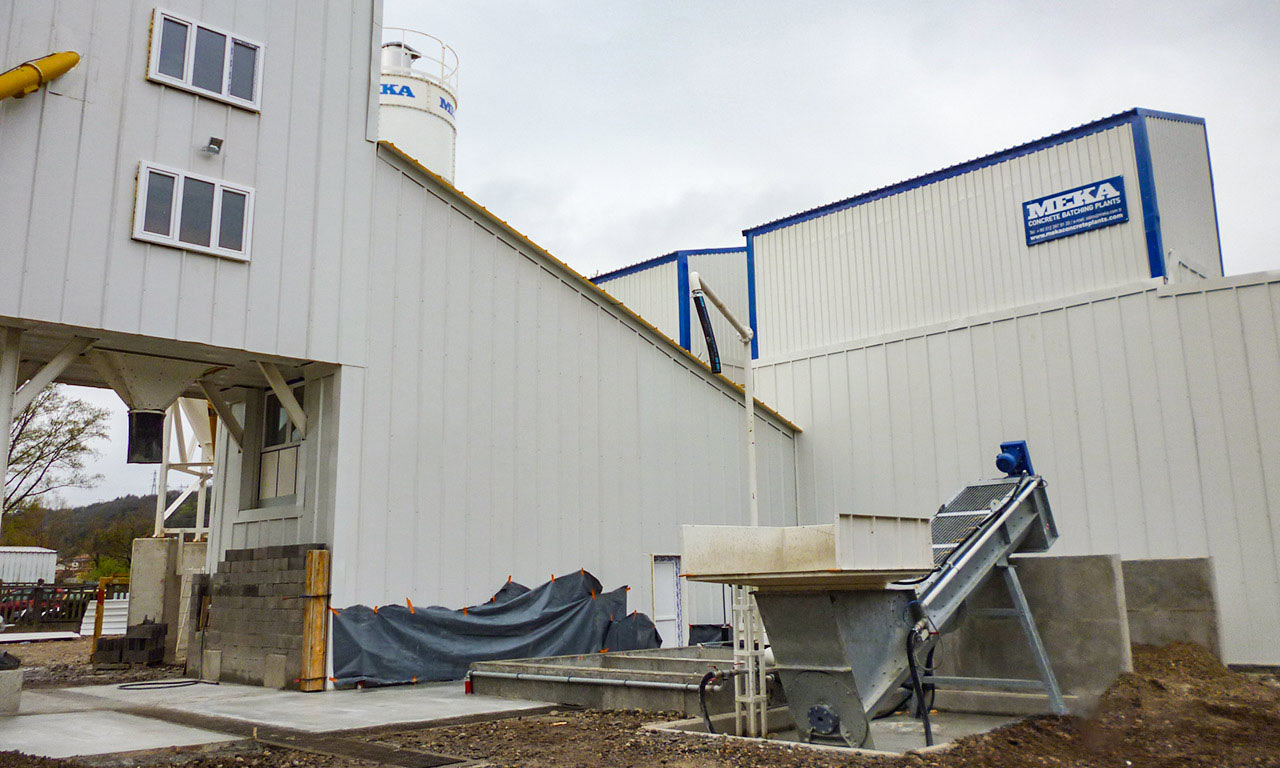

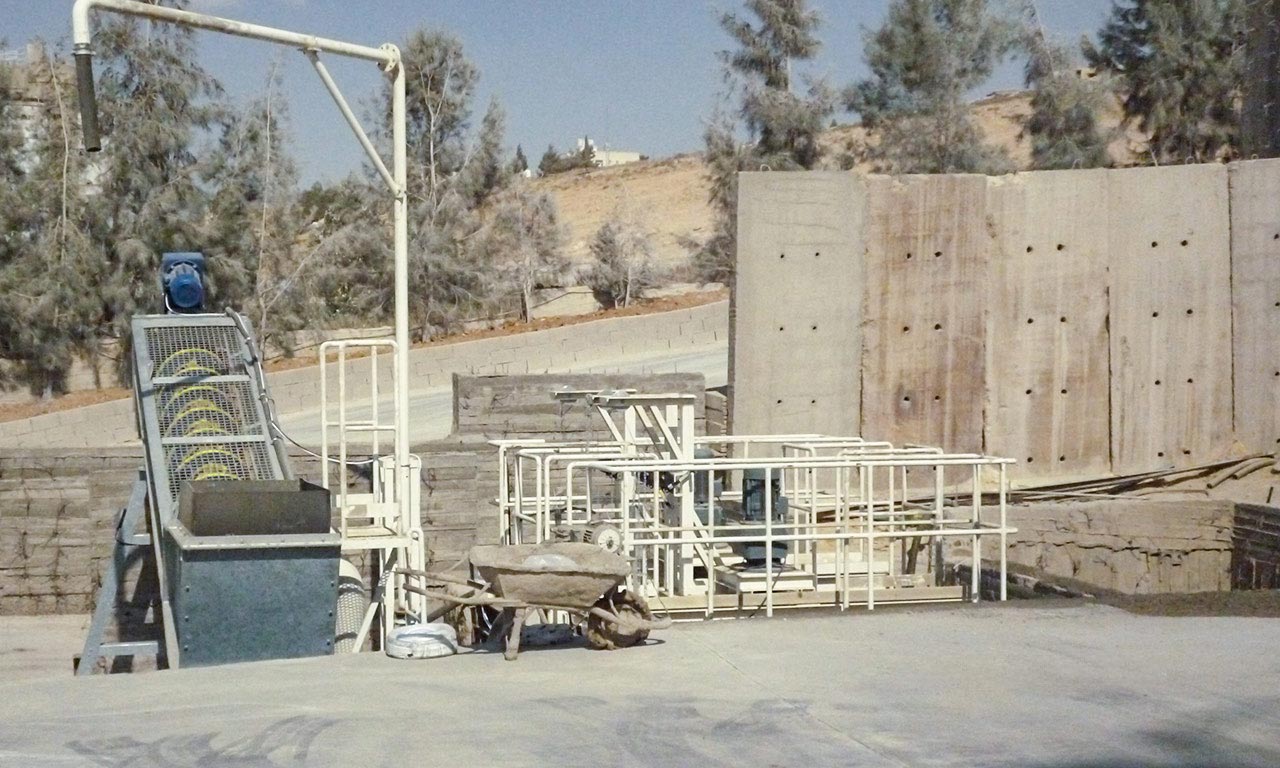

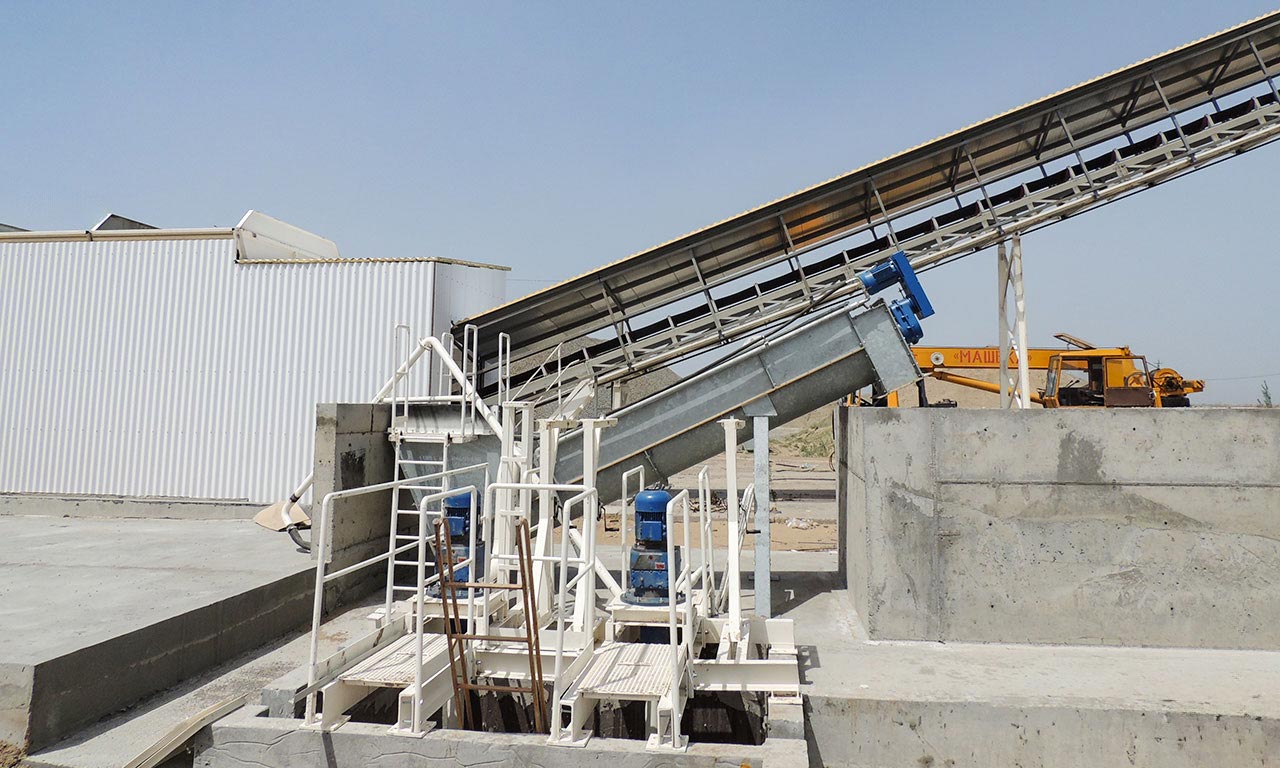

Concrete Recycling System

Energy savings thanks to reduced running time

Low consumption of wash water

Low maintenance, easy and quick

Non-stick Sint engineering polymer components resistant to abrasion

Perfect aggregate washing

High efficiency in solid-liquid separation thanks to large water volume in the screw

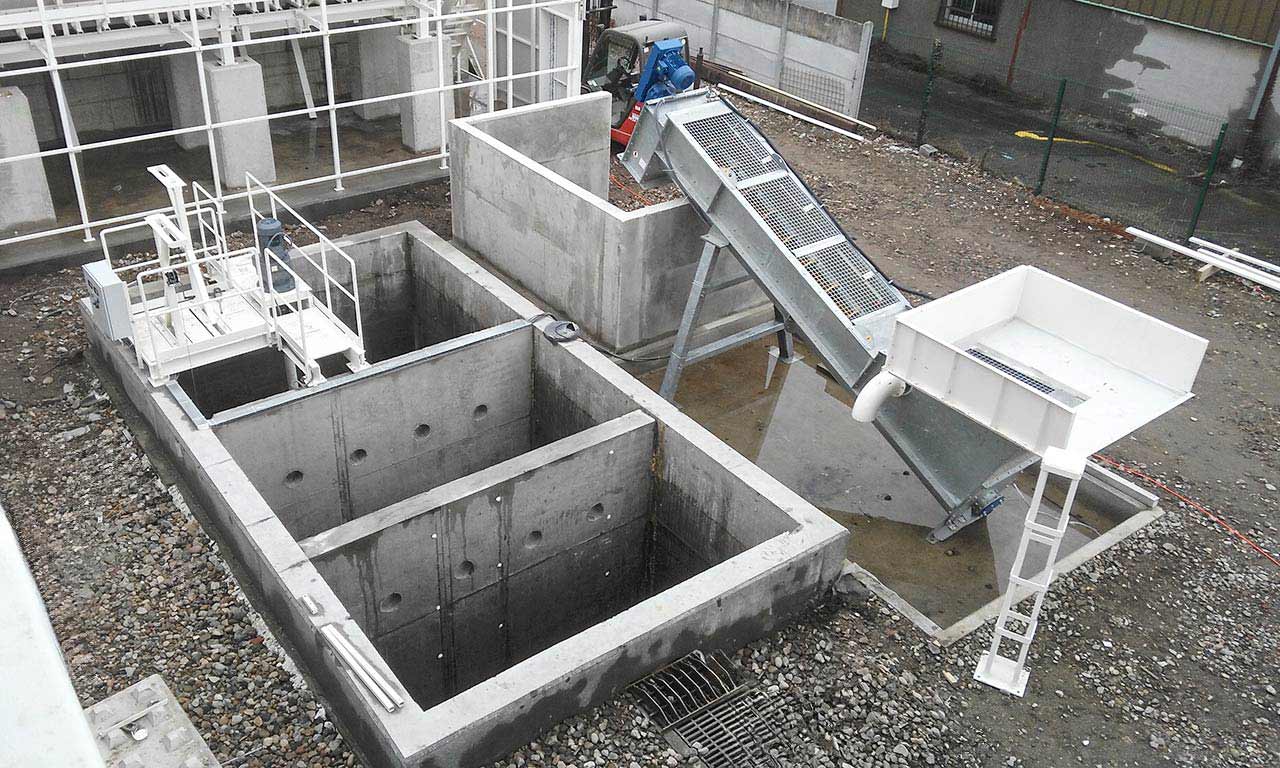

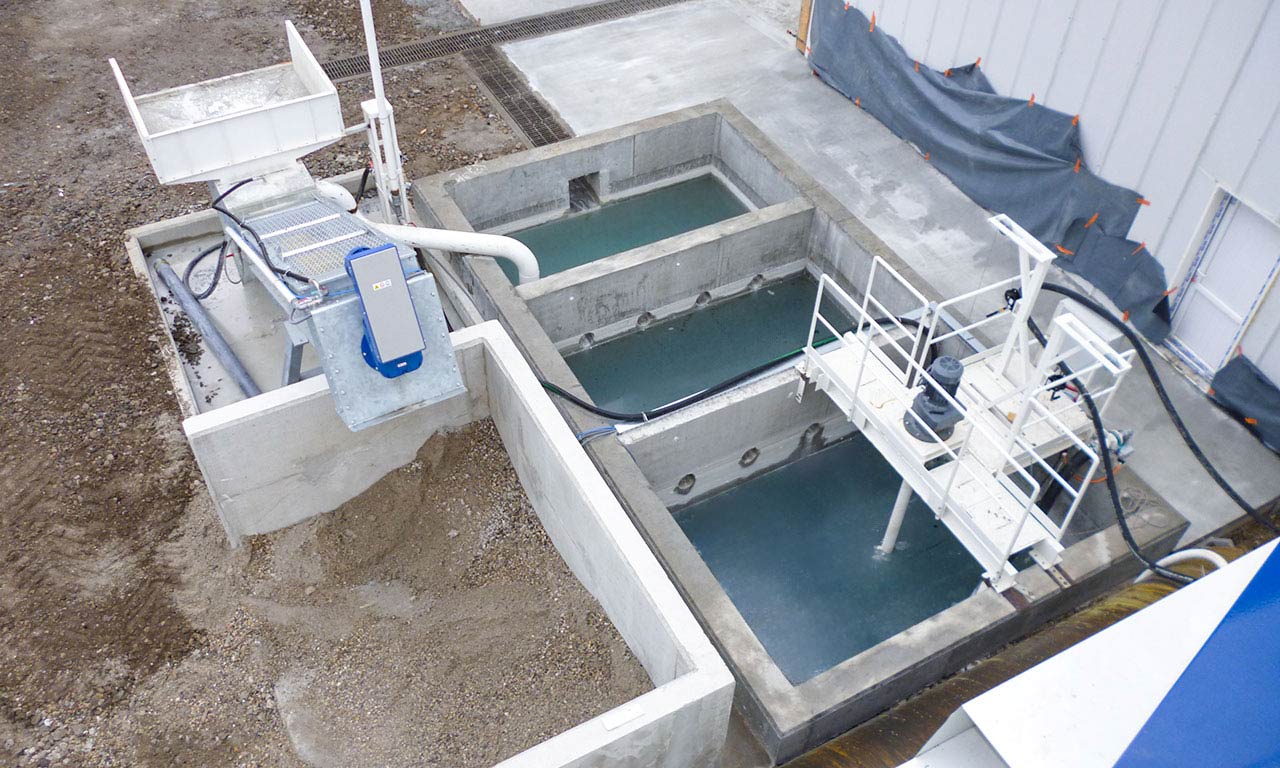

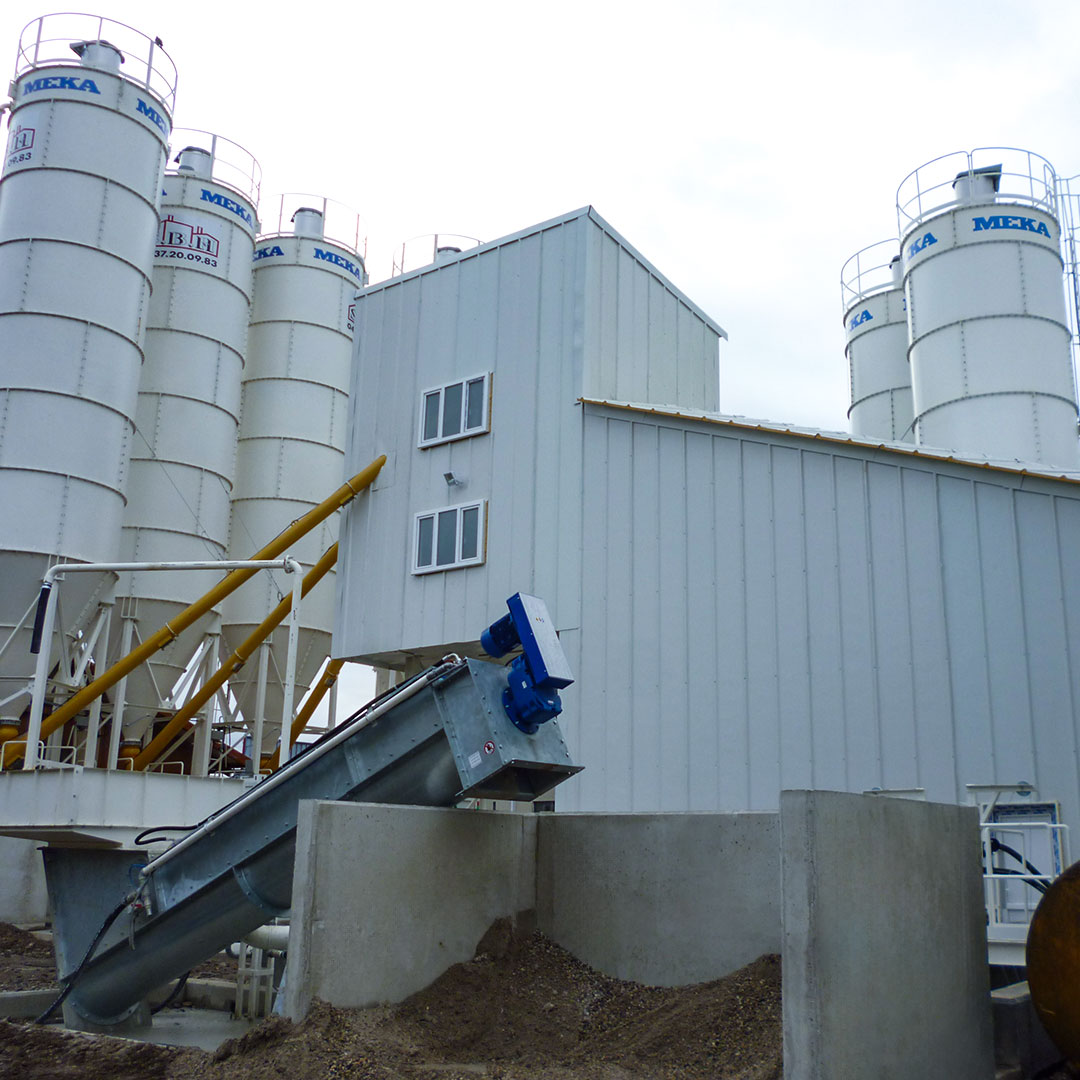

Recycling System - How Does it Work

Are you still throwing away your wastes, wrong dispatches or defects? With Meka systems you can separate the wastes into their components like aggregates, sand and water to re-use them in the production.Nowadays, the importance of environmental responsibility continues to increase. For a cleaner world for future generations, specific rules and standards are introduced in the production of . Being very sensitive to the environment, Meka offers recycling solutions along with plants. A plant equipped with a recycling unit is able to re-use all the components from wastes: aggregates, sand & water. It may seem like the amount per truck mixer is not much but on the long run, it may reaches high and reasonable numbers.

Concrete Recycling System Technical Specifications

Meka Recycling Systems

Capacity Discharging of 1 Vehicle Capacity Discharging of 1 Vehicle Capacity
Recycling Capacity 15 m³/h 19 yd³/h
Loading Hopper Dimension 730x1200 mm 28.5”x47”
Height of Loading 1670 mm 65.5”
Height of Discharge 2032 mm 80”

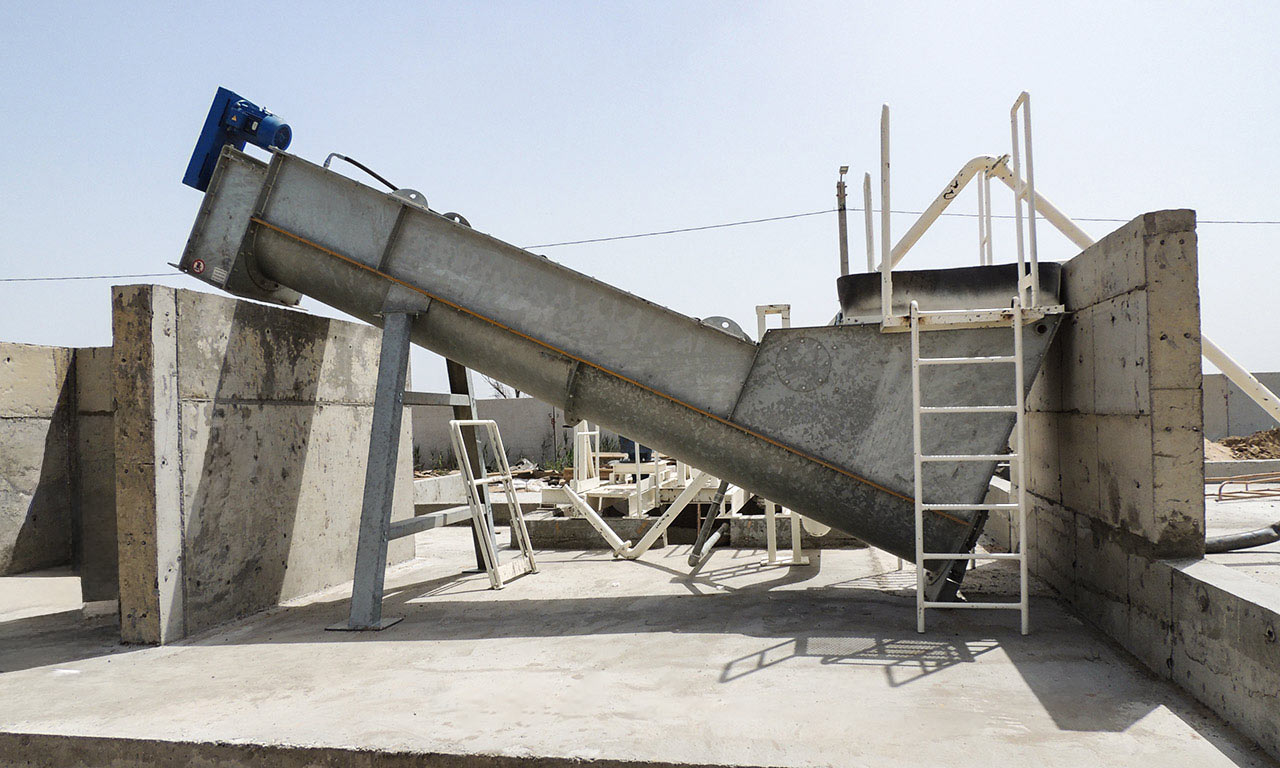

Length of Separator screw conveyor 5000 with hopper 19.5”with hopper
Screw Conveyor Motor Gear-Box Power 5.5 kW 7.5 hp
Screw Conveyor Washing Pump Power 2.2 kW 3 hp
Screw Conveyor Washing Pump Capacity (m) (m) Height 10 m, 37 m³/h Height 32 ft, 9770gal/h
Recycling Pump Power 7.5 kW 10 hp
Recycling Pump Capacity Height 30 m, 30 m³/h Height 98 ft, 7920gal/h
Agitator Power 5.5 kW 7.5 hp
Agitator Speed (rpm) (rpm) 52 rpm 52 rpm
Agitator Diameter 1.2 m 47"
Submersible Pump Maintenance Reel Capacity 1000 Kg 2200 lbs
Flowing Pipe for Recycling Water AVAILABLE AVAILABLE
Discharge Channel AVAILABLE AVAILABLE
Intake Reservoir AVAILABLE AVAILABLE
Concrete Recycling System Optional Features

Concrete recycling systems are specialized equipment used in concrete plants or construction sites to recover unused or leftover concrete. These systems separate the aggregates (gravel, sand) and cement particles within the concrete, making them reusable. This process reduces waste, lowers costs, and supports environmental sustainability.

Concrete recycling systems are widely used in ready-mix concrete plants, large-scale construction projects, and precast concrete production. Recycling waste concrete provides both economic and environmental benefits, contributing to a sustainable production approach in the construction industry.

How quickly does the service team respond?
Response time may vary depending on location, urgency of the request, and the availability of teams. Teams are organized to provide a solution as quickly as possible.
How are service support and maintenance handled during the warranty period?
The warranty period may vary depending on the product. For products under warranty, services such as maintenance, technical support, and, if necessary, part replacement may be provided according to the specified conditions.
What is the delivery time for urgent spare part requests?
Delivery time may vary depending on stock availability, the nature of the requested part, and the shipping region. The process is managed to ensure the fastest possible delivery.
How is remote support provided?
Remote support can be provided by the technical team via phone, email, or online platforms. If necessary, live guidance or software-based solutions may be offered.
