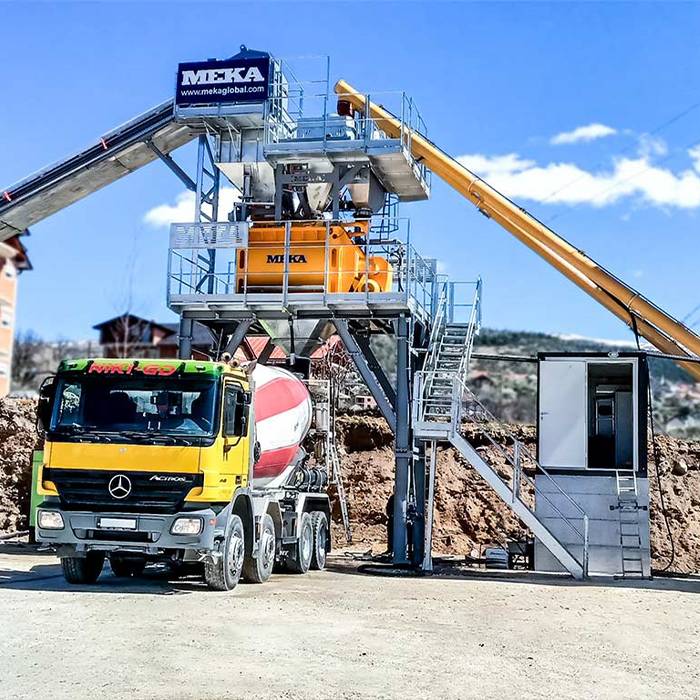

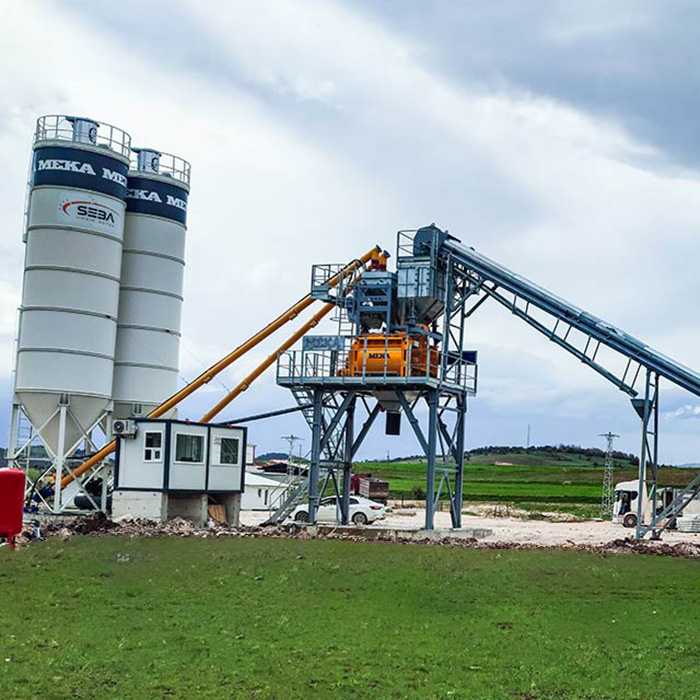

K90
Stationary Concrete Batching Plant

The K90, the latest addition to MEKA's stationary concrete batching plant range, revolutionizes cost-effective production with its twin-shaft mixer and a design that prioritizes production versatility and efficiency.

Briefly K90

The K90 Stationary Concrete Batching Plant is an ideal choice for ready-mixed concrete production, offering high-capacity in-line aggregate bunker options, maximum flexibility, sustainable production, and fast installation. Equipped with a 1.50 m³ capacity MEKA twin-shaft mixer, the K90 delivers high productivity and provides significant business advantages to its investors.

Distinguished by MEKA's robust and reliable structure, the K90 ensures high weighing accuracy and produces concrete that is perfectly aligned with the mix recipe, delivering exceptional performance.

With its superior productivity, reliability, and ease of operation—along with the ability to be customized for specific operational needs—the K90 is an economical favorite among ready-mix concrete producers, project contractors, and precast manufacturers.

K90 Stationary Concrete Batching Plant Technical Specifications

Plant Capacity

Compacted Concrete Output

75 m³/h
Concrete Mixer

Mixer Type
Mixer Motor Power
Mixer Capacity

Twin Shaft
2 x 30 kW
1,5 m³ / Cycle
Feeding System

Aggregate Bins

Aggregate Feeding

4x 25 m³ / Inline Type
4x 35 m³ / Inline Type
Ramp or Pre-Feeding System
Weighing Hopper

Cement Weighing Hopper
Water Weighing Hopper
Additive Weighing Hopper

900 kg
400 kg
25 kg

K90 Stationary Concrete Batching Plant Components

Aggregate Bunker Transfer Station Main Chassis Concrete Mixer Control Cabin Silo

K90 Stationary Concrete Batching Plant Highlights

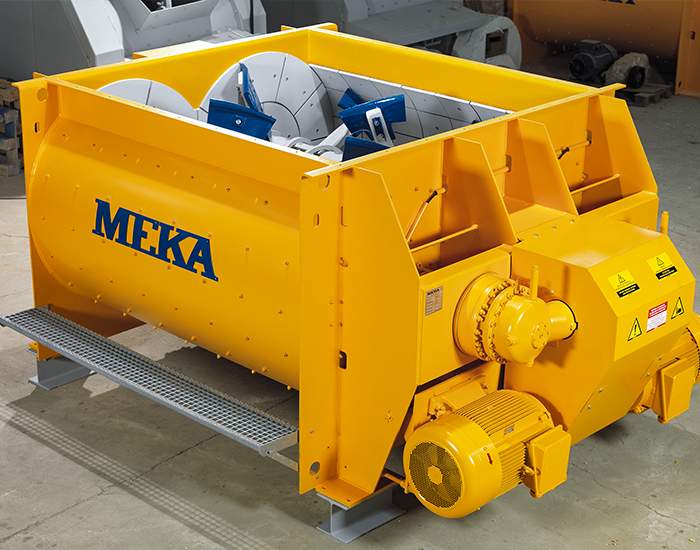

K90 : POWERFUL, PRECISE, AND RELIABLE

Producing ready-mixed concrete is more than just combining cement, aggregates, water, and admixtures—it’s a process that defines productivity. We understand that mix homogeneity, mixing time, and recipe compatibility are crucial for optimal performance. That’s why the K90 is equipped with a 1.5 m³ MEKA Twin Shaft Concrete Mixer, delivering the power and consistency you can always rely on.

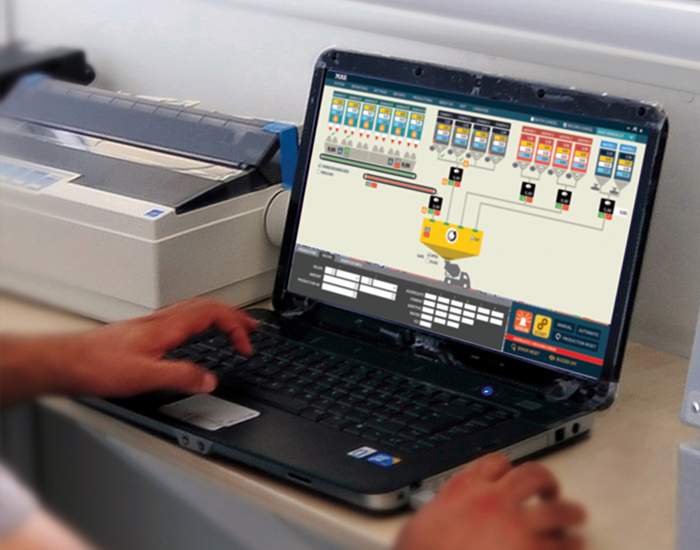

SEAMLESS OPERATION WITH MEKASOFT AUTOMATION

MEKASOFT's updated automation software, developed by the MEKA software team, provides your plant operator with an intuitive interface, enhancing ease of use. It also boosts operational efficiency with advanced documentation and archive control features, ensuring smooth and reliable plant management.

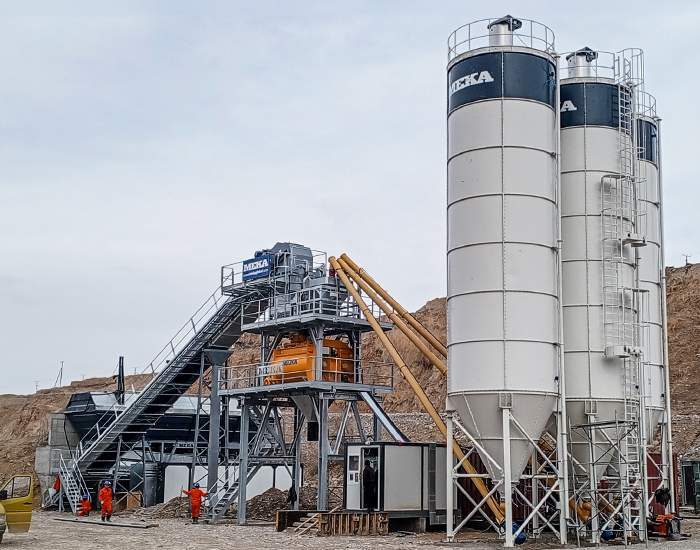

EASY SETUP ON ZERO GROUND LEVEL

Thanks to the newly developed steel leg system, the K90 can be installed directly on zero ground without the need for a special concrete foundation. This innovative design offers a significant cost advantage, reducing installation expenses.

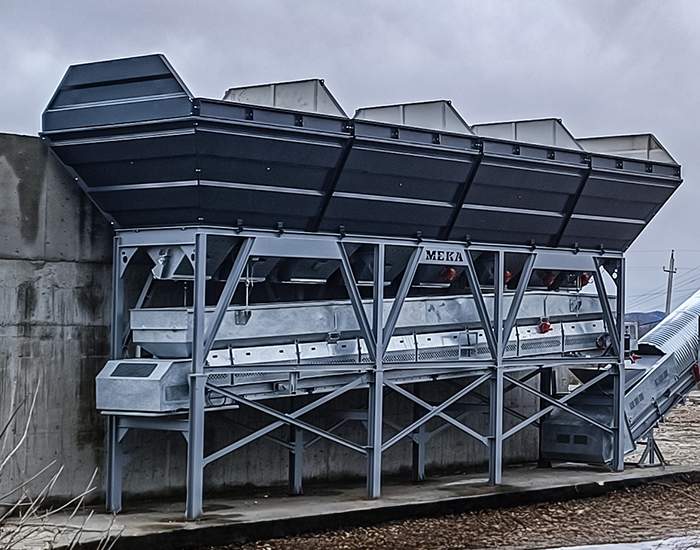

AGGREGATE BUNKER OPTIONS TAILORED TO YOUR SITE AND PRODUCTION NEEDS

As the starting point of production in the K90 Concrete Batching Plant, the aggregate bunker is available in in-line configurations to match your operational requirements. Choose between an 80 m³ capacity (4x20 m³) or a 100 m³ capacity (4x25 m³) to maximize your mass concrete production efficiency.

COMFORTABLE CONTROL CABINET FOR EFFICIENT WORK

Larger & More Comfortable: The K120 comes with a larger and more comfortable control cabinet than its competitors, providing an improved workspace for operators. Optimized for Efficiency: With this enhanced workspace, your personnel can work more effectively, reducing fatigue and boosting overall productivity. Standard Feature: The spacious control cabinet is offered as a standard feature on the K120, ensuring you don’t have to compromise on comfort and efficiency. Long-Term Profit: By creating a comfortable working environment, the K120 helps enhance operational efficiency, which ultimately contributes to greater profitability.

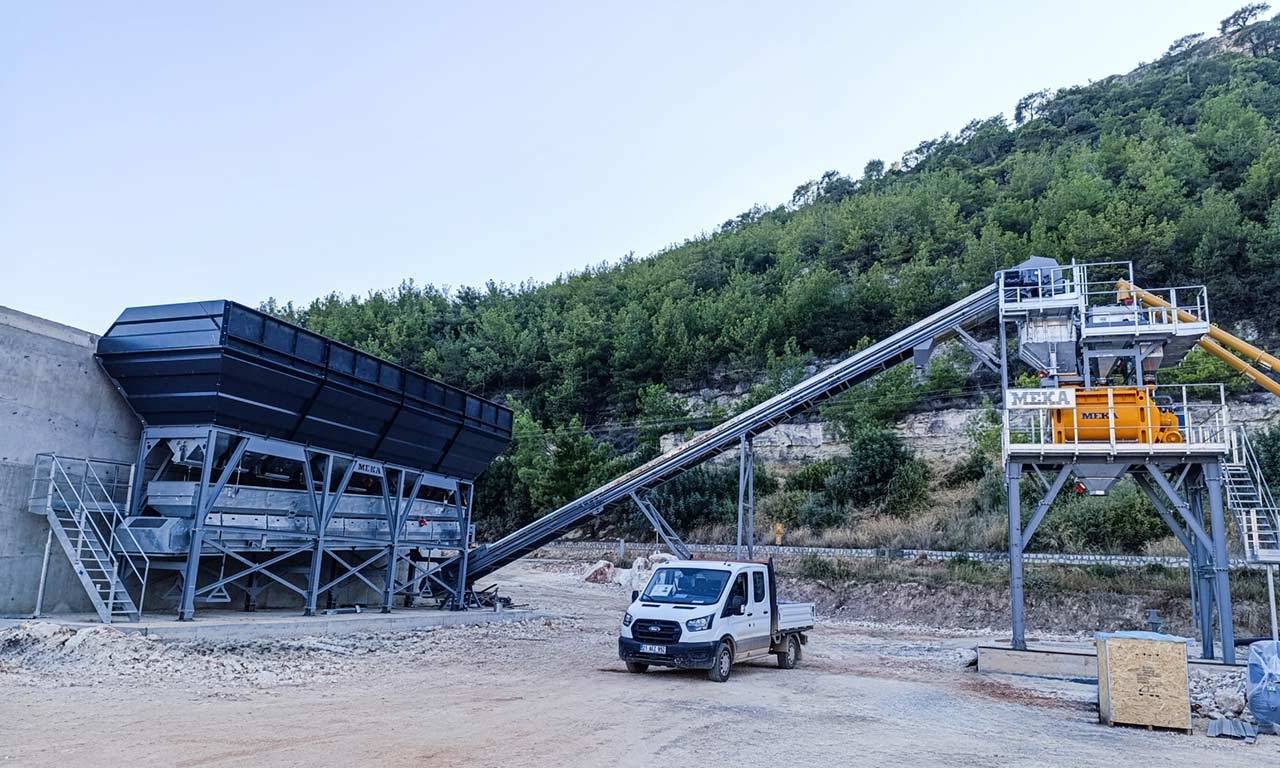

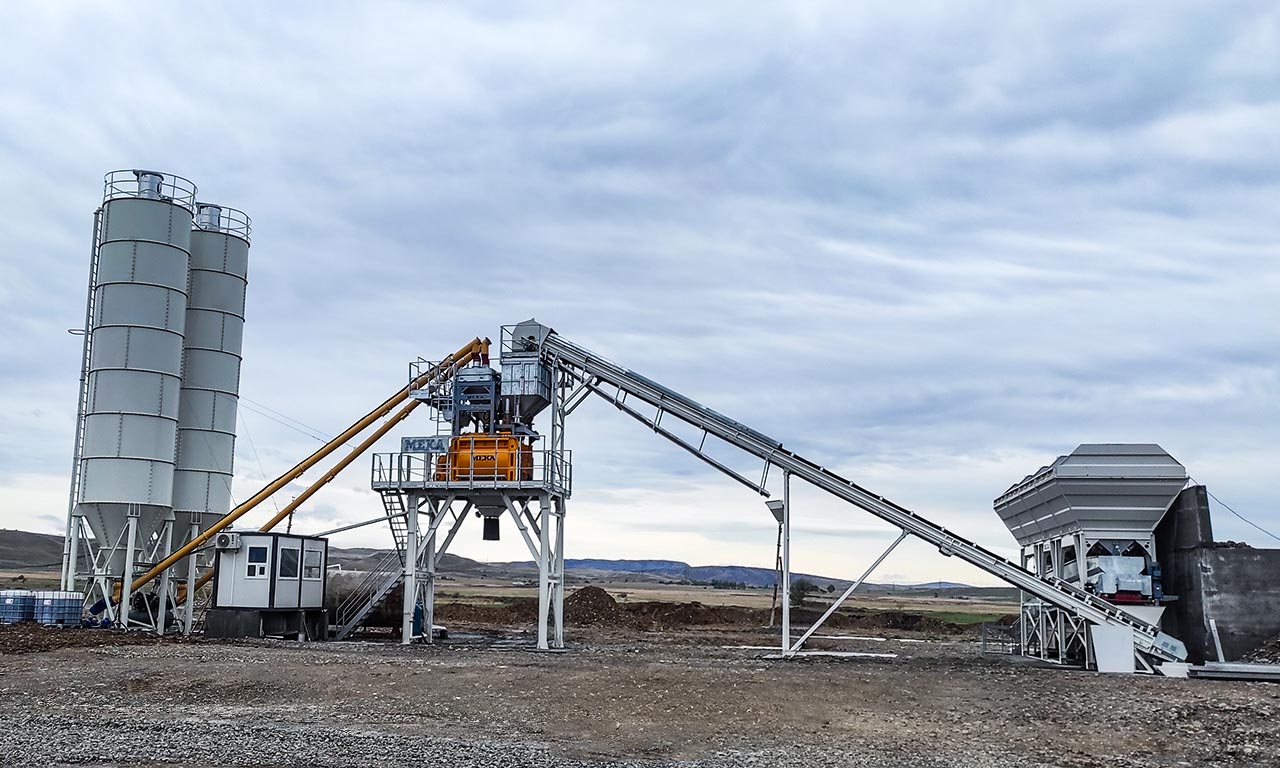

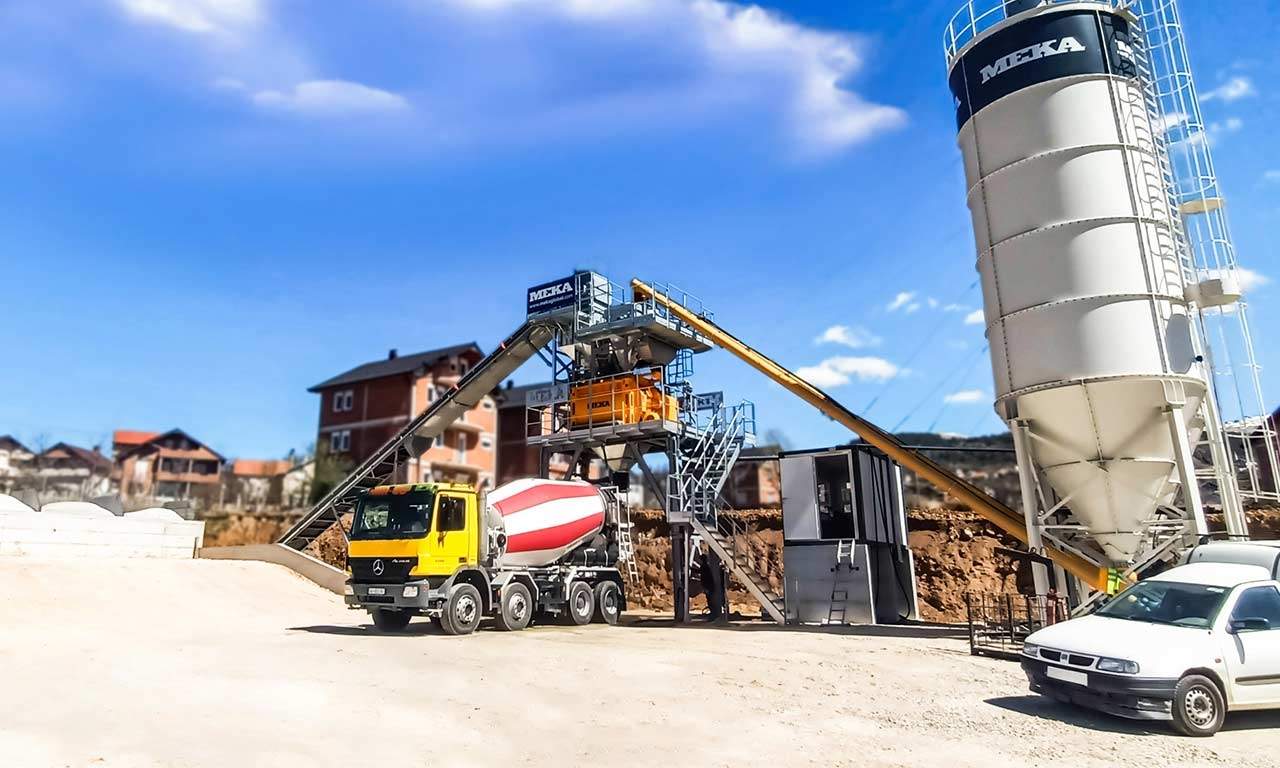

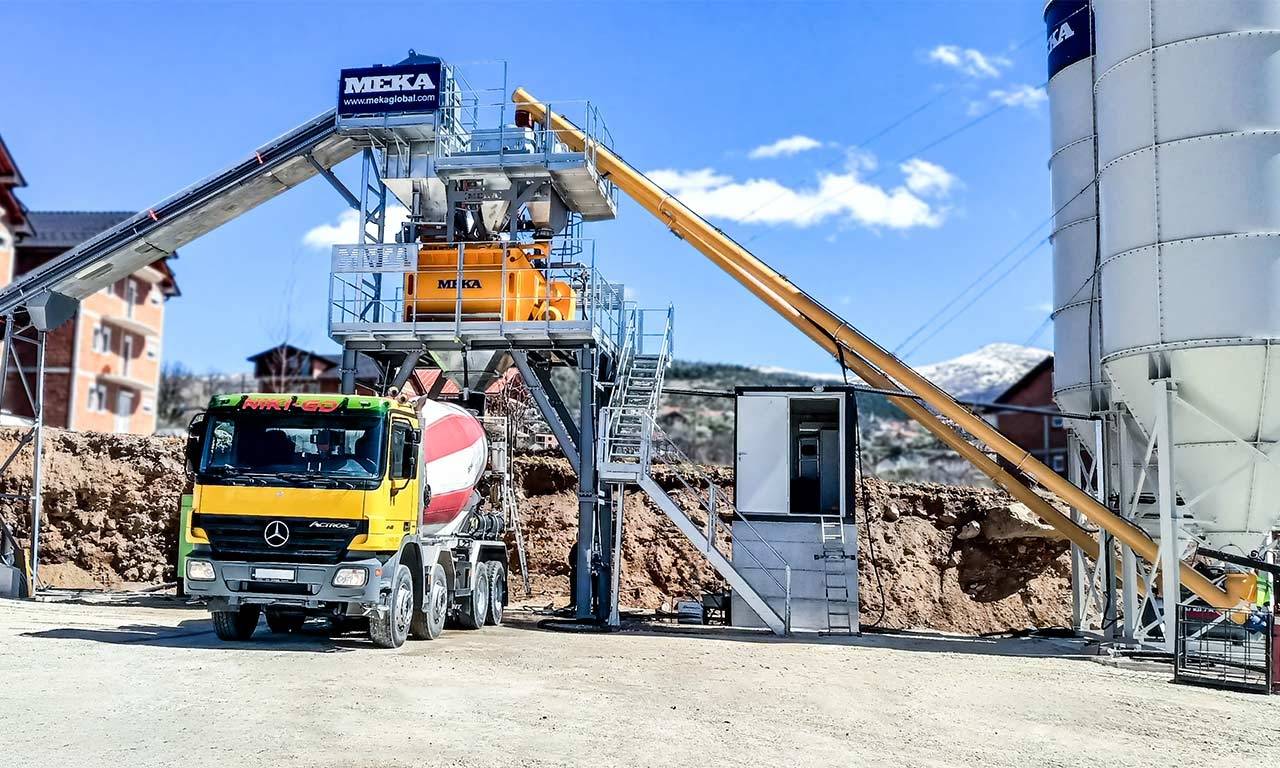

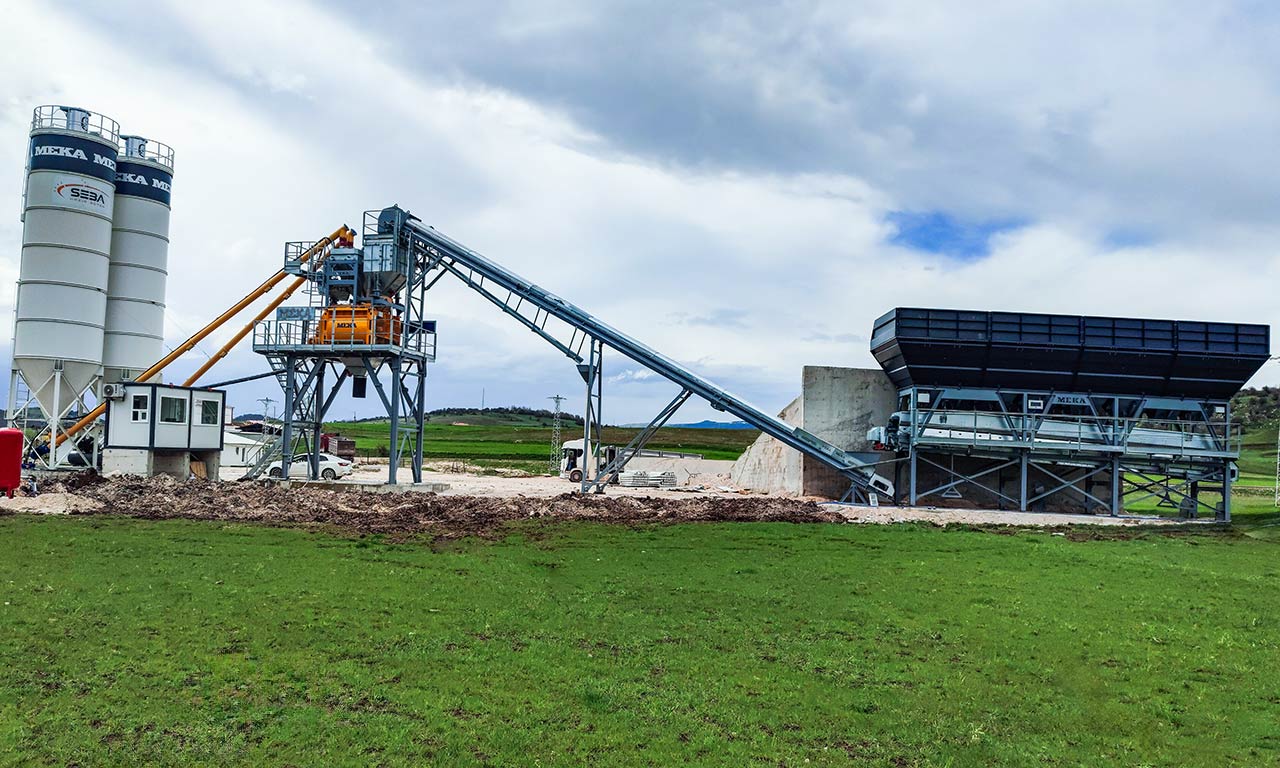

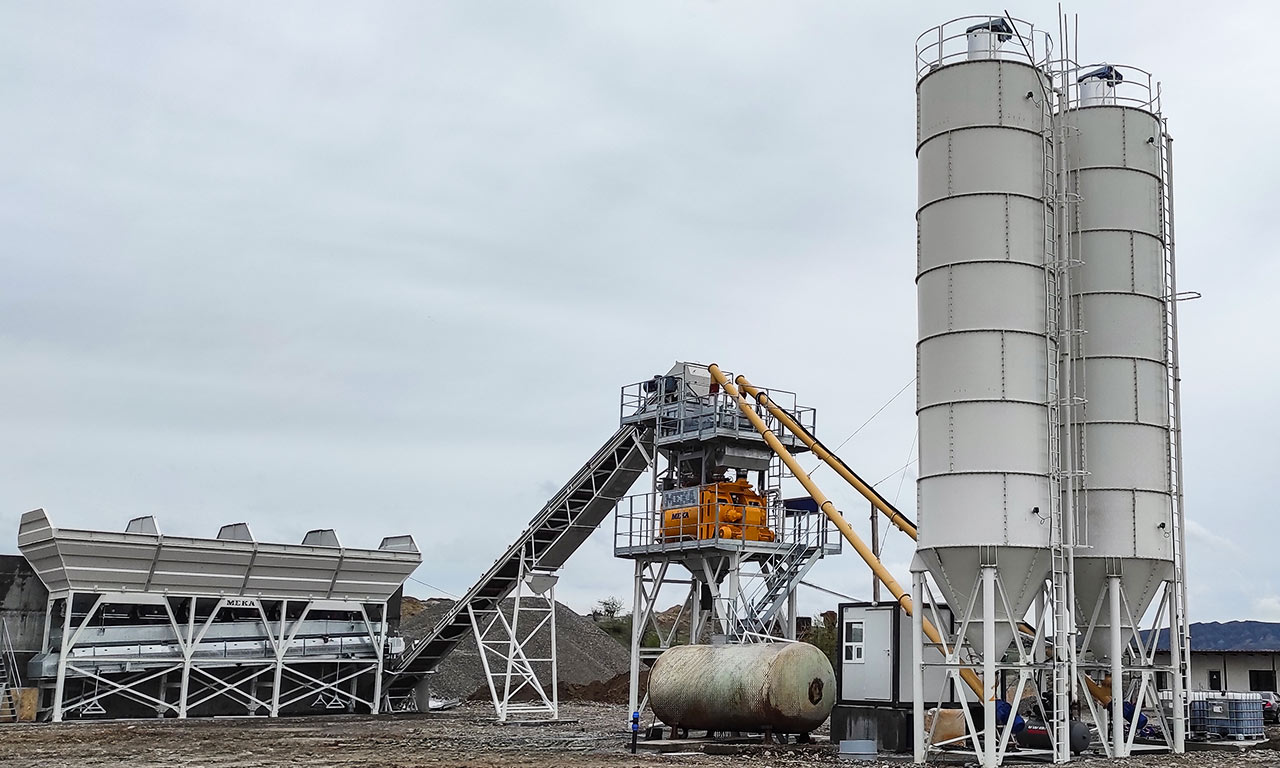

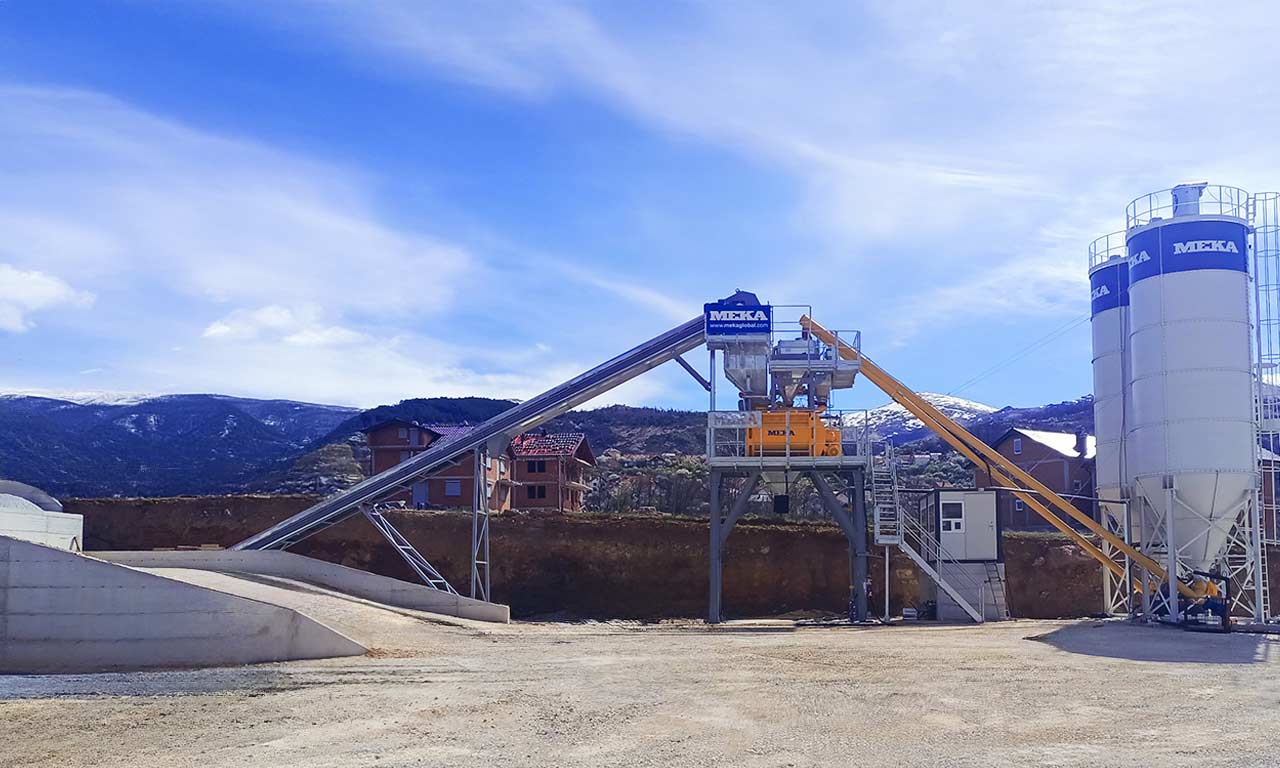

K90 Stationary Concrete Batching Plant Gallery

Optional Features For All MEKA Concrete Batching Plants

Your concrete batching plant investment purpose and your expectations from the plant may vary different.

Whether you are a ready-mixed concrete producer, a contractor or a manufacturer of precast building elements, we have a very strong R&D team and international experience since 1987 to design and manufacture the most suitable batching plant for your needs.

Here are some of our customization options. Our technical sales team can support you in assiting the appropriate layout and equipment to optimize your productivity and business.

Concrete recycling system integration

Are you still throwing away your concrete waste or faulty production? As the importance of environmental responsibility of businesses increases, certain standards are being introduced in production in order to leave a cleaner world to future generations. In addition, in today's world where production costs are gradually increasing, operational efficiency has become the most important heading of sustainable activities. With the MEKA recycling unit, components such as aggregate, sand and water in concrete can be separated and reused in production.

DISCOVER MORE

Equipment and applications that ensure the most efficient operation in different climatic conditions

Special reinforcement and applications for quality and uninterrupted concrete production in harsh winter conditions: Steam pipes placed inside the aggregate bunker Complete enclosure of the main unit with 40 mm thick insulated panels Complete covering of the bottom of the aggregate bunker with 40 mm thick insulated panels Retractable electric gates on the aggregate bunker Steam generator (high performance steam generators that can run on diesel, natural gas or both, selected according to the plant capacity)

Concrete batching plant coating applications

The top and sides of the aggregate bunker can be covered with trapezoidal sheets to both protect from environmental influences (rain, snow, wind, etc.) and to minimize the impact of dusting on the environment. The four sides and top of the main unit, which contains the mixer, cement-water-additive scales and aggregate waiting bunker, can be covered with trapezoidal sheets. In this way, the main unit can be protected from environmental influences (rain, snow, wind, etc.).

Fiber feed system integration

You can improve the versatile production capacity of your batching plant thanks to the fiber feeding system that automatically feeds and doses steel or polyester concrete fibers used in the production of special quality concrete and is integrated with the plant automation.

DISCOVER MORE

The plant you want with dozens of additional options

- HYDRONIX brand Microwave moisture meter for aggregate bunker sand compartment. It precisely measures the moisture in the sand and ensures that less water and complementary sand is added by the amount of moisture measured by the automatic system.

- Aggregate Bunker bunker grates to be placed on top of the bunker with 100x 100 mm mesh width to prevent large stones from entering and damaging the system

- Water booster with STANDART brand pump that sends water to the water scale at the required flow rate and pressure (with double pump and single pump options)

- Mixer safety interlock can be added for more safety during maintenance. With this system consisting of two switches, the plant cannot be started unless the maintenance person stops the system completely and takes one switch on himself, preventing possible accidents.

Explore Our Projects Worldwide

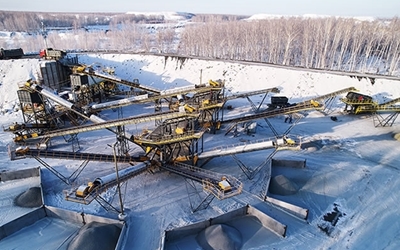

MEKA Aggregate Production Plant / RUSSIA

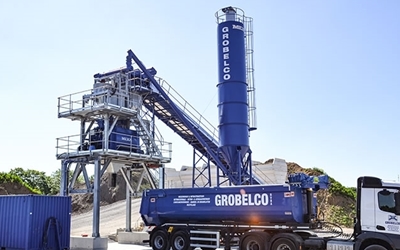

MEKA Stationary Concrete Batching Plant / BELGIUM
