Portable Inclined Screens

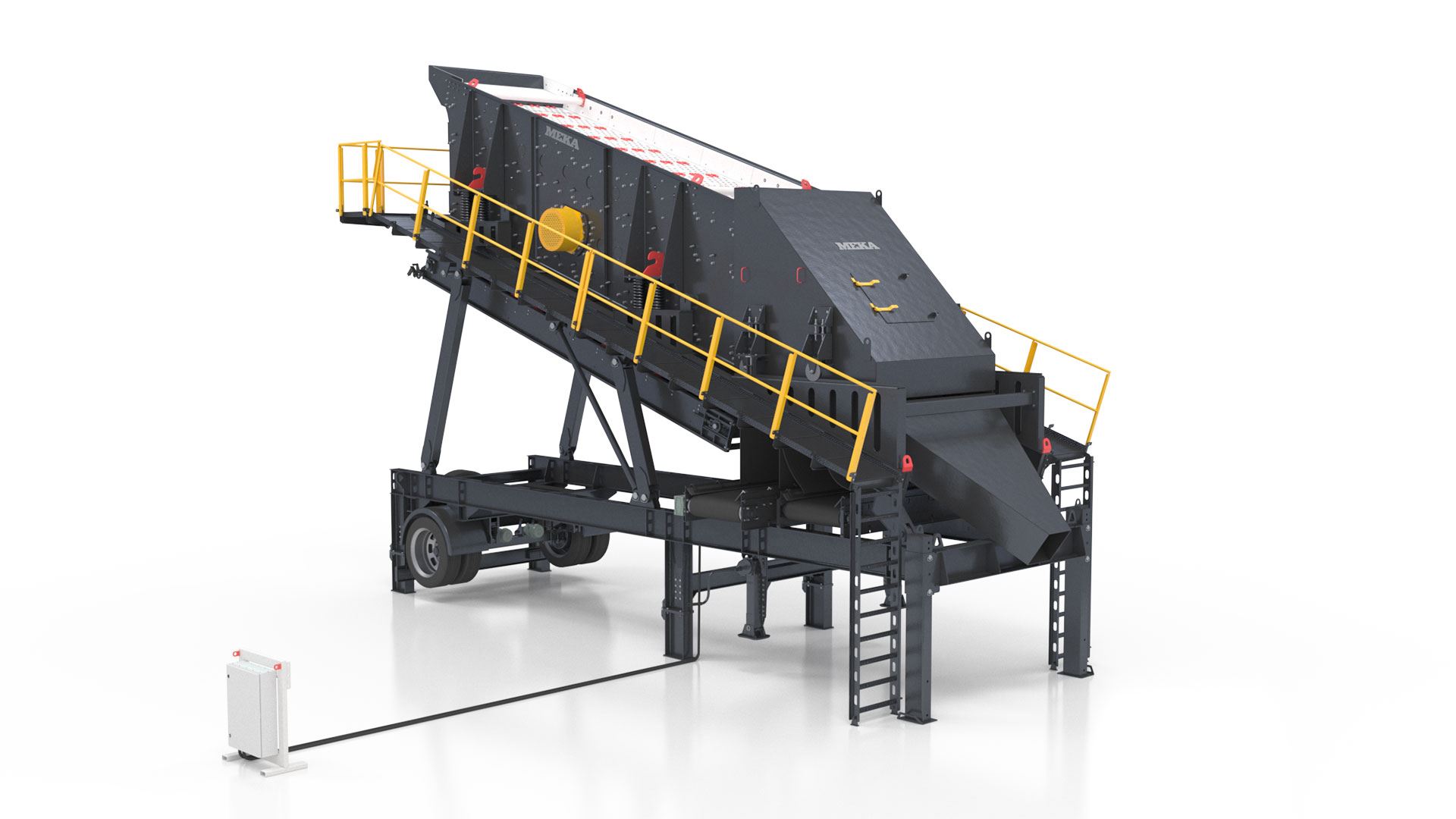

Portable Inclined Screens are wheel-mounted, and have been designed for maximum capacity in highly accurate screening operations. Powered by electricity they are designed for maximum efficiency with a high throughput.They are used in multistage crushing process or as a stand-alone unit screening pre-crushed material.

Quick Quote

Applications

When requiring accurate classification of different end products after crushing, MEKA offers portable screen plants to precisely match your application needs.

Why MEKA Portable Inclined Screens?

• Highly efficient and accurate on board 2,3 or 4 deck screens for product classification

• Designed as a non-welded frame with adjustable vibration features.

• Can be supplied with different types of screening media, such as grizzly, perforated sheet, polyurethane and steel wire mesh with washing options.

• Huck-bolted assembly side plates don’t require maintenance for bolts and nuts, so they also ensure workplace security.

• Self contained electrical switchgear cabinet mounted on the semi-trailer, with controls for screen.

• Electrical switchgear cabinet can be located on the ground during operation.

• 2” / 3 ½” King-pin, single or double-axle bogie with air-brakes, ABS and travel lights, mudflaps.

MEKA Portable Inclined Screens Advantages

Portable inclined screens are built for operations that need accurate classification without installing a fixed screening plant. They work as a stand-alone unit or as part of a multistage crushing circuit.

Accurate multi-fraction classification.

The high-efficiency screen on the chassis separates crushed material into several product fractions in a single pass.

Screening adapted to the material.

A choice of screening media, whether grizzly, perforated sheet, polyurethane or steel wire mesh, together with adjustable vibration settings allows the unit to suit varying feed characteristics and product requirements.

Fast set-up and easy relocation.

No concrete foundation or extensive site preparation is required, so the unit is commissioned quickly and can be moved to a new site once the project ends.

Electrically powered.

The unit runs on mains electricity, keeping hourly operating cost and on-site emissions low.

Low maintenance, safe operation.

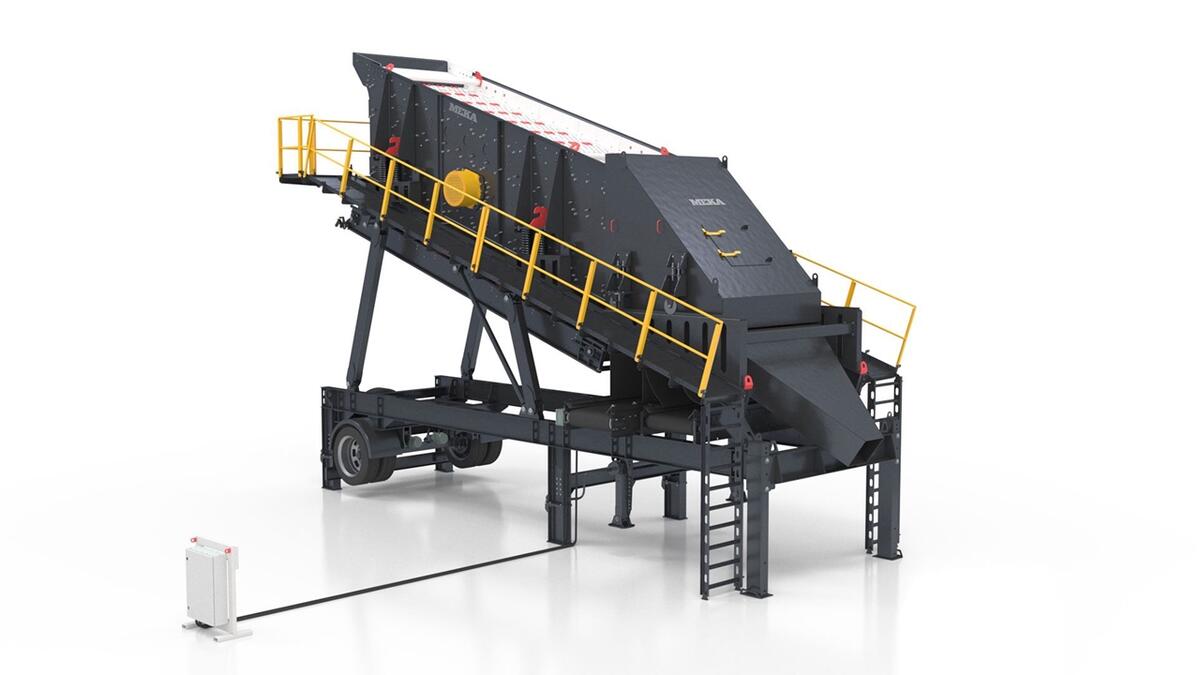

A non-welded frame and huck-bolted side plates eliminate bolt maintenance, while the self-contained electrical cabinet mounted on the chassis controls the whole unit from one point.

Portable Inclined Screens Gallery

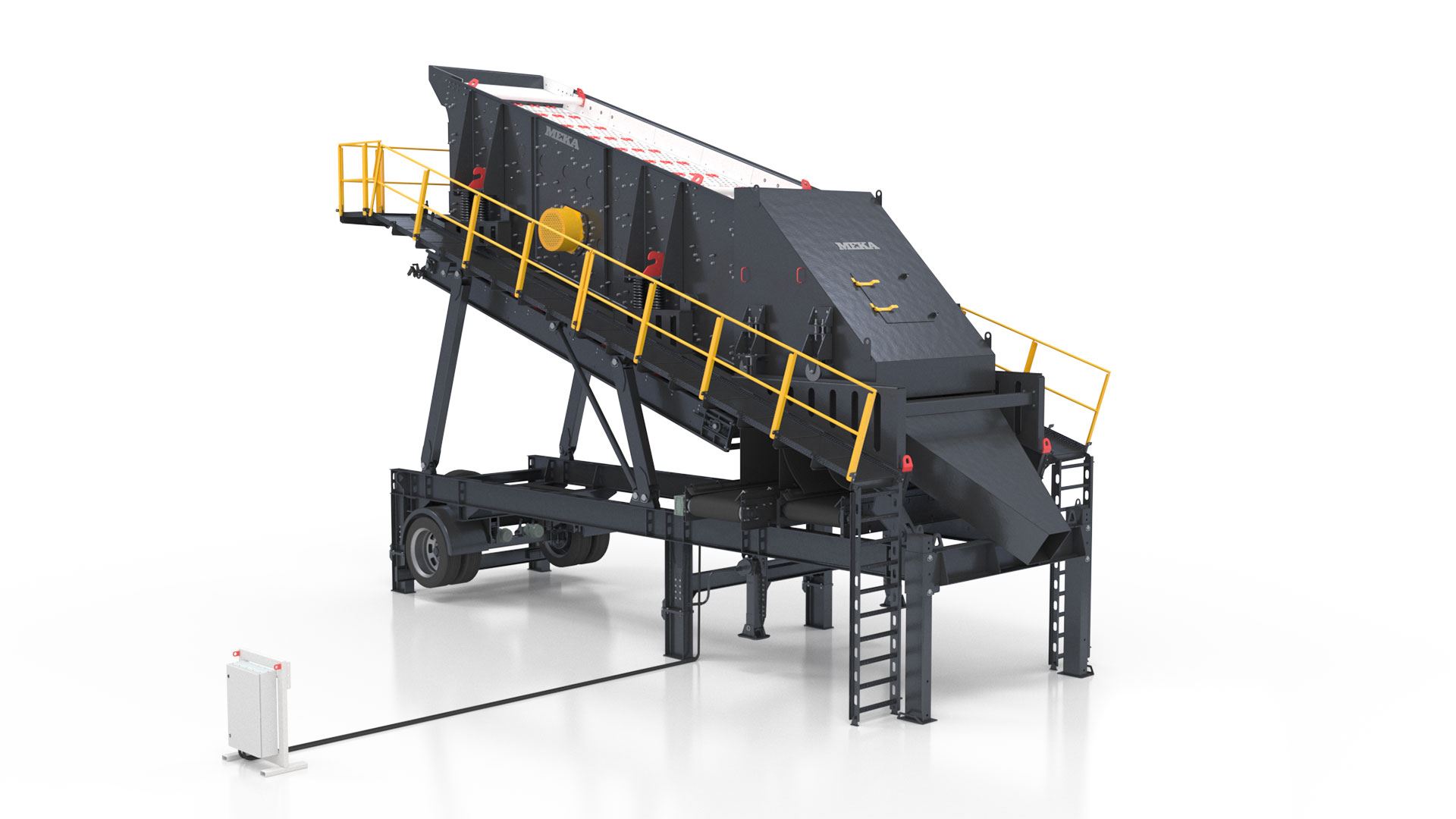

MEKA Portable Inclined Screens – photo 1

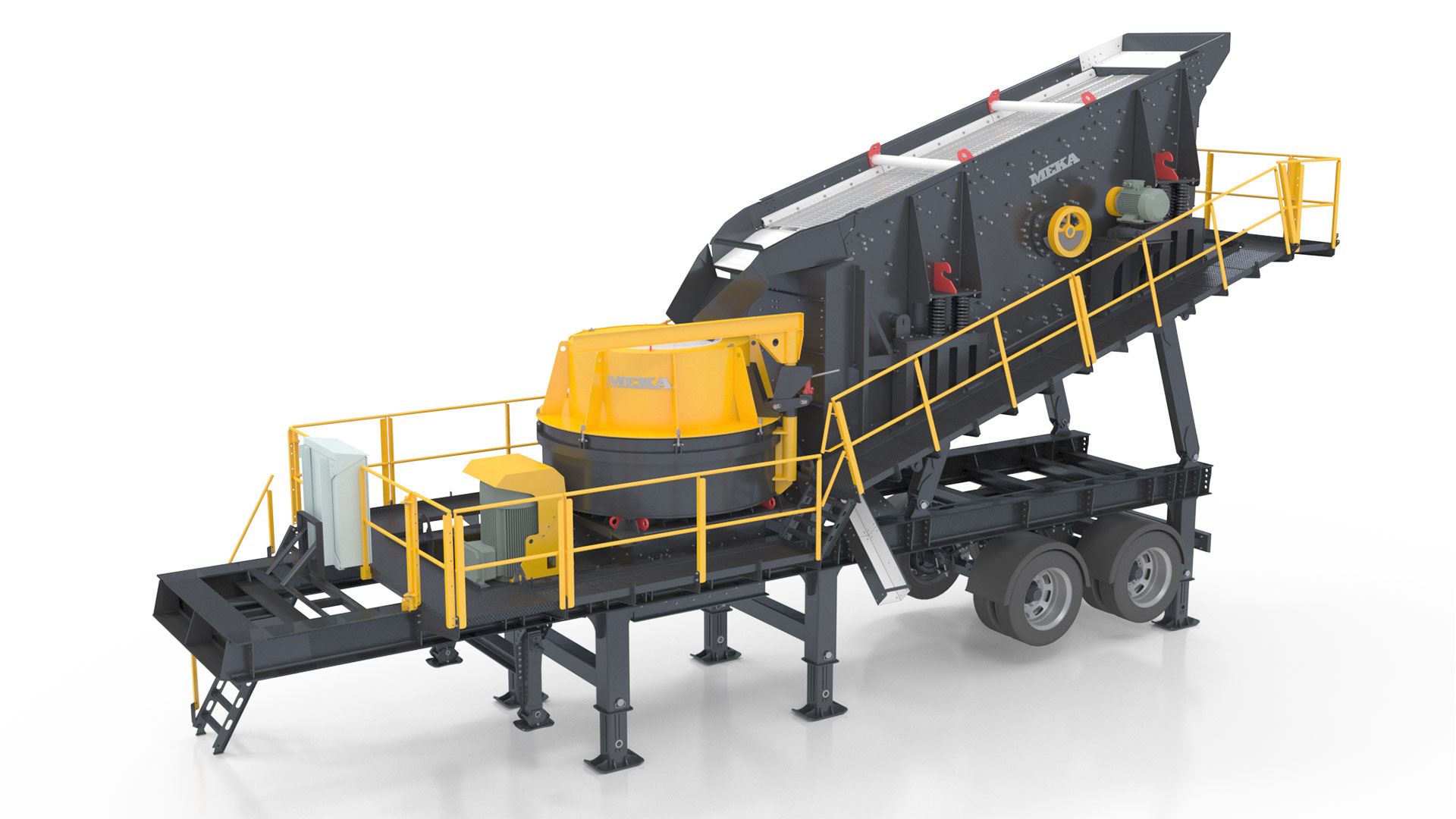

MEKA Portable Inclined Screens – photo 2

MEKA Portable Inclined Screens – photo 3

MEKA Portable Inclined Screens – photo 4

MEKA Portable Inclined Screens – photo 5

Portable Inclined Screens Technical Specifications

metric imperial	MP 1650/3	MP 2050/3	MP 2060/3
	SCREEN
Model	MS 1650/3 MS 1650/3	MS 2050/3 MS 2050/3	MS 2060/3 MS 2060/3
Width Width	1 600 mm 5.2'	2 000 mm 6.6'	2 000 mm 6.6'
Length Length	5 000 mm 16.4'	5 000 mm 16.4'	6 000 mm 20'
Decks Decks	3 3	3 3	3 3
Motor Power Motor Power	15 kW 20 HP	18.5 kW 25 HP	22 kW 30 HP
	BOTTOM CHUTE CONVEYOR
Belt Width Belt Width	1200 mm 47"	1600 mm 63"	1600 mm 63"
Length Length	5 000 mm 16' 5''	5 000 mm 16' 5''	6 000 mm 19' 8''
Motor Power Motor Power	2 x 4 kW 2 x 5.5 HP	2 x 5.5 kW 2 x 7.5 HP	2 x 5.5 kW 2 x 7.5 HP
	CROSS CONVEYORS (2 PCS)
Belt Width Belt Width	650 mm 26"	800 mm 31"	800 mm 31"
Length Length	2 500 mm 8' 2''	3 000 mm 9' 10''	3 000 mm 9' 10''
Motor Power Motor Power	4 kW 5.5 HP	5.5 kW 7.5 HP	5.5 kW 7.5 HP
	TRANSPORT DIMENSIONS
Length Length	10 200 mm 33' 6''	10 200 mm 33' 6''	11 400 mm 37' 5''
Width Width	2 800 mm 9' 2''	3 200 mm 10' 6''	3 200 mm 10' 6''
Height Height	4 300 mm 14' 1''	4 300 mm 14' 1''	4 300 mm 14' 1''
Weight Weight	21 900 kg 48 300 lbs	23 500 kg 51 800 lbs	25 000 kg 55 100 lbs
	OPERATING DIMENSIONS
Length Length	10 100 mm 33' 2''	10 100 mm 33' 2''	10 800 mm 35' 5''
Width Width	4 000 mm 13' 2''	4 400 mm 14' 5''	4 400 mm 14' 5''
Height Height	7 200 mm 23' 7''	7 200 mm 23' 7''	7 600 mm 25'

What is Portable Inclined Screen?

Portable inclined screens are wheel mounted units, screening area selected to meet different capacities, and with 2-3-4 decks.

Types of Portable Inclined Screens

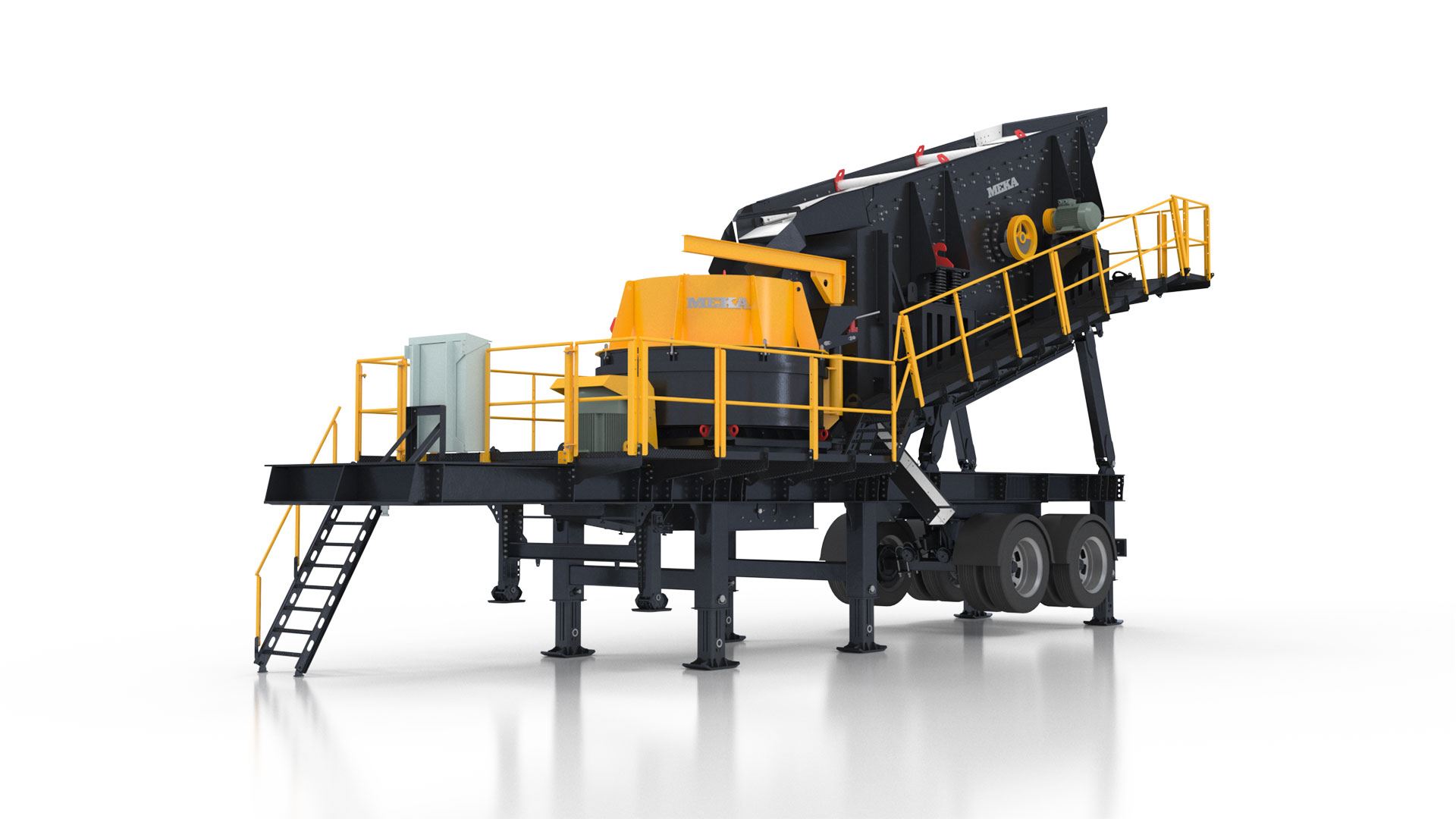

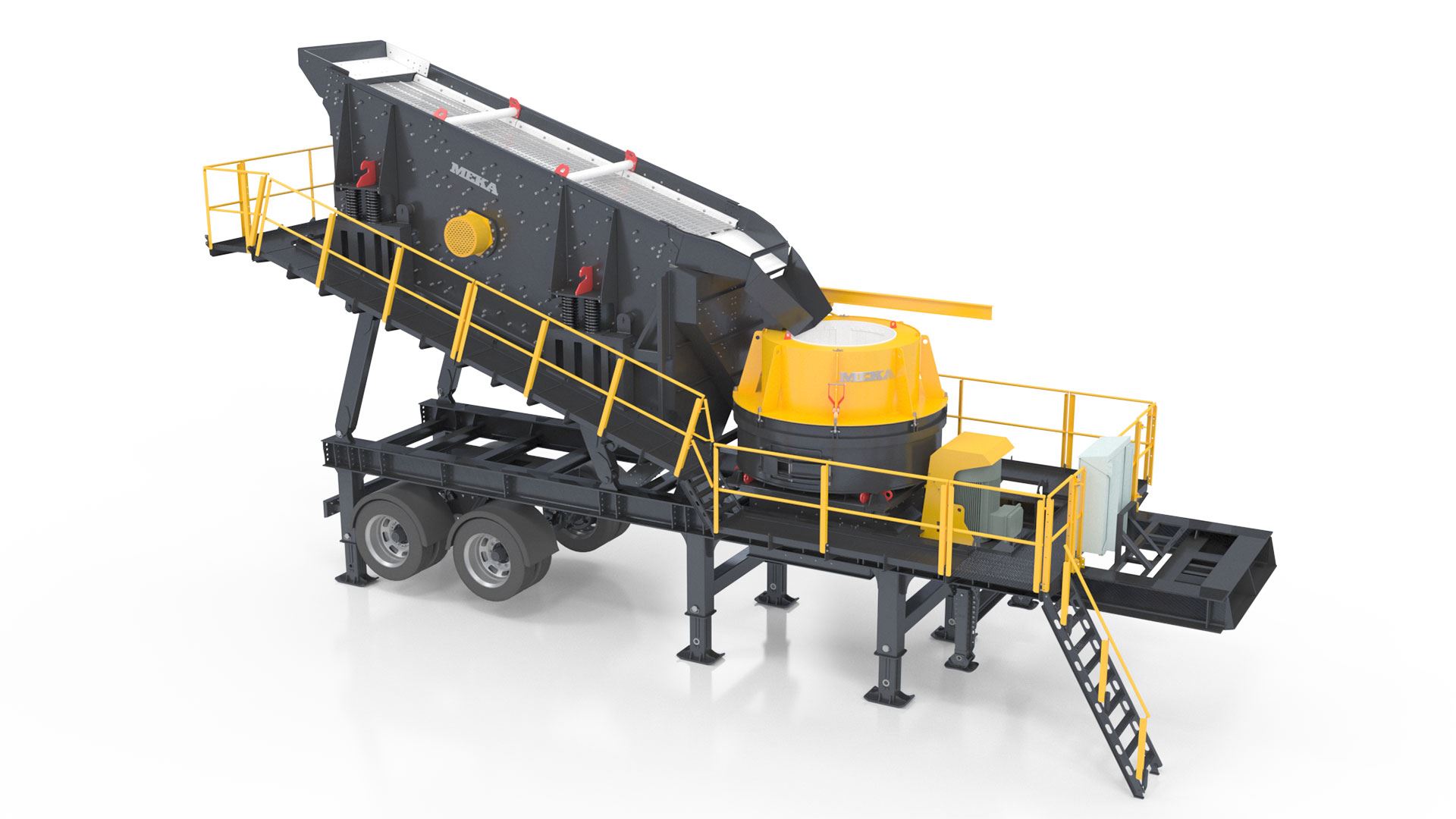

The portable inclined screen plant is a unit consisting of an inclined screen mounted on a trailer chassis.

How Does Portable Inclined Screens Work?

The material fed into the screen on trailer chassis is classified bigger than aperture size and smaller than apertures size according to the size of the screening media on deck using the mechanical force created by gravity and vibration.

Advantages of Using Portable Inclined Screens

In addition to the general advantages of the inclined screen such as high capacity in dry or wet processes applications , the advantages of being portable are as follows;

Compact design: Portable inclined screens are ready to produce the products on its own or can be easily adopted to a plant.
Ready for operation: Can be commissioned and started up quickly
No concrete work: No need for excess concrete and site preparation

Quick and easy site change for another project.

Portable Inclined Screens Processes Applications

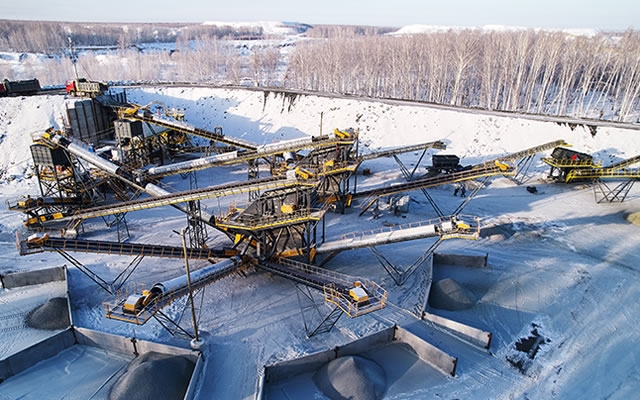

Portabel Inclined vibrating screens are used in various industries, for aggregate production, mining operations, industrial mineral production and agriculture, and in the chemical and food sectors.
