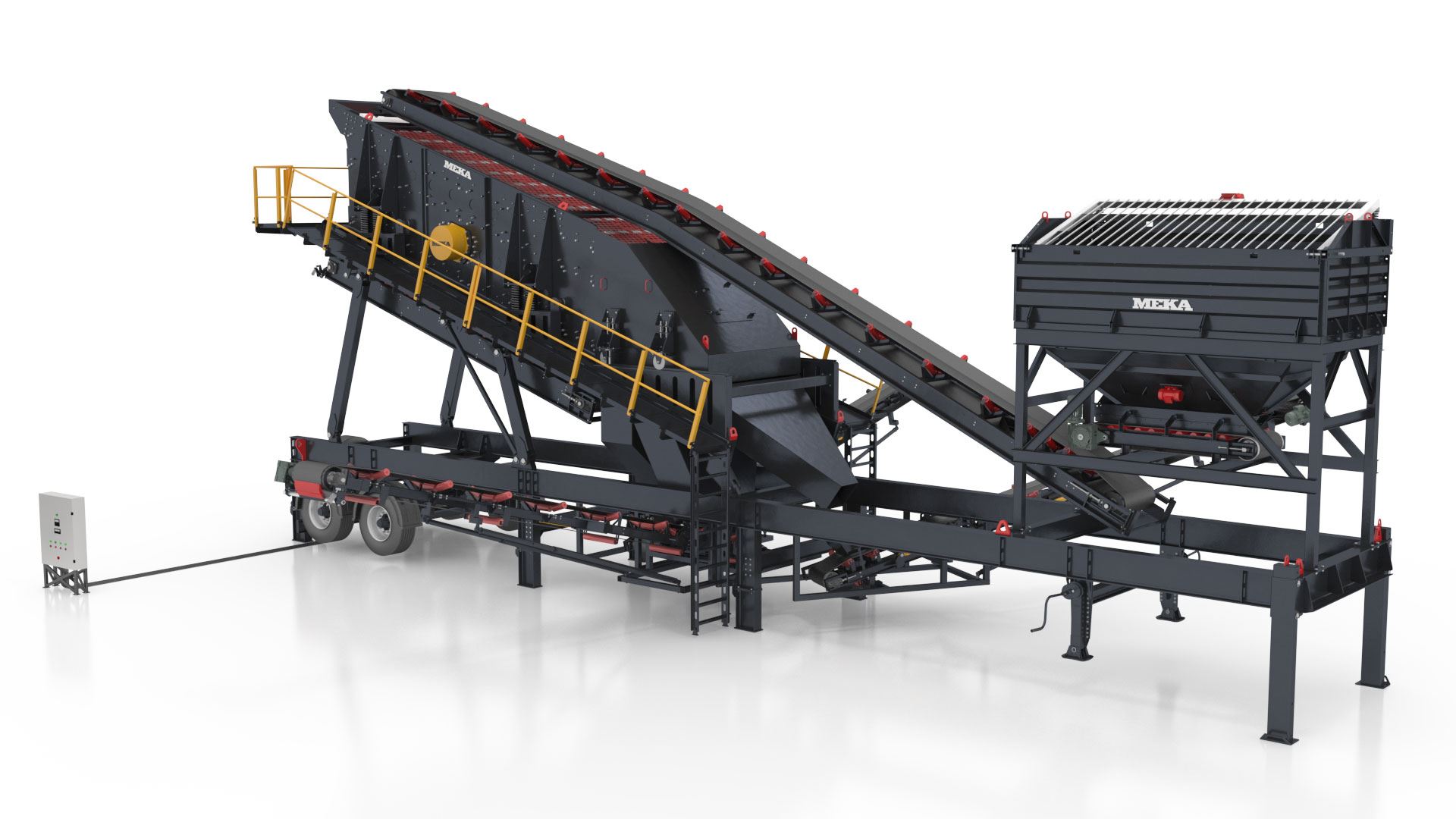

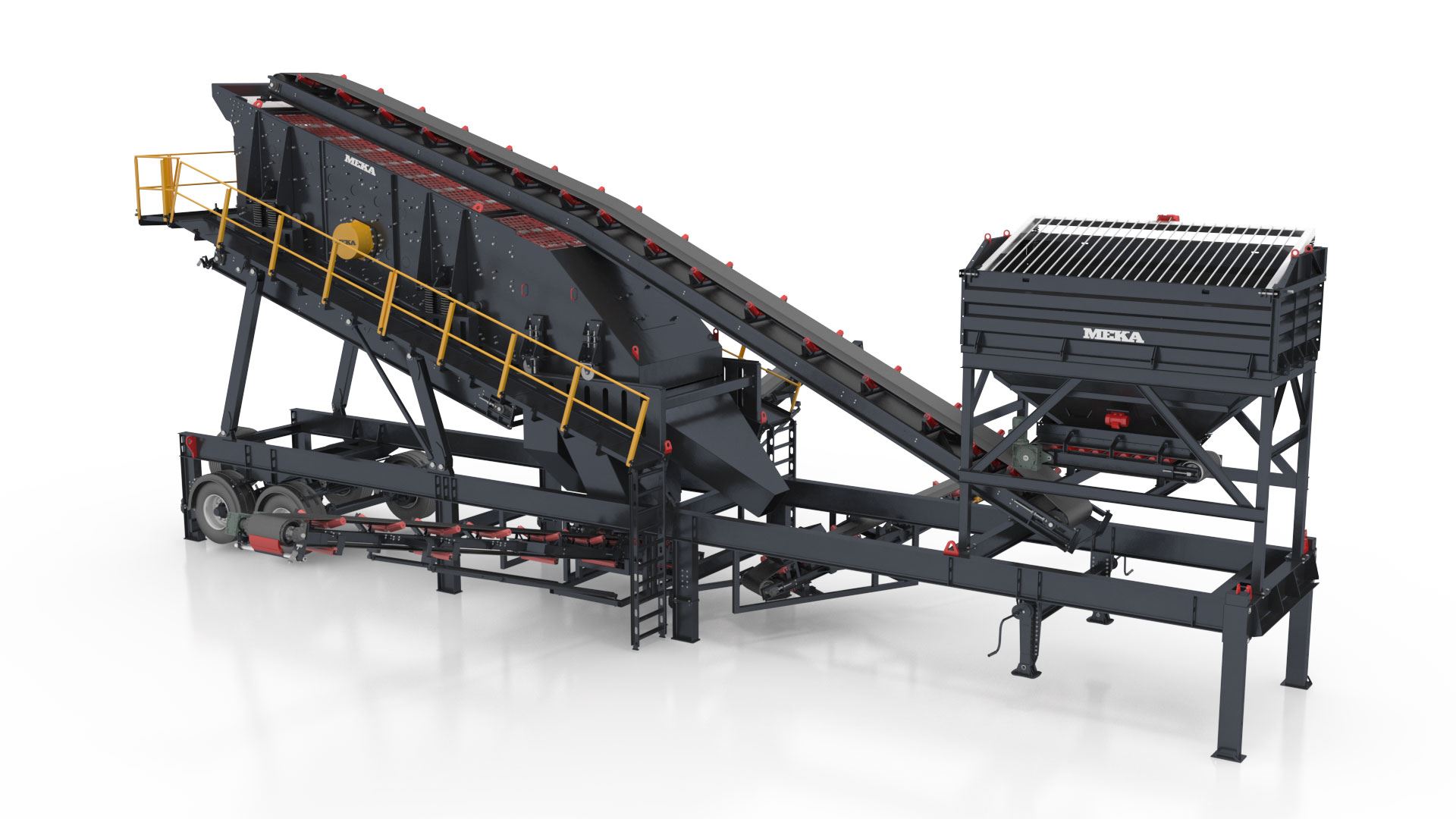

The portable inclined screen plant with feeder is a classifying unit consisting of an inclined screen, hopper, belt feeder and a conveyor belt feeding to the screen mounted on the same trailer chassis.
-
PRODUCTS
-
Ready Mix Concrete Plants
- READY MIX CONCRETE PLANTS HOME
- MOBILE CONCRETE BATCHING PLANTS
- COMPACT CONCRETE BATCHING PLANTS
-
STATIONARY CONCRETE BATCHING PLANTS
- STATIONARY CONCRETE BATCHING PLANTS HOME
- K60 STATIONARY CONCRETE BATCHING PLANT
- K90 STATIONARY CONCRETE BATCHING PLANT
- K120 STATIONARY CONCRETE BATCHING PLANT
- K135 STATIONARY CONCRETE BATCHING PLANT
- K145 STATIONARY CONCRETE BATCHING PLANT
- K160 STATIONARY CONCRETE BATCHING PLANT
- K200 STATIONARY CONCRETE BATCHING PLANT
- DRY BATCH CONCRETE BATCHING PLANTS
- PRECAST CONCRETE BATCHING PLANT
- RCC CONCRETE BATCHING PLANTS
- Concrete Mixers
- Concrete Plants Components
-
After Sales Services and Spare Part
-
Concrete Batching Plant Automation System
Crushing & Screening Plants, Mining, Robust, Reliable, Robust, Reliable, Robust for Ready-Mixed Concrete Production and Recycling Industries.... -
Ready Mix Concrete Plants
- NEWS
- BLOG
- CASESTUDIES
- SERVICE
Portable Screening Plant
Portable Inclined screening plants are wheel-mounted and include a feed hopper with belt feeder, feed conveyor, screen and product conveyors. With many advanced design features common throughout this range, all models combine mobility and flexibility, with high quality production, maximum uptime and low cost per tonne operation
Applications
Portable Inclined screening plants have been designed for small to medium sized operations for splitting of up to 4 products.
Powered by electricity, they are the optimal choice if you want to move the plant from one site to another periodically.
Why MEKA Portable Screening Plant?
Compact layout and excellent stability,
Highly efficient and accurate on board screen for product classification, produces up to 3 grades of aggregate and 1 grade of sand.
Feed hopper and belt feeder providing the desired, continous feed rate to screen.
Operator-friendly unit with spacious and accessible platforms.
Self contained electrical switchgear cabinet mounted on the semi-trailer, with controls for feeder, screen and belt conveyors.
Electrical switchgear cabinet can be located on the ground during operation.
2” / 3 ½” King-pin, single or double-axle bogie with air-brakes, ABS and travel lights.
Portable Screening Plant Technical Specifications
MP 1650/3-F |
MP 2050/3-F |
MP 2060/3-F |
|
| HOPPER | |||
| Volume | 10 m³ | 10 m³ | 10 m³ |
| BELT FEEDER | |||
| Belt Width | 800 mm | 1 000 mm | 1 000 mm |
| Length | 2 000 mm | 2 000 mm | 2 000 mm |
| Motor Power | 5.5 kW | 5.5 kW | 5.5 kW |
| FEEDING CONVEYOR | |||
| Belt Width | 800 mm | 1 000 mm | 1 000 mm |
| Length | 11 000 mm | 11 000 mm | 12 000 mm |
| Motor Power | 2 x 5.5 kW | 2 x 7.5 kW | 2 x 7.5 kW |
| SCREEN | |||
| Model | MS 1650/3 | MS 2050/3 | MS 2060/3 |
| Belt Width | 1 600 mm | 2 000 mm | 2 000 mm |
| Length | 5 000 mm | 5 000 mm | 6 000 mm |
| Decks | 3 | 3 | 3 |
| Motor Power | 15 kW | 18.5 kW | 22 kW |
| BOTTOM CHUTE CONVEYOR | |||
| Belt Width | 1 200 mm | 1 600 mm | 1 600 mm |
| Length | 5 000 mm | 5 000 mm | 6 000 mm |
| Motor Power | 2 x 4 kW | 2 x 5.5 kW | 2 x 5.5 kW |
| FRONT CHUTE CONVEYORS (2 PCS) | |||
| Belt Width | 650 mm | 800 mm | 800 mm |
| Length | 8 000 mm | 8 000 mm | 8 000 mm |
| Motor Power | 5.5 kW | 7.5 kW | 7.5 kW |
| TRANSPORT DIMENSIONS | |||
| Length | 15 000 mm | 15 000 mm | 16 400 mm |
| Width | 2 800 mm | 3 200 mm | 3 200 mm |
| Height | 4 300 mm | 4 300 mm | 4 300 mm |
| Weight | 34 000 kg | 36 000 kg | 38 000 kg |
| OPERATING DIMENSIONS | |||
| Length | 15 000 mm | 15 000 mm | 16 400 mm |
| Width | 2 800 mm | 3 200 mm | 3 200 mm |
| Height | 4 300 mm | 4 300 mm | 4 300 mm |
Portable Screening Plant Gallery
What is Portable Screening Plant?
The portable inclined screen plant is a unit consisting of an feed hopper, belt feeder, inclined screen and belt conveyor feeding the screen.
Types of Portable Screening Plant
How Does Portable Screening Plant Work?
Advantages of Using Portable Screening Plant
Portable Screening Plant Processes Applications
The material fed to the hopper on trailer chassis is discharged to a belt conveyor to be fed to the inclined screen to be classified according to the aperture sizes. The material fed to screen start to be stratified and separation due to the circular motion of the screen.This motion and gravity make the material move on the deck of the screen and the material smaller than the aperture size pass through the aperture and the bigger size is discharged from the screen from the top deck.
In addition to the general advantages of the inclined screen , such as high capacity in dry or wet process applications, the advantages of being portable are as follows:
Compact design: Complete screening plant in compact design with the possibility of receiving end products, also suitable for primary feeding.
Ready for operation: Can be commissioned and started up quickly No concrete work: No need for excess concrete and site preparation
Ready for relocation: Quick and easy site change for another project.
Compact design: Complete screening plant in compact design with the possibility of receiving end products, also suitable for primary feeding.
Ready for operation: Can be commissioned and started up quickly No concrete work: No need for excess concrete and site preparation
Ready for relocation: Quick and easy site change for another project.
Portable Inclined vibrating screens with feeders are used in various industries, for aggregate production, mining operations, industrial mineral production and agriculture, and in the chemical and food sectors. They can be used in rip rap projects as well.
