K120

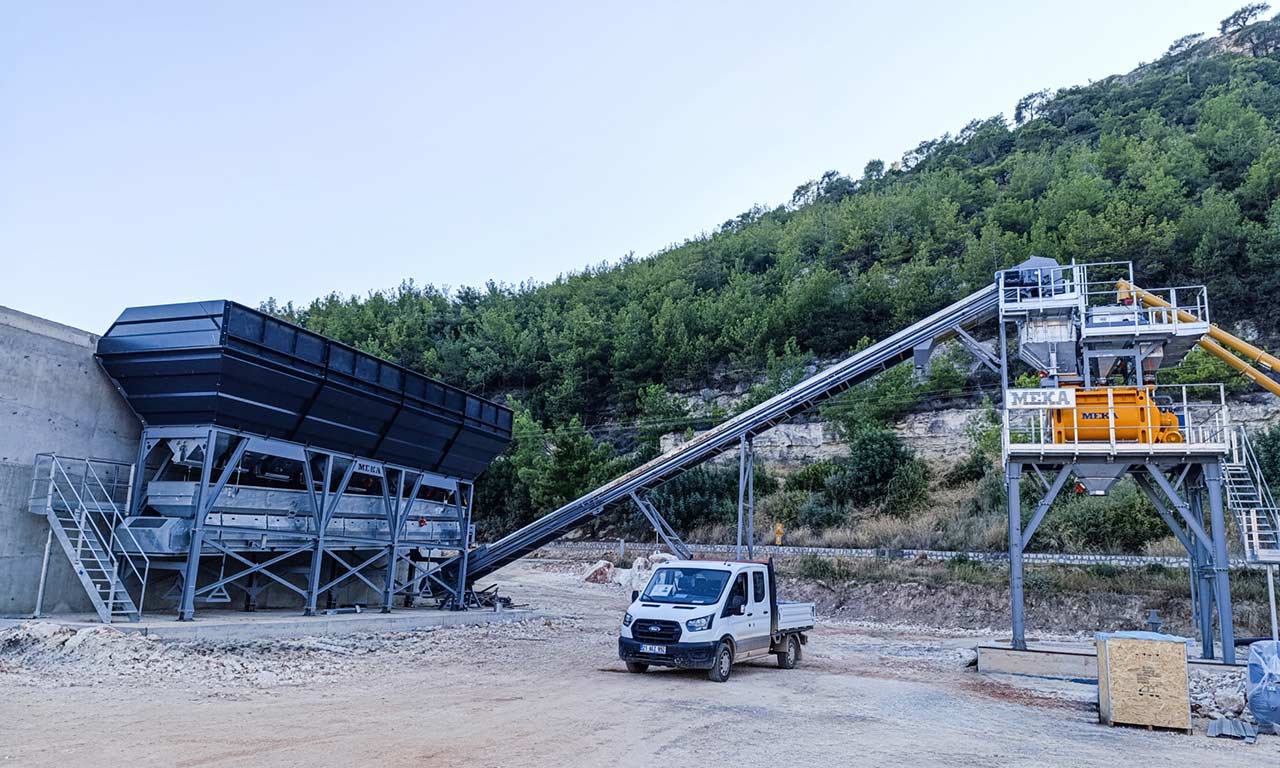

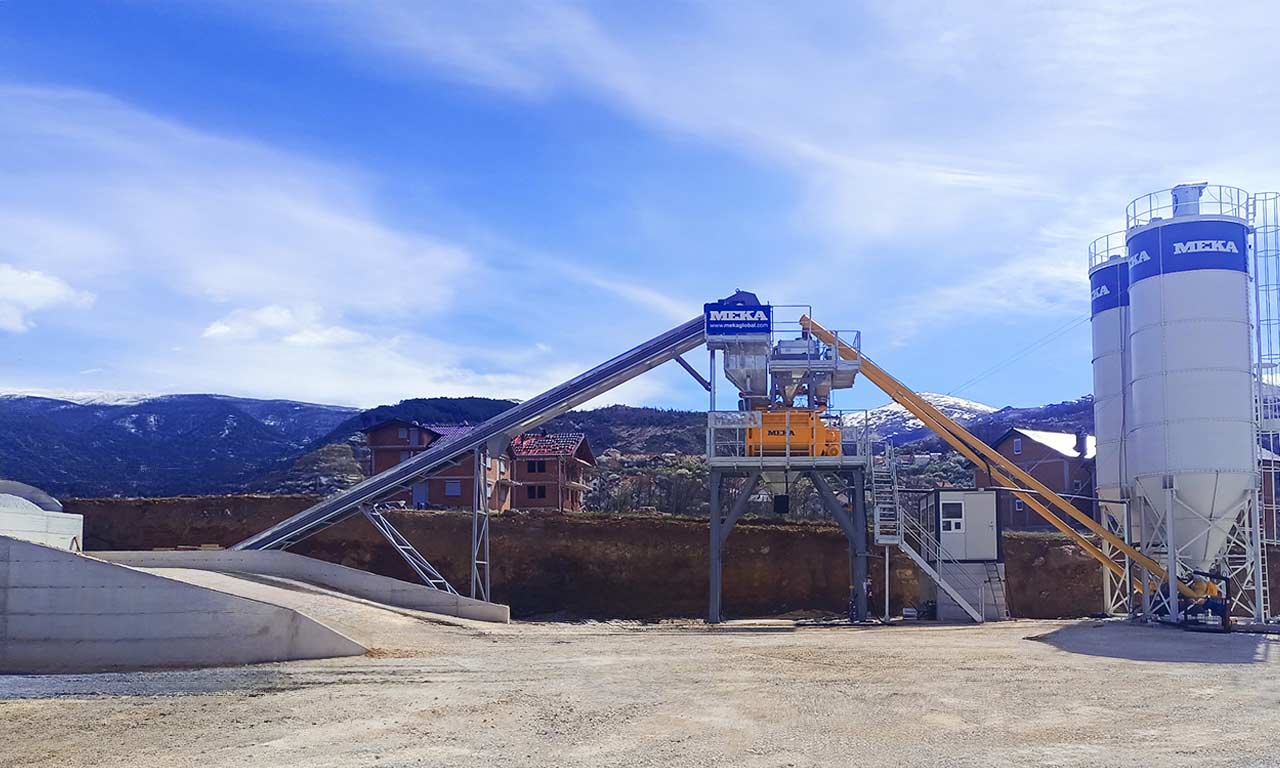

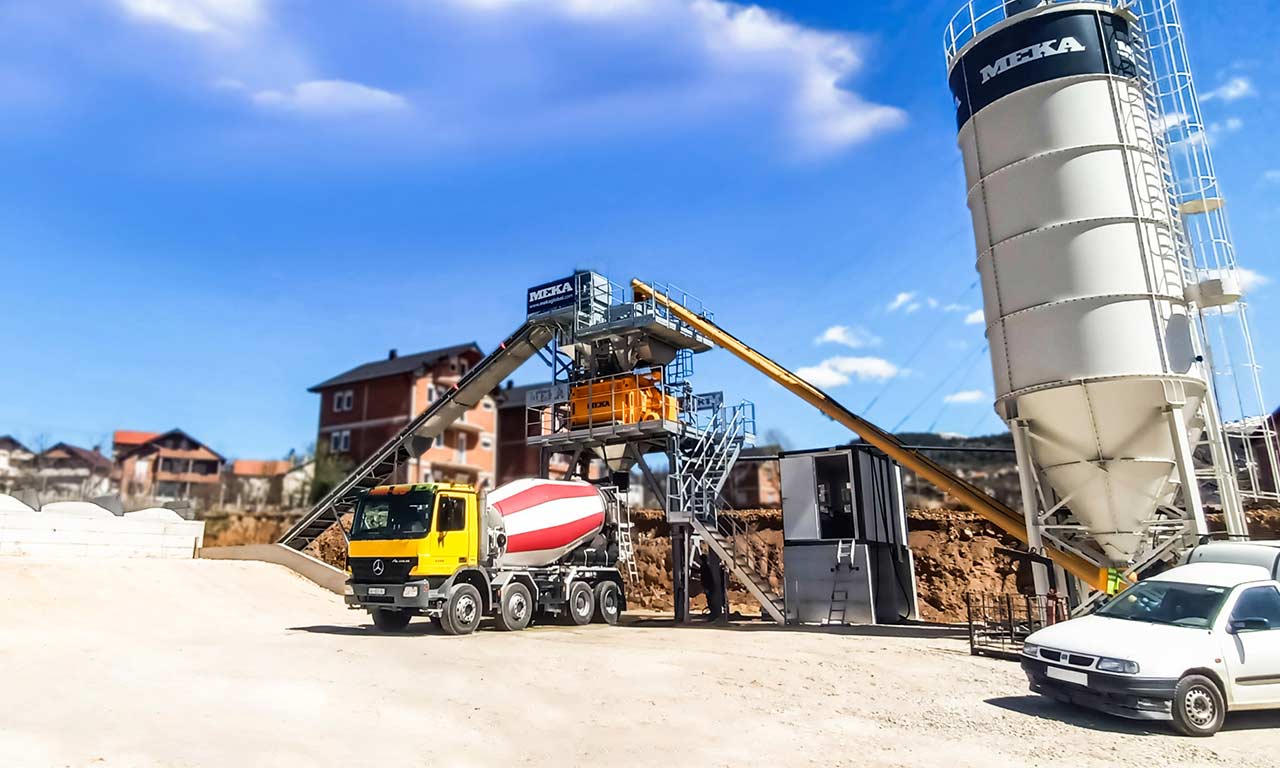

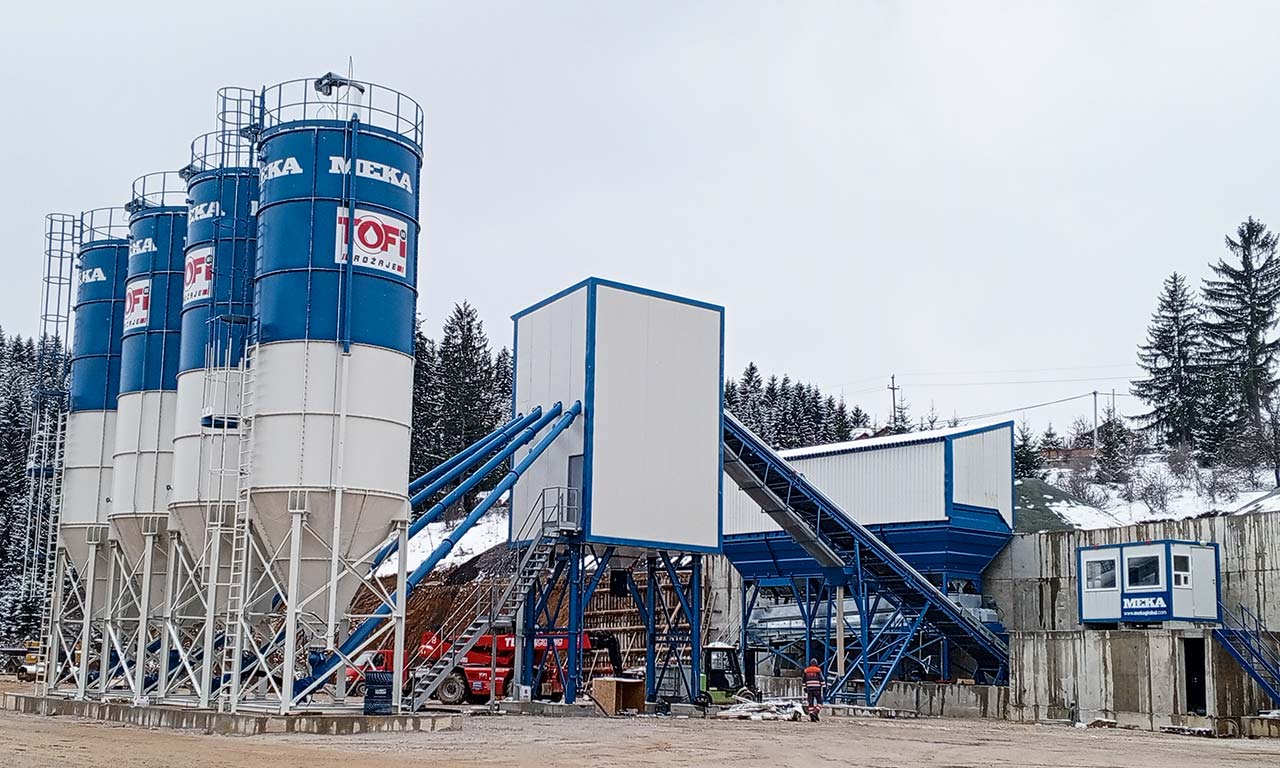

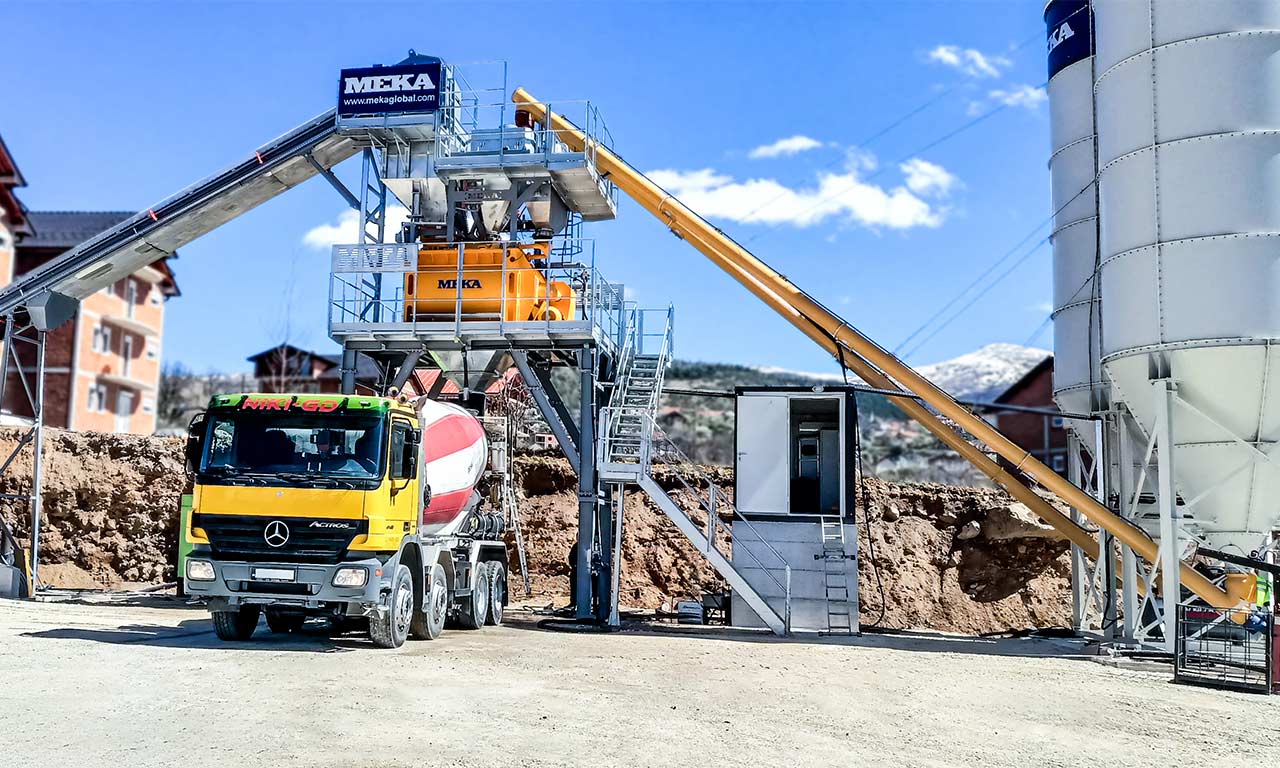

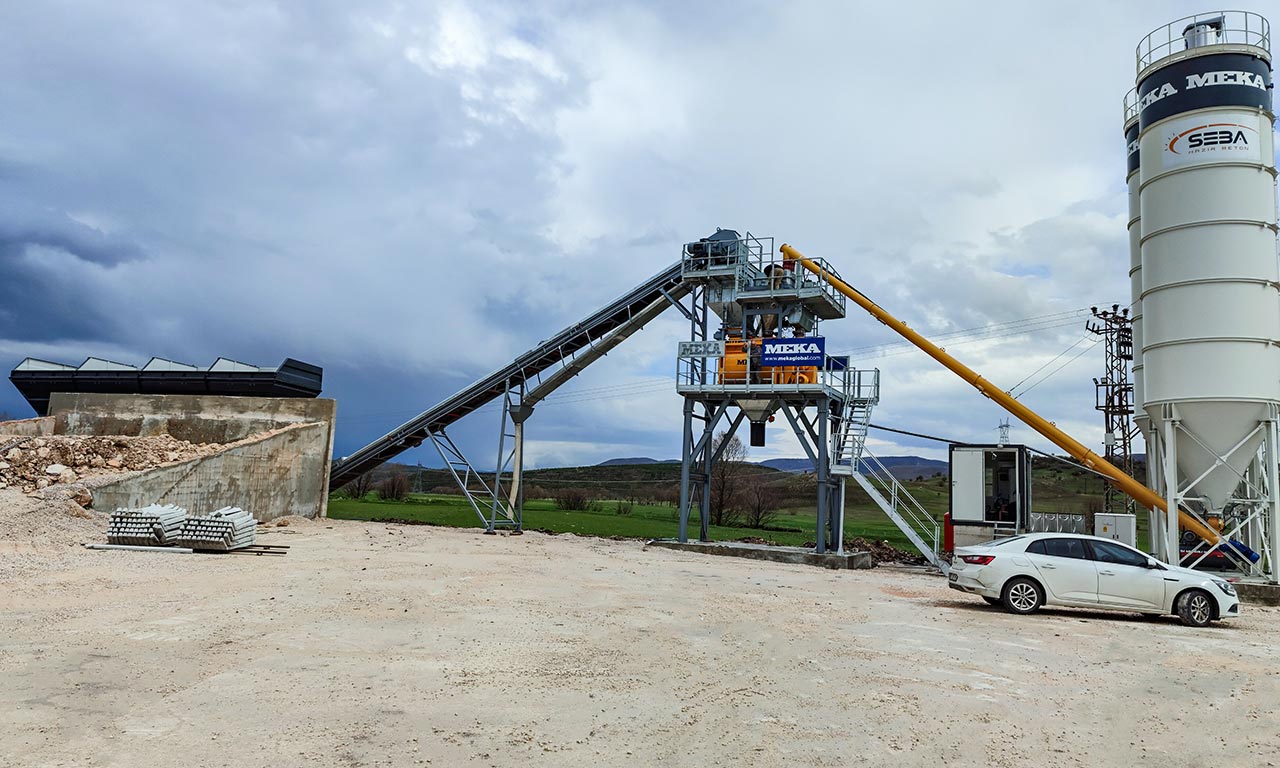

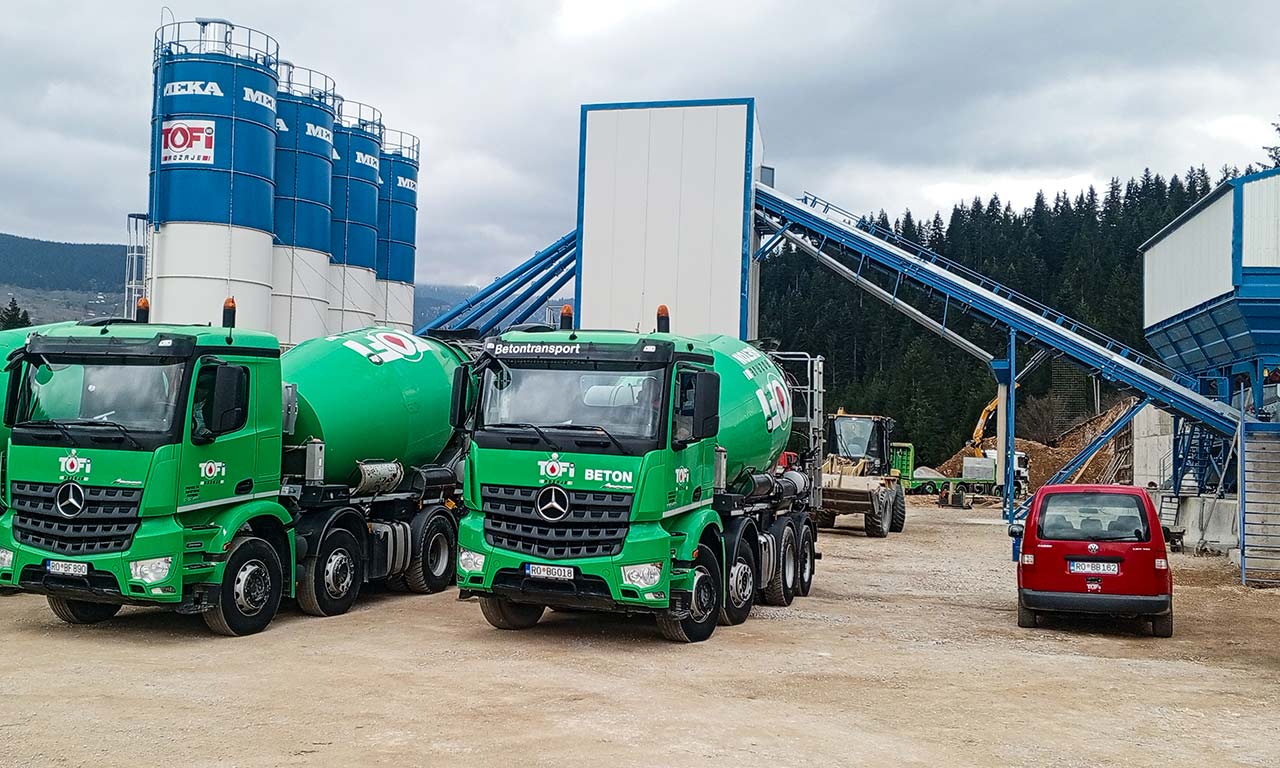

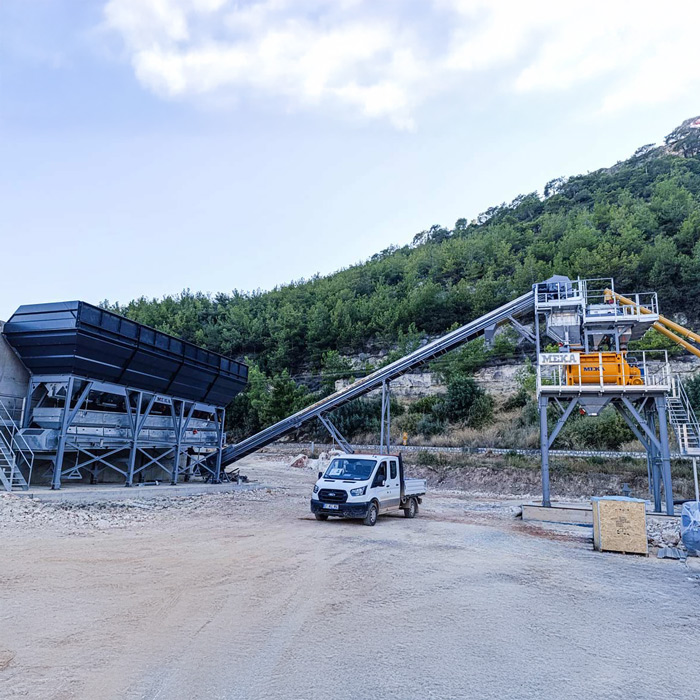

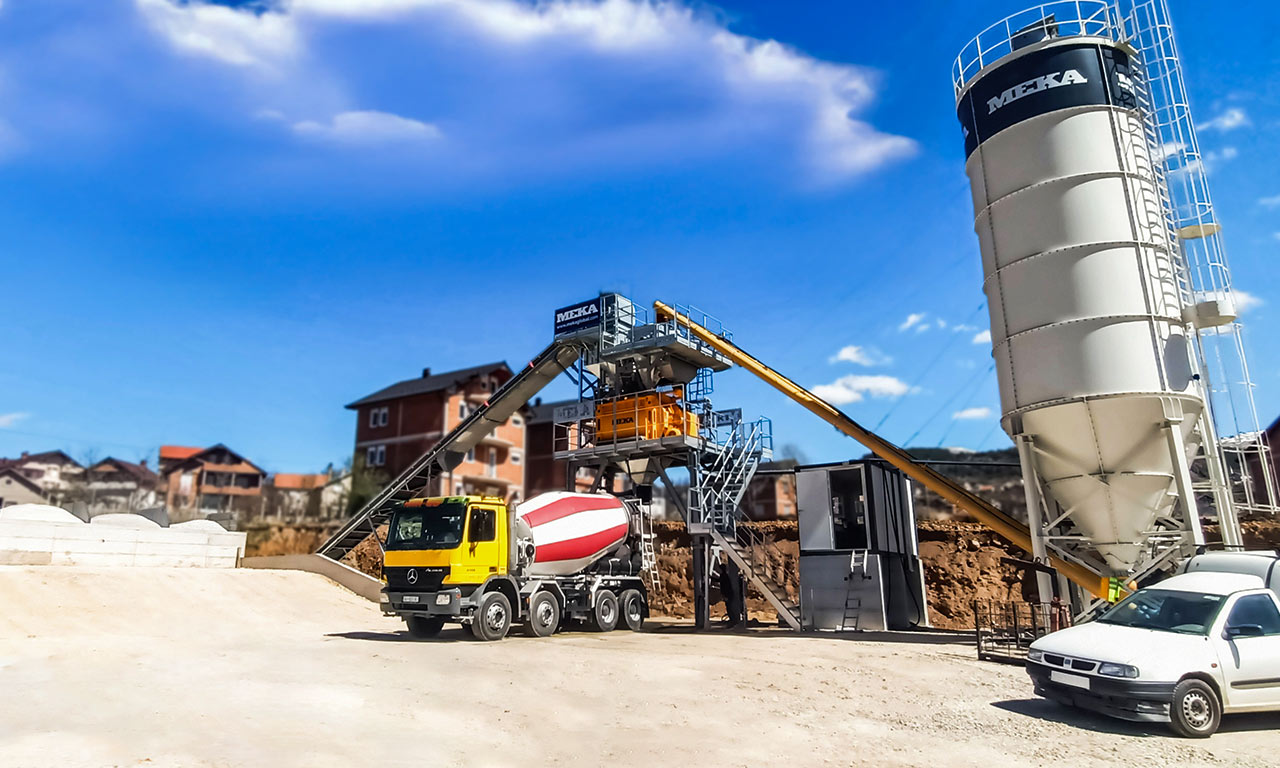

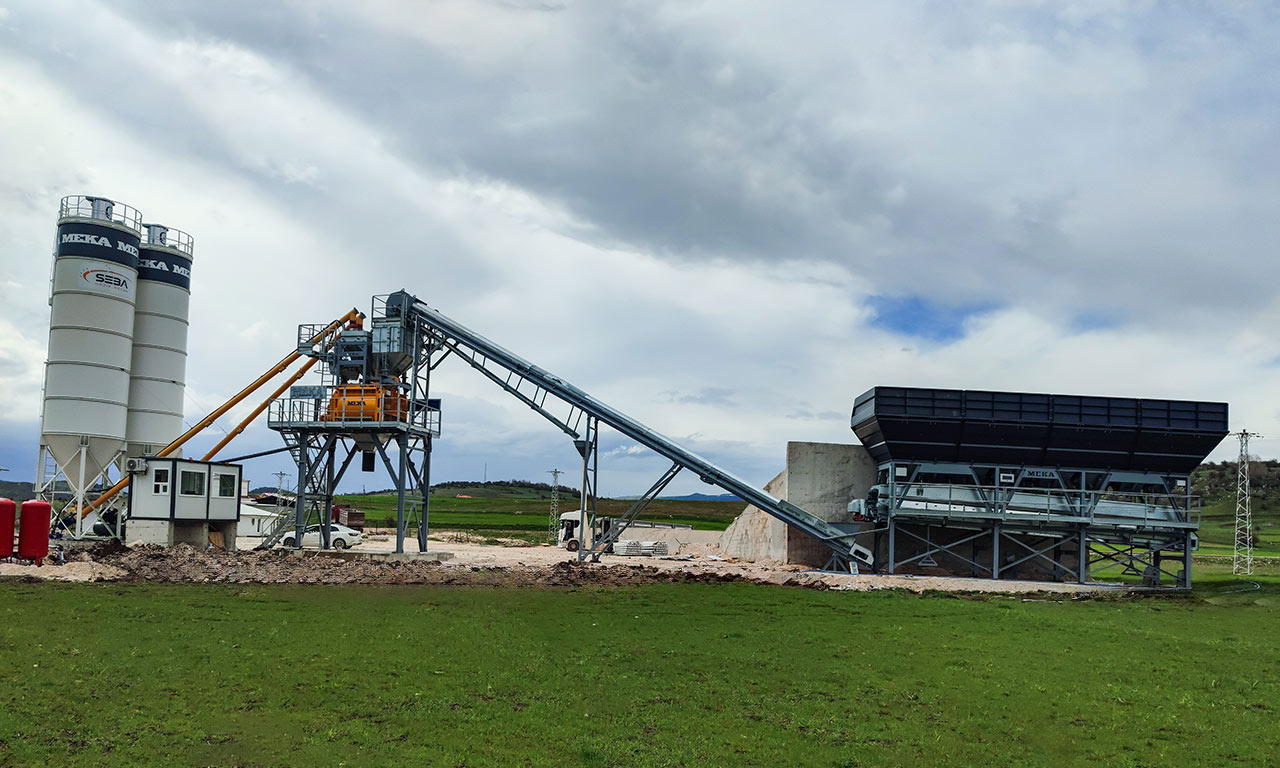

Stationary Concrete Batching Plant

The K120 Stationary Concrete Batching Plant, designed for long-lasting reliability and high performance, meets all your production requirements, whether for ready-mixed concrete, RCC, or precast concrete, and adds significant power to your business.
Quick Quote

Briefly K120

The K120 Stationary Concrete Batching Plant is not only a producer of high-quality ready-mixed concrete but also a long-term investment, featuring hot-dip galvanized weighing units, hoppers, and plant components for enhanced durability. Whether for ready-mixed concrete, roller compacted concrete (RCC), or precast concrete, the K120 delivers high productivity and provides a significant business advantage with its 2.25 m³ capacity MEKA twin-shaft mixer.

Specifically designed to meet the demands of mass concrete production, the standard aggregate waiting hopper on the K120 maximizes productivity and profitability for ready-mixed concrete producers or large project contractors.
MEKA Stationary Concrete Batching Plant Download Catalogue
  • Plant Capacity
    Compacted Concrete Output
    100-110 m³/h

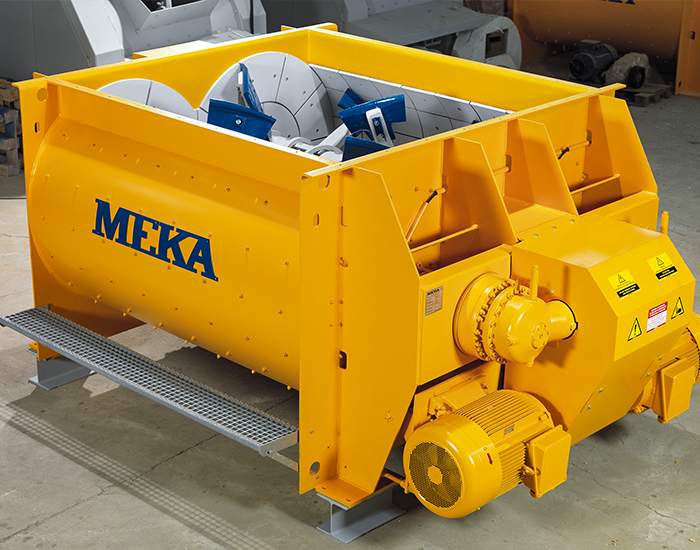

  • Concrete Mixer
    Mixer Type
    Mixer Motor Power
    Mixer Capacity
    Twin Shaft Mixer
    2x 37 Kw
    2,25 m³ / Cycle
  • Feeding System

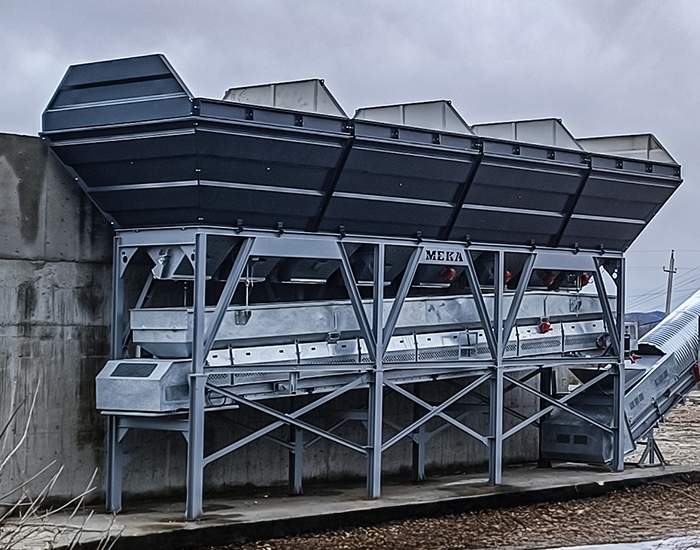

    Aggregate Bins

    Aggregate Feeding
    4x 25 m³ / Inline Type
    4x 35 m³ / Inline Type
    Ramp or Pre-Feeding System
  • Weighing Hopper
    Cement Weighing Hopper
    Water Weighing Hopper
    Additive Weighing Hopper
    1.250 kg
    700 kg
    25 kg
K120 Stationary Concrete Batching Plant Components

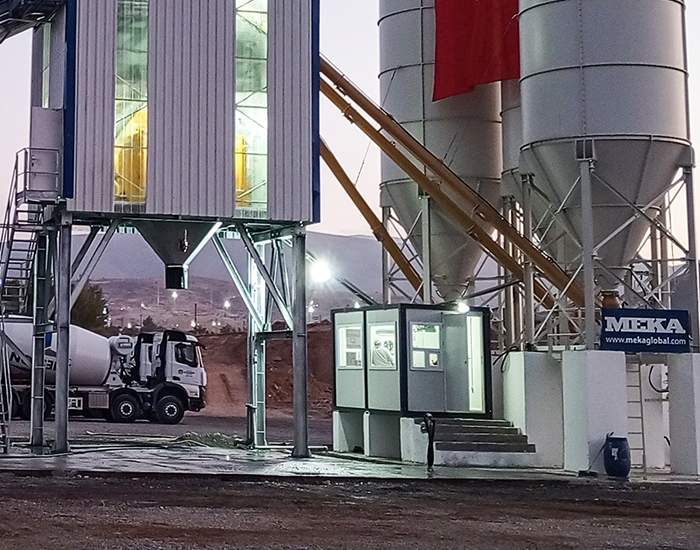

Aggregate Bunker Transfer Station Main Chassis Concrete Mixer Control Cabin Silo
Optional Features For All MEKA Concrete Batching Plants

Your concrete batching plant investment purpose and your expectations from the plant may vary different.

Whether you are a ready-mixed concrete producer, a contractor or a manufacturer of precast building elements, we have a very strong R&D team and international experience since 1987 to design and manufacture the most suitable batching plant for your needs.

Here are some of our customization options. Our technical sales team can support you in assiting the appropriate layout and equipment to optimize your productivity and business.

Concrete recycling system integration
Are you still throwing away your concrete waste or faulty production? As the importance of environmental responsibility of businesses increases, certain standards are being introduced in production in order to leave a cleaner world to future generations. In addition, in today's world where production costs are gradually increasing, operational efficiency has become the most important heading of sustainable activities. With the MEKA recycling unit, components such as aggregate, sand and water in concrete can be separated and reused in production.

DISCOVER MORE
Equipment and applications that ensure the most efficient operation in different climatic conditions

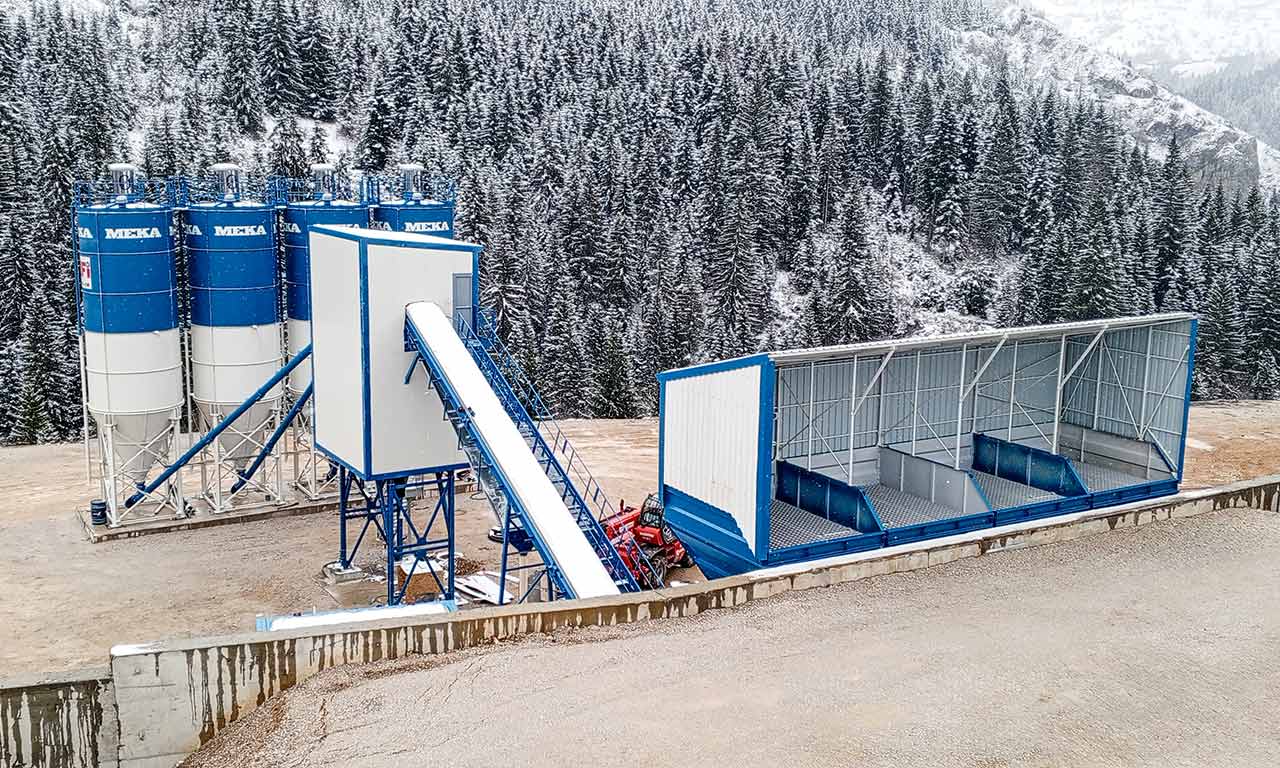

Special reinforcement and applications for quality and uninterrupted concrete production in harsh winter conditions: Steam pipes placed inside the aggregate bunker Complete enclosure of the main unit with 40 mm thick insulated panels Complete covering of the bottom of the aggregate bunker with 40 mm thick insulated panels Retractable electric gates on the aggregate bunker Steam generator (high performance steam generators that can run on diesel, natural gas or both, selected according to the plant capacity)
Concrete batching plant coating applications

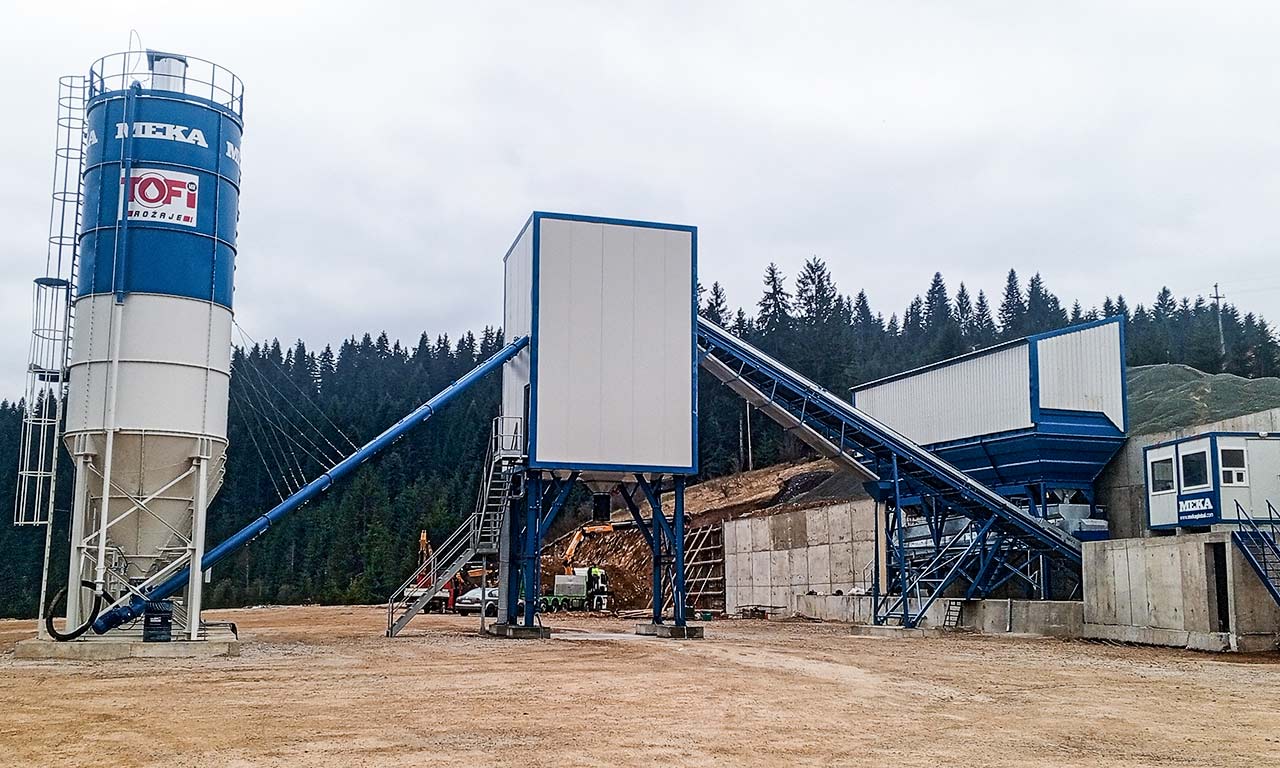

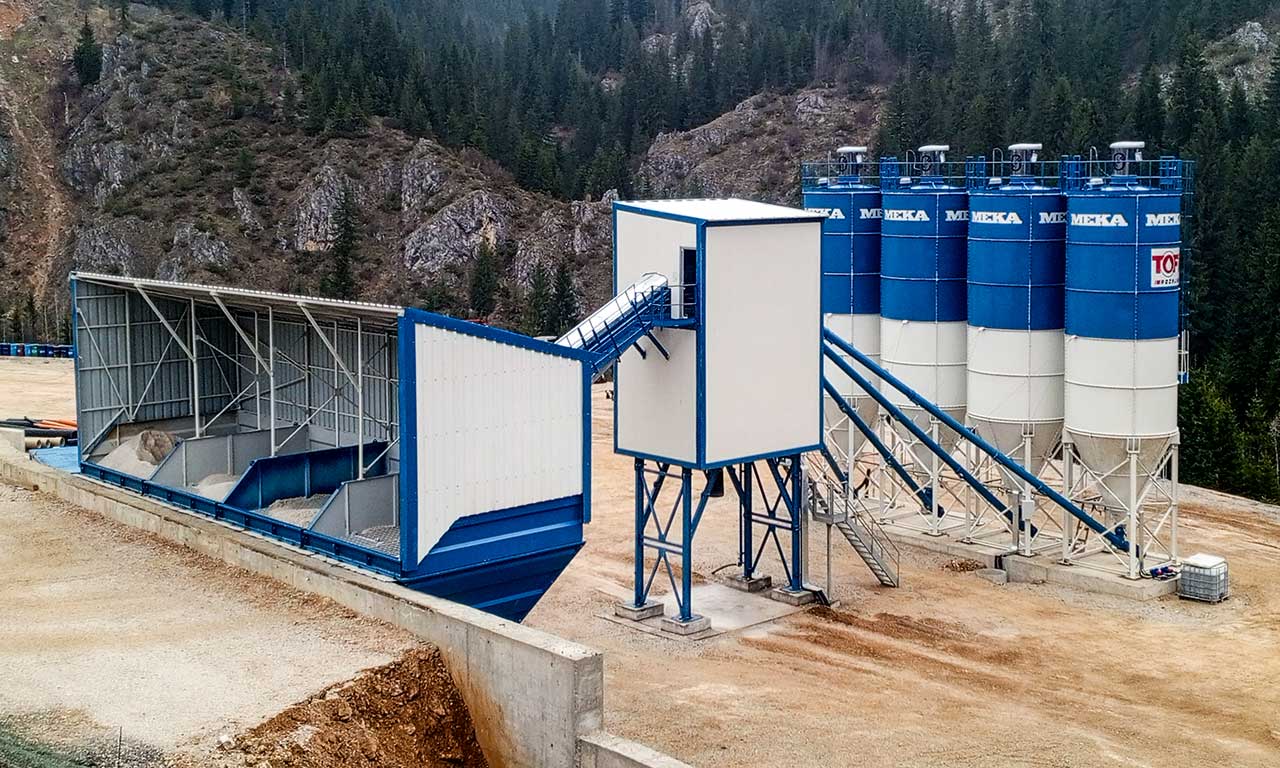

The top and sides of the aggregate bunker can be covered with trapezoidal sheets to both protect from environmental influences (rain, snow, wind, etc.) and to minimize the impact of dusting on the environment. The four sides and top of the main unit, which contains the mixer, cement-water-additive scales and aggregate waiting bunker, can be covered with trapezoidal sheets. In this way, the main unit can be protected from environmental influences (rain, snow, wind, etc.).
Fiber feed system integration
You can improve the versatile production capacity of your batching plant thanks to the fiber feeding system that automatically feeds and doses steel or polyester concrete fibers used in the production of special quality concrete and is integrated with the plant automation.

DISCOVER MORE
The plant you want with dozens of additional options
- HYDRONIX brand Microwave moisture meter for aggregate bunker sand compartment. It precisely measures the moisture in the sand and ensures that less water and complementary sand is added by the amount of moisture measured by the automatic system.
- Aggregate Bunker bunker grates to be placed on top of the bunker with 100x 100 mm mesh width to prevent large stones from entering and damaging the system
- Water booster with STANDART brand pump that sends water to the water scale at the required flow rate and pressure (with double pump and single pump options)
- Mixer safety interlock can be added for more safety during maintenance. With this system consisting of two switches, the plant cannot be started unless the maintenance person stops the system completely and takes one switch on himself, preventing possible accidents.
