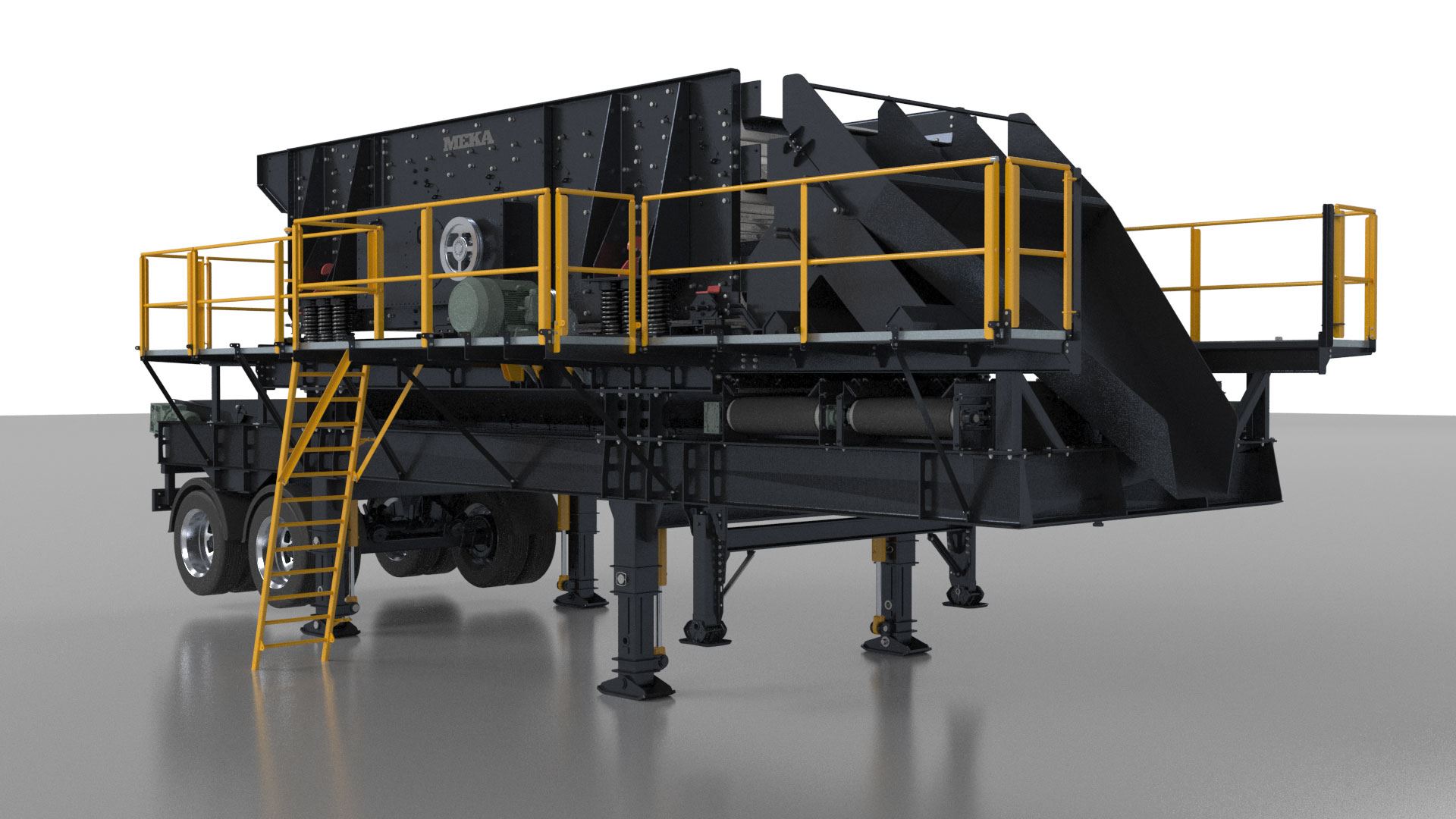

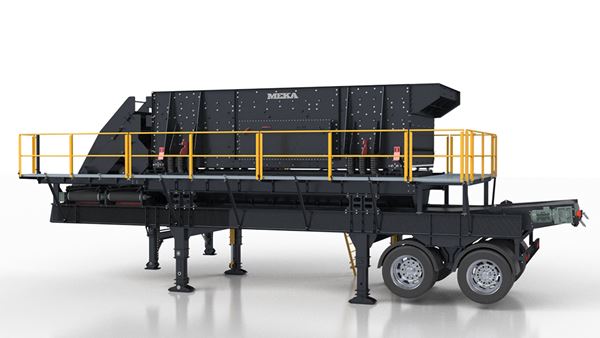

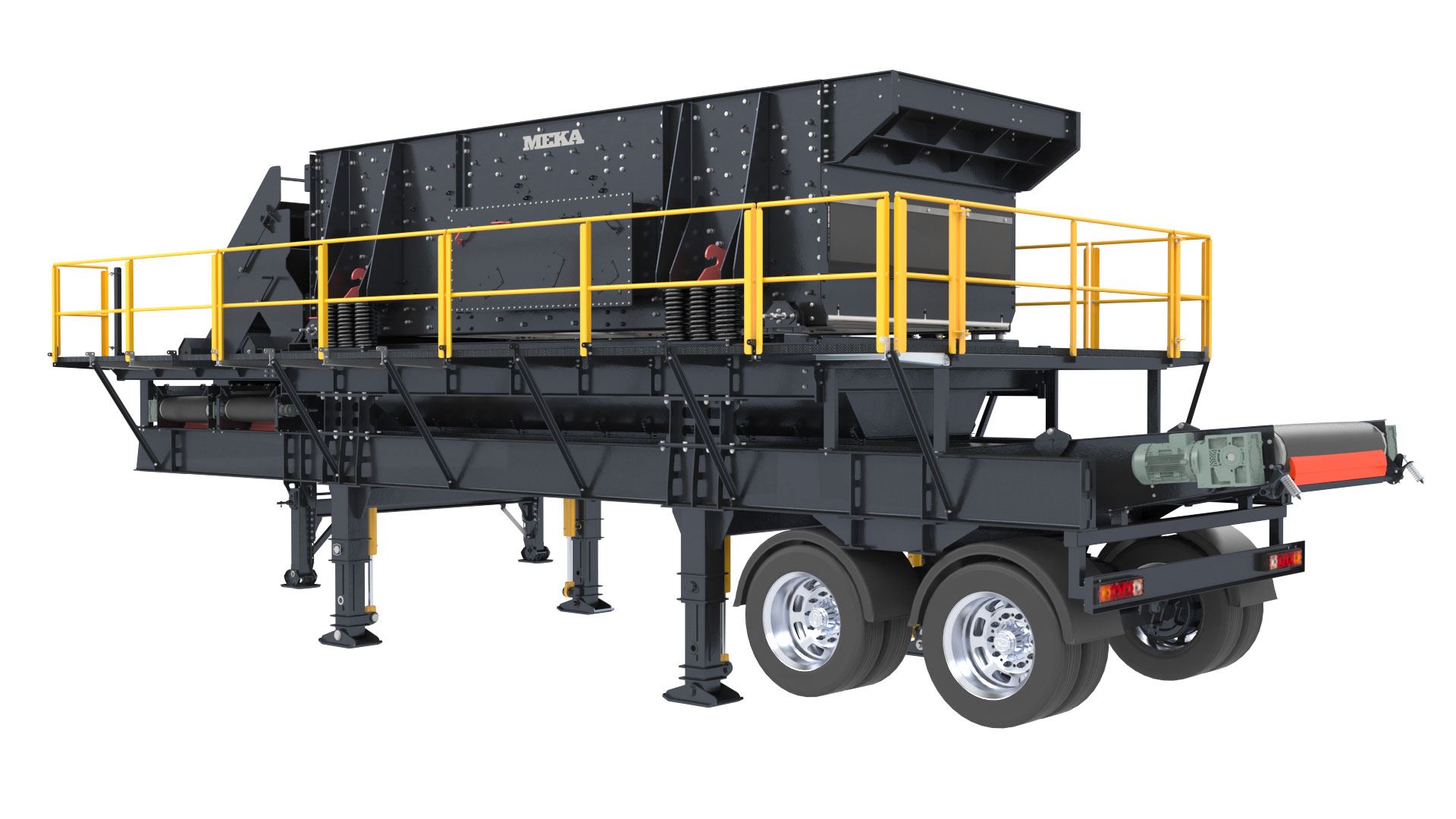

Portable Horizontal Screens

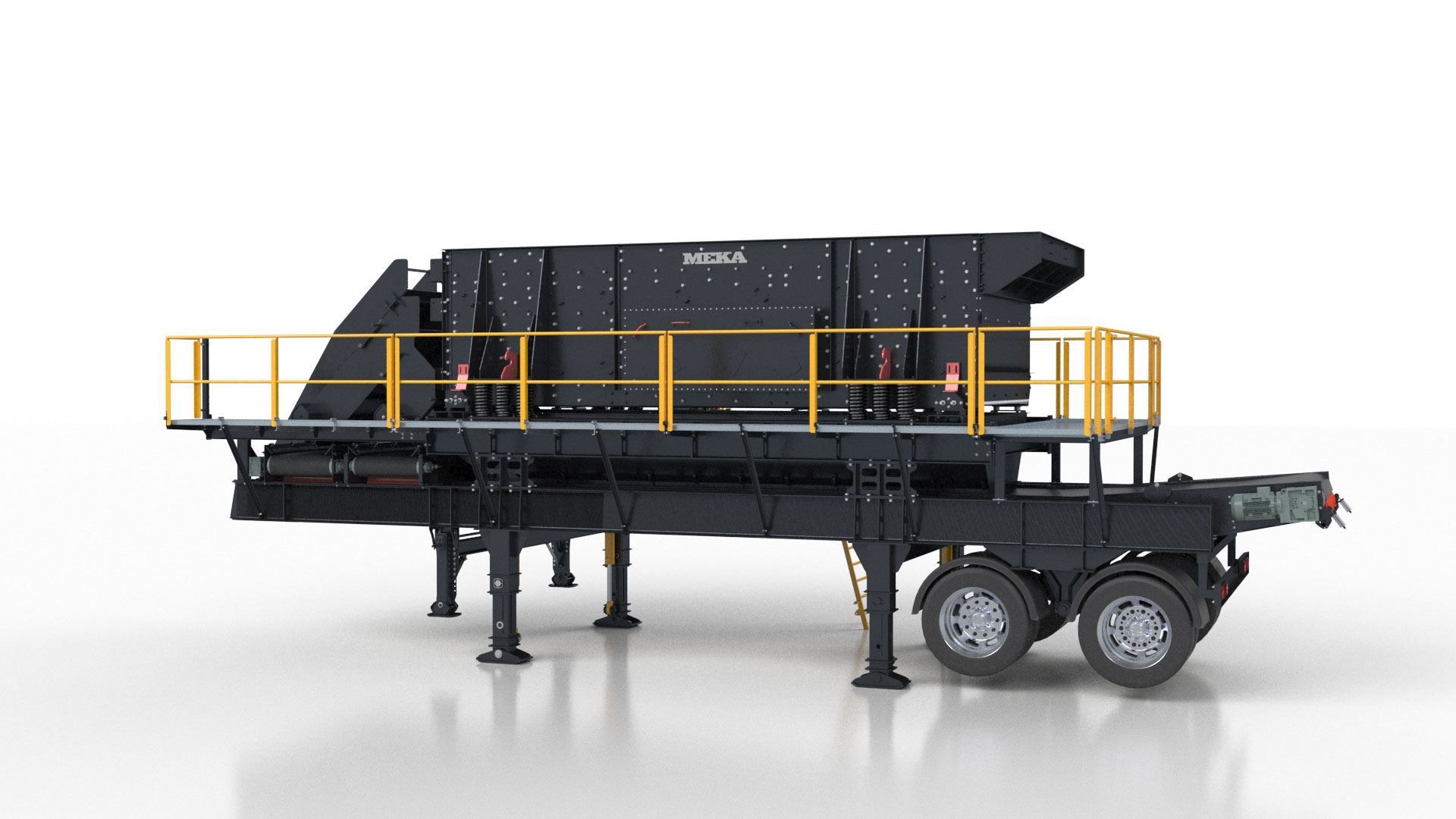

Portable Horizontal Screens are wheel-mounted, and provide a combination of quality, reliability, performance, long service life while operating under the most demanding applications.They are used in multistage crushing process or as a stand-alone unit screening pre-crushed material. Powered by electricity they are designed for maximum efficiency with a high throughput.

Applications

Portable Horizontal screens provide outstanding performance for all screening applications and can be widely used in mining,
aggregates, and concrete and asphalt recycling.

The special applications for Portable Horizontal screens include:

-When fine screening with a large percentage of near size product

-Wet washing

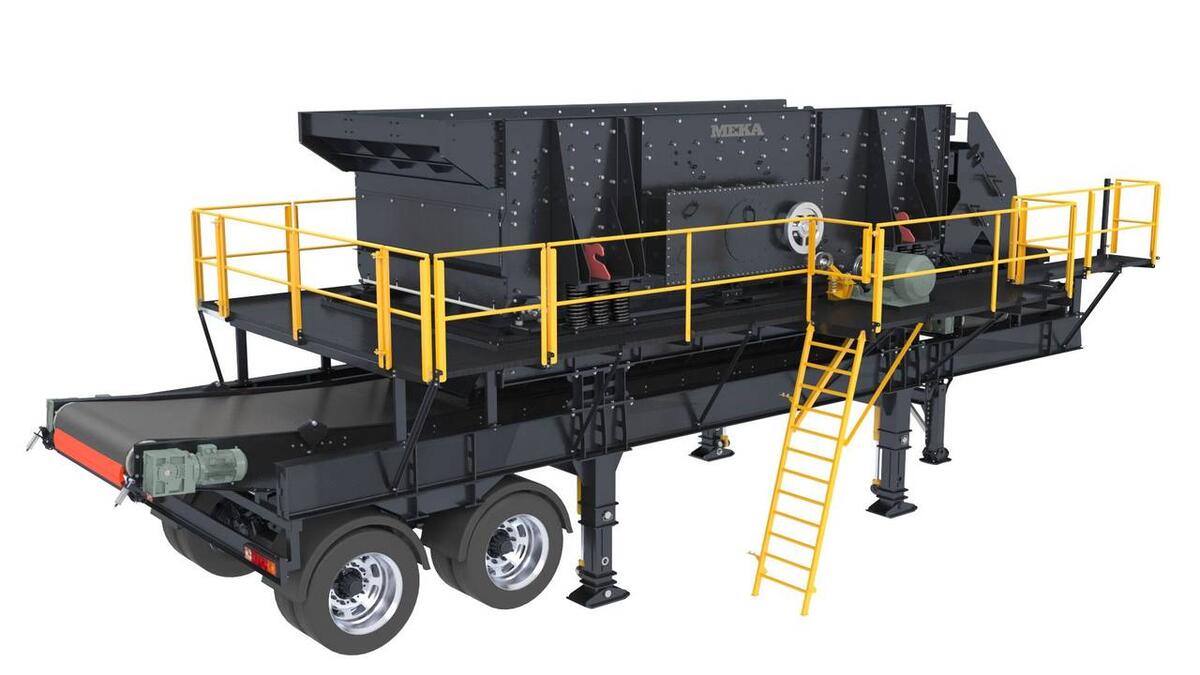

-When low head room is critical

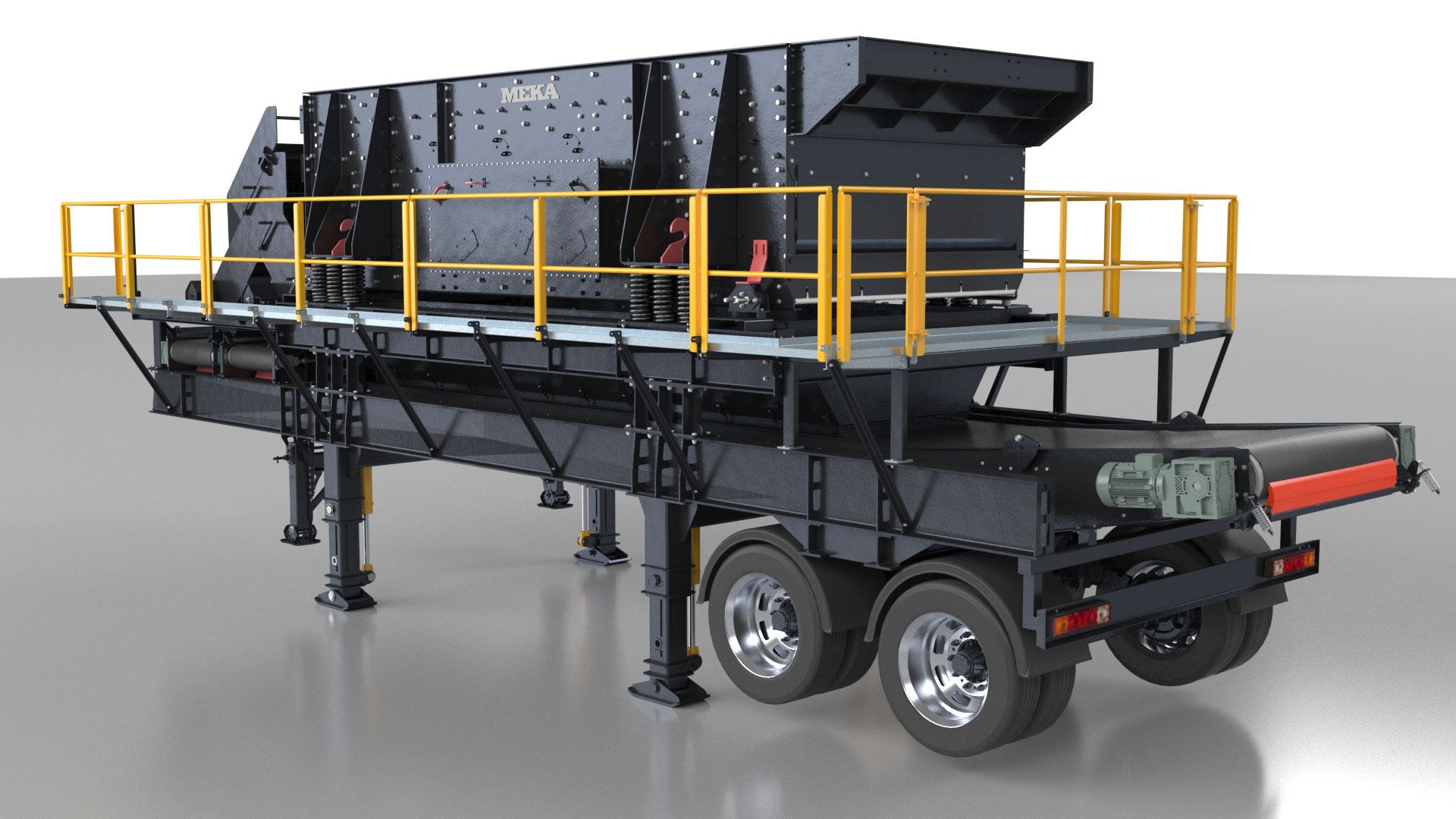

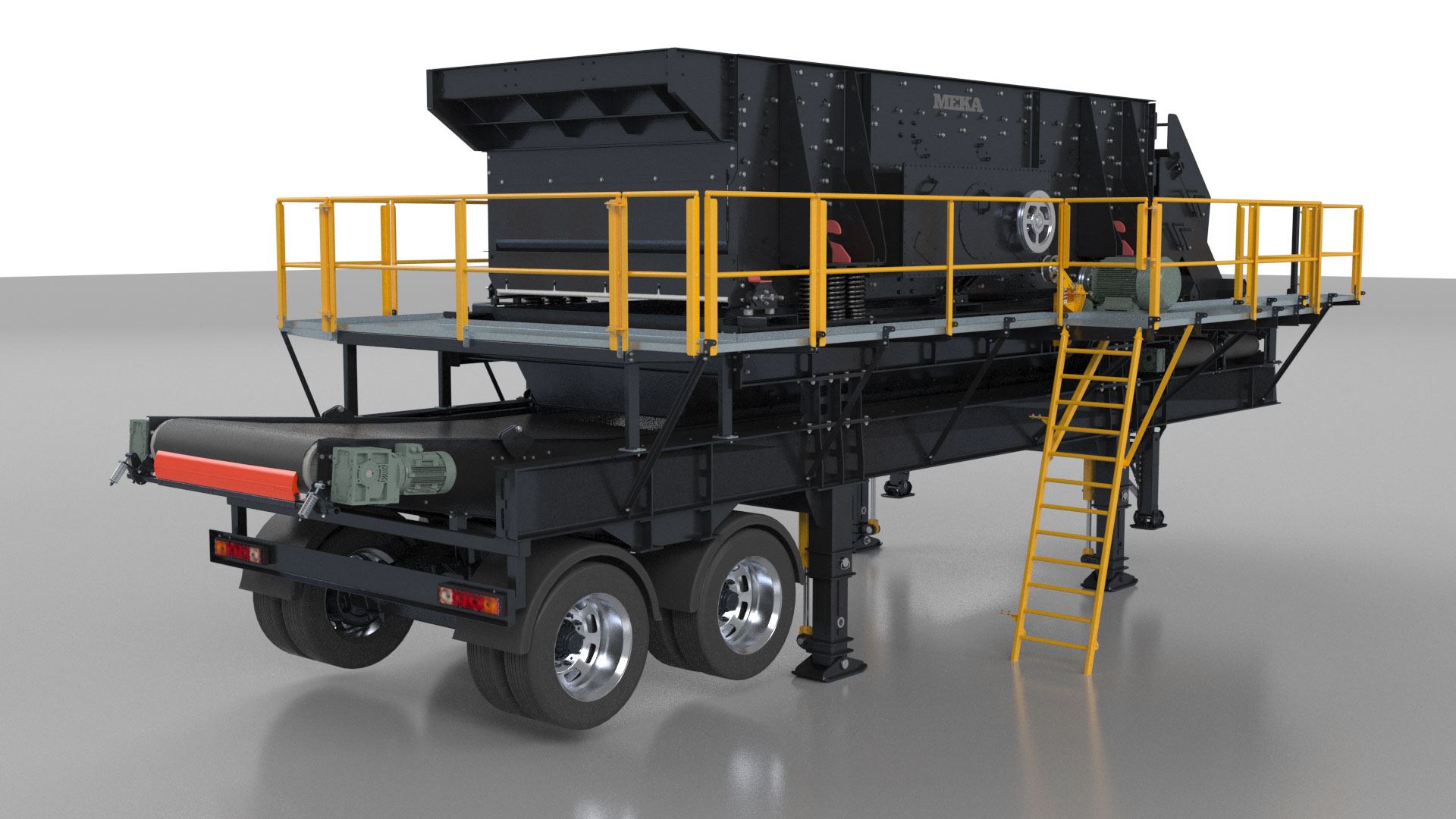

Why MEKA Portable Horizontal Screens?

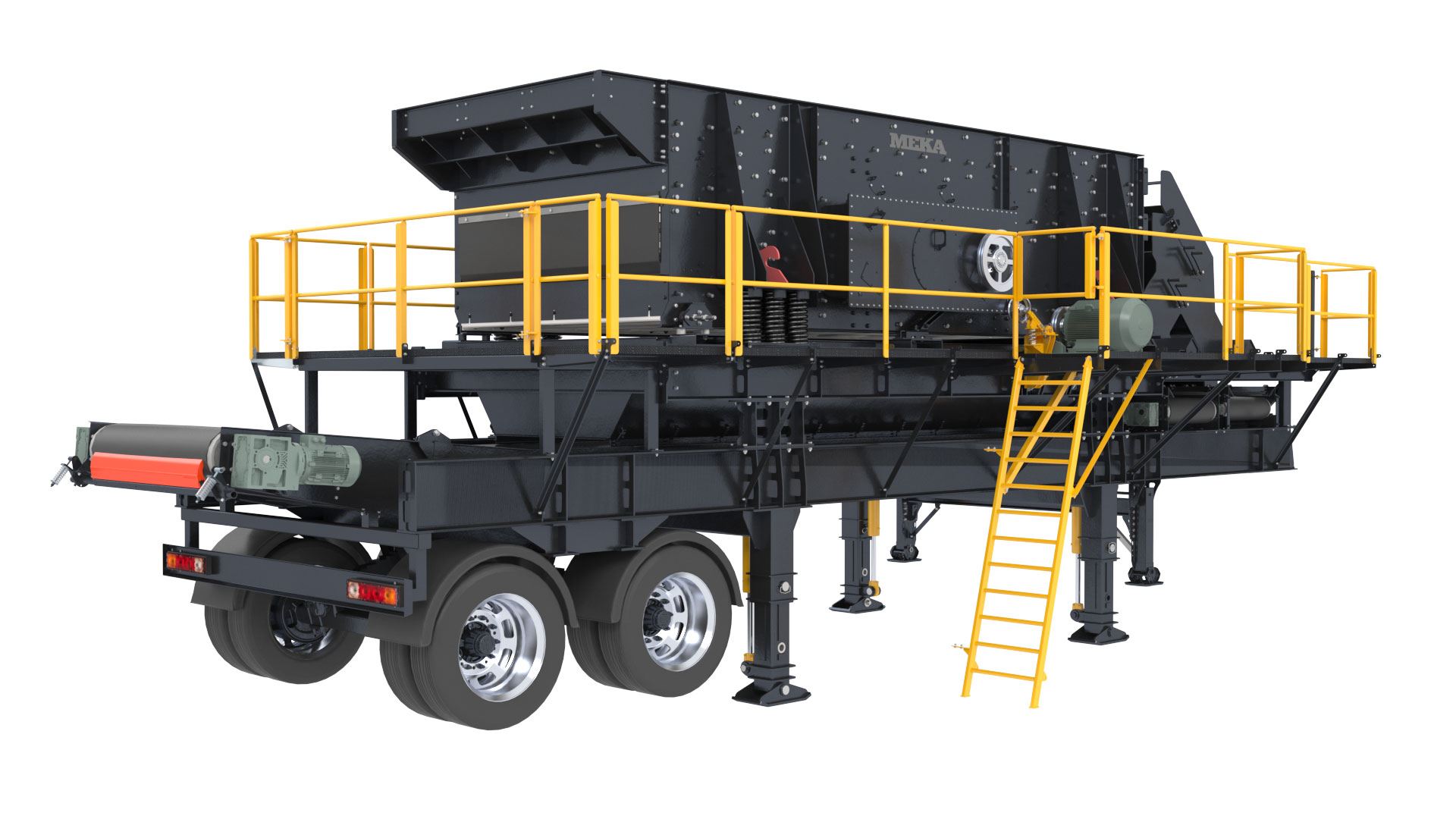

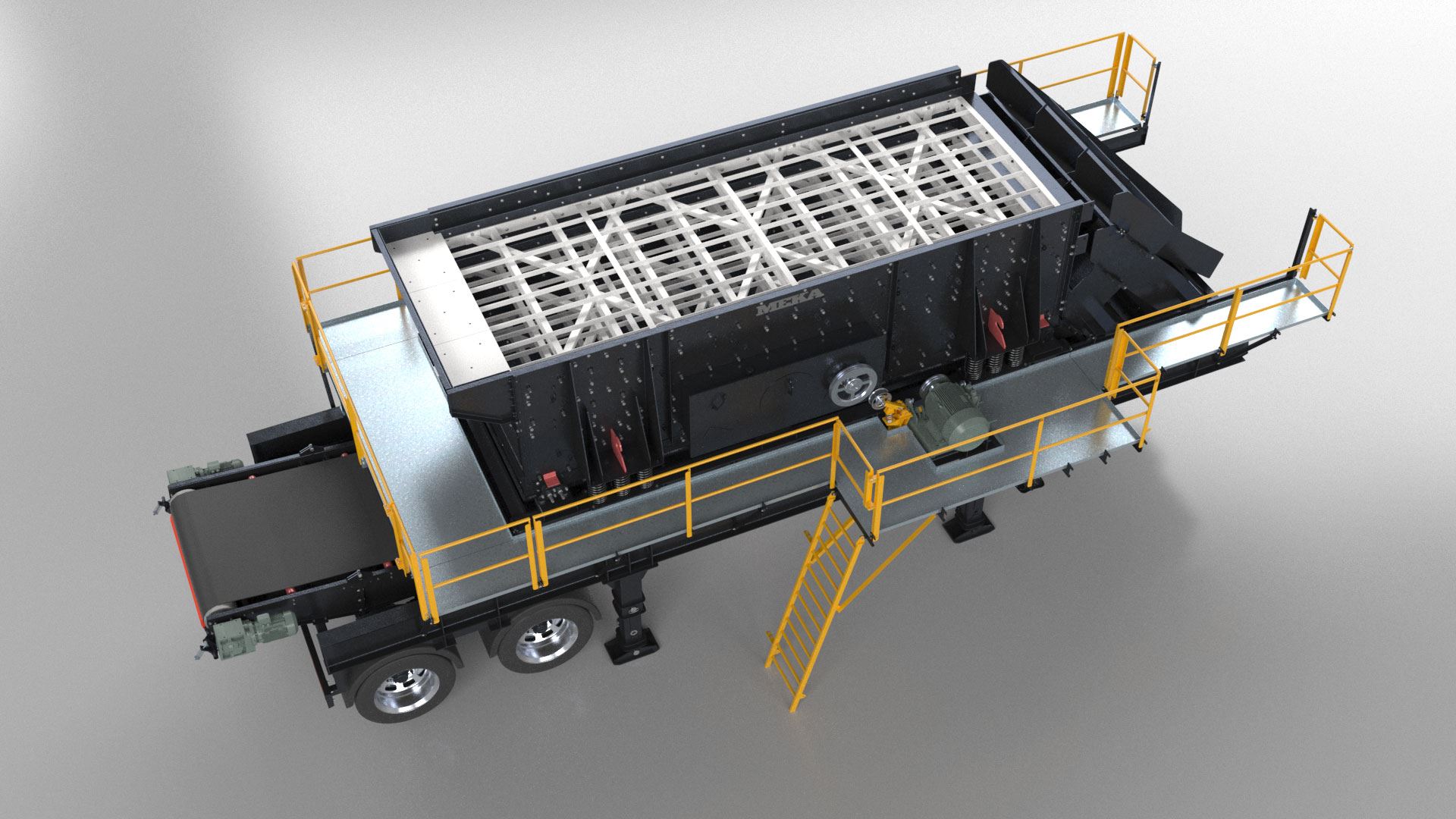

Highly efficient and accurate on board 2 or 3 deck screens for product classification.

Can work as stand alone or interlocked in a multistage crushing process with crushing units.

Elliptical motion combined with high acceleration, delivers better performance in terms of both throughput and screening efficiency.

Oil lubrication in an oil bath, which reduces operating temperature for increased bearing life and results in low maintenance.

Self contained electrical switchgear cabinet mounted on the semi-trailer, with controls for screen and belt conveyors.

Electrical switchgear cabinet can be located on the ground during operation.

2” / 3 ½” King-pin, single or double-axle bogie with air-brakes, ABS and travel lights, mudflaps.

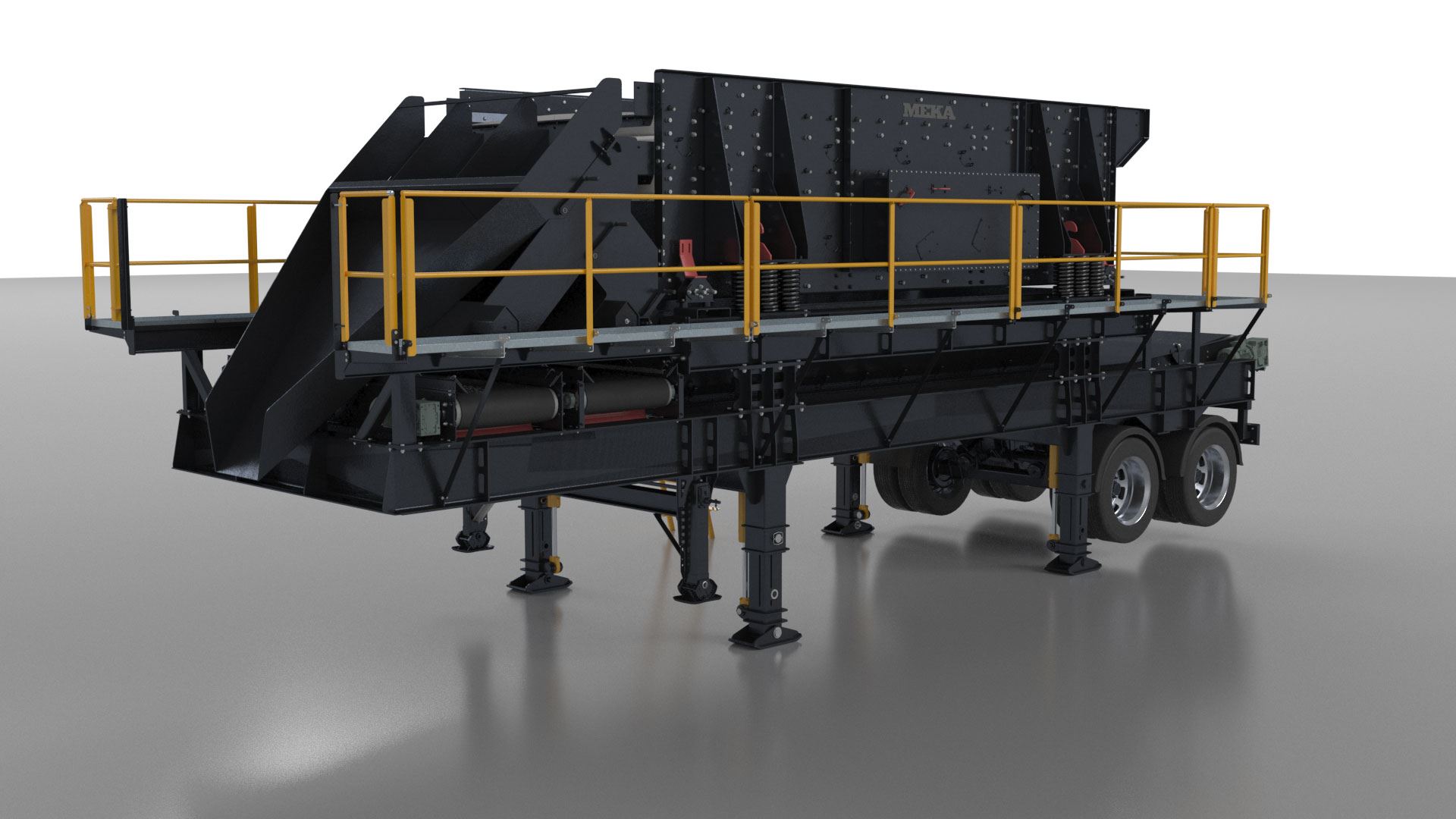

Portable Horizontal Screens Technical Specifications

MP 6203

MP 8203

SCREEN
Model MHS 6203 MHS 6203 MHS 8203 MHS 8203
Width Width 1.83 m 6' 2.4 m 8'
Length Length 6.1 m 20' 6.1 m 20'
Decks Decks 3 3 3 3
Motor Power Motor Power 30 kW 41 HP 37 kW 50 HP
UNDERSCREEN CONVEYOR
Belt Width Belt Width 1200 mm 3’ 11" 1600 mm 5’ 3"
Length Length 9 m 29’ 6" 9 m 29’ 6"
Motor Power Motor Power 7.5 kW 10 HP 7.5 kW 10 HP
CROSS CONVEYORS
Belt Width Belt Width 800 mm 2’ 7" 800 mm 2’ 7"
Length Length 2 850 mm 9’ 4" 3 050 mm 10’
Motor Power Motor Power 4 kW 5.5 HP 4 kW 5.5 HP
TRANSPORT DIMENSIONS
Length Length 11.7 m 38’ 5" 11.7 m 38’ 5"
Width Width 3.65 m 11’ 11" 3.65 m 11’ 11"
Height Height 4.219 m 13’ 10" 4.27 m 14’
Weight Weight 29 050 kg 64 044 lbs 34 000 kg 74 957 lbs
OPERATING DIMENSIONS
Length Length 12.6 m 41’ 4" 12.6 m 41’ 4"
Width Width 3.8 m 12’ 6" 4.53 m 14’ 10"
Height Height 4.6 m 15' 1'' 4.6 m 15' 1''
What is Portable Horizontal Screen?

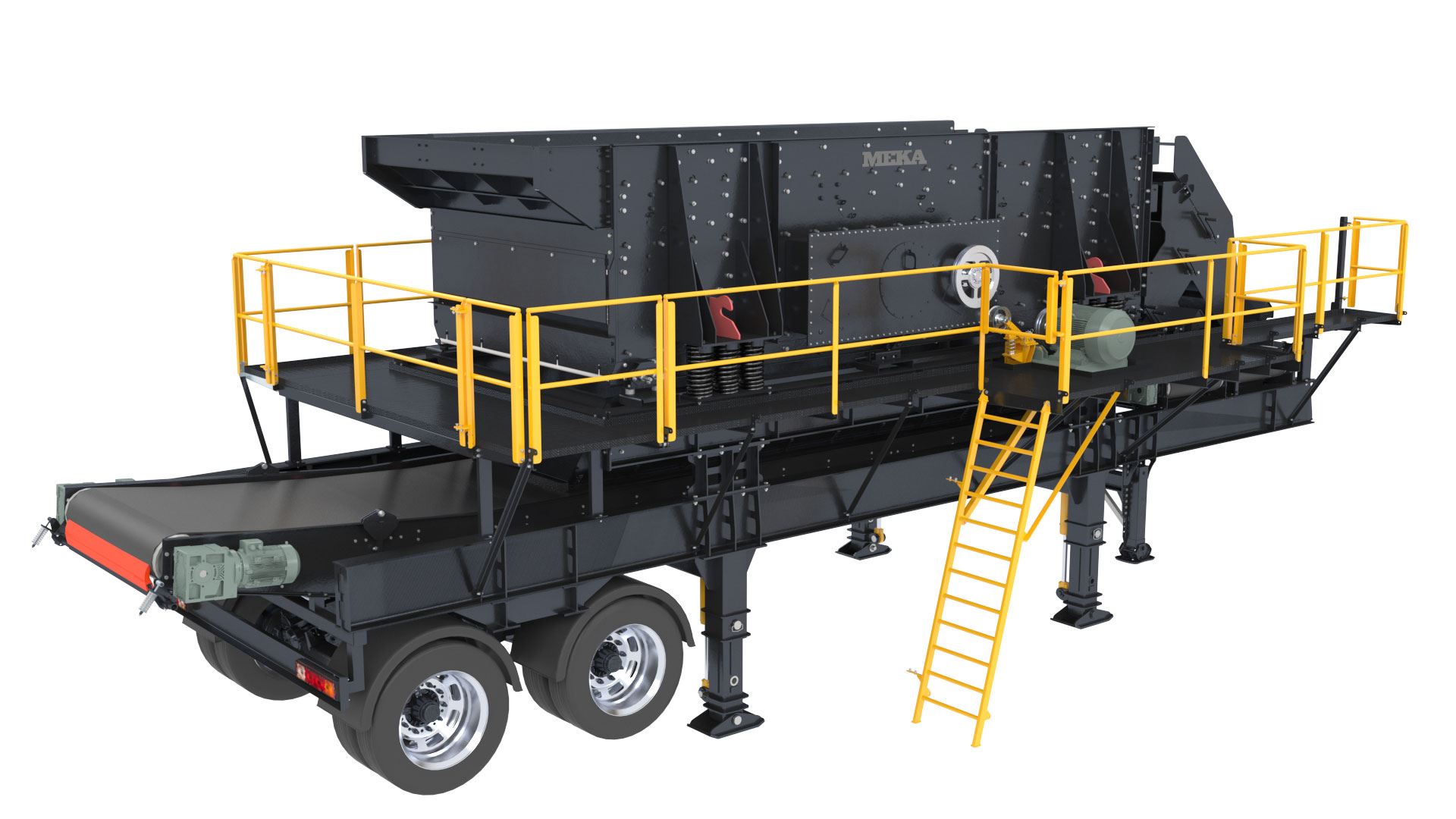

The portable horizontal screen plant is a unit consisting of a horizontal screen on trailer chassis.

Types of Portable Horizontal Screens
The portable horizontal screening plant is a classifying unit consisting of a horizontal screen mounted on the trailer chassis.
How Does Portable Horizontal Screens Work?
The fractions in the feed material is classified according to the aperture sizes of the screening media of the horizontal screen. The material fed to the screen start to be stratified and separation due to the eliptical motion of the screen.This elliptical motion make the material move on the deck of the screen and the material smaller than the aperture size pass through the aperture and the bigger size is discharged from the screen from the top deck.
Advantages of Using Portable Horizontal Screens
In addition to the general advantages of the horizontal screen , such as high efficiency and capacity in demanding applications, the advantages of being portable are as follows:

Compact design: Complete screening plant in compact design with the possibility of receiving end products, also suitable for primary feeding.

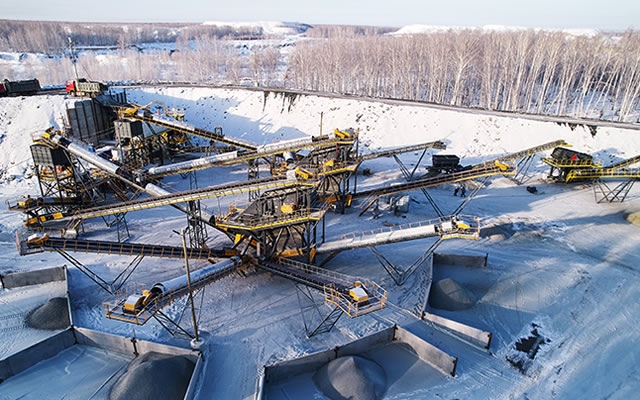

Portable Horizontal Screens Processes Applications

Portable horizontal screens are used in various industries, for aggregate production, mining operations, industrial mineral production, agriculture, and in the chemical and food sectors.
