C135

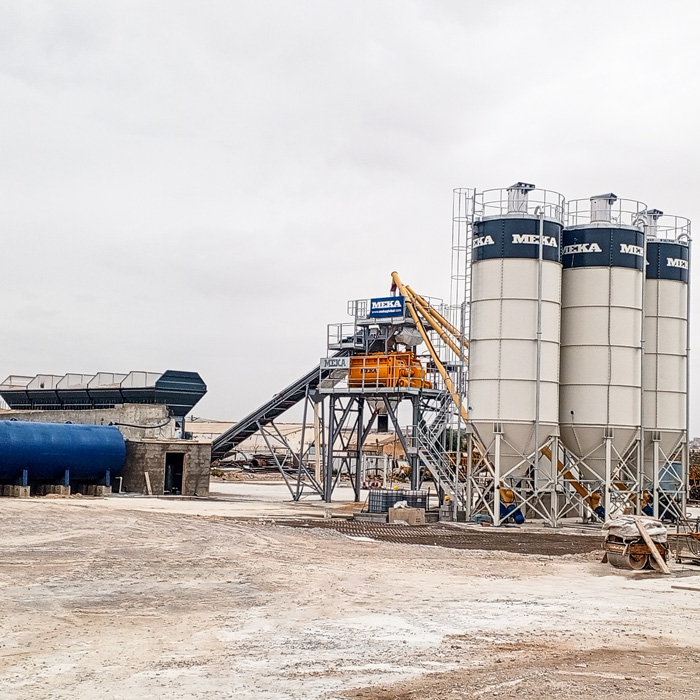

Compact Concrete Batching Plant

The C135 Compact Concrete Batching Plant, with a production capacity of 120 m³/h, features a sergeant-type conveyor belt system that allows it to fit into small areas while delivering high production performance. This model, essential for large construction projects, can be installed directly on ground level and is also suitable for containerized transportation, even to overseas locations, due to its compact design.

Briefly C135

The powerful 3.0 m³ capacity MEKA twin-shaft concrete mixer at the core of the C135 Compact Concrete Batching Plant offers the flexibility to produce ready-mixed concrete, RCC (roller compacted concrete), and precast concrete, providing significant business advantages to its users.

Fully hot-dip galvanized weighing group units, platforms, ladders, and guardrails ensure durability, while the heavy and stable chassis enhances weighing accuracy, guaranteeing concrete production that fully complies with the mix recipe.

Designed for container transportation, the C135 can be easily shipped overseas or to remote locations, offering the most efficient solutions for project contractors, ready-mixed concrete producers, and precast construction element manufacturers.

With pre-wired electricity, water, and pneumatic lines prepared at MEKA’s factories, the C135 can be swiftly installed and begin concrete production upon arrival at the site.

C135 Compact Batching Plants Technical Specifications

Plant Capacity

Compacted Concrete Output

120 m³/h
Concrete Mixer

Mixer Type
Mixer Motor Power
Mixer Capacity

Twin Shaft
2 x 55 kW
3,0 m³ / Cycle
Feeding System

Aggregate Bins

Aggregate Feeding

4x 25 m³ / Inline Type
4x 35 m³ / Inline Type
Ramp or Pre-Feeding System
Weighing Hopper

Cement Weighing Hopper
Water Weighing Hopper
Additive Weighing Hopper

1.750 kg
1.000 kg
40 kg

C135 Compact Concrete Batching Plant Highlights

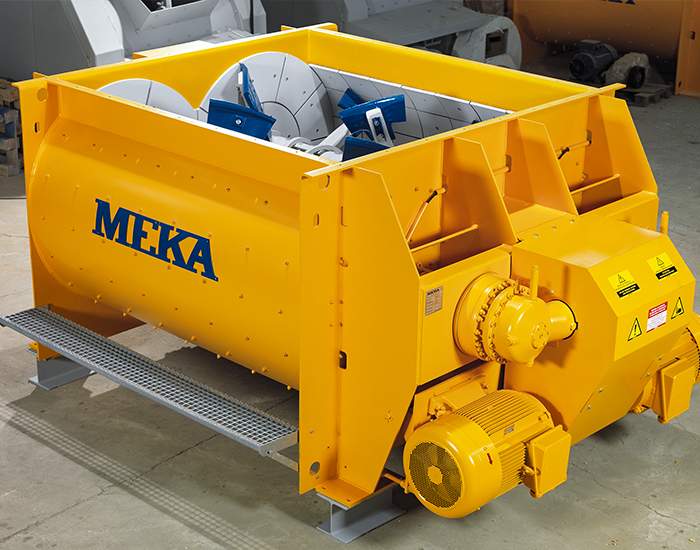

C135 : POWERFUL PERFORMANCE FOR MAXIMUM PROFIT

Achieving maximum homogeneity and workability in the shortest time is key to boosting your profits. The 3.00 m³ MEKA Twin Shaft Concrete Mixer at the core of the C135 ensures exceptional power and reliability, delivering high-quality concrete production every time.

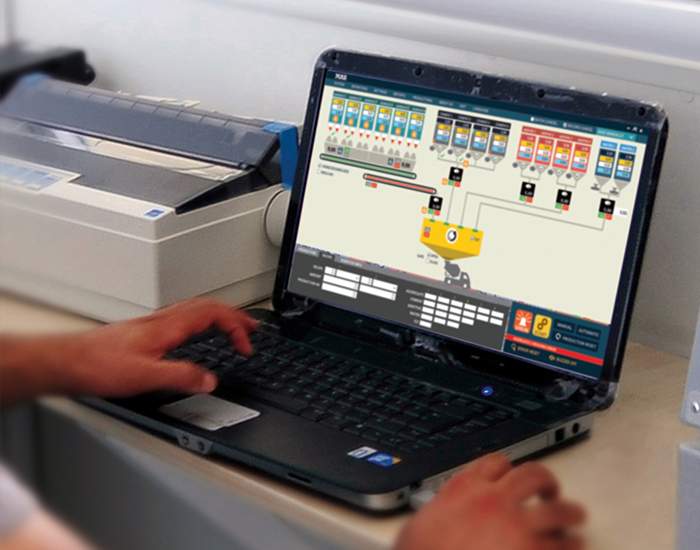

SEAMLESS OPERATION WITH MEKASOFT AUTOMATION

MEKASOFT's updated automation software, developed by the MEKA software team, provides your plant operator with an intuitive interface, enhancing ease of use. It also boosts operational efficiency with advanced documentation and archive control features, ensuring smooth and reliable plant management.

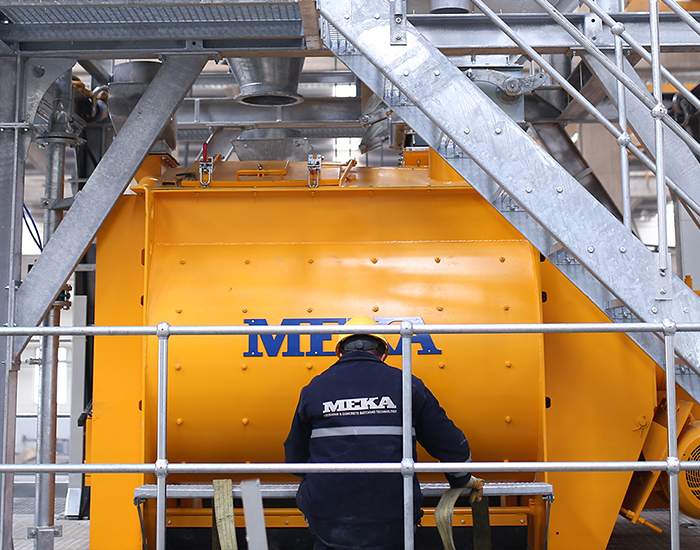

READY TO WORK IMMEDIATELY WITH MINIMUM INSTALLATION TIME

The C135 S is delivered to the installation site in a single 40' OT container and is ready to start production in the shortest time possible. With all cabling, pre-testing, and equipment assembly completed at the factory, setup is quick and hassle-free.

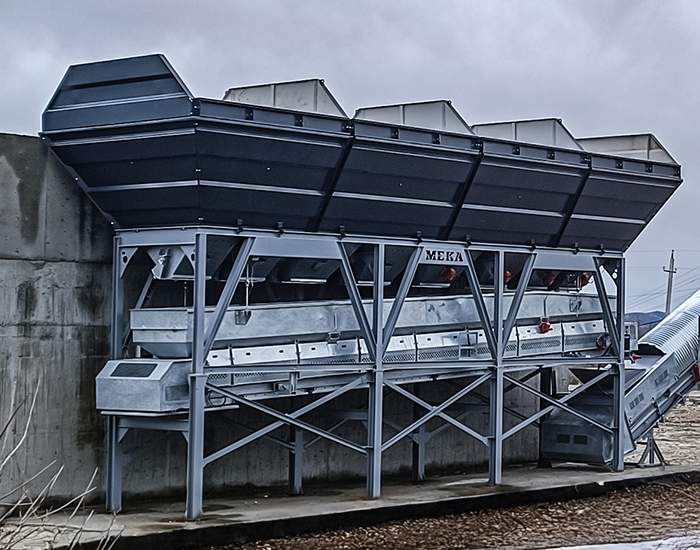

HIGH-CAPACITY LINEAR AGGREGATE BUNKER FOR ENHANCED PRODUCTION

As the starting point of production in the C135 Concrete Batching Plant, the linear-type aggregate bunker lays a strong foundation for your operations. With storage capacity options of 4x25 m³ and 4x35 m³, it offers advanced features designed to support high-capacity concrete production.

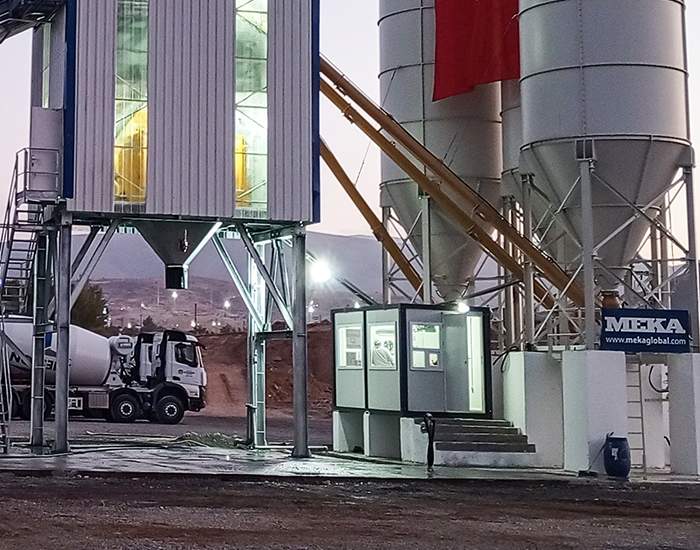

COMFORTABLE CONTROL CABINET FOR EFFICIENT WORK

We know that the comfortable workspace you provide for your personnel will return to you as a profit. For this purpose, larger and more comfortable control cabinets than its competitors are offered as standard on the C135

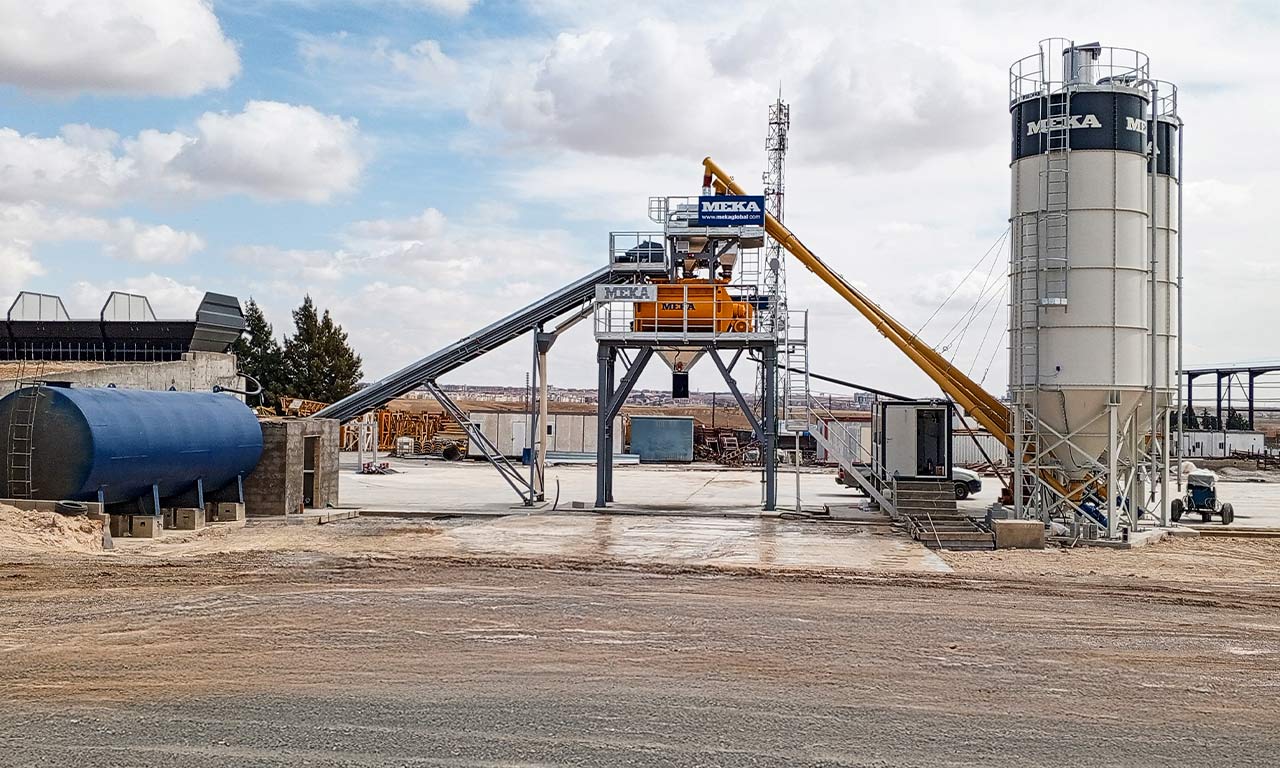

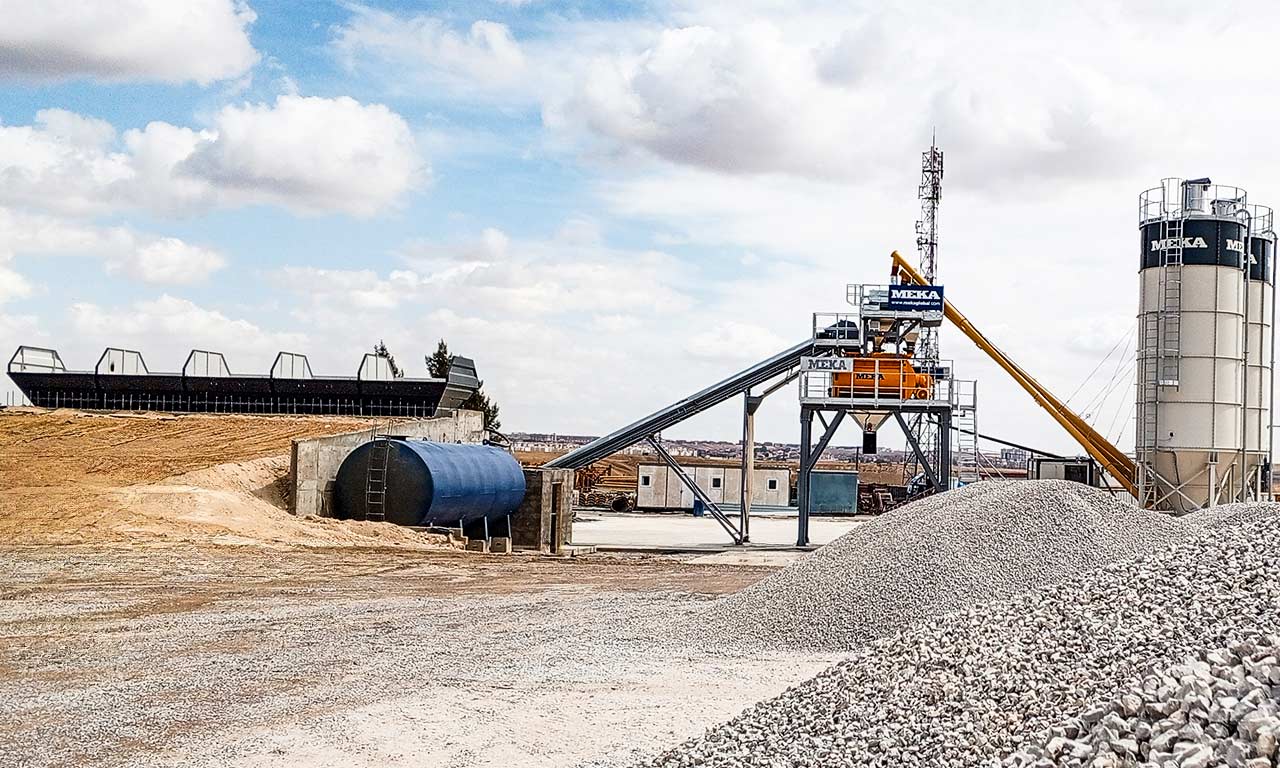

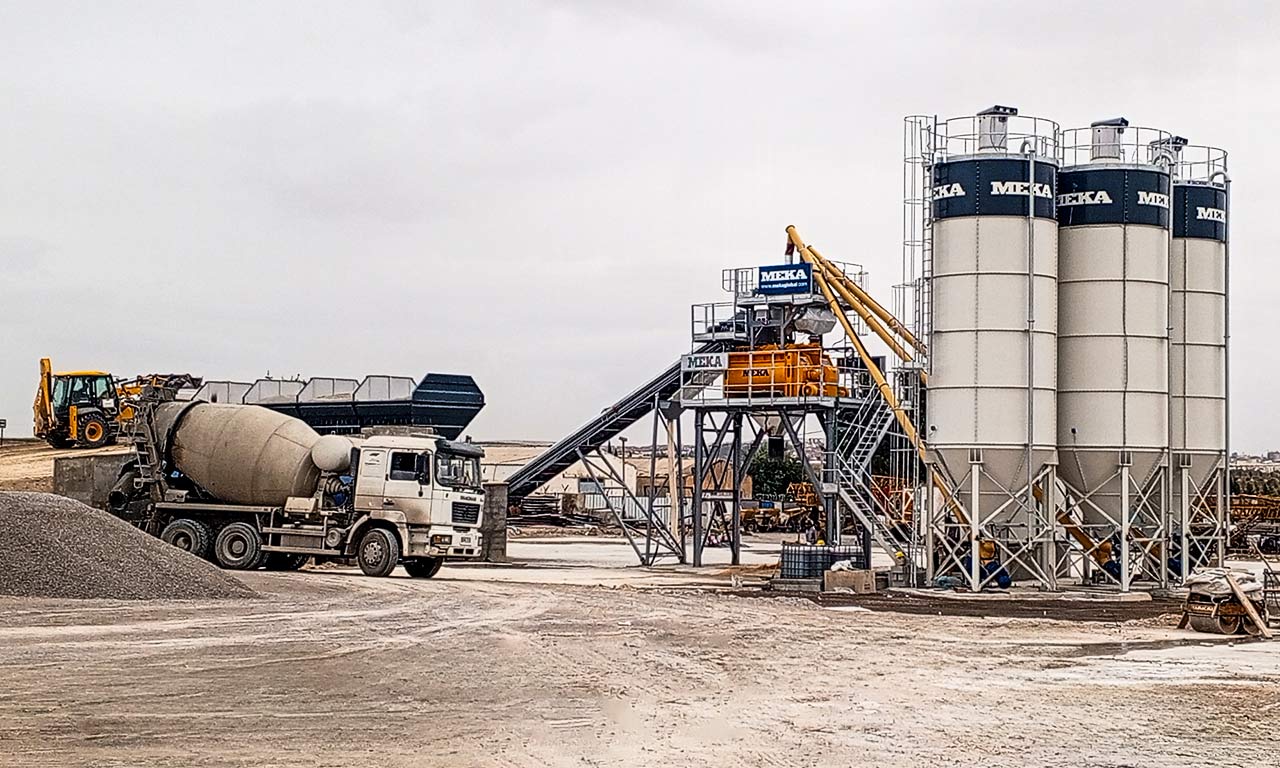

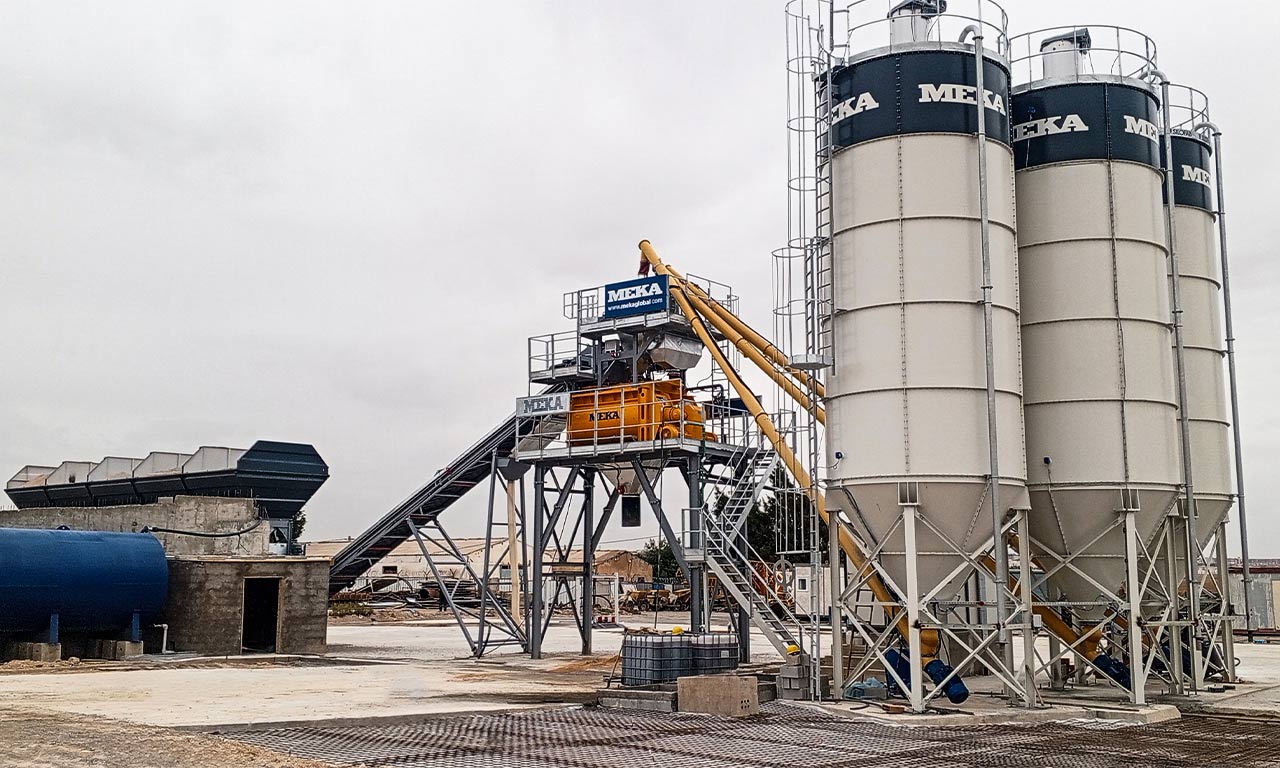

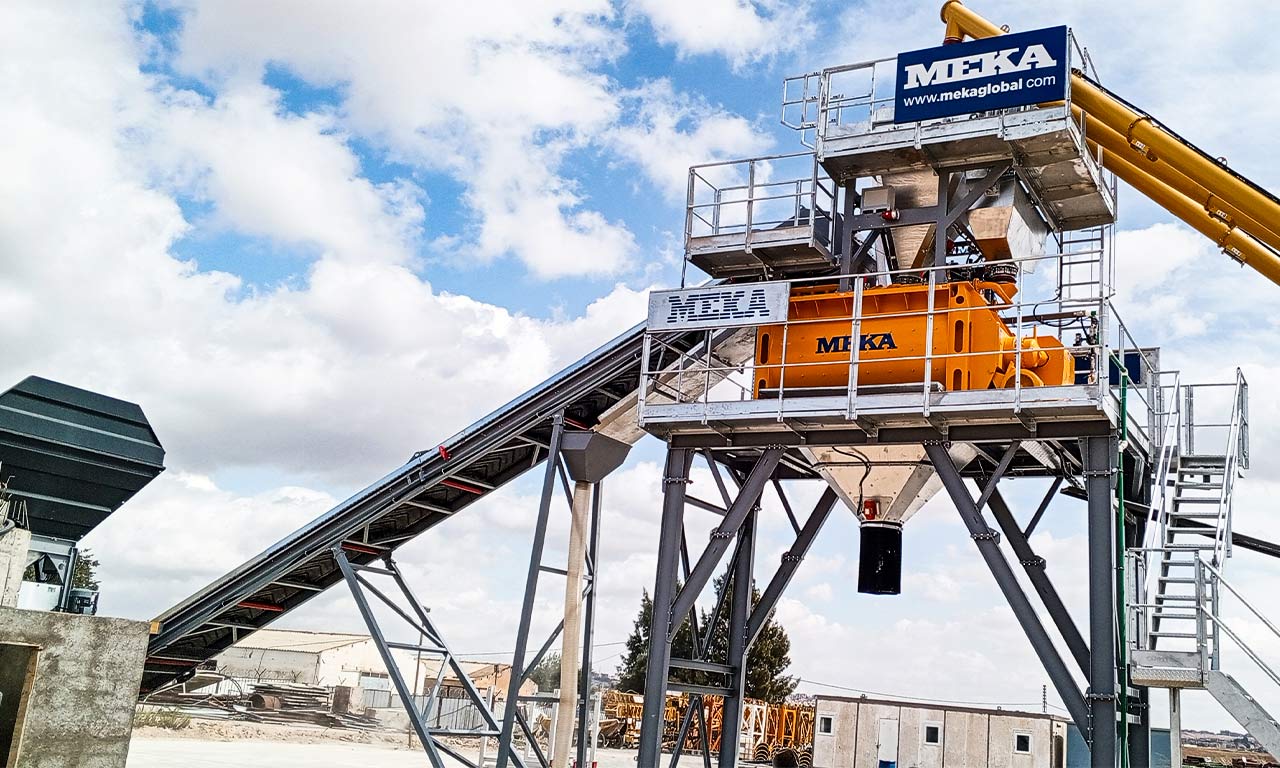

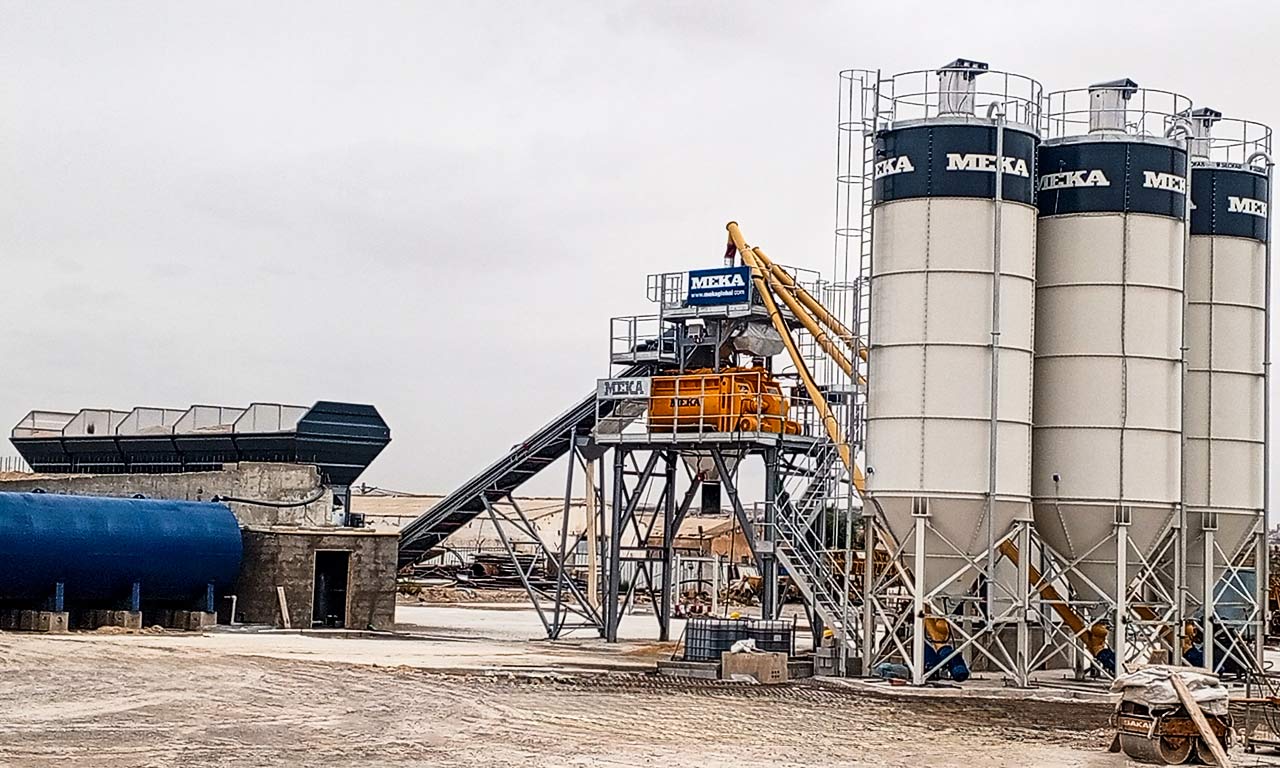

C135 Compact Batching Plants Gallery

Optional Features For All MEKA Concrete Batching Plants

Your concrete batching plant investment purpose and your expectations from the plant may vary different.

Whether you are a ready-mixed concrete producer, a contractor or a manufacturer of precast building elements, we have a very strong R&D team and international experience since 1987 to design and manufacture the most suitable batching plant for your needs.

Here are some of our customization options. Our technical sales team can support you in assiting the appropriate layout and equipment to optimize your productivity and business.

Concrete recycling system integration

Are you still throwing away your concrete waste or faulty production? As the importance of environmental responsibility of businesses increases, certain standards are being introduced in production in order to leave a cleaner world to future generations. In addition, in today's world where production costs are gradually increasing, operational efficiency has become the most important heading of sustainable activities. With the MEKA recycling unit, components such as aggregate, sand and water in concrete can be separated and reused in production.

DISCOVER MORE

Equipment and applications that ensure the most efficient operation in different climatic conditions

Special reinforcement and applications for quality and uninterrupted concrete production in harsh winter conditions: Steam pipes placed inside the aggregate bunker Complete enclosure of the main unit with 40 mm thick insulated panels Complete covering of the bottom of the aggregate bunker with 40 mm thick insulated panels Retractable electric gates on the aggregate bunker Steam generator (high performance steam generators that can run on diesel, natural gas or both, selected according to the plant capacity)

Concrete batching plant coating applications

The top and sides of the aggregate bunker can be covered with trapezoidal sheets to both protect from environmental influences (rain, snow, wind, etc.) and to minimize the impact of dusting on the environment. The four sides and top of the main unit, which contains the mixer, cement-water-additive scales and aggregate waiting bunker, can be covered with trapezoidal sheets. In this way, the main unit can be protected from environmental influences (rain, snow, wind, etc.).

Fiber feed system integration

You can improve the versatile production capacity of your batching plant thanks to the fiber feeding system that automatically feeds and doses steel or polyester concrete fibers used in the production of special quality concrete and is integrated with the plant automation.

DISCOVER MORE

The plant you want with dozens of additional options

- HYDRONIX brand Microwave moisture meter for aggregate bunker sand compartment. It precisely measures the moisture in the sand and ensures that less water and complementary sand is added by the amount of moisture measured by the automatic system.

- Aggregate Bunker bunker grates to be placed on top of the bunker with 100x 100 mm mesh width to prevent large stones from entering and damaging the system

- Water booster with STANDART brand pump that sends water to the water scale at the required flow rate and pressure (with double pump and single pump options)

- Mixer safety interlock can be added for more safety during maintenance. With this system consisting of two switches, the plant cannot be started unless the maintenance person stops the system completely and takes one switch on himself, preventing possible accidents.

Explore Our Projects Worldwide

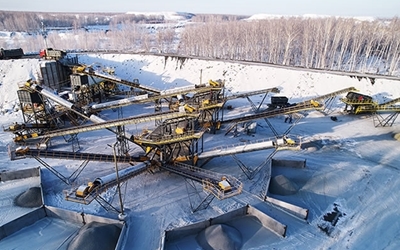

MEKA Aggregate Production Plant / RUSSIA

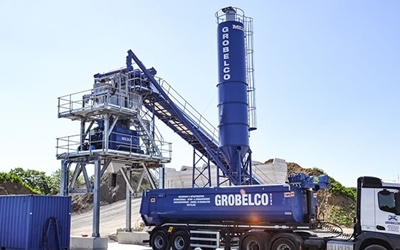

MEKA Stationary Concrete Batching Plant / BELGIUM
