C90

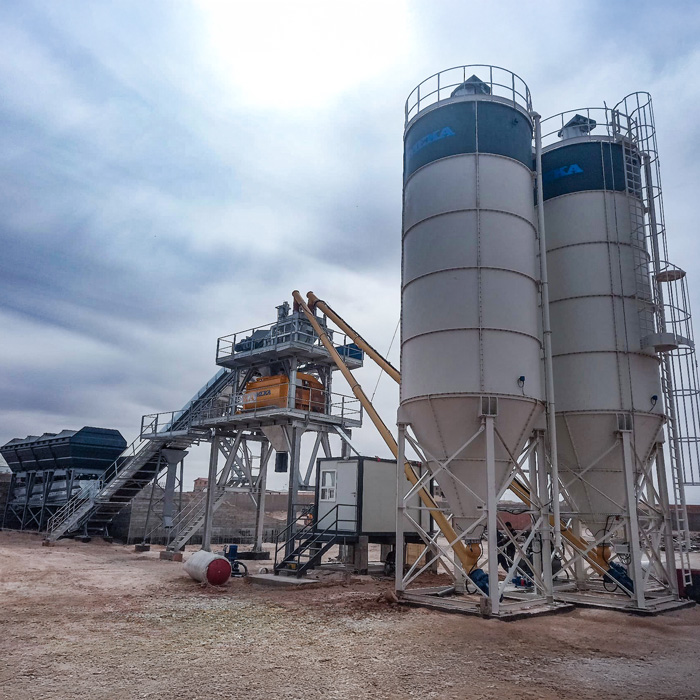

Compact Concrete Batching Plant

The C90 Compact Concrete Batching Plant, with a production capacity of 75 m³/h, features a sergeant-type conveyor belt system that allows it to fit into small areas and be installed directly at ground level. Its compact design also makes it ideal for containerized transportation.

Briefly C90

The C90 Compact Concrete Batching Plant is an excellent choice for project contractors and ready-mixed concrete producers, combining the power and profitability of mass concrete production with the transportation convenience of compact batching plants and the ability to operate efficiently in confined spaces.

Offering in-line aggregate bunker options with 4x20 m³ and 4x25 m³ capacities, the C90 is built with top-quality components and MEKA’s signature durability, delivering exceptional productivity in its class. Equipped with a 1.5 m³ capacity MEKA twin-shaft mixer, the plant ensures uninterrupted production while maintaining low operating and maintenance costs.

The C90’s minimal site preparation requirements and installation design, which eliminates the need for special concrete foundations, set it apart from competitors. Additionally, its ability to be swiftly commissioned upon arrival at the installation site further enhances its appeal.

C90 Compact Batching Plants Technical Specifications

Plant Capacity

Compacted Concrete Output

75 m³/h
Concrete Mixer

Mixer Type
Mixer Motor Power
Mixer Capacity

Twin Shaft
2 x 30 kW
1,5 m³ / Cycle
Feeding System

Aggregate Bins

Aggregate Feeding

4x 20 m³ / Inline Type
4x 25 m³ / Inline Type
Ramp or Pre-Feeding System
Weighing Hopper

Cement Weighing Hopper
Water Weighing Hopper
Additive Weighing Hopper

900 kg
400 kg
25 kg

C90 Compact Concrete Batching Plant Components

Aggregate Bunker Transfer Station Main Chassis Concrete Mixer Control Cabin Silo

C90 Compact Concrete Batching Plant Highlights

C90 : POWER AND PRECISION FOR MAXIMUM PROFIT

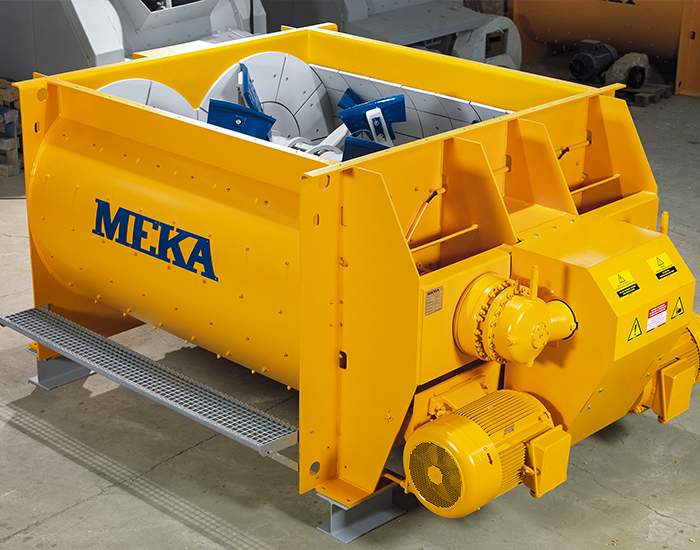

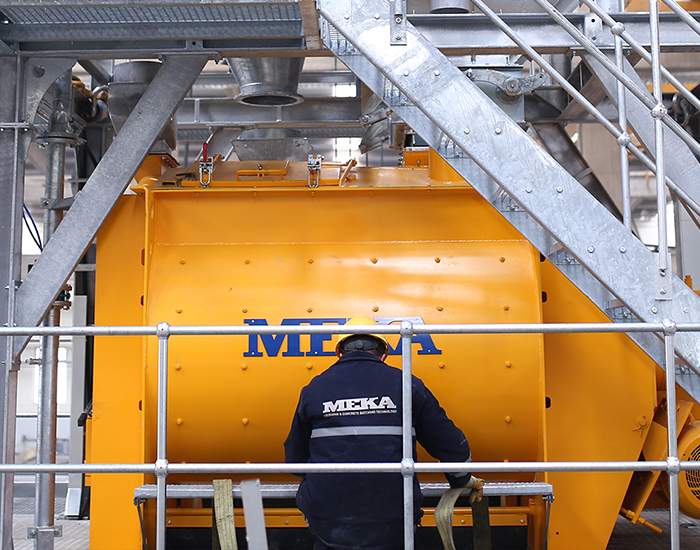

Achieving maximum homogeneity, workability, and recipe accuracy in the shortest time is crucial for optimizing your profits. The 1.5 m³ MEKA Twin Shaft Concrete Mixer at the core of the C90 ensures exceptional power, precision, and reliability, delivering high-quality concrete production every time.

SEAMLESS OPERATION WITH MEKASOFT AUTOMATION

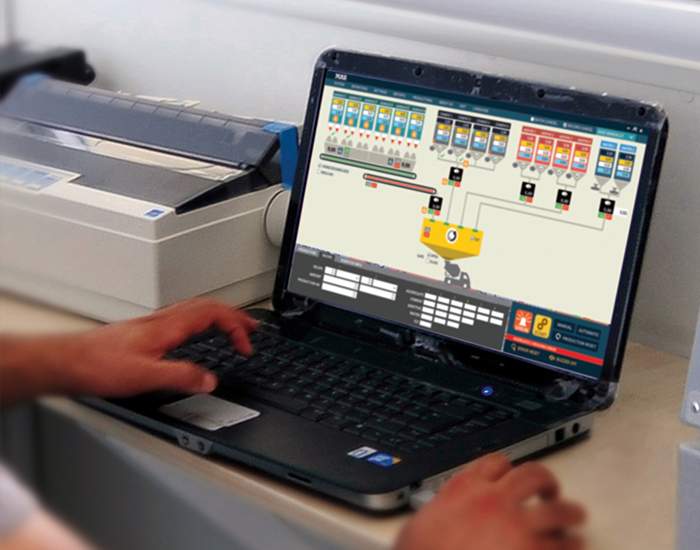

MEKASOFT's updated automation software, developed by the MEKA software team, provides your plant operator with an intuitive interface, enhancing ease of use. It also boosts operational efficiency with advanced documentation and archive control features, ensuring smooth and reliable plant management.

READY TO WORK IMMEDIATELY WITH MINIMUM INSTALLATION TIME

The C90 is delivered to the installation site in a single 40' OT container and is ready to start production in the shortest time possible. With all cabling, pre-testing, and equipment assembly completed at the factory, setup is quick and hassle-free.

AGGREGATE BUNKER OPTIONS CUSTOMIZED FOR YOUR SITE AND PRODUCTION CAPACITY

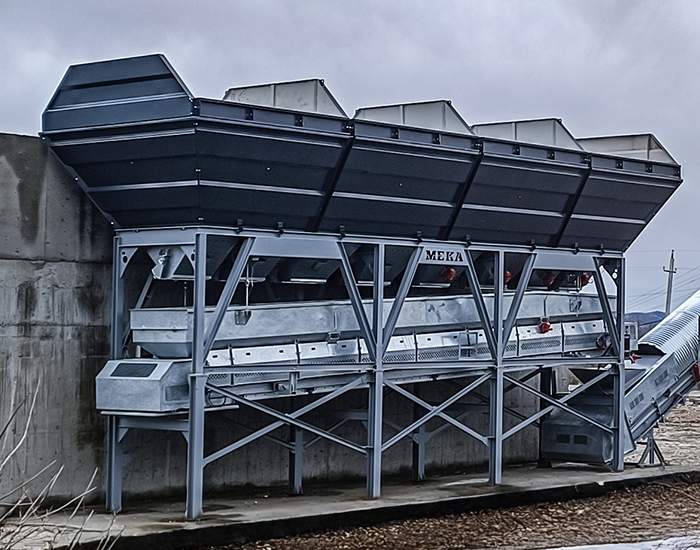

The aggregate bunker, the starting point of production in the C90 Concrete Batching Plant, offers flexible options to meet your needs. Choose between an 80 m³ (4x20 m³) or 100 m³ (4x25 m³) in-line type bunker to effectively support your mass concrete production.

COMFORTABLE CONTROL CABINET FOR EFFICIENT WORK

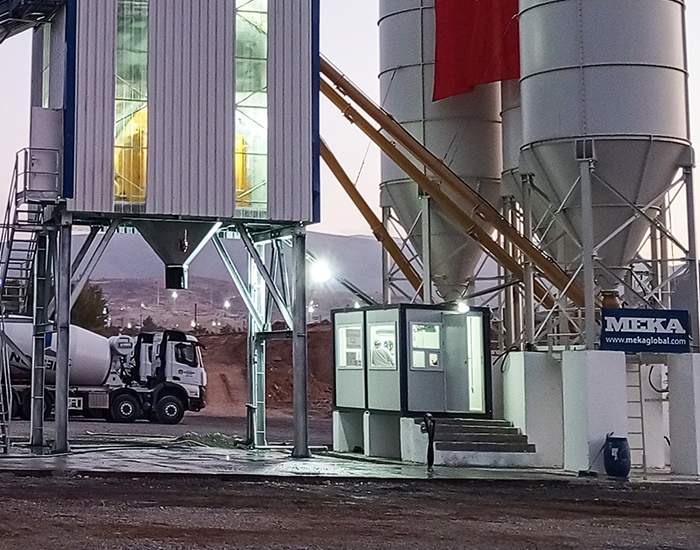

We know that the comfortable workspace you provide for your personnel will return to you as a profit. For this purpose, larger and more comfortable control cabins than its competitors are offered as standard on the C90.

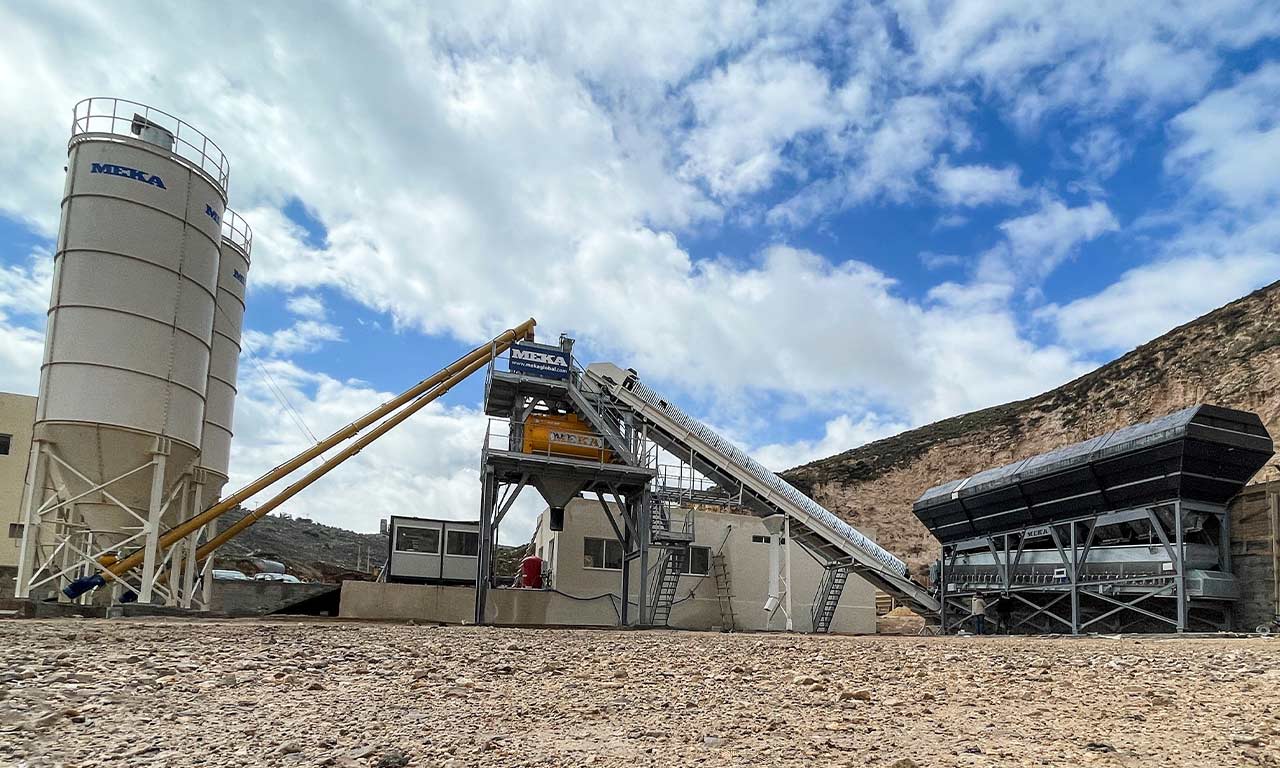

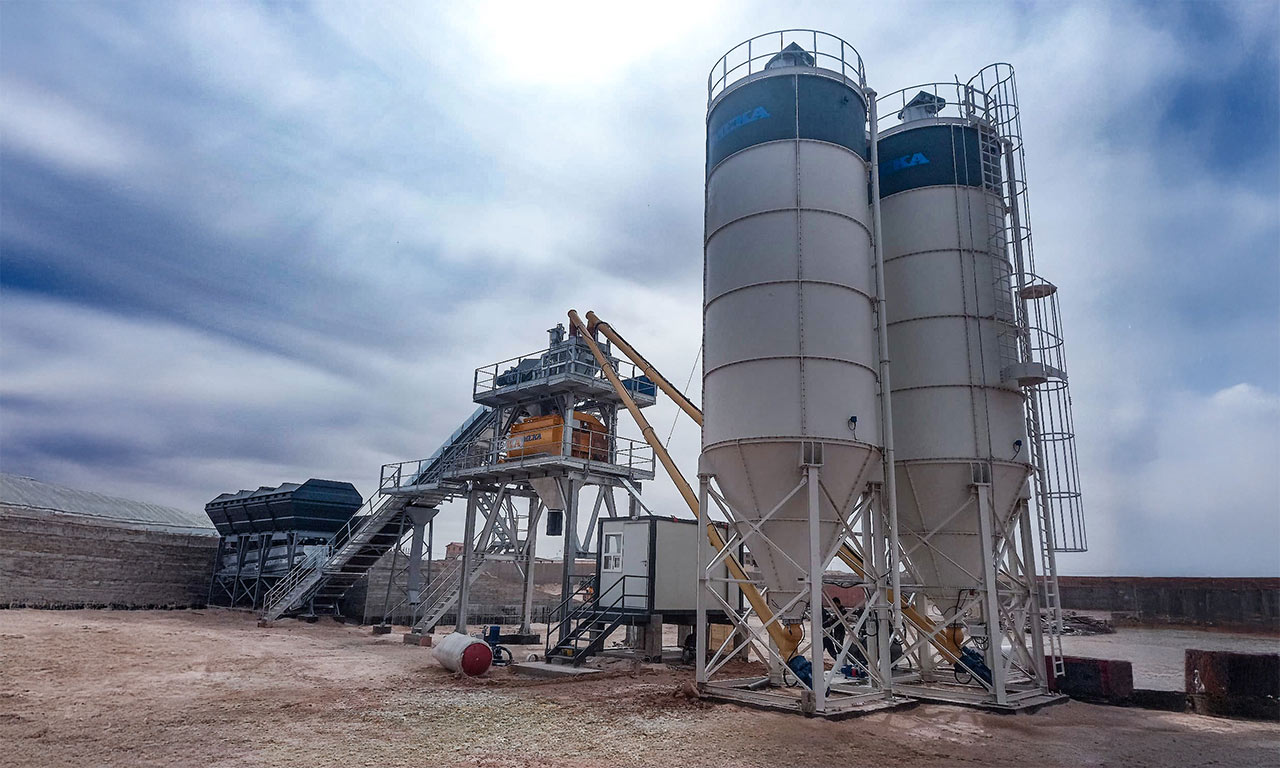

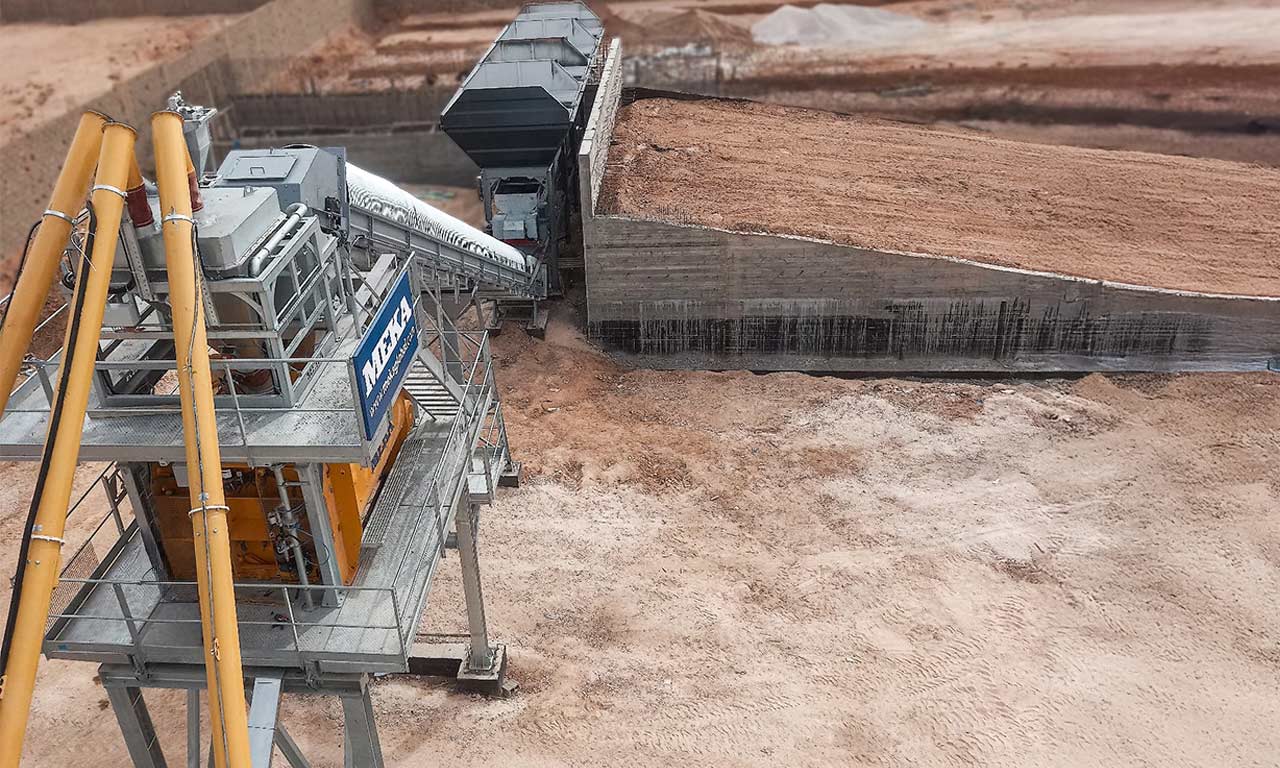

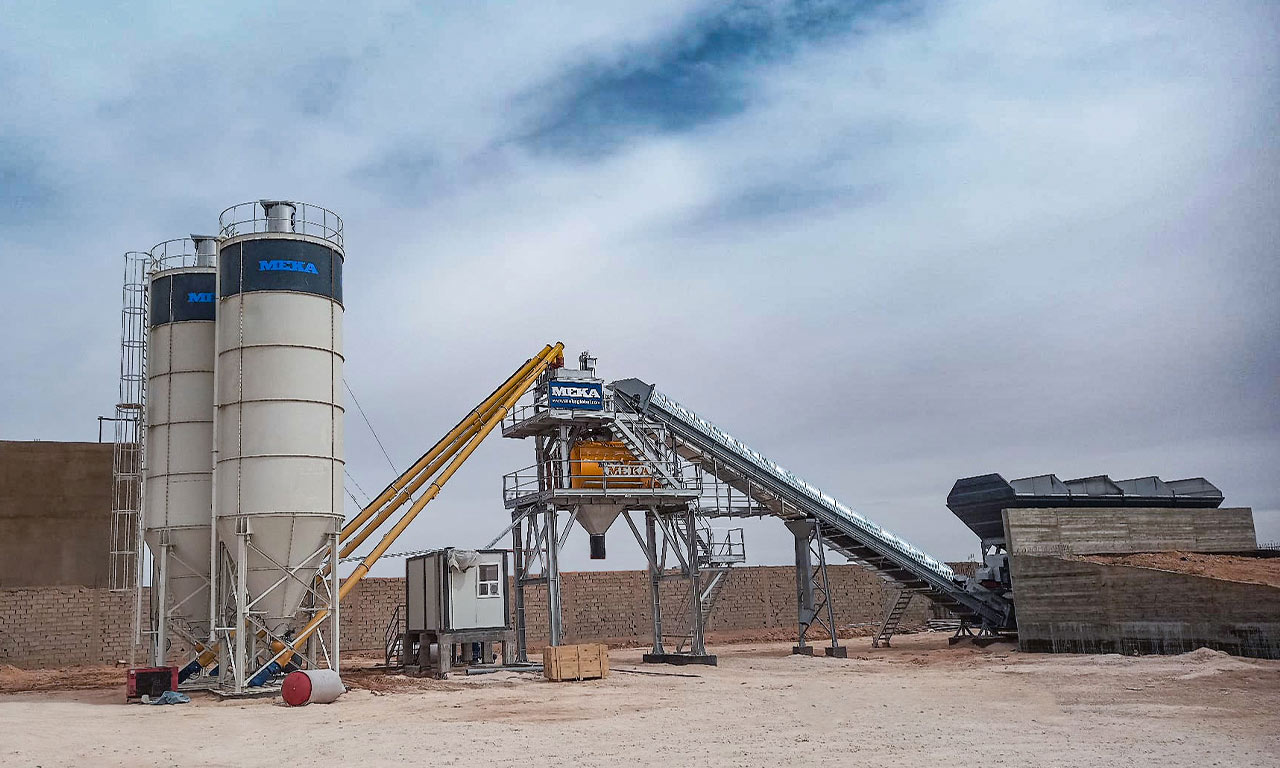

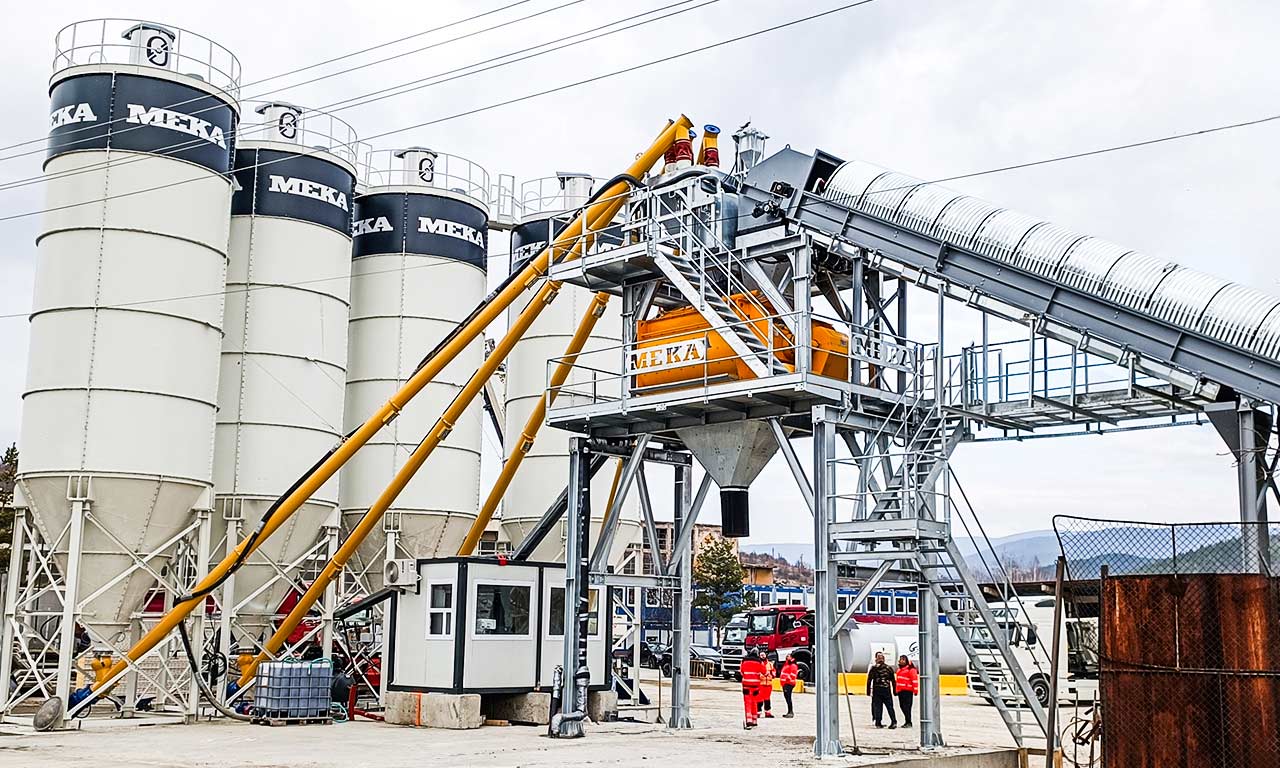

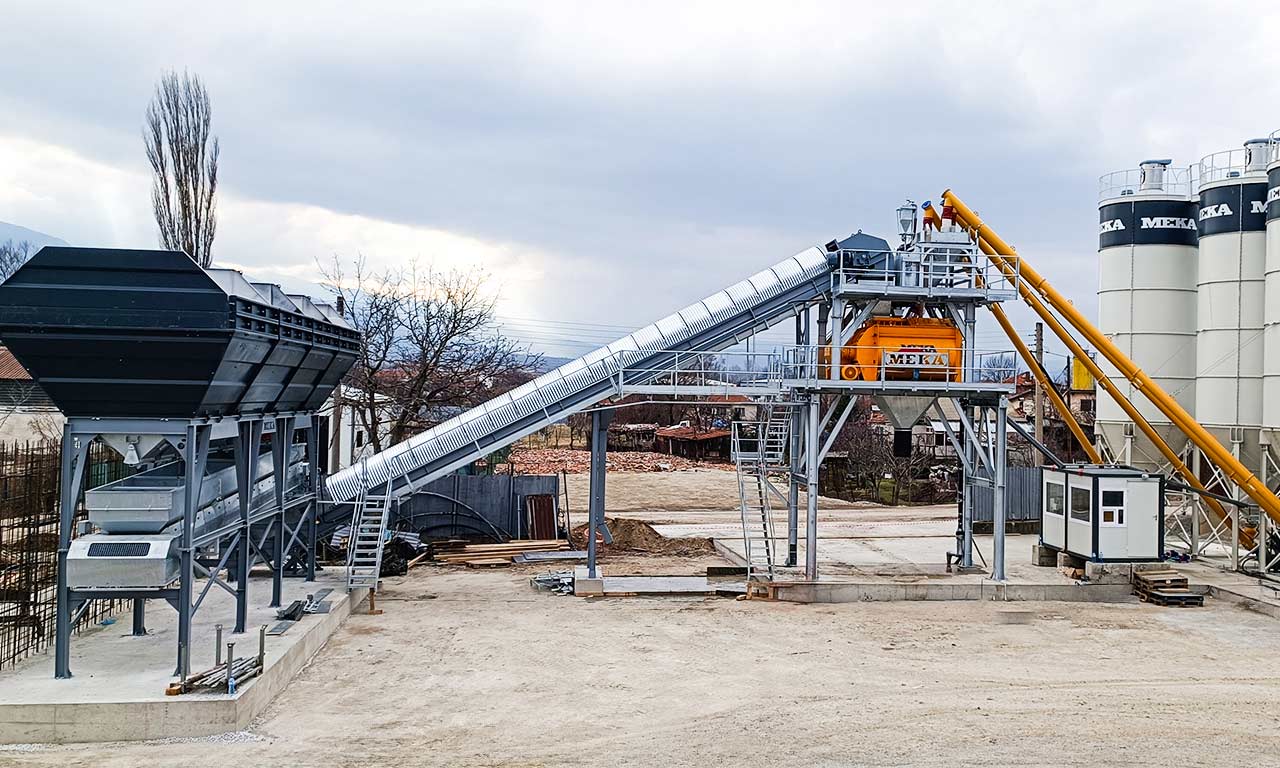

C90 Compact Batching Plants Gallery

Optional Features For All MEKA Concrete Batching Plants

Your concrete batching plant investment purpose and your expectations from the plant may vary different.

Whether you are a ready-mixed concrete producer, a contractor or a manufacturer of precast building elements, we have a very strong R&D team and international experience since 1987 to design and manufacture the most suitable batching plant for your needs.

Here are some of our customization options. Our technical sales team can support you in assiting the appropriate layout and equipment to optimize your productivity and business.

Concrete recycling system integration

Are you still throwing away your concrete waste or faulty production? As the importance of environmental responsibility of businesses increases, certain standards are being introduced in production in order to leave a cleaner world to future generations. In addition, in today's world where production costs are gradually increasing, operational efficiency has become the most important heading of sustainable activities. With the MEKA recycling unit, components such as aggregate, sand and water in concrete can be separated and reused in production.

DISCOVER MORE

Equipment and applications that ensure the most efficient operation in different climatic conditions

Special reinforcement and applications for quality and uninterrupted concrete production in harsh winter conditions: Steam pipes placed inside the aggregate bunker Complete enclosure of the main unit with 40 mm thick insulated panels Complete covering of the bottom of the aggregate bunker with 40 mm thick insulated panels Retractable electric gates on the aggregate bunker Steam generator (high performance steam generators that can run on diesel, natural gas or both, selected according to the plant capacity)

Concrete batching plant coating applications

The top and sides of the aggregate bunker can be covered with trapezoidal sheets to both protect from environmental influences (rain, snow, wind, etc.) and to minimize the impact of dusting on the environment. The four sides and top of the main unit, which contains the mixer, cement-water-additive scales and aggregate waiting bunker, can be covered with trapezoidal sheets. In this way, the main unit can be protected from environmental influences (rain, snow, wind, etc.).

Fiber feed system integration

You can improve the versatile production capacity of your batching plant thanks to the fiber feeding system that automatically feeds and doses steel or polyester concrete fibers used in the production of special quality concrete and is integrated with the plant automation.

DISCOVER MORE

The plant you want with dozens of additional options

- HYDRONIX brand Microwave moisture meter for aggregate bunker sand compartment. It precisely measures the moisture in the sand and ensures that less water and complementary sand is added by the amount of moisture measured by the automatic system.

- Aggregate Bunker bunker grates to be placed on top of the bunker with 100x 100 mm mesh width to prevent large stones from entering and damaging the system

- Water booster with STANDART brand pump that sends water to the water scale at the required flow rate and pressure (with double pump and single pump options)

- Mixer safety interlock can be added for more safety during maintenance. With this system consisting of two switches, the plant cannot be started unless the maintenance person stops the system completely and takes one switch on himself, preventing possible accidents.

Explore Our Projects Worldwide

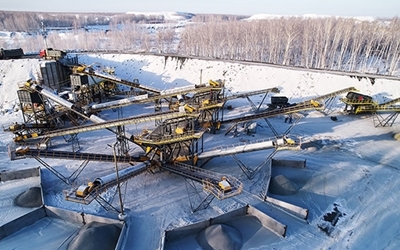

MEKA Aggregate Production Plant / RUSSIA
