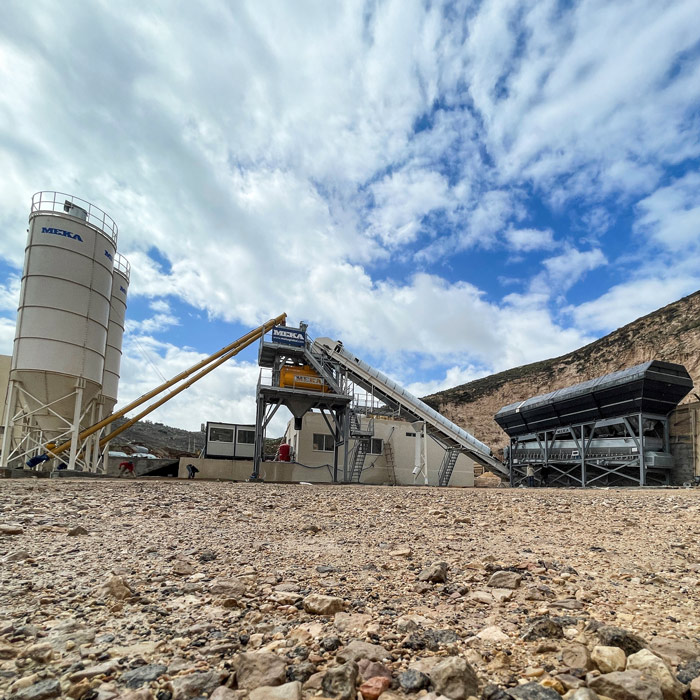

C120
Compact Concrete Batching Plant

The C120 Compact Concrete Batching Plant, with a production capacity of 100 m³/h, features a sergeant-type conveyor belt system that allows it to fit into small areas while delivering high production performance. It can be installed directly on ground level and is also suitable for containerized transportation due to its compact design.

Briefly C120

The C120 Compact Concrete Batching Plant, designed for easy container transportation, can be shipped to overseas and remote locations without transportation issues, offering the most efficient solutions for project contractors, ready-mixed concrete producers, and precast construction element producers.

With in-line aggregate bunker options of 4x20 m³ and 4x25 m³ capacities, along with a high-precision weighing group, the C120 maximizes both productivity and profitability. Its 2.25 m³ capacity MEKA twin-shaft mixer ensures uninterrupted production while keeping operating and maintenance costs low.

Fully hot-dip galvanized weighing group units, platforms, ladders, and guardrails guarantee durability, while the heavy-duty, stable chassis enhances weighing accuracy and ensures concrete production meets the exact specifications of the mix design.

The C120 can be quickly installed on site and begin concrete production, with electricity, water, and pneumatic lines pre-wired at MEKA factories to streamline the setup process.

C120 Compact Batching Plants Technical Specifications

Plant Capacity

Compacted Concrete Output

100 m³/h
Concrete Mixer

Mixer Type
Mixer Motor Power
Mixer Capacity

Twin Shaft
2 x 30 kW
2,25 m³ / Cycle
Feeding System

Aggregate Bins

Aggregate Feeding

4x 25 m³ / Inline Type
4x 35 m³ / Inline Type
Ramp or Pre-Feeding System
Weighing Hopper

Cement Weighing Hopper
Water Weighing Hopper
Additive Weighing Hopper

1.250 kg
440 kg
25 kg

C120 Compact Concrete Batching Plant Components

Aggregate Bunker Transfer Station Main Chassis Concrete Mixer Control Cabin Silo

C120 Compact Concrete Batching Plant Highlights

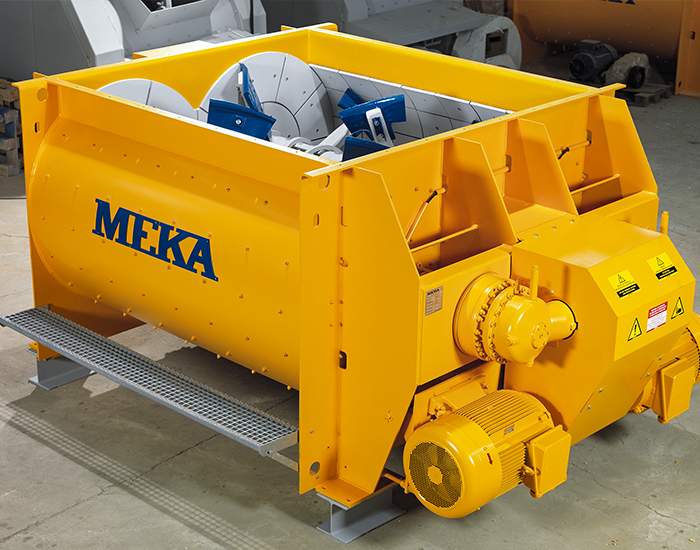

C120 : UNRIVALED POWER AND EFFICIENCY

Achieving maximum homogeneity and workability in the shortest time is essential for maximizing your profits. The 2.25 m³ MEKA Twin Shaft Concrete Mixer at the core of the C120 provides the power and reliability you can count on, ensuring consistent, high-quality concrete production every time.

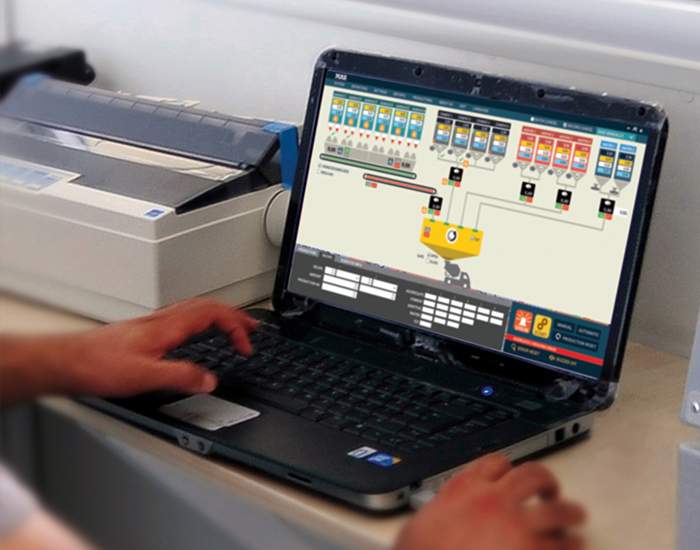

SEAMLESS OPERATION WITH MEKASOFT AUTOMATION

MEKASOFT's updated automation software, developed by the MEKA software team, provides your plant operator with an intuitive interface, enhancing ease of use. It also boosts operational efficiency with advanced documentation and archive control features, ensuring smooth and reliable plant management.

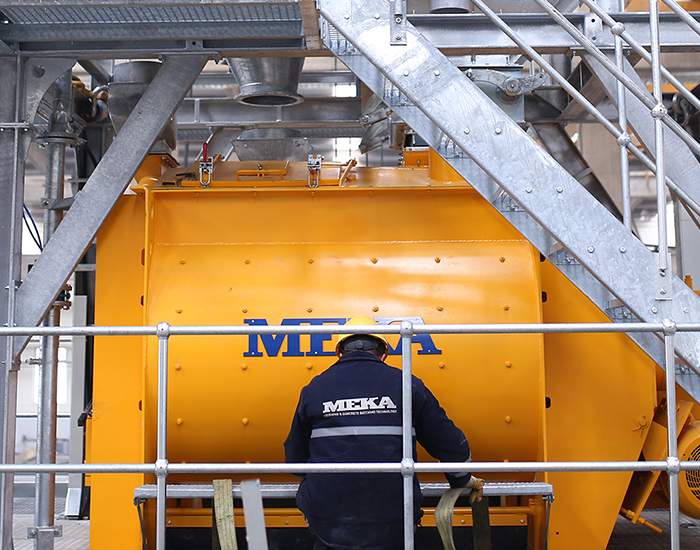

READY TO WORK IMMEDIATELY WITH MINIMUM INSTALLATION TIME

The C120 is delivered to the installation site in a single 40' OT container and is ready to start production in the shortest time possible. With all cabling, pre-testing, and equipment assembly completed at the factory, setup is quick and hassle-free.

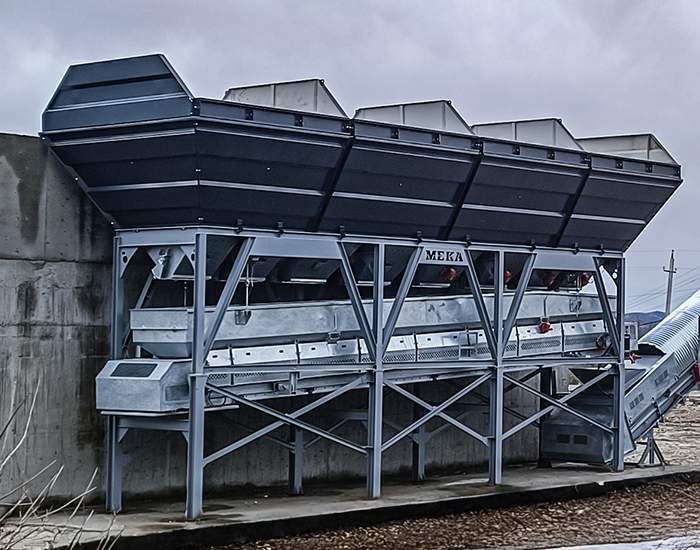

HIGH-CAPACITY LINEAR AGGREGATE BUNKER FOR OPTIMAL PERFORMANCE

As the foundation of production in the C120 Concrete Batching Plant, the linear-type aggregate bunker provides a solid base for your operations. With storage capacity options of 4x25 m³ and 4x35 m³, it delivers superior features designed to support high-volume concrete production.

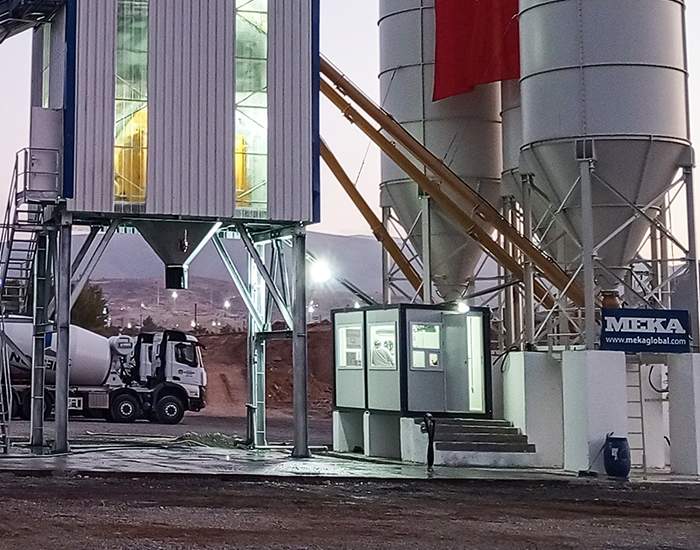

COMFORTABLE CONTROL CABINET FOR EFFICIENT WORK

We know that the comfortable workspace you provide for your personnel will return to you as a profit. For this purpose, larger and more comfortable control cabins than its competitors are offered as standard on the C120.

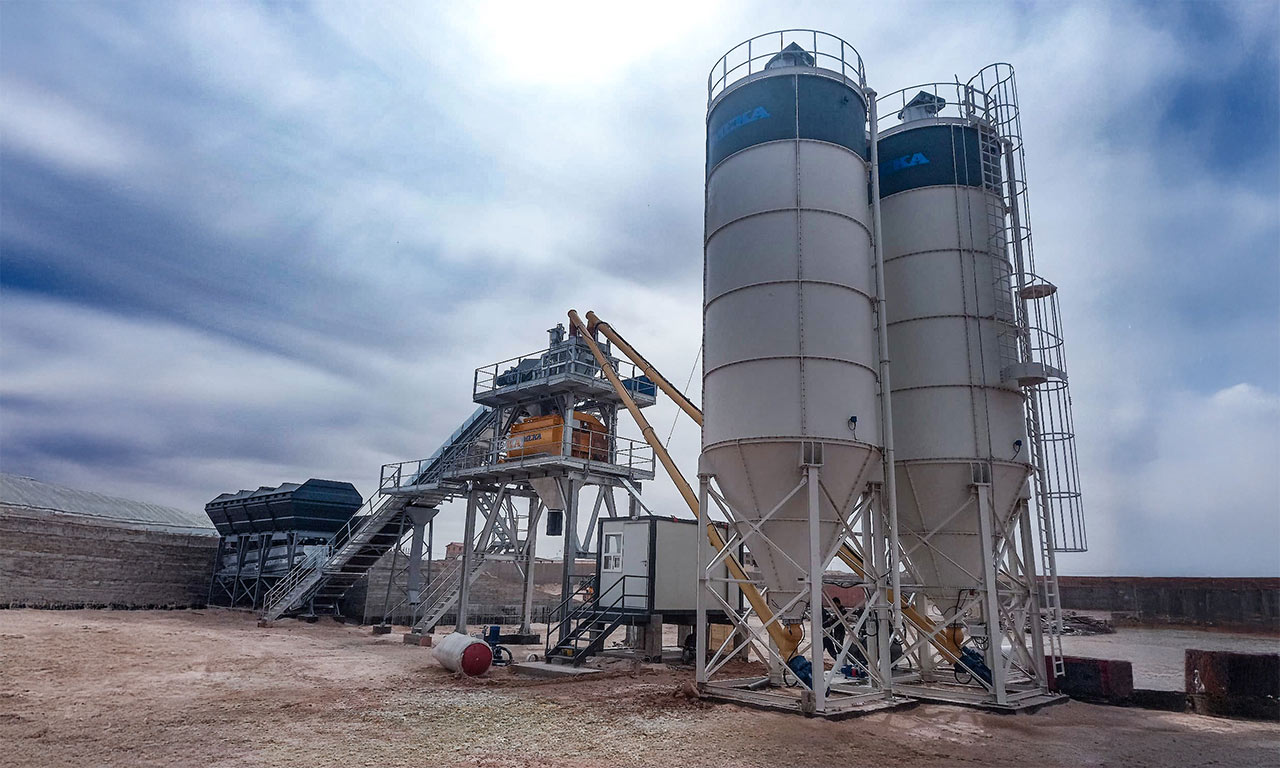

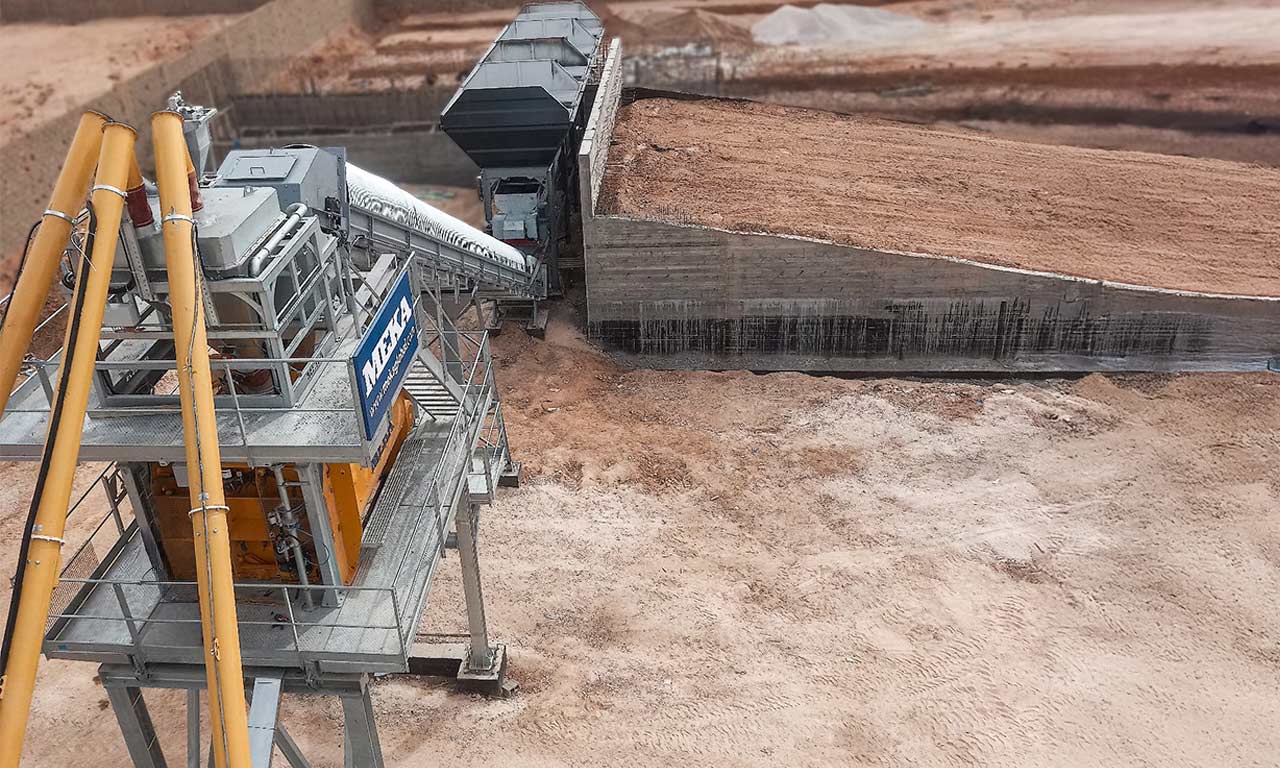

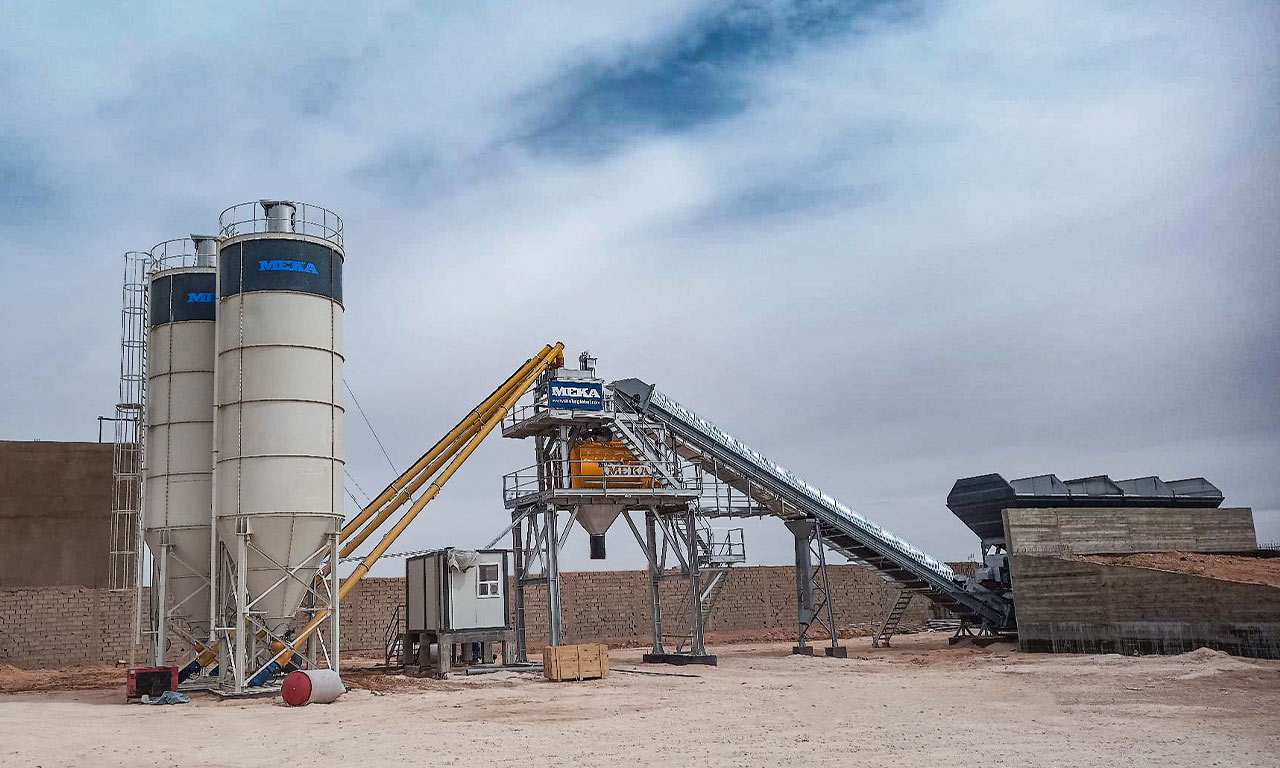

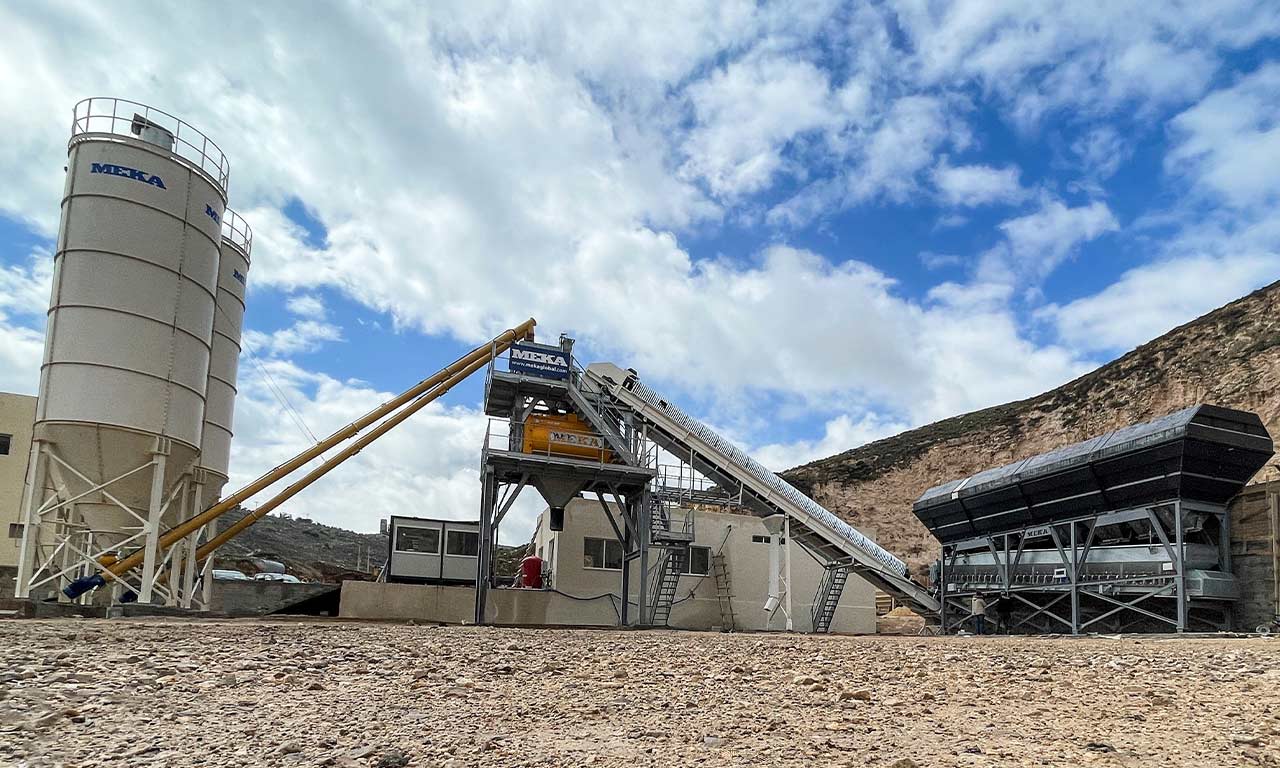

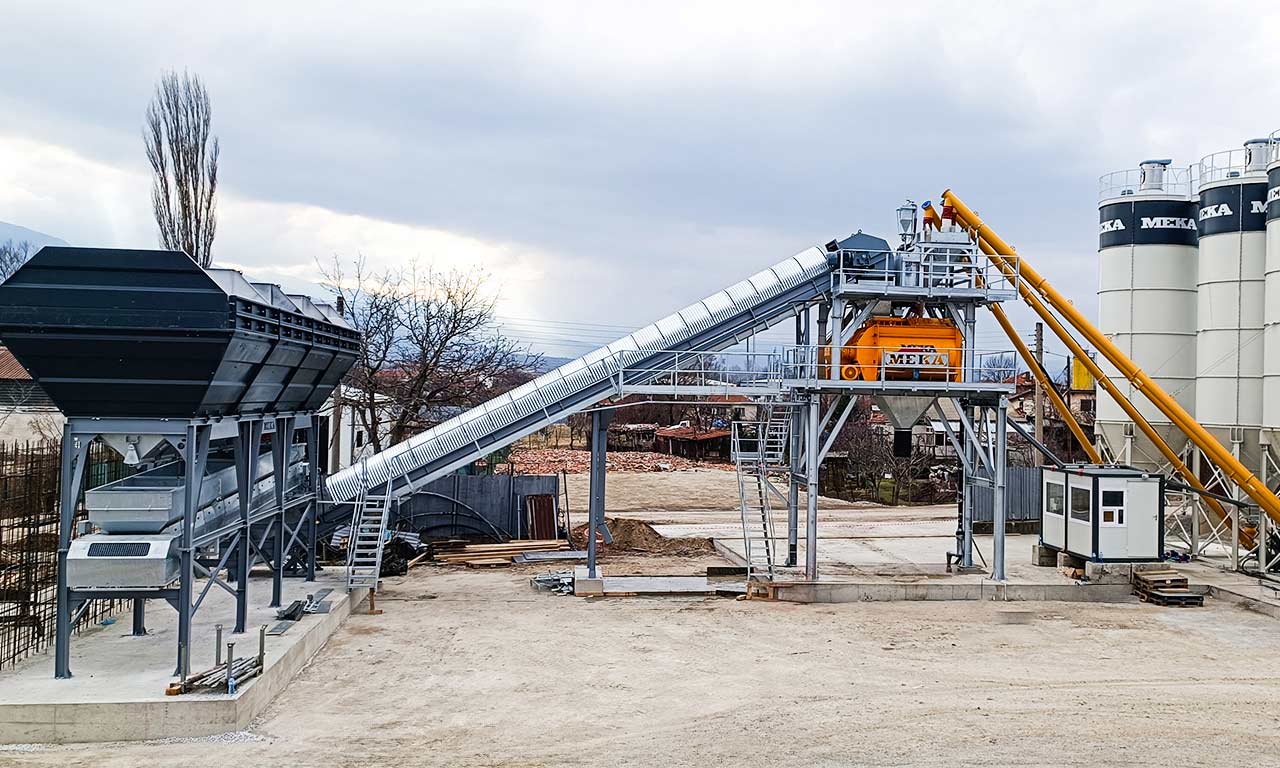

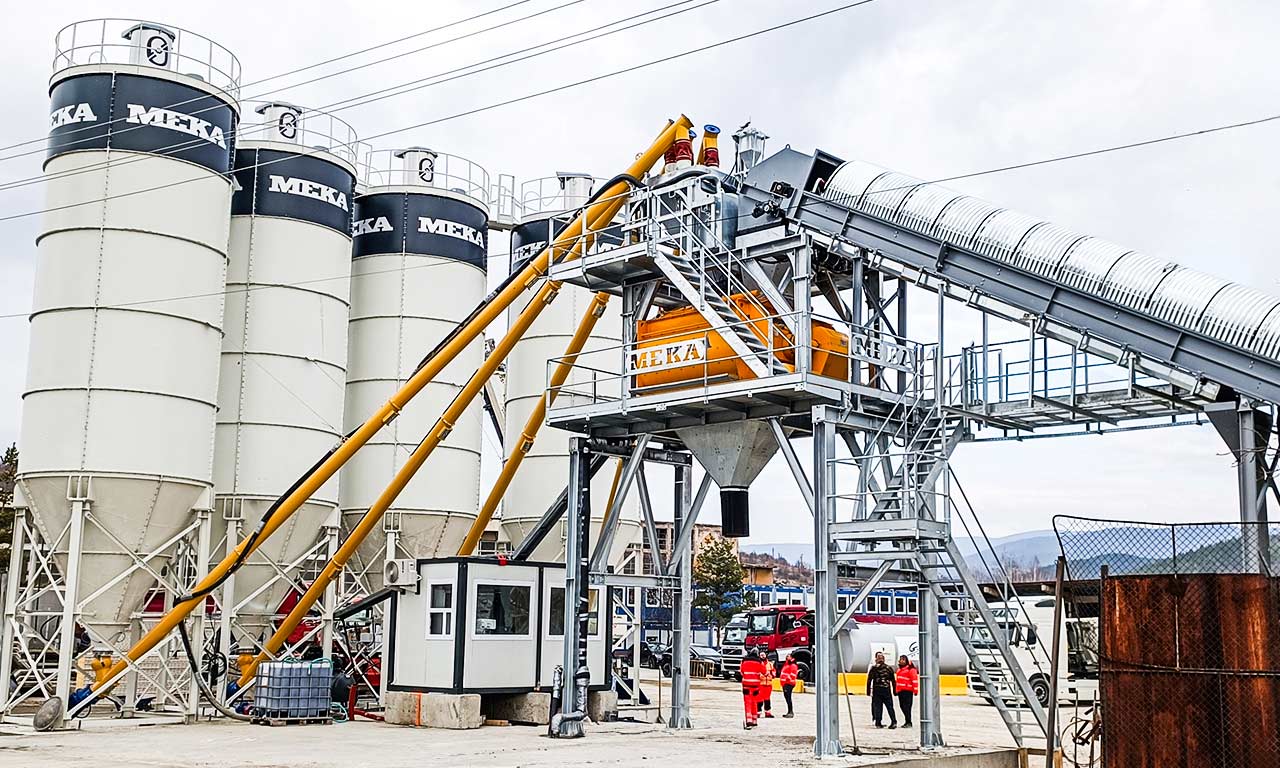

C120 Compact Batching Plants Gallery

Optional Features For All MEKA Concrete Batching Plants

Your concrete batching plant investment purpose and your expectations from the plant may vary different.

Whether you are a ready-mixed concrete producer, a contractor or a manufacturer of precast building elements, we have a very strong R&D team and international experience since 1987 to design and manufacture the most suitable batching plant for your needs.

Here are some of our customization options. Our technical sales team can support you in assiting the appropriate layout and equipment to optimize your productivity and business.

Concrete recycling system integration

Are you still throwing away your concrete waste or faulty production? As the importance of environmental responsibility of businesses increases, certain standards are being introduced in production in order to leave a cleaner world to future generations. In addition, in today's world where production costs are gradually increasing, operational efficiency has become the most important heading of sustainable activities. With the MEKA recycling unit, components such as aggregate, sand and water in concrete can be separated and reused in production.

DISCOVER MORE

Equipment and applications that ensure the most efficient operation in different climatic conditions

Special reinforcement and applications for quality and uninterrupted concrete production in harsh winter conditions: Steam pipes placed inside the aggregate bunker Complete enclosure of the main unit with 40 mm thick insulated panels Complete covering of the bottom of the aggregate bunker with 40 mm thick insulated panels Retractable electric gates on the aggregate bunker Steam generator (high performance steam generators that can run on diesel, natural gas or both, selected according to the plant capacity)

Concrete batching plant coating applications

The top and sides of the aggregate bunker can be covered with trapezoidal sheets to both protect from environmental influences (rain, snow, wind, etc.) and to minimize the impact of dusting on the environment. The four sides and top of the main unit, which contains the mixer, cement-water-additive scales and aggregate waiting bunker, can be covered with trapezoidal sheets. In this way, the main unit can be protected from environmental influences (rain, snow, wind, etc.).

Fiber feed system integration

You can improve the versatile production capacity of your batching plant thanks to the fiber feeding system that automatically feeds and doses steel or polyester concrete fibers used in the production of special quality concrete and is integrated with the plant automation.

DISCOVER MORE

The plant you want with dozens of additional options

- HYDRONIX brand Microwave moisture meter for aggregate bunker sand compartment. It precisely measures the moisture in the sand and ensures that less water and complementary sand is added by the amount of moisture measured by the automatic system.

- Aggregate Bunker bunker grates to be placed on top of the bunker with 100x 100 mm mesh width to prevent large stones from entering and damaging the system

- Water booster with STANDART brand pump that sends water to the water scale at the required flow rate and pressure (with double pump and single pump options)

- Mixer safety interlock can be added for more safety during maintenance. With this system consisting of two switches, the plant cannot be started unless the maintenance person stops the system completely and takes one switch on himself, preventing possible accidents.

Explore Our Projects Worldwide

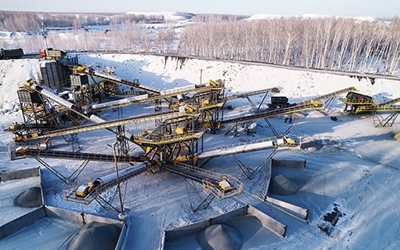

MEKA Aggregate Production Plant / RUSSIA

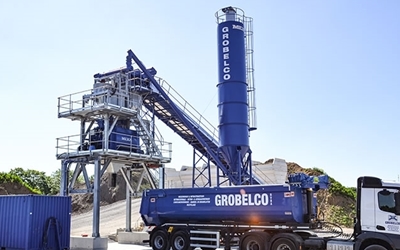

MEKA Stationary Concrete Batching Plant / BELGIUM
