Portable Wash Plants

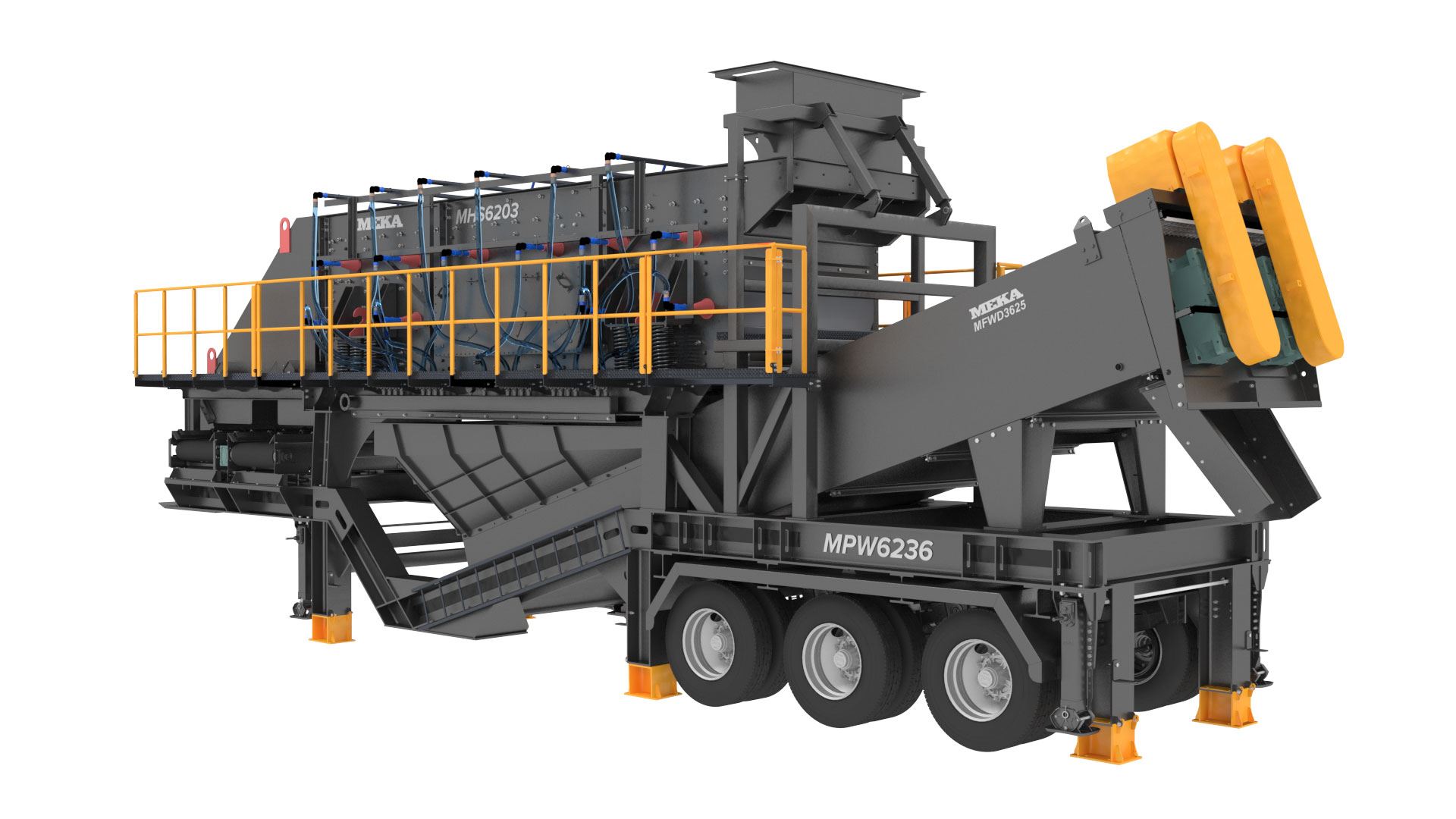

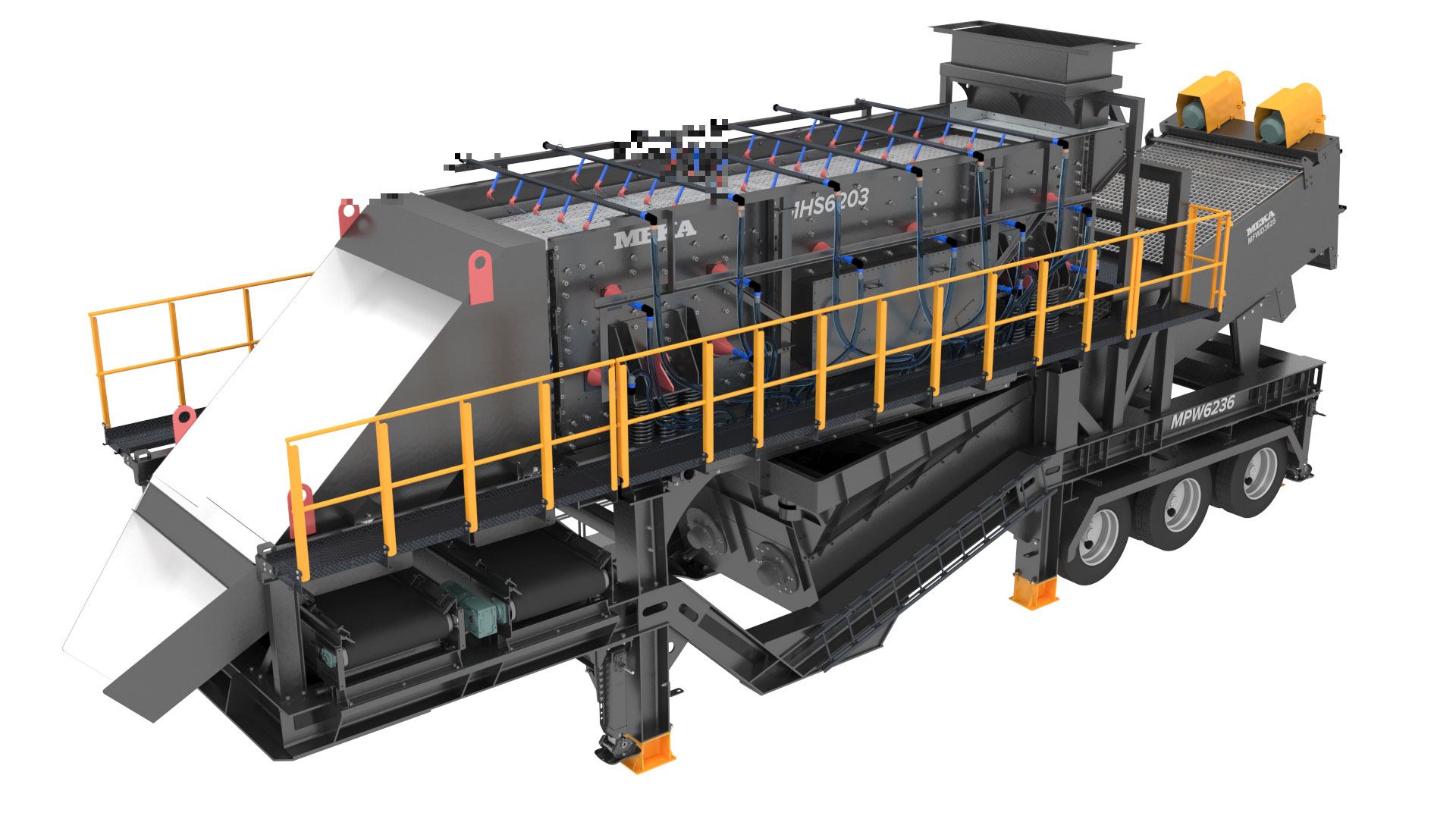

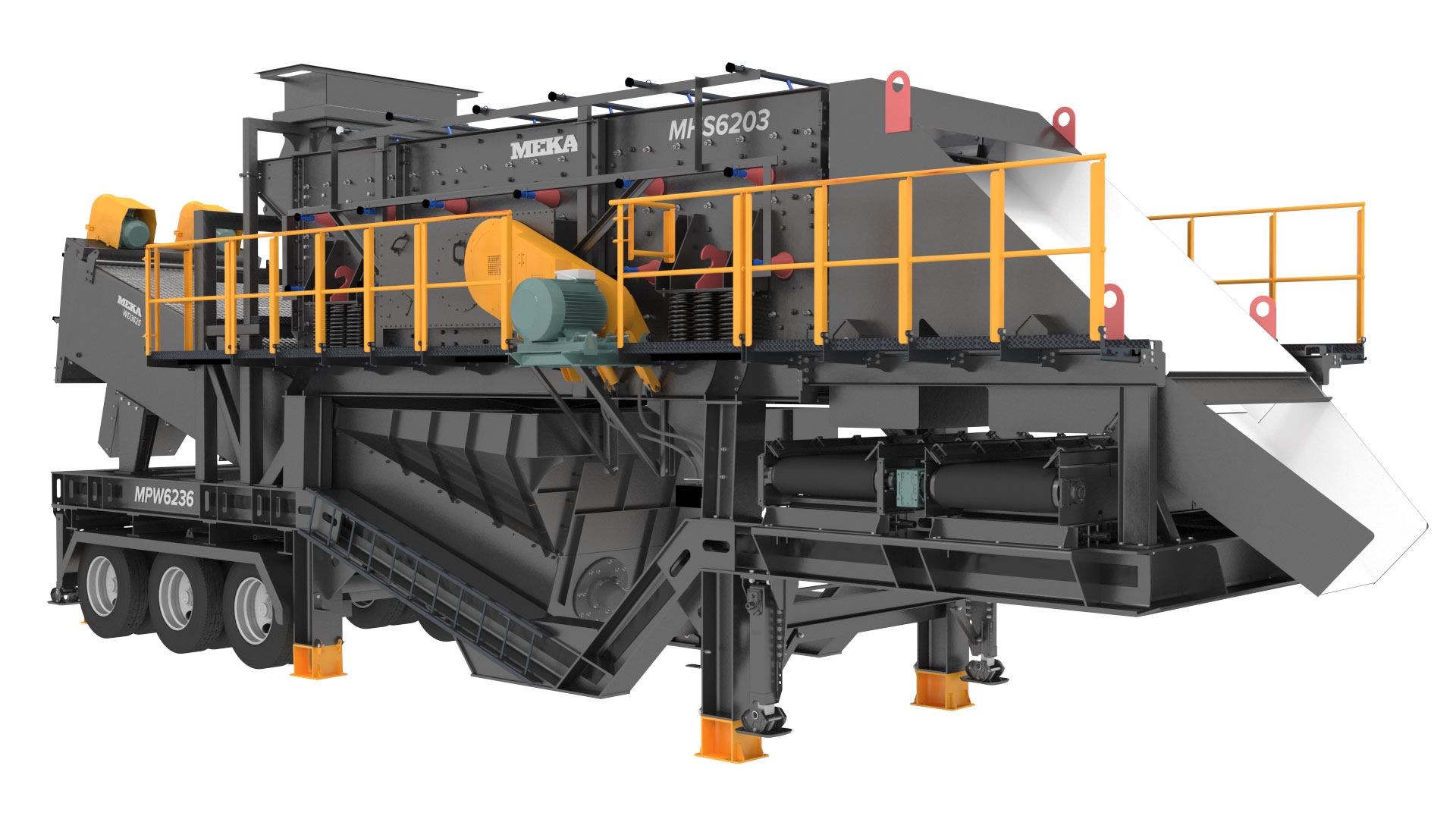

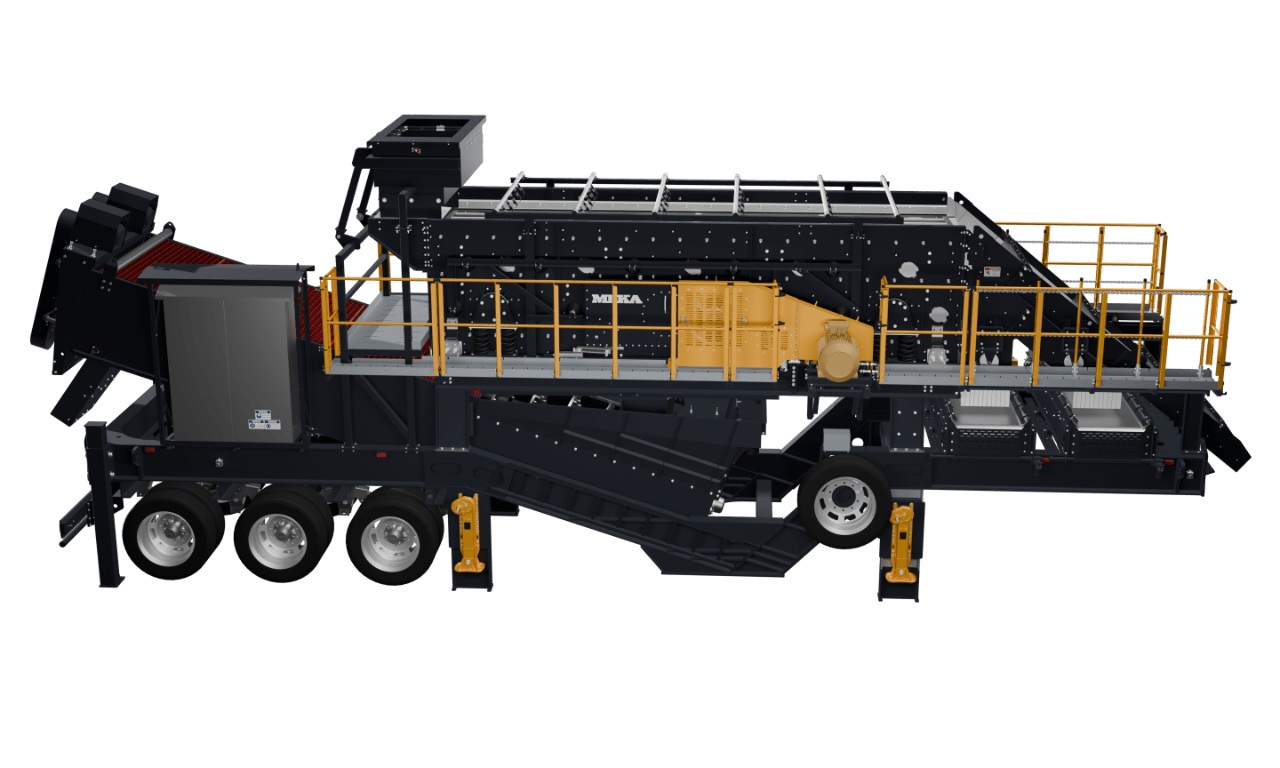

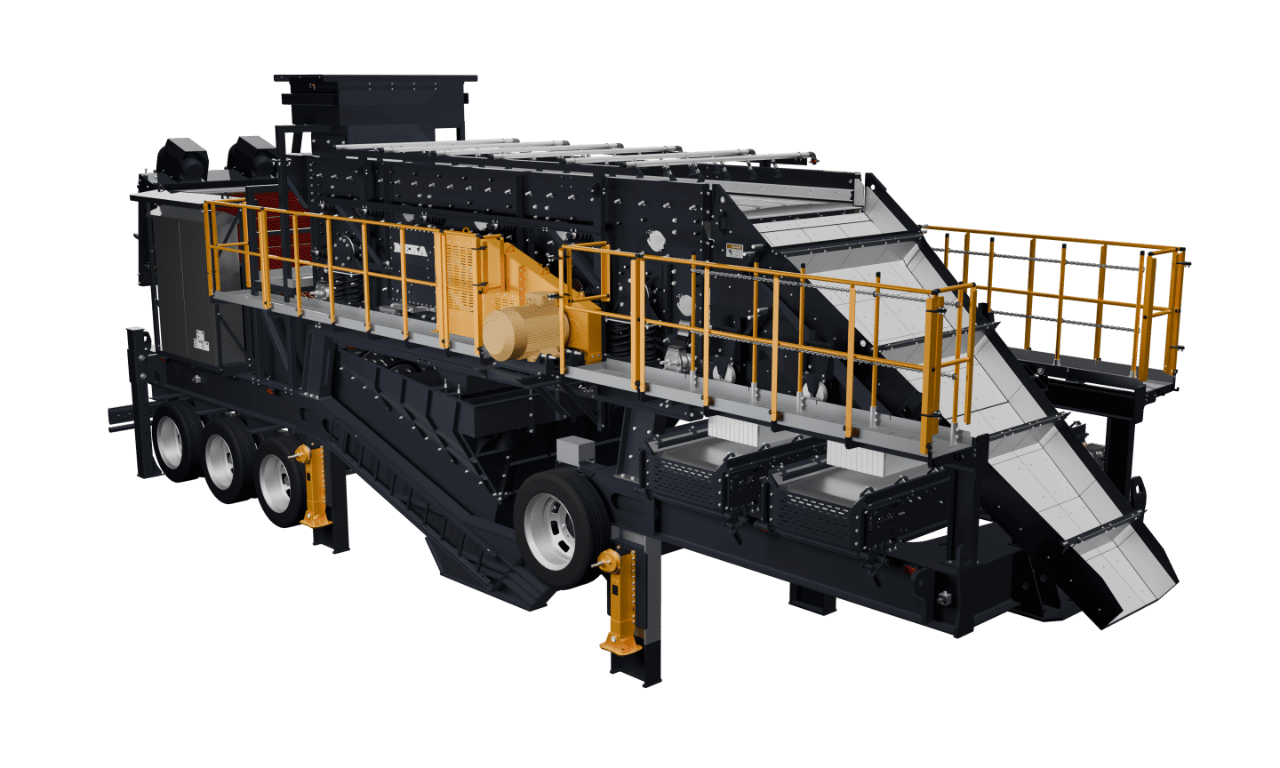

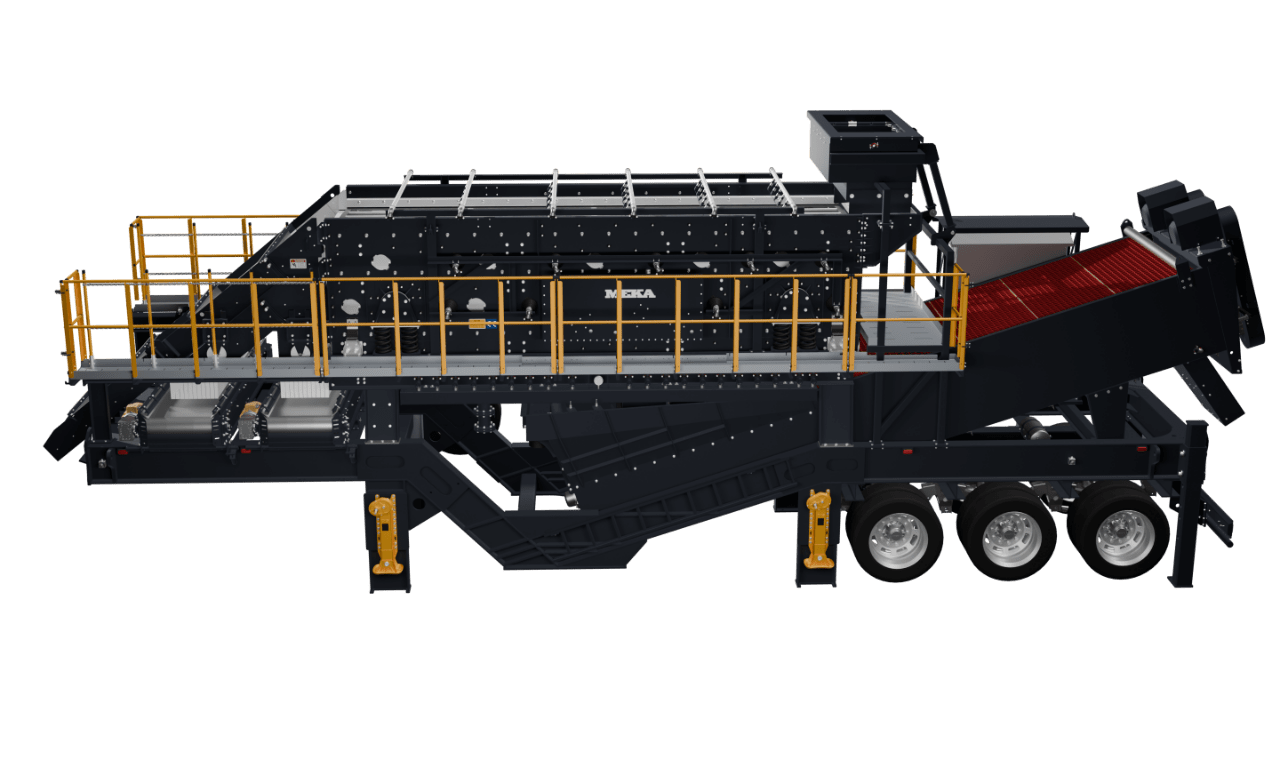

Portable Horizontal Wash plants are wheel-mounted, and provide a combination of quality, reliability, performance, long service life while operating under the most demanding applications. Wash Plants combine horizontal, triple-shaft screens with a complete spray system. The screens are complemented by twin dewatering fine washers and fitted with strategically placed nozzles for material scrubbing. High capacity fine washers deliver the fine aggregates while chutes and cross conveyors deliver the sized products.

Quick Quote

Applications

Both natural and manufactured aggregates contain deleterious material which needs to be removed.

Processing these materials typically requires various steps including wet screening, dewatering and conveying equipment to meet their desired specifications.

Why MEKA Portable Wash Plants?

Highly efficient and accurate on board 2 or 3 deck screens with complete spray system.

Ability to fine tune stroke angle, amplitude and speed adds versatility in meeting changing screening conditions.

High capacity twin fine material washers.

Portable chassis design is easy to transport to the desired site and easy to set up.

Operator-friendly unit with spacious and accessible platforms make the daily operation and maintenance simpler, safer and faster.

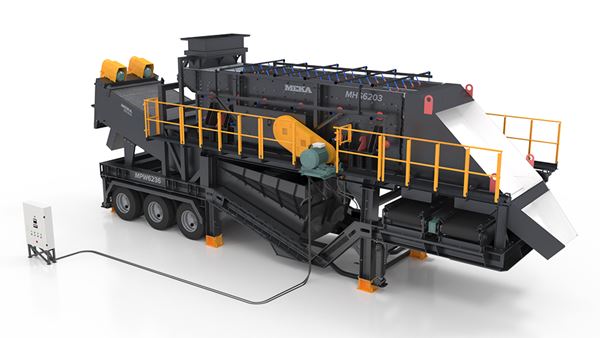

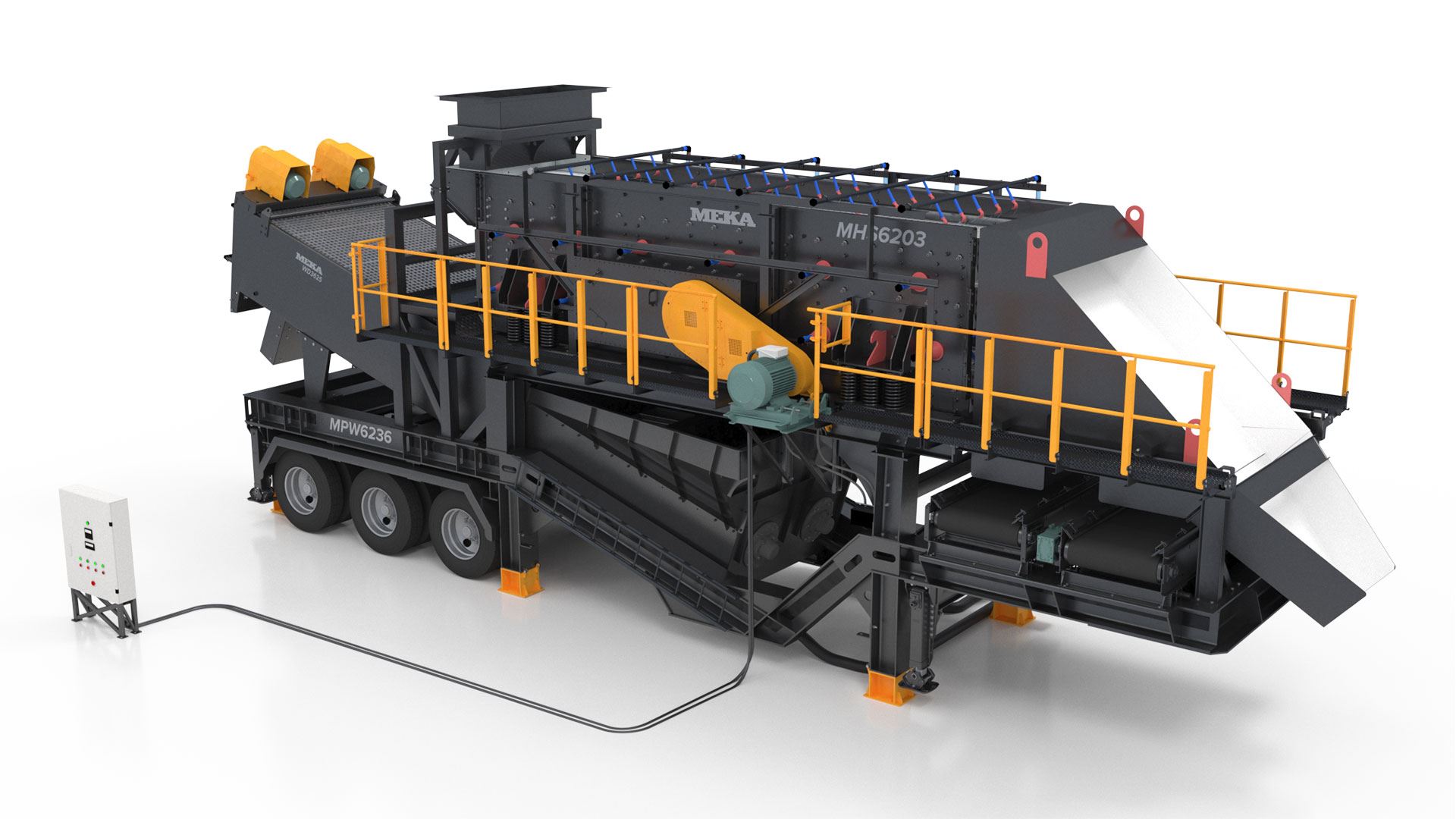

Self contained electrical switchgear cabinet mounted on the semi-trailer, with controls for screen, fine material washer and belt conveyors.

Electrical switchgear cabinet can be located on the ground during operation.

2” / 3 ½” King-pin, triple-axle bogie with air-brakes, ABS and travel lights, mudflaps.

Portable Wash Plants Technical Specifications

MPWP 6203
SCREEN
Model MHS 6203 MHS 6203
Width Width 1930 mm 6'
Length Length 6 069 mm 20'
Decks Decks 3 3
Motor Power Motor Power 30 kW 40 HP
WASHER
Model MFW 3625D MFW 3625D
Screw Diameter Screw Diameter Ø 917 mm 3’
Length Length 7 620 mm 25’
Working Speed Working Speed 21 RPM 21 RPM
Working Angle Working Angle 18 ° 18 °
Motor Power Motor Power 2 x 15 kW 2 x 20 HP
CROSS CONVEYOR
Belt Width Belt Width 800 mm 2’ 7"
Length Length 2 850 mm 9’ 4"
Motor Power Motor Power 5,5 kW 7.5 HP
Belt Speed Belt Speed 1,6 m/s@50 Hz - 2 m/s @60Hz 1,6 m/s@50 Hz - 2 m/s @60Hz
TRANSPORT DIMENSIONS
Length Length 14 171 mm 46’ 6"
Width Width 3 561 mm 11’ 8"
Height Height 4 375 mm 14’ 4"
Total Weight Total Weight 39 376 kg 86 809 lbs
Axle Weight Axle Weight 26 300 kg 57 982 lbs
King Pin Weight King Pin Weight 13 076 kg 28 828 lbs
OPERTATING DIMENSIONS
Length Length 14 599 mm 47’ 10"
Width Width 3 937 mm 12’ 11"
Height Height 5 310 mm 17’ 5"
What is Portable Wash Plant?

Mobile wash plant is a unit comprising of horizontal screen, fine material washer and belt conveyors on the portable chassis.

Types of Portable Wash Plants
Mobile wash plant is a portable equipment comprising of horizontal screen, fine material washer and belt conveyors to be used in wet process.
How Does Portable Wash Plants Work?
The coarse material fed to the washing screen is discharged to belt conveyors through the upper chutes to be stocked, while the sand is fed to the fine washer below the screen.The sand after being processed in the fine washer is discharged to the belt conveyor to be stocked.
Advantages of Using Portable Wash Plants
Besides the advantages of the horizontal screen and sand washer, the advantages of these equipment being portable is as below :

Ability to process classified clean coarse material and treated sand with a single unit
Does not need any massive installation job
Can be quickly commissioned and started up
No need for concrete and site preparation
They are moved to another project in a short time in case of need
Portable Wash Plants Processes Applications
They are used the removal of impurities such as clay and dewater of sand as well as the classisfaction of coarser material and sand
