LOG WASHERS

Designed for toughest clays

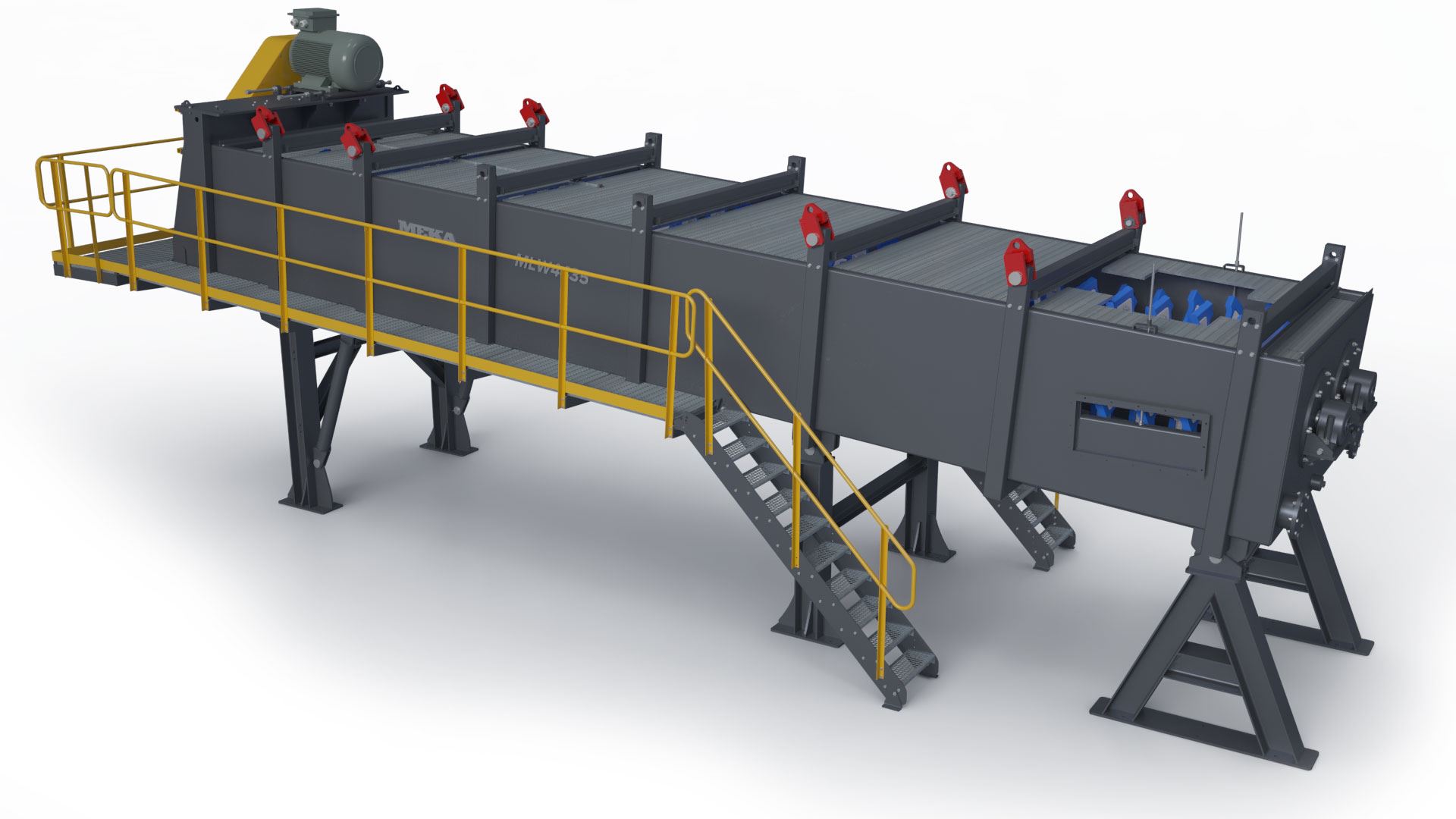

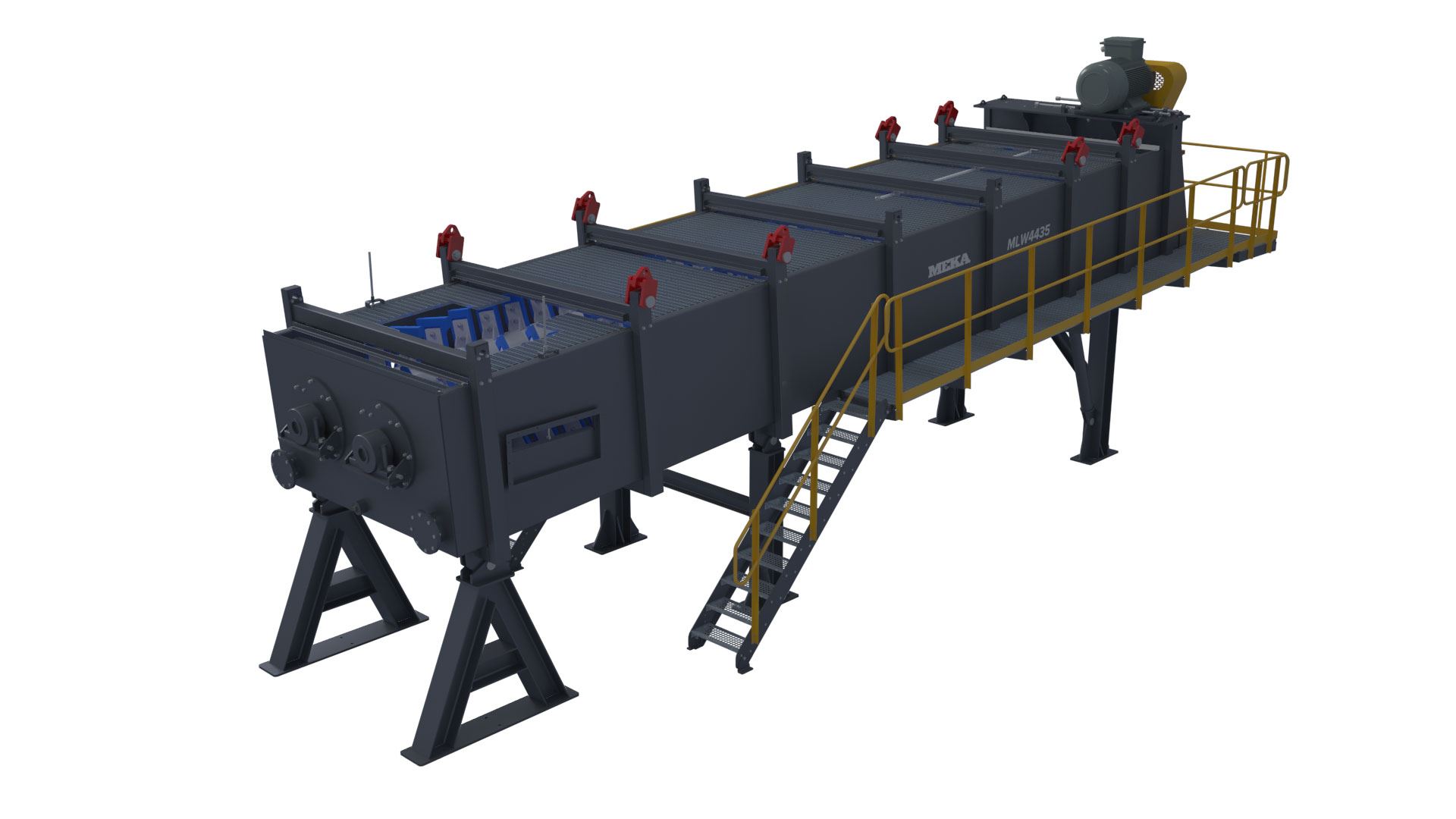

LOG WASHERS

Log washers are very high energy units designed to disintegrate tough clay particles. With longer wash tubs they provide significantly increased retention time. Retention can further be increased by switching to straight paddle design and higher working angles. All MEKA Log washers are provided with spray bars to make a final rinse before the product leaves the wash box.

MEKA Log Washers are designed to produce valuable products from what was once called rejects. They scrub the faces of rocks, break down plastic clays and produce a material that is clean and easy to process.

MEKA Log Washers can accept feed up to 150mm sphere particles. With different length units, optional straight paddle design and possibility to increase working angle retention time can be changed to meet process requirements.

Compact Sand Plants
Why MEKA Log Washers?

A Log washer is subject to extreme stresses over its lifetime. MEKA Log Washers are strengthened in three key points:

• TUB Design: MEKA Log Washers are structurally strengthened to deal with year of hard use. Under heavy loads it retains its rigidity and provides longer bearing lifetime.

• Shafts: Shafts are machined to fine tolerances. Extremely thick, once piece shafts are designed to stand for the test of time.

• Gearbox: This gearbox, specifically designed for Log Washer units is designed to stand extreme shock loads. It also locks both shafts to their positions, precisely controlling their timing.

Compact Sand Plants

MEKA Log Washers come standard with clean-out gates. Top safety covers are provided as standard with every unit. Spray bars at the discharge also come as standard to provide a final rinse before the product leaves the log washer.

Available in three different diameters and 3 different lengths MEKA engineers select the right product for toughest applications.

Compact Sand Plants

HOW Log Washers Work?

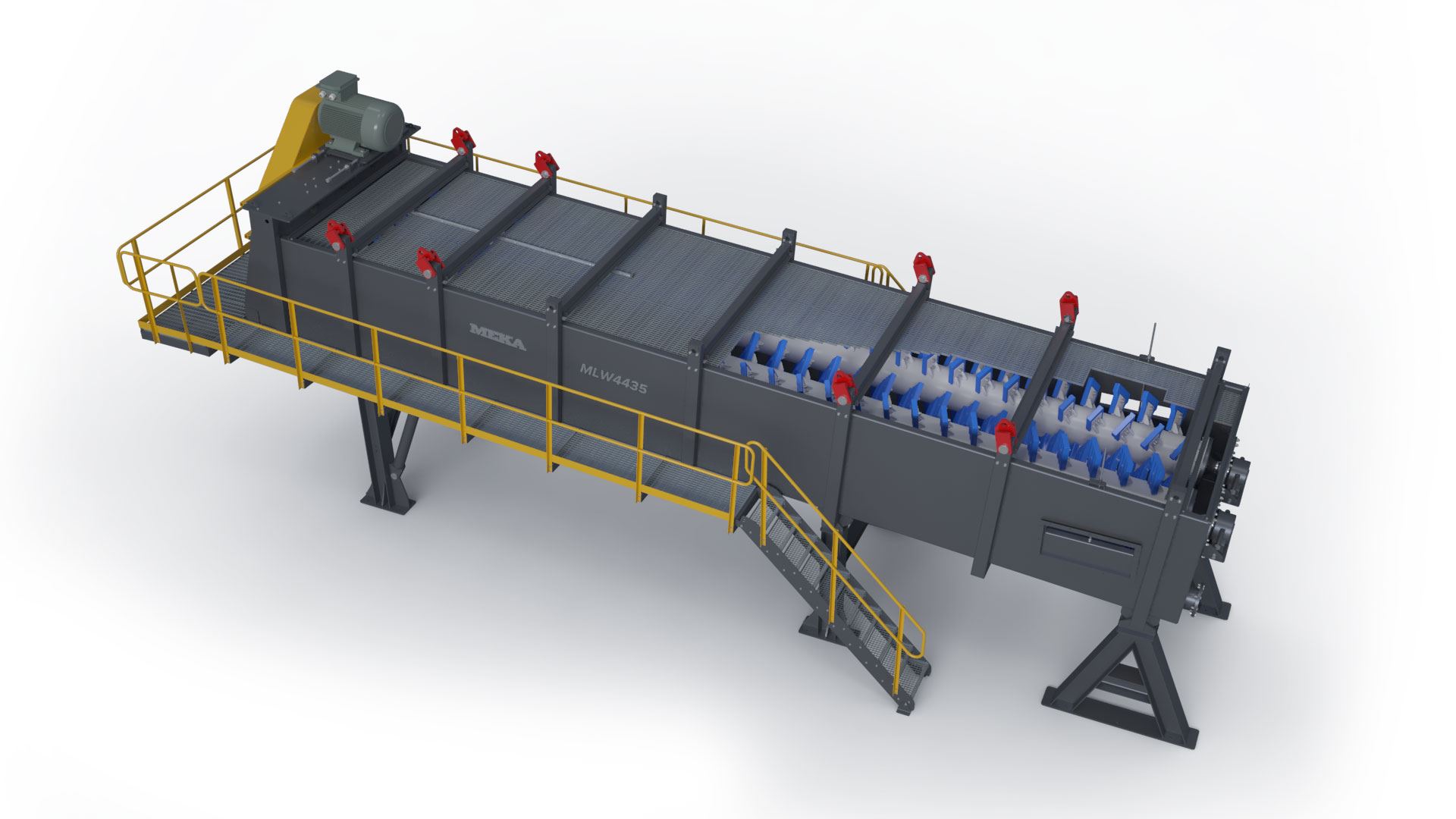

Two intermeshing shafts dressed with abrasion resistant, corrugated paddles, timed with a dual output gearbox work together to:
1. Scrub faces of rocks to remove sticky clays over the faces of rocks
2. Crush softer clays and agglomerated particles to remove them with the reverse current flow.
As rocks flow through the washing tub they are beaten repeatedly by the paddles to provide thoroughly clean end-product.

TECHNICAL SPECIFICATIONS

LOG WASHERS TECHNICAL SPECIFICATIONS

MLW 3625

MLW3630

MLW4430

MLW4830

MLW4835

DIAMETER x LENGTH (mm)DIAMETER x LENGTH
(inchxfeet)
905x7200 36x25 905x8700 36x30 1120x8700 44x30 1220x8700 48x30 1220x10500 48x35
Capacity (mtph) Capacity(stph) 50-125 60-90 50-125 60-90 75-175 75-200 110-270 125-300 110-300 125-300
Material (mm) Material (inch) 75 3 75 3 100 4 150 6 150 6
Power (kW) Power (HP) 55-75 75-100 75-90 100-150 110-160 150-200 160-200 200-300 160-200 200-300
“ Results may vary depending on feed material gradation, density, silt & clay content, amount of water used, equipment settings and washing application.“
