PORTABLE JAW CRUSHERS

Reliable and highly productive

PORTABLE JAW CRUSHERS

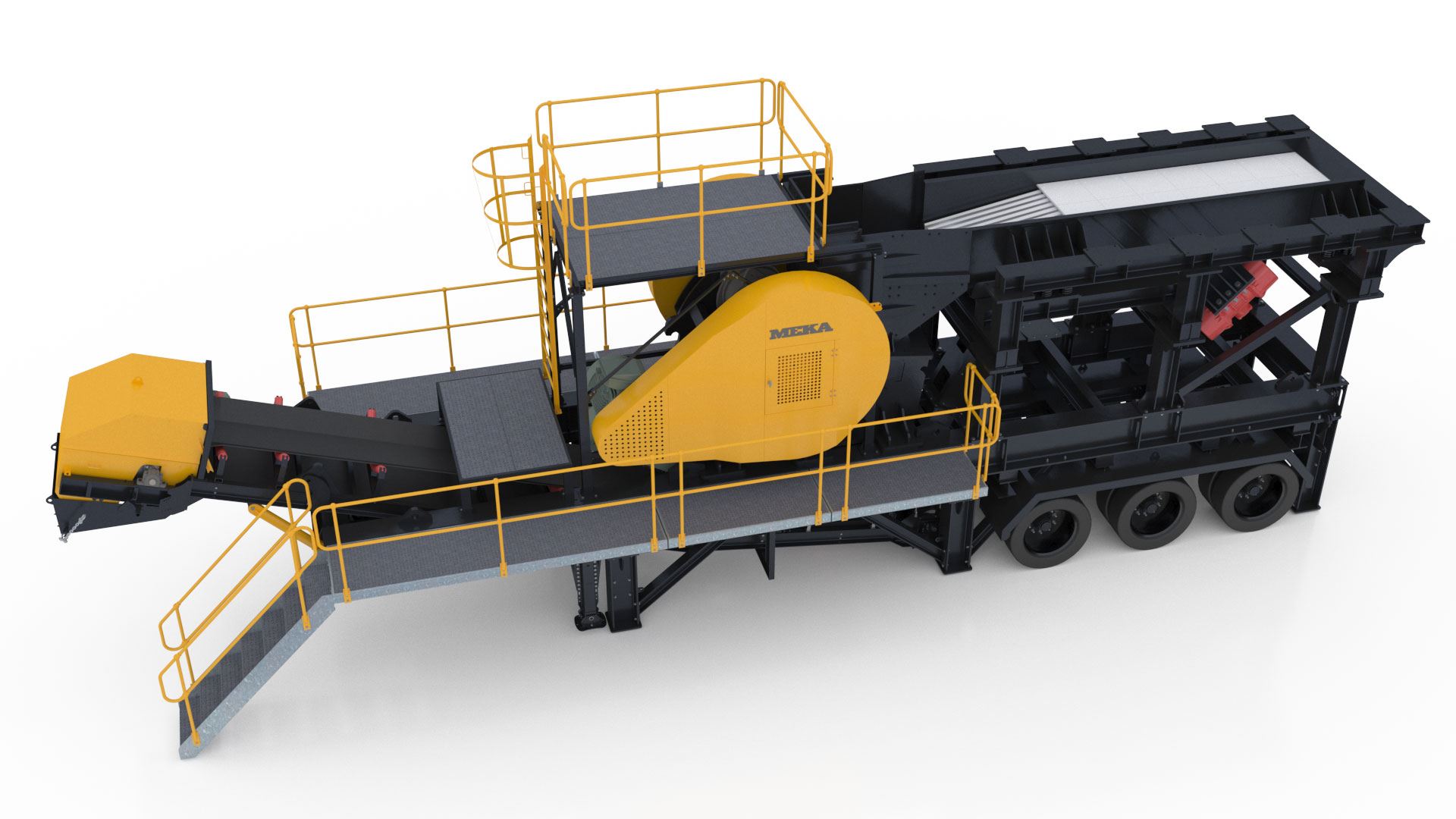

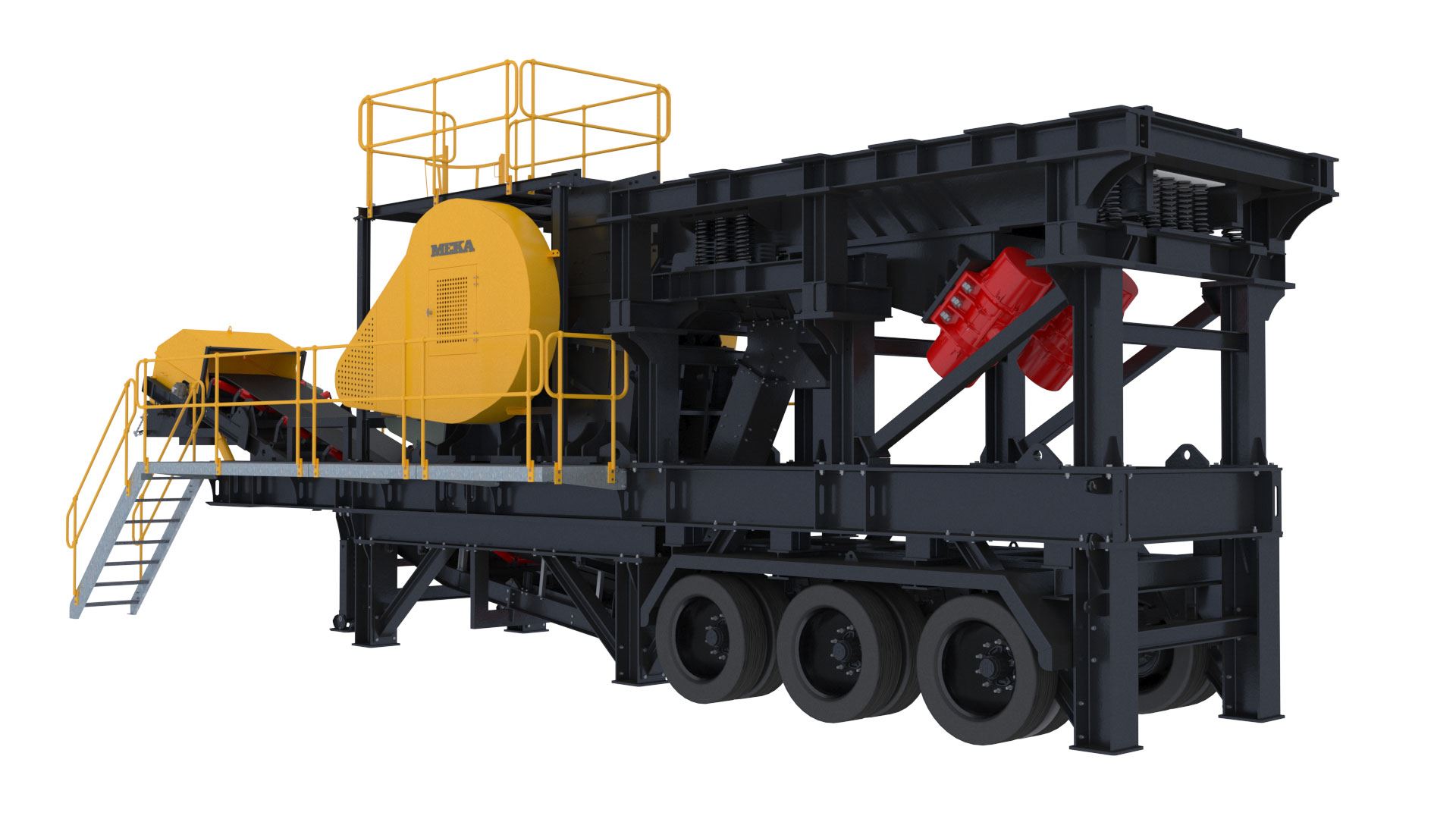

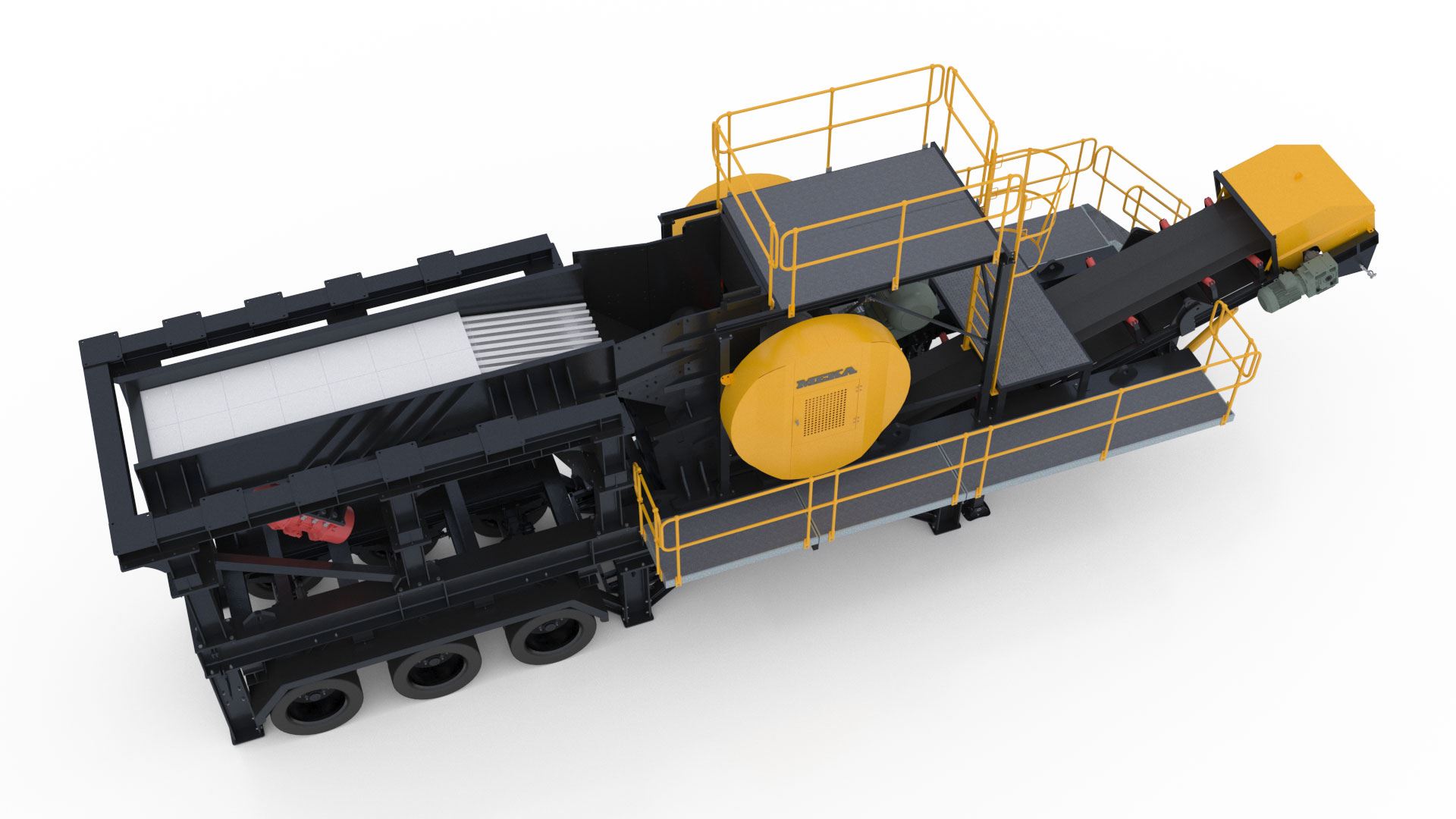

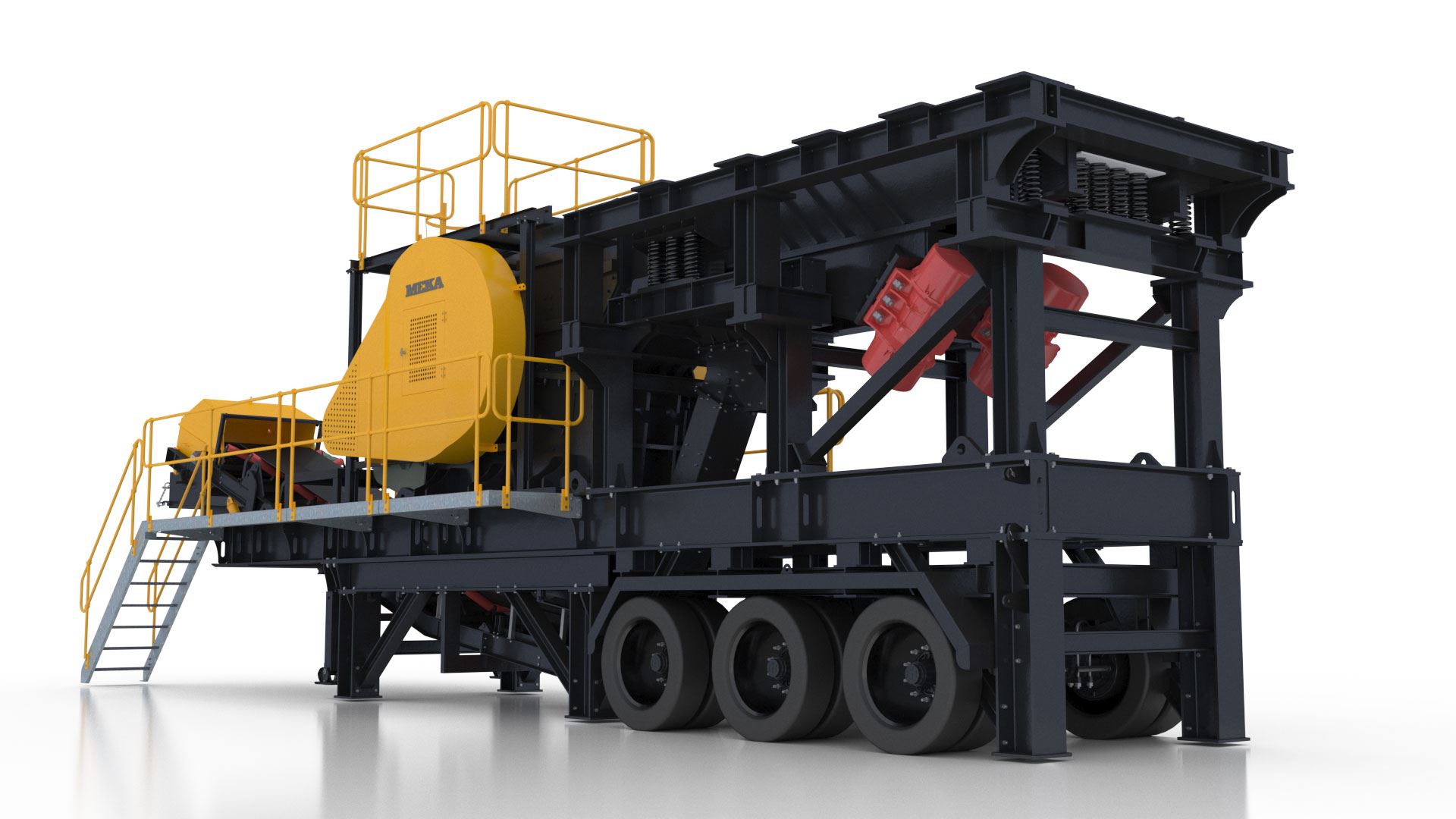

Portable jaw crushers are wheel-mounted rock crushing machines engineered for primary crushing applications. Suitable for crushing hard and soft rock, such as granite, basalt, limestone, and as well recycled materials, portable jaw crushers are the optimal choice if you want to move the crushing plant from one site to another periodically. They are easily transportable between production sites and often utilized in aggregates production and recycling applications.

MEKA Portable Jaw crushers combine the rugged reliability of our jaw crushers with the high stroke grizzly feeders for a high production portable primary crushing machine. Frequency inverter for feeder speed control to optimize the feed are also key components of this range to make your crushing process easier.

We offer a wide range of portable jaw crushers to fulfil your primary crushing needs in the aggregates and mining sectors, designed with many features aimed at high capacity production and ease of operation. All units are built for durability and constructed from a robust heavy duty chassis frame which is fully assembled on a single trailer and mounted on double or triple axle bogies. The simple, yet effective design includes many benefits for quick set-up and ease of maintenance, resulting in more uptime and higher productivity.

FEATURES


High Performance and Reliability
MEKA MJ Jaw Crushers;

• Large feed opening with high capacity reduction
• Reliable and highly productive due to chamber geometry and feed arrangement,
• Ideal nip angle for smooth material flow, high reduction efficiency and single-toggle operation with a deep crushing chamber
• Easy setting adjustment for simple and efficient operation


MEKA MGF Grizzly feeders;

• With by-pass chute to divert grizzly fines to discharge or optional reject cross conveyor for removing of fines, thereby maximizing throughput and reducing wear
• Frequency inverter for feeder speed control in order to provide step less regulation of the feed rate


Safe and easy to operate and maintain

• Operator-friendly unit with flywheel covers, spacious and accessible platforms make the daily operation and maintenance simpler, safer, and faster.

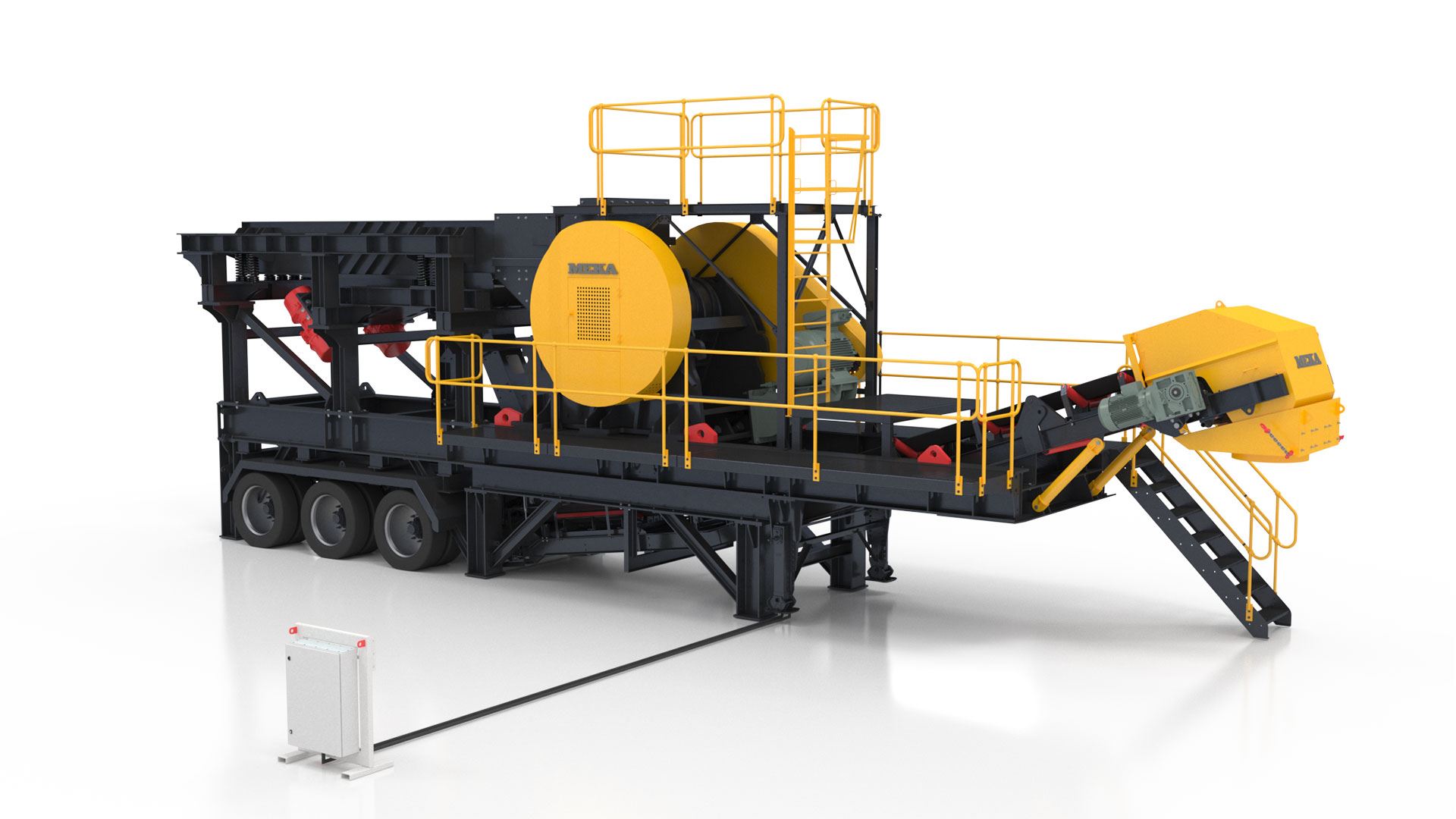

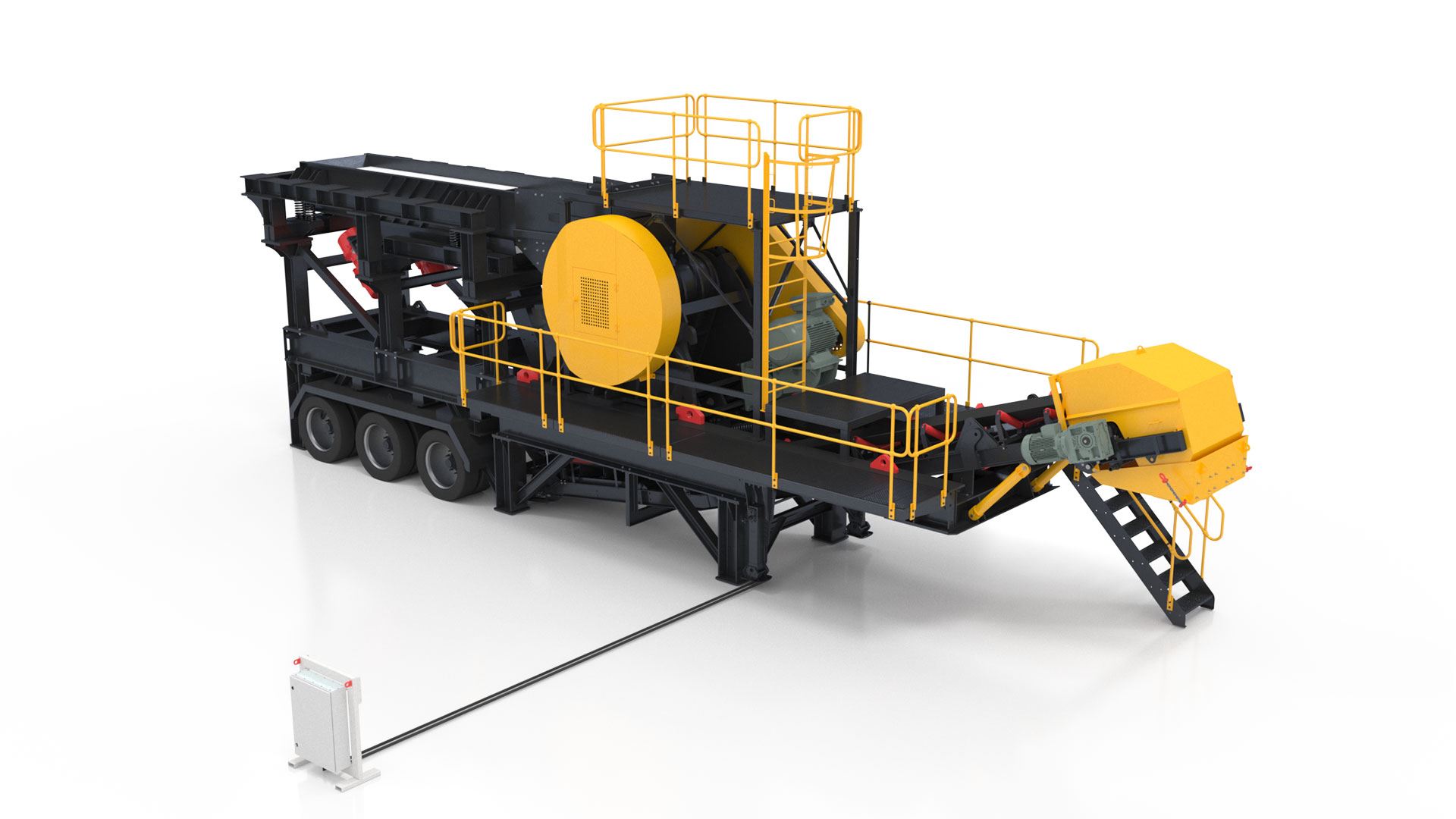

• Removable electrical control panel can be located on the ground during operation
• Crusher mounted safety guards and multiple emergency stop buttons for safe
• Low emissions due to electrical operation, minimizing environmental impact

ADVANTAGES


• Compact layout and excellent stability
• Heavy duty chassis beams, strength analysis on structural parts and quality components for durability.
• All onboard components are electrically driven giving reliability and minimal maintenance.
• Low cost per tonne due to electric operation
• Quick to set-up and easy access for service and maintenance, resulting in more uptime and higher productivity
• Capable of operating in the most hostile environments.


STANDARD SPECIFICATIONS


• Safety guards to crusher drives
• Liners for discharge chutes
• Hopper with abrasion resistant liners that can handle severe primary crushing applications
• Bypass chute
• Impact bed on discharge conveyor
• Maintenance platform with handrails and access ladder
• Self contained electrical switchgear cabinet with controls for feeder with variable frequency drive, crusher and discharge conveyor (includes plugs and receptacles)
• Emergency stop buttons
• 2” / 3 ½” King-pin, double or triple-axle bogie with air-brakes, travel lights, mudflaps, trailer suitable for 24 V supply


OPTIONAL EQUIPMENT


• Fixed feed hopper for truck loading
• Hydraulic rock breaker for oversize lumps
• Wire cloth screening element beneath the grizzly feeder to enable the removal of natural fines
• Bolt-in stepped type grizzly in place of standard bars
• Undercrusher high stroke pan feeder, collects high velocity jaw crusher discharge and grizzly fines, reducing conveyor maintenance
• On-board side conveyor
• Hydraulic support legs, which enable yet quicker and easier set-up without using heavy cranes
• Magnetic separator for the removal of metals from the end product
• Dust suppression water spray system
• Consult MEKA for additional hopper, crusher, conveyor, axle, jack, and power options


PORTABLE JAW CRUSHERS TECHNICAL SPECIFICATIONS

MPJ 60

MPJ 90

MPJ 110

FEEDER
Model MGF 0625 MGF 0625 MGF 0935 MGF 0935 MGF 1146 MGF 1146
Width Width 600 mm 24" 900 mm 35" 1 100 mm 43"
Length Length 2 500 mm 8' 3 500 mm 11' 4 600 mm 15'
Grizzly Length Grizzly Length 1 000 mm 3.3' 1 000 mm 3.3' 1 400 mm 4.6'
Grizzly Gap Adjustment Grizzly Gap Adjustment 40 - 50 - 60 mm 1.6" - 2" - 2.4" 55 - 75 mm 2.2" - 3" 40 - 50 - 65 mm 1.6" - 2" - 2.6"
Motor Power Motor Power 2 x 4.3 kW 2 x 5.9 HP 2 x 8 kW 2 x 10.9 HP 2 x 10 kW 2 x 13.6 HP
Hopper Volume Hopper Volume 6 m³ 8 yd³ 8 m³ 11 yd³ 10 m³ 13 yd³
CRUSHER
Model MJ 60 MJ 60 MJ 90 MJ 90 MJ 110 MJ 110
Feeding Opening Feeding Opening 610 x 380 mm 24" x 15" 900 x 650 mm 36" x 24" 1 070 x 810 mm 42" x 33"
Maximum Feed Size Maximum Feed Size 340 mm 13.4" 580 mm 22.8" 730 mm 29"
Capacity Capacity up to 110 mtph up to 120 stph up to 250 mtph up to 275 stph up to 430 mtph up to 474 stph
CSS Range Grizzly Gap Adjustment 40 -150 mm 1.6" - 6" 60 - 200 mm 2.4'' - 8'' 75 - 210 mm 3'' - 8.3''
Motor Power Motor Power 45 kW (50 Hz) 60 HP (50 Hz) 75 kW (50 Hz) 102 HP (50 Hz) 132 kW (50 Hz) 180 HP (50 Hz)
DISCHARGE CONVEYOR
Belt Width Belt Width 650 mm 25" 800 mm 31" 1 000 mm 39"
Length Length 7 000 mm 22' 12" 7 000 mm 22' 12" 7 000 mm 22' 12"
Motor Power Motor Power 5.5 kW 7.5 HP 7.5 kW 10 HP 11 kW 15 HP
TRANSPORT DIMENSIONS
Length Length 9 500 mm 31' 2'' 12 000 mm 39' 4'' 13 200 mm 43' 4''
Width Width 2 300 mm 7' 7'' 2 300 mm 8' 2'' 3 100 mm 10' 2''
Height Height 3 600 mm 11' 10'' 3 700 mm 12' 2'' 4 000 mm 13' 2''
Weight Weight 20 500 kg 45 200 lbs 33 000 kg 72 800 lbs 43 200 kg 95 200 lbs
OPERATING DIMENSIONS
Length Length 9 500 mm 31' 2'' 12 000 mm 39' 4'' 13 200 mm 43' 4''
Width Width 3 300 mm 10' 10'' 3 700 mm 12' 2'' 4 000 mm 13' 2''
Height Height 4 200 mm 13' 10'' 4 500 mm 14' 9'' 4 900 mm 16' 8''
Capacity figures shown apply to material weighing 1.6 tons per cubic meter, or 100 pounds per cubic foot.
Crusher performance may vary depending on the feed gradation, feed moisture content, crushability of the material, crusher rpm, installed power and the crushing circuit design. Please consult MEKA for specific applications.
