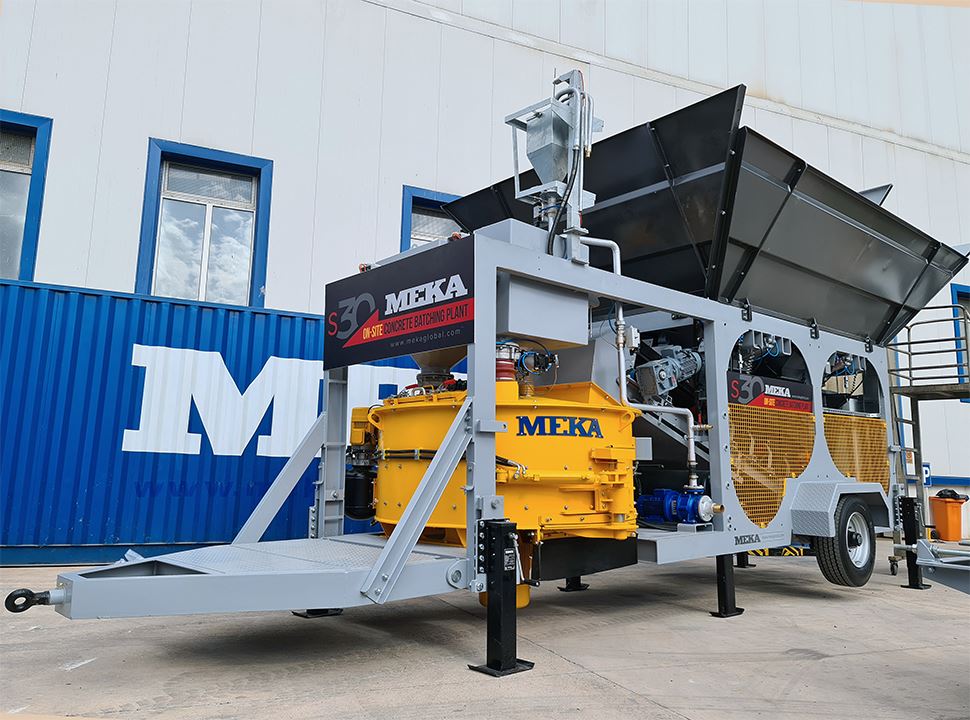

S30 Mobile Concrete Batching Plants
S30 Mobile Concrete Batching Plants
THE BEST CHOICE FOR PRACTICAL CONCRETE PRODUCTION ON TEMPORARY WORK SITES
ON-SITE TYPE CONCRETE BATCHING PLANT / MB-S30 On-Site Ready-Mix Concrete Plants engineered and manufactured by MEKA Global offer a more efficient and economical approach to the production of high quality concrete on small- and medium-sized construction sites and for a range of applications or temporary works. Its clever design and compact structure reduce transport costs and allow production to begin quickly.

PLANT CAPACITY

30 m³/hour

CONCRETE MIXER

Mixer Type Meka Single

Meka Pan Mixer

Mixer Capacity

0,5 m³ / cycle

Mixer Motor Power

18,5 kW

STORAGE & FEEDING

Aggregate Bins

4x 2,5 m³ Cross Type

Aggregate Feeding

From Ground Level

HOPPERS

Cement Weighing Hopper

300 kg

Water Weighing Hopper

160 kg

Additive Weighing Hopper

15 kg

HIGHLIGHTS / S30
  • Easy Transportation
    A complete plant, including the concrete transfer conveyor, can be delivered in a single 40‘ Open Top (OT) Container or aboard one standard truck.
  • Quick Start Up Time
    The plant can be started up within just 2–3 hours.
  • Super Mobility
    It can be towed very easily via its integrated hook within the working location, or between different areas on the site.
  • Zero Foundation
    There is no need for a special concrete foundation. A basic flat concrete surface is enough.
  • Small Installation Area Requirement
    The plants require only a small area for installation. There is no need to obtain permission for the installation.
  • Flexibility in Concrete Production
    Four different aggregates can be used in concrete production.
  • High-Quality Concrete Production
    It is very easy to produce high-quality concrete due to the PLC system and the precise weighing system that has been designed for all materials (aggregate, cement, water, additives), allowing weighing in separate weighing batches.
  • Low Operational and Maintenance Cost
    Its simple structure makes it very easy and economical to operate and maintain.
S30 / TECHNICAL SPECIFICATIONS

Metric

Imperial

Compacted Concrete Output 30 m³/h -
Mixer Capacity ( Compacted Concrete ) 0,5 m³ /cycle -
Mixer Type Pan Mixer
Mixer Motor Power 18,5 kW -
Aggregate Bins 4x 25 m³ Cross Type -
Aggregate Feeding From Ground Level
Aggregate Transfer Belt -
Air Compressor Piston Type (4 kW) -
Cement Weighing Hopper 300 kg -
Water Weighing Hopper 160 kg -
Additive Weighing Hopper 15 kg -
Cement Screw Conveyor Ø 193 x 5.000 mm -
Click for the comparison table of technical specifications of Meka Mobile Concrete Batching Plants.
