Aggregate Standards and Particle Size Distribution: A Global Reference

Every cubic metre of concrete, every tonne of asphalt and every kilometre of railway track passes a gradation test before it is ever placed. The test does not check whether the rock is strong, clean or well-shaped. It checks one thing: whether the proportions of stone sizes match a specification that an engineer trusts to perform. If the proportions are wrong, the strongest rock in the quarry cannot save the mix.

That is why aggregate standards exist, and that is why a crushing-and-screening plant is, ultimately, a specification-producing machine. The plant takes whatever the quarry face or the river bar delivers and reshapes it into something that fits the envelope drawn on a drawing in an office thousands of kilometres away. Every choice about chamber settings, mesh selection and screen layout traces back to one of those envelopes.

This article is a reference for the engineers, quality-control teams and project managers who live inside that loop. It compares the five most widely used aggregate standards in the world — ASTM (USA), EN (European Union), BS (England), GOST (Russian Federation) and JIS (Japan) — and shows, in plain language, how a particle size distribution curve is read, what the typical curves look like for material from a drilled-and-blasted quarry versus a river deposit, and how a plant should be configured to keep its output reliably inside the spec band rather than drifting back and forth across it.

The position MEKA takes throughout is simple: a standard is not a document to admire. It is a target to hit, repeatedly, shift after shift. The plant is what hits it.

Why Aggregate Standards Matter

An aggregate is a granular skeleton. In concrete it occupies roughly 70 % of the volume; in asphalt it carries the load while the bitumen binds; in railway ballast it transmits axle forces to the subgrade and drains water away from the sleeper. In every one of these roles the geometry of the skeleton — the relative proportions of large, medium and fine particles — determines whether the binder works, whether the surface drains, and whether the structure lasts.

Get the gradation right and the binder content stays low, the workability stays high and the strength climbs. Get it wrong and you are paying for excess cement or bitumen to compensate for a poorly packed stone matrix, or watching segregation, bleeding or rutting appear on site. Aggregate standards exist precisely so that a designer in one country can specify a mix and trust that a producer in another country will deliver something the design will tolerate.

Concrete, Asphalt, and Railway Ballast Have Different Standards

Even within a single country, the three main applications use three different specifications. Concrete aggregate is graded for packing efficiency and bond surface area; asphalt aggregate is graded for stability, voids and the asphalt-binder film thickness; railway ballast is graded for interlocking, drainage and resistance to fouling. The sieve sizes that matter, the tolerances allowed and the shape and cleanliness requirements are all different. A producer who treats all three markets as a single gradation problem will fail two of them.

The Five Major Global Standards

The MEKA Handbook lists the standards most commonly referenced on aggregate projects worldwide. The summary table below pairs each country with its concrete, asphalt and railway-ballast specifications. (Source: MEKA Crushing, Screening and Mining Equipment Handbook, p. 123 — Standards for Most Common Aggregate Applications.)

ASTM (USA)

The American Society for Testing and Materials publishes the dominant standard family across North America and is widely adopted in international and export-oriented projects. ASTM C 33 covers concrete aggregate (both fine and coarse). ASTM D 692 covers coarse aggregate for hot-mix asphalt. AREMA, in conjunction with ASTM C 33 size numbers, governs railway ballast gradations in the United States. ASTM uses inch-based sieve designations (No. 4, No. 8, ⅜ in., ¾ in.) but each sieve has a metric equivalent that travels well across borders.

EN (European Union)

The harmonised European standards EN 12620 (concrete aggregate), EN 13043 (asphalt aggregate) and EN 13450 (railway ballast) are mandatory across the EU and the European Economic Area. They share a common philosophy: aggregates are described by category (e.g., Gc 90/15 for coarse aggregate) and by a d/D pair that names the lower and upper sieve openings of the size fraction. The system is metric-only and integrated with the CE-marking framework.

BS (England)

The British Standards predate EN and were the dominant reference across the UK and Commonwealth countries. BS 882 specifies concrete aggregates and BS 63 specifies asphalt-related aggregate. Most active UK projects now reference EN, but BS documents remain in circulation for legacy works, heritage repair and contracts that quote them historically. Producers exporting to the UK should confirm which document the project actually calls up.

GOST (Russian Federation)

GOST is the standards system of the Russian Federation and is widely used across the Commonwealth of Independent States. GOST 8267-93 covers crushed stone and gravel for construction (both concrete and asphalt aggregate roles). GOST 7392-85 covers crushed-stone railway ballast. GOST documents tend to specify gradation in metric sieves with strict envelopes and are explicit about petrographic and frost-resistance testing.

JIS (Japan)

The Japanese Industrial Standard JIS A 5005-1987 governs crushed stone for concrete and is the principal aggregate reference inside Japan. As with EN, the system is metric and tightly tied to a national quality framework. Japanese projects abroad may reference JIS in the contract even when the local market normally works in another standard, so producers should clarify the gradation envelope before commissioning a plant.

Understanding Particle Size Distribution

A particle size distribution (PSD) — also called a gradation curve — is the result of a sieve analysis. It tells you, for any sieve in a standard series, what proportion of a sample passes through it. Because aggregate quality is dominated by the geometry of the stone skeleton, this single curve is the most important quality-control output a plant produces.

What Sieve Analysis Tells You

In a sieve test a known mass of dried aggregate is placed on the top of a stack of sieves arranged from largest opening to smallest. The stack is shaken; the mass retained on each sieve is weighed; and the cumulative percentage passing each sieve is calculated. The result, plotted, is the gradation curve. The numbers are mass fractions, not particle counts — a single 40 mm stone weighs many thousands of times more than a single grain of fine sand, so mass-based grading correctly reflects the skeleton geometry rather than the headcount of particles.

Reading a Size Distribution Curve

The curve is plotted with sieve opening (mm) on the X-axis and percent passing on the Y-axis. The X-axis is logarithmic, which compresses the wide range from 75 µm fines to 100 mm rip-rap into a single readable plot. A specification is shown as an envelope — an upper and a lower limit — and the producer's curve must sit inside the envelope at every sieve. A curve that exits the envelope at even one sieve is technically out of spec, even if every other sieve passes.

Quarry vs River Source — Different Curve Shapes

The shape of the curve depends on where the material came from and how it was reduced. Drilled-and-blasted quarry rock follows a family of curves that depend on the energy and pattern of the blast. River-deposited material follows a different family of curves shaped by transport sorting in the watercourse. The next two sections show the typical curves the MEKA Handbook publishes for both source types.

Quarry-Sourced Aggregate Distributions

VFB to ECB(64) — How Drilling and Blasting Affect Size Distribution

In a hard-rock quarry the run-of-mine material that lands on the muckpile after a blast already has a gradation. The plant's primary crusher does not start from a blank sheet — it starts from whatever the blast produced. The MEKA Handbook publishes a family of seven curves that describe the typical distributions seen at the muckpile, ordered from finest to coarsest:

Typical Curves for Different Quarry Methods

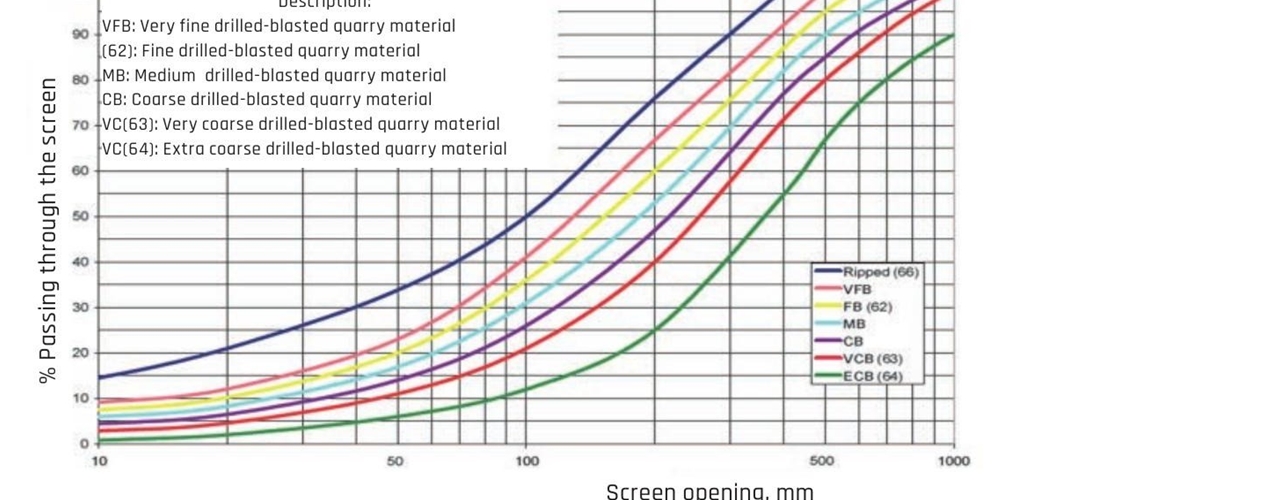

Reading Figure 1 from top to bottom at any given sieve opening, the Ripped (66) curve sits highest — meaning the largest percentage of material has already passed that sieve, i.e., the muckpile is finest. The ECB (64) curve sits lowest — meaning the muckpile is coarsest. Between them, VFB through CB describe progressively coarser drilled-and-blasted feeds, while VCB (63) and ECB (64) describe deliberately under-energised blasts that leave very large fragments on the muckpile.

Why this matters for the plant: a coarser muckpile demands more reduction work and biases the design toward a larger primary jaw and a longer downstream crushing train. A finer muckpile shifts work toward screening and washing because more fines are already present and must be either marketed or removed. Capacity and product yield calculations both start with the curve in Figure 1.

River Material Variability

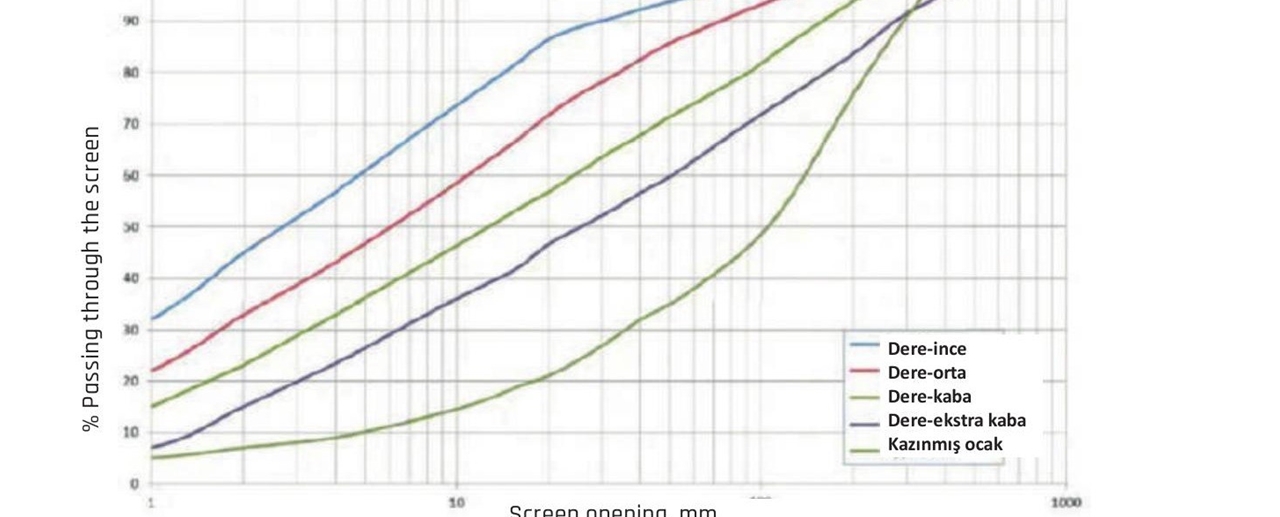

River-deposited aggregate is sorted by water flow over geological time. Curves are typically smoother than quarry curves and the source vocabulary is slightly different. The MEKA Handbook labels the five typical curves using their original Turkish field names; the English equivalents are:

• Dere-ince — fine river material, dominated by sand and pea gravel; the finest curve in the family.
• Dere-orta — medium river material; balanced sand-to-gravel proportion typical of many concrete sand sources.
• Dere-kaba — coarse river material; gravel-dominant, with some larger cobbles.
• Dere-ekstra kaba — extra-coarse river material; large rounded cobbles, low fines content.
• Kazınmış ocak — material scraped from a mined or worked-over deposit; the coarsest curve, with the steepest transition from fines to large stone.

A river plant operator usually has less control over the feed gradation than a quarry operator does, because the deposit was sorted before extraction. The compensation comes downstream: classification screens, hydrocyclones and sand-washing equipment recover the desired gradation by adding or removing specific size fractions to match the spec.

Standard-Specific Gradation Requirements

The standards listed in Table 1 each define their own gradation envelopes. The two with the broadest international reach are ASTM C 33 and EN 12620; understanding the structure of these two carries most projects.

ASTM C 33 — Concrete Aggregate Limits

ASTM C 33 specifies fine and coarse aggregate separately. The fine-aggregate gradation runs from the 9.5 mm (⅜ in.) sieve down to the 150 µm (No. 100) sieve, with limits set on each intermediate sieve (No. 4, No. 8, No. 16, No. 30, No. 50, No. 100). A single fineness modulus, calculated from the cumulative percentages retained on a defined set of sieves, must fall in the range 2.3–3.1 for the sand to be acceptable as concrete aggregate.

Coarse aggregate is described by size numbers — #1, #2, #3, #357, #4, #467, #5, #56, #57, #6, #67, #7, #8, #89 — each of which is a specific gradation envelope. Common concrete sizes are #57 (nominal 25.0 to 4.75 mm) and #67 (nominal 19.0 to 4.75 mm); railway ballast frequently calls up the coarser #4 or #3 size numbers under AREMA. For project-specific tolerances, refer to the most recent published edition of ASTM C 33.

EN 12620 — Aggregate Categories and Gradings

EN 12620 names every aggregate fraction by a d/D pair, where d is the lower designated sieve and D is the upper. A 4/16 coarse aggregate, for example, is intended to pass mostly between the 4 mm and 16 mm sieves. Categories then describe how tightly the gradation must hug that nominal range:

• Gc 90/15 — strict coarse-aggregate category: at least 90 % must pass D, no more than 15 % may pass d.
• Gc 85/20 — slightly looser coarse-aggregate category.
• GF 85 — fine-aggregate category, nominal 0/4 mm.
• GA 90 / GA 85 — all-in (combined) aggregate categories used for unbound layers.

EN's strength is its consistency: the same d/D and category notation appears across EN 12620 (concrete), EN 13043 (asphalt) and EN 13242 (unbound). For exact percentage limits, refer to the current version of each EN standard.

Comparing ASTM vs EN: Which is Stricter?

There is no universally stricter standard. ASTM C 33 is more granular at the sieve-by-sieve level and demands a fineness-modulus check that EN does not. EN 12620 demands a tighter category statement (e.g., Gc 90/15) but allows the producer some freedom inside the envelope. In practice the answer depends on the size number or category that the project specifies — and on how tightly the producer's screen mesh selection holds the cuts. A side-by-side overview:

Plant Configuration to Meet Standards

A standard names a target. The plant is what hits it. The configuration choices that decide whether a producer's daily gradation lands inside the envelope or drifts across it are well understood, and they are the same regardless of which standard is on the project drawing.

Multi-Stage Crushing for Gradation Control

A single crushing stage produces a wide product band. Two stages narrow it; three stages narrow it further and add the cubic shape that asphalt and high-performance concrete prefer. A typical hard-rock layout — primary jaw, secondary cone, tertiary cone (or vertical-shaft impactor for shape) — gives the operator three independent levers for moving the gradation curve. Closing the circuit on the secondary or tertiary stage by sending oversize back to the same crusher locks the upper end of the curve and is the single most powerful tool for meeting tight upper-sieve limits.

Vibrating Screen Setup for Spec Compliance

Screen meshes do the actual cutting. Mesh selection determines which sieve openings the plant produces; deck count determines how many cuts can be made simultaneously. A 2-deck inclined screen produces three products (oversize, mid, undersize); a 3-deck screen produces four. Inclined screens deliver high tonnage at lower precision; horizontal screens deliver tighter cuts at lower throughput. For a producer holding a specification with a narrow envelope on the upper sieves, a horizontal final screen with carefully selected mesh and adequate screening area is usually the right answer.

Washing for Fines Removal

Many concrete and high-end asphalt specifications cap the percentage passing the smallest sieve in the series — typically 75 µm or 63 µm — and many sources, especially weathered quarry rock and river sand, naturally exceed that cap. Washing equipment (bucket-wheel sand washers, fine-material screws, dewatering screens) removes these unwanted fines and brings the lower end of the gradation curve back inside the envelope. Adding a wash stage is also the only practical answer when the project specifies clay-content or methylene-blue limits that crushing alone cannot satisfy.

Frequently Asked Questions

What is ASTM C 33?

ASTM C 33 is the American standard for concrete aggregate. It defines limits for fine aggregate (sieve openings from 9.5 mm down to 150 µm), gives a list of size numbers for coarse aggregate (#4, #57, #67 and others) and requires fine aggregate to have a fineness modulus between 2.3 and 3.1. It is the dominant concrete-aggregate reference in the United States and is widely cited internationally.

What's the difference between EN 12620 and BS 882?

BS 882 is the older British concrete-aggregate standard; EN 12620 is the harmonised European standard that replaced it for most active UK projects. The two documents are conceptually similar but use different category notations and different test methods. Most current UK contracts call up EN 12620; BS 882 is still encountered on legacy works, heritage projects, and contracts that quote it historically.

How do I read a particle size distribution curve?

Find the sieve opening on the X-axis (logarithmic scale, in mm), trace upward to the curve, then read across to the Y-axis to get the percent passing. A specification appears as an envelope — an upper and a lower line; the producer's curve must stay inside the envelope at every sieve, not just on average.

What gradation is needed for high-strength concrete?

Most high-strength concrete designs in the ASTM tradition use a #57 or #67 coarse aggregate combined with a fine aggregate whose fineness modulus sits in the upper part of the 2.3–3.1 band, typically around 2.7–3.0. The exact selection depends on the maximum aggregate size, the cement content and the workability target — refer to the project mix design.

Can I use the same aggregate for concrete and asphalt?

Usually no. The two applications demand different gradation envelopes, different shape requirements (asphalt is more sensitive to flakiness) and different cleanliness limits (asphalt is more tolerant of certain fines, less tolerant of others). A producer aiming at both markets normally runs two product lines or accepts that one of the two outputs will be sub-optimal.

Why does my aggregate fail the gradation test?

The three most common causes are: a crusher operating in a choke-fed condition that produces too many fines; a screen mesh selection that does not match the spec sieve openings; and natural source variability that the plant is not configured to absorb. Diagnosing which one applies is straightforward — sample at the discharge of each stage in turn and find where the curve first goes out of envelope.

What's the most common standard internationally?

ASTM and EN dominate global use. ASTM is most common in the Americas and on US-influenced export projects; EN is most common across Europe and on EU-funded projects worldwide. GOST predominates across the Commonwealth of Independent States. JIS predominates inside Japan. The choice for any specific project is set by the contract, not by geography alone.
