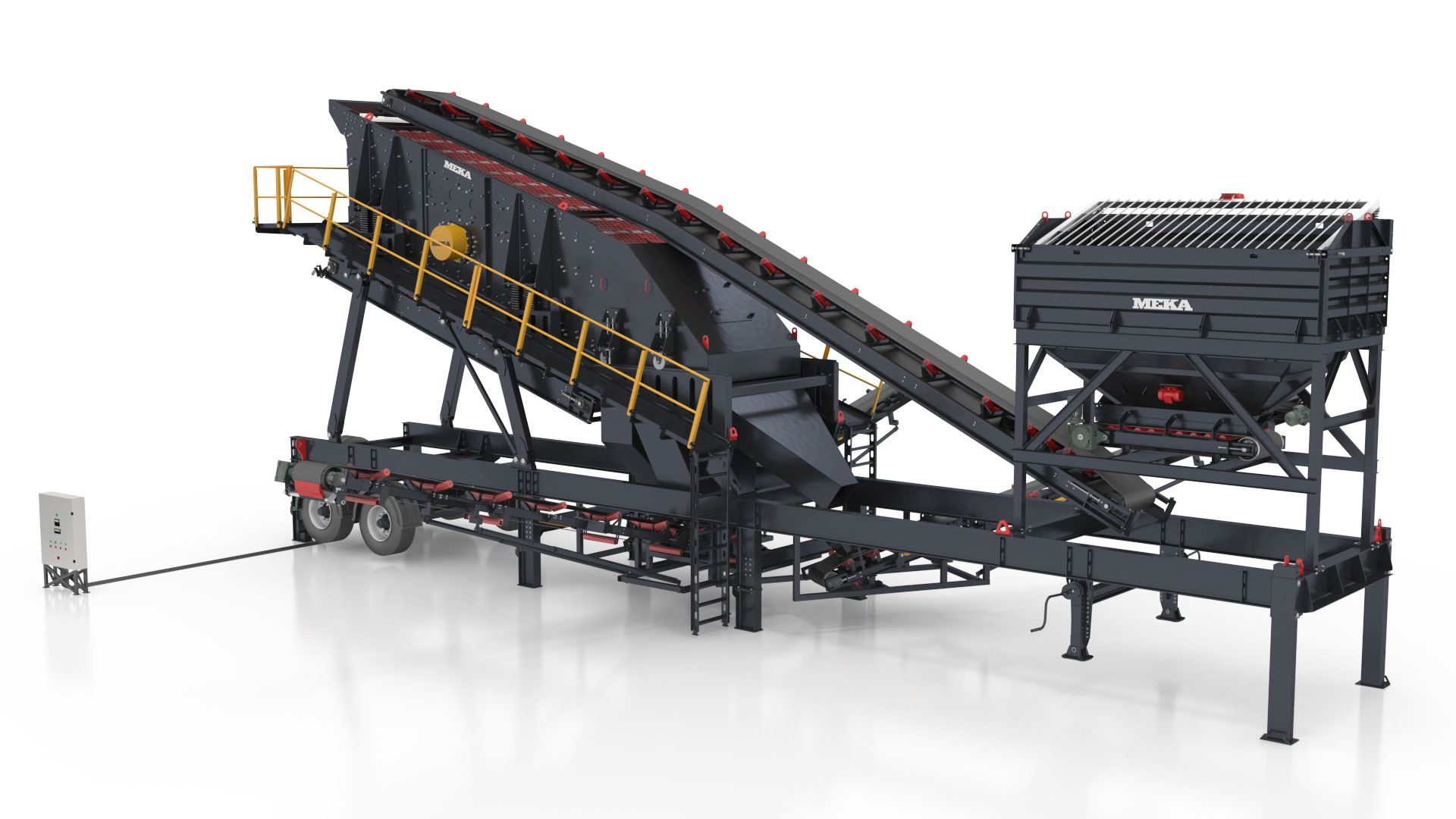

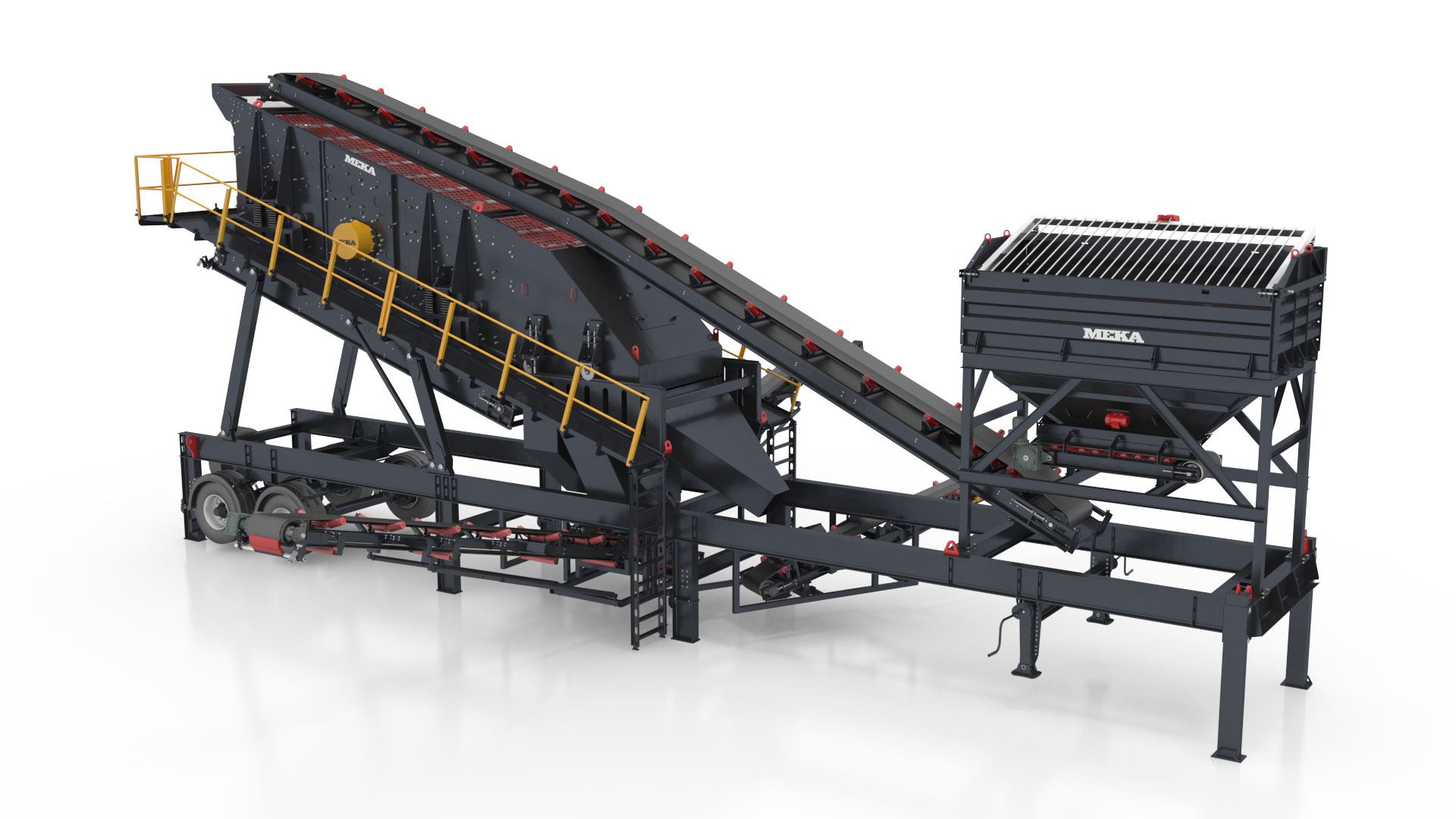

Portable Inclined screening plants are wheel-mounted, and have been designed for small to medium sized operations for splitting of up to 4 products. Plant includes a feed hopper with belt feeder, feed conveyor, and product conveyors. Powered by electricity, they are the optimal choice if you want to move the plant from one site to another periodically.
We offer a wide range of units to fulfil your needs, designed with many features aimed at ease of operation. With many advanced design features common throughout this range, all models combine mobility and flexibility, with high quality production, maximum uptime and low cost per tonne operation.

FEATURES

High Performance and Reliability
MEKA MS Screens;

• Highly efficient and accurate on board for product classification, produces up to 3 grades of aggregate and 1 grade of sand
• Chutes lined with abrasion resistant steel plates
• Premium quality components for durability and wear lined impact zones
• Quick and easy replacement of wear parts, which keeps your equipment productive with minimal downtime
• All onboard components are electrically driven giving reliability and minimal maintenance
• Low cost per tonne due to operation through connection to electrical mains supply
• Quick to set-up and easy to transport as one unit, resulting in more uptime and higher productivity.

MEKA MBF Belt feeders;

• Feed hopper and belt feeder providing the desired, continous feed rate to
• Rugged design and features such as robust, heavy duty idlers, frames, abrasion resistant liners and chute work help significantly increase service life

Safe and easy to operate and maintain

• Operator-friendly unit with spacious and accessible platforms make the daily operation and maintenance simpler, safer, and faster.
• Drive safety guards and multiple emergency stop buttons for safe operation.
• A number of sensors at different key locations to ensure a trouble free operation and prevent costly breakdowns
• Removable electrical control panel can be located on the ground during operation
• Low emissions due to electrical operation, minimizing environmental impact

ADVANTAGES

• Compact layout and excellent stability
• Built for hard and abrasive rock
• Heavy duty chassis beams, strength analysis on structural parts and quality components for durability.
• All onboard components are electrically driven giving reliability and minimal maintenance.
• Low cost per tonne due to electric operation
• Quick to set-up and easy access for service and maintenance, resulting in more uptime and higher productivity
• Capable of operating in the most hostile environments.

STANDARD SPECIFICATIONS

• Safety guards to drives
• Steel Wire cloth
• Steel coil springs
• Maintenance platform with handrails and access ladder
• Self contained electrical switchgear cabinet with controls for feeder, and belt conveyors (includes plugs and receptacles)
• Electrical connection to mains supply
• Emergency stop buttons
• 2” / 3 ½” King-pin, double-axle bogie with air-brakes, travel lights, mudflaps, trailer suitable for 24 V supply

OPTIONAL EQUIPMENT

• Hydraulic support legs, which enable yet quicker and easier set-up when the plant is transported to another location without using heavy cranes
• Dust suppression water spray system
• Washing system for wet processing, including and fine/coarse material washers
• Rubber and Polyurethane media for the of highly corrosive materials
• Manual or Hydraulic tipping reject grid
• Consult MEKA for hopper, , axle, jack, and power options

PORTABLE INCLINED SCREENS TECHNICAL SPECIFICATIONS

metric imperial	MPSP 1650/3	MPSP 2050/3	MPSP 2060/3
	HOPPER
Volume Volume	10 m³ 13 yd³	10 m³ 13 yd³	10 m³ 13 yd³
	BELT FEEDER
Belt Width Belt Width	800 mm 31"	1 000 mm 39"	1 000 mm 39"
Length Length	2 000 mm 6 ft 7 in	2 000 mm 6 ft 7 in	2 000 mm 6 ft 7 in
Motor Power Motor Power	5.5 kW 7.5 HP	5.5 kW 7.5 HP	5.5 kW 7.5 HP
	FEEDING CONVEYOR
Belt Width Belt Width	800 mm 47"	1 000 mm 63"	1 000 mm 63"
Length Length	11 000 mm 36' 1"	11 000 mm 36' 1"	12 000 mm 36' 1"
Motor Power Motor Power	2 x 5.5 kW 2 x 5.5 HP	2 x 7.5 kW 2 x 7.5 HP	2 x 7.5 kW 2 x 7.5 HP
	SCREEN
Model	MS 1650/3 MS 1650/3	MS 2050/3 MS 2050/3	MS 2060/3 MS 2060/3
Belt Width Belt Width	1 600 mm 5.2'	2 000 mm 6.6'	2 000 mm 6.6'
Length Length	5 000 mm 16.4'	5 000 mm 16.4'	6 000 mm 20'
Decks Decks	3 3	3 3	3 3
Motor Power Motor Power	15 kW 20 HP	18.5 kW 25 HP	22 kW 30 HP
	BOTTOM CHUTE CONVEYOR
Belt Width Belt Width	1 200 mm 47"	1 600 mm 63"	1 600 mm 63"
Length Length	5 000 mm 16' 5''	5 000 mm 16' 5''	6 000 mm 19' 8''
Motor Power Motor Power	2 x 4 kW 2 x 5.5 HP	2 x 5.5 kW 2 x 7.5 HP	2 x 5.5 kW 2 x 7.5 HP
	FRONT CHUTE CONVEYORS (2 PCS)
Belt Width Belt Width	650 mm 26"	800 mm 31"	800 mm 31"
Length Length	8 000 mm 26' 3''	8 000 mm 26' 3''	8 000 mm 26' 3''
Motor Power Motor Power	5.5 kW 7.5 HP	7.5 kW 10 HP	7.5 kW 10 HP
	FRONT CHUTE CONVEYORS (2 PCS)
Length Length	15 000 mm 49' 3''	15 000 mm 49' 3''	16 400 mm 53' 10''
Width Width	2 800 mm 9' 2''	3 200 mm 10' 6''	3 200 mm 10' 6''
Height Height	4 300 mm 14' 1''	4 300 mm 14' 1''	4 300 mm 14' 1''
Weight Weight	34 000 kg 75 000 lbs	36 000 kg 79 400 lbs	38 000 kg 83 800 lbs
	OPERATING DIMENSIONS
Length Length	15 000 mm 49' 3''	15 000 mm 49' 3''	16 400 mm 53' 10''
Width Width	15 000 mm 49' 3''	15 600 mm 51' 2''	15 600 mm 51' 2''
Height Height	7 200 mm 23' 8''	7 200 mm 23' 8''	7 600 mm 24' 11''
