Pan Feeders with Grizzly Scalper

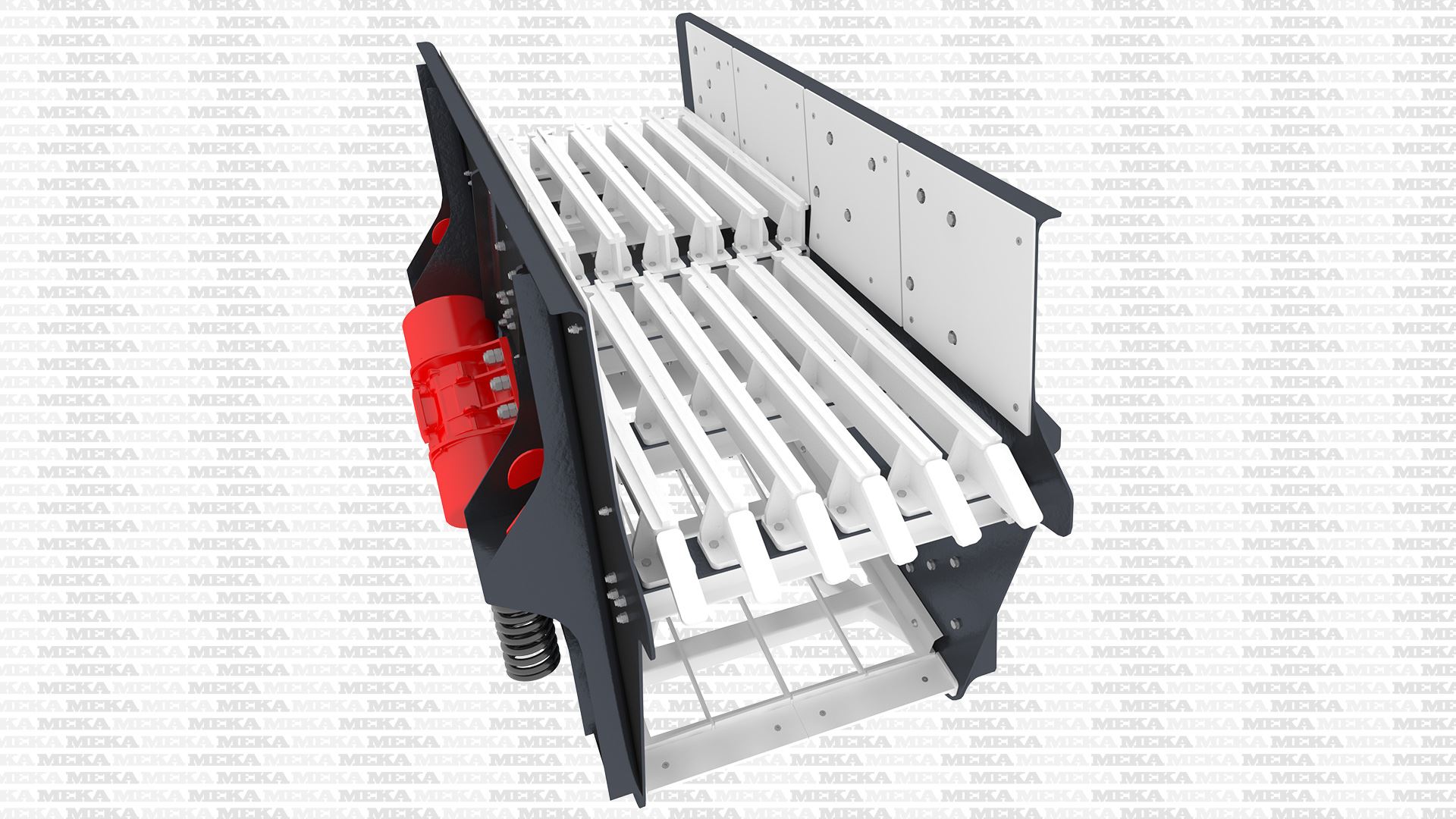

MSF units combine a separate pan feeder with a scalper consisting of a stepped grizzly on the upper deck and a screening media on the lower deck.The result is better flow control, greatly superior fines removal and optimum crusher performance.
Applications
Pan feeders with grizzly scalper are utilized in the primary crushing stage, typically when excessive clay or an abundance of fines are present.
They scalp the primary feed allowing fines to bypass the primary crusher. Screening the fines before the crusher results in higher overall capacity of the primary crushing stage
Why MEKA Pan Feeders with Grizzly Scalper?
- Right choice when there are a lot of fines
- Pan feeders with grizzly scalpers are utilized in the primary crushing stage, typically when excessive clay or an abundance of fines are present.
- Can remove soil and dirt before the plant
- MSF units combine a separate pan feeder with a double-deck grizzly scalper that has a stepped grizzly on the top deck. The result is better flow control, and greatly superior fines removal.
- Allows undersize to by-pass the primary crusher
- Screening the fines before the crusher results in a higher overall capacity of the primary crushing stage
- Right choice with gravel applications
- The separate scalper unit offers very good separations since it runs independently of the feeder.
Pan Feeders with Grizzly Scalper Technical Specifications
MSF 0965 |
MSF 1176 |
MSF 1390 |
MSF 1690 |
MSF 1890 |
|
| W x L / Feeder (mm x mm) | 900x3500 | 1100x4600 | 1300x5000 | 1600x5000 | 1800x5000 |
| Drive @50hz (kW) | 2x5.5 | 2x7.5 | 2x12 | 2x13.9 | 2x13.9 |
| Drive @60hz (kW) | 2x4.2 | 2x8 | 2x11 | 2x16.5 | 2x16.5 |
| Exciter Drive (kW) | - | 18.5 | 22 | 30 | 37 |
| Exciter Drive (Speed) | - | 500-800 | 500-800 | 500-800 | 500-800 |
| W x L / Scalper (mm) | 1000x3000 | 1200x3000 | 1400x4000 | 1900x4000 | 1900x4000 |
| Power @50hz (kW) | 2x6.1 | 2x7.5 | 2x12 | 2x22.6 | 2x22.6 |
| Power @60hz (kW) | 2x7.5 | 2x10.6 | 2x16.5 | 2x30 | 2x30 |
| *Capacity (mtph) | 250-400 | 400-640 | 500-825 | 650-1000 | 700-1120 |
| Maximum Feed Size (mm) | 600 | 800 | 900 | 1200 | 1350 |
*At specified inclination and for material weighing 1.6 t/m³ or 100 lbs/ft³.Capacity values are indicative only and depend not only on feeder size but also on feeder inclination, feed gradation, etc.

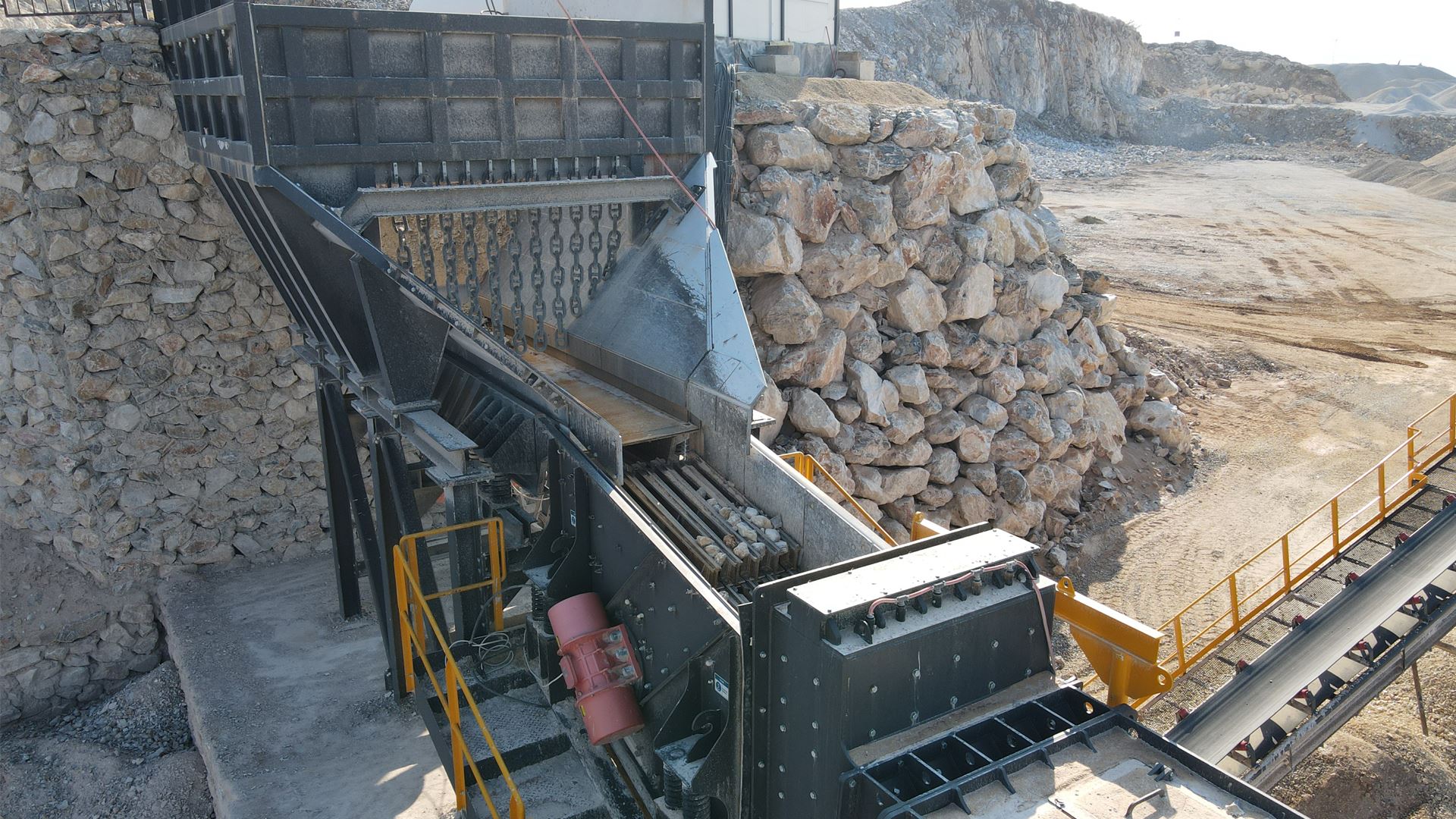

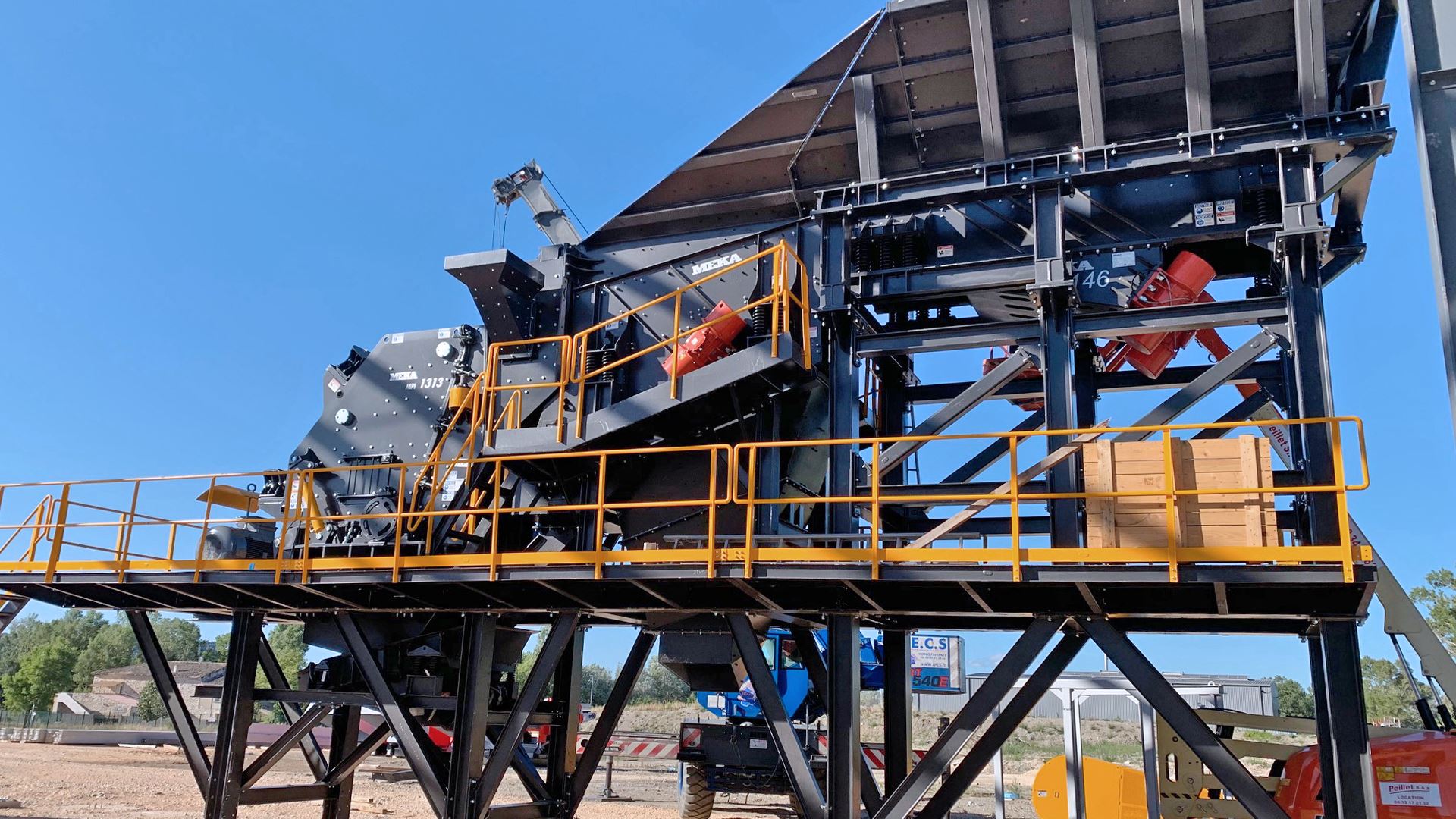

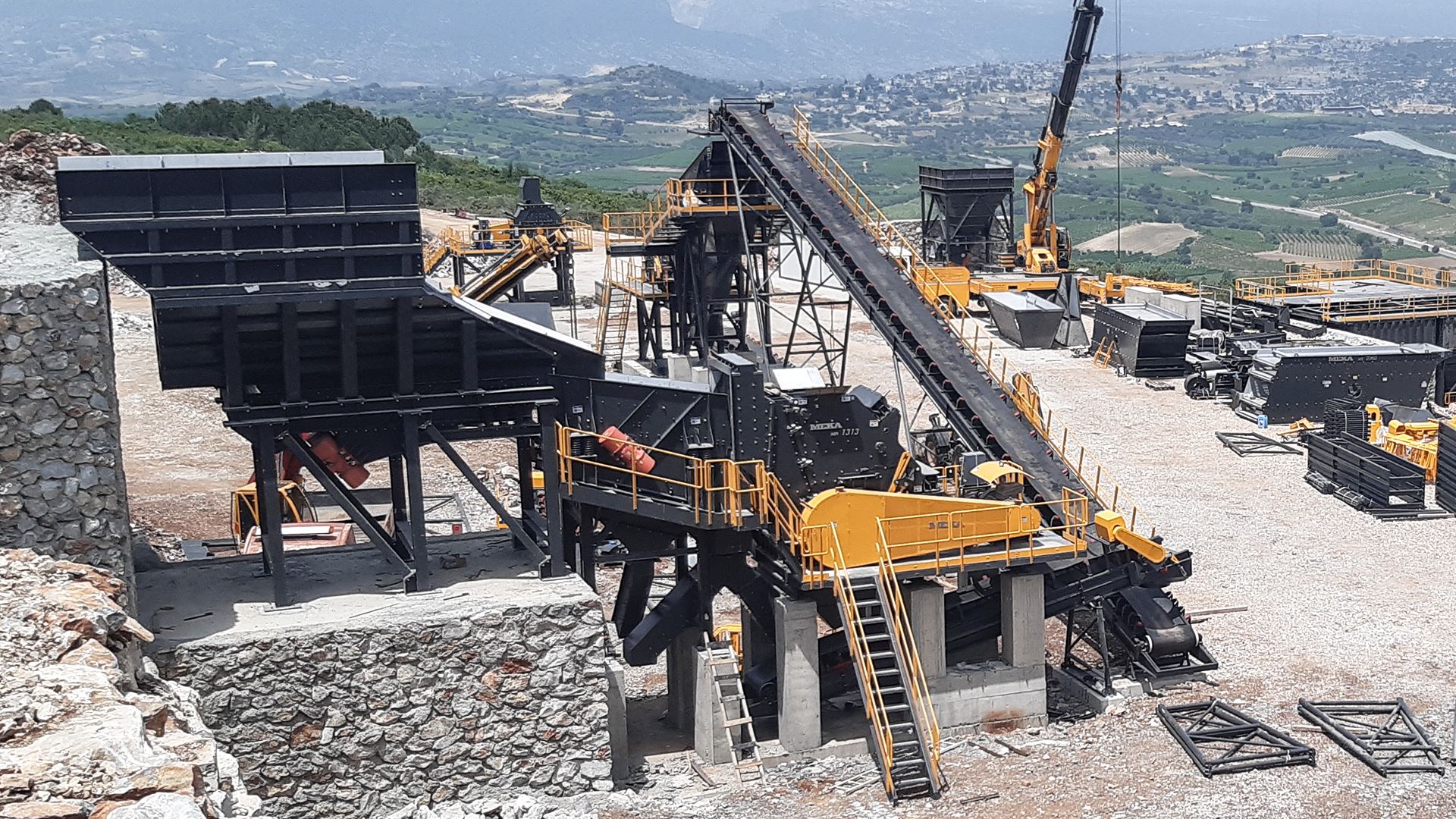

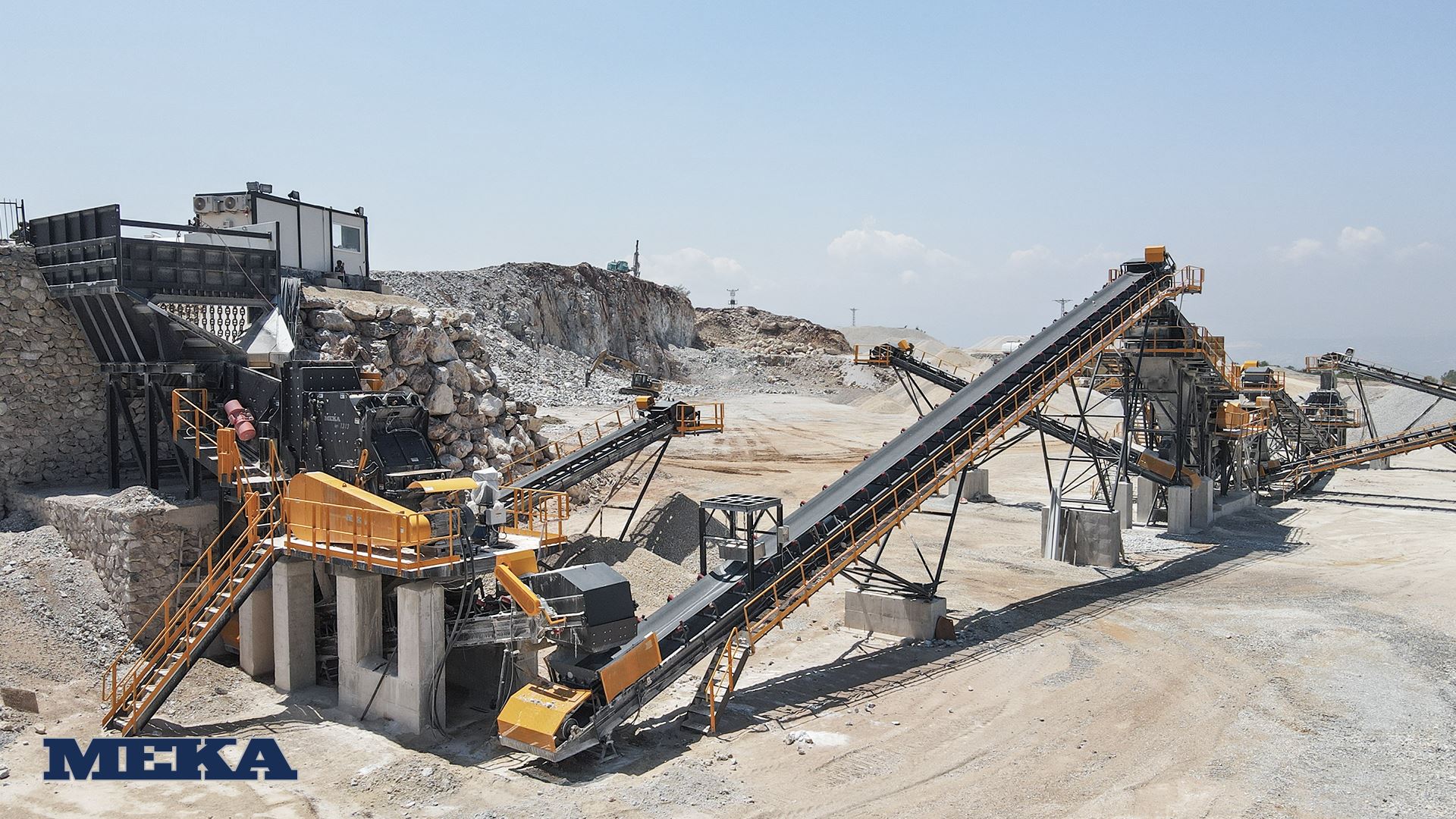

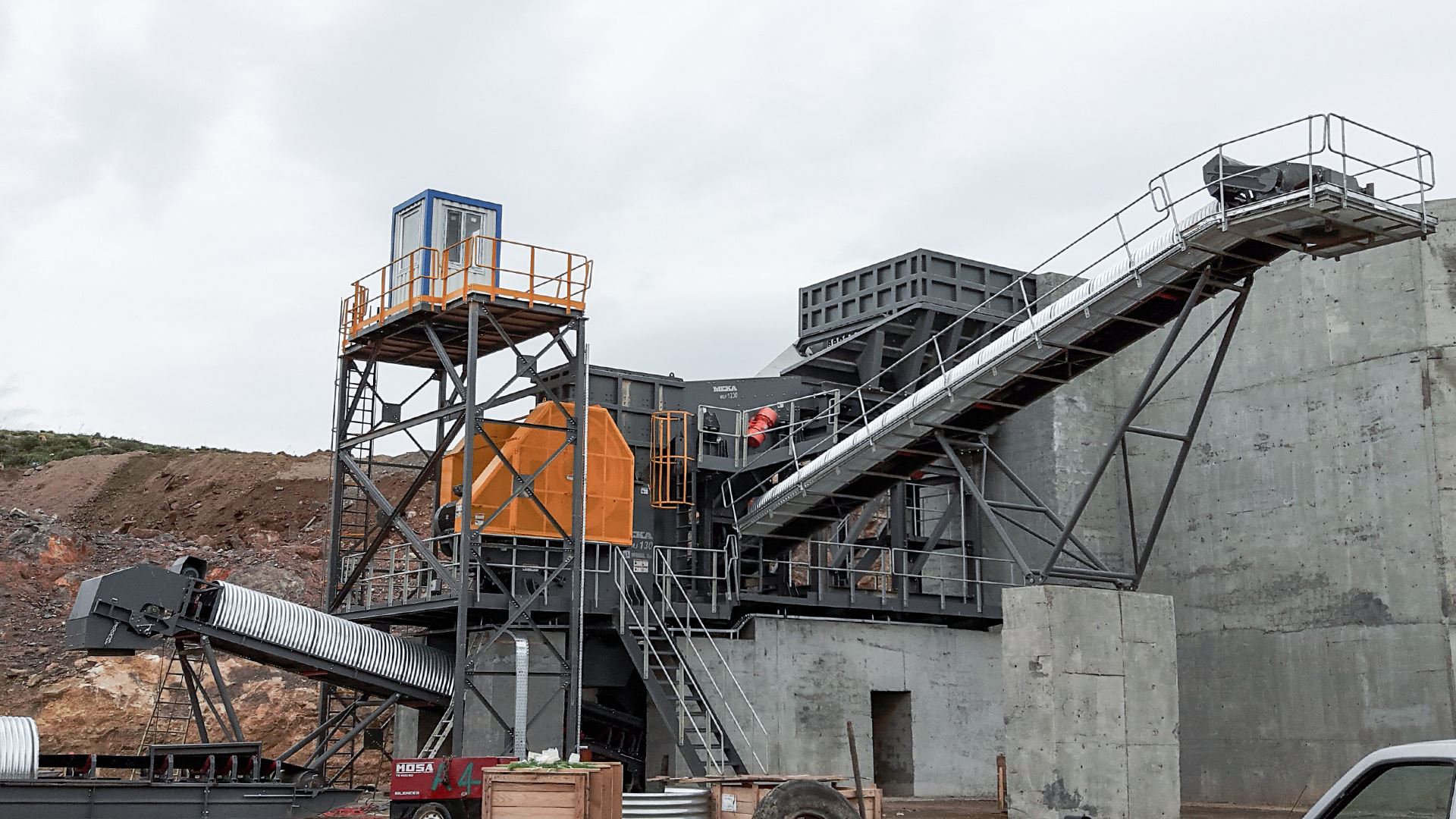

Pan Feeders with Grizzly Scalper Gallery
What are Pan Feeders with Grizzly Scalper?
Pan Feeders are also known as vibratory feeders and their motion type is linear.They fulfill the function of constant feeding of the material. Material moves forward on a pan with wear-resistant liners.
Scalpers resist to plugging and blinding and ensure that the material that will bypass the crusher is scalped and the oversize is fed to the crusher.
Types of Pan Feeders with Grizzly Scalper
How Does Pan Feeders with Grizzly Scalper Work?
Advantages of Using Pan Feeders with Grizzly Scalper
Pan Feeders with Grizzly Scalper Processes Applications
Two independent unbalanced vibrating motors, rotating in opposite directions, give the feeder a linear motion that moves the material forward on the scalper.
The pan feeder and scalper unit is one of the most cost-effective initial investment solutions when used together in applications involving large quantities of fine and clay in the feed materials.
The pan feeder and scalper unit is one of the most cost-effective initial investment solutions when used together in applications involving large quantities of fine and clay in the feed materials.
