K 110 model is designed for maximum capacity, flexibility, efficiency, and reliability for producing all types of high-quality in mass production. Fully galvanized modular main chassis allows easy transportation in 40'OT containers and perfect rust protection for longevity.

PLANT CAPACITY

105-117 m³/hour

CONCRETE MIXER

Mixer Type

Twin shaft Mixer

Mixer Capacity

2,25 m³ / cycle

Mixer Motor Power

2X 37 kW

STORAGE & FEEDING

Aggregate Bins

4x25 m³ Inline Type/ 4x35m³ Inline Type

Aggregate Feeding

Ramp or Pre-Feeding System

HOPPERS

Cement Weighing Hopper

1.250 kg

Water Weighing Hopper

700 kg

Additive Weighing Hopper

20 kg

K-110 Catalogue5449 KB

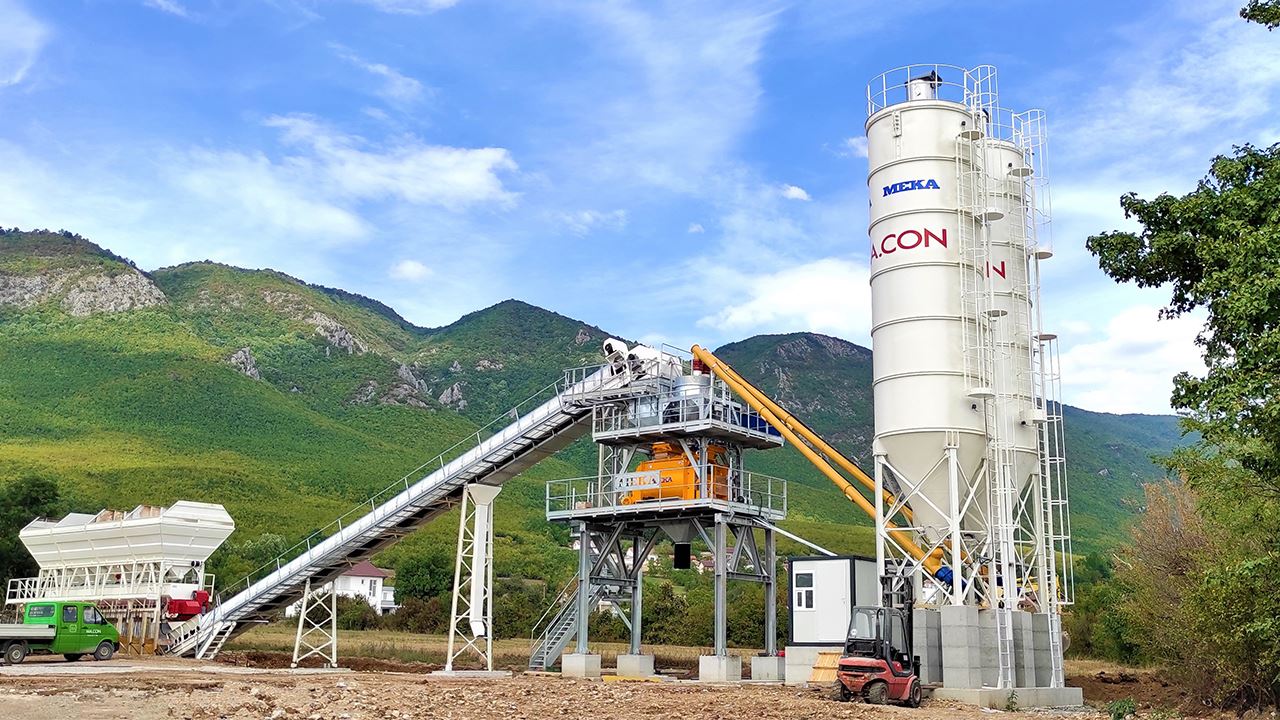

K 110 Stationary Concrete Batching Plant

HIGHLIGHTS / K-110

'Multi-Purposed Production
Thanks to its multi-purpose Meka Twin Shaft Mixer located at the heart of the plant, the K 110 can produce any type of concrete (Ready-mix concrete, CVC, precast, etc). This exceptional productivity power gives the investor a significant business advantage.
Ultra Performance and Smart Solution
MEKA K 110 Compact concrete batching plants are flexible, durable, and give class-leading productivity. The plant is preferred by contractors for ready-mix concrete needs, and ready-mix concrete firms for an efficient, unique, and fast solution.
Extra Production Capacity
The plant has max concrete production capacity due to its additional aggregate holding hopper which shortens the cycle time.
Hot Dip Galvanized Construction
A completely galvanized heavy and stable main chassis allows extreme durability, safe transportation, continuous long-life operation, and sensitive weighing by minimizing the vibrations to the scales.
Suitable for Container Transport
Concerned about Transport costs? Nowhere is too far or too expensive to supply or purchase a proper concrete batching plant, as our K 110 compact model fits in standard 40’ OT containers.
High Aggregate Storage Capacity
K 110 Compact concrete plant comes with separate high aggregate storage capacity bins. While offering 4x25 m³ capacity as a standard much more variants are among the possible options. The aggregate bins have got 2 or 4 independently controlled pneumatic discharge gates per compartment.

K-110 / TECHNICAL SPECIFICATIONS

	Metric	Imperial
Compacted Concrete Output	105-117 m³/h	-
Mixer Capacity ( Compacted Concrete )	2,25 m³ /cycle	-
Mixer Type	Twin shaft Mixer
Mixer Motor Power	2X37 kW	-
Aggregate Bins	4x25 m³ Inline Type/ 4x35m³ Inline Type	-
Aggregate Feeding	Ramp or Pre-Feeding System
Aggregate Transfer	Belt	-
Air Compressor	Piston Type (7,5 kW)	-
Cement Weighing Hopper	1.250 kg	-
Water Weighing Hopper	700 kg	-
Additive Weighing Hopper	20 kg	-
Cement Screw Conveyor	Ø 273 x 11.500 mm	-

Click for the comparison table of technical specifications of Meka Mobile Concrete Batching Plants.
