C120

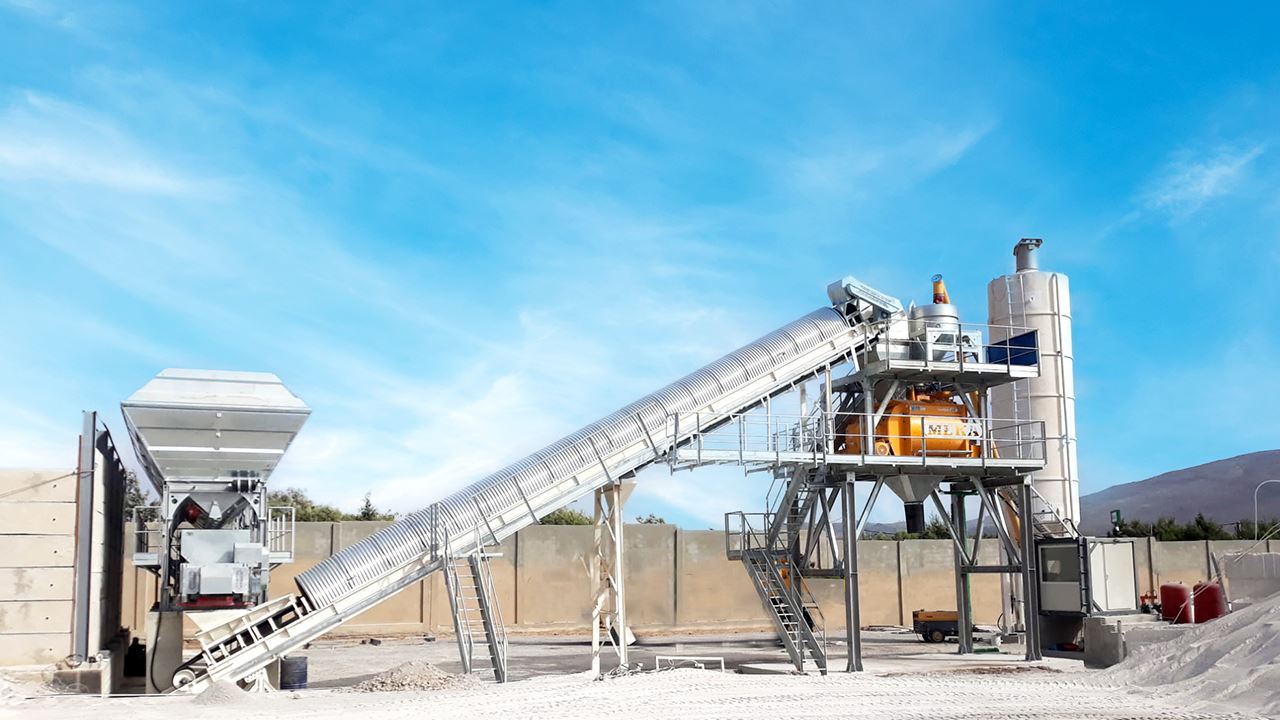

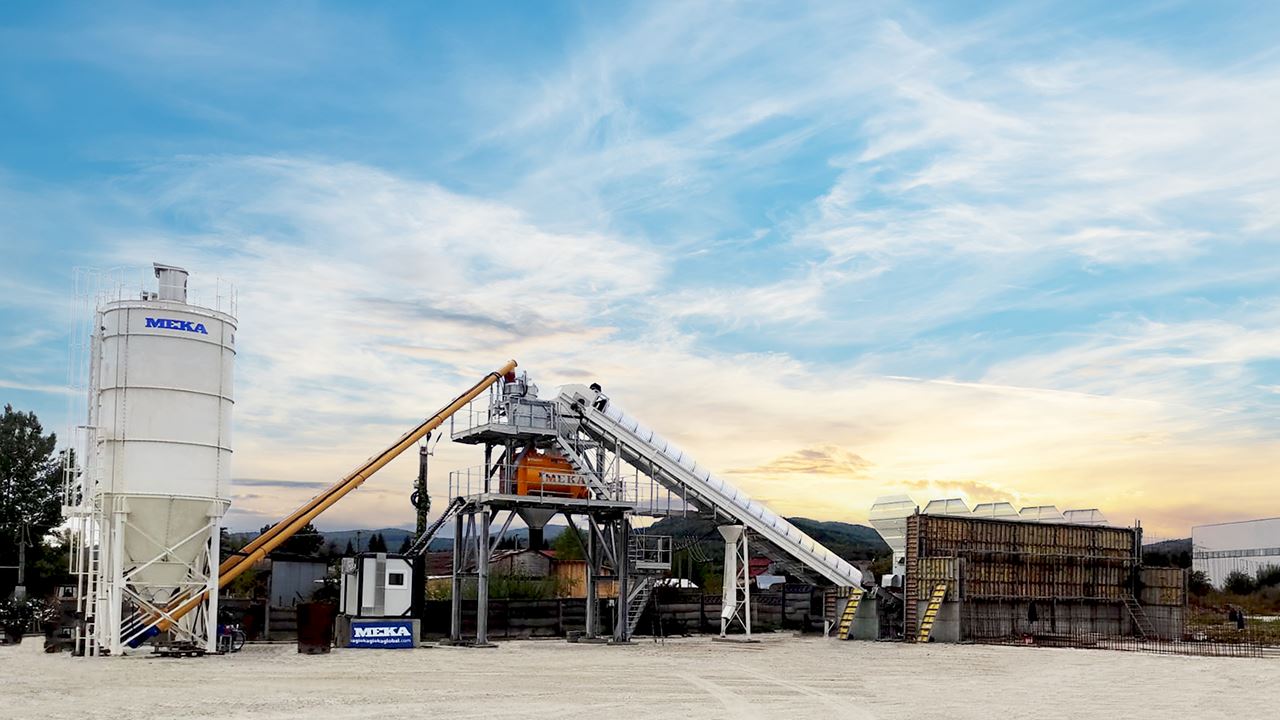

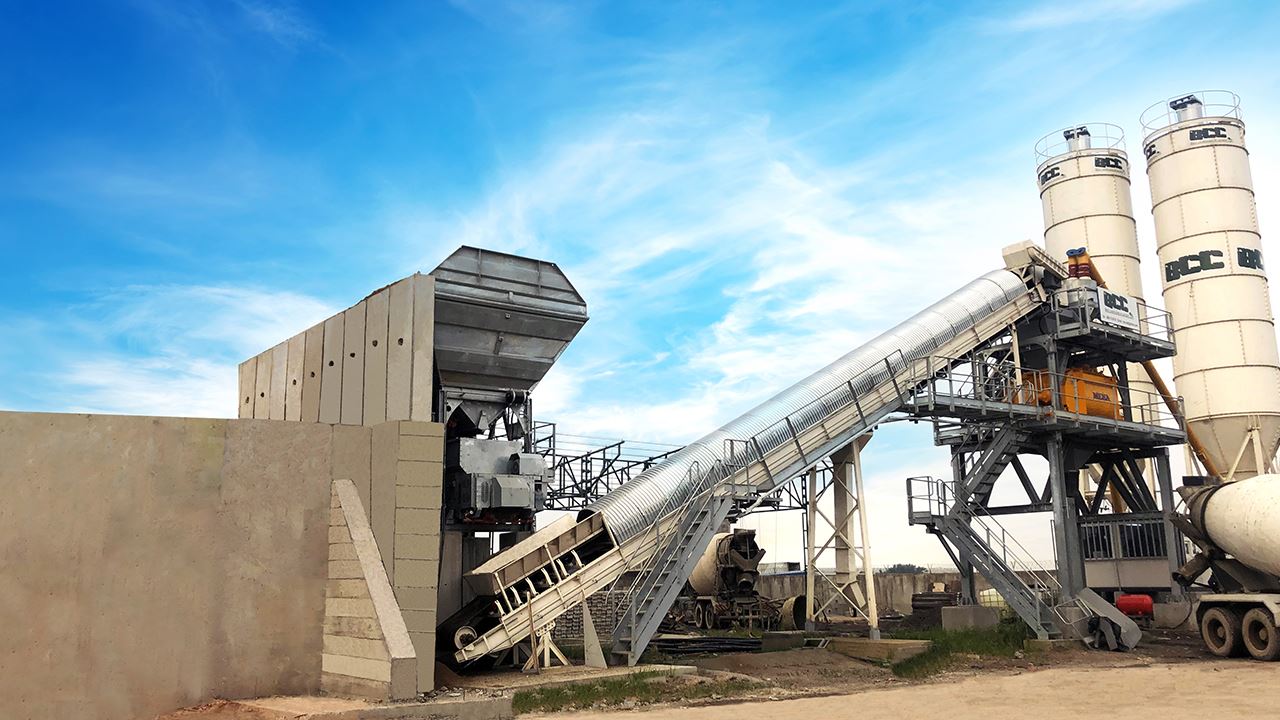

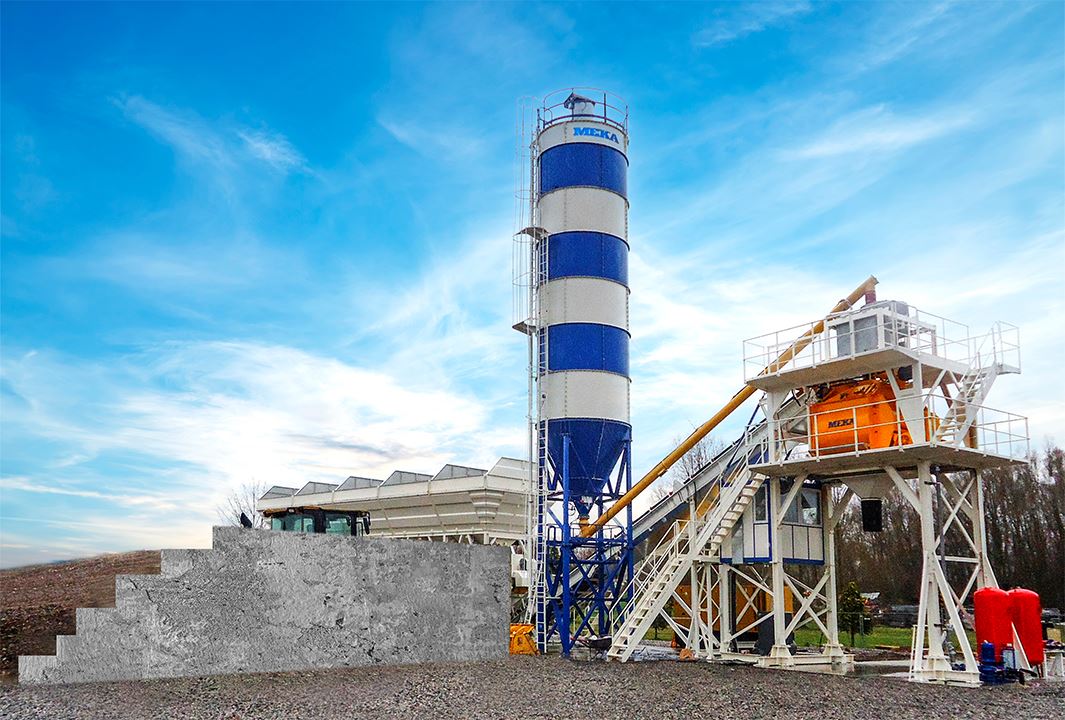

Compact Concrete Batching Plant

The C120 Compact Concrete Batching Plant, with a production capacity of 100 m³/h, features a sergeant-type conveyor belt system that allows it to fit into small areas while delivering high production performance. It can be installed directly on ground level and is also suitable for containerized transportation due to its compact design.

Quick Quote

Briefly C120

The C120 Compact Concrete Batching Plant, designed for easy container transportation, can be shipped to overseas and remote locations without transportation issues, offering the most efficient solutions for project contractors, ready-mixed concrete producers, and precast construction element producers.

With in-line aggregate bunker options of 4x20 m³ and 4x25 m³ capacities, along with a high-precision weighing group, the C120 maximizes both productivity and profitability. Its 2.25 m³ capacity MEKA twin-shaft mixer ensures uninterrupted production while keeping operating and maintenance costs low.

Fully hot-dip galvanized weighing group units, platforms, ladders, and guardrails guarantee durability, while the heavy-duty, stable chassis enhances weighing accuracy and ensures concrete production meets the exact specifications of the mix design.

The C120 can be quickly installed on site and begin concrete production, with electricity, water, and pneumatic lines pre-wired at MEKA factories to streamline the setup process.

C120 Compact Batching Plants Technical Specifications

  • Plant Capacity
    Compacted Concrete Output
    100 m³/h
  • Concrete Mixer
    Mixer Type
    Mixer Motor Power
    Mixer Capacity
    Twin Shaft
    2 x 30 kW
    2,25 m³ / Cycle
  • Feeding System
    Aggregate Bins

    Aggregate Feeding
    4x 25 m³ / Inline Type
    4x 35 m³ / Inline Type
    Ramp or Pre-Feeding System
  • Weighing Hopper
    Cement Weighing Hopper
    Water Weighing Hopper
    Additive Weighing Hopper
    1.250 kg
    440 kg
    25 kg

C120 Compact Concrete Batching Plant Components

Aggregate Bunker Transfer Station Main Chassis Concrete Mixer Control Cabin Silo

Optional Features For All MEKA Concrete Batching Plants

Your concrete batching plant investment purpose and your expectations from the plant may vary different.

Whether you are a ready-mixed concrete producer, a contractor or a manufacturer of precast building elements, we have a very strong R&D team and international experience since 1987 to design and manufacture the most suitable batching plant for your needs.

Here are some of our customization options. Our technical sales team can support you in assiting the appropriate layout and equipment to optimize your productivity and business.

Concrete recycling system integration
Are you still throwing away your concrete waste or faulty production? As the importance of environmental responsibility of businesses increases, certain standards are being introduced in production in order to leave a cleaner world to future generations. In addition, in today's world where production costs are gradually increasing, operational efficiency has become the most important heading of sustainable activities. With the MEKA recycling unit, components such as aggregate, sand and water in concrete can be separated and reused in production.

DISCOVER MORE
Equipment and applications that ensure the most efficient operation in different climatic conditions
Special reinforcement and applications for quality and uninterrupted concrete production in harsh winter conditions: Steam pipes placed inside the aggregate bunker Complete enclosure of the main unit with 40 mm thick insulated panels Complete covering of the bottom of the aggregate bunker with 40 mm thick insulated panels Retractable electric gates on the aggregate bunker Steam generator (high performance steam generators that can run on diesel, natural gas or both, selected according to the plant capacity)
Concrete batching plant coating applications

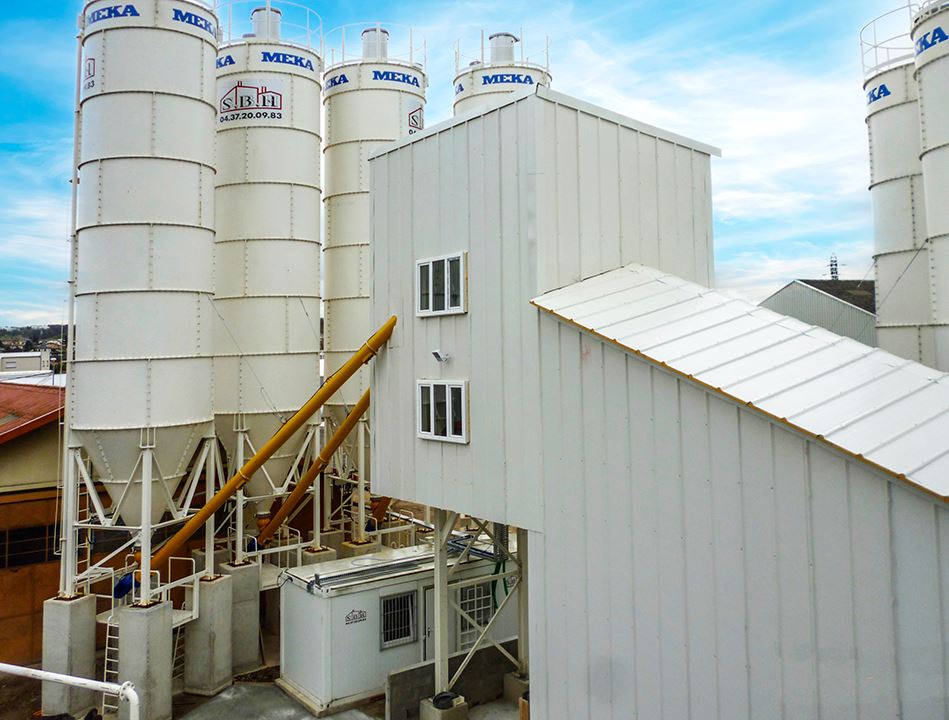

The top and sides of the aggregate bunker can be covered with trapezoidal sheets to both protect from environmental influences (rain, snow, wind, etc.) and to minimize the impact of dusting on the environment. The four sides and top of the main unit, which contains the mixer, cement-water-additive scales and aggregate waiting bunker, can be covered with trapezoidal sheets. In this way, the main unit can be protected from environmental influences (rain, snow, wind, etc.).
Fiber feed system integration
You can improve the versatile production capacity of your batching plant thanks to the fiber feeding system that automatically feeds and doses steel or polyester concrete fibers used in the production of special quality concrete and is integrated with the plant automation.

DISCOVER MORE
The plant you want with dozens of additional options
- HYDRONIX brand Microwave moisture meter for aggregate bunker sand compartment. It precisely measures the moisture in the sand and ensures that less water and complementary sand is added by the amount of moisture measured by the automatic system.
- Aggregate Bunker bunker grates to be placed on top of the bunker with 100x 100 mm mesh width to prevent large stones from entering and damaging the system
- Water booster with STANDART brand pump that sends water to the water scale at the required flow rate and pressure (with double pump and single pump options)
- Mixer safety interlock can be added for more safety during maintenance. With this system consisting of two switches, the plant cannot be started unless the maintenance person stops the system completely and takes one switch on himself, preventing possible accidents.
