PORTABLE INCLINED SCREENS

Designed for maximum capacity in screening operations

PORTABLE INCLINED SCREENS

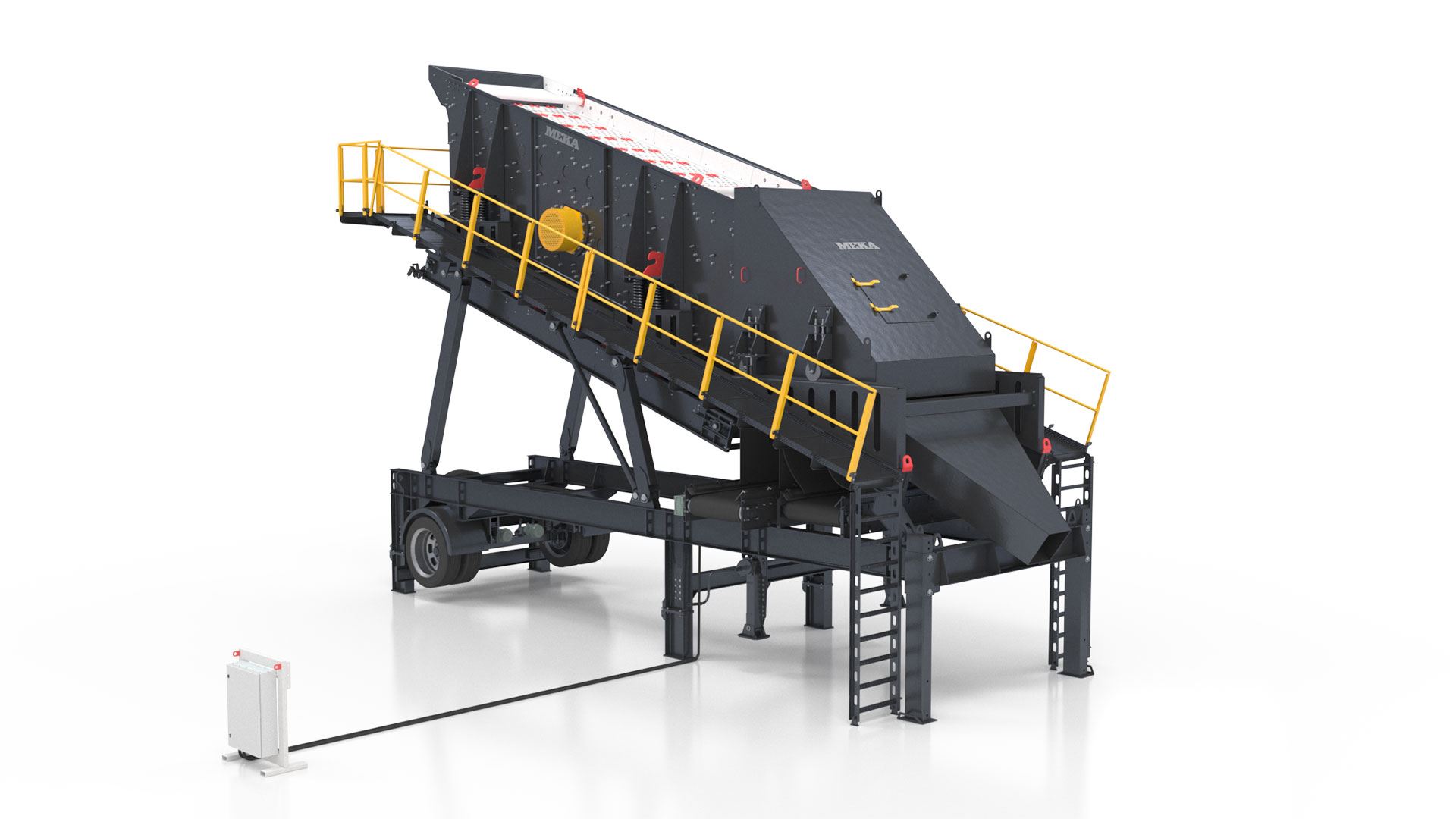

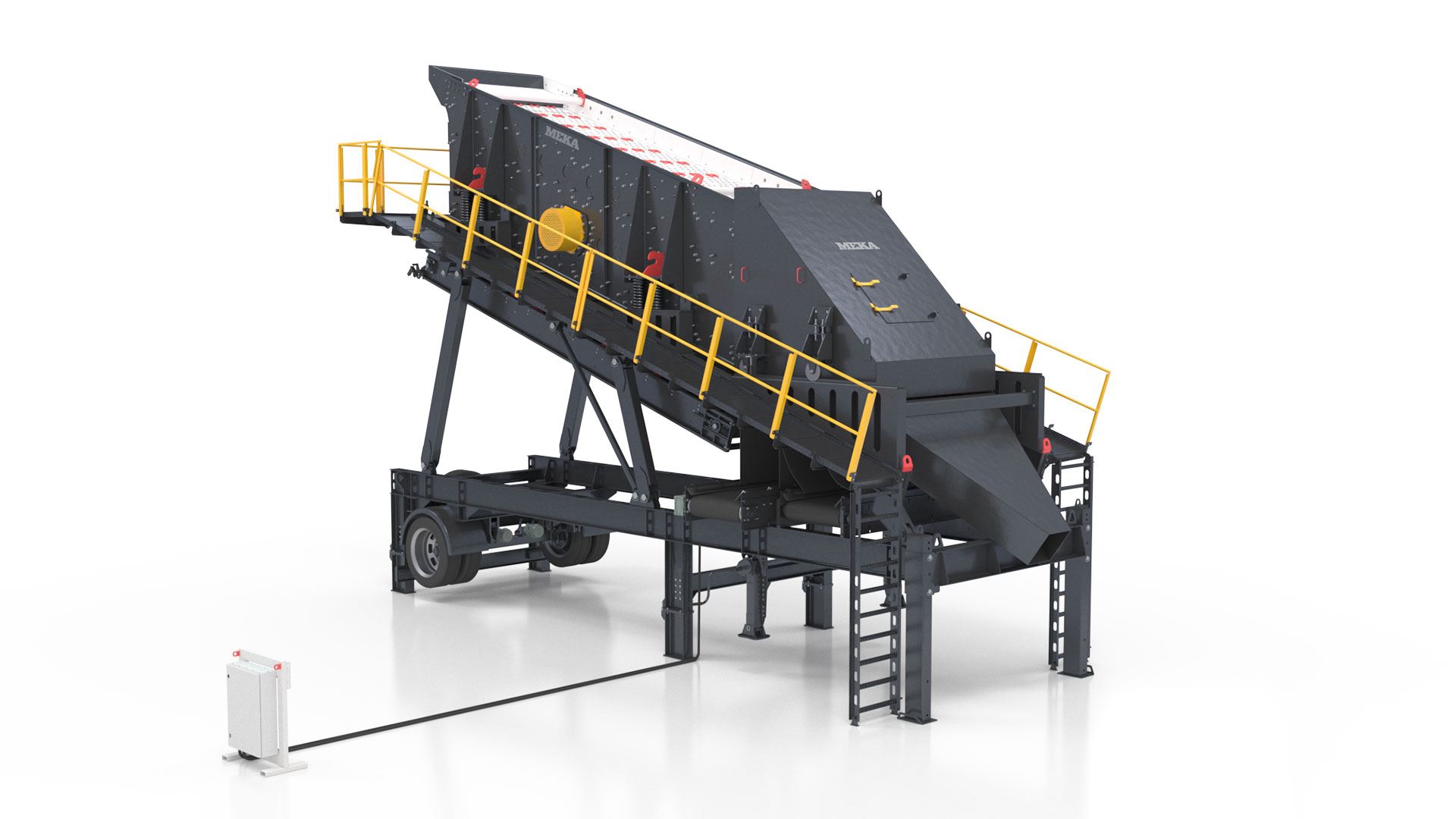

Portable Inclined screens are wheel-mounted, and have been designed for maximum capacity in highly accurate screening operations. Powered by electricity they are designed for maximum efficiency with a high throughput.They are used in multistage crushing process or as a stand-alone unit screening pre-crushed material.
These screens provide exceptional screening capabilities and have proven their effectiveness in the production of high quality aggregates,and are the optimal choice if you want to move the plant from one site to another periodically.
We offer a wide range of portable screens to fulfil your screening needs, designed with many features aimed at high capacity production and ease of operation. With many advanced design features common throughout this range, all models combine mobility and flexibility, with high quality production, maximum uptime and low cost per tonne operation.

FEATURES


High Performance and Reliability
MEKA MS Screens;

• Highly efficient and accurate on board 2,3 or 4 deck screens for product classification
• Material can be fed by conveyor belt from a crusher or through a separate feed hopper to the screen
• Chutes lined with abrasion resistant steel plates
• Able to operate in open or closed circuit
• Rollaway discharge chute on screen provides easy access for service and maintenance
• Fitted with flap gates to optimize the quality and capacity in different applications
• Premium quality components for durability and wear lined impact zones
• Quick and easy replacement of wear parts, which keeps your equipment productive with minimal downtime


Safe and easy to operate and maintain

• Operator-friendly unit with spacious and accessible platforms make the daily operation and maintenance simpler, safer, and faster.
• Drive safety guards and multiple emergency stop buttons for safe operation.
• Removable electrical control panel can be located on the ground during operation
• Low emissions due to electrical operation, minimizing environmental impact

ADVANTAGES


• Compact layout and excellent stability

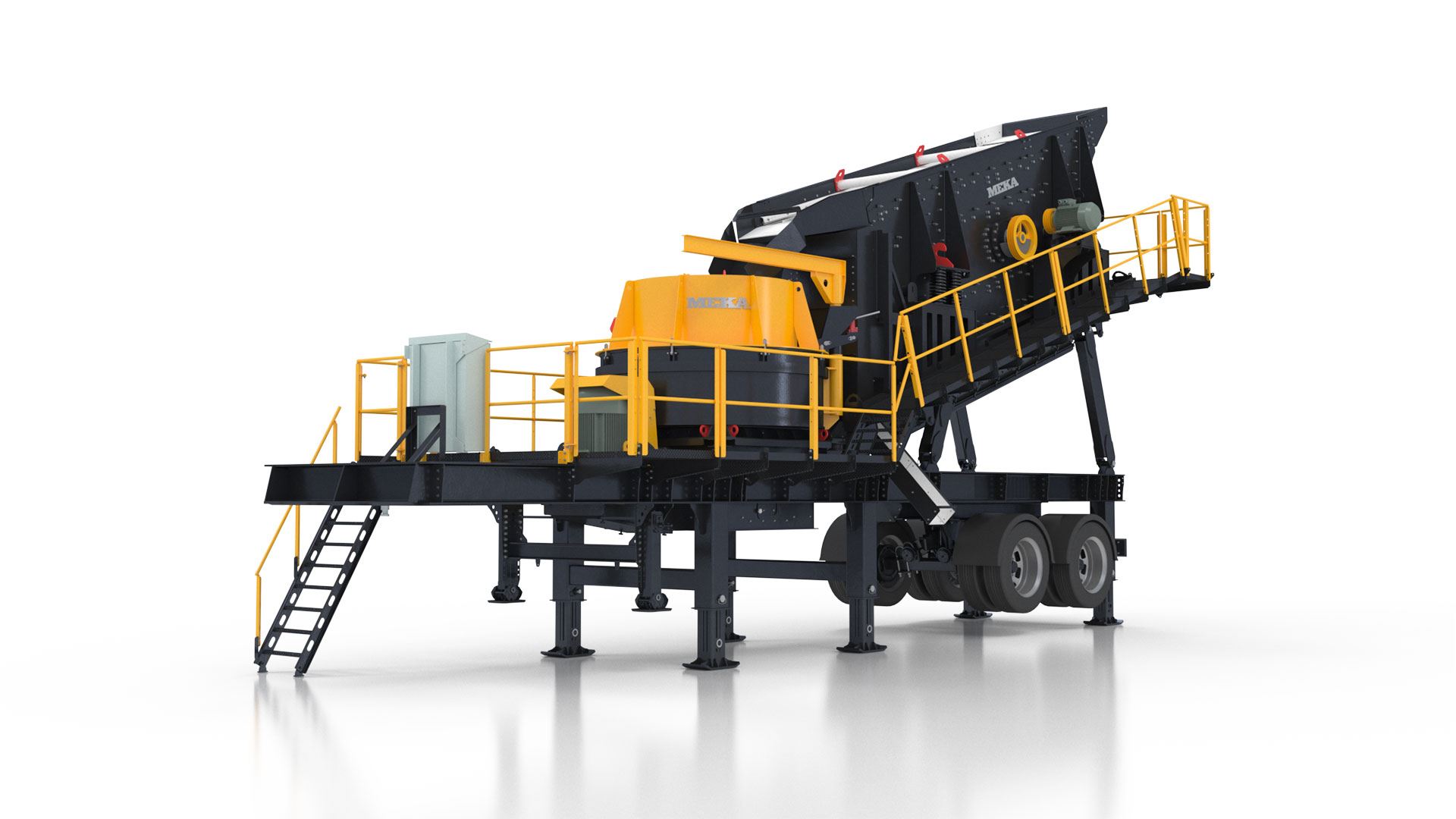

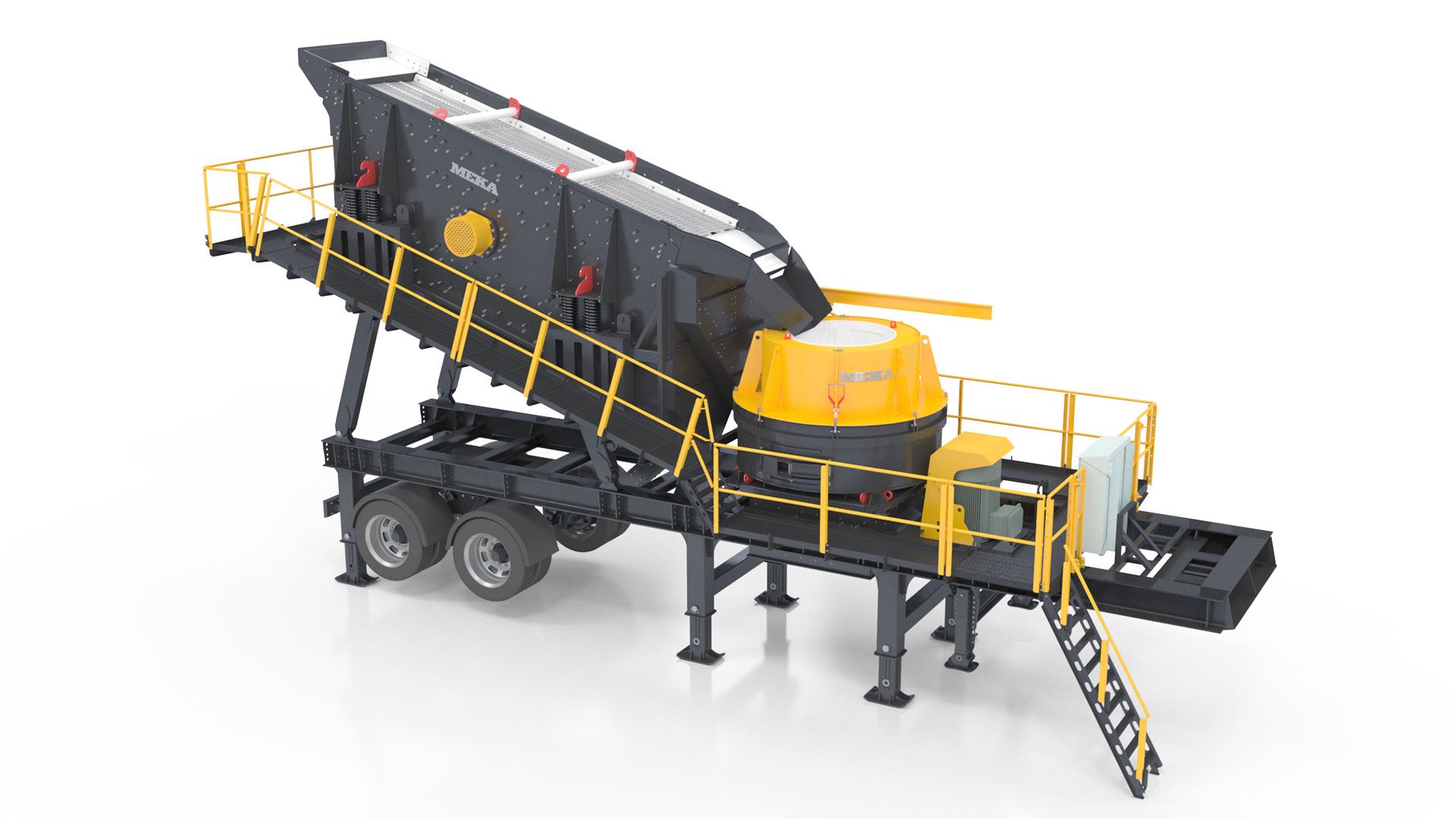

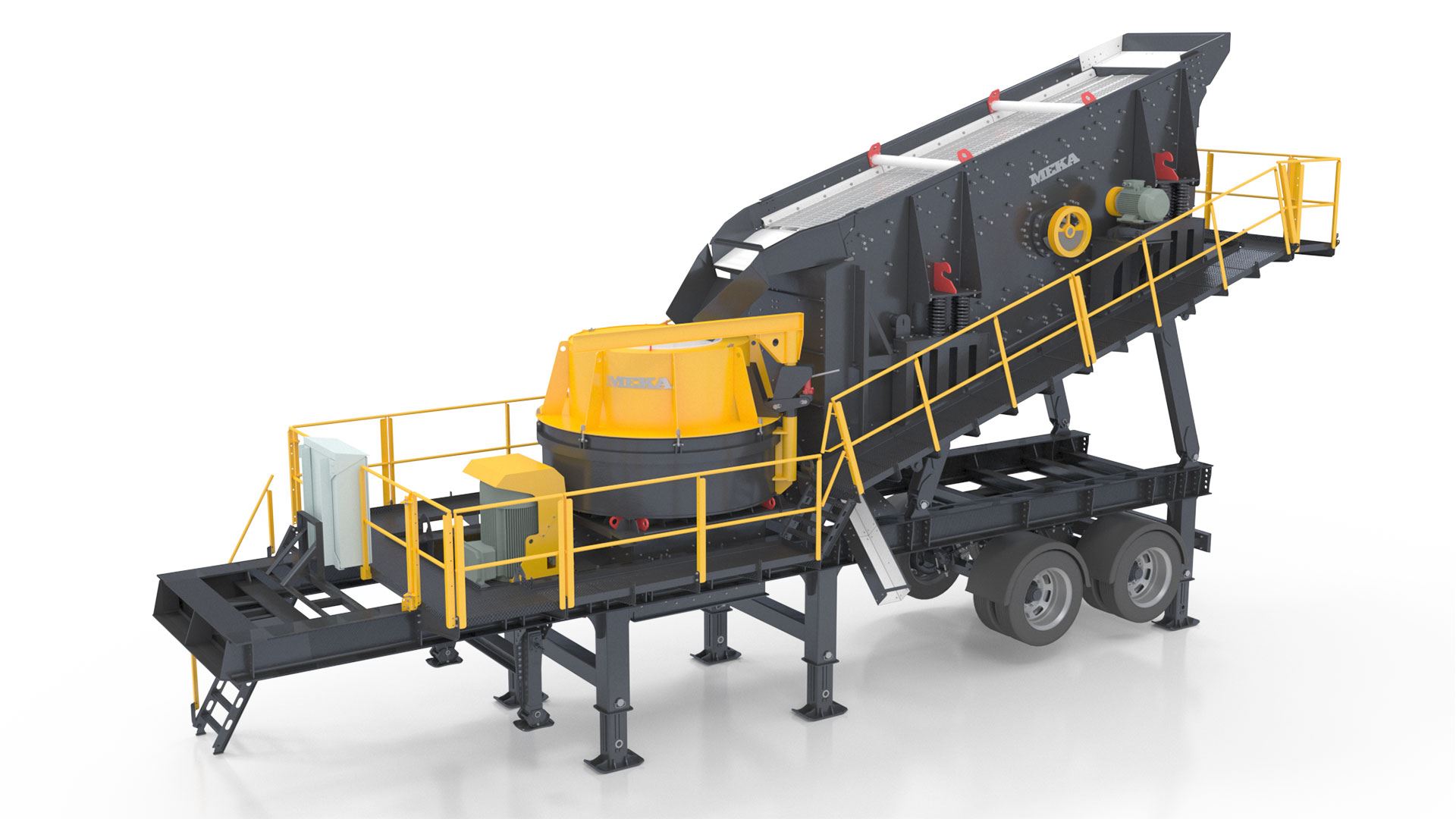

• The unit can work as stand alone or interlocked in a multistage crushing process with crushing units
• Built for hard and abrasive rock
• Heavy duty chassis beams, strength analysis on structural parts and quality components for durability.
• All onboard components are electrically driven giving reliability and minimal maintenance.
• Low cost per tonne due to operation through connection to electrical mains supply
• Quick to set-up and easy access for service and maintenance, resulting in more uptime and higher productivity
• Capable of operating in the most hostile environments.


STANDARD SPECIFICATIONS


• Safety guards to screen drives
• Steel Wire cloth
• Steel coil springs
• Maintenance platform with handrails and access ladder
• Self contained electrical switchgear cabinet with controls for screen and conveyors, (includes plugs and receptacles)
• Emergency stop buttons
• 2” / 3 ½” King-pin, single or double-axle bogie with air-brakes, travel lights, mudflaps, trailer suitable for 24 V supply


OPTIONAL EQUIPMENT


• Hydraulic support legs, which enable yet quicker and easier set-up when the screen is transported to another location without using heavy cranes
• Dust suppression water spray system
• Washing system for wet processing, including fine/coarse material washers
• Rubber and Polyurethane screen media for the screening of highly corrosive materials
• Consult MEKA for screen, conveyor, axle, jack, and power options


PORTABLE INCLINED SCREENS TECHNICAL SPECIFICATIONS

MPIS 1650/3

MPIS 2050/3

MPIS 2060/3

SCREEN
Model MS 1650/3 MS 1650/3 MS 2050/3 MS 2050/3 MS 2060/3 MS 2060/3
Width Width 1 600 mm 5.2' 2 000 mm 6.6' 2 000 mm 6.6'
Length Length 5 000 mm 16.4' 5 000 mm 16.4' 6 000 mm 20'
Decks Decks 3 3 3 3 3 3
Motor Power Motor Power 15 kW 20 HP 18.5 kW 25 HP 22 kW 30 HP
BOTTOM CHUTE CONVEYOR
Belt Width Belt Width 1200 mm 47" 1600 mm 63" 1600 mm 63"
Length Length 5 000 mm 16' 5'' 5 000 mm 16' 5'' 6 000 mm 19' 8''
Motor Power Motor Power 2 x 4 kW 2 x 5.5 HP 2 x 5.5 kW 2 x 7.5 HP 2 x 5.5 kW 2 x 7.5 HP
CROSS CONVEYORS (2 PCS)
Belt Width Belt Width 650 mm 26" 800 mm 31" 800 mm 31"
Length Length 2 500 mm 8' 2'' 3 000 mm 9' 10'' 3 000 mm 9' 10''
Motor Power Motor Power 4 kW 5.5 HP 5.5 kW 7.5 HP 5.5 kW 7.5 HP
TRANSPORT DIMENSIONS
Length Length 10 200 mm 33' 6'' 10 200 mm 33' 6'' 11 400 mm 37' 5''
Width Width 2 800 mm 9' 2'' 3 200 mm 10' 6'' 3 200 mm 10' 6''
Height Height 4 300 mm 14' 1'' 4 300 mm 14' 1'' 4 300 mm 14' 1''
Weight Weight 21 900 kg 48 300 lbs 23 500 kg 51 800 lbs 25 000 kg 55 100 lbs
OPERATING DIMENSIONS
Length Length 10 100 mm 33' 2'' 10 100 mm 33' 2'' 10 800 mm 35' 5''
Width Width 4 000 mm 13' 2'' 4 400 mm 14' 5'' 4 400 mm 14' 5''
Height Height 7 200 mm 23' 7'' 7 200 mm 23' 7'' 7 600 mm 25'
