PORTABLE VERTICAL IMPACT (VSI) CRUSHERS WITH FEEDER

Ideal to produce highest quality end products

PORTABLE VERTICAL IMPACT (VSI) CRUSHERS WITH FEEDER

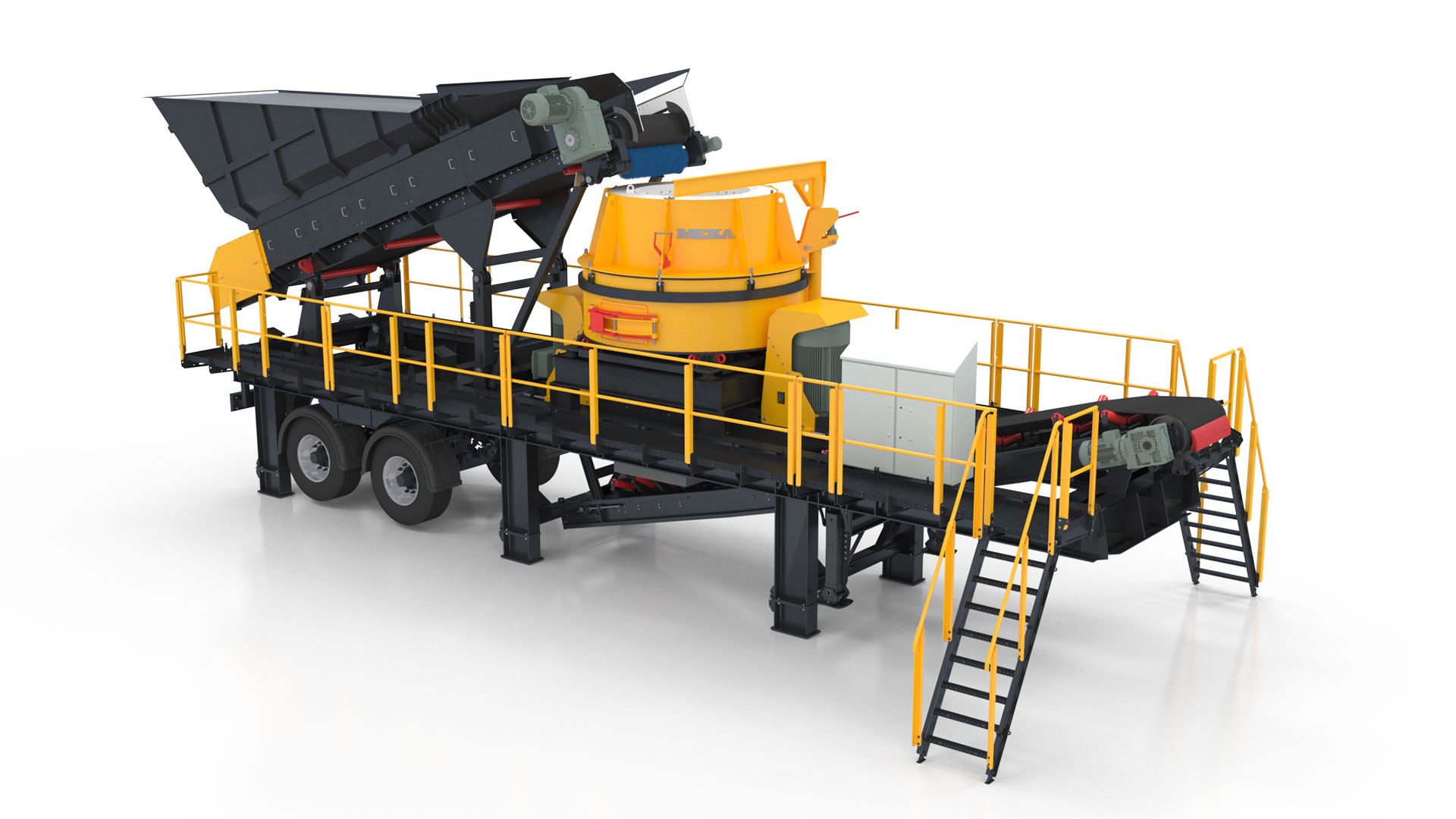

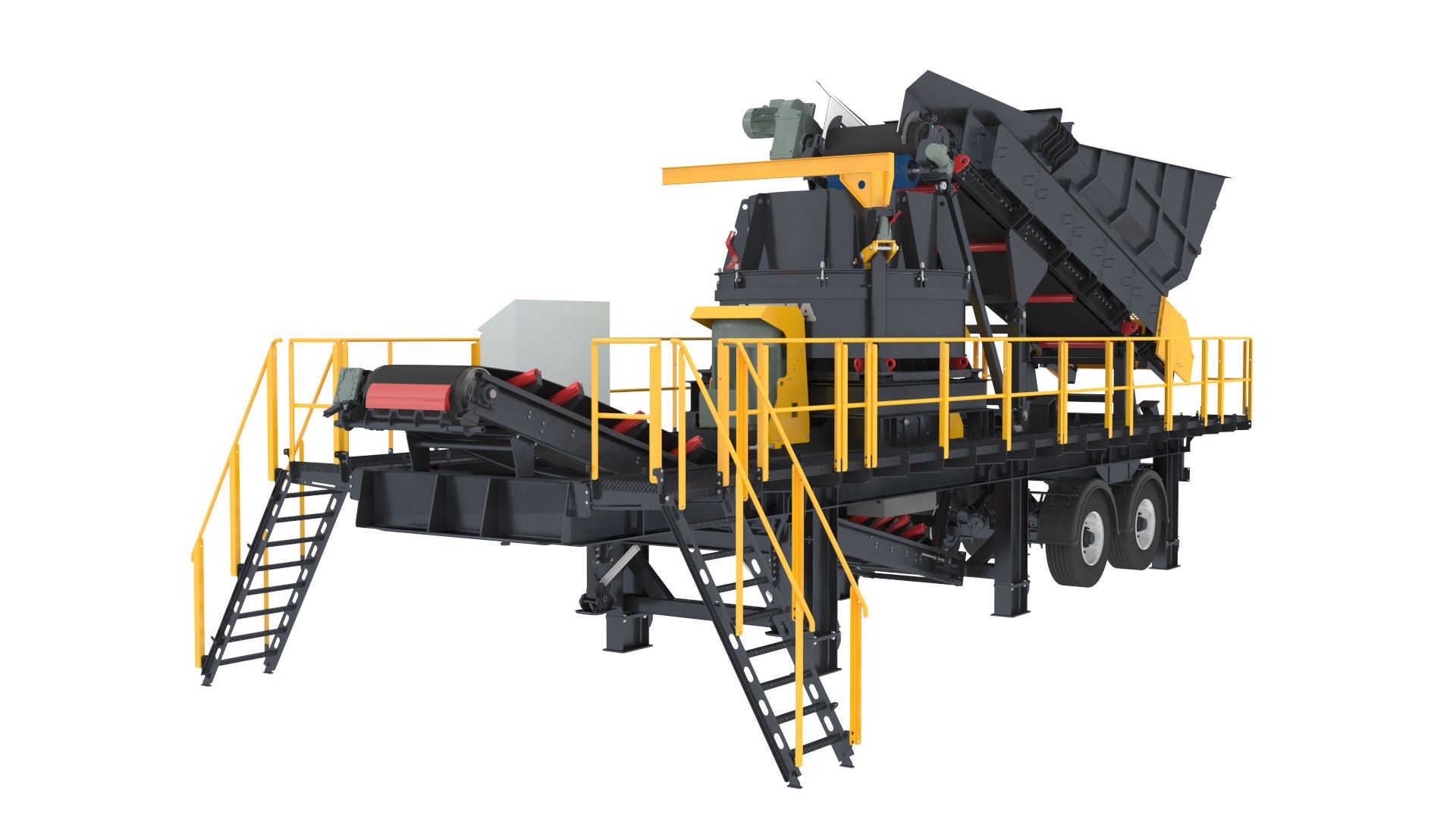

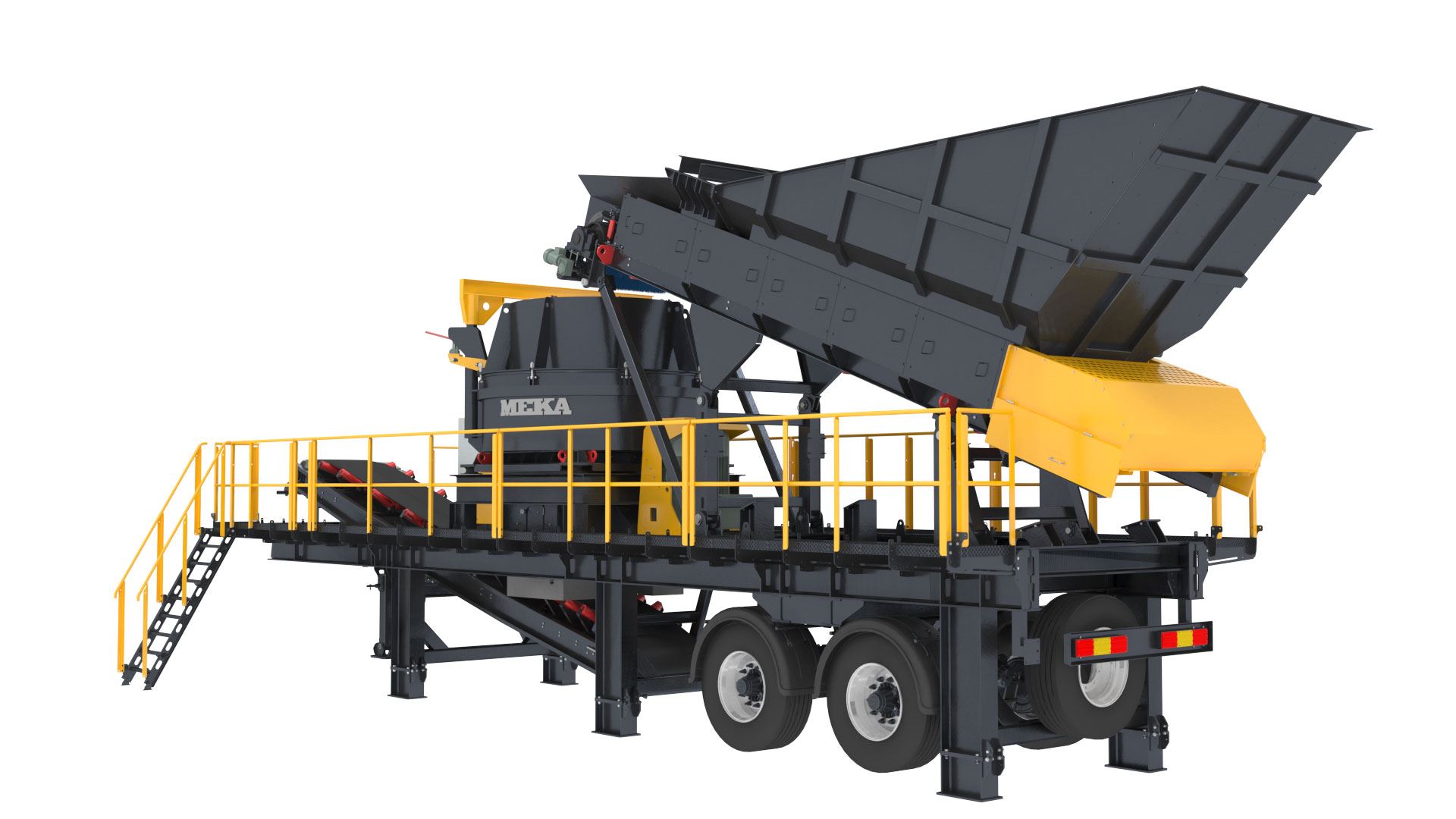

Portable Vertical Shaft Impact Crushers are wheel-mounted rock crushing machines, engineered for tertiary or quarternary crushing applications. Equipped with a vertical shaft impact crusher and a feed hopper with belt feeder, it is used in the last stage of a multistage crushing process or as a stand-alone unit processing pre-crushed material. Built for especially for processing hard and abrasive materials, and ideal for the production of highest quality end products for jobs that demand precision.
These plants provide exceptional minerals beneficiation capabilities and have proven their effectiveness in a host of missions such as production of high quality manufactured sand, heap leaching, pre-grinding, industrial minerals and recycling applications and are the optimal choice if you want to move the crushing plant from one site to another periodically.
We offer a wide range of portable units to fulfil your tertiary crushing needs, designed with many features aimed at high capacity production and ease of operation. With many advanced design features common throughout this range, all models combine mobility and flexibility, with high quality production, maximum uptime and low cost per tonne operation.

FEATURES

High Performance and Reliability
MEKA MVI Vertical Shaft Impact Crushers;

• Recommended for crushing the most abrasive materials,in tertiary and quaternary applications where additional fines production is desired.
• Production of high quality aggregates and sand from highly abrasive input materials, such as gravel, granite, quartzite etc.
• Selective crushing of slags from steel mills, waste incineration plants etc.
• Produces cubical-shaped end products at a consistent quality using rock-to-rock crushing action.The final shape delivered aims to meet the exacting specifications for flakiness and elongation required to produce asphalt and concrete products
• 3-port rotor result in low consumption of wear parts due to rock-on-rock crushing, and thereby lower running costs
• Rotor design enable consistent material flow and high throughput
• Premium quality components for durability and wear lined impact zones
• Quick and easy replacement of wear parts, which keeps your equipment productive with minimal downtime
• Provide simple and efficient operation with soft starter for trouble free operation

MEKA MBF Belt feeders;

• Feed hopper and belt feeder providing the desired, continous feed rate to crusher
• Rugged design and features such as robust, heavy duty idlers, frames, abrasion resistant liners and chute work help significantly increase service life
• Frequency inverter for feeder speed control in order to provide step less regulation of the feed rate

Safe and easy to operate and maintain

• Operator-friendly unit with spacious and accessible platforms make the daily operation and maintenance simpler, safer, and faster.
• Crusher mounted safety guards and multiple emergency stop buttons for safe operation.
• A number of sensors at different key locations to ensure a trouble free operation and prevent costly breakdowns
• Removable electrical control panel can be located on the ground during operation
• Low emissions due to electrical operation, minimizing environmental impact

ADVANTAGES

• Compact layout and excellent stability
• Production of manufactured sand and aggregates for concrete and asphalt plants with best grain shape with high quality grain proportion
• Shaping of flaky aggregates to obtain cubical aggregates
• Heavy duty chassis beams, strength analysis on structural parts and quality components for durability.
• Low cost per tonne due to electric operation
• All onboard components are electrically driven giving reliability and minimal maintenance.
• Quick to set-up and easy access for service and maintenance, resulting in more uptime and higher productivity
• Capable of operating in the most hostile environments.

STANDARD SPECIFICATIONS

• Safety guards to crusher drives
• Maintenance platform with handrails and access ladder
• Self contained electrical switchgear cabinet with controls for feeder with variable frequency drive, crusher soft-starter and discharge conveyor (includes plugs and receptacles)
• Emergency stop buttons
• 2” / 3 ½” King-pin, single or double-axle bogie with air-brakes, ABS and travel lights, mudflaps, trailer suitable for 24 V supply

OPTIONAL EQUIPMENT

• Hydraulic support legs, which enable yet quicker and easier set-up when the crushing plant is transported to another location without using heavy cranes
• Magnetic separator for the removal of metals from the end product
• Dust suppression water spray system
• Consult MEKA for additional hopper, crusher, conveyor, axle, jack, and power options

PORTABLE VERTICAL IMPACT (VSI) CRUSHERS WITH FEEDER TECHNICAL SPECIFICATIONS

metric imperial	MPVI 70	MPVI 90
	BELT FEEDER
Model	MBF 6550 MBF 6550	MBF 1060 MBF 1060
Width Width	650 mm 26''	1 000 mm 39''
Length Length	4 000 mm 13' 2''	6 000 mm 19' 8''
Motor Power Motor Power	2 x 4 kW 2 x 5.4 HP	2 x 5.5 kW 2 x 7.5 HP
Hopper Volume Hopper Volume	6 m³ 8 yd³	10 m³ 13 yd³
	CRUSHER
Model	MVI 70 MVI 70	MVI 90 MVI 90
Rotor Dimensions Rotor Dimensions	Ø 700 mm Ø 18"	Ø 900 mm Ø 35"
Maximum Feed Size Maximum Feed Size	45 mm 1.8"	45 mm 1.8"
Capacity Capacity	up to 150 mtph up to 165 stph	up to 300 mtph up to 330 stph
Motor Power Motor Power	2 x 110 kW (50 Hz) 2 x 150 HP (50 Hz)	2 x 200 kW (50 Hz) 2 x 272 HP (50 Hz)
	DISCHARGE CONVEYOR
Belt Width Belt Width	650 mm 26""	1 000 mm 39"
Length Length	7 000 mm 22' 12"	7 000 mm 22' 12''
Motor Power Motor Power	5.5 kW 7.5 HP	11 kW 15 HP
	TRANSPORT DIMENSIONS
Length Length	13 300 mm 43' 8''	14 300 mm 46' 11''
Width Width	2 500 mm 8' 2''	3 000 mm 9' 10''
Height Height	4 100 mm 13' 5''	4 300 mm 14' 1''
Weight Weight	26 000 kg 57 300 lbs	34 000 kg 75 000 lbs
	OPERATING DIMENSIONS
Length Length	13 100 mm 42' 12''	14 100 mm 46' 3''
Width Width	3 400 mm 11' 2''	3 900 mm 12' 10''
Height Height	5 500 mm 18'	5 900 mm 19' 4''

Capacity figures shown apply to material weighing 1.6 tons per cubic meter, or 100 pounds per cubic foot.
Crusher performance may vary depending on the feed gradation, feed moisture content, crushability of the material, crusher rpm, installed power and the crushing circuit design. Please consult MEKA for specific applications.
