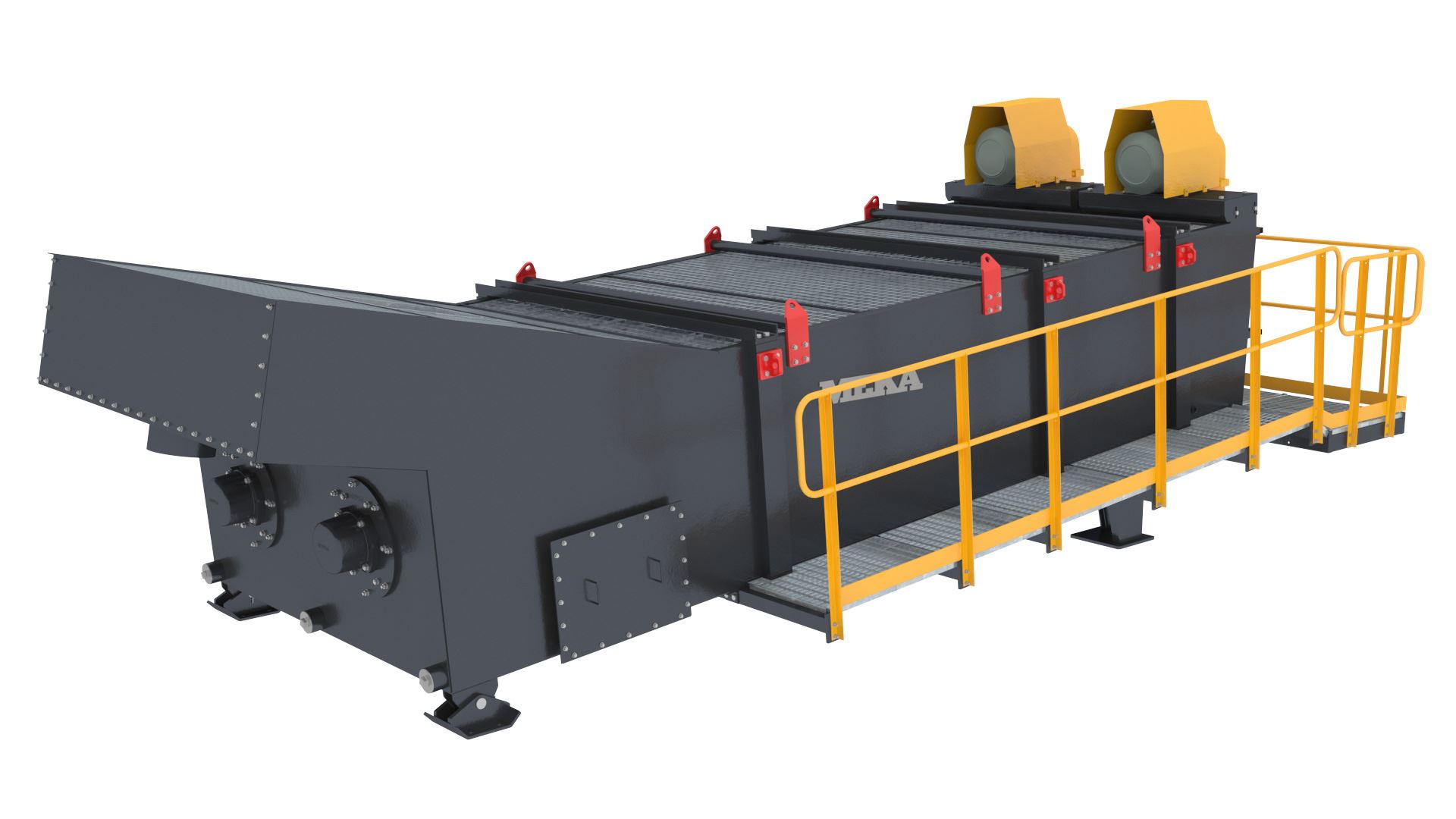

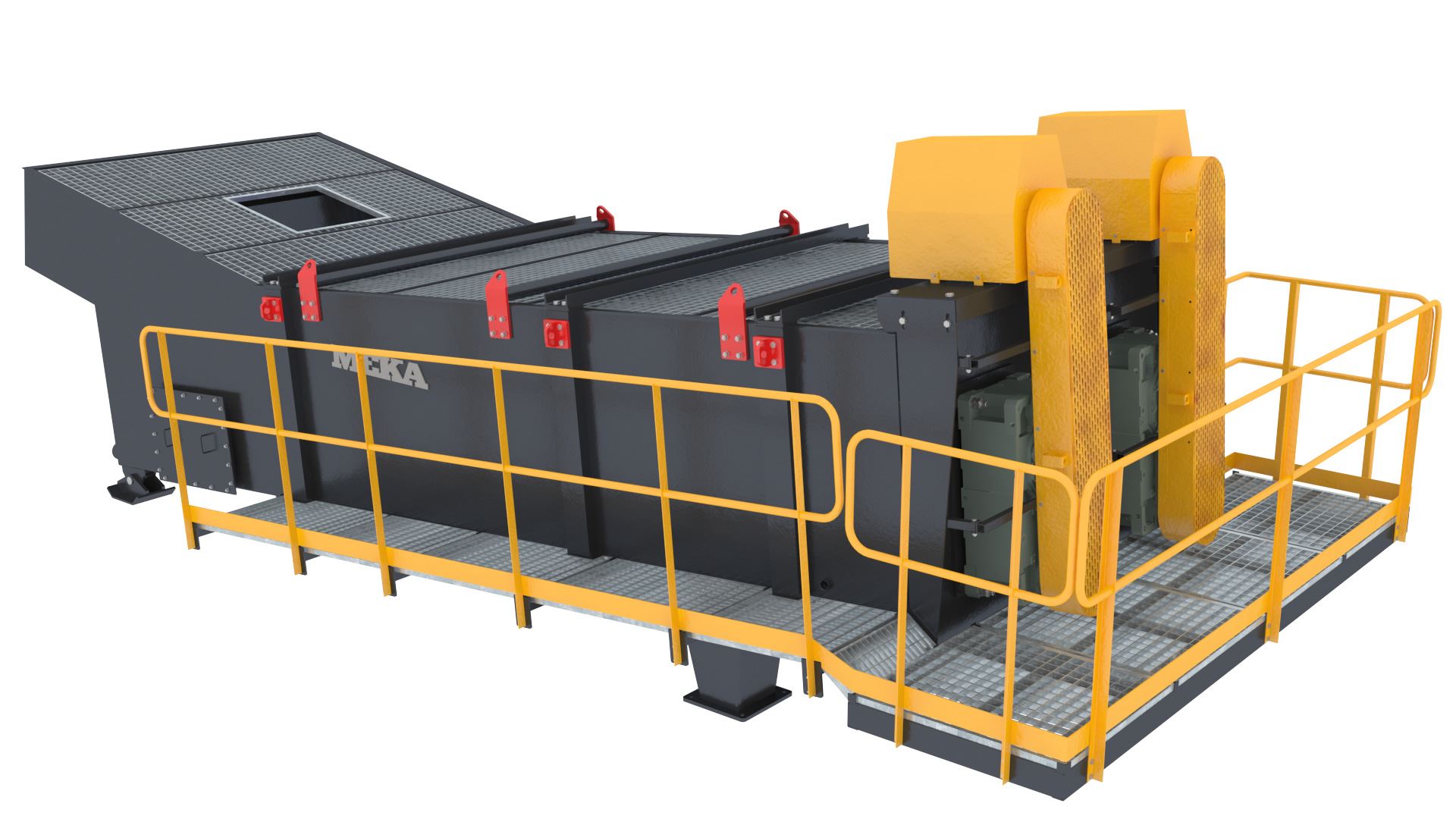

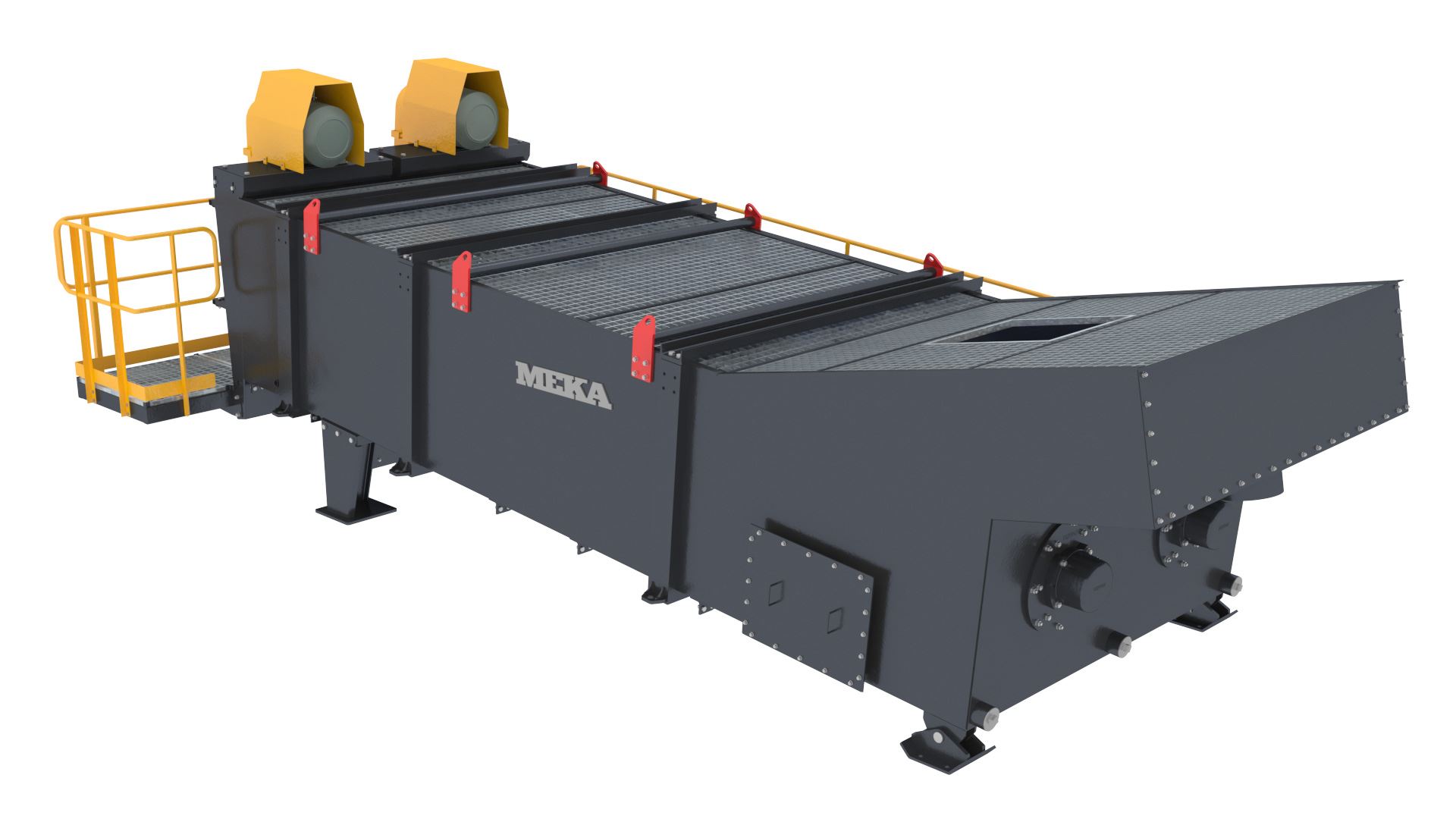

Blade Mill

APPLICATIONS
Blade Mills are used as conditioner before screening process to increase sand equivalency and screening efficiency.
Blade Mill also well-suited for processing various non-aggregate hard ores containing water-soluble clays and silts.
Blade Mill designed to scrub and clean gravel and crushed stone up to 75mm (3’’) in size.
Blade Mill so similar to coarse washers in appearance however, they are used at different steps of processes. The main differences of blade mills are;

•    All materials and water entering to Blade Mill are discharged to next process completely. They don’t have an overflow system.

•    Blade Mills operate at low angles at range of 0°-5° degrees.

•    They have higher capacities when compared with coarse washers due to low operating angle.

•    Blade Mills have different type shaft configurations to solve various types of water-soluble clays.

•    They need less water to operate.

WHY MEKA BLADE MILLS?
•  Durability
Cast Ni-Hard or Chromium bolt-on paddle assemblies deliver the ultimate in durability as does the leak-proof heavy-duty tank.
•  Reliable Drive Assembly
The high efficiency drive assembly reduces power and maintenance requirements resulting in increased life and reduced operating costs.
•  Maximum productivity
Capable to produce up to 450 mtph (500 stph) delivering extreme productivity where you need it most.

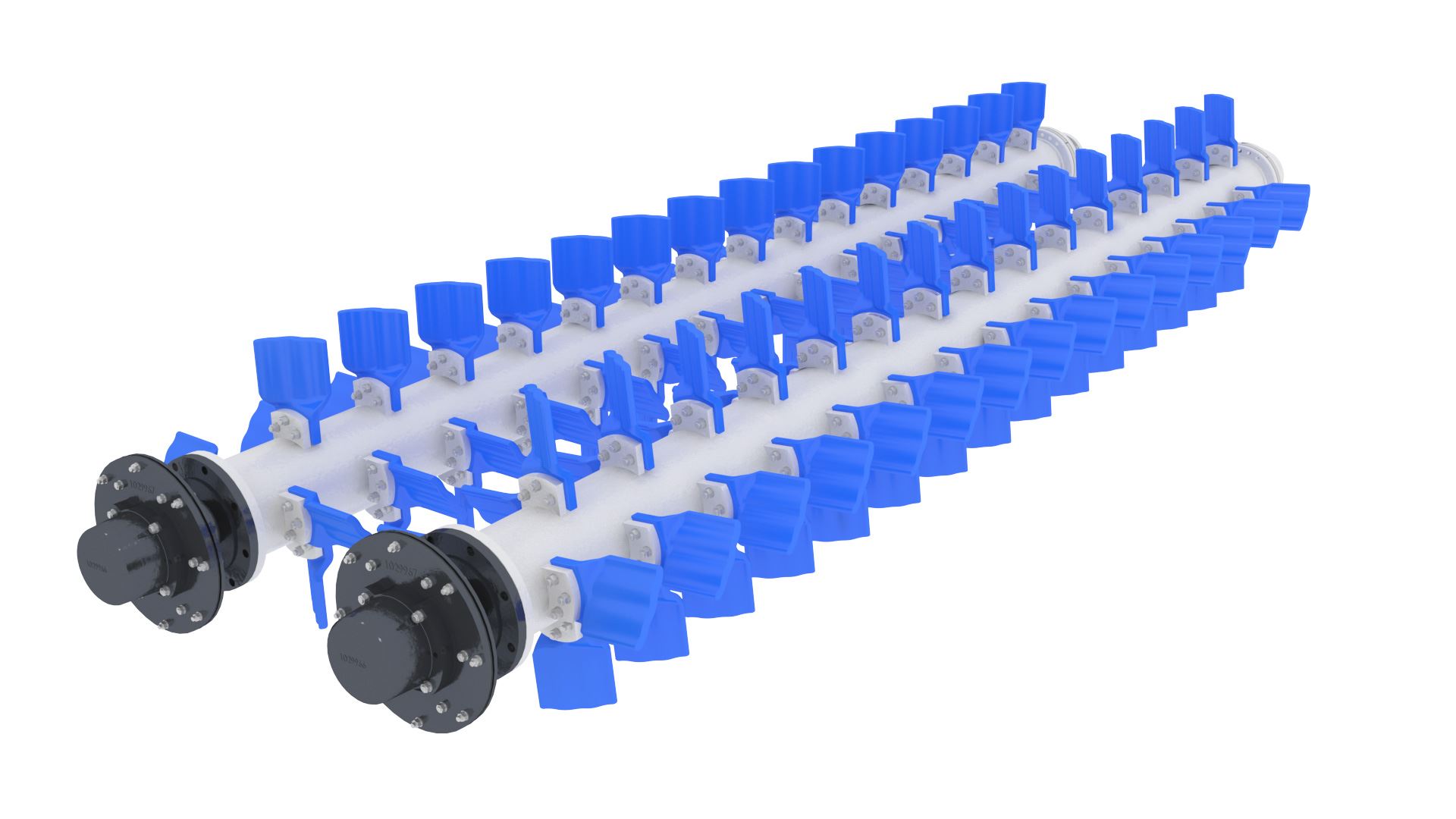

•  Configurable Paddle and spiral Flights Layout
Can be easily configured with numerous bolt-on paddle and flight arrangements to satisfy even the most precise specifications.

HIGHLIGHTS
•    Number of paddles and screw sections are interchangeable.
•    Ni-Hard / Chromium Paddles offer great service life.
•    Heavy duty gearbox allows to reduce the speed and increase retention time.
•    Heavy duty thick-walled seamless shaft pipe.
•    Robust body design.
•    Safeguard outboard bearing assembly allows easy maintenance.
•    Flexible spider plate protects the drive system for shock loads.
