MB-200W

FOR REALLY BIG CONCRETE DEMANDS

MB-200W

MAXIMUM CAPACITY AND EFFICIENCY

MB-200W

FOR REALLY BIG CONCRETE DEMANDS

MB-200W: CAPACIDAD MÁXIMA Y EFICIENCIA

El modelo MB-200W, que es el más grande en la gama de plantas estacionarias de hormigón estables MEKA con mezclador simple, está diseñado para la máxima capacidad, flexibilidad, eficiencia y fiabilidad para producir todo tipo de hormigones de alta calidad en la producción en masa. Un potente mezclador de muelles gemelos de 5,0 m³ ofrece una amplia gama de aplicaciones de concreto como RCC (concreto compacto compactado), pavimento de carreteras y otros. La amplia gama de opciones hace que esta planta sea altamente configurable para cualquier necesidad específica

MB-200W HECHOS DESTACADOS

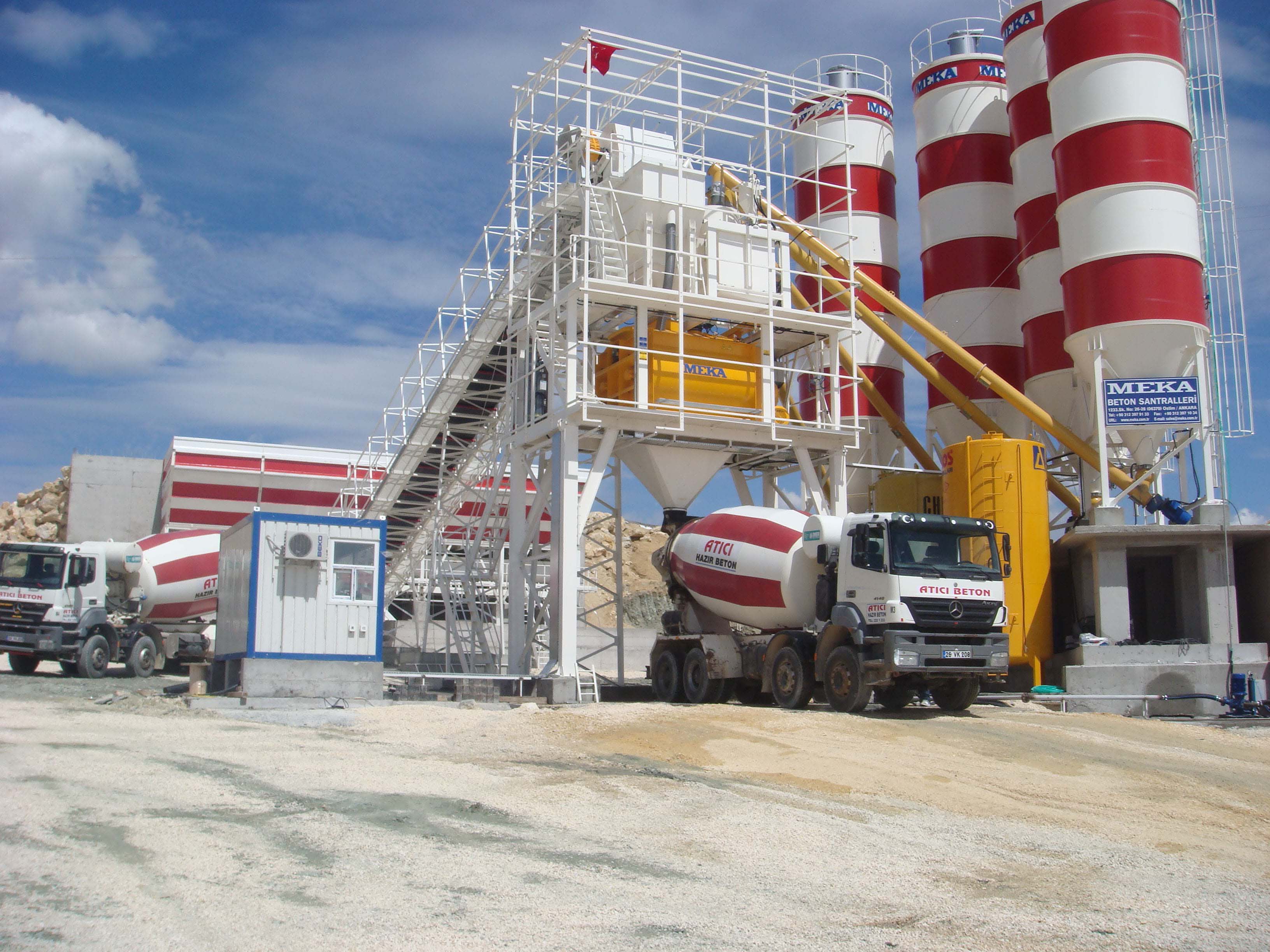

CHASIS ROBUSTO RÍGIDO

El chasis principal resistente y estable permite una durabilidad extrema, transporte seguro, funcionamiento continuo de larga duración y pesaje sensible al minimizar las vibraciones en las básculas.

ALTAMENTE CONFIGURABLE

La alta capacidad es muy importante durante la producción en masa, pero también debe ser flexible para satisfacer cualquier solicitud proveniente del mercado. MB-200W es uno de los modelos más configurables en su segmento. La doble descargaa, la opción húmeda y seca, las tolvas de pesaje adicionales como GGBS, Microsilica (en seco o lechada), hielo y muchas otras opciones están disponibles para su uso en cualquier planta de procesamiento por lotes de hormigón MB-200W.

ALTA CAPACIDAD

EL mezclador tiene una capacidad 5,0 m³ con tolva de retención de agregados proporciona una capacidad excepcional de hasta 200 m³ / h con características operativas perfectas.

FACILIDAD DE ACCESO Y SERVICIO

Las plataformas anchas permiten el acceso fácil y seguro a las partes principales del mezclador y las tolvas de pesaje. Incluye la plataforma superior para el servicio de las básculas.

CONCRETO RCC LISTO

Los mezcladores de doble eje de 5,0 m³ permiten mezclar agregados de hasta 120 mm, lo que los hace perfectamente adecuados para la producción de concreto RCC.

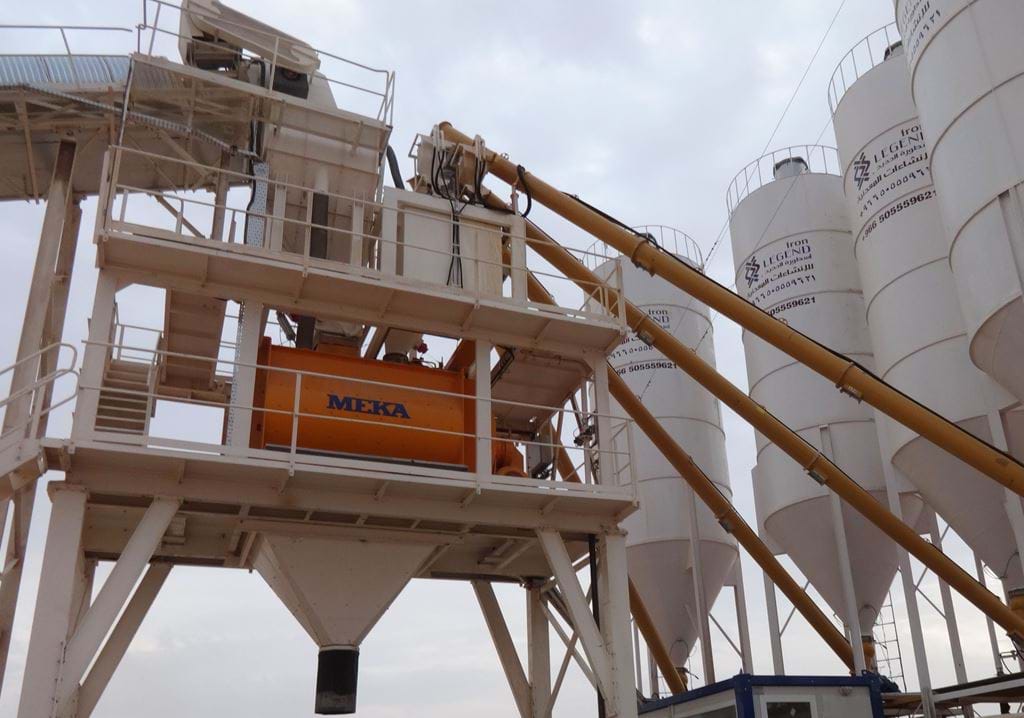

5,0 m³ MEZCLADOR DE DOBLE EJE.

Lograr la homogeneidad deseada y la trabajabilidad de las mezclas de concreto modernas, dentro del período más breve posible, es a menudo la fase más crítica de la producción de concreto, por lo tanto, es esencial la necesidad de equipos de mezcla confiables y de alta calidad.
Más información

DISTINGUISHING FEATURES

High Capacity

This blazing fast concrete bath plant has got a very high ready-mix concrete capacity which is sometimes a challenge to deliver.

High Weighing Accuracy

Heavy Main Chassis: Heavy main chassis minimizes the vibrations occurring during normal operation coming from the loading process, belt operation and mixing. Less vibration not only increases the accuracy but also increases the weighing speed which contributes to overall capacity.

Separate Weighing Hoppers: On all MEKA concrete mixing plants weighing hoppers for cement, water, additives and other materials are separated from the mixer frame and are installed on a separate chassis to minimize vibrations. Installing these directly on the mixer frame transfers the vibrations coming from the mixer to the scales. It affects the weighing process which becomes less accurate and requires more time to finish. Both accuracy and speed are negatively affected.

Multi-Loadcell Design: Cement and water scales are equipped with 2 loadcells to optimize the load distribution and to maximize the accuracy. On the other hand, cardan connections allow free movement and prevent the loadcell and other connection from breakdowns. MEKA never installs weighing hoppers on mixers.

Wear Resistant Waves On The Aggregate Bin Walls

Bin walls have aggregate capture waves which are parallel to the ground. This structure reduces the wear of steel panels as the material is flowing over the aggregates which are kept in the spaces. This technology is used by most advanced manufacturers as it increases the lifetime of equipment.

Independent Aggregate Discharge Gates

Each compartment of the aggregate bin of MB-200W concrete plant is equipped with two pneumatically controlled discharge gates. This ensures fast aggregate load onto the weighing belt and precise dosing/jogging for maximum accuracy.

High Quality Components

We offer only premium parts from global well-known brands with our concrete batch plants. Most of the equipment can easily be found on global markets. This ensures long-term reliable continuous operation with minimum possibilities of break-downs.

OPCIONES OPERATIVAS

Radial Or Shuttle Conveyor Aggregate Feeding Systems

In order to reduce the cost for building a one-side feeding ramp we have developed aggregate feeding systems which allow easy aggregate feeding without any extra costs for foundation or ramp.

Optional Steel Ramp Wall

Optional steel ramp wall allows easy operation without expensive concrete ramp construction. The ramp is designed as a heavy structure and is capable of carrying sustainable load for a long period of time. This option eliminates the construction of a concrete ramp wall for the aggregate bin. It is very useful and cost saving when the plant is moved from time to time.

Mobile Steel Foundation For Cement Silos

Mobile steel foundations allow installation of cement silos on flat ground without any concrete slab or column foundation required. This allows even faster installation and reduces the operational costs as the foundation can be transported together with the plant.

Options For Different Climatic Conditions

Cooling Options (Chiller) Chillers: MEKA offers a range of chiller systems to be used with concrete batching plants. Check the chillers product page for more information. Ice Weighing Hoppers: MEKA offers ice weighing hoppers for implementation of ice during concrete production in extra hot conditions. Ice Screw Conveyors: MEKA offers ice screw conveyor for implementation of ice during concrete production in extra hot conditions

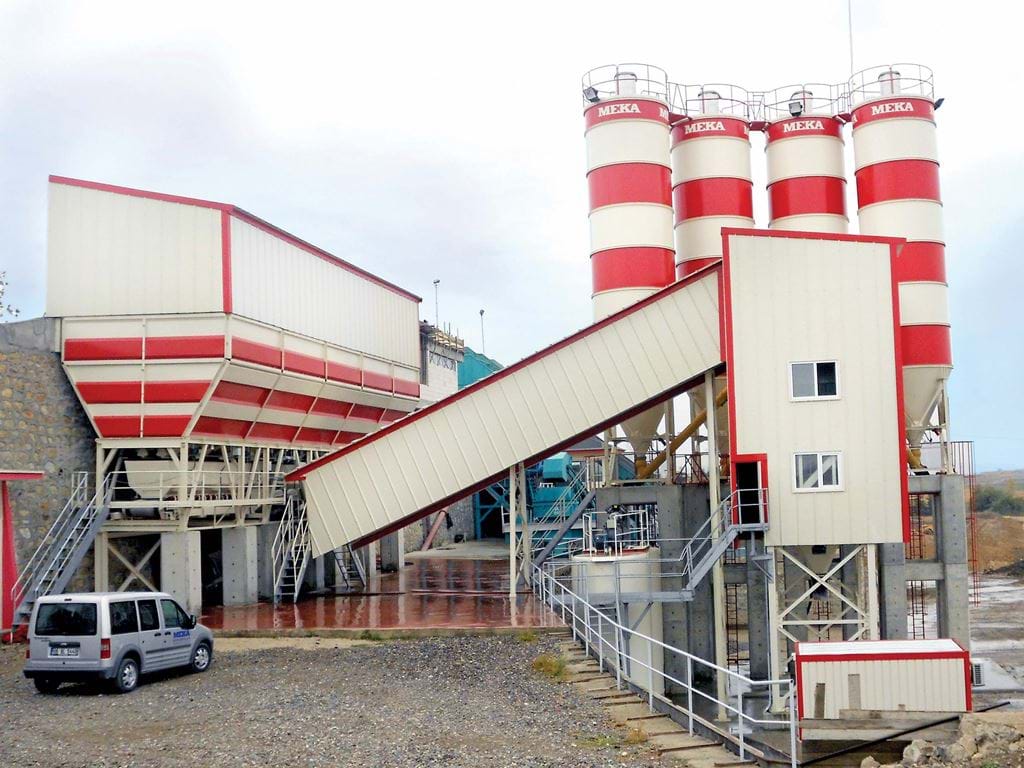

Heating Options Cladding: MEKA offers sandwich panel or steel sheet cladding options. Steam Generators: Steam generators start to provide steam in short period of time comparing to steam boilers. Different types of fuel are available. Steam/Hot Water Suppliers Más información

Mejore las capacidades y características de su planta de Concreto de Lote MEKA

Pesaje / Dosificación adicional

Medición y Monitoreo

Opciones operacionales

Características adicionales de salud y seguridad

Más información

MB-200W ESPECIFICACIONES TÉCNICAS

MB-30WS

MB-60W/WS

MB-100W/WS

MB-K110

MB-135W

MB-K140

MB-200W

Salida de hormigón compactado (mezcla de 30 y 20 segundos) 30 m³/h 39 yrd³/h 60-72 m³/h 78-94 yrd³/h 96-110 m³/h 125-143 yrd³/h 105-117 m³/h 136-152 yrd³/h 136-153 m³/h 177-200 yrd³/h 136-153 m³/h 176-198 yrd³/h 200 m³/h 260 yrd³/h
Capacidad del Mezclador (Concreto Compactado) 0.5 m³ 0,65 yrd³ 1,0 m³ 1.3 yrd³ 2,0 m³ 2.6 yrd³ 2,25 m³ 2.9 yrd³ 3,33 m³ 4.33 yrd³ 3,33 m³ 4.3 yrd³ 5,0 m³ 7,6 yrd³
MEZCLADOR TIPO Single Shaft / Planetary Single Shaft / Planetary Single Shaft/Twin Shaft/Planetary Single Shaft/Twin Shaft/Planetary Single Shaft/Twin Shaft/Planetary Single Shaft/Twin Shaft/Planetary Twin Shaft Twin Shaft Twin Shaft Twin Shaft Twin Shaft Twin Shaft Twin Shaft Twin Shaft
Potencia del motor del mezclador 18,5 kW 25 Hp 37 kW 50 Hp 2x37 kW 2x10 Hp 2x37 kW 2x50 Hp 2x55 kW 2x75 Hp 2x55 kW 2x75 Hp 2x90 kW 2x120 Hp
Contenedores agregados 2-6x20-50 m³ 2-6x26-65 yrd³ 2-6x20-50 m³ 2-6x26-65 yrd³ 3-6x20-50 m³ 2-6x26-65 yrd³ 3-6x20-50 m³ 2-6x26-65 yrd³ 4-8x20-75 m³ 4-8x26-97 yrd³ 4-8x20-75 m³ 2-6x26-65 yrd³ 4-8x20-75 m³ 4-8x26-97 yrd³
Agregado de alimentación Ramp or Pre-Feeding System Ramp or Pre-Feeding System Ramp or Pre-Feeding System Ramp or Pre-Feeding System Ramp or Pre-Feeding System Ramp or Pre-Feeding System Ramp or Pre-Feeding System Ramp or Pre-Feeding System Ramp or Pre-Feeding System Ramp or Pre-Feeding System Ramp or Pre-Feeding System Ramp or Pre-Feeding System Ramp or Pre-Feeding System Ramp or Pre-Feeding System
Transferencia agregada Skip/Belt Skip/Belt Skip/Belt Skip/Belt Skip/Belt Skip/Belt Belt Belt Belt Belt Belt Belt Belt Belt
Compresor de aire incluido, pistón o tipo de tornillo 5,5 kW 7,5 Hp 5,5 kW 7,5 Hp 7,5 kW 10 Hp 7,5 kW 10 Hp 7,5 kW 10 Hp 7,5 kW 10 Hp 7,5 kW 10 Hp
Tolva de pesaje de cemento 300 kg 660 lbs 600 kg 1,320 lbs 1,100 kg 2,205 lbs 1.100 kg 2,440 lbs 1.750 kg 3,855 lbs 1.750 kg 3,855 lbs 2,500 kg 5,510 lbs
Tolva de pesaje de agua 160 kg 350 lbs 250 kg 550 lbs 700 kg 1,540 lbs 700 kg 1,550 lbs 1.000 kg 2,205 lbs 1.000 kg 2,205 lbs 1.200 kg 2,645 lbs
Tolva de pesaje aditiva
Up to 6 pumps per hopper
1-2 x 20-40 kg 1-2 x 22-44 lbs 1-2 x 20-40 kg 1-2 x 22-44 lbs 1-4 x 20-60 kg 1-4 x 22-66 lbs 1-4 x 20-60 kg 1-4 x 44-132 lbs 1-4 x 20-60 kg 1-4 x 44-132 lbs 1-4 x 20-60 kg 1-4 x 44-132 lbs 1-4 x 20-60 kg 1-4 x 44-132 lbs
Transportador de tornillo de cemento 1-4 pcs D=193mm 1-4 pcs D=7.6” 1-4 pcs D=219mm 1-4 pcs D=8.6” 1-8 pcs D=273mm 1-4 pcs D=10.7” 1-8 pcs D=273mm 1-4 pcs D=10.7” 1-8 pcs D=273mm 1-4 pcs D=10.7” 1-8 pcs D=273mm 1-4 pcs D=10.7” 1-8 pcs D=323mm 1-4 pcs D=12.7”
