Las trituradoras de impacto de eje vertical de la serie L son adecuadas para una amplia gama de aplicaciones, incluida la producción de arena manufacturada de alta calidad, áridos bien formados y minerales industriales.
Las trituradoras también pueden utilizarse para dar forma o eliminar piedra blanda de los áridos, triturar clínker de cemento antes de los molinos y reciclar vidrio.

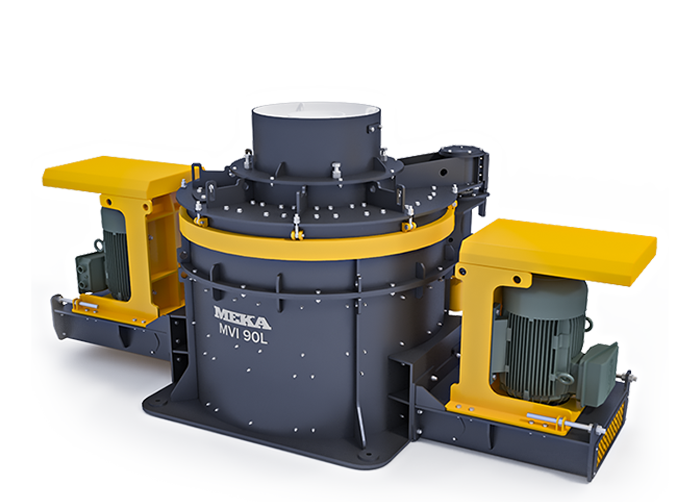

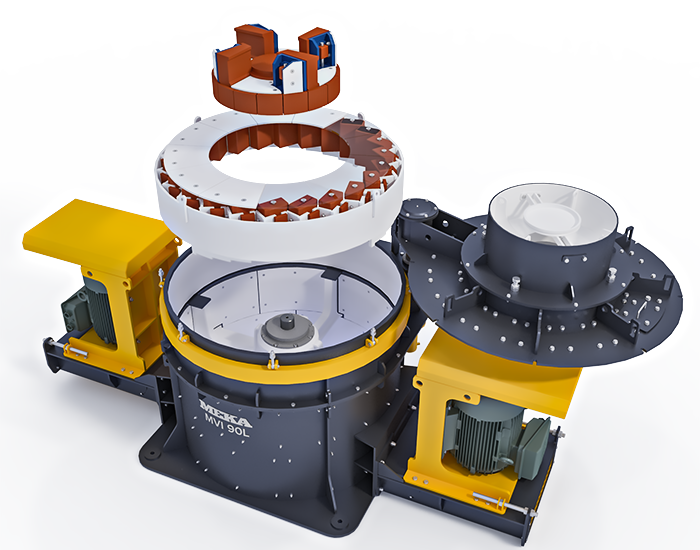

MVI 90L
|
MVI 90L
|
MVI 90L
|
MVI 90L
|
MVI 90L
|
MVI 90L
|
|
Tamaño máximo de alimentación (mm) Tamaño máximo de alimentación (inch) | 50 2 | 50 2 | 50 2 | 50 2 | 75 3 | 75 3 |
*Capacidad (mtph) *Capacidad (stph) | 200 220 | 300 330 | 250 275 | 300 330 | 250 275 | 400 440 |
Potencia (kW) Potencia (HP) | 200-250 275-340 | 2x110-160 2x150-220 | 200-250 275-340 | 2x110-160 2x150-220 | 200-250 275-340 | 2x200 2x275 |
Velocidad (rpm) Velocidad (rpm) | 800-1700 800-1700 | 800-1700 800-1700 | 800-1600 800-1600 | 800-1600 800-1600 | 800-1400 800-1400 | 800-1400 800-1400 |
**Peso (kg) **Peso (lbs) | 9210 20300 | 10150 22371 | 10900 24024 | 11900 26228 | 11460 25258 | 12450 27440 |
*For material weighing 1.6 t/m³ or 100 lbs/ft³. Capacity values are indicative only, crusher performance may vary depending on the feed gradation, feed moisture content,crushability of the material, crusher rpm, installed power and the crushing circuit design.
**Weights shown do not include drive motor package, support legs, maintenance platform, inlet and outlet chutes
