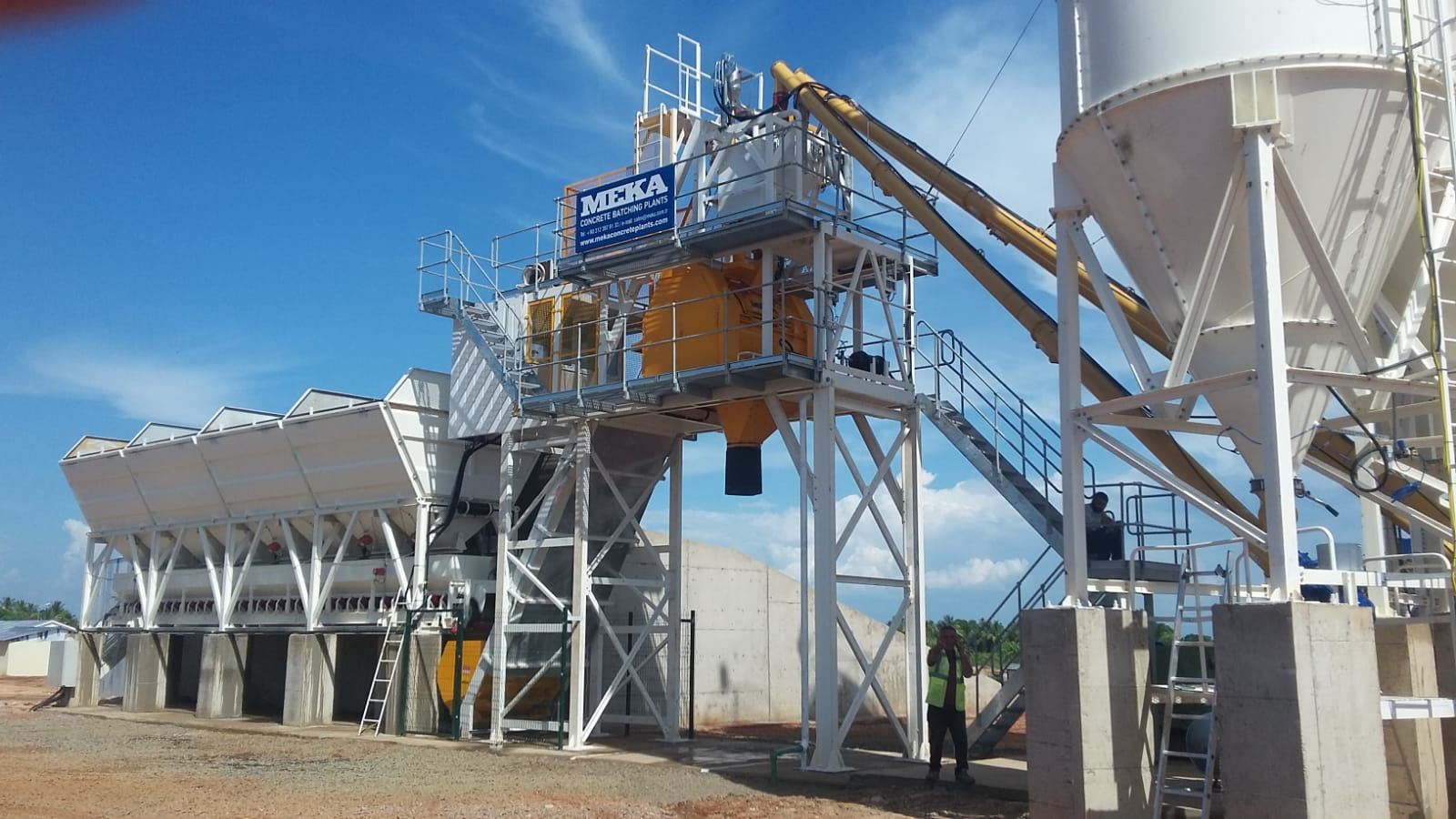

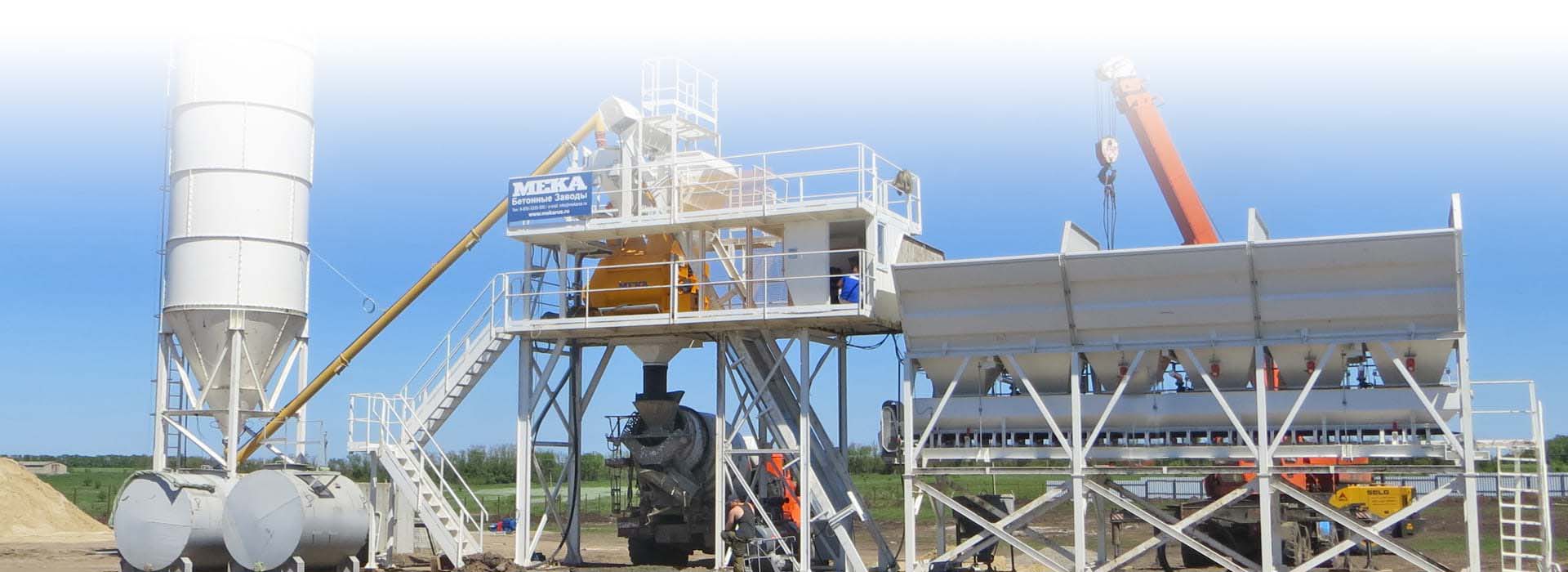

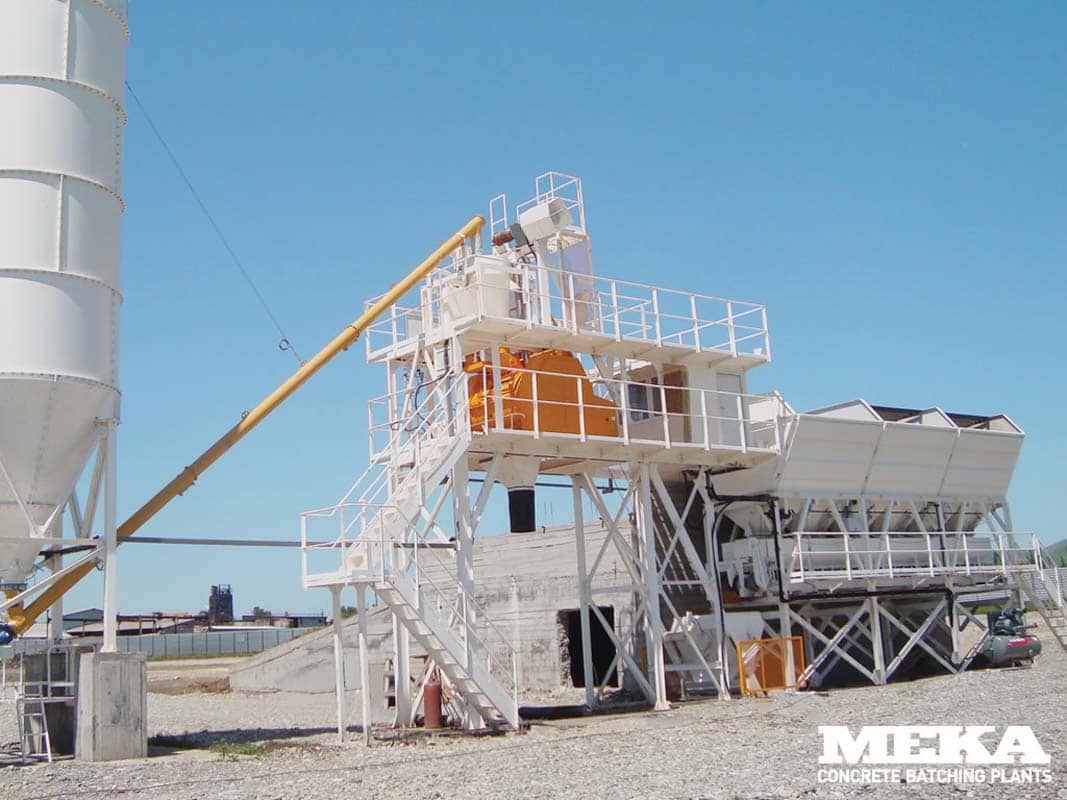

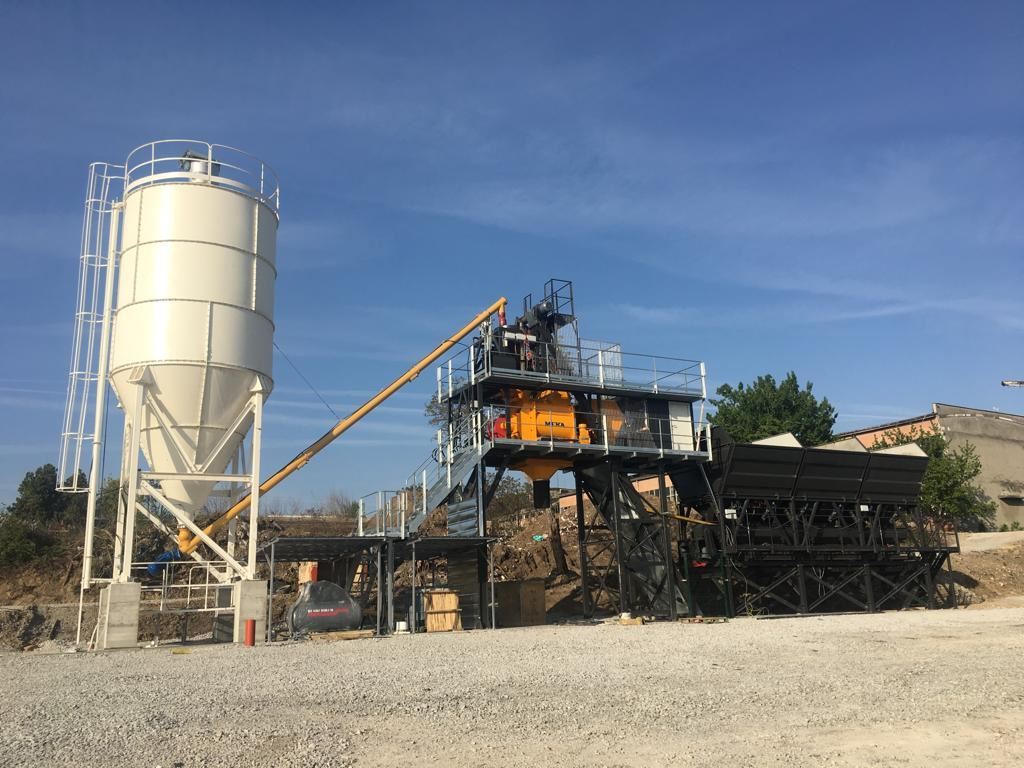

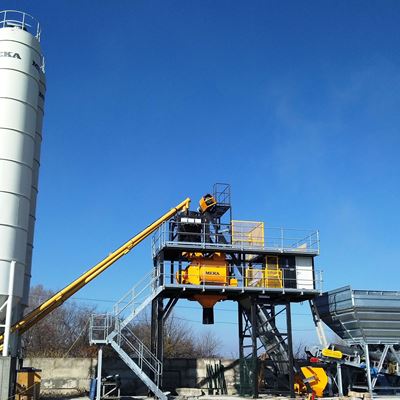

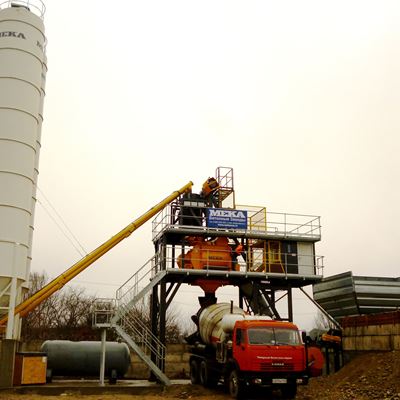

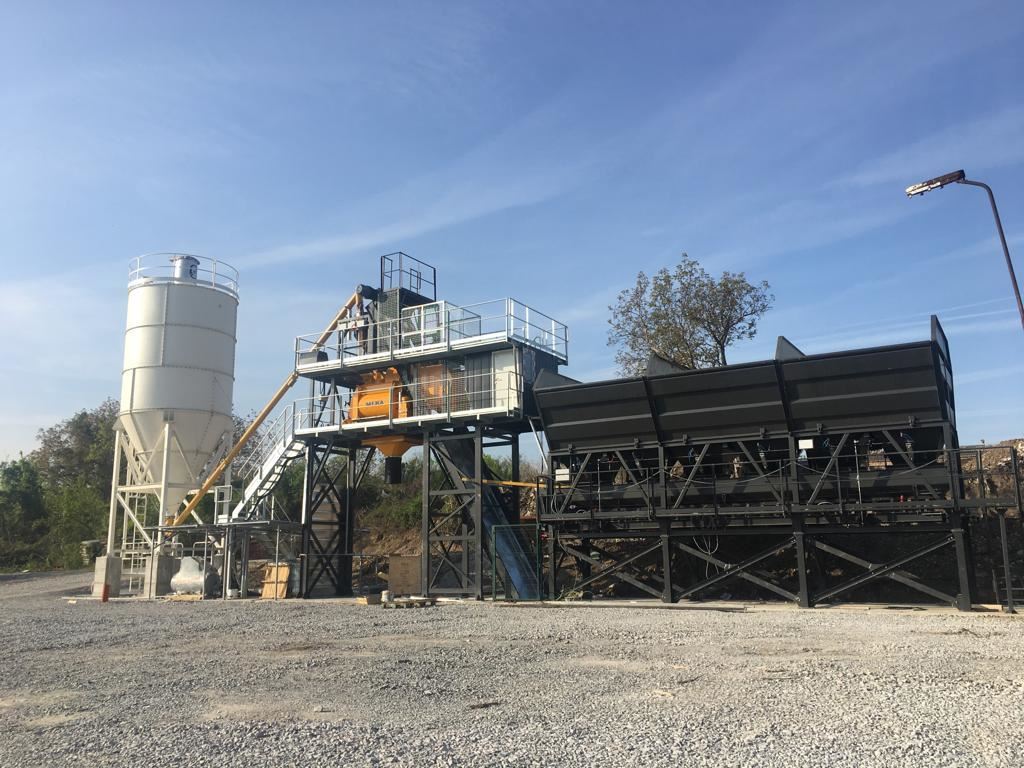

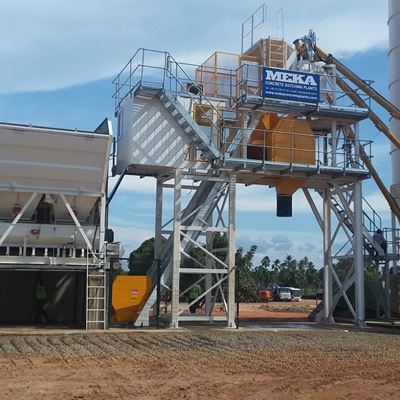

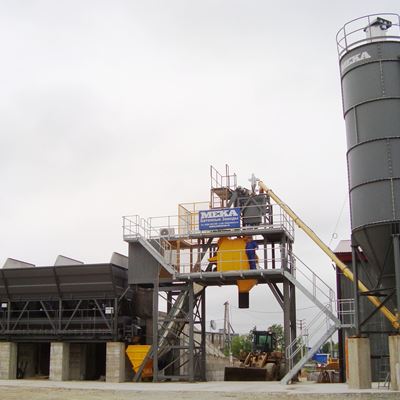

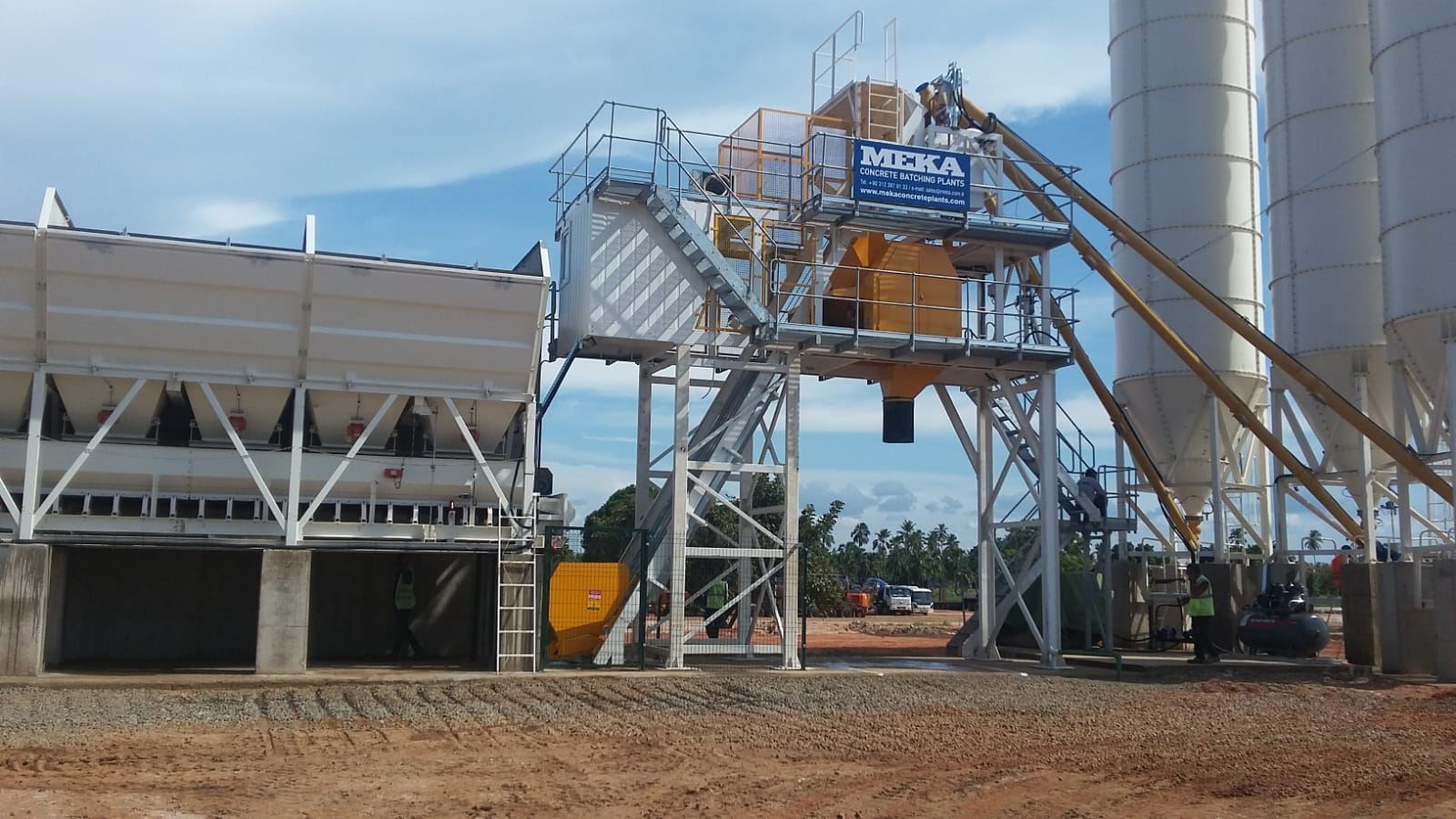

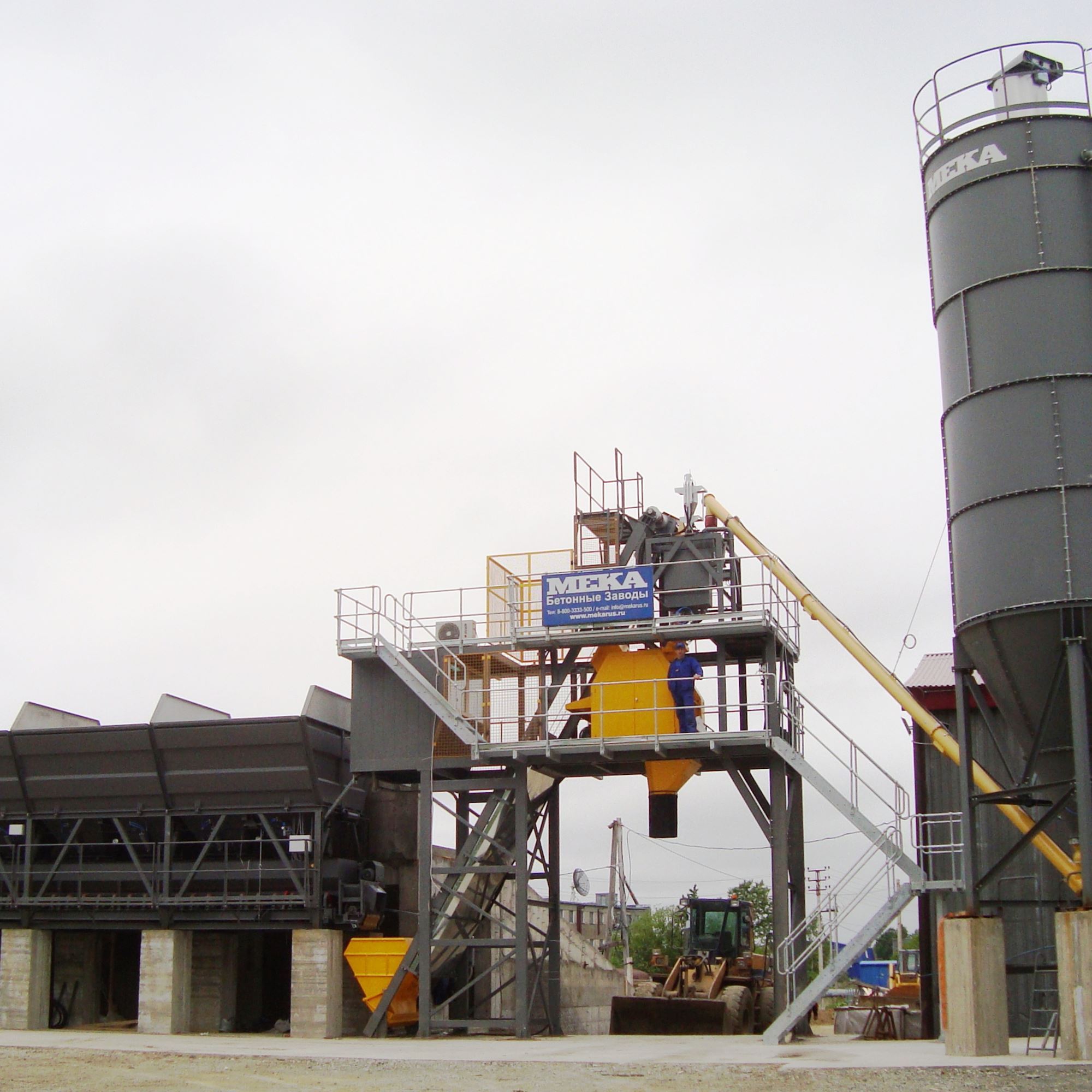

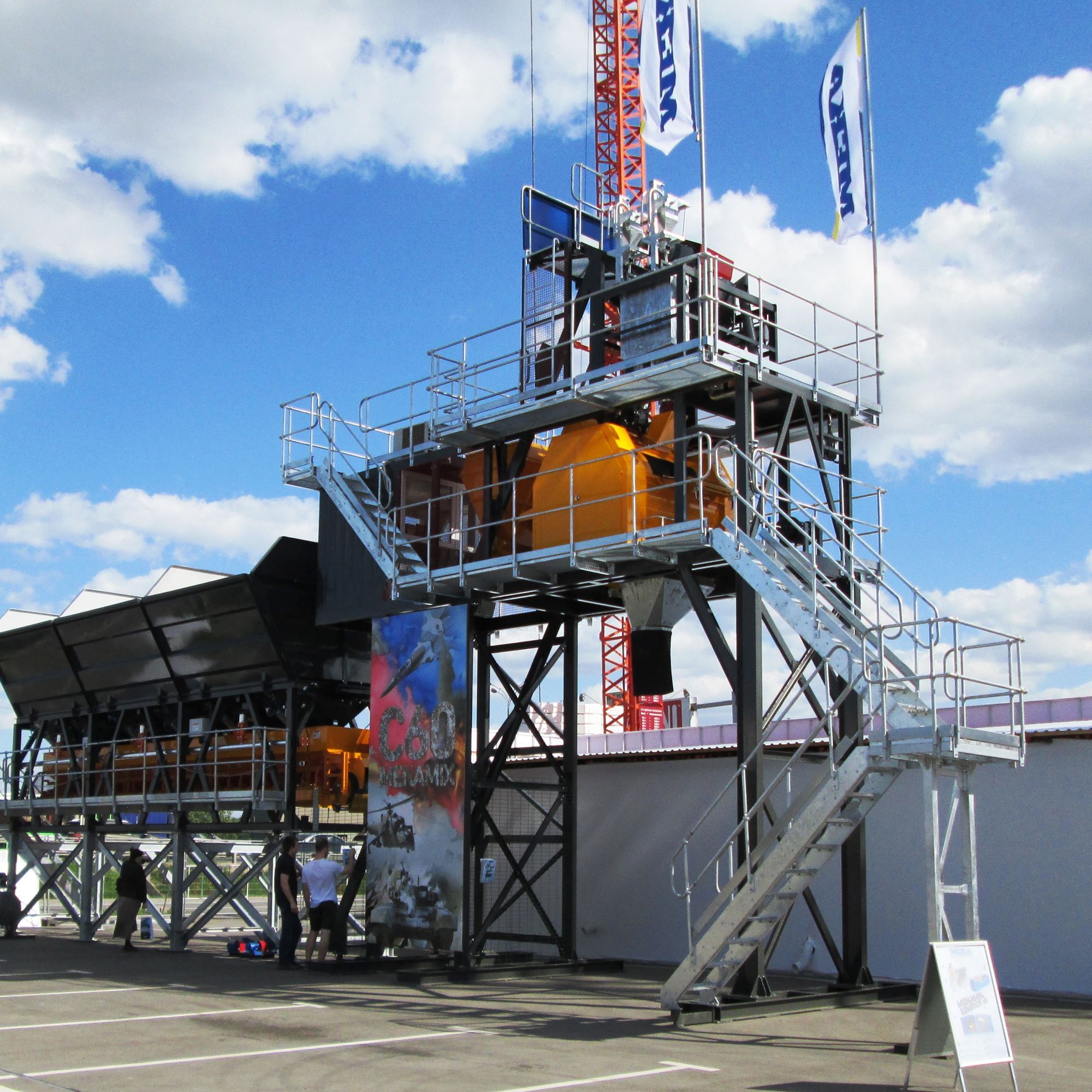

MB-C60

COMPACT CONCRETE BATCHING PLANT

MB-C60

COMPACT AND SOLID

MB-C60

EASY TRANSPORT AND INSTALLATION

MB-C60: compacto y solido

MB-C60 modelo es la mejor opción para la producción de concreto en cualquier sitio de trabajo. La combinación de la durabilidad de las plantas estacionarias del concreto por lotes con la flexibilidad del diseño compacto se convierte en una solución incomparable para todos los profesionales. La instalación requiere un mínimo o ningún fundamento que reduzca los costes operacionales y lleve la movilidad a un nuevo nivel.

MB-C60 HECHOS DESTACADOS

CHASIS ROBUSTO RÍGIDO

El chasis principal resistente y estable permite una durabilidad extrema, transporte seguro, funcionamiento continuo de larga duración y pesaje sensible al minimizar las vibraciones en las básculas.

DISEÑO ÚNICO DE CHASIS DOBLE

MB-C60 está equipado con las plataformas más amplias posibles y es una de las plantas de MEKA más fáciles de operar. Las plataformas anchas permiten el acceso fácil y seguro a las partes principales del mezclador y las tolvas de pesaje. Incluye la plataforma superior para el servicio de la báscula y la plataforma de servicio de omisión de motor / caja de cambios.

ALTA MOVILIDAD / TRANSPORTE FÁCIL

MB-C60 está diseñado para caber en dos camiones estándar o dos contenedores abiertos de 40FT con un juego para silo de cemento que consta de un transportador de tornillo, filtro y accesorios de silo. El chasis principal se compone de una sola pieza y reduce el tiempo de instalación múltiple.

INSTALACIÓN RÁPIDA

La planta de concreto compacta MB-C60 está diseñada para minimizar el trabajo en el sitio durante la instalación y se conecta y prueba en las instalaciones de fabricación. Dependiendo del equipo, la planta de hormigón compacta MB-C60 se puede instalar normalmente en 2-3 días.

AUTOMATIZACIÓN PERFECTA PARA ALTO RENDIMIENTO

Lograr la homogeneidad deseada y la trabajabilidad de las mezclas de concreto modernas, dentro del período más breve posible, es a menudo la fase más crítica de la producción de concreto, por lo tanto, es esencial la necesidad de equipos de mezcla confiables y de alta calidad.
Más información

1,0 m³ MEZCLADOR DE EJE SENCILLO Y DOBLE EJE /MEZCLADOR PLANETARIO

Lograr la homogeneidad deseada y la trabajabilidad de las mezclas de concreto modernas, dentro del período más breve posible, es a menudo la fase más crítica de la producción de concreto, por lo tanto, es esencial la necesidad de equipos de mezcla confiables y de alta calidad. Por otro lado, este es el único modelo compacto que permite la instalación de 3 diferentes tipos de mezcladores de concreto bajo pedido para satisfacer las demandas de todas las aplicaciones y expectativas del usuario final.

Más información

CARACTERÍSTICAS DISTINTIVAS

Wide Main Chassis

Service platforms on the main chassis are of the biggest on the market. Control cabin is installed on the chassis allowing the operator to react to different faults immediately.

High Weighing Accuracy

Heavy Main Chassis: Heavy main chassis minimizes the vibrations occurring during normal operation coming from the loading process, belt operation and mixing. Less vibration not only increases the accuracy but also increases the weighing speed which contributes to overall capacity.

Separate Weighing Hoppers: On all MEKA concrete mixing plants weighing hoppers for cement, water, additives and other materials are separated from the mixer frame and are installed on a separate chassis to minimize vibrations. Installing these directly on the mixer frame transfers the vibrations coming from the mixer to the scales. It affects the weighing process which becomes less accurate and requires more time to finish. Both accuracy and speed are negatively affected.

Multi-Loadcell Design: Cement and water scales are equipped with 2 loadcells to optimize the load distribution and to maximize the accuracy. On the other hand, cardan connections allow free movement and prevent the loadcell and other connection from breakdowns. MEKA never installs weighing hoppers on mixers.

Double Rope Skip Hoist System

All MEKA skip hoist systems are designed with two separated ropes and a flexible connection to the skip. This application increases the lifetime of the ropes, reduces the risks of failures and allows extra safety for working personnel.

Skip Hoist Safety System

All MEKA skip hoist systems are equipped with rope tension control mechanisms. The switch triggers an alarm if the rope is not tense enough or one of the ropes fails. This mechanism prevents skip fall and allows safer overall operation.

Wear Resistant Waves On The Aggregate Bin Walls

Bin walls have aggregate capture waves which are parallel to the ground. This structure reduces the wear of steel panels as the material is flowing over the aggregates which are kept in the spaces. This technology is used by most advanced manufacturers as it increases the lifetime of equipment.

Independent Aggregate Discharge Gates

Each compartment of the aggregate bin of MB-C60 concrete plant is equipped with two pneumatically controlled discharge gates. This ensures fast aggregate load onto the weighing belt and precise dosing/jogging for maximum accuracy.

Minimum Foundation

Low profile aggregate bin and modular main chassis equipped with special steel structures require minimum foundation and reduce the first investment costs. Optional steel foundation frames are available upon request to provide the installation on the flat surface with the help of chemical anchorage.

Completely Pre-Wired And Tested At The Factory

Almost no cable work is required on site since all the equipment is pre-wired at MEKA factory to minimize the installation time on site. All the mechanical and electrical parts are tested for any possible faults to ensure the quality and reliability.

OPCIONES OPERATIVAS

Radial Or Shuttle Conveyor Aggregate Feeding System

In order to reduce the cost for building a one-side feeding ramp we have developed aggregate feeding systems which allow easy aggregate feeding without any extra costs for foundation or ramp.

Optional Steel Ramp Wall

Optional steel ramp wall allows easy operation without expensive concrete ramp construction. The ramp is designed as a heavy structure and is capable of carrying sustainable load for a long period of time. This option eliminates the construction of a concrete ramp wall for the aggregate bin. It is very useful and cost saving when the plant is moved from time to time.

Mobile Steel Foundation For Cement Silos

Mobile steel foundations allow installation of cement silos on flat ground without any concrete slab or column foundation required. This allows even faster installation and reduces the operational costs as the foundation can be transported together with the plant.

Options For Different Climatic Conditions

Cooling Options (Chiller) Chillers: MEKA offers a range of chiller systems to be used with concrete batching plants. Check the chillers product page for more information. Ice Weighing Hoppers: MEKA offers ice weighing hoppers for implementation of ice during concrete production in extra hot conditions. Ice Screw Conveyors: MEKA offers ice screw conveyor for implementation of ice during concrete production in extra hot conditions

Heating Options Cladding: MEKA offers sandwich panel or steel sheet cladding options. Steam Generators: Steam generators start to provide steam in short period of time comparing to steam boilers. Different types of fuel are available. Steam/Hot Water Suppliers LEARN MORE

Mejore las capacidades y características de su planta de Concreto de Lote MEKA

Pesaje / Dosificación adicional

Medición y Monitoreo

Opciones operacionales

Características adicionales de salud y seguridad

Más información

MB-C60 ESPECIFICACIONES TÉCNICAS

MB-C30

MB-C60

MB-C100

MB-C120

Salida de hormigón compactado (mezcla de 30 y 20 segundos) 30 m³/h 39 yrd³/h 60 m³/h 147-175 yrd³/h 85-95 m³/h 110-123 yrd³/h 115-124 m³/h 150-161 yrd³/h
Capacidad del Mezclador (Concreto Compactado) 0.5 m³ 0,65 yrd³ 1,0 m³ 1,3 yrd³ 2,25 m³ 2.9 yrd³ 3,0 m³ 3.9 yrd³
MEZCLADOR TIPO Single Shaft Single Shaft Single Shaft/Twin Shaft/Planetary Single Shaft/Twin Shaft/Planetary Twin Shaft Twin Shaft Twin Shaft Twin Shaft
Potencia del motor del mezclador 18,5 kW 25 Hp 37 kW 50 Hp 2x37 kW 50 Hp 2x55 kW 2x75 Hp
Contenedores agregados 4x7 or 2x14 m³ 4x9 or 2x18 yrd³ 2-6x20-50 m³ 2-6x26-65 yrd³ 2-6x20-50 m³ 2-6x26-65 yrd³ 2-6x20-50 m³ 2-6x26-65 yrd³
Agregado de alimentación Ramp or Pre-Feeding System Ramp or Pre-Feeding System Ramp or Pre-Feeding System Ramp or Pre-Feeding System Ramp or Pre-Feeding System Ramp or Pre-Feeding System Ramp or Pre-Feeding System Ramp or Pre-Feeding System
Peso del agregado / banda de transferencia Skip Skip Skip or Belt Skip or Belt Belt Belt Belt Belt
Compresor de aire incluido, pistón o tipo de tornillo 5,5 kW 7 Hp 5,5 kW 7 Hp 7,5 kW 10 Hp 7,5 kW 10 Hp
Tolva de pesaje de cemento 300 kg 1,320 lbs 600 kg 1,320 lbs 1.250 kg 2,750 lbs 1.750 kg 3,855 lbs
Tolva de pesaje de agua 160 kg 660 lbs 250 kg 550 lbs 700 kg 2,200 lbs 1000 kg 2,200 lbs
Tolva de pesaje aditiva 1 or 2 x 20-40 kg 1 or 2 x 44-88 lbs 1 or 2 x 20-40 kg 1 or 2 x 44-88 lbs 1-4 x 20-60 kg 1-4 x 44-132 lbs 1-4 x 20-60 kg 1-4 x 44-132 lbs
Transportador de tornillo de cemento 1-4 pcs D=193mm 1-4 pcs D=7.6” 1-4 pcs D=219mm 1-4 pcs D=8.7” 1-4 pcs D=273mm 1-4 pcs D=10.7” 1-4 pcs D=273mm 1-4 pcs D=10.7”
