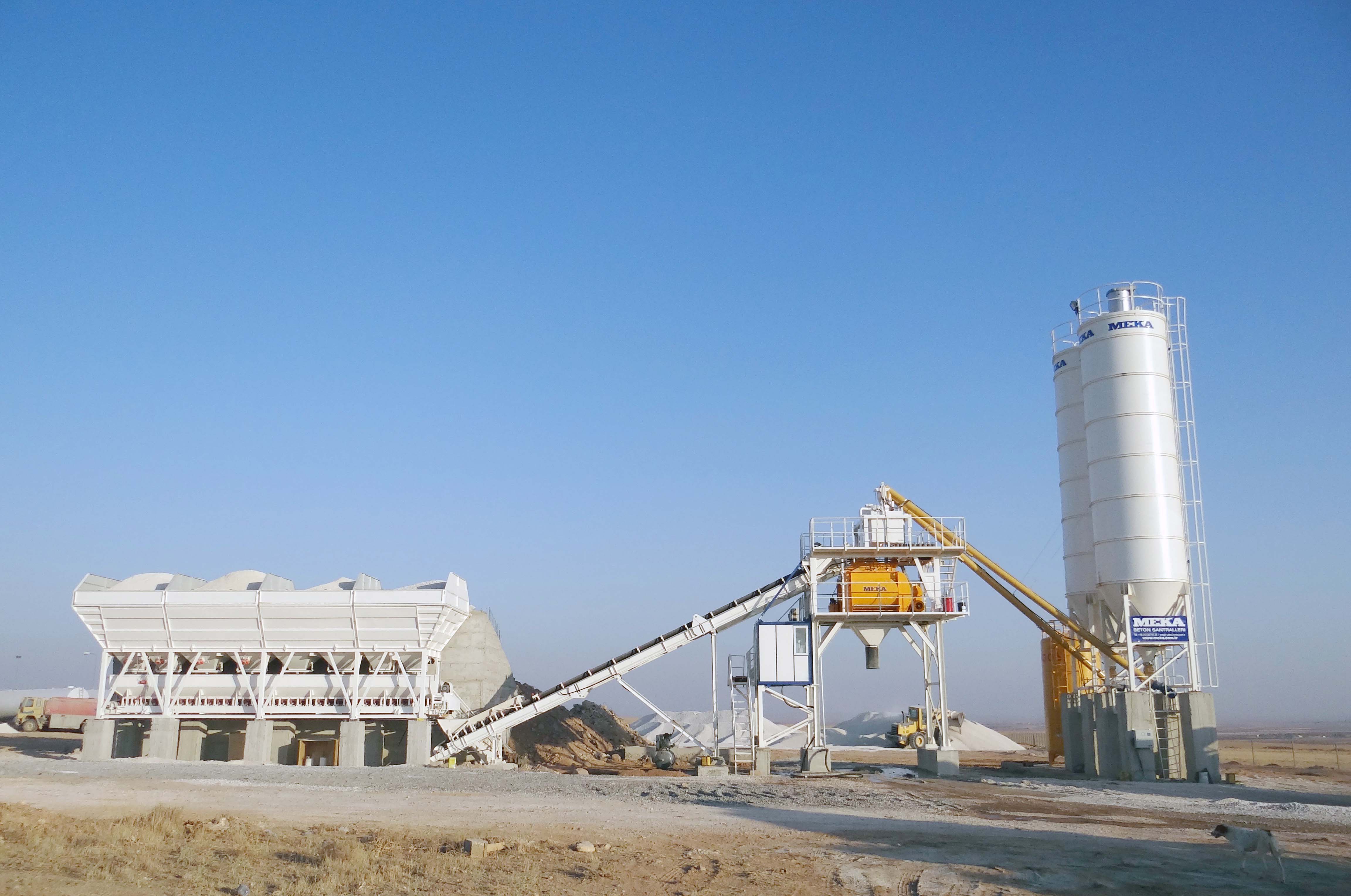

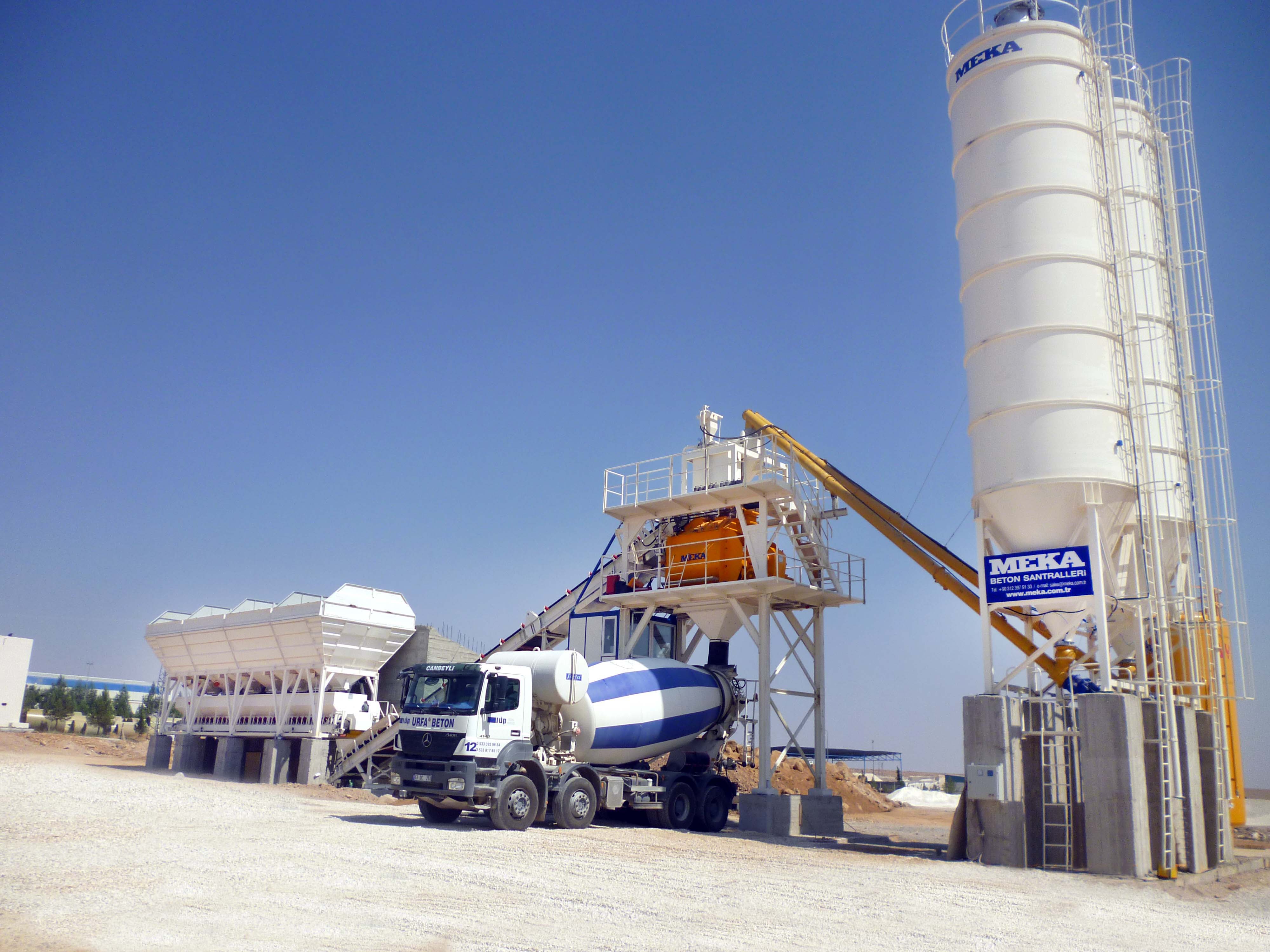

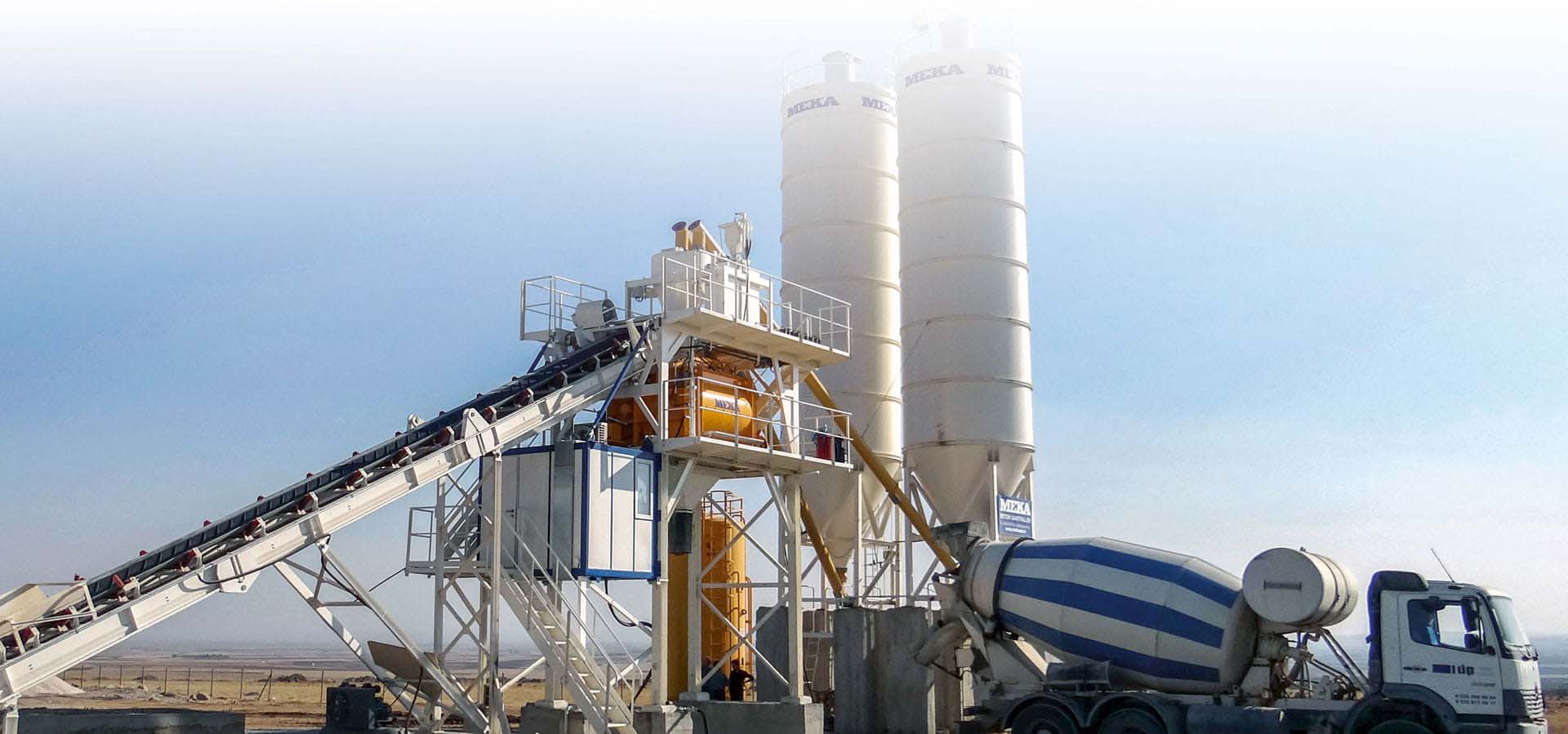

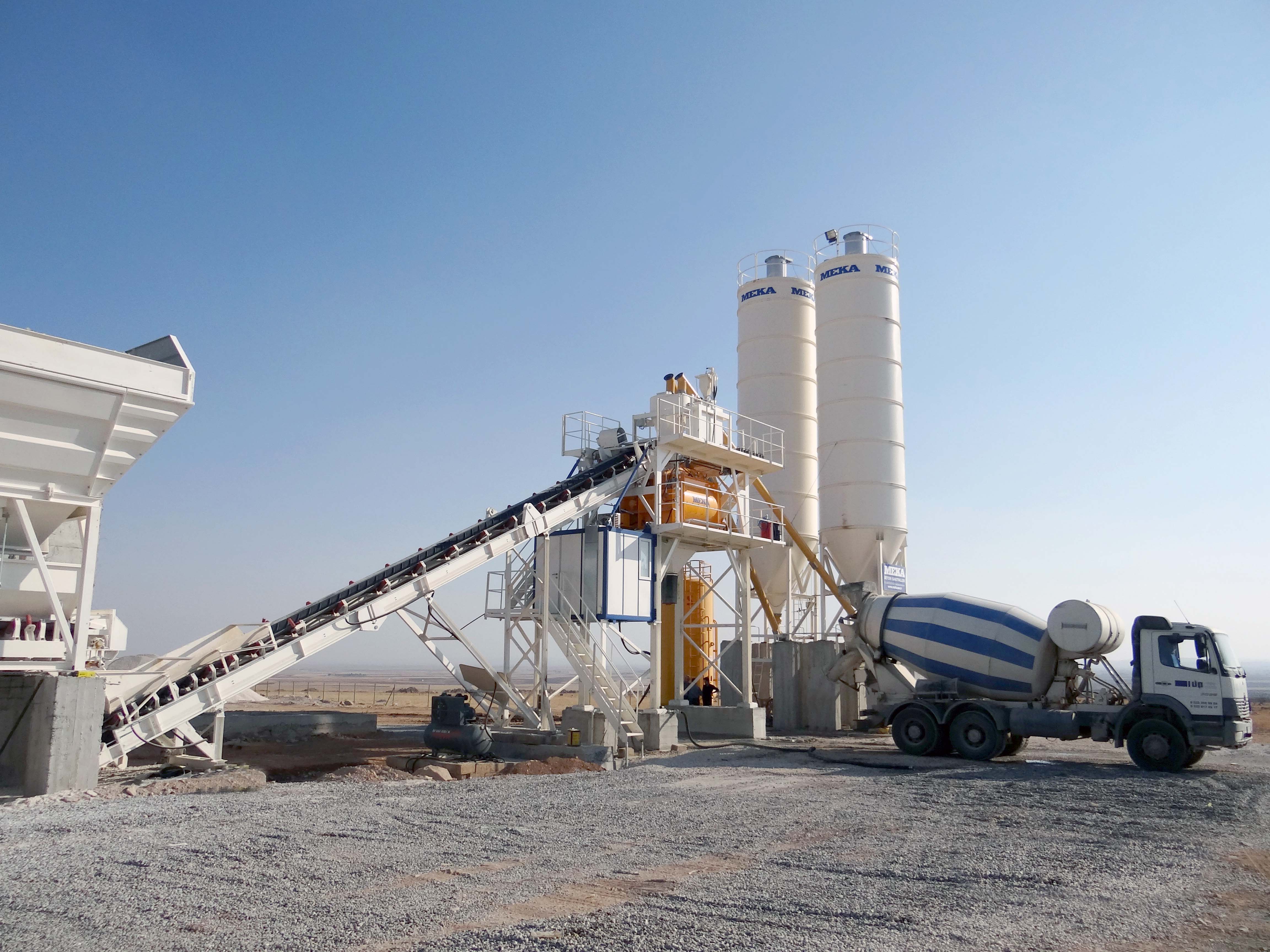

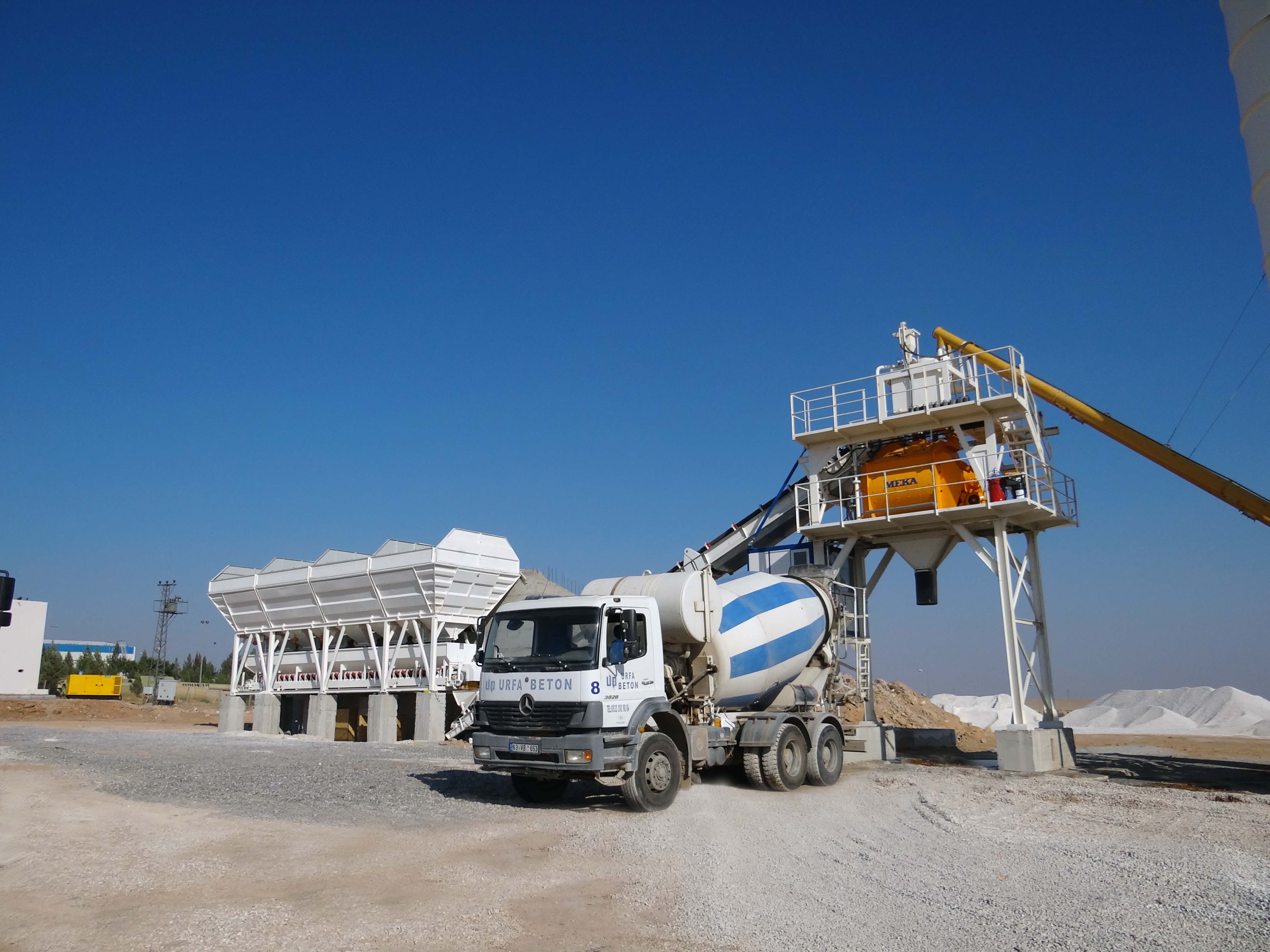

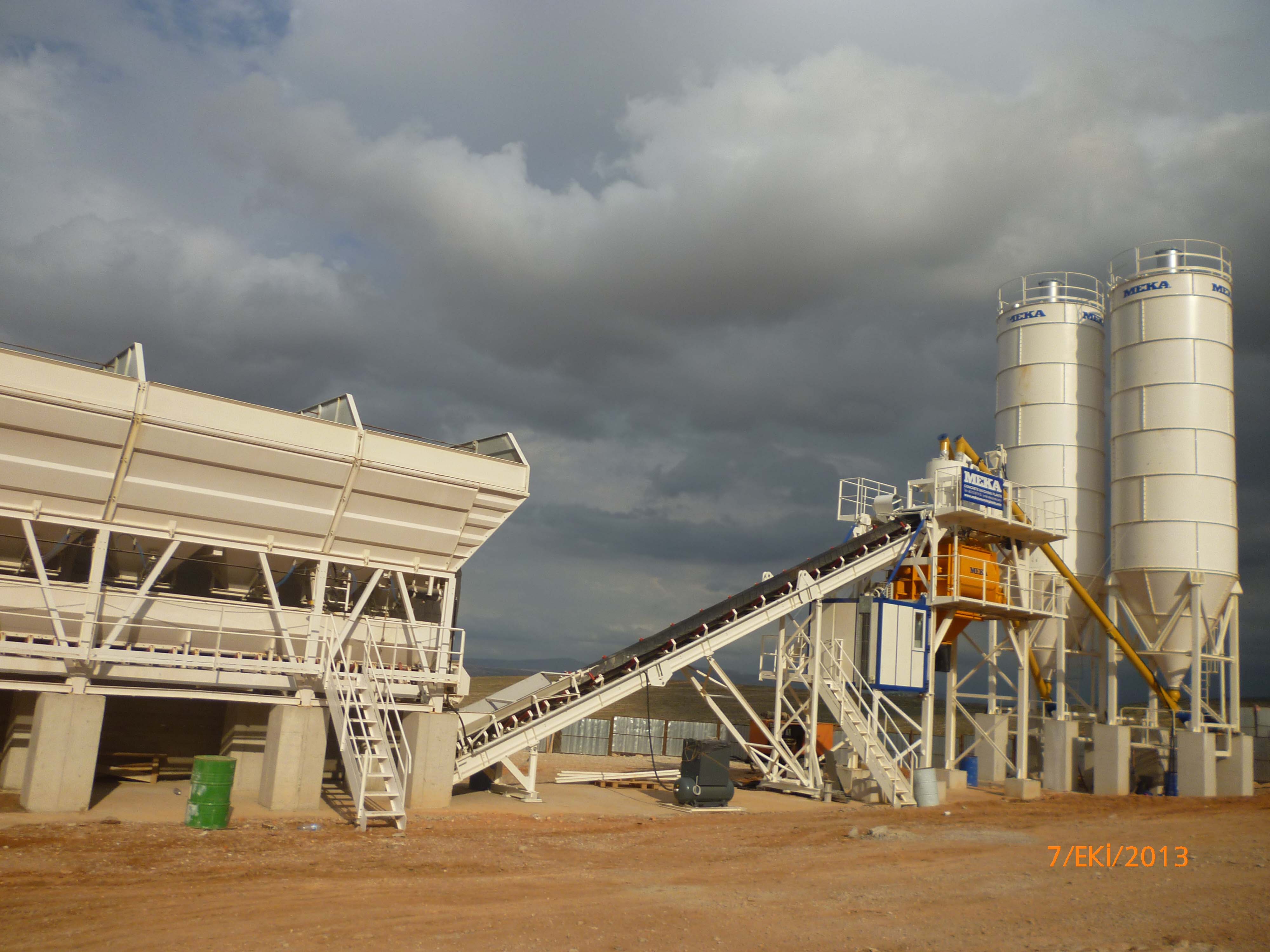

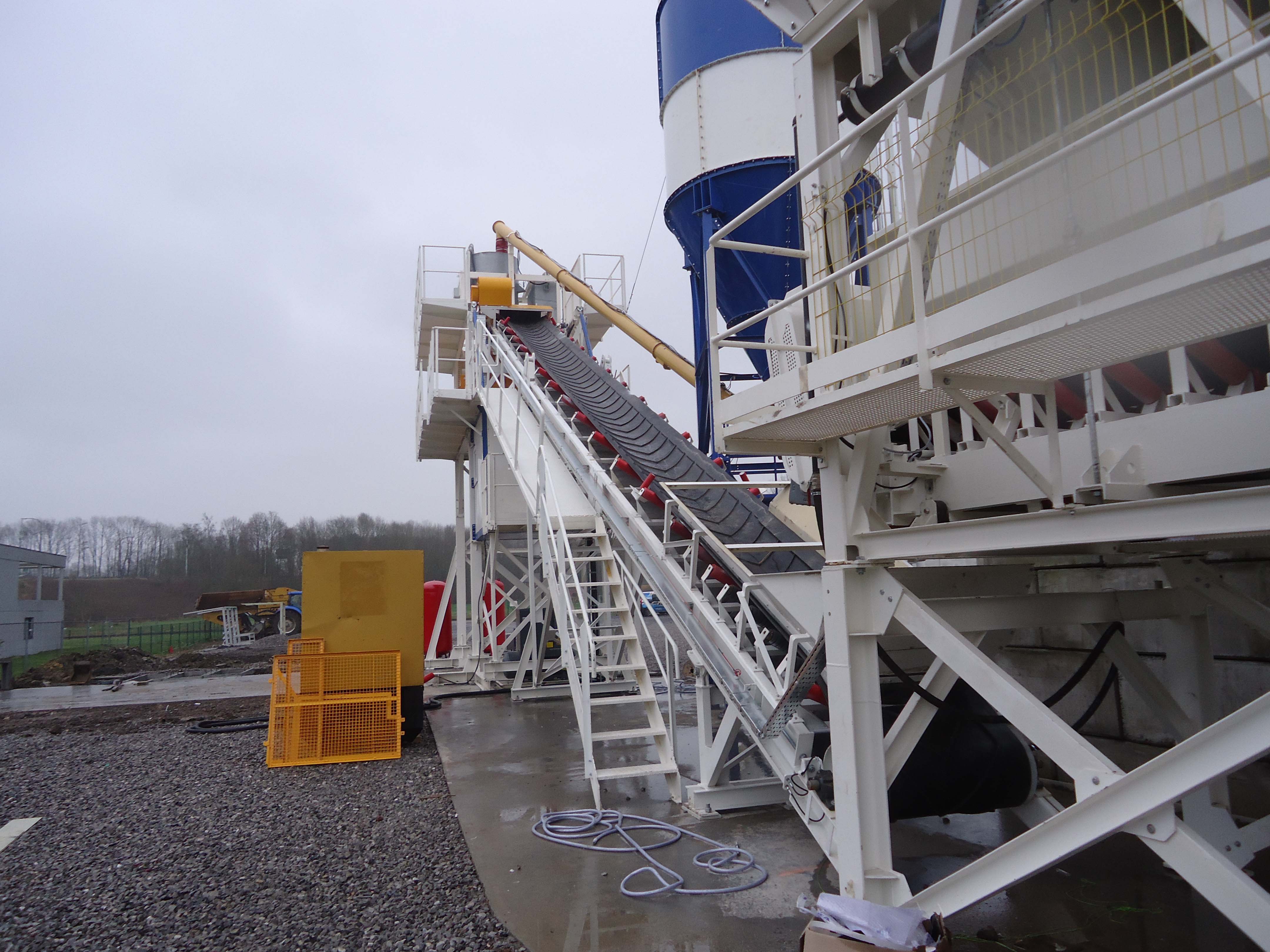

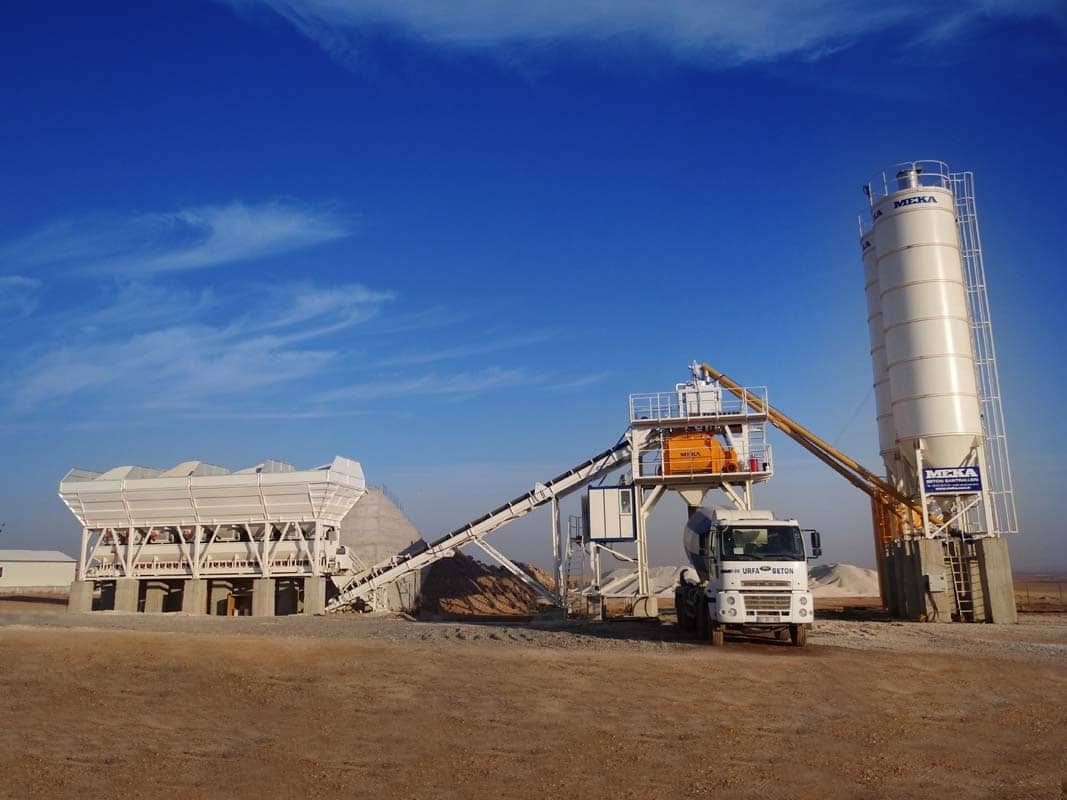

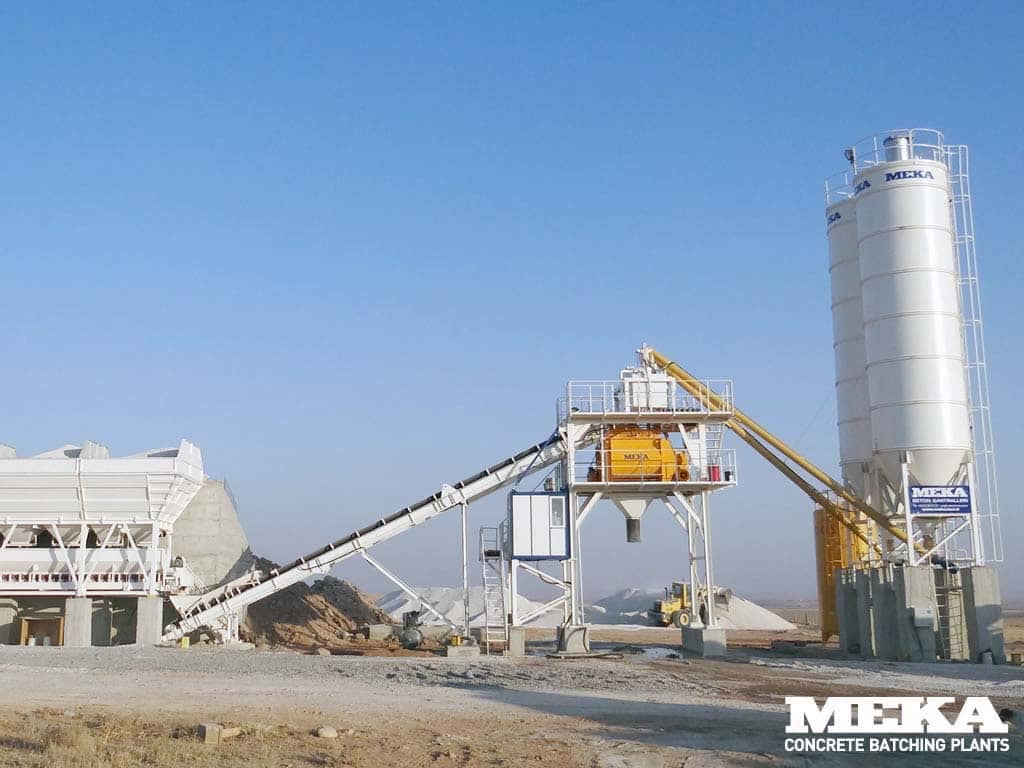

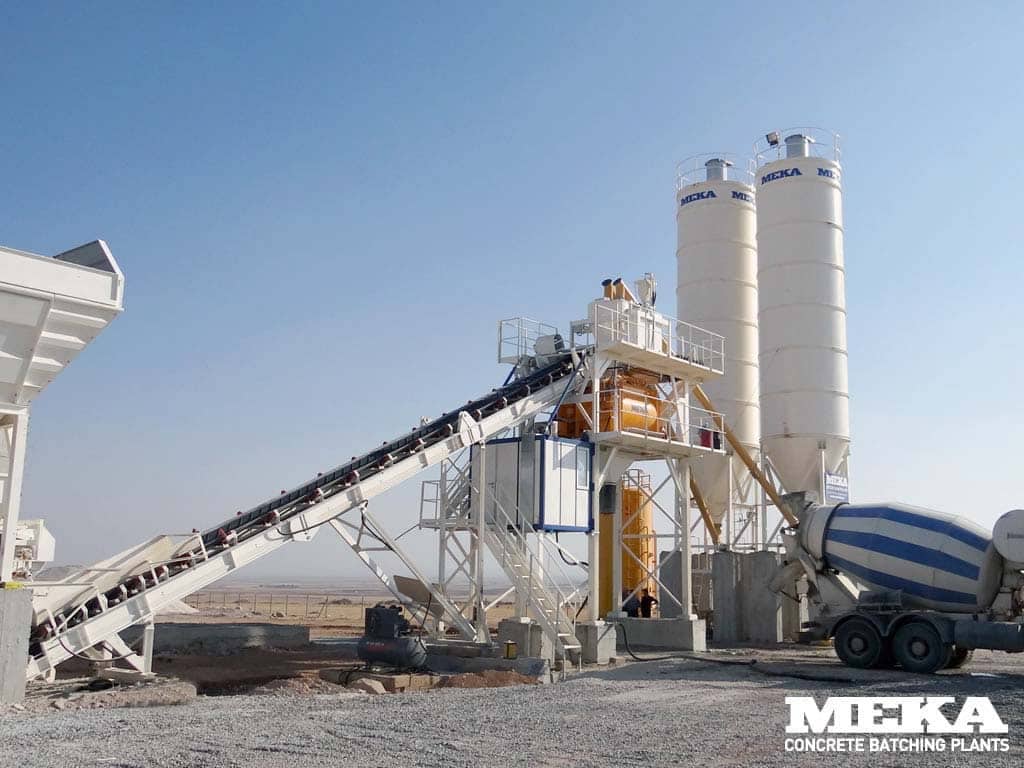

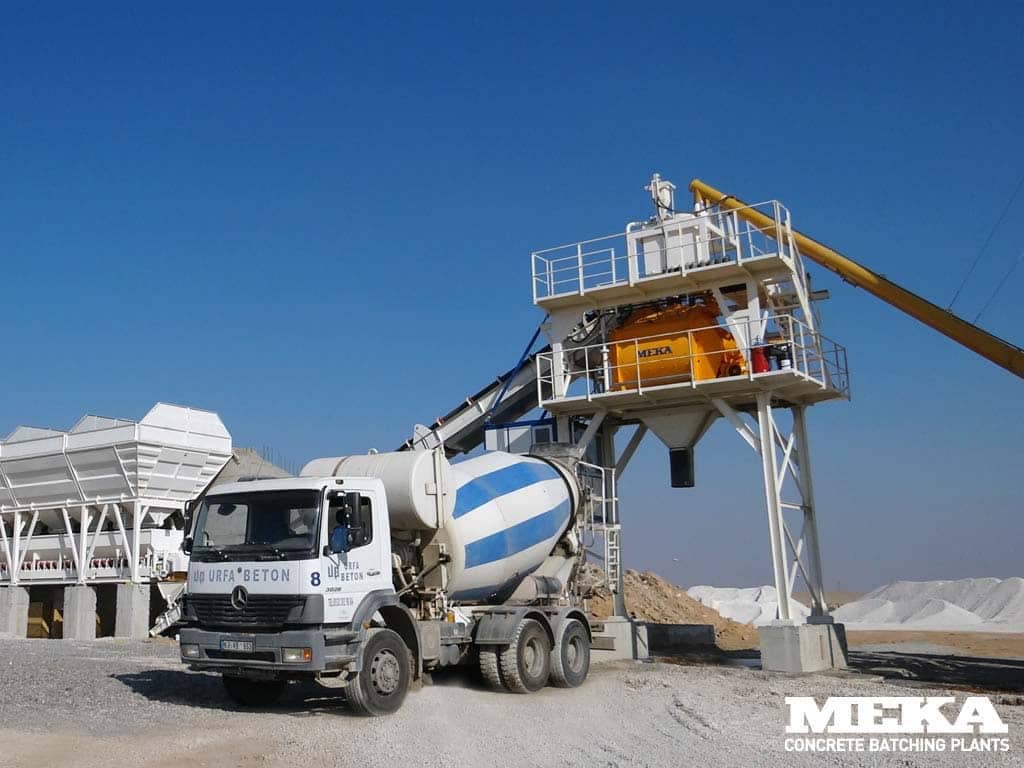

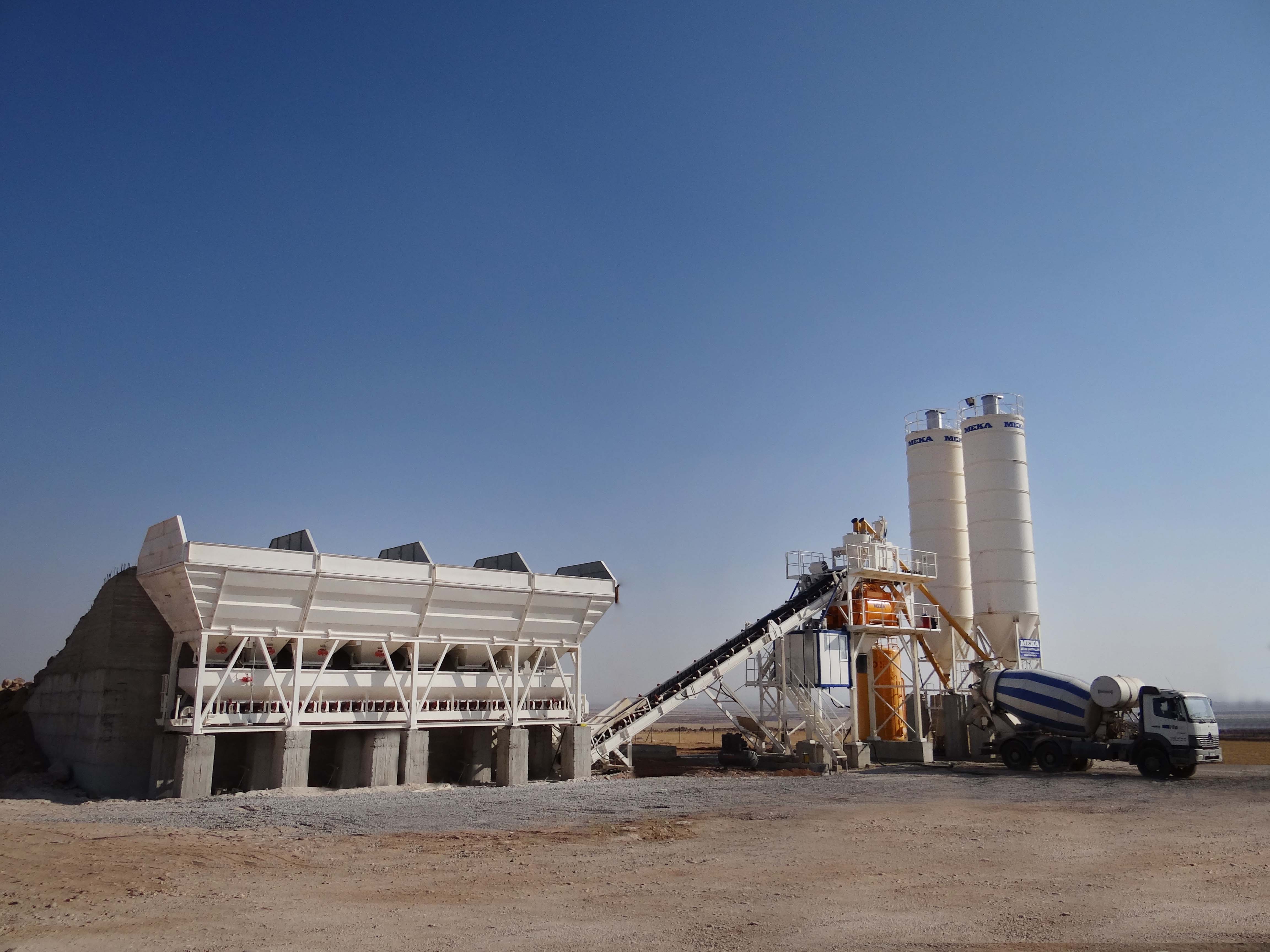

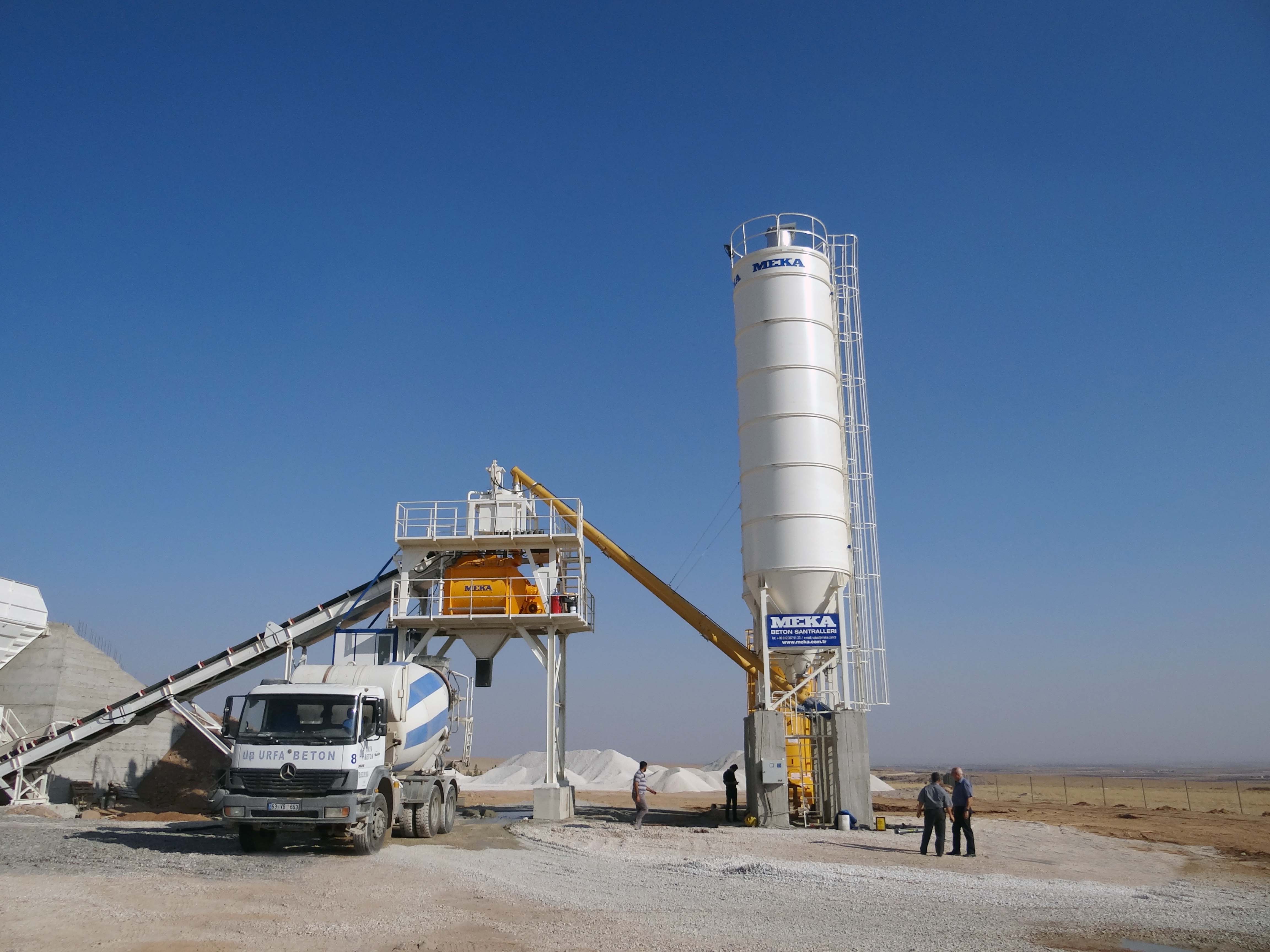

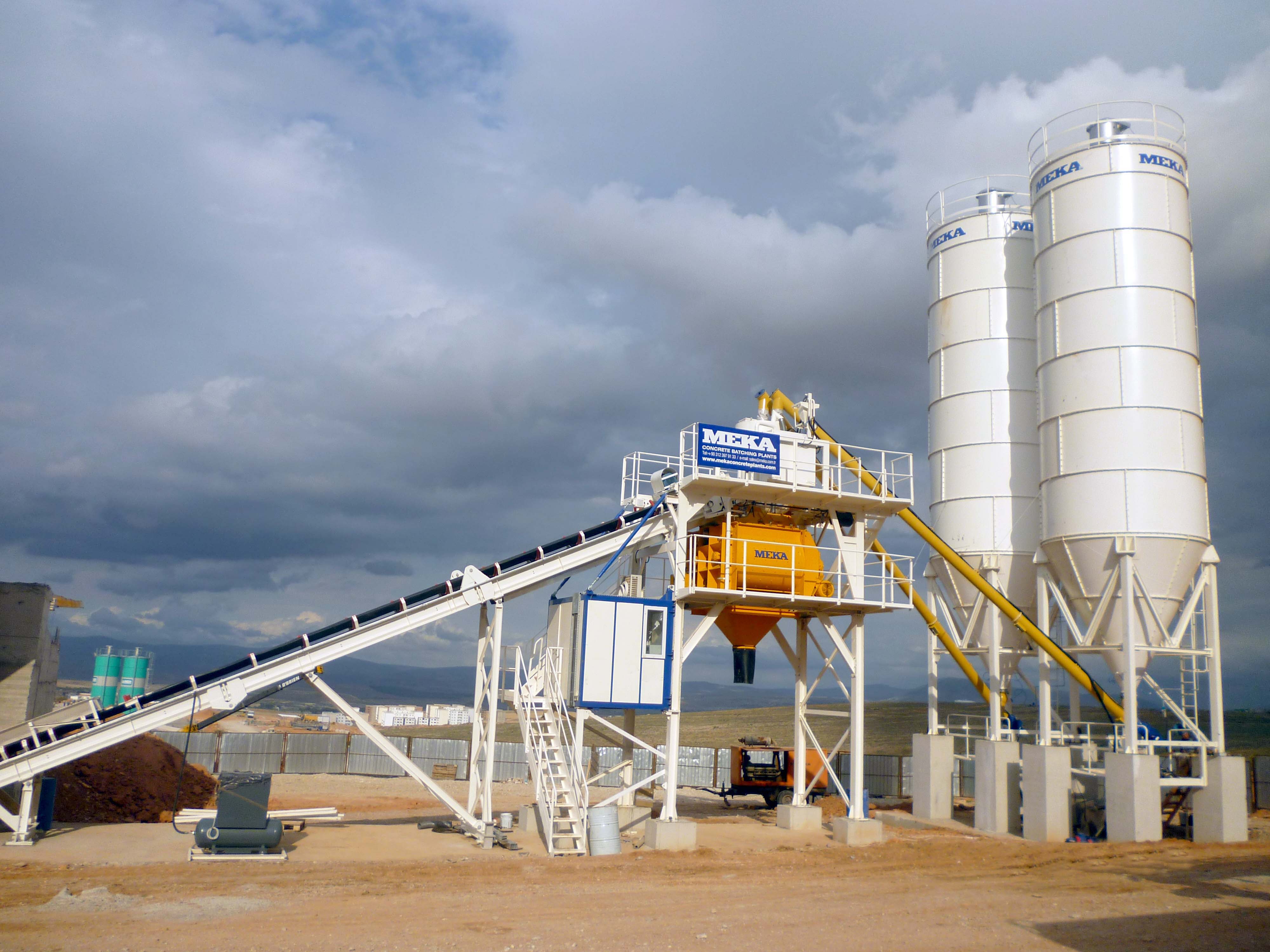

MB-C100

Service platforms on the main chassis are of the biggest on the market. Control cabin comes preinstalled on the chassis allowing the operator to react to different faults immediately.

Heavy Main Chassis: Heavy main chassis minimizes the vibrations occurring during normal operation coming from the loading process, belt operation and mixing. Less vibration not only increases the accuracy but also increases the weighing speed which contributes to overall capacity.

Separate Weighing Hoppers: On all MEKA concrete mixing plants weighing hoppers for cement, water, additives and other materials are separated from the mixer frame and are installed on a separate chassis to minimize vibrations. Installing these directly on the mixer frame transfers the vibrations coming from the mixer to the scales. It affects the weighing process which becomes less accurate and requires more time to finish. Both accuracy and speed are negatively affected.

Multi-Loadcell Design: Cement and water scales are equipped with 3 and 2 loadcells respectively to optimize the load distribution and to maximize the accuracy. On the other hand, cardan connections allow free movement and prevent the loadcell and other connection from breakdowns. MEKA never installs weighing hoppers on mixers.

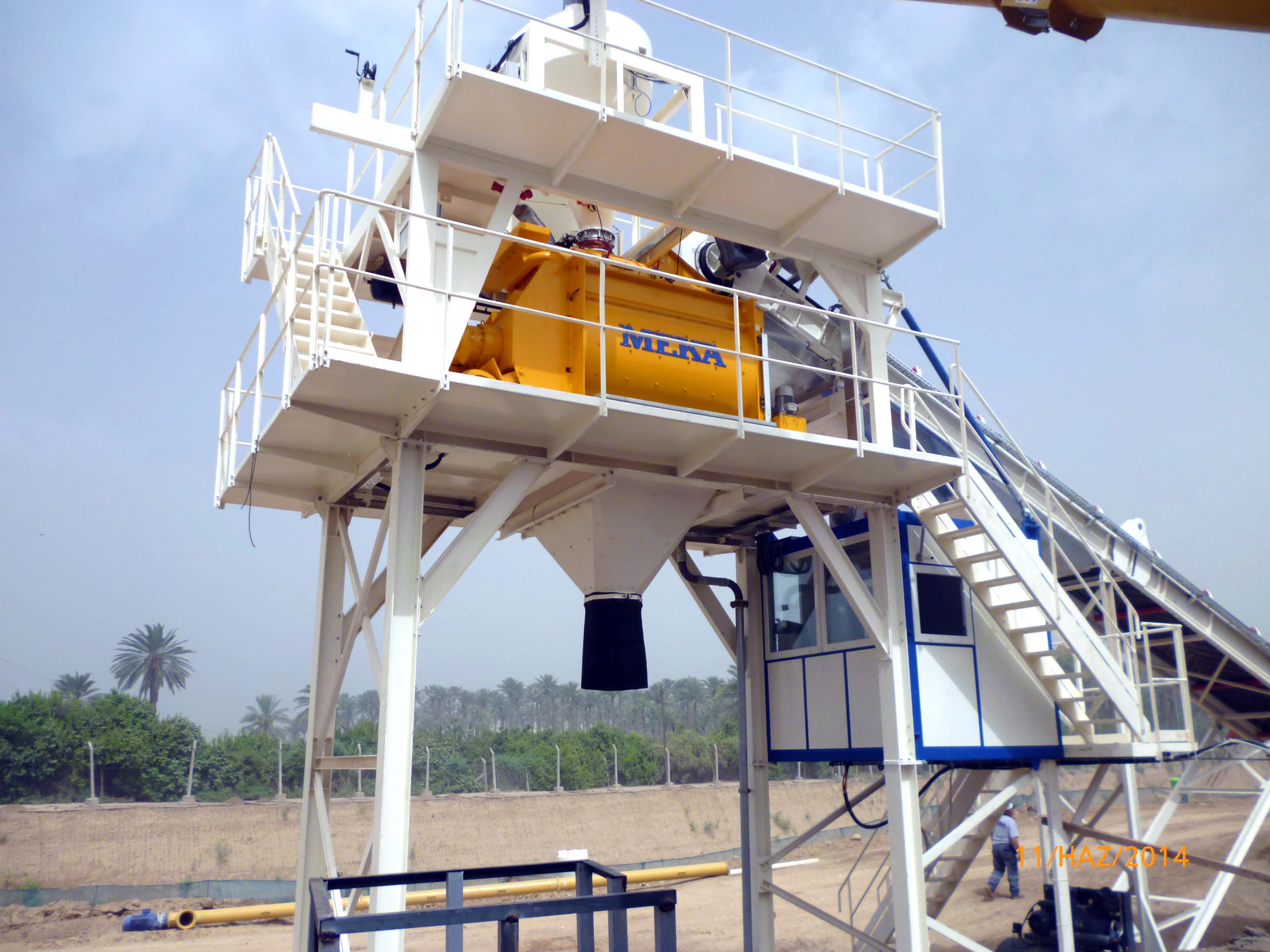

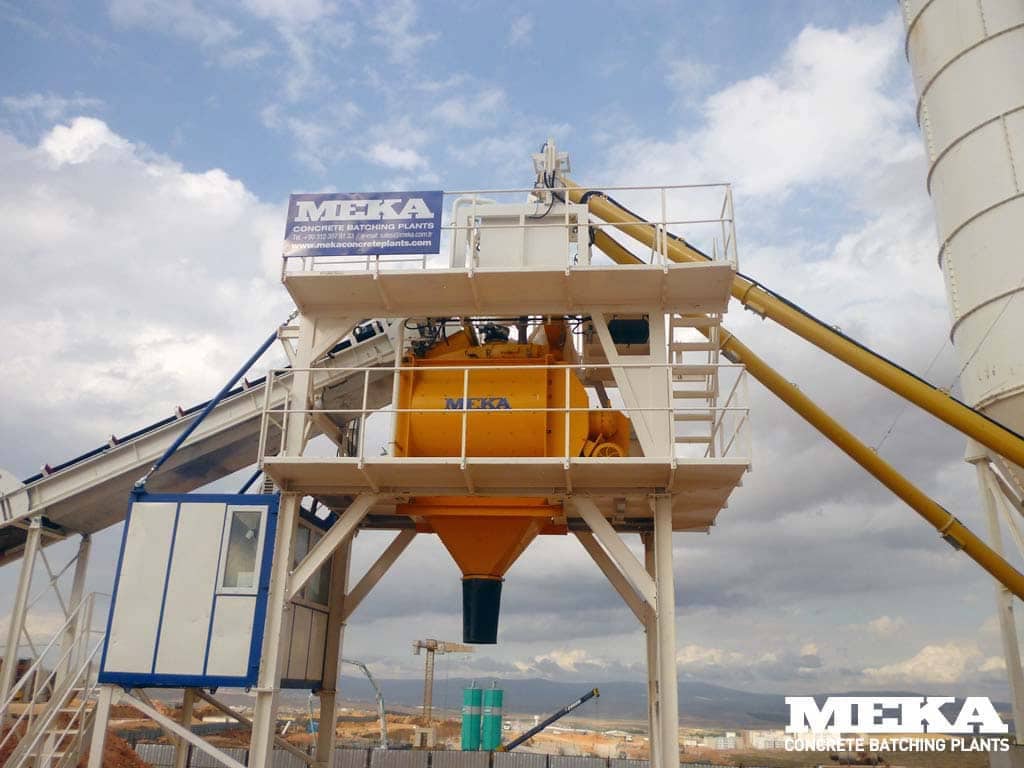

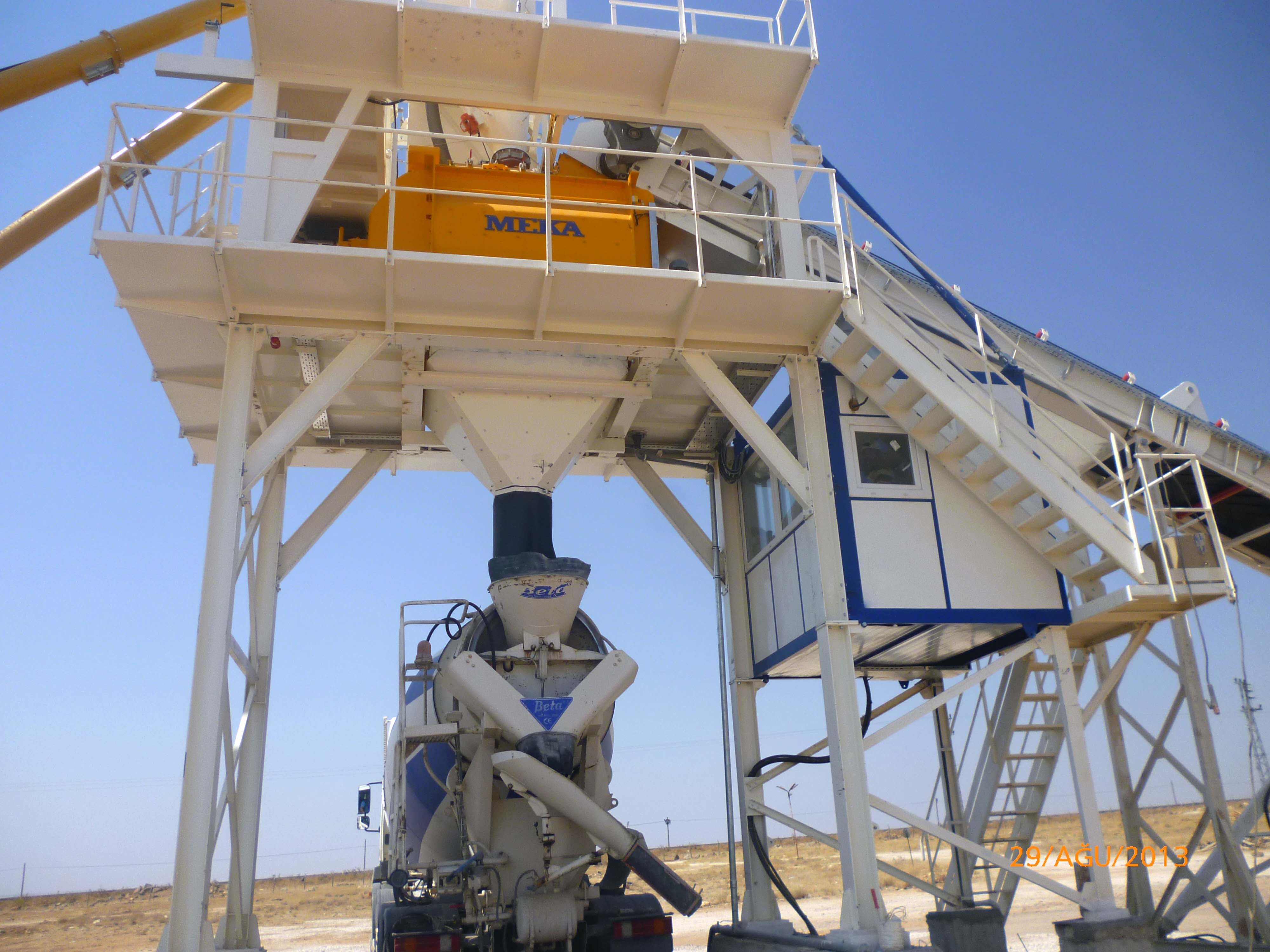

'Control cabin is attached to the main chassis for transport and all the cables are already connected to the power panel which reduces the electrical work on site. The cabin can be both placed on the chassis or near the main chassis during the installation.

Bin walls have aggregate capture waves which are parallel to the ground. This structure reduces the wear of steel panels as the material is flowing over the aggregates which are kept in the spaces. This technology is used by most advanced manufacturers as it increases the lifetime of equipment.

Each compartment of the aggregate bin of MB-C100 concrete plant is equipped with two independent pneumatically controlled discharge gates. This ensures fast aggregate load onto the weighing belt when both gates are opened and precise dosing/jogging with single gate for maximum accuracy.

Low profile aggregate bin and modular main chassis equipped with special steel structures require minimum foundation and reduce the first investment costs. Optional steel foundation frames are available upon request to provide the installation on the flat surface with the help of chemical anchorage.

Almost no cable work is required on site since all the equipment is pre-wired at MEKA factory to minimize the installation time on site. All the mechanical and electrical parts are tested for any possible faults to ensure the quality and reliability.

We offer only premium parts from global well-known brands with our concrete batch plants. Most of the equipment can easily be found on global markets. This ensures long-term reliable continuous operation with minimum possibilities of break-downs.
