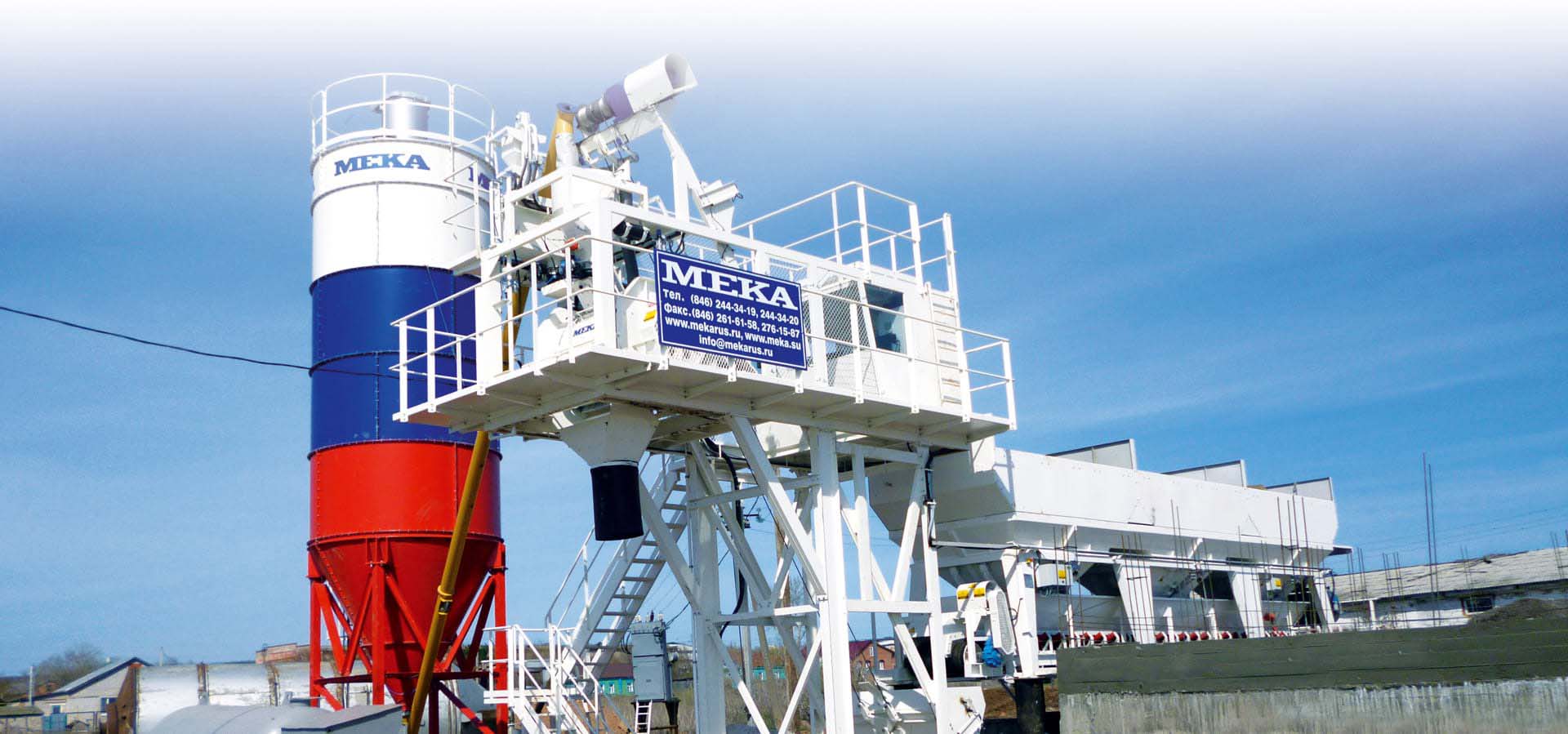

MB-30WS

STATIONARY CONCRETE BATCHING PLANT

MB-30WS

LOW COST AND SMALL FOOTPRINT

MB-30WS

CONFIGURABLE FOR PRECAST APPLICATIONS

MB-30WS: BAJO COSTO Y PEQUEÑA HUELLA

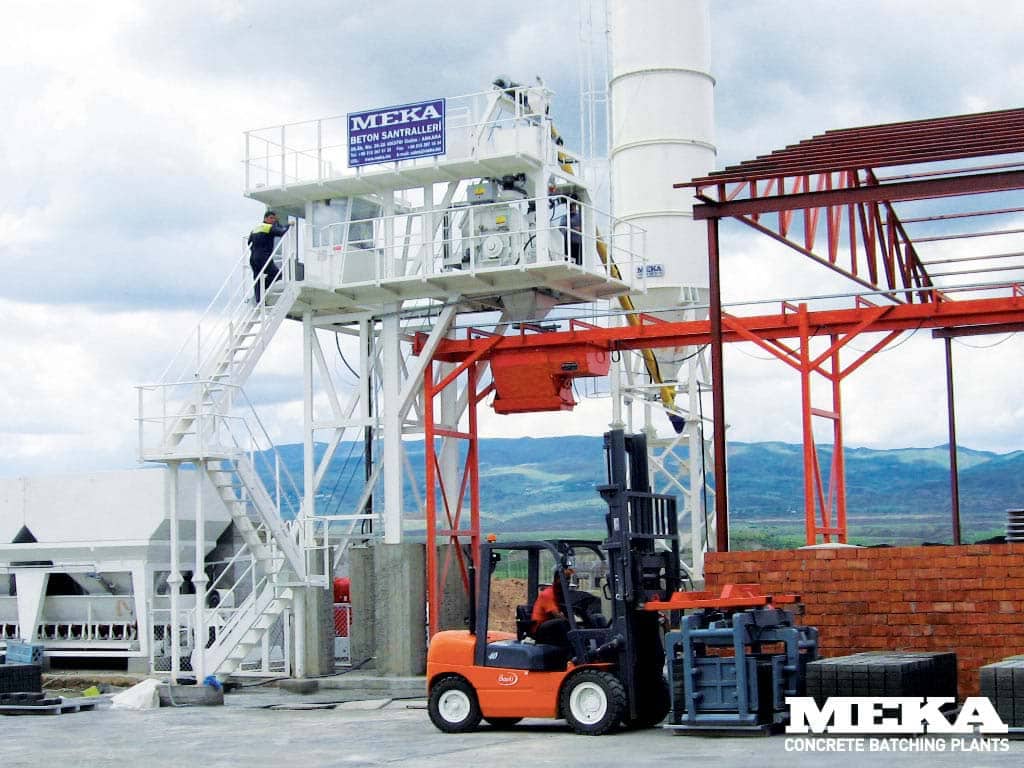

El modelo MB-30WS con la capacidad más pequeña de la gama está diseñado para la máxima eficiencia y confiabilidad para producir todo tipo de concreto de alta calidad para satisfacer requisitos de concreto de bajo a moderado. Este modelo es particularmente bien demandado en aplicaciones de prefabricados y bloques con pequeños moldes en líneas de producción. El MB-30WS cabe en contenedores abiertos de 40FT y es adecuado para el transporte a larga distancia.

MB-30WS HECHOS DESTACADOS

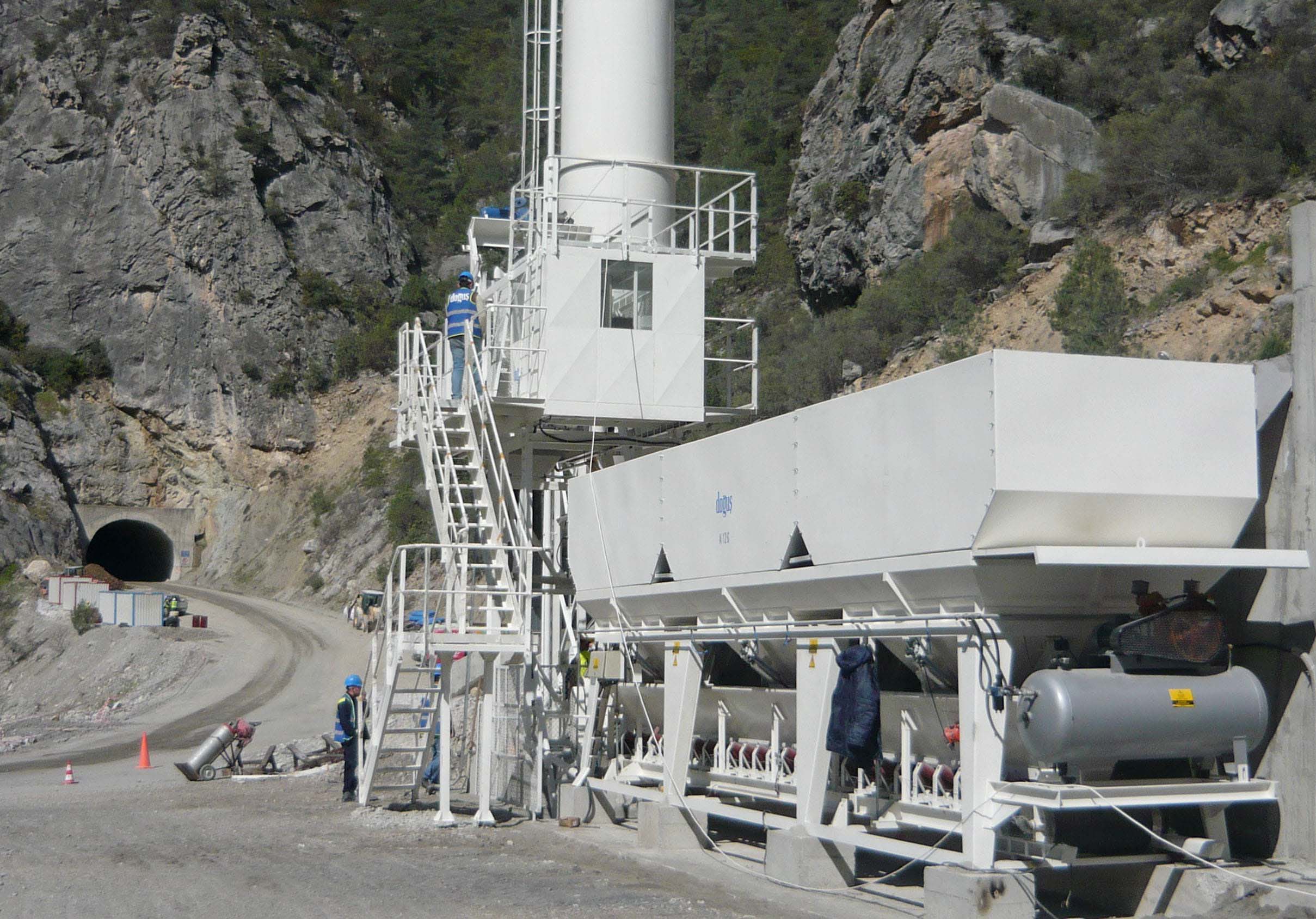

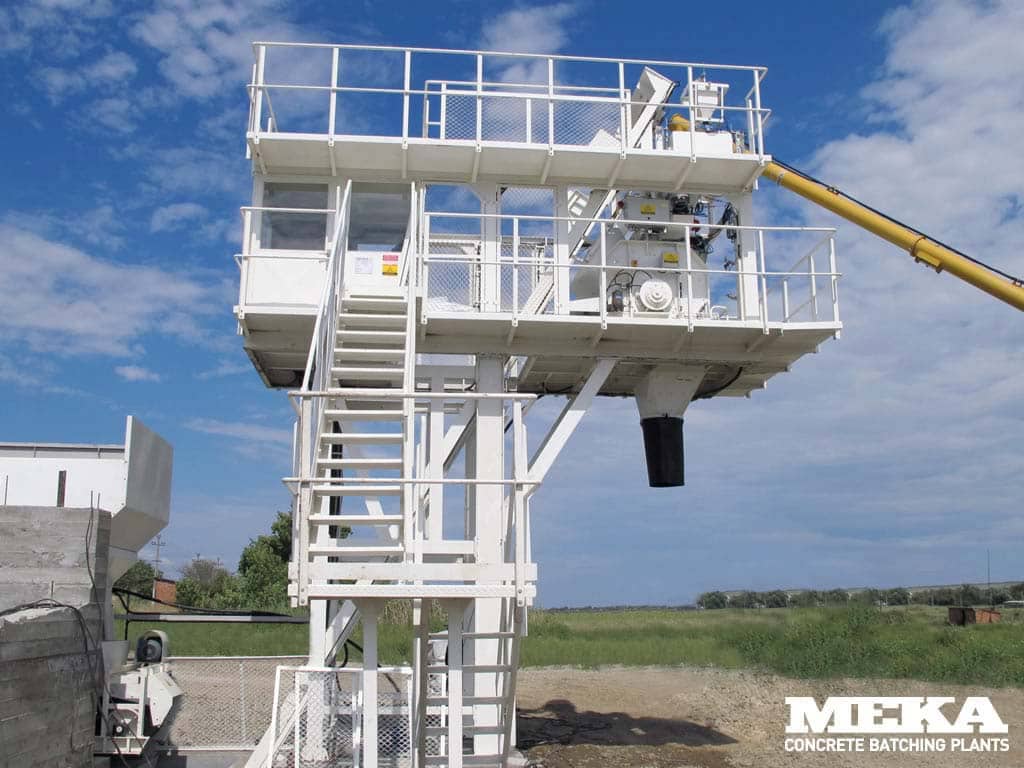

CHASIS ROBUSTO SIN SOPORTES DELANTEROS

El chasis principal de una pieza permite una durabilidad perfecta, transporte fácil, instalación rápida, operación continua de larga duración y pesaje sensible al minimizar las vibraciones en las básculas. La ausencia de soporte frontal permite un amplio ángulo de aproximación del mezclador y una fácil instalación de cubos voladores.

FACILIDAD DE ACCESO Y SERVICIO

El MB-30WS está equipado con plataformas anchas para permitir el acceso fácil y seguro a las partes principales del mezclador y las tolvas de pesaje. Incluye la plataforma superior para el servicio de la báscula y la plataforma de servicio de omisión de motor / caja de cambios.

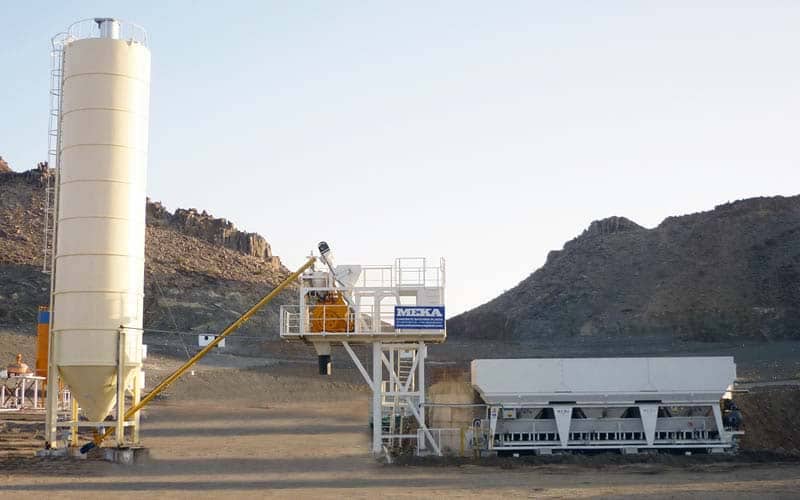

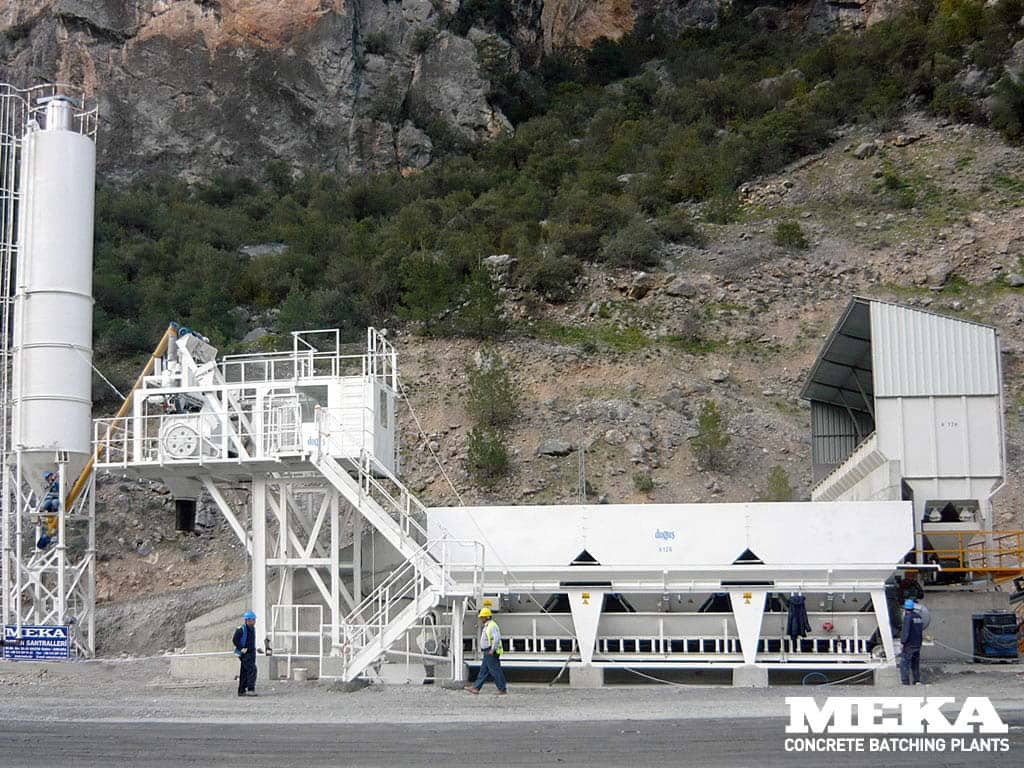

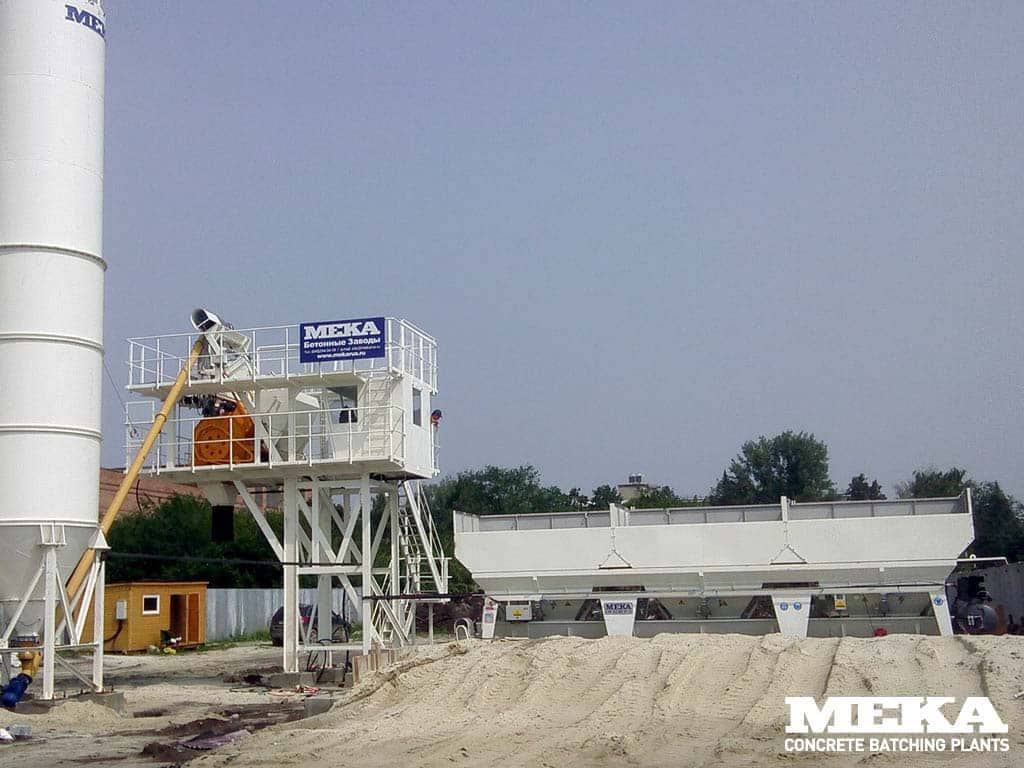

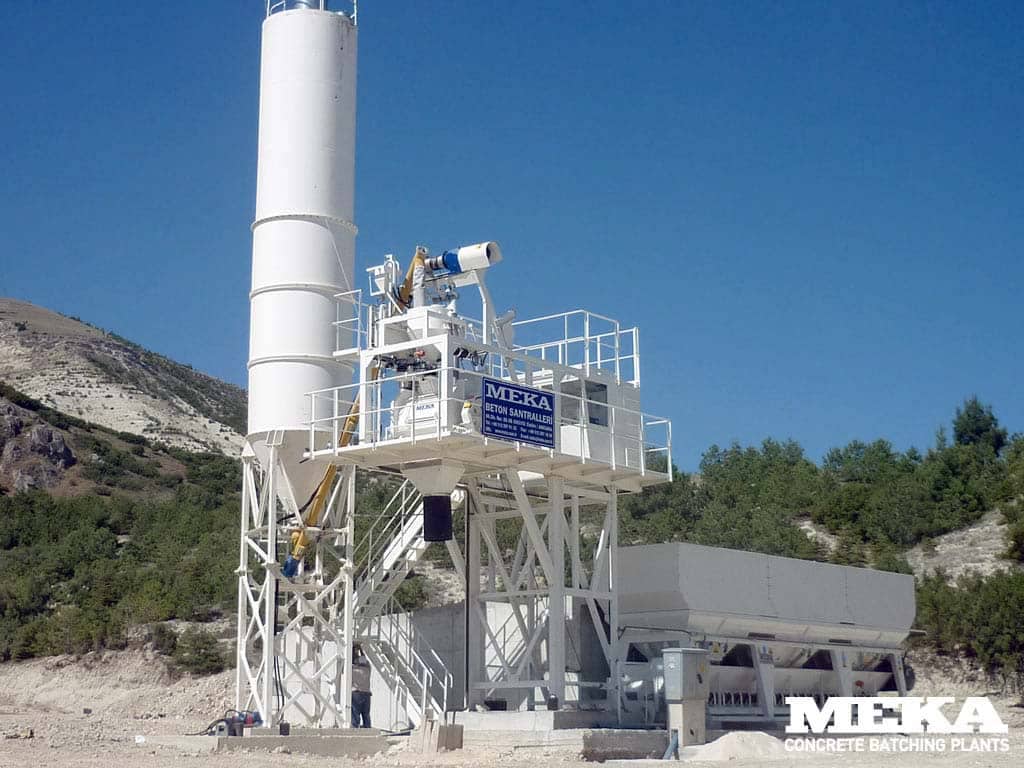

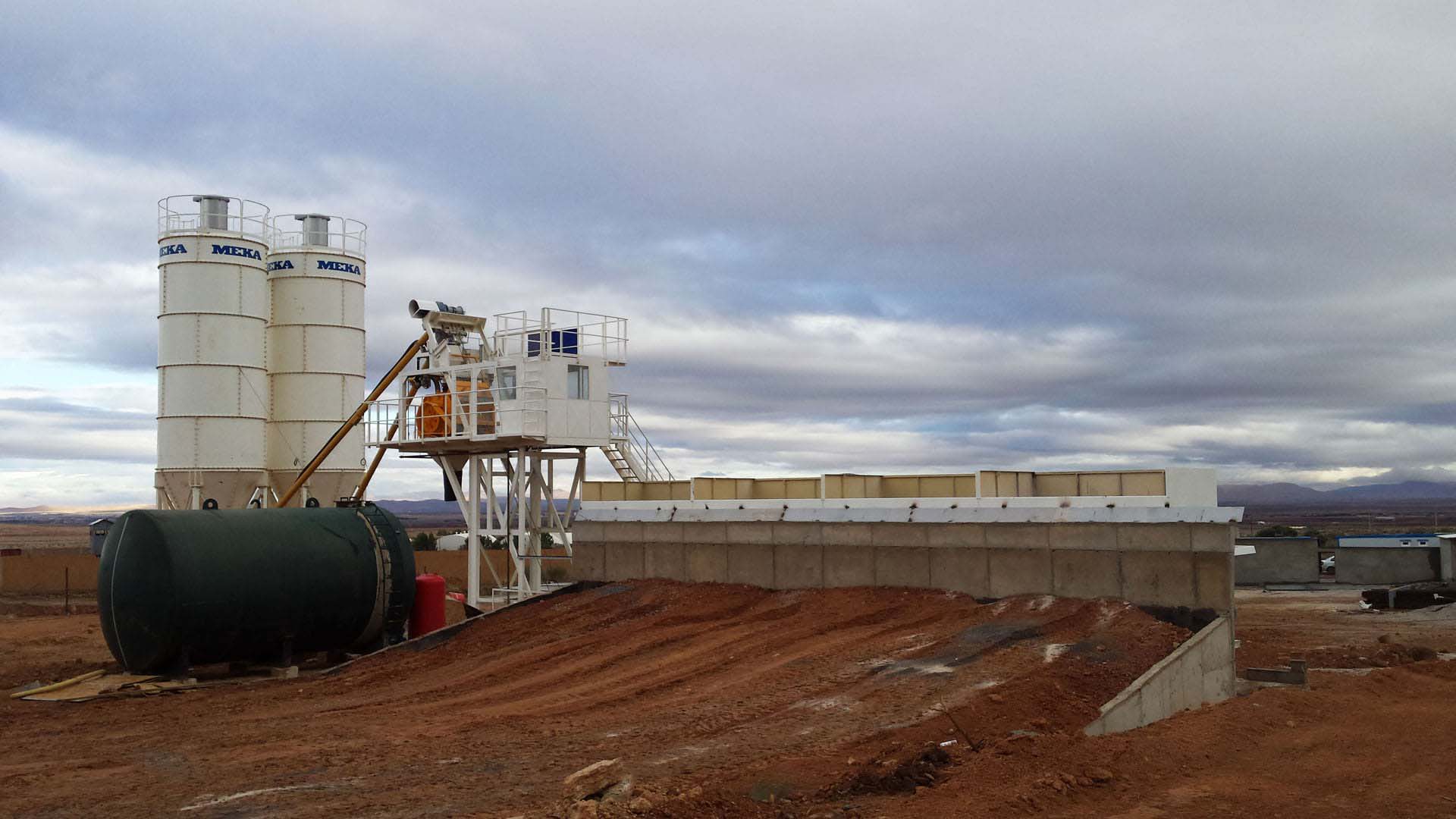

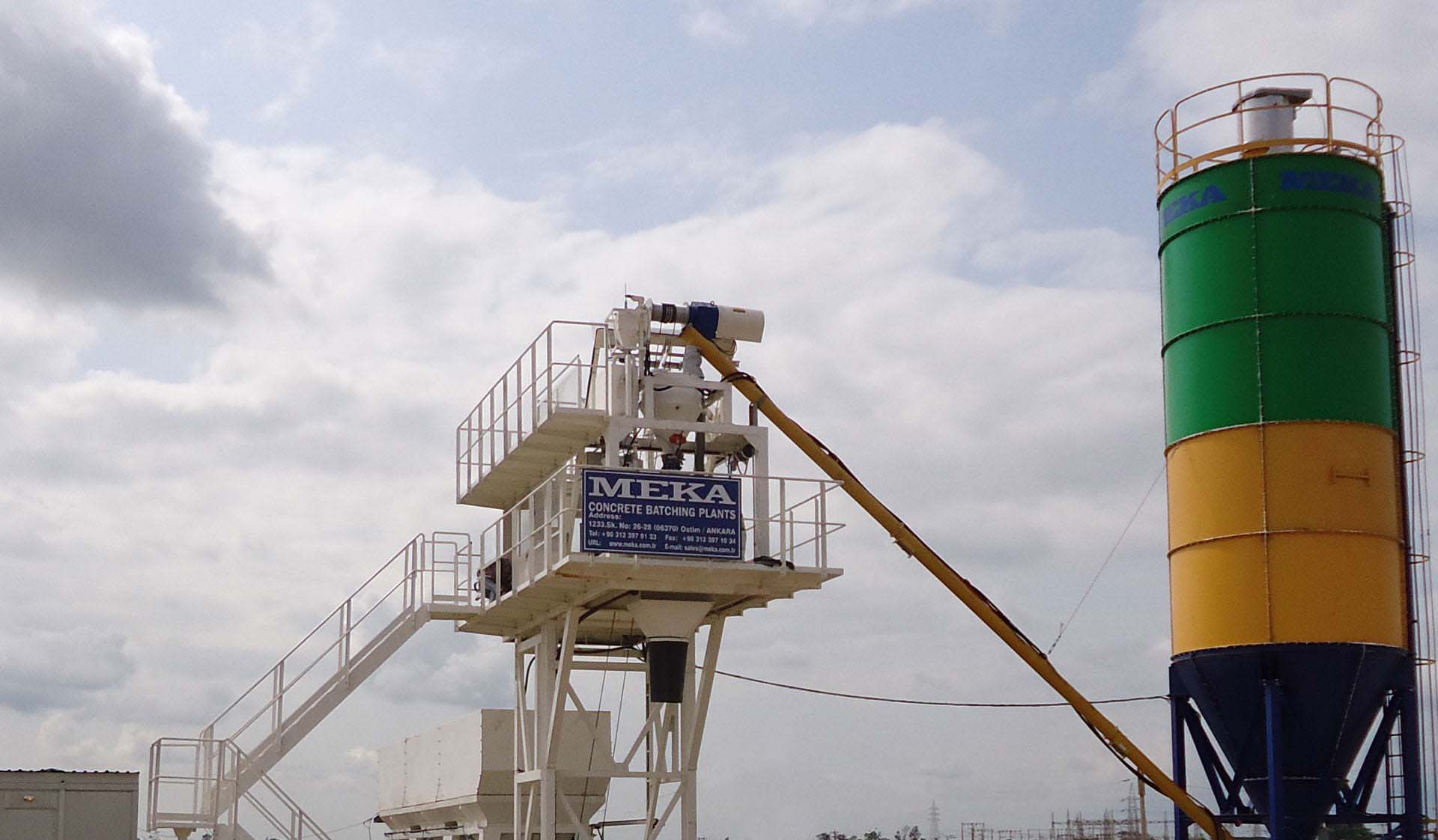

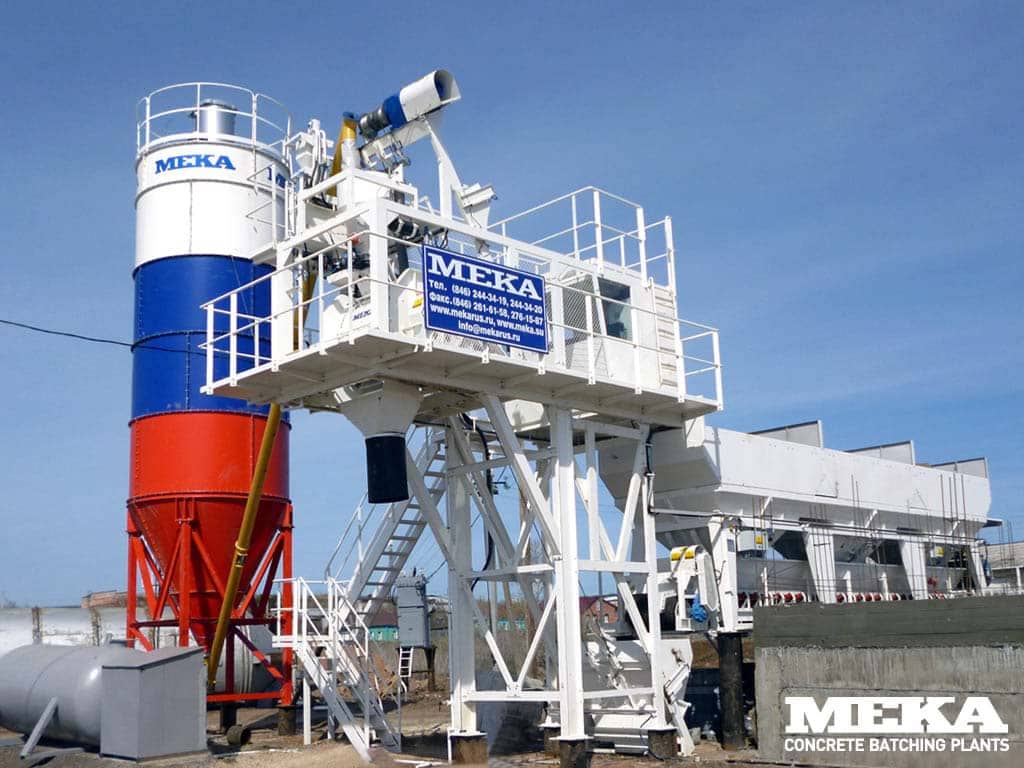

MB-30WS Planta De Dosificación De Concreto Estacionaria
FÁCIL INSTALACIÓN

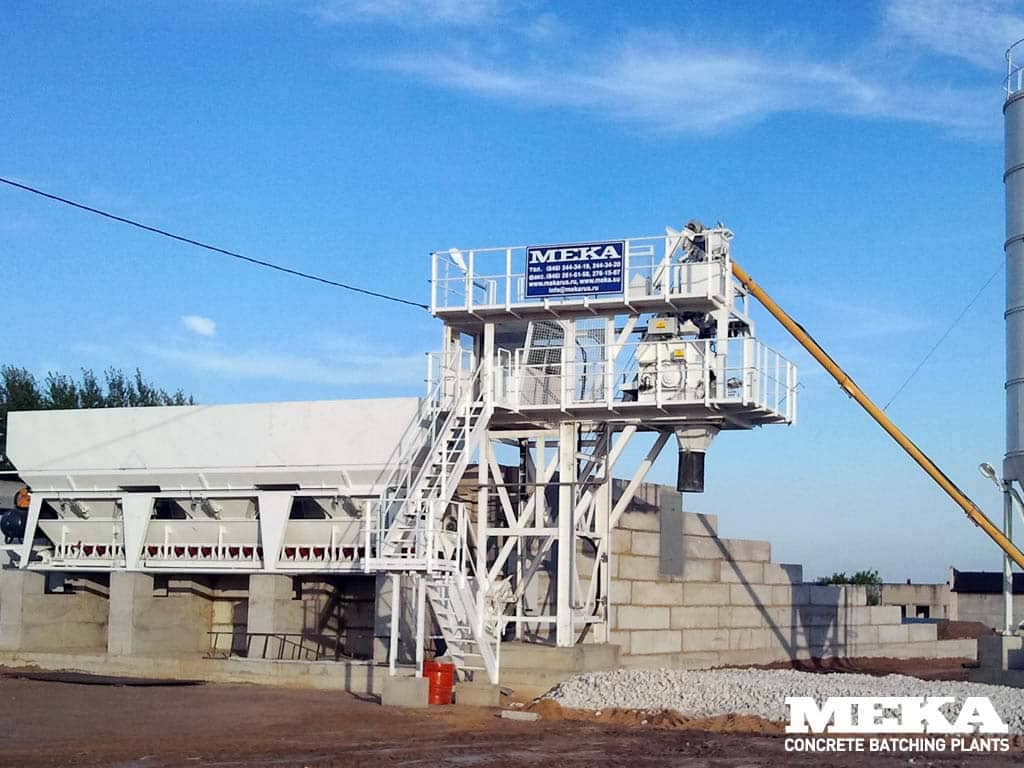

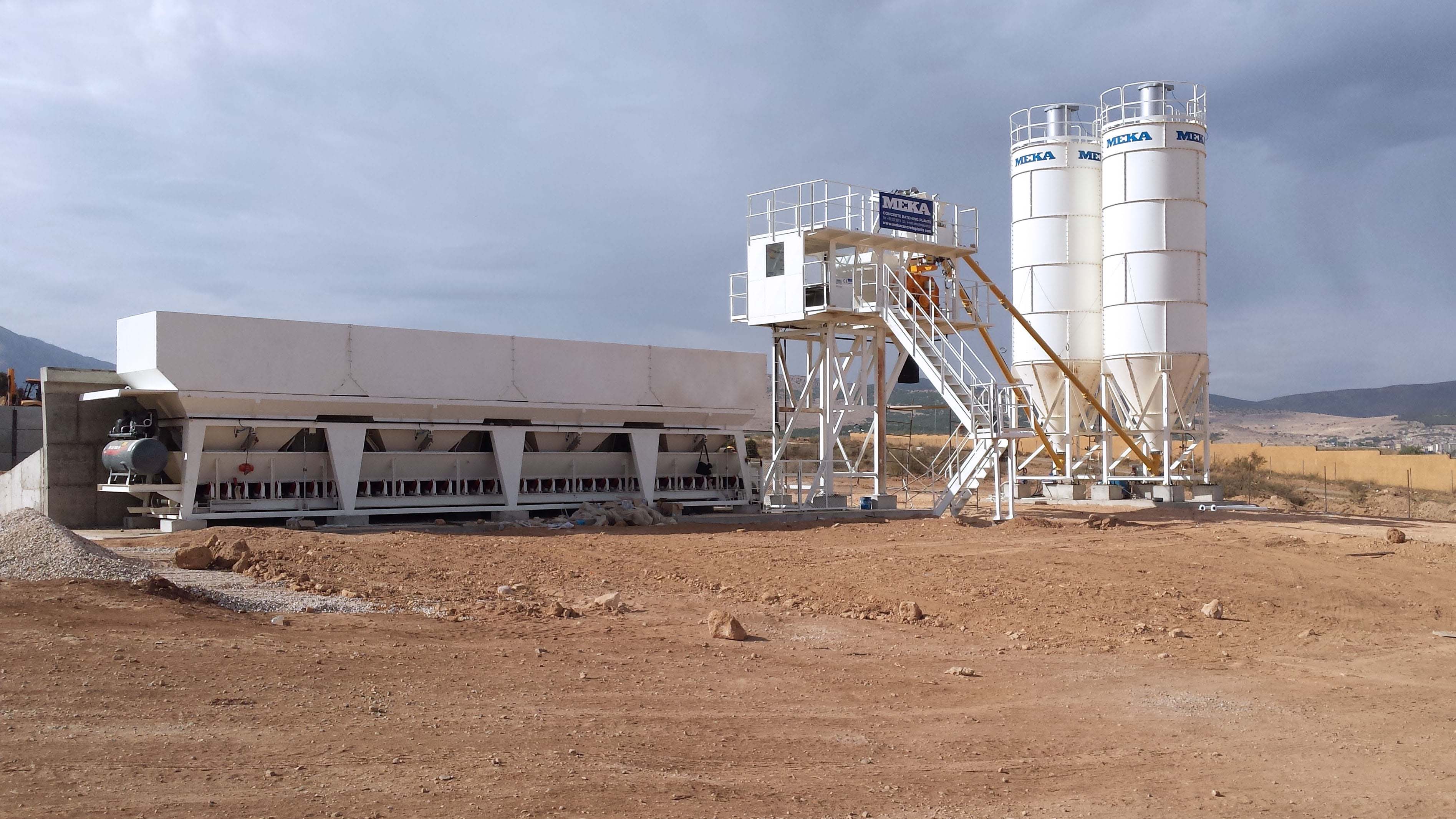

La planta de concreto MB-30WS está diseñada para minimizar el trabajo en el sitio durante la instalación y se conecta y prueba en las instalaciones de fabricación. Consta de dos partes principales, que vienen en bloques individuales: un chasis principal y una bandeja de agregado. Esta estructura facilita las instalaciones reduce los tiempos de instalación.

MB-30WS Planta De Dosificación De Concreto Estacionaria
0,5 m³ MEZCLADOR DE EJE SENCILLO O MEZCLADOR DE EJE PLANETARIO

Lograr la homogeneidad deseada y la trabajabilidad de las mezclas de concreto modernas, dentro del período más breve posible, es a menudo la fase más crítica de la producción de concreto, por lo tanto, es esencial la necesidad de equipos de mezcla confiables y de alta calidad.


Más información

MB-30WS Planta De Dosificación De Concreto Estacionaria

DISTINGUISHING FEATURES

Wide Main Chassis

Service platforms on the main chassis are of the biggest on the market. Control cabin is installed on the chassis allowing the operator to react to different faults immediately.

High Weighing Accuracy

Heavy Main Chassis: Heavy main chassis minimizes the vibrations occurring during normal operation coming from the loading process, belt operation and mixing. Less vibration not only increases the accuracy but also increases the weighing speed which contributes to overall capacity.

Separate Weighing Hoppers: On all MEKA concrete mixing plants weighing hoppers for cement, water, additives and other materials are separated from the mixer frame and are installed on a separate chassis to minimize vibrations. Installing these directly on the mixer frame transfers the vibrations coming from the mixer to the scales. It affects the weighing process which becomes less accurate and requires more time to finish. Both accuracy and speed are negatively affected.

Multi-Loadcell Design: Cement and water scales are equipped with 2 loadcells to optimize the load distribution and to maximize the accuracy. On the other hand, cardan connections allow free movement and prevent the loadcell and other connection from breakdowns. MEKA never installs weighing hoppers on mixers.

Wide Mixer Truck Acess

The design of the MB-30WS concrete plant eliminates the need for front supporting legs. It provides a wide angle for mixer truck access which reduces the time for mixer truck movements.

Double Rope Skip Hoist System

All MEKA skip hoist systems are designed with two separated ropes and a flexible connection to the skip. This application increases the lifetime of the ropes, reduces the risks of failures and allows extra safety for working personnel.

Skip Hoist Safety System

All MEKA skip hoist systems are equipped with rope tension control mechanisms. The switch triggers an alarm if the rope is not tense enough or one of the ropes fails. This mechanism prevents skip fall and allows safer overall operation.

Independent Aggregate Discharge Gates

Each compartment of the aggregate bin of MB-30WS concrete plant is equipped with two pneumatically controlled discharge gates. This ensures fast aggregate load onto the weighing belt and precise dosing/jogging for maximum accuracy.

Completely Pre-Wired And Tested At The Factory

Almost no cable work is required on site since all the equipment is pre-wired at MEKA factory to minimize the installation time on site. All the mechanical and electrical parts are tested for any possible faults to ensure the quality and reliability.

High Quality Components

We offer only premium parts from global well-known brands with our concrete batch plants. Most of the equipment can easily be found on global markets. This ensures long-term reliable continuous operation with minimum possibilities of break-downs.

OPCIONES OPERATIVAS

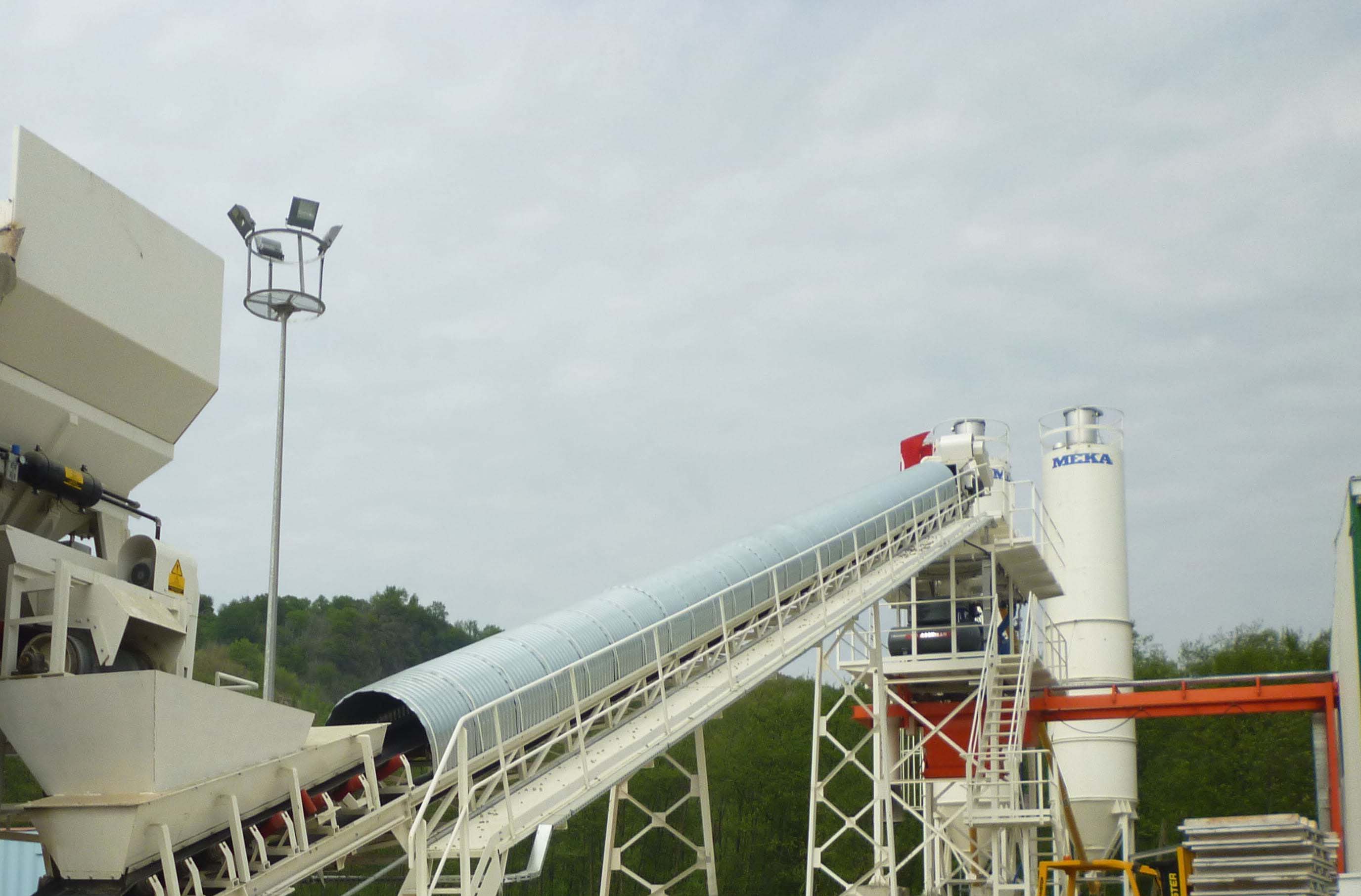

Radial Or Shuttle Conveyor Aggregate Feeding System

In order to reduce the cost for building a one-side feeding ramp we have developed aggregate feeding systems which allow easy aggregate feeding without any extra costs for foundation or ramp.

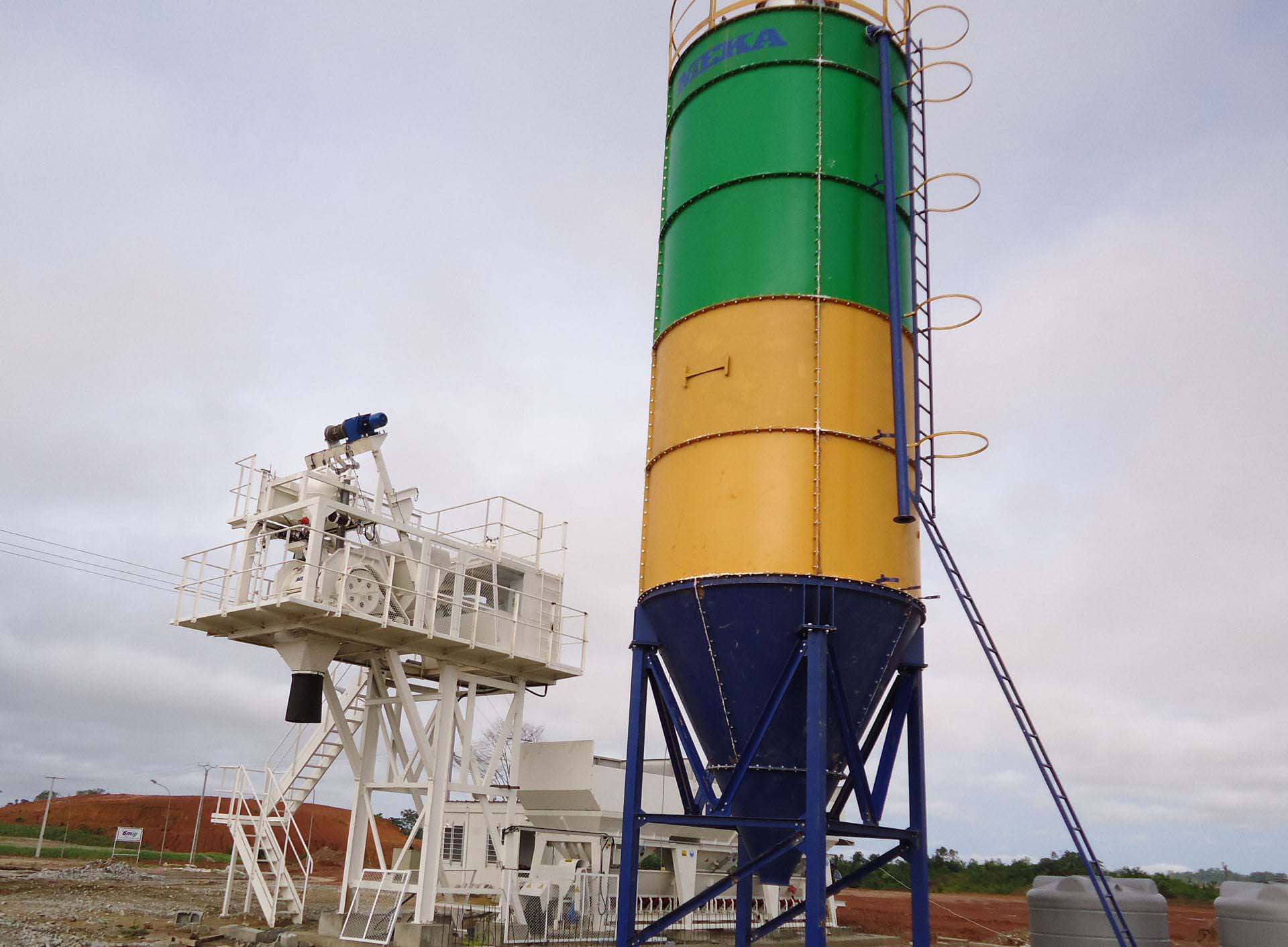

Mobile Steel Foundation For Cement Silos

Mobile steel foundations allow installation of cement silos on flat ground without any concrete slab or column foundation required. This allows even faster installation and reduces the operational costs as the foundation can be transported together with the plant.

Optional Steel Ramp Wall

Optional steel ramp wall allows easy operation without expensive concrete ramp construction. The ramp is designed as a heavy structure and is capable of carrying sustainable load for a long period of time. This option eliminates the construction of a concrete ramp wall for the aggregate bin. It is very useful and cost saving when the plant is moved from time to time.

Options For Different Climatic Conditions

Cooling Options (Chiller) Chillers: MEKA offers a range of chiller systems to be used with concrete batching plants. Check the chillers product page for more information. Ice Weighing Hoppers: MEKA offers ice weighing hoppers for implementation of ice during concrete production in extra hot conditions. Ice Screw Conveyors: MEKA offers ice screw conveyor for implementation of ice during concrete production in extra hot conditions

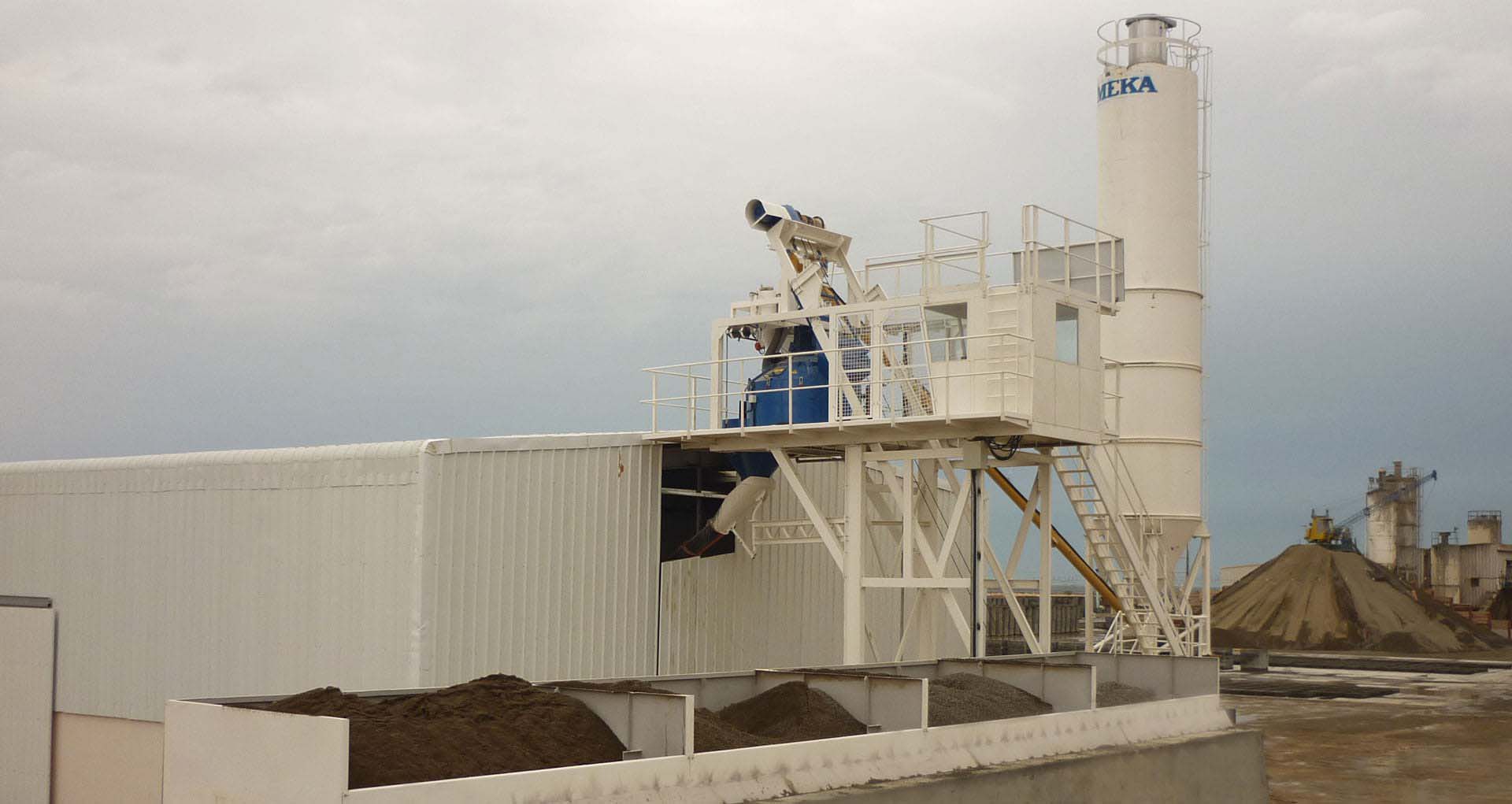

Heating Options Cladding: MEKA offers sandwich panel or steel sheet cladding options. Steam Generators: Steam generators start to provide steam in short period of time comparing to steam boilers. Different types of fuel are available. Steam/Hot Water Suppliers Más información

Mejore las capacidades y características de su planta de Concreto de Lote MEKA

Pesaje / Dosificación adicional

Medición y Monitoreo

Opciones operacionales

Características adicionales de salud y seguridad

Más información

MB-30WS ESPECIFICACIONES TÉCNICAS

MB-30WS

MB-60W/WS

MB-100W/WS

MB-K110

MB-135W

MB-K140

MB-200W

Salida de hormigón compactado (mezcla de 30 y 20 segundos) 30 m³/h 39 yrd³/h 60-72 m³/h 78-94 yrd³/h 96-110 m³/h 125-143 yrd³/h 105-117 m³/h 136-152 yrd³/h 136-153 m³/h 177-200 yrd³/h 136-153 m³/h 176-198 yrd³/h 200 m³/h 260 yrd³/h
Capacidad del Mezclador (Concreto Compactado) 0.5 m³ 0,65 yrd³ 1,0 m³ 1.3 yrd³ 2,0 m³ 2.6 yrd³ 2,25 m³ 2.9 yrd³ 3,33 m³ 4.33 yrd³ 3,33 m³ 4.3 yrd³ 5,0 m³ 7,6 yrd³
MEZCLADOR TIPO Single Shaft / Planetary Single Shaft / Planetary Single Shaft/Twin Shaft/Planetary Single Shaft/Twin Shaft/Planetary Single Shaft/Twin Shaft/Planetary Single Shaft/Twin Shaft/Planetary Twin Shaft Twin Shaft Twin Shaft Twin Shaft Twin Shaft Twin Shaft Twin Shaft Twin Shaft
Potencia del motor del mezclador 18,5 kW 25 Hp 37 kW 50 Hp 2x37 kW 2x10 Hp 2x37 kW 2x50 Hp 2x55 kW 2x75 Hp 2x55 kW 2x75 Hp 2x90 kW 2x120 Hp
Contenedores agregados 2-6x20-50 m³ 2-6x26-65 yrd³ 2-6x20-50 m³ 2-6x26-65 yrd³ 3-6x20-50 m³ 2-6x26-65 yrd³ 3-6x20-50 m³ 2-6x26-65 yrd³ 4-8x20-75 m³ 4-8x26-97 yrd³ 4-8x20-75 m³ 2-6x26-65 yrd³ 4-8x20-75 m³ 4-8x26-97 yrd³
Agregado de alimentación Ramp or Pre-Feeding System Ramp or Pre-Feeding System Ramp or Pre-Feeding System Ramp or Pre-Feeding System Ramp or Pre-Feeding System Ramp or Pre-Feeding System Ramp or Pre-Feeding System Ramp or Pre-Feeding System Ramp or Pre-Feeding System Ramp or Pre-Feeding System Ramp or Pre-Feeding System Ramp or Pre-Feeding System Ramp or Pre-Feeding System Ramp or Pre-Feeding System
Transferencia agregada Skip/Belt Skip/Belt Skip/Belt Skip/Belt Skip/Belt Skip/Belt Belt Belt Belt Belt Belt Belt Belt Belt
Compresor de aire incluido, pistón o tipo de tornillo 5,5 kW 7,5 Hp 5,5 kW 7,5 Hp 7,5 kW 10 Hp 7,5 kW 10 Hp 7,5 kW 10 Hp 7,5 kW 10 Hp 7,5 kW 10 Hp
Tolva de pesaje de cemento 300 kg 660 lbs 600 kg 1,320 lbs 1,100 kg 2,205 lbs 1.100 kg 2,440 lbs 1.750 kg 3,855 lbs 1.750 kg 3,855 lbs 2,500 kg 5,510 lbs
Tolva de pesaje de agua 160 kg 350 lbs 250 kg 550 lbs 700 kg 1,540 lbs 700 kg 1,550 lbs 1.000 kg 2,205 lbs 1.000 kg 2,205 lbs 1.200 kg 2,645 lbs
Tolva de pesaje aditiva
Up to 6 pumps per hopper
1-2 x 20-40 kg 1-2 x 22-44 lbs 1-2 x 20-40 kg 1-2 x 22-44 lbs 1-4 x 20-60 kg 1-4 x 22-66 lbs 1-4 x 20-60 kg 1-4 x 44-132 lbs 1-4 x 20-60 kg 1-4 x 44-132 lbs 1-4 x 20-60 kg 1-4 x 44-132 lbs 1-4 x 20-60 kg 1-4 x 44-132 lbs
Transportador de tornillo de cemento 1-4 pcs D=193mm 1-4 pcs D=7.6” 1-4 pcs D=219mm 1-4 pcs D=8.6” 1-8 pcs D=273mm 1-4 pcs D=10.7” 1-8 pcs D=273mm 1-4 pcs D=10.7” 1-8 pcs D=273mm 1-4 pcs D=10.7” 1-8 pcs D=273mm 1-4 pcs D=10.7” 1-8 pcs D=323mm 1-4 pcs D=12.7”
